Gretsch G6609TG Players Edition Broadkaster Center Block Double-Cut Gold Hardware Cadillac Green Specs

The G6609TG Players Edition Broadkaster Center Block Double-Cut with String-Thru Bigsby and Gold Hardware USA Full'Tron Pickups Cadillac Green is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401900846.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Gotoh Locking Tuning Machines
Full'Tron Bridge Pickup
N/A Middle Pickup
Full'Tron Neck Pickup

Product Identifiers

Model Name	G6609TG Players Edition Broadkaster Center Block Double-Cut with String-Thru Bigsby and Gold Hardware
Part Number	2401900846
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978759019

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Broadkaster
Body Binding	Aged White
Body Finish	Gloss
Bracing	Center Block
Upper Bout Width	11.5" (292 mm)
Lower Bout Width	16" (40.6 cm)
Waist	9.5" (241mm)

Hardware

Bridge	Anchored Adjusto-Matic
Tuning Machines	Gotoh Locking
Pickguard	Tortoise with Gold Gretsch Logo
Control Knobs	Arrow
Bridge Cover / Tailpiece	Bigsby B7GP String-Thru
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech TUSQ XL
Neck Shape	Standard "U"
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	Full'Tron
Middle Pickup	N/A
Neck Pickup	Full'Tron
Pickup Configuration	Full'Tron / Full'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Special Electronics	N/A

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included G6267 Gretsch 16" Thin Hollowbody Hardshell (p/n 099-6443-000); Optional G2162 Gretsch Hollow Body Gig Bag (p/n 099-6458-000)
Included Accessories	Includes G6267 Deluxe Hardshell Case
Recommended Case	Includes G6267 Deluxe Hardshell Case

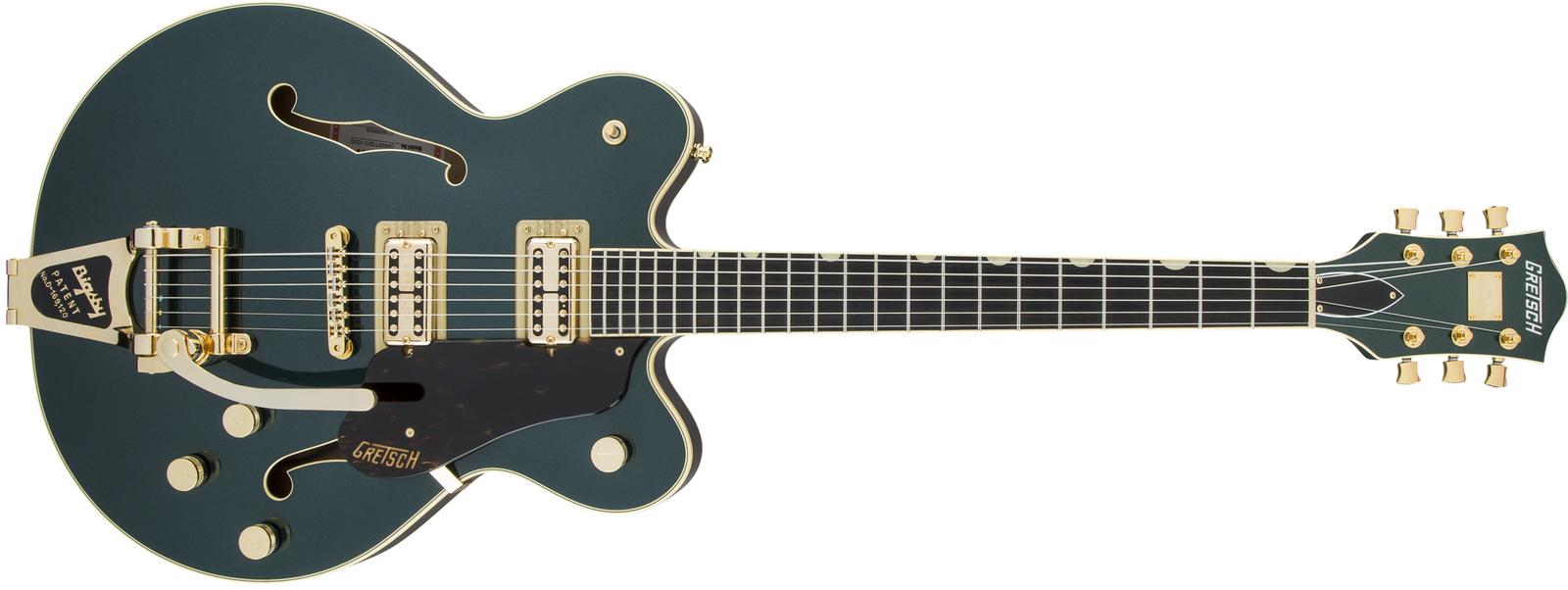

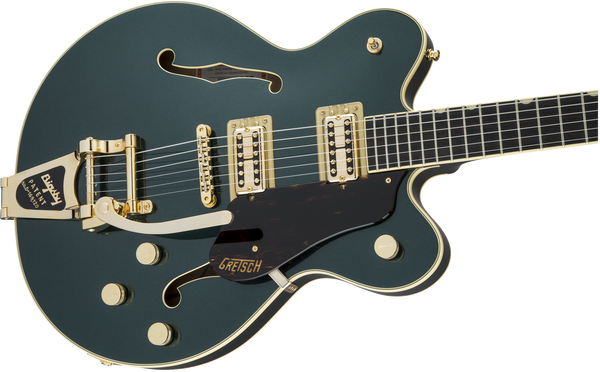

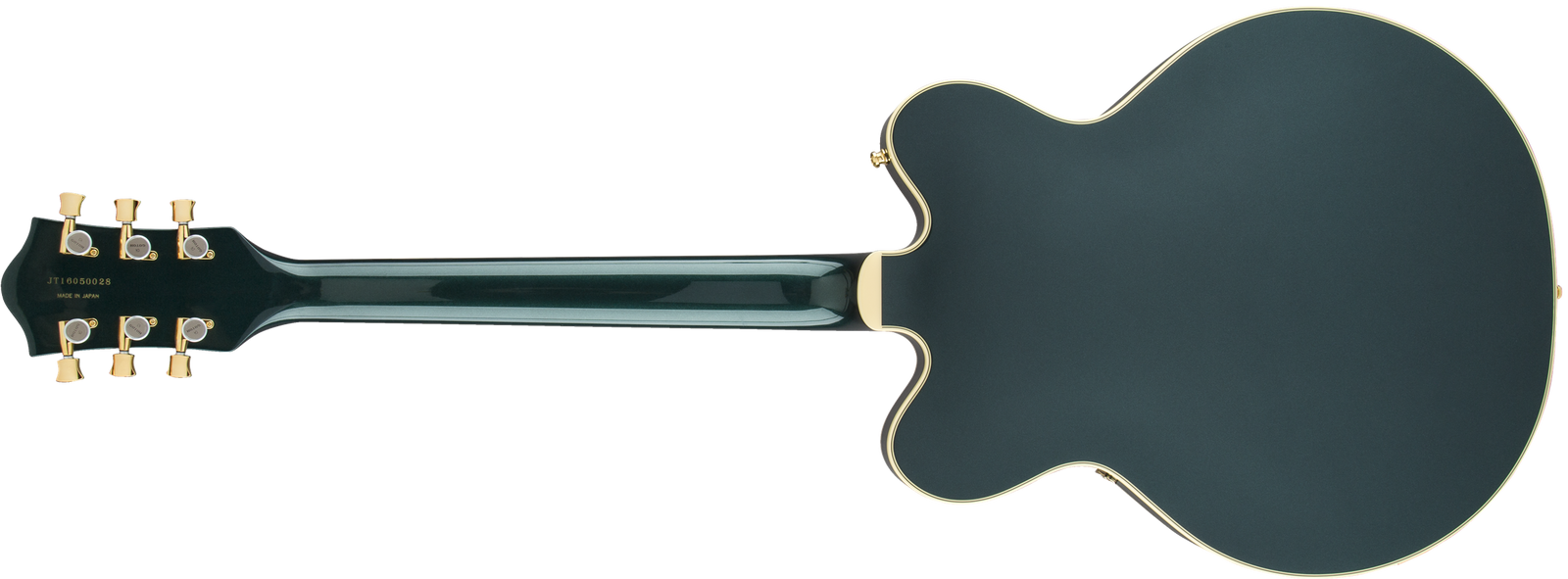

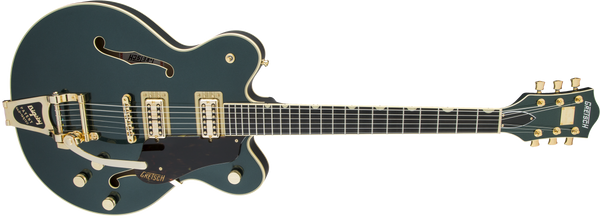

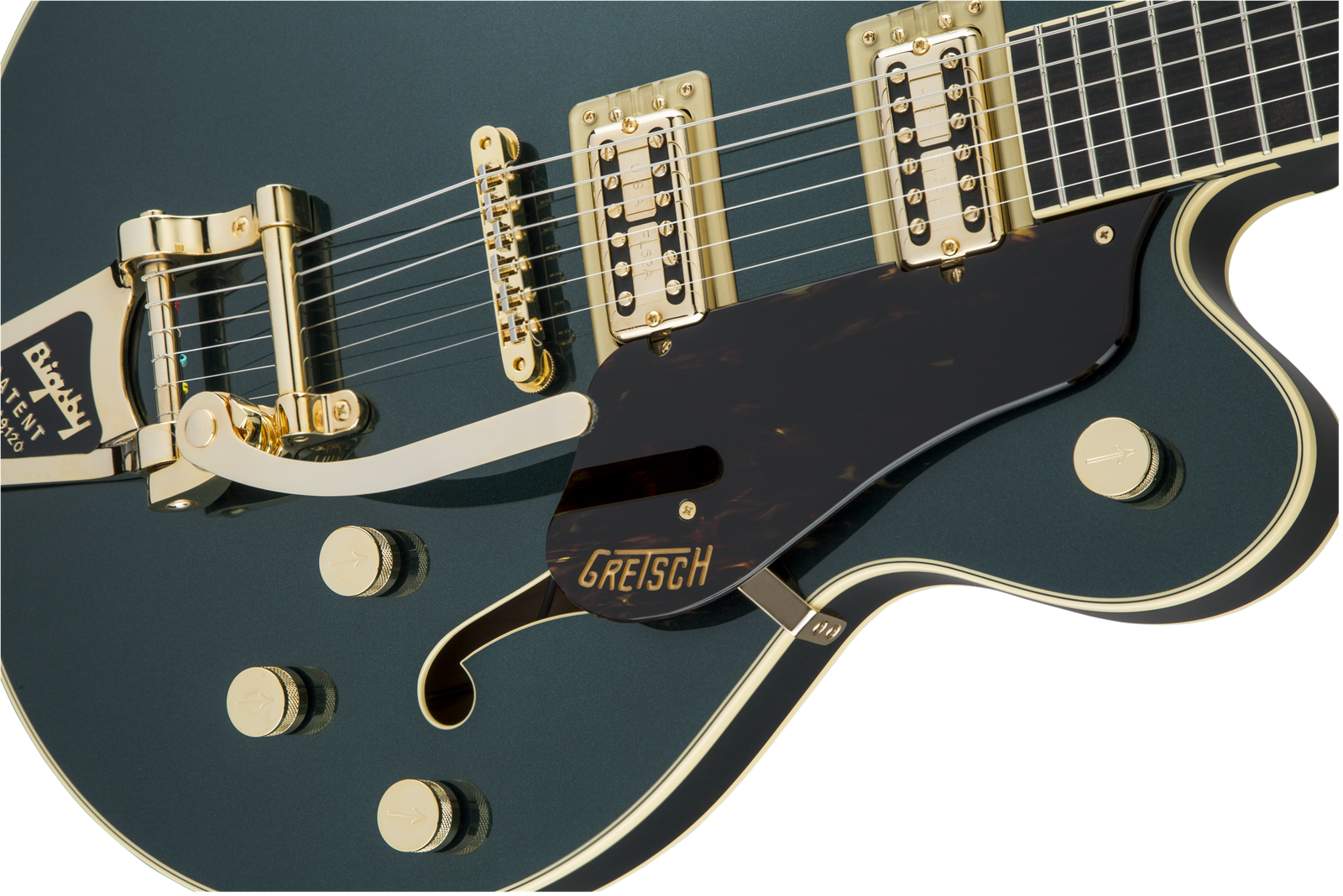

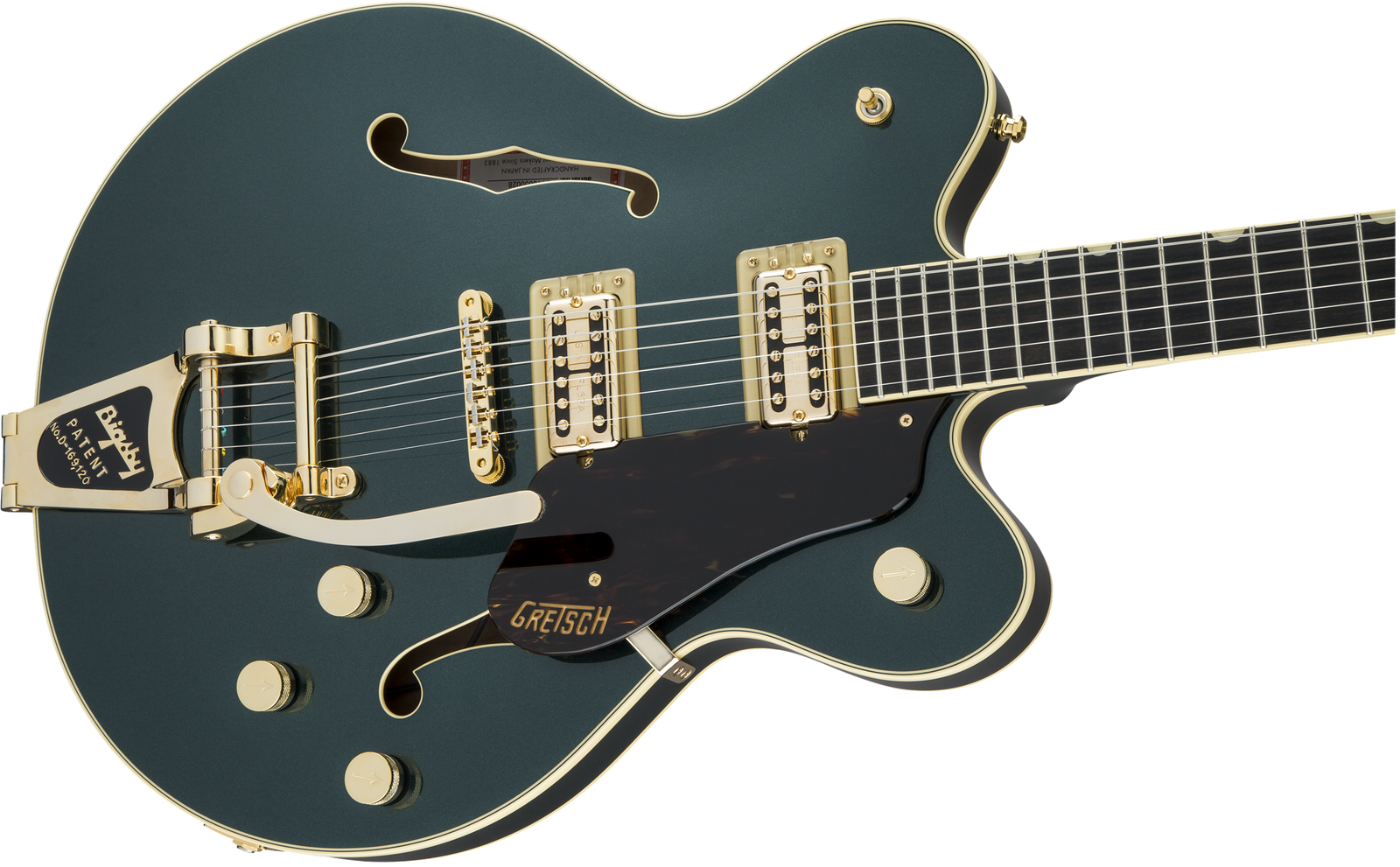

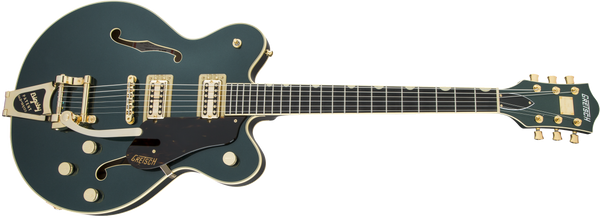

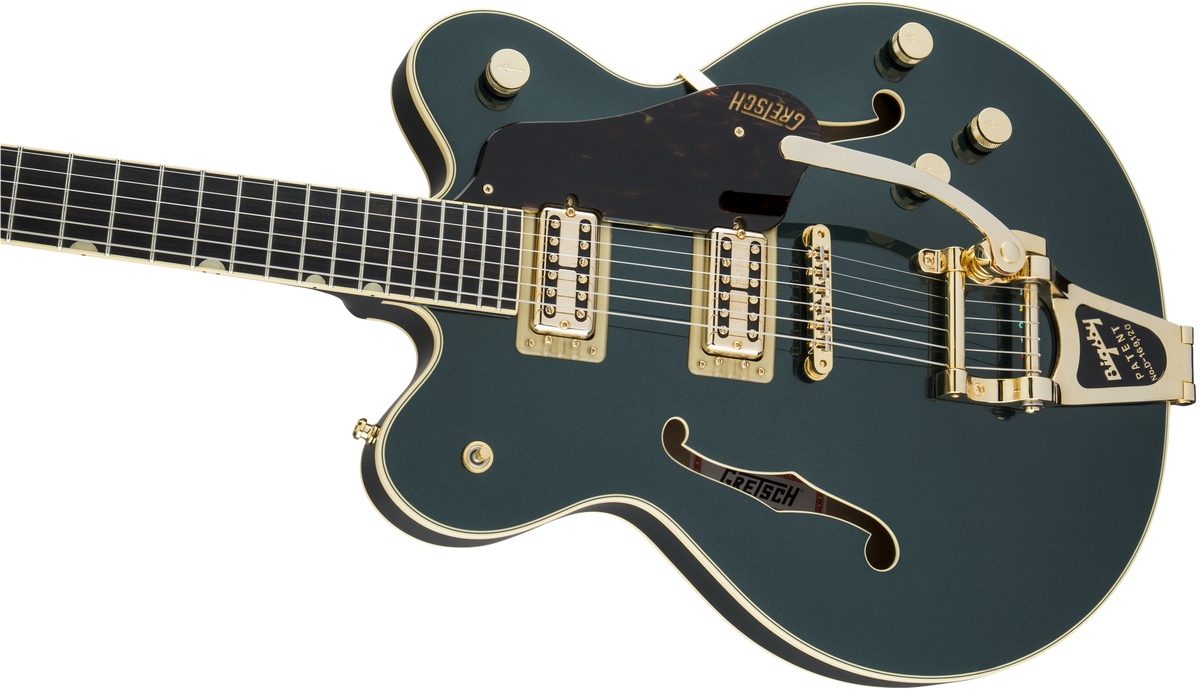

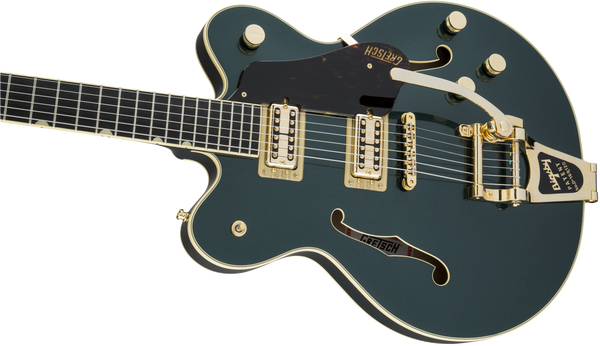

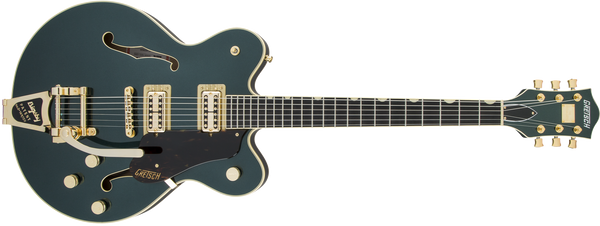

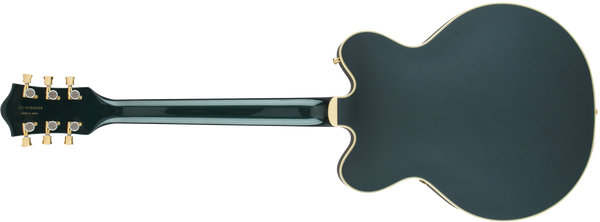

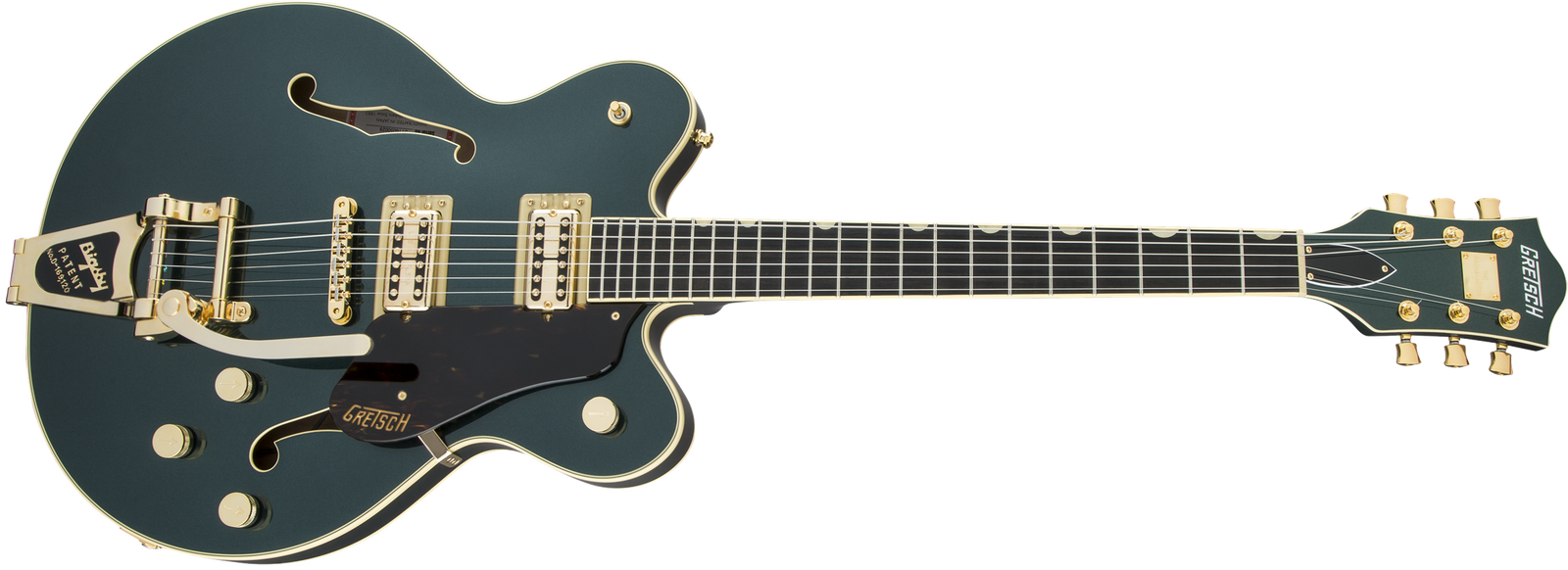

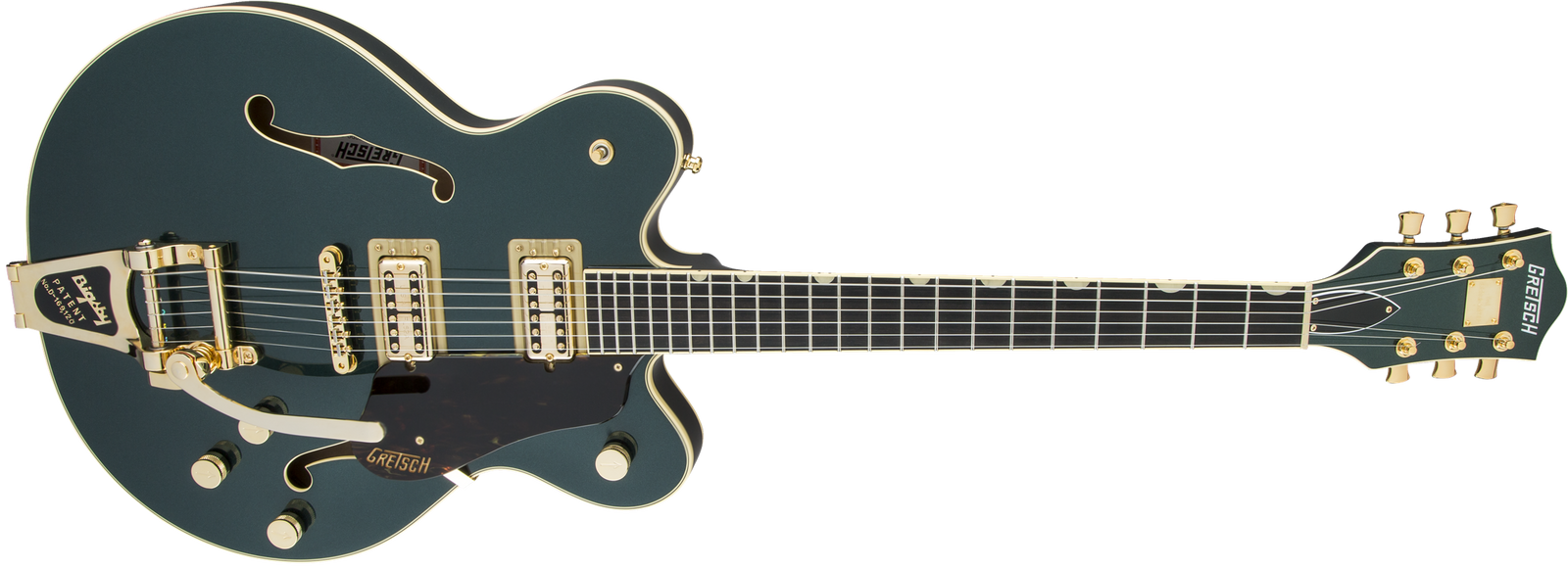

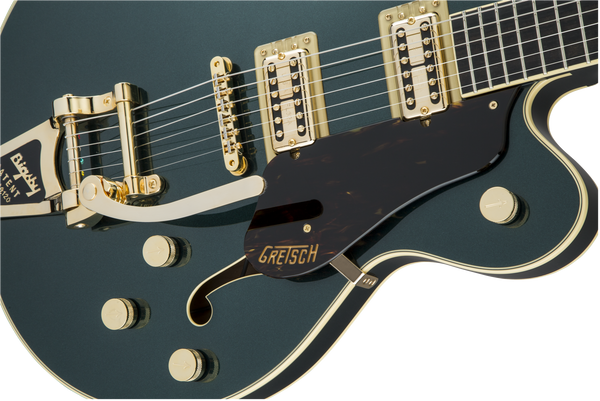

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6609TG Players Edition Broadkaster Center Block Double-Cut with String-Thru Bigsby and Gold Hardware USA Full'Tron Pickups Cadillac Green listed above. For larger pics, click on an image to open in a new tab.
