Gretsch G6120TFM-BSNV Brian Setzer Signature Nashville Hollow Body Bigsby Flame Maple Orange Stain Specs

The G6120TFM-BSNV Brian Setzer Signature Nashville Hollow Body with Bigsby and Flame Maple Ebony Fingerboard Orange Stain is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Limited Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401316822.

Key Features

Laminated Flame Maple Top
Laminated Flame Maple Body
Maple Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic with Pinned Rosewood Base Bridge
Gotoh Locking Tuning Machines
TV Jones Brian Setzer Signature Filter'Tron Bridge Pickup
TV Jones Brian Setzer Signature Filter'Tron Neck Pickup

Product Identifiers

Model Name	G6120TFM-BSNV Brian Setzer Signature Nashville Hollow Body with Bigsby and Flame Maple
Part Number	2401316822
Product Series	Limited Edition
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978616114

Factory Specifications

Body Construction

Body Material	Laminated Flame Maple
Top Material	Laminated Flame Maple
Back Material	Laminated Flame Maple
Body Shape	Nashville / G6120
Body Binding	Aged White
Body Finish	Gloss
Bracing	1959 Style Trestle
Upper Bout Width	11.563" (294 mm)
Lower Bout Width	16" (406 mm)
Waist	9.5" (241mm)

Hardware

Bridge	Adjusto-Matic with Pinned Rosewood Base
Tuning Machines	Gotoh Locking
Pickguard	Gold Plexi with Artist Signature and Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B6G Vibrato Tailpiece with Gretsch Logo
Hardware Finish	Nickel

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Red
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Delrin
Neck Shape	Vintage "V"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	White

Electronics

Bridge Pickup	TV Jones Brian Setzer Signature Filter'Tron
Neck Pickup	TV Jones Brian Setzer Signature Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup, 3-Position Tone Switch

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included G6241 Gretsch 16" Deluxe Hollow Body Hardshell (p/n 099-6411-000); Optional G2162 Gretsch Hollow Body Gig Bag (p/n 099-6458-000)

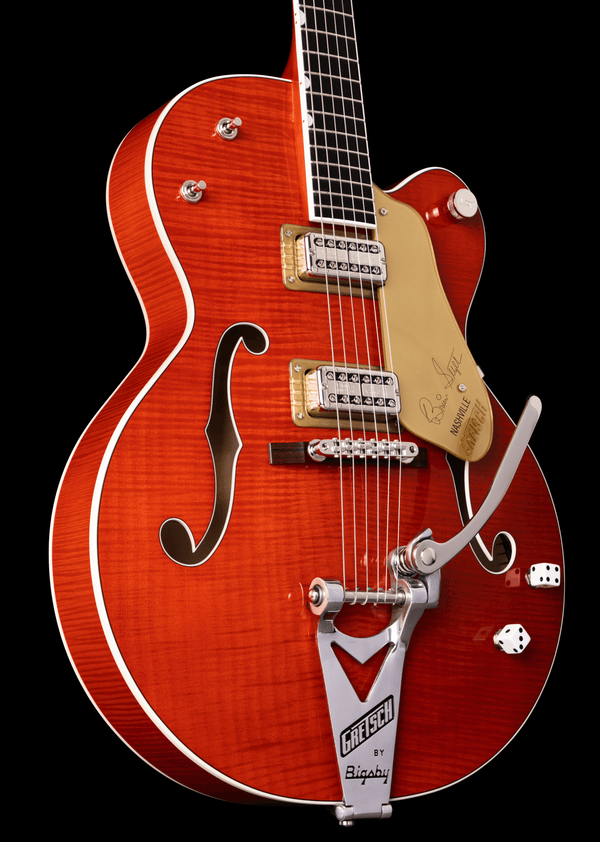

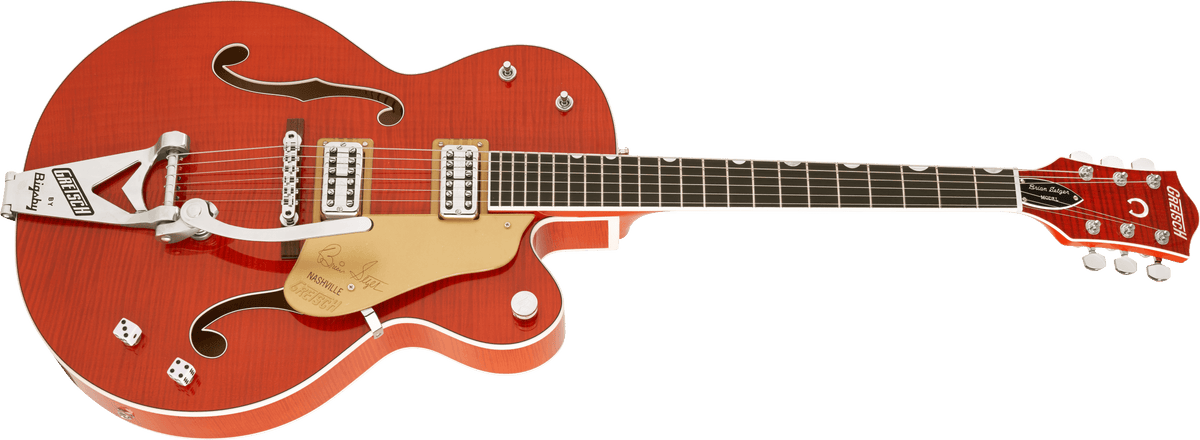

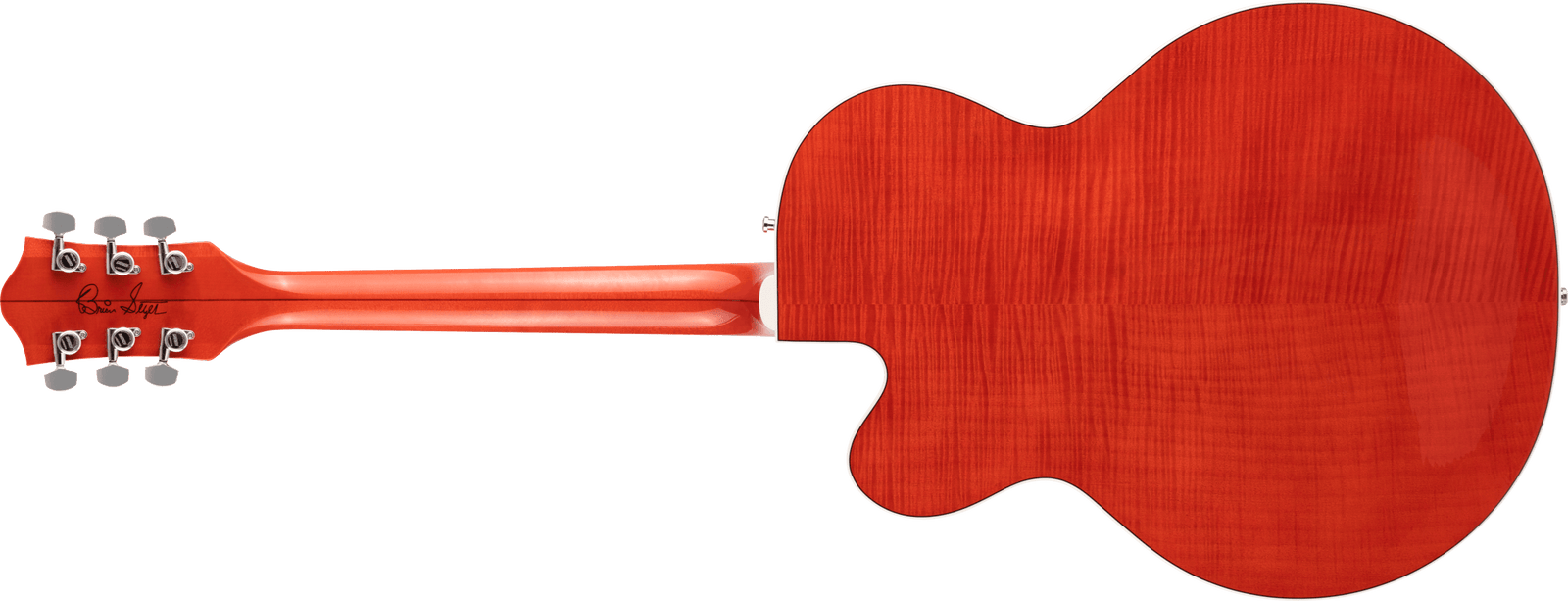

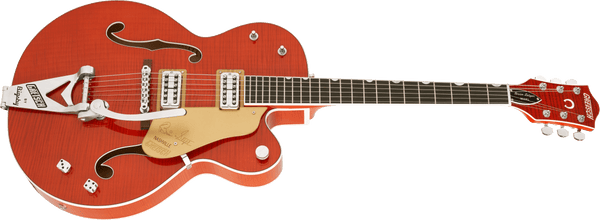

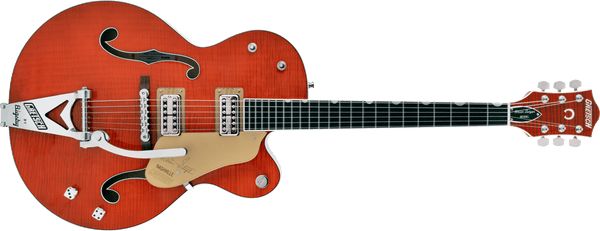

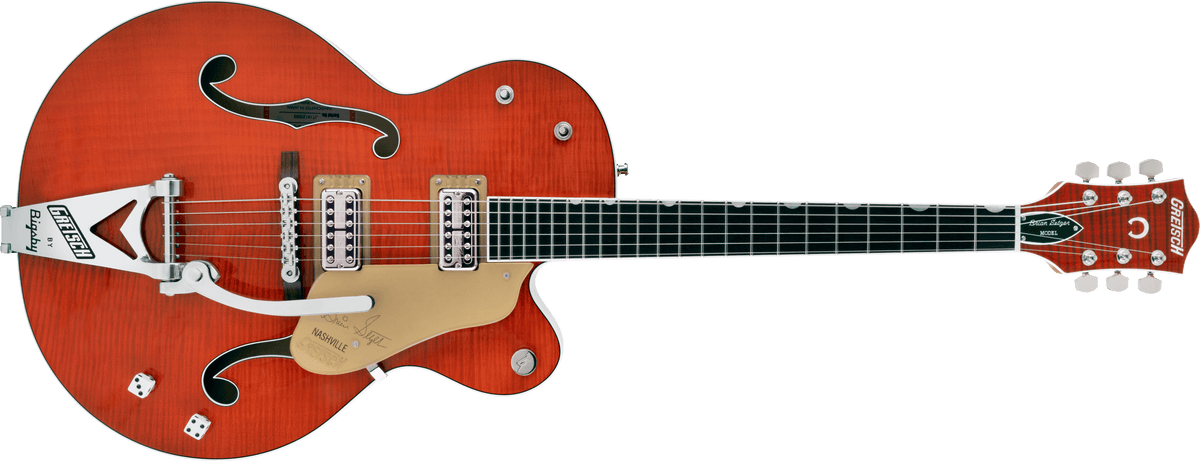

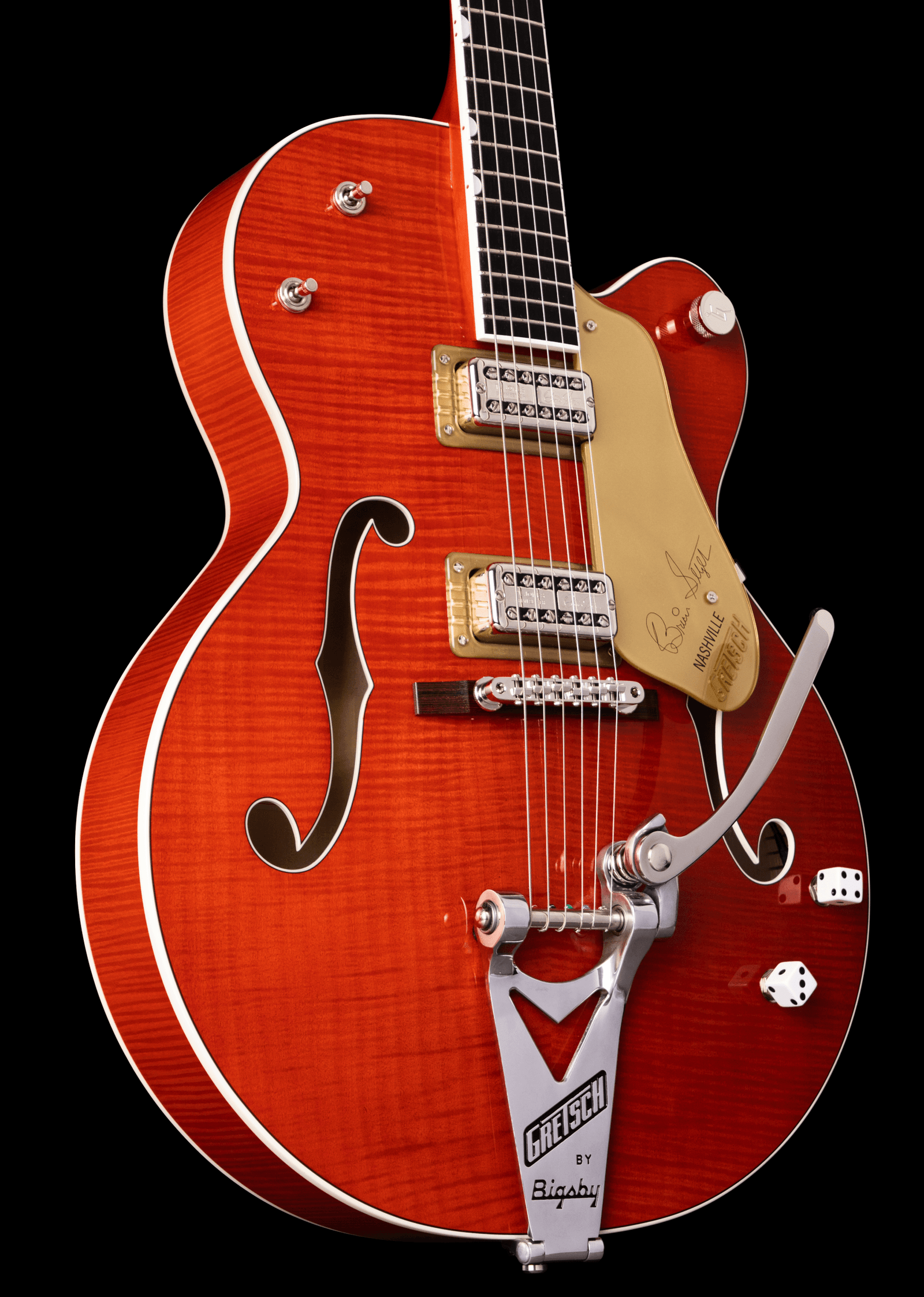

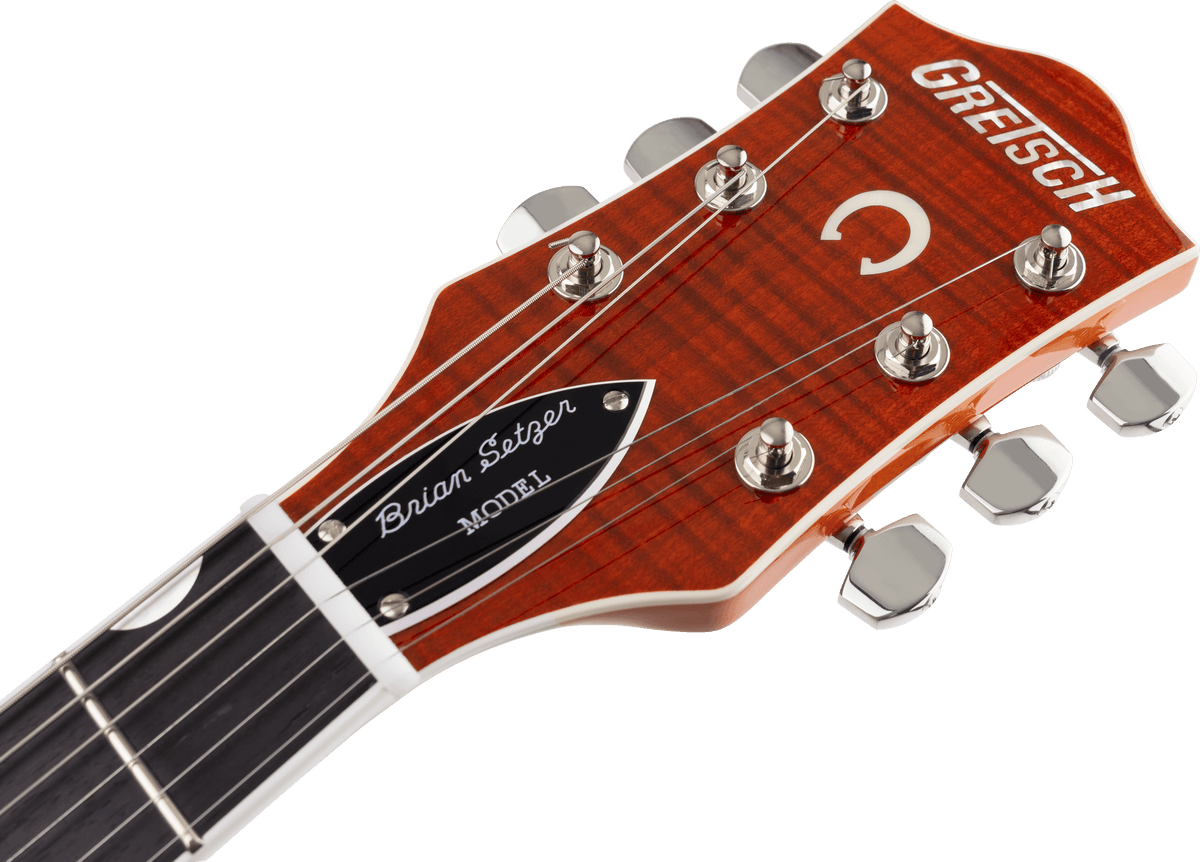

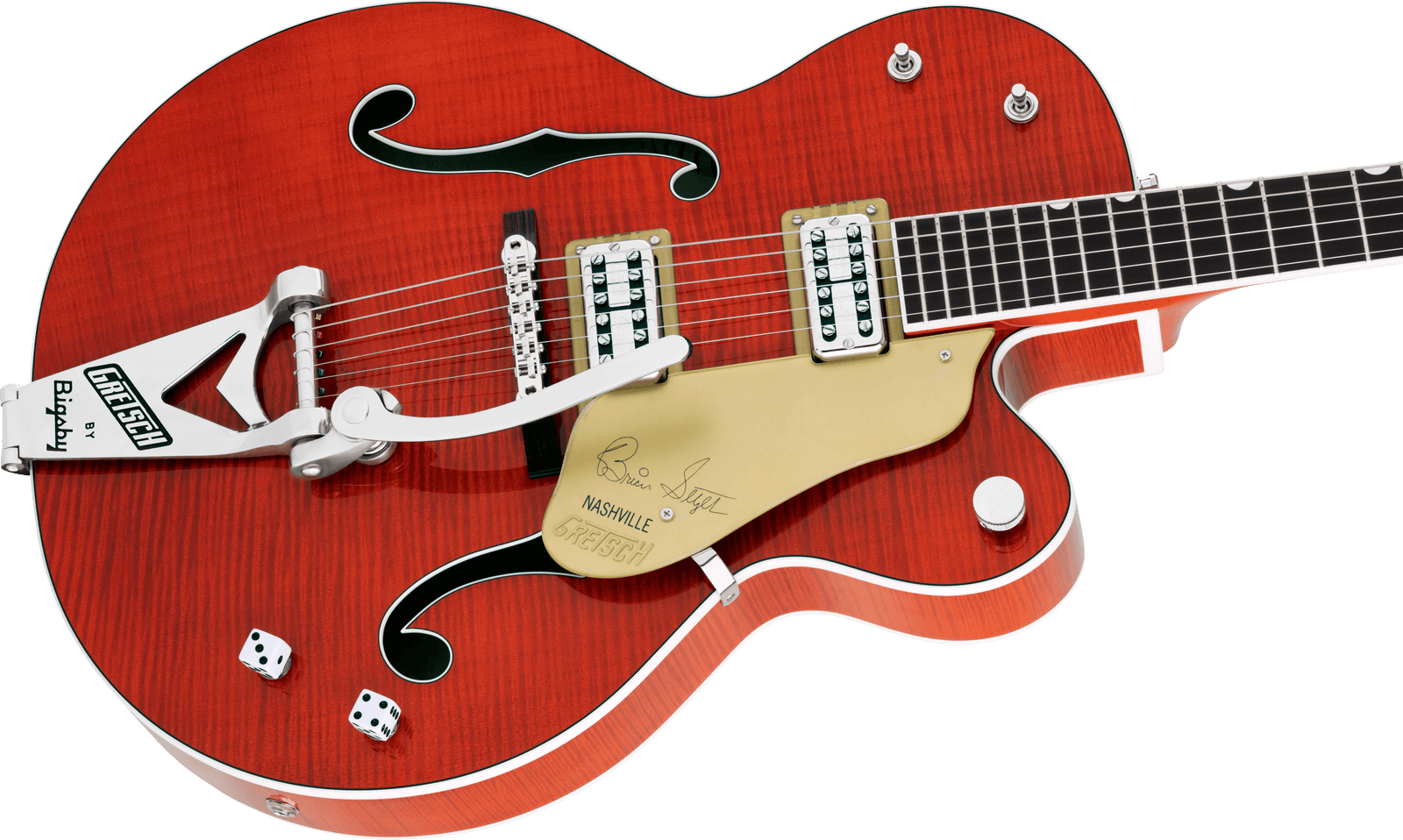

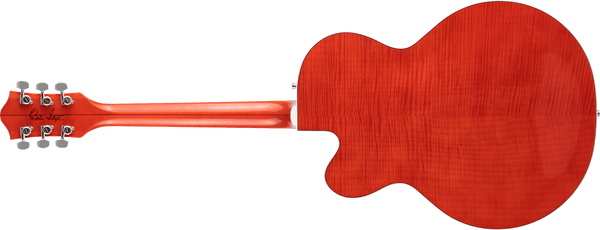

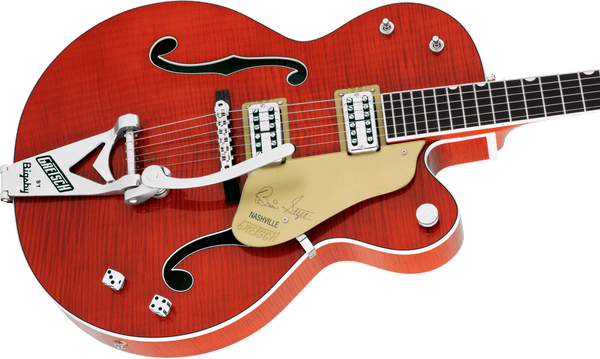

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6120TFM-BSNV Brian Setzer Signature Nashville Hollow Body with Bigsby and Flame Maple Ebony Fingerboard Orange Stain listed above. For larger pics, click on an image to open in a new tab.
