Gretsch G6120SH-2T Brian Setzer Signature 2-Tone Hot Rod Hollow Body Bigsby 2-Tone Highland Green Specs

The G6120SH-HGRN Brian Setzer 2-Tone Hot Rod with Bigsby TV Jones Setzer Pickups Highland Green is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2400115894.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
9.5" (241 mm) Radius
Adjusto-Matic with Pinned Rosewood Base Bridge
Gotoh Locking Tuning Machines
TV Jones Brian Setzer Signature Filter'Tron Bridge Pickup
TV Jones Brian Setzer Signature Filter'Tron Neck Pickup

Product Identifiers

Model Name	G6120SH-2T Brian Setzer Signature 2-Tone Hot Rod Hollow Body with Bigsby
Part Number	2400115894
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978518142

Factory Specifications

Body Construction

Body Material	Laminated Flame Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Nashville / G6120
Body Finish	Gloss Urethane
Bracing	1959 Style Trestle

Hardware

Bridge	Adjusto-Matic with Pinned Rosewood Base
Tuning Machines	Gotoh Locking
Pickguard	None
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B6C Vibrato Tailpiece with Gretsch Logo
Hardware Finish	Chrome

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	9.5" (241 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Delrin
Neck Finish	Gloss Urethane
Headstock	Late '50s Gretsch

Electronics

Bridge Pickup	TV Jones Brian Setzer Signature Filter'Tron
Neck Pickup	TV Jones Brian Setzer Signature Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Auxiliary Switching	3-Position Master Tone Switch: Position 1. Medium Level, High Frequency Roll Off, Position 2. Switch Out of Circuit, Pickup Wide Open, Position 3. Slight Level, High Frequency Roll Off

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)
Case / Gig Bag	Included G6241 Gretsch 16" Deluxe Hollow Body Hardshell (p/n 099-6411-000); Optional G2162 Gretsch Hollow Body Gig Bag (p/n 099-6458-000)
Included Accessories	Included: 099-6411-000 G6241 16" Deluxe Hollow Body Hardshell Case, Black
Recommended Case	Included: 099-6411-000 G6241 16" Deluxe Hollow Body Hardshell Case, Black

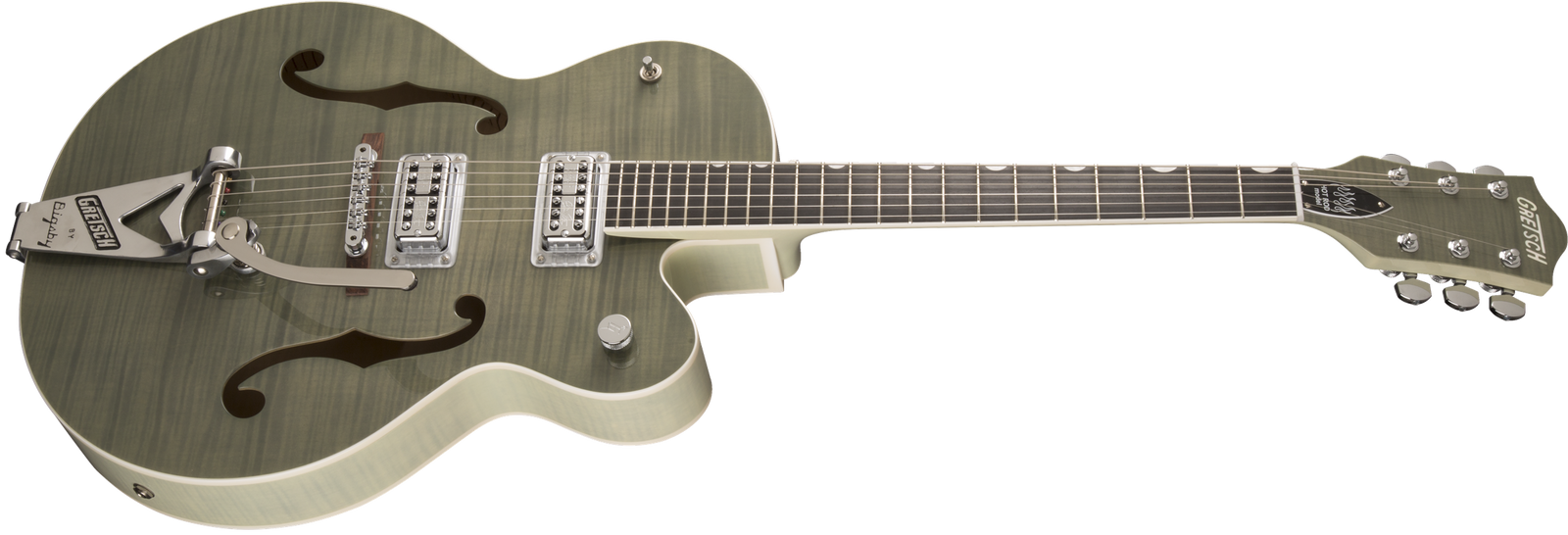

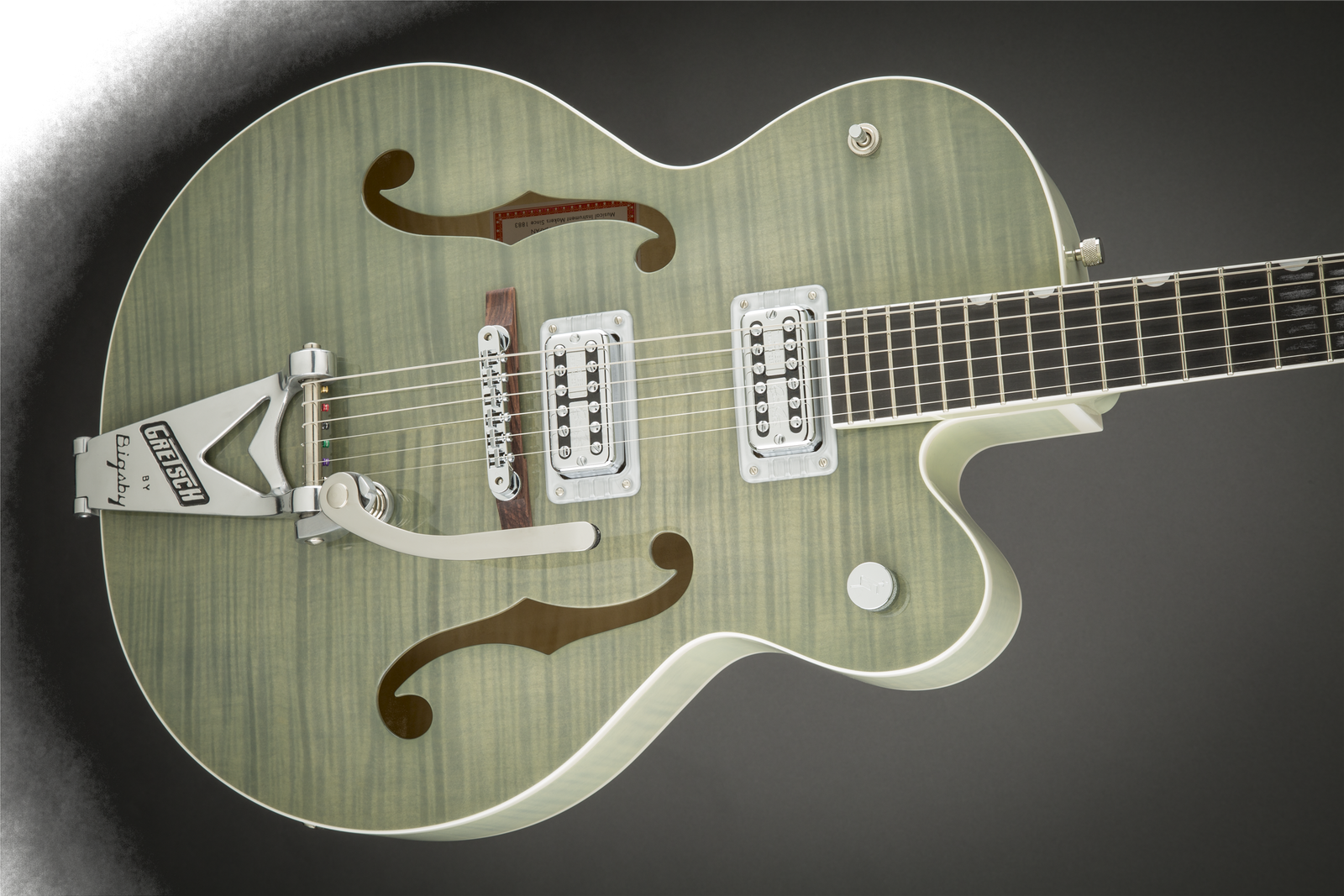

Reference Images

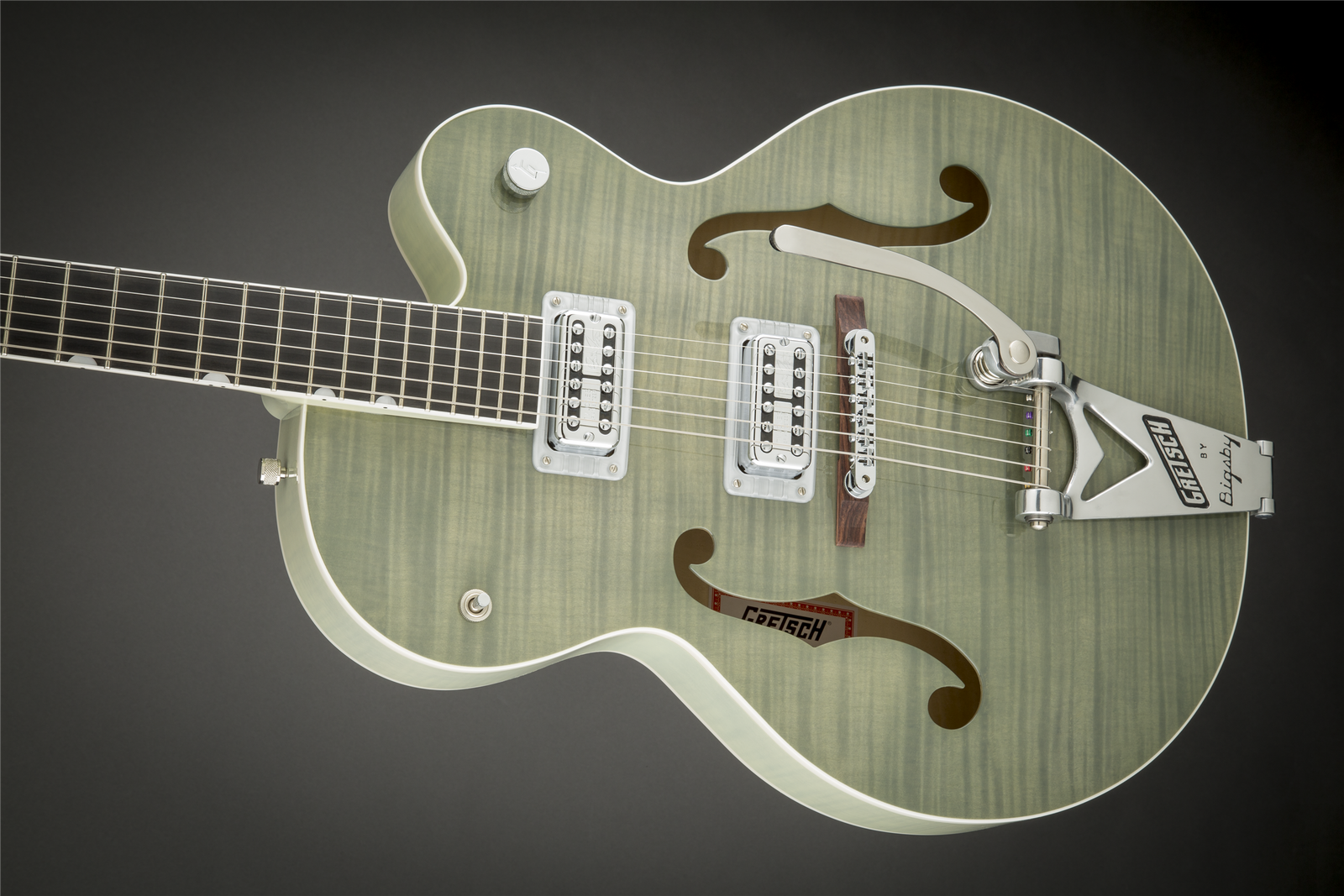

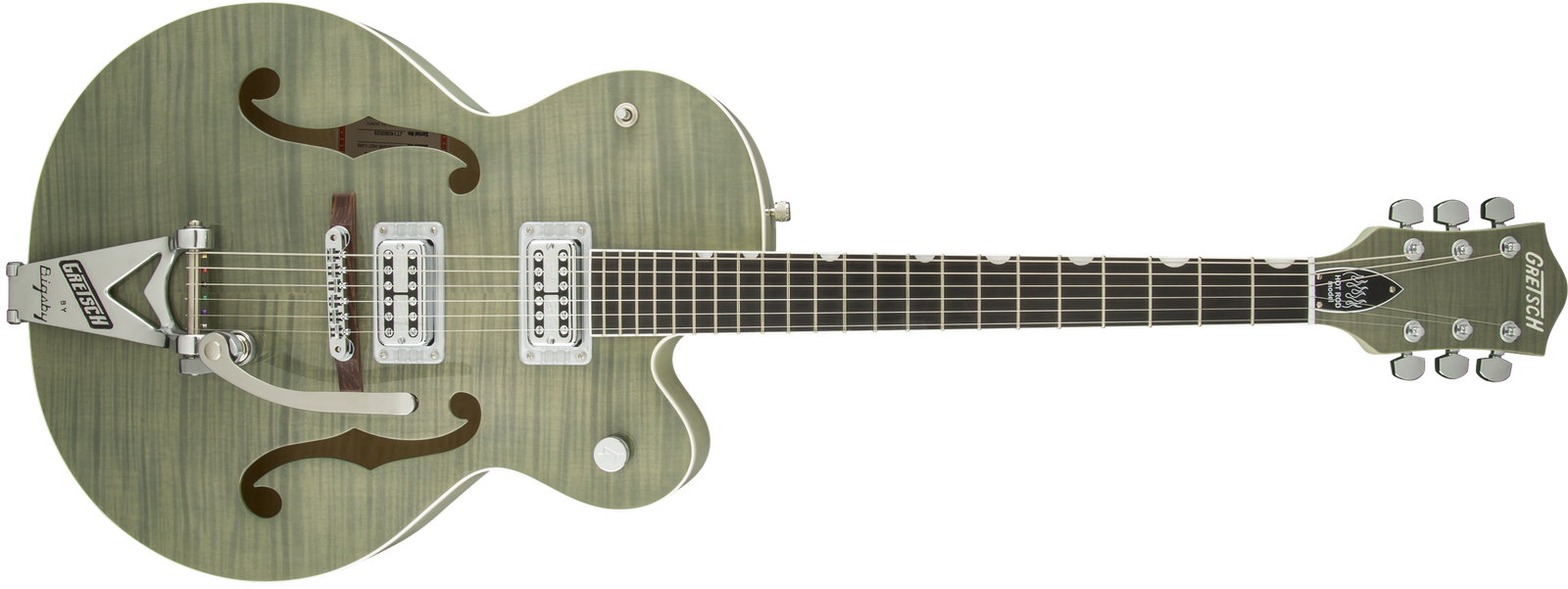

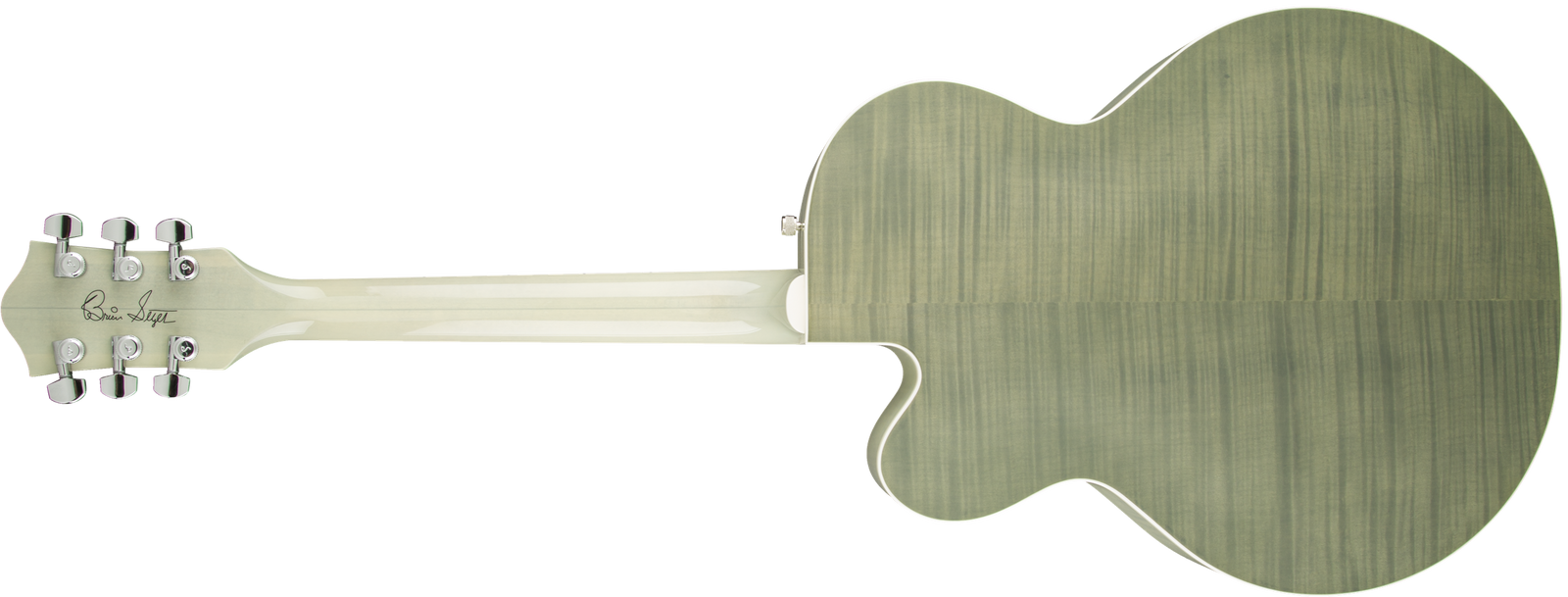

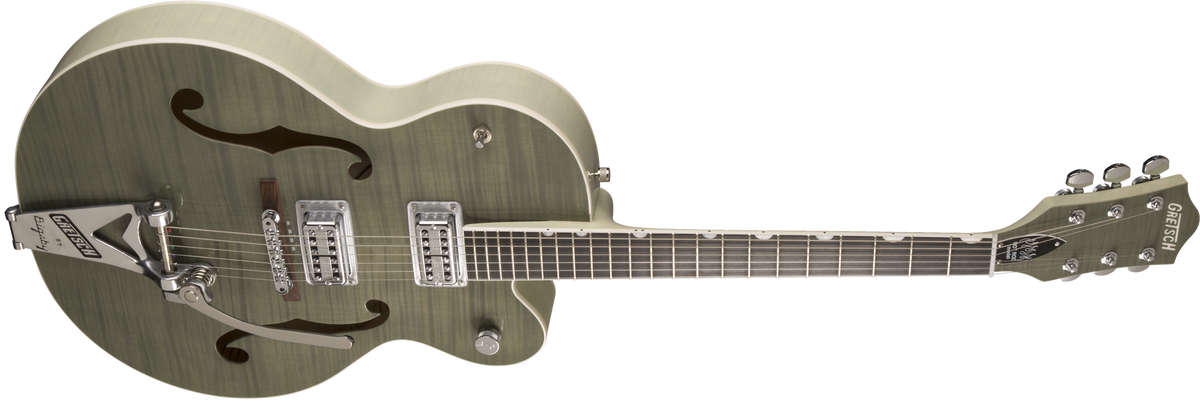

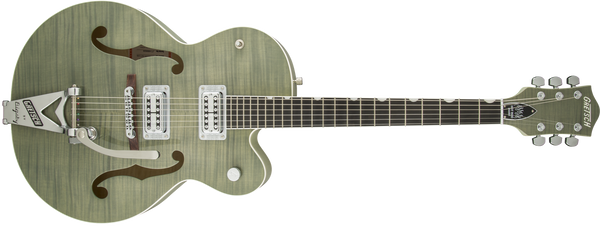

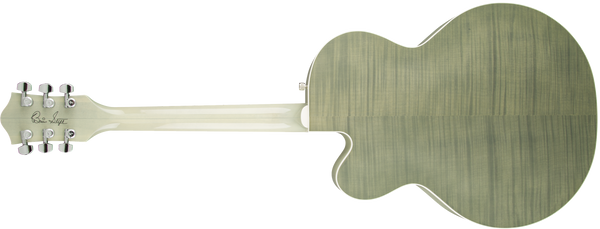

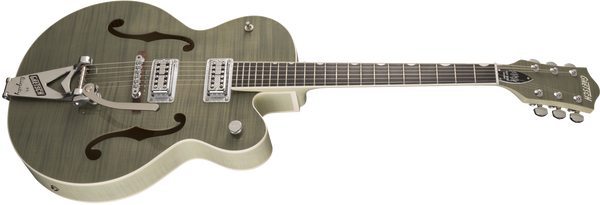

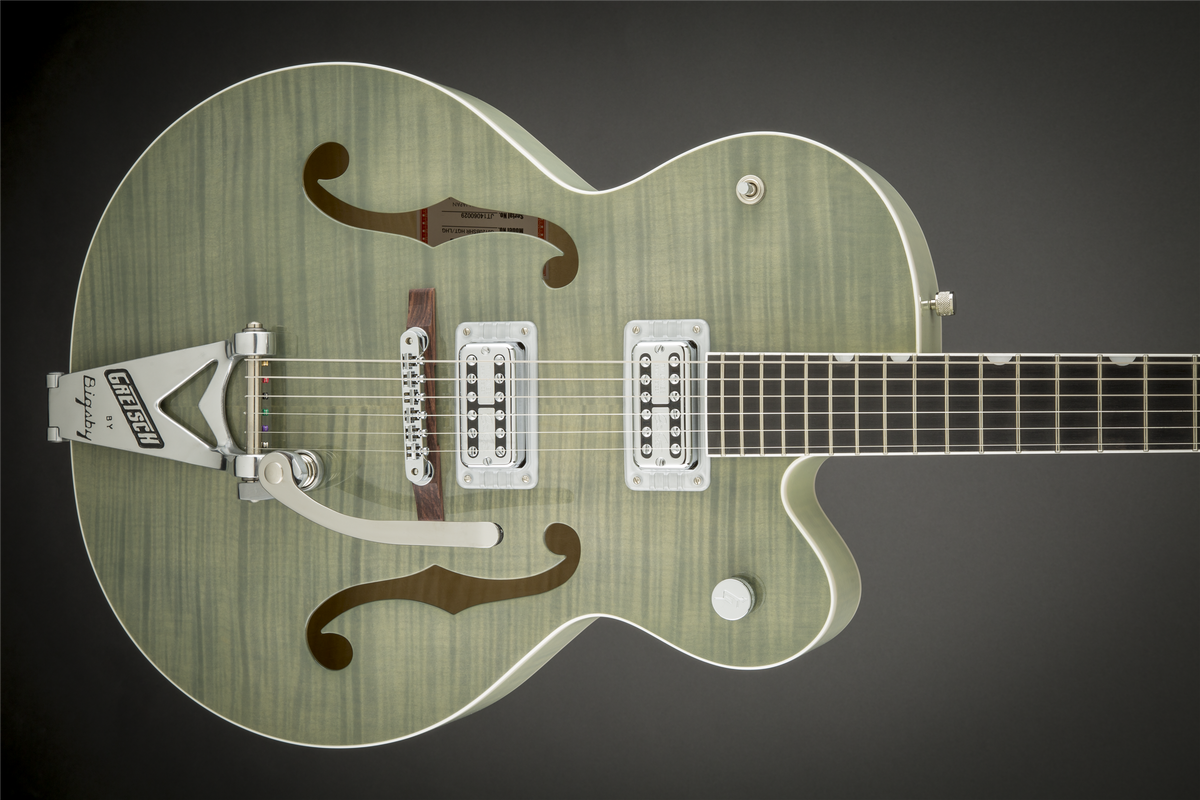

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6120SH-HGRN Brian Setzer 2-Tone Hot Rod with Bigsby TV Jones Setzer Pickups Highland Green listed above. For larger pics, click on an image to open in a new tab.
