The 2022 RetroSonic is a solid body electric guitar built by Revelator. This t-style bolt on guitar was manufactured in the United States and is a Revelator Custom Guitars RetroSonic model. Key features include an Ultra Light Catalpa Body, Maple Neck, Slab Rosewood Board, Kluson Hardware, Arcane 59 Experience Pickups and Mid 50s Blonde finish. The specs listed below pertain to the 2022 product year model pictured on this page.
Factory Specs
- Ultra Light Catalpa Body

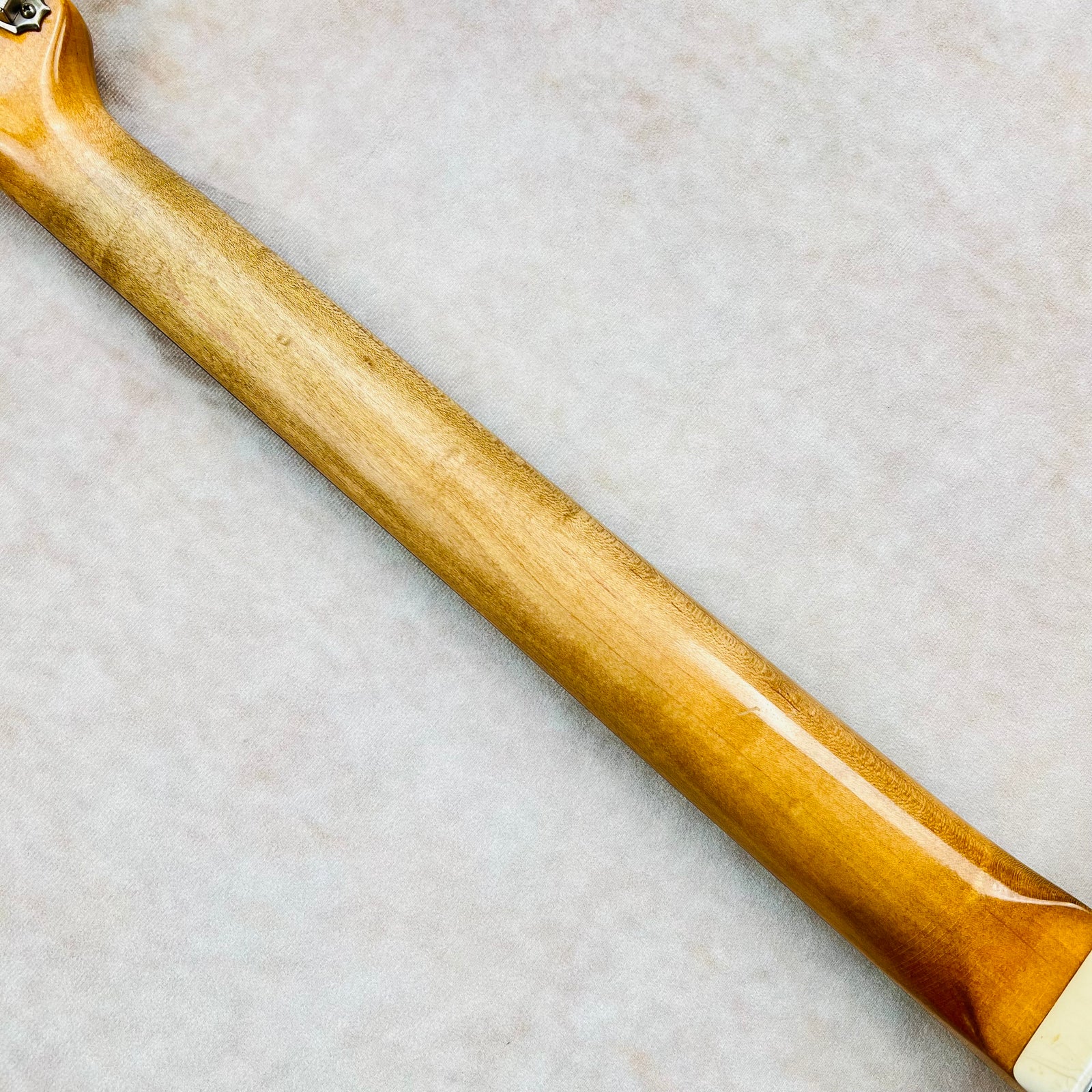

- Maple Neck
- Slab Rosewood Fretboard
- 21 Frets
- Dot Inlays
- 9.5" Radius
- 6105 Fret Wire
- 25.5" Scale Length
- 1.650" Nut Width
- Single Ply White Guard

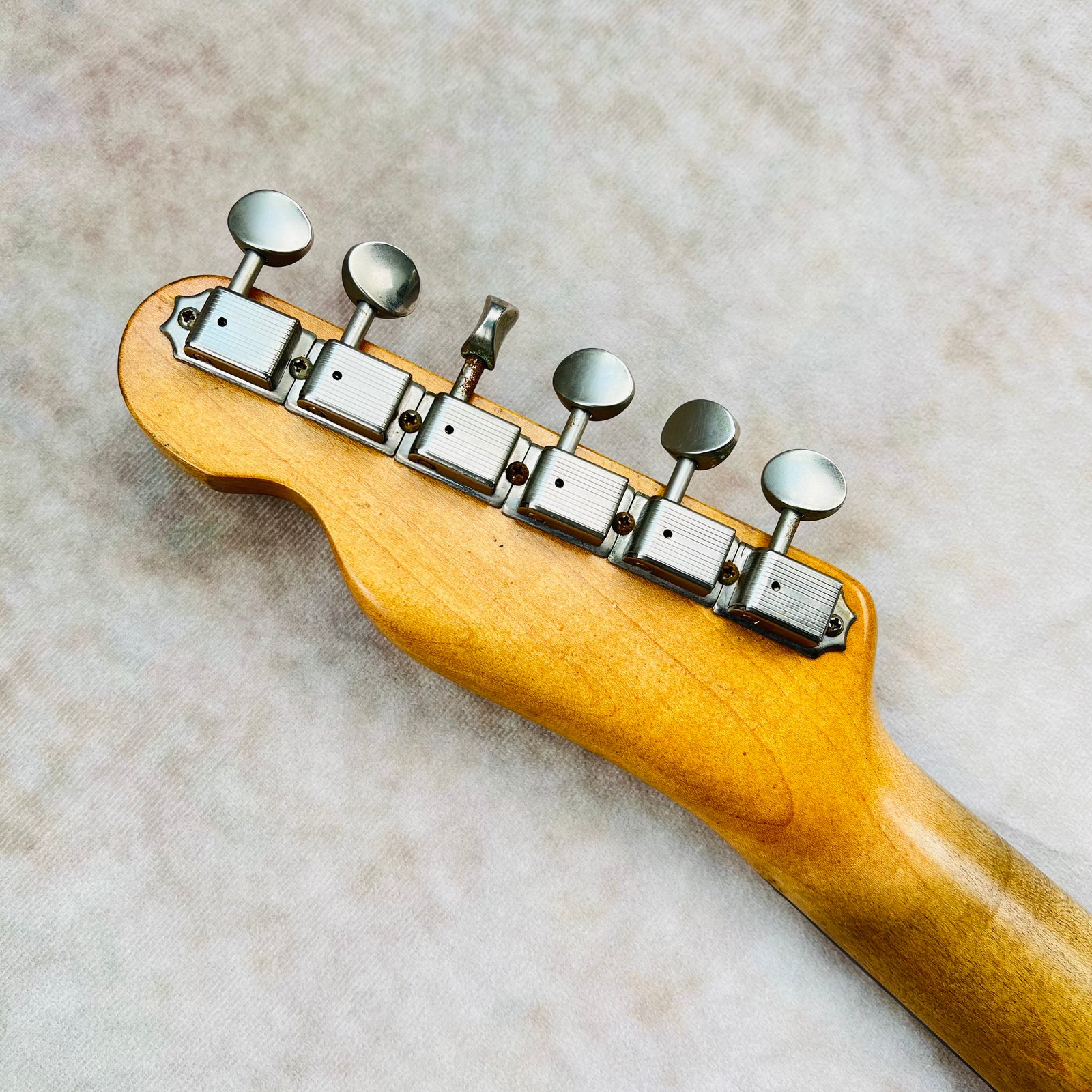

- Kluson Tuners

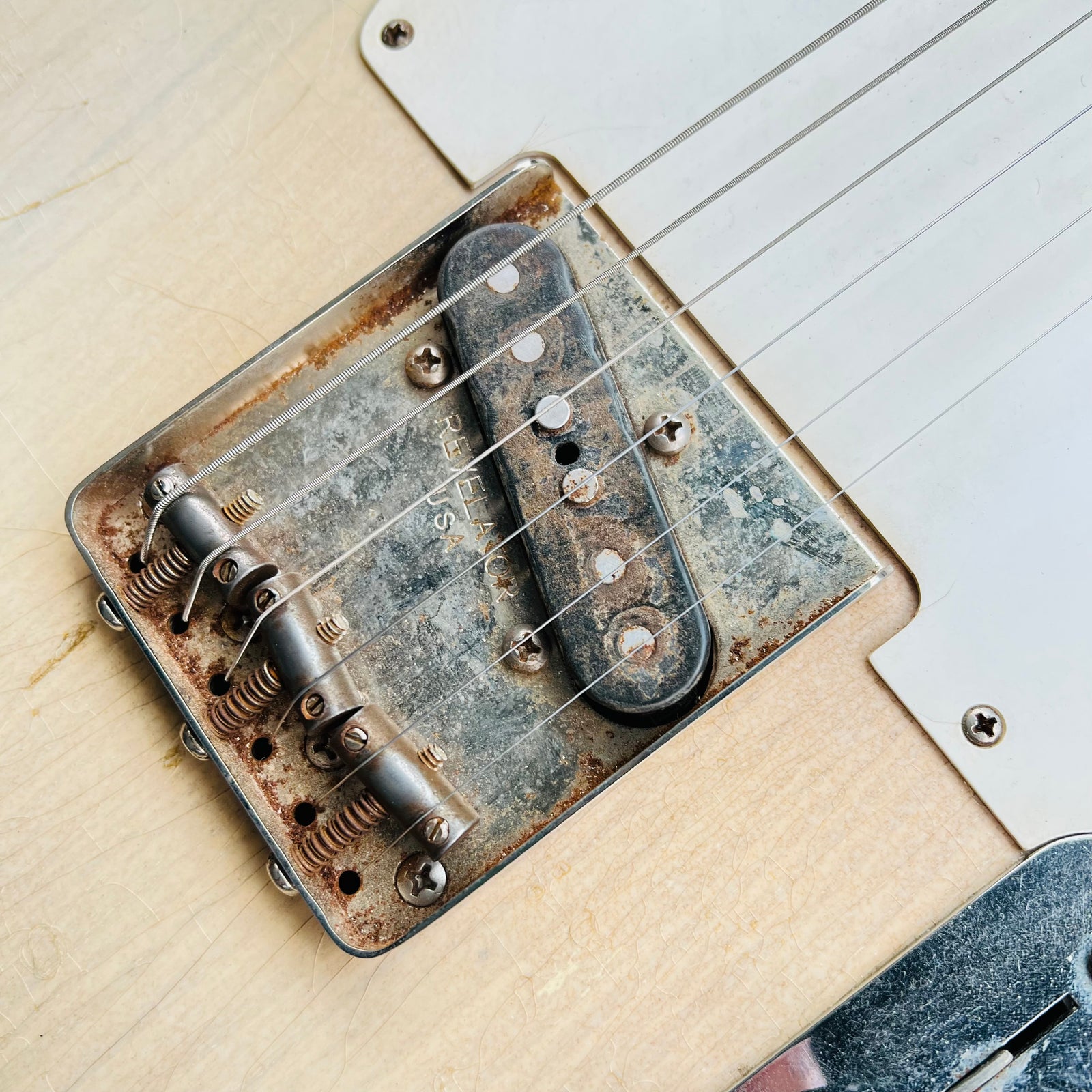

- Kluson Revelator Bridge
- Compensated Saddles
- Arcane 59 Experience Pickups
- Heavily Aged Finish

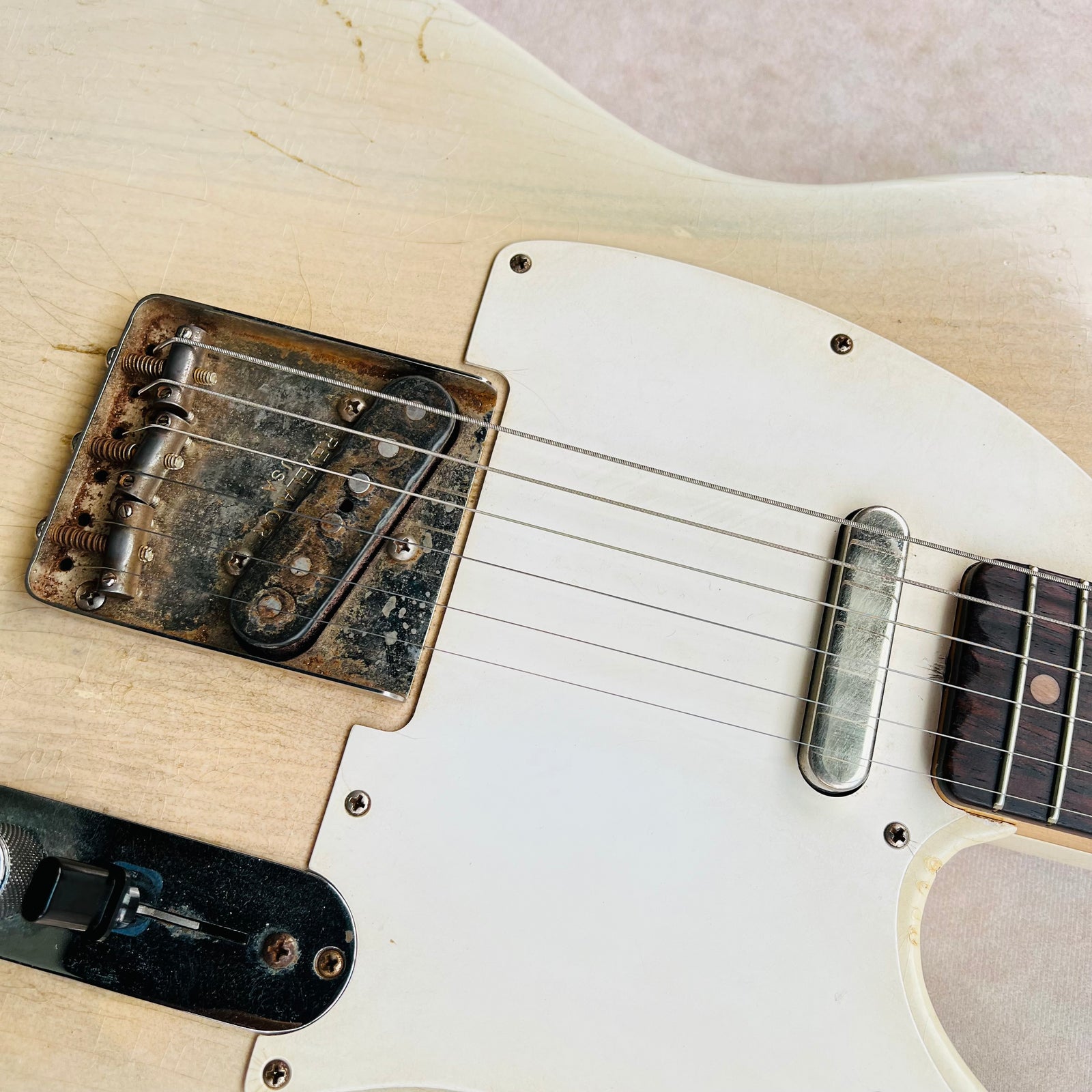

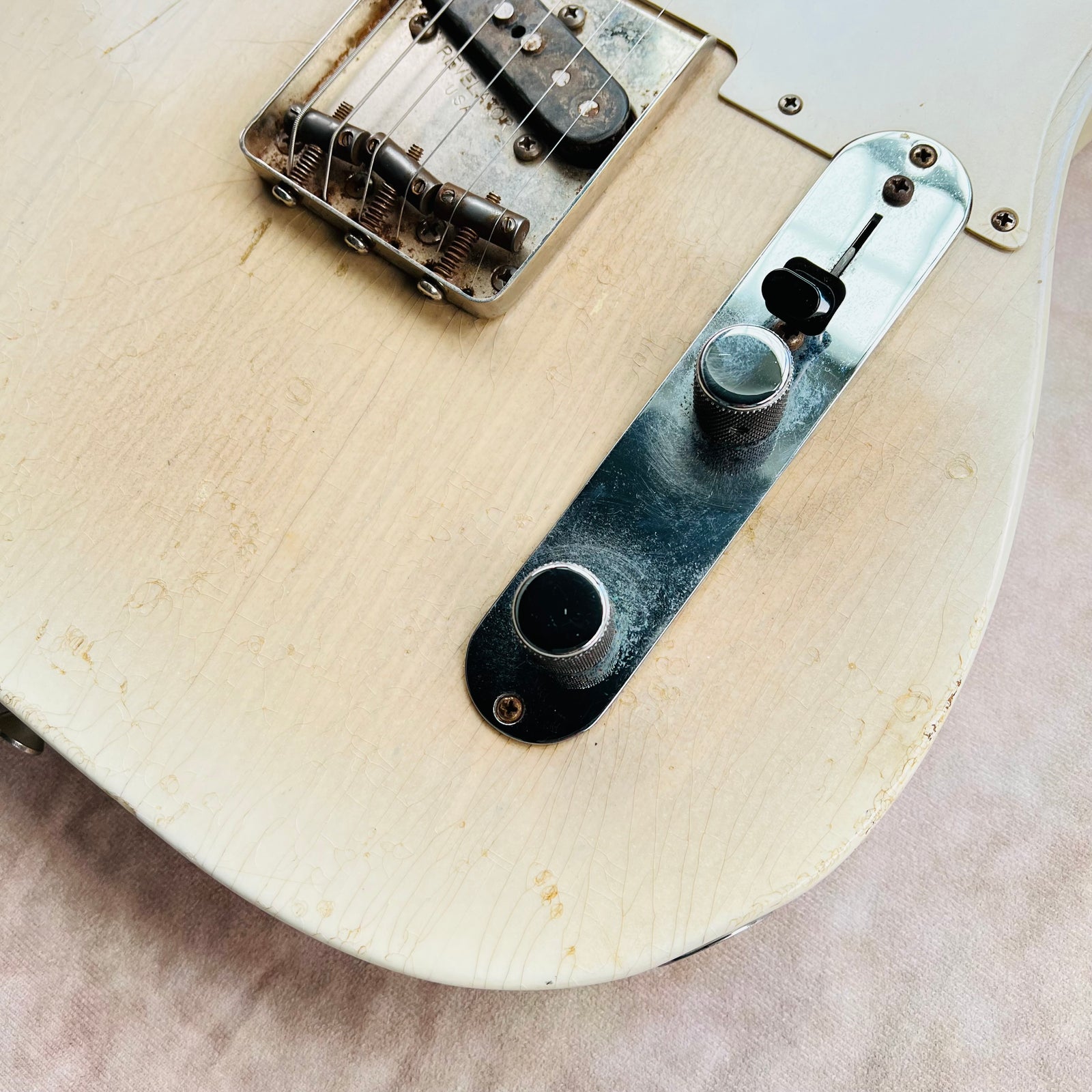

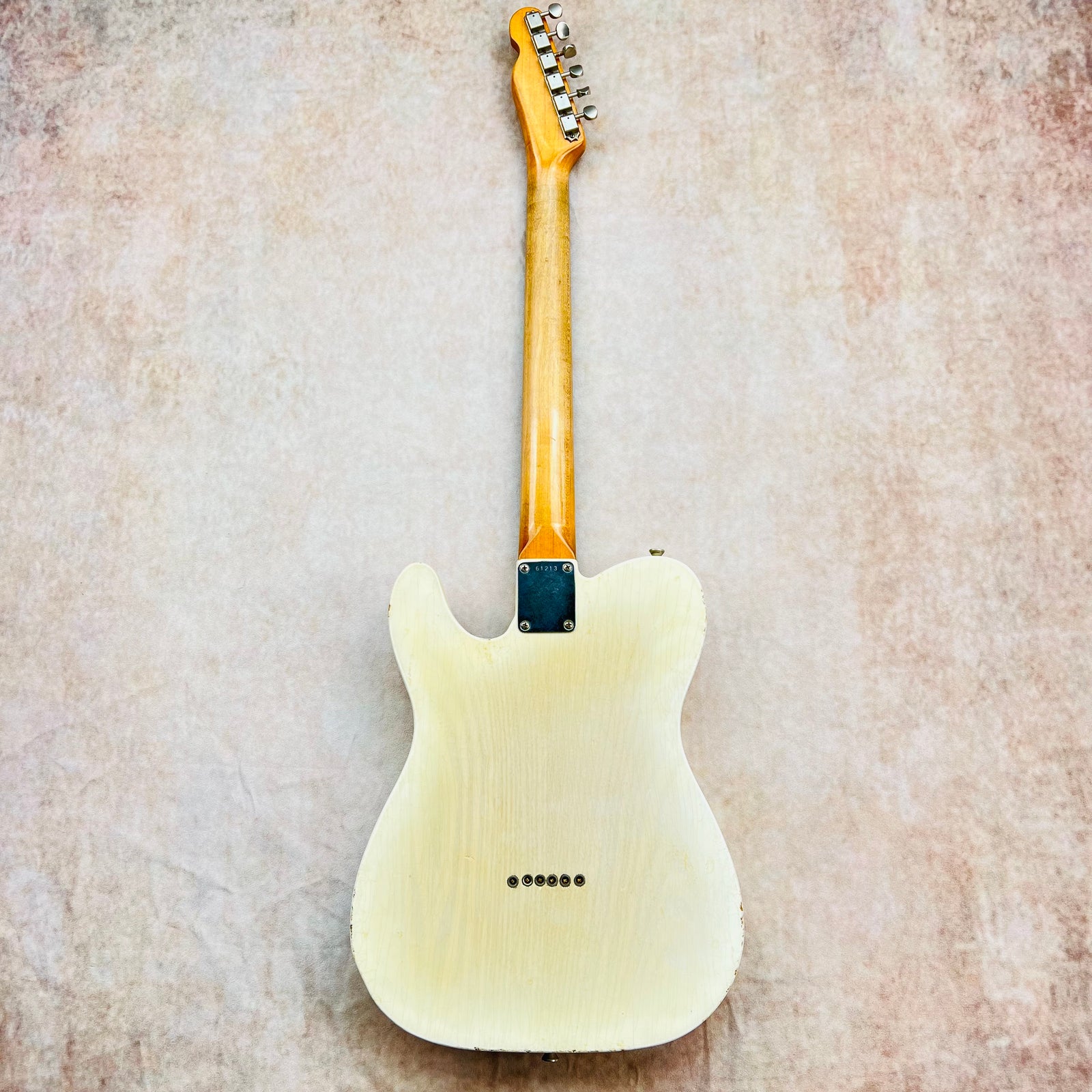

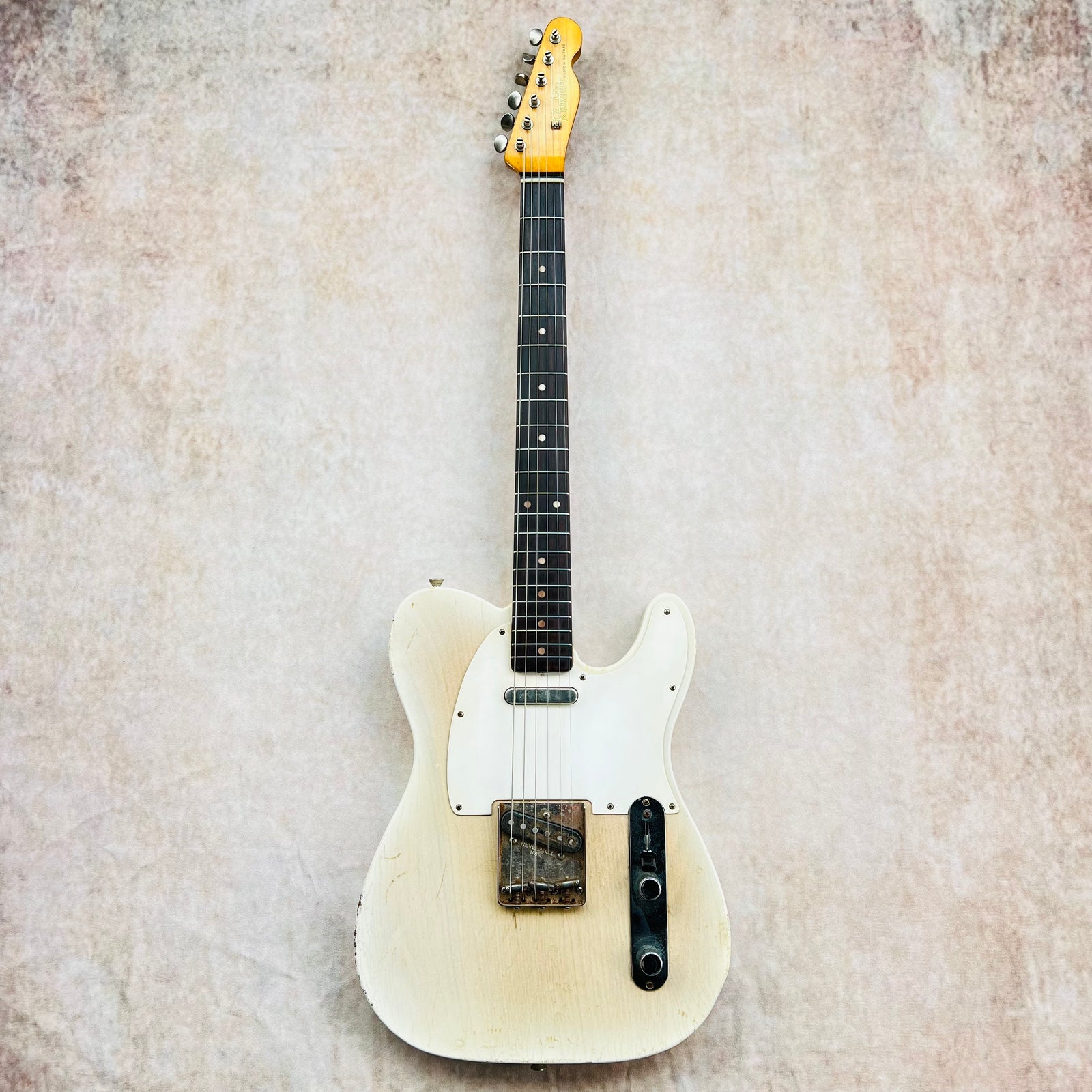

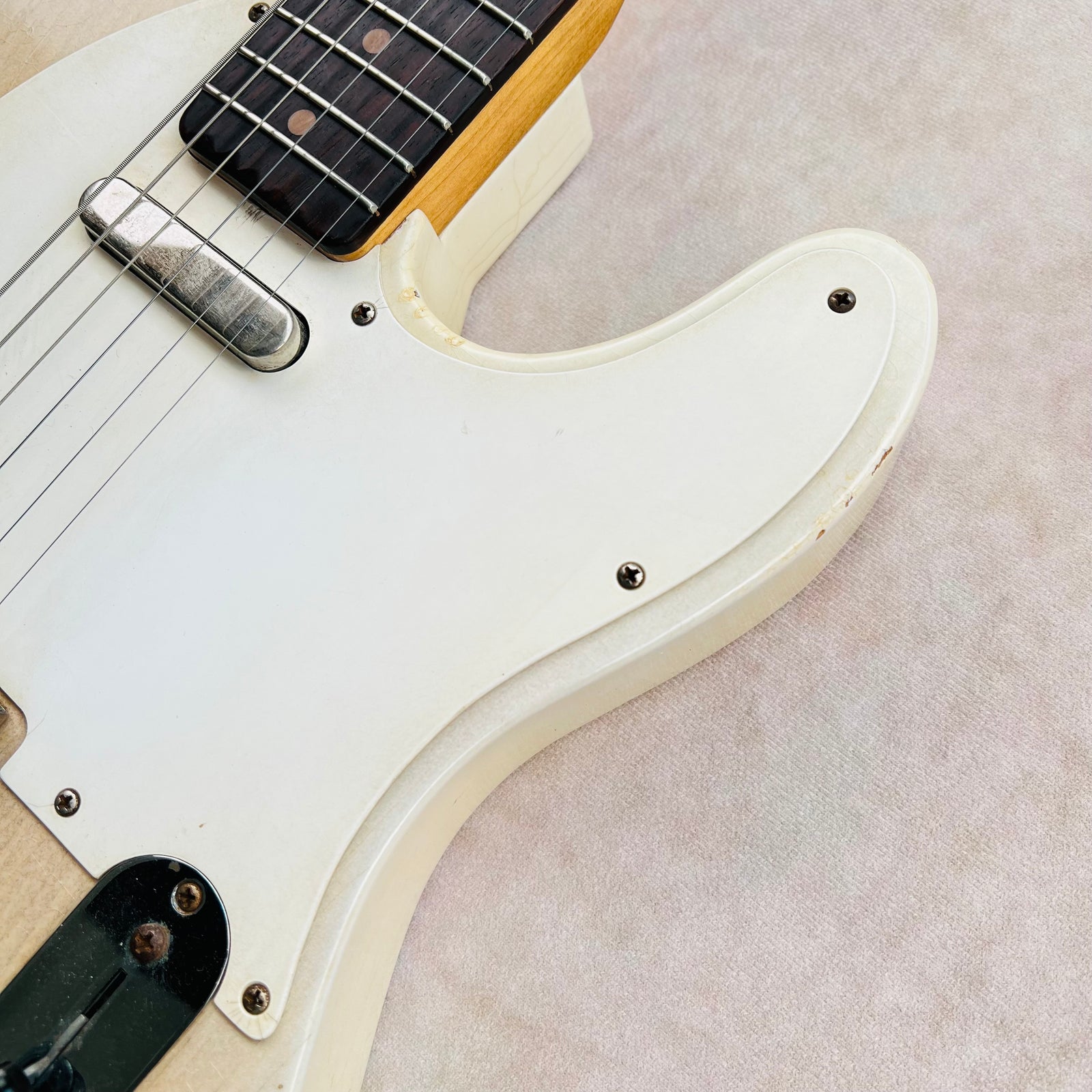

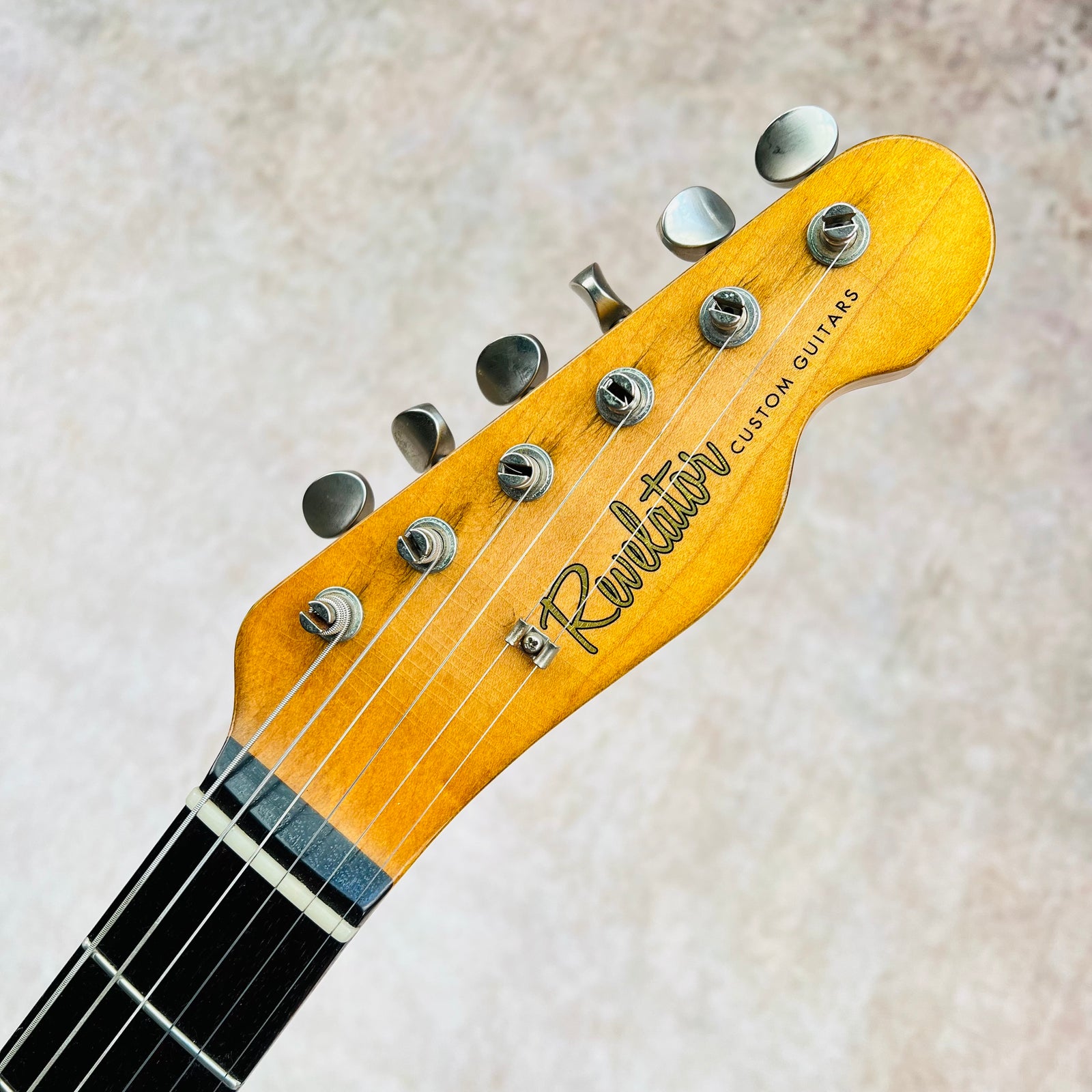

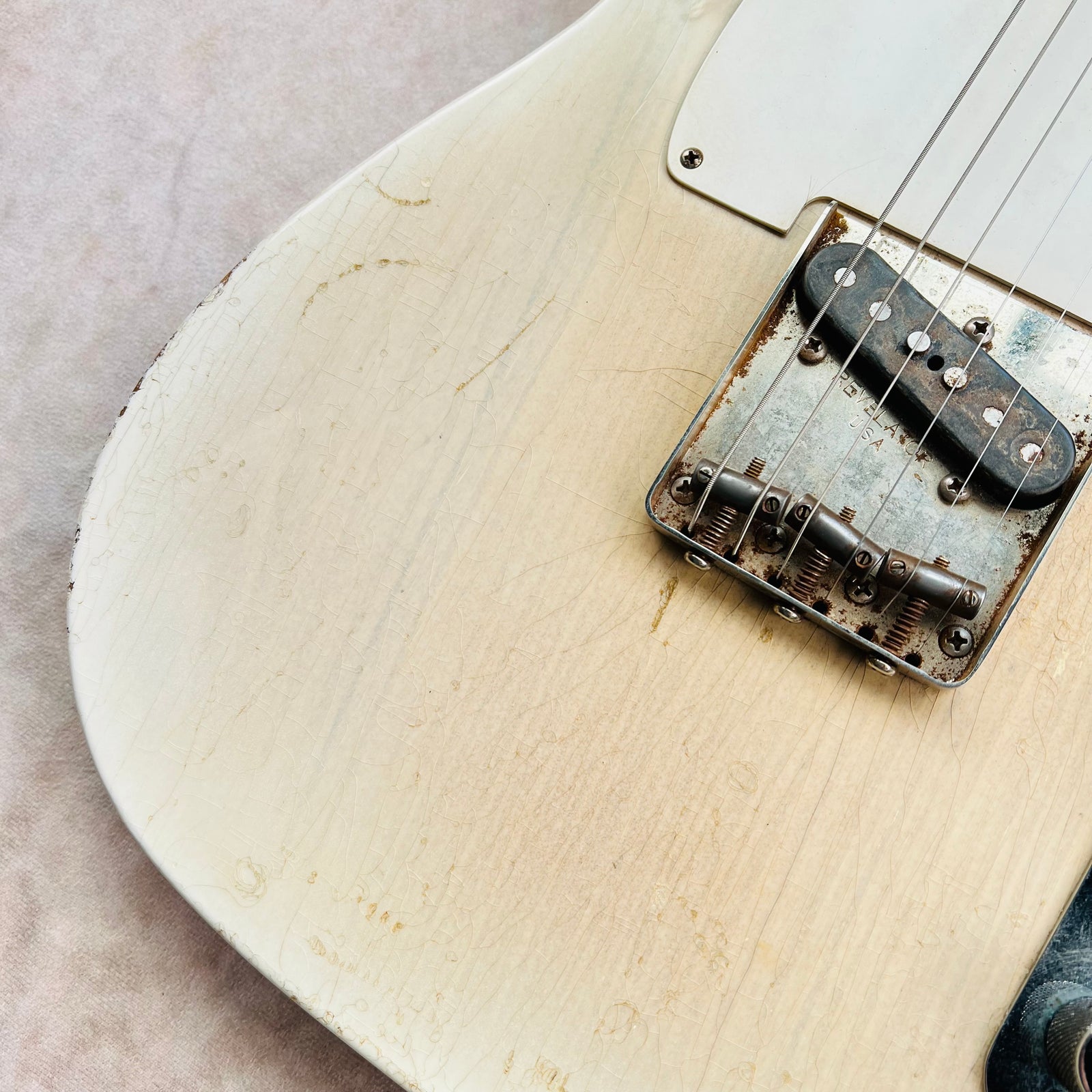

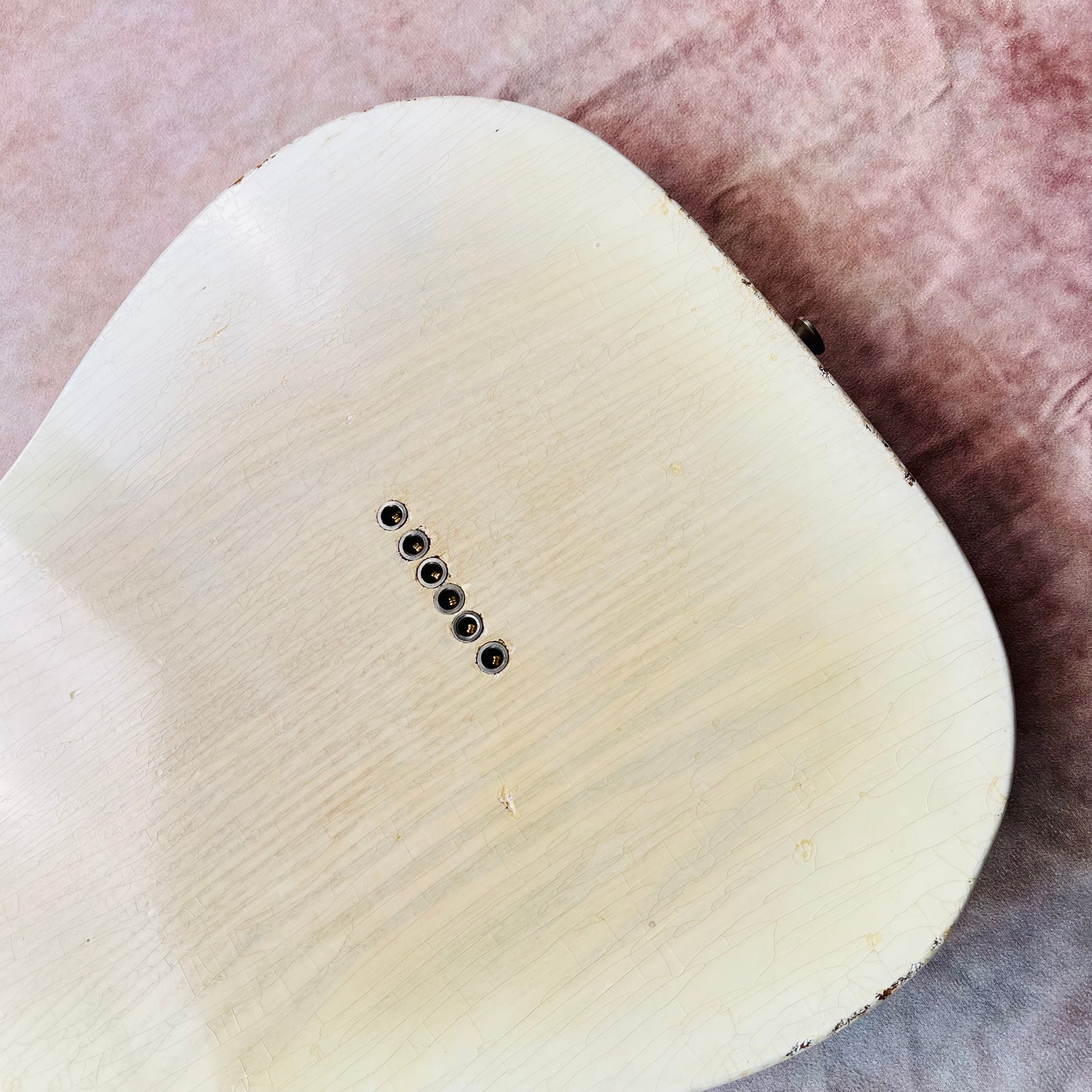

Reference Images

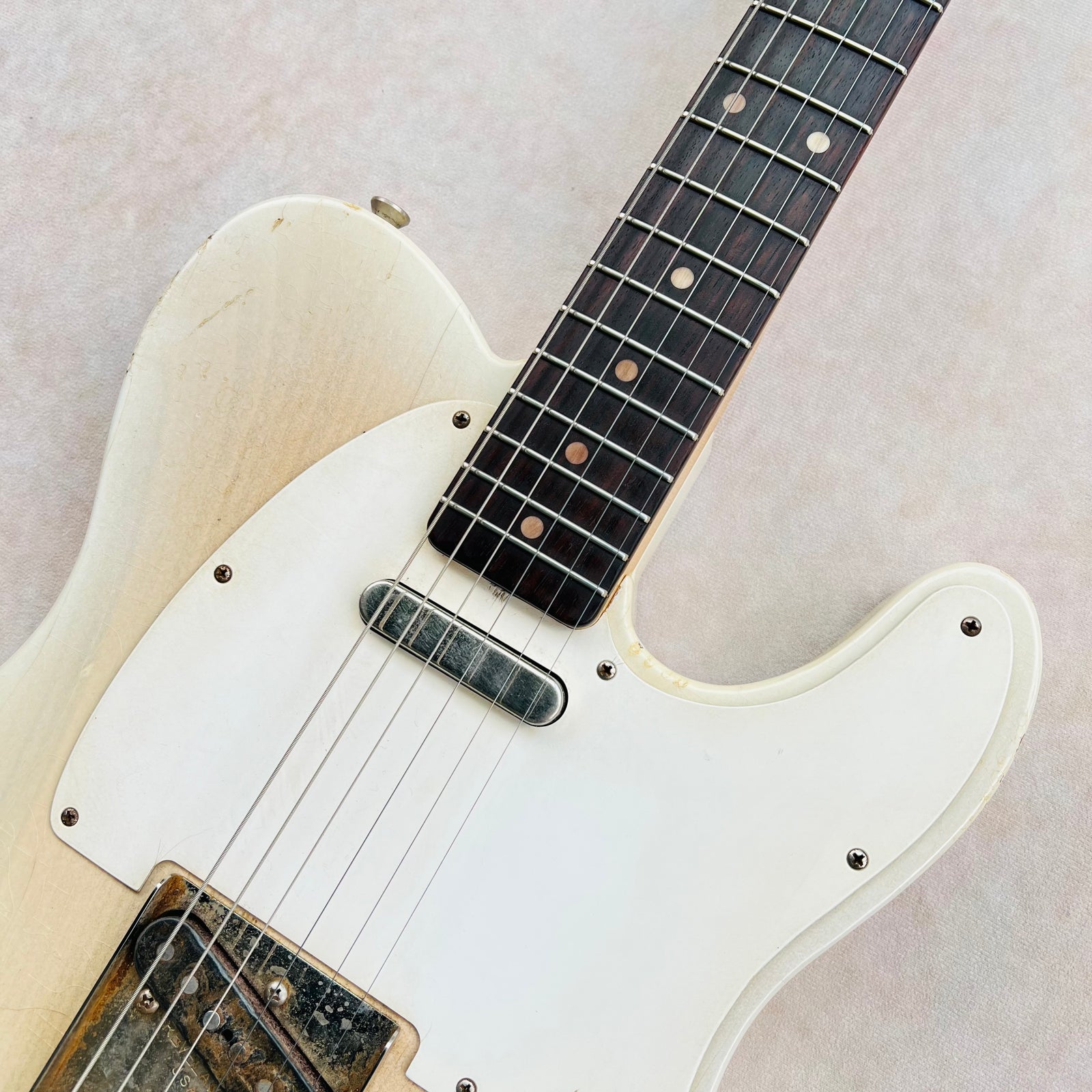

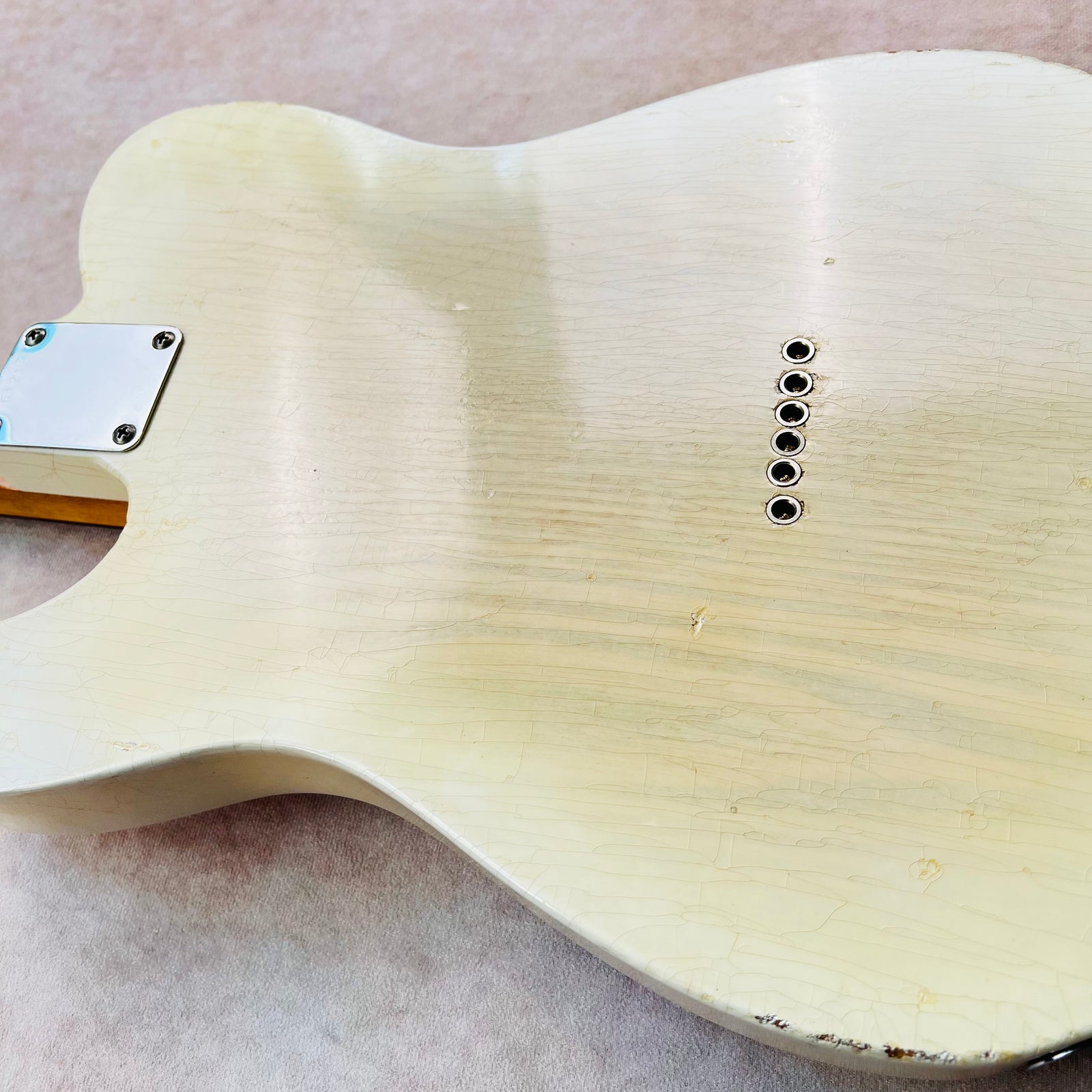

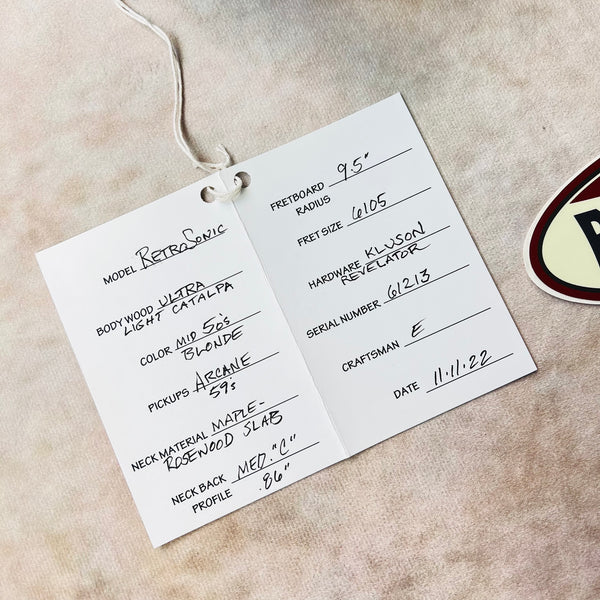

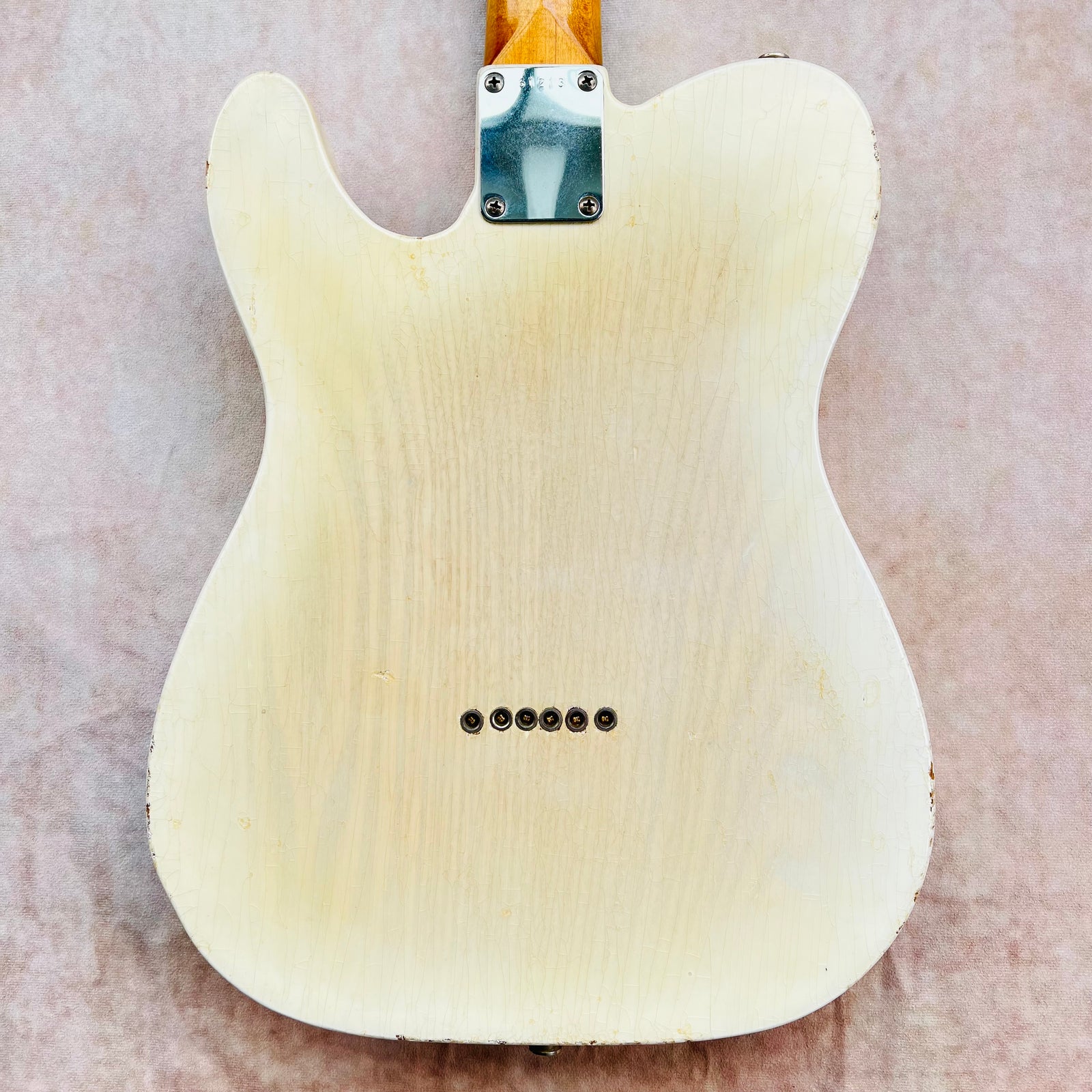

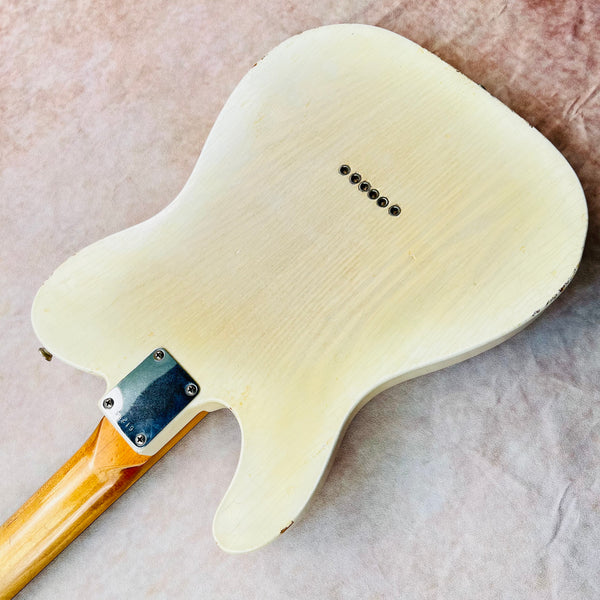

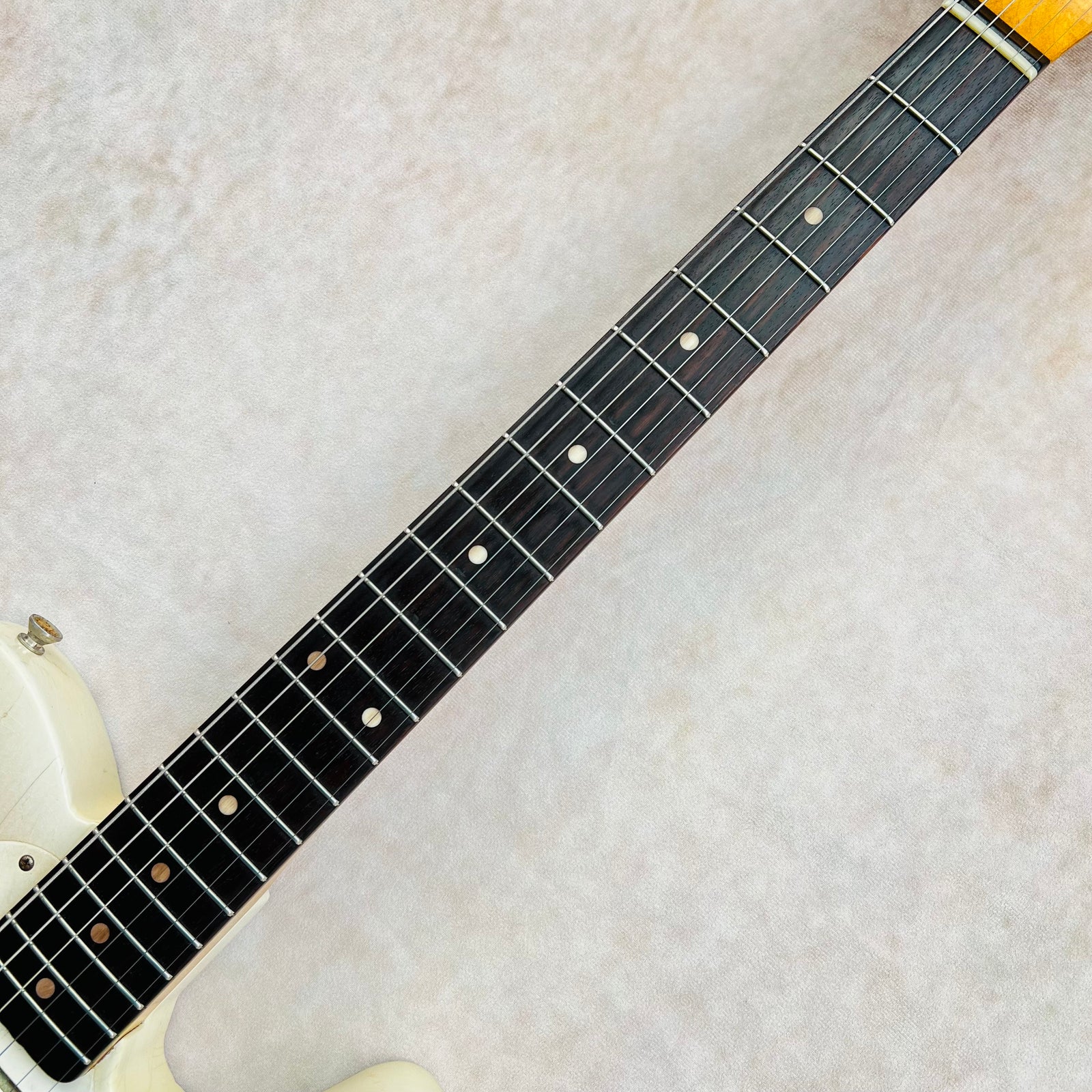

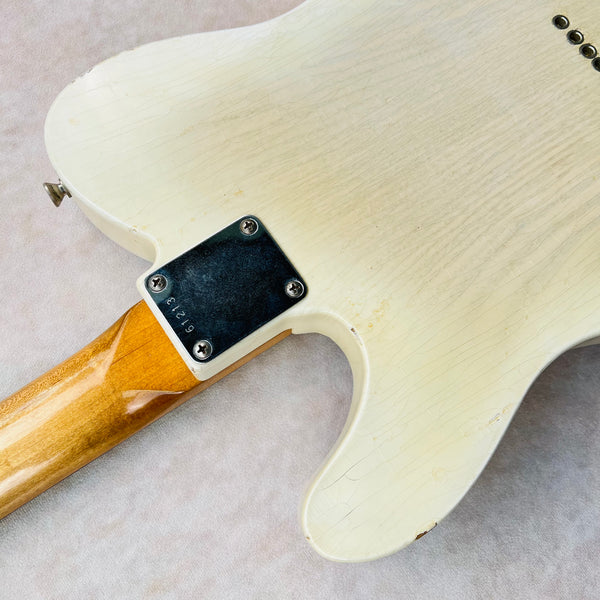

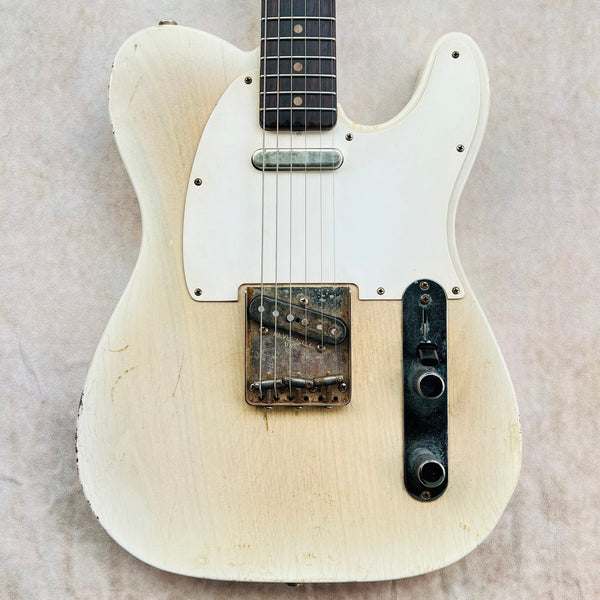

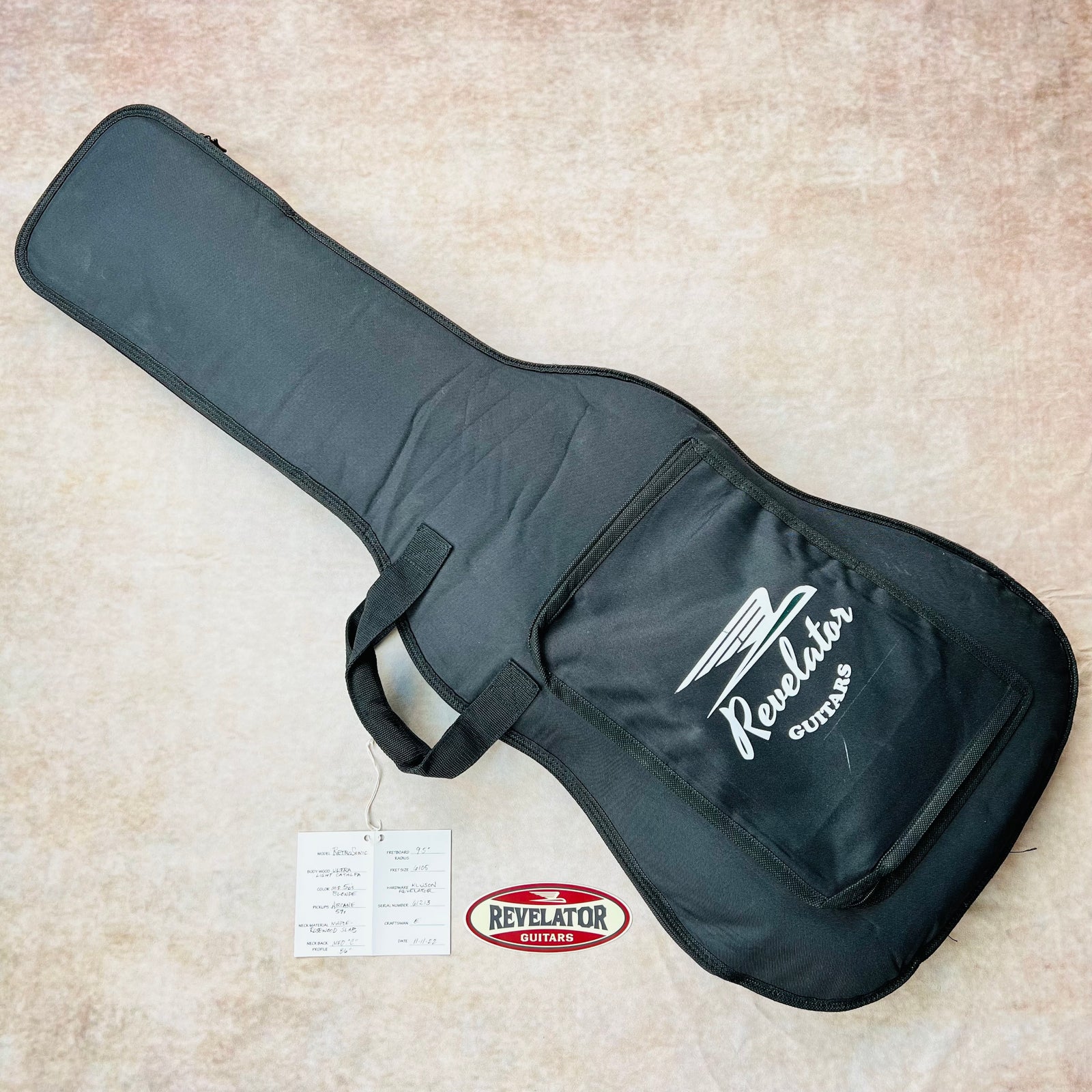

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the RetroSonic listed above. For larger pics, click on an image to open in a new tab.
