The 2008 Eric Johnson Stratocaster Maple is a solid body electric guitar built by Fender. This s-style bolt on guitar was manufactured in Corona, CA in the United States and is a Fender Artist Series model. Key features include an Alder Body, Maple Neck, 12" Radius, Vintage Tremolo Bridge, Single Coil Pickups and White Blonde finish. The specs listed below pertain to the 2008 product year model pictured on this page.
Factory Specs
- Alder Body
- Quarter Sawn Maple Neck
- Black Dot Inlays
- 21 Frets
- Medium Jumbo Fret Wire
- 12" Radius
- 1.650" Nut Width
- 25.5" Scale Length
- Bone Nut
- Vintage Style Staggered Tuners
- Butt Adjust Truss Rod
- Soft V Neck Profile
- Nitro Lacquer Neck Finish
- Lacquer Body Finish

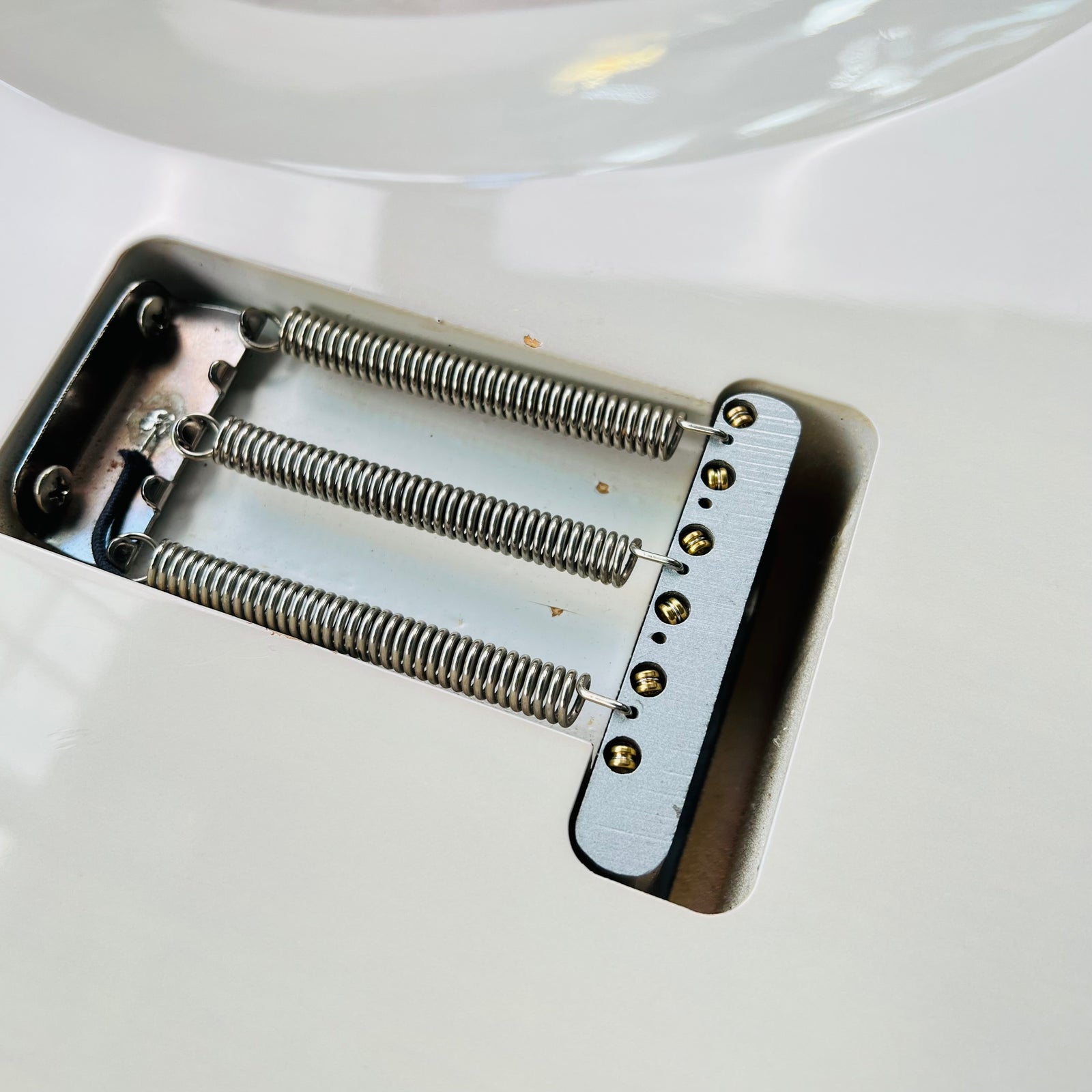

- American Vintage Tremolo Bridge
- Single Ply Parchment Guard
- Three Single Coil Pickups
- One Volume & Two Tone Controls
- 5-Way Selector Switch

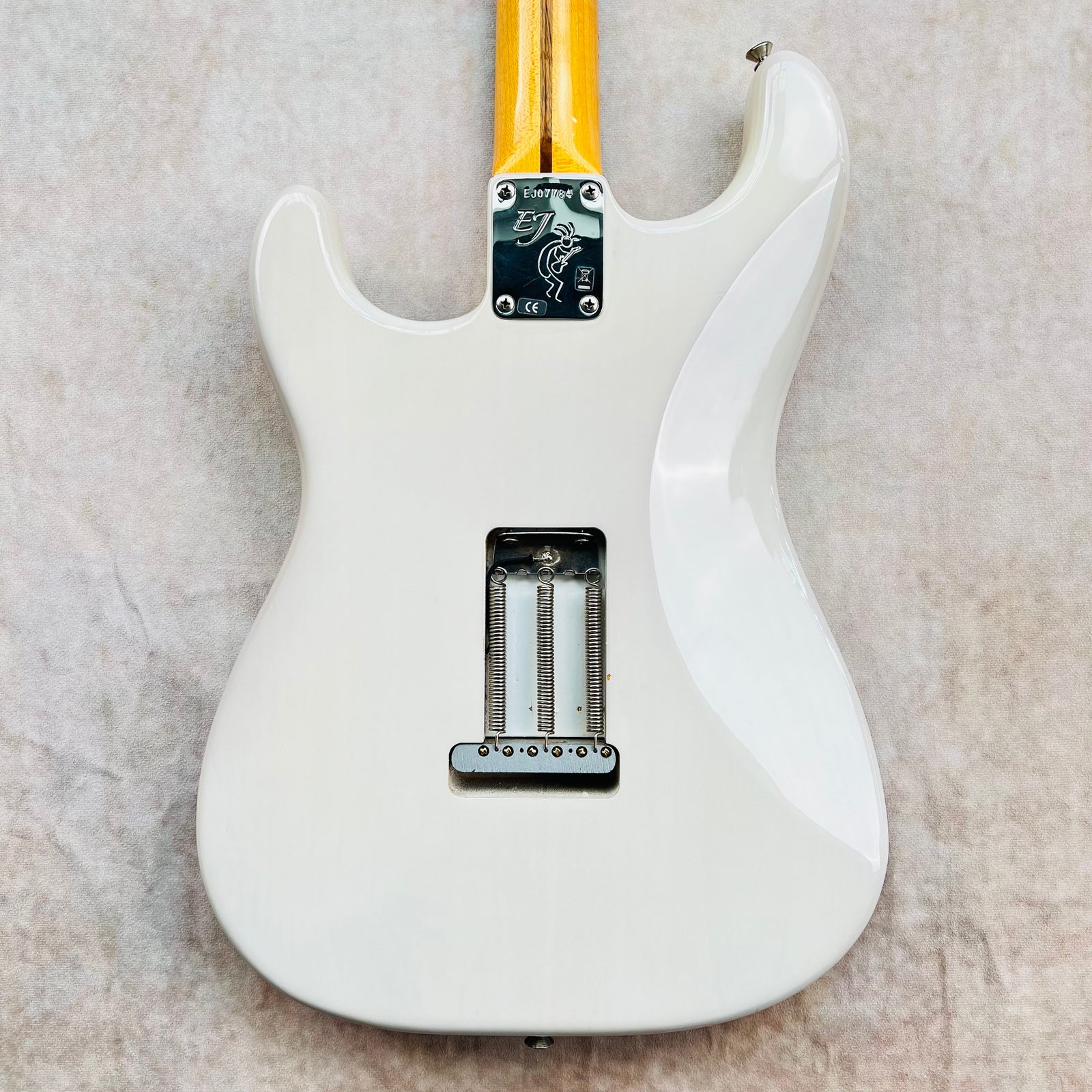

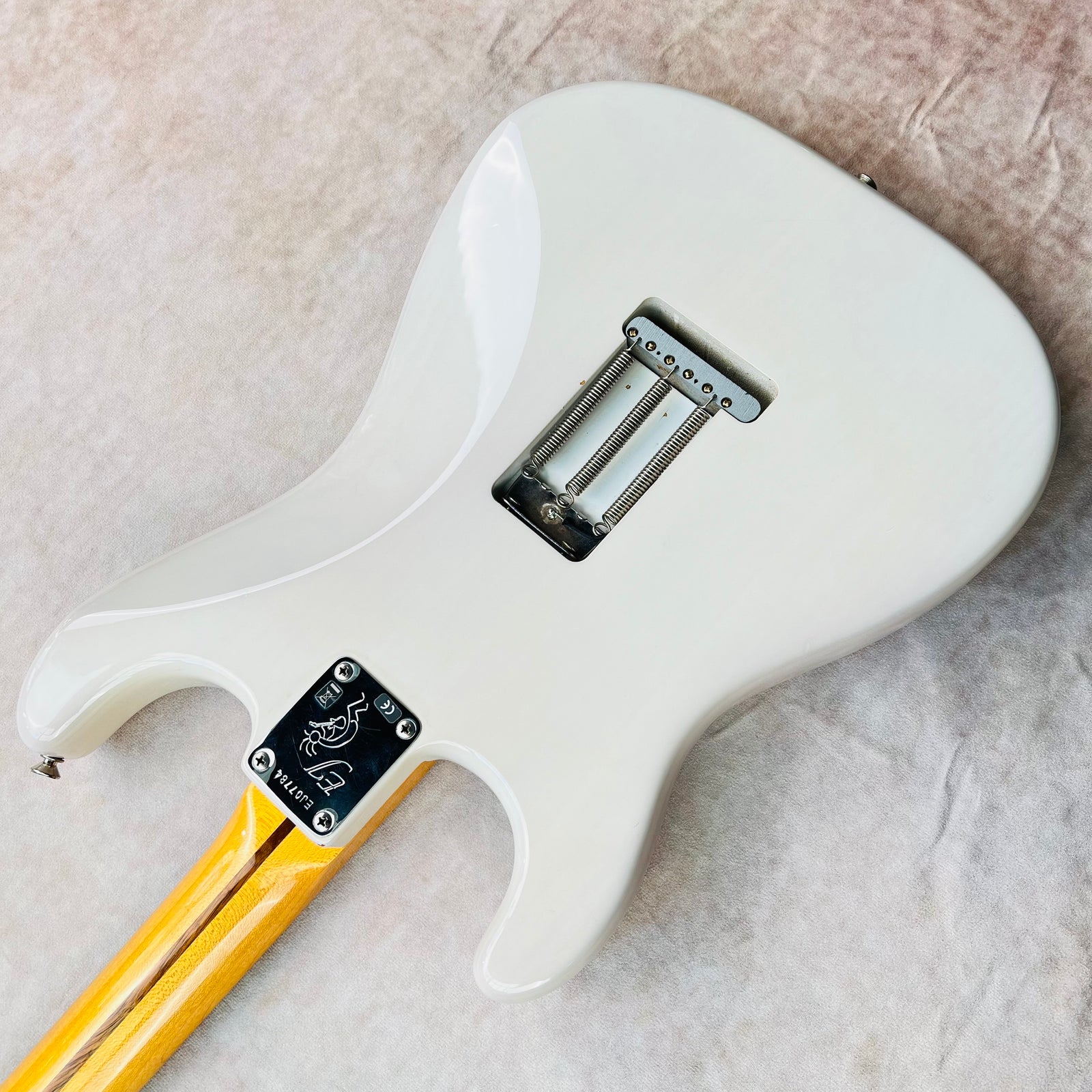

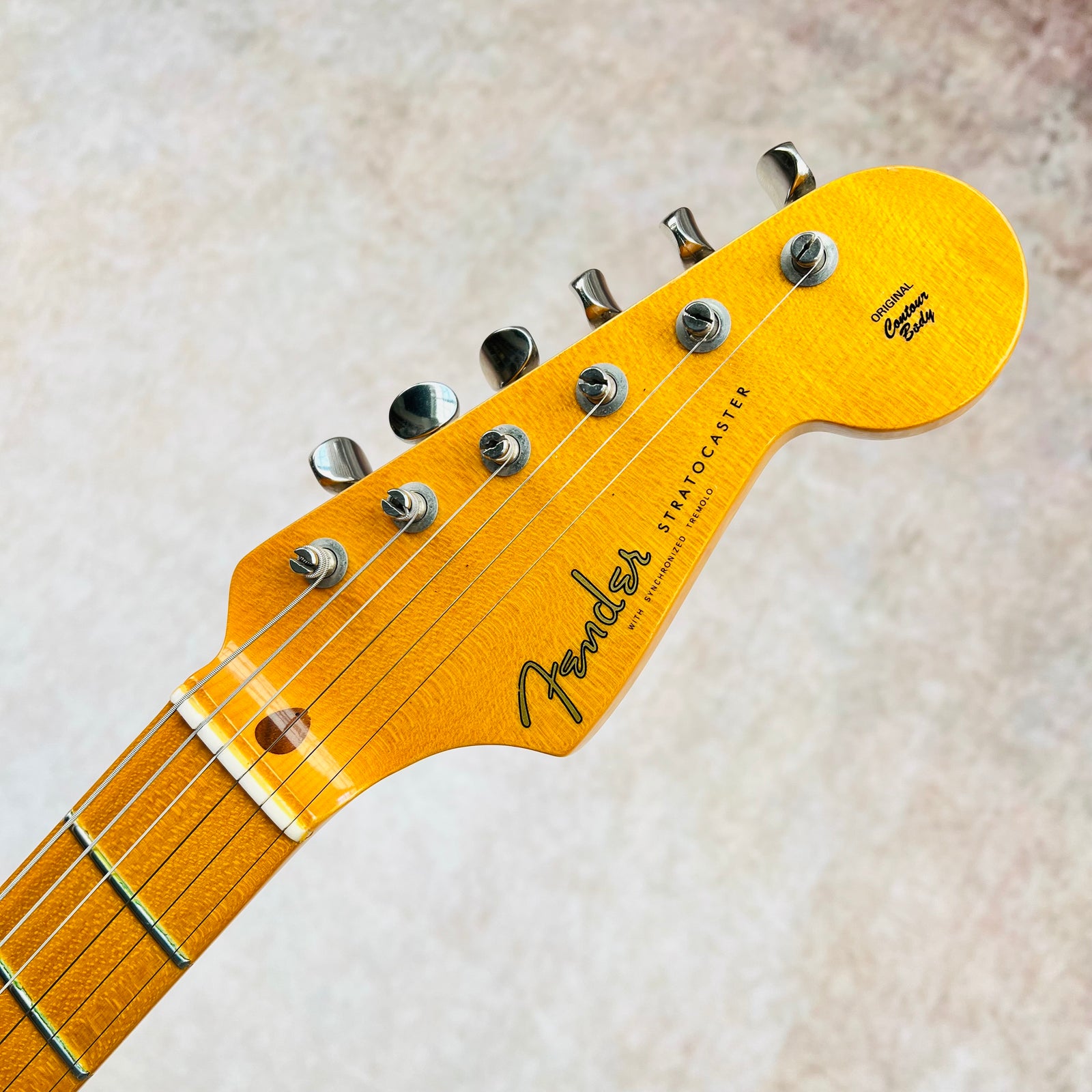

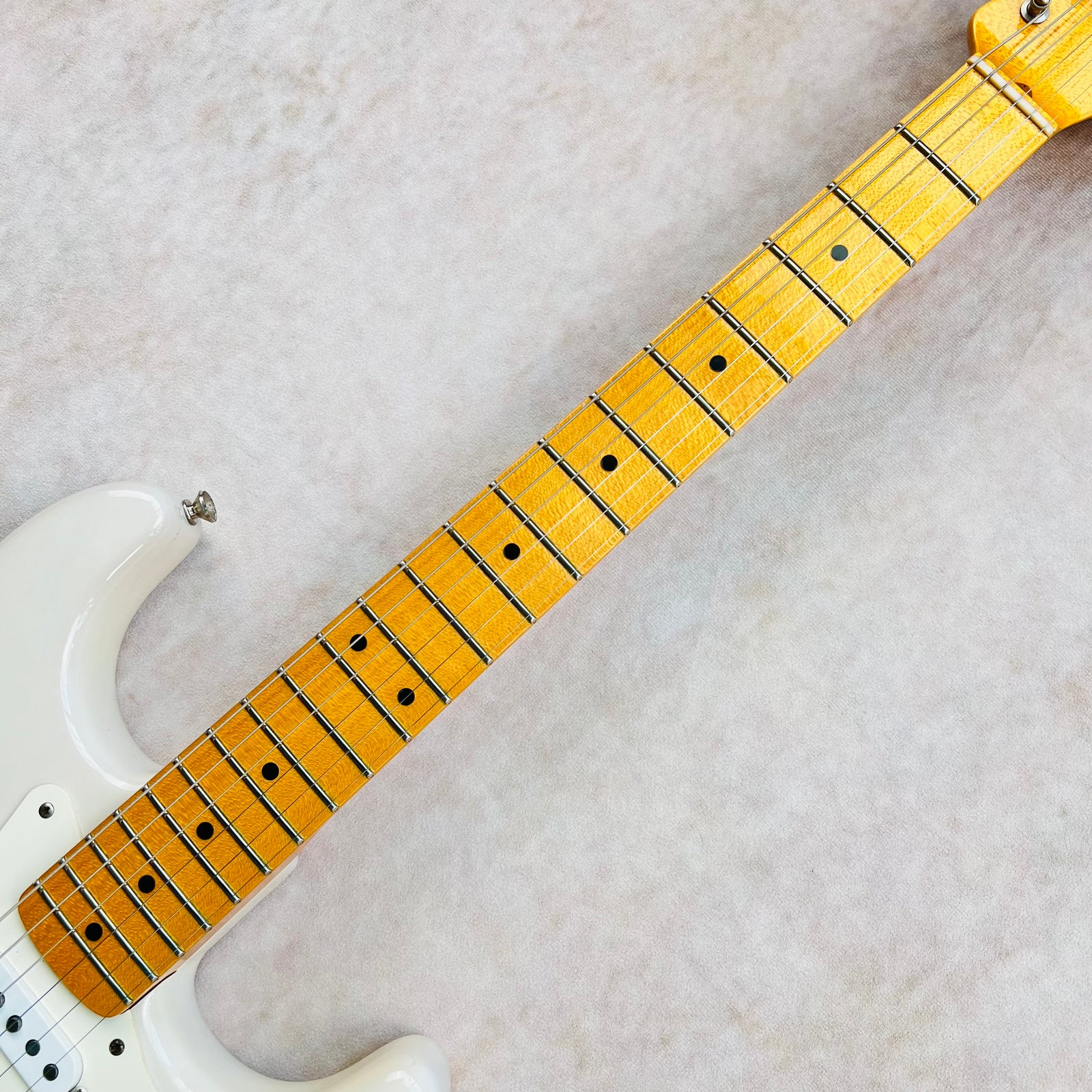

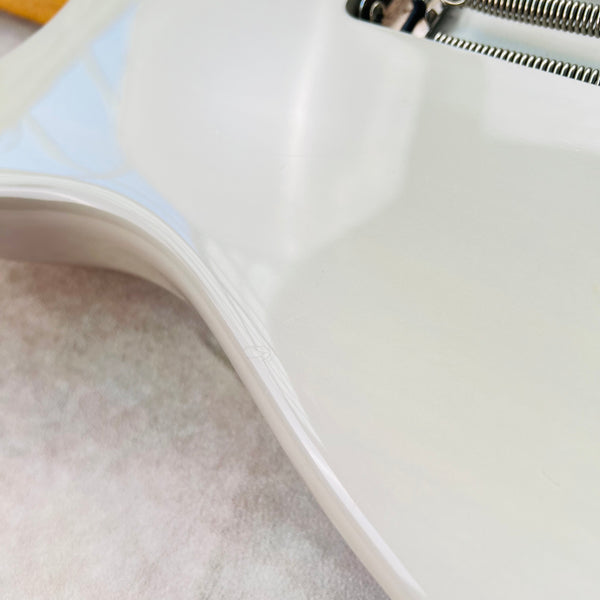

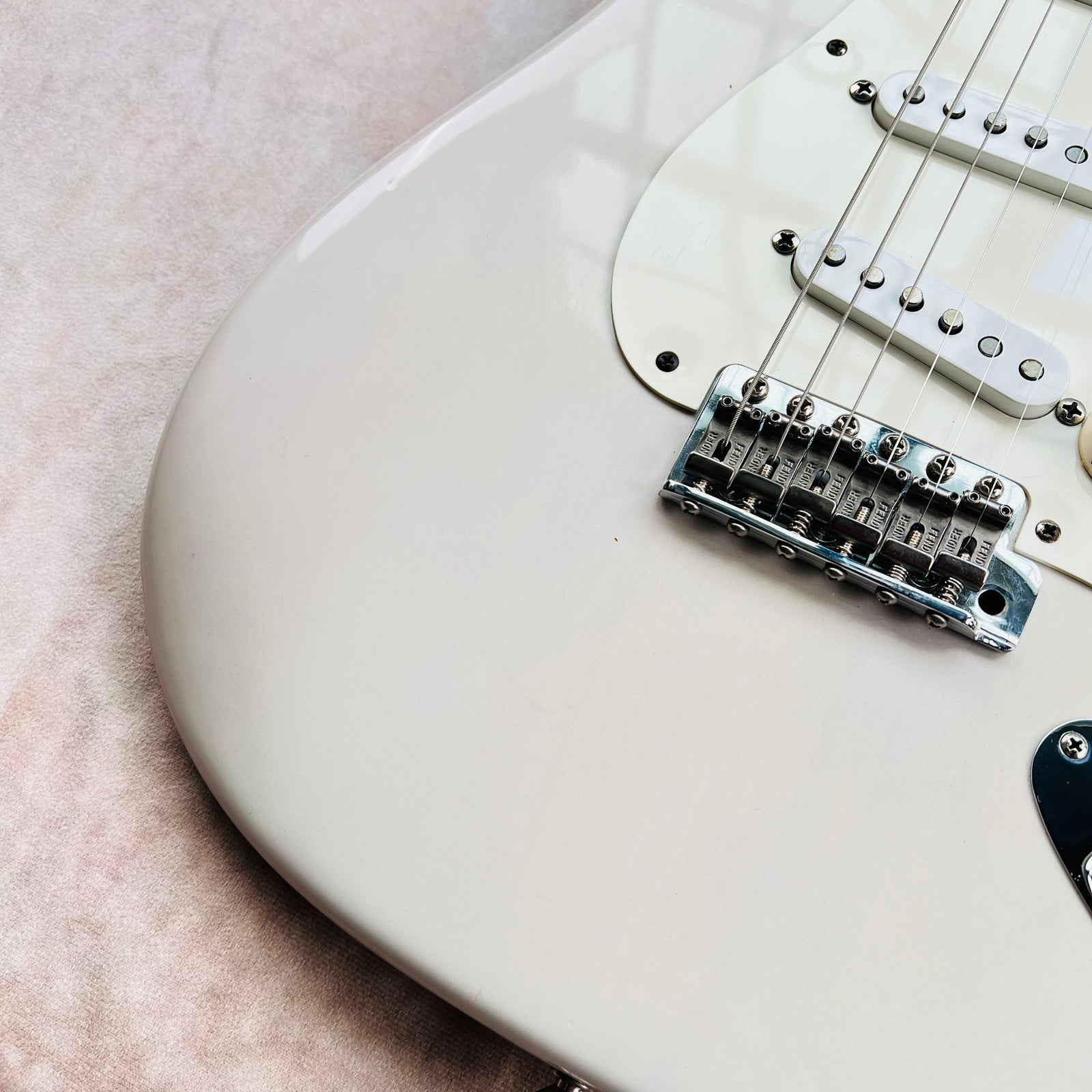

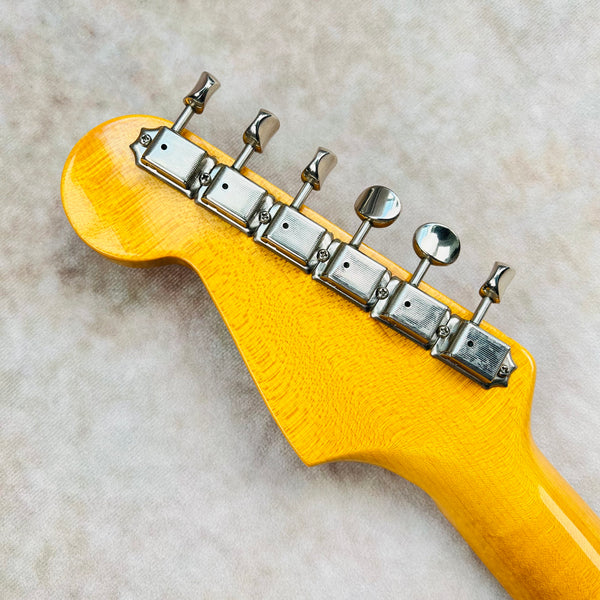

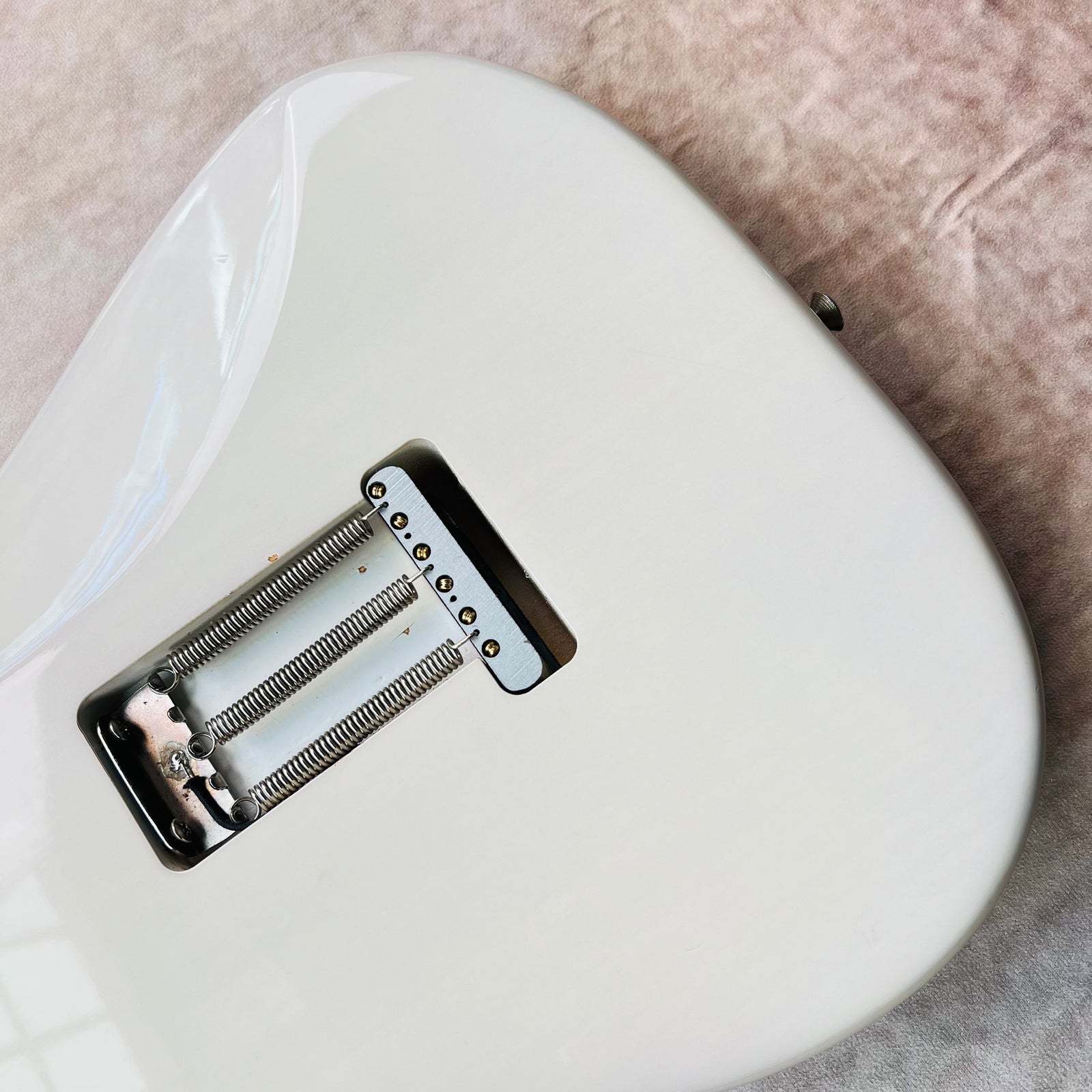

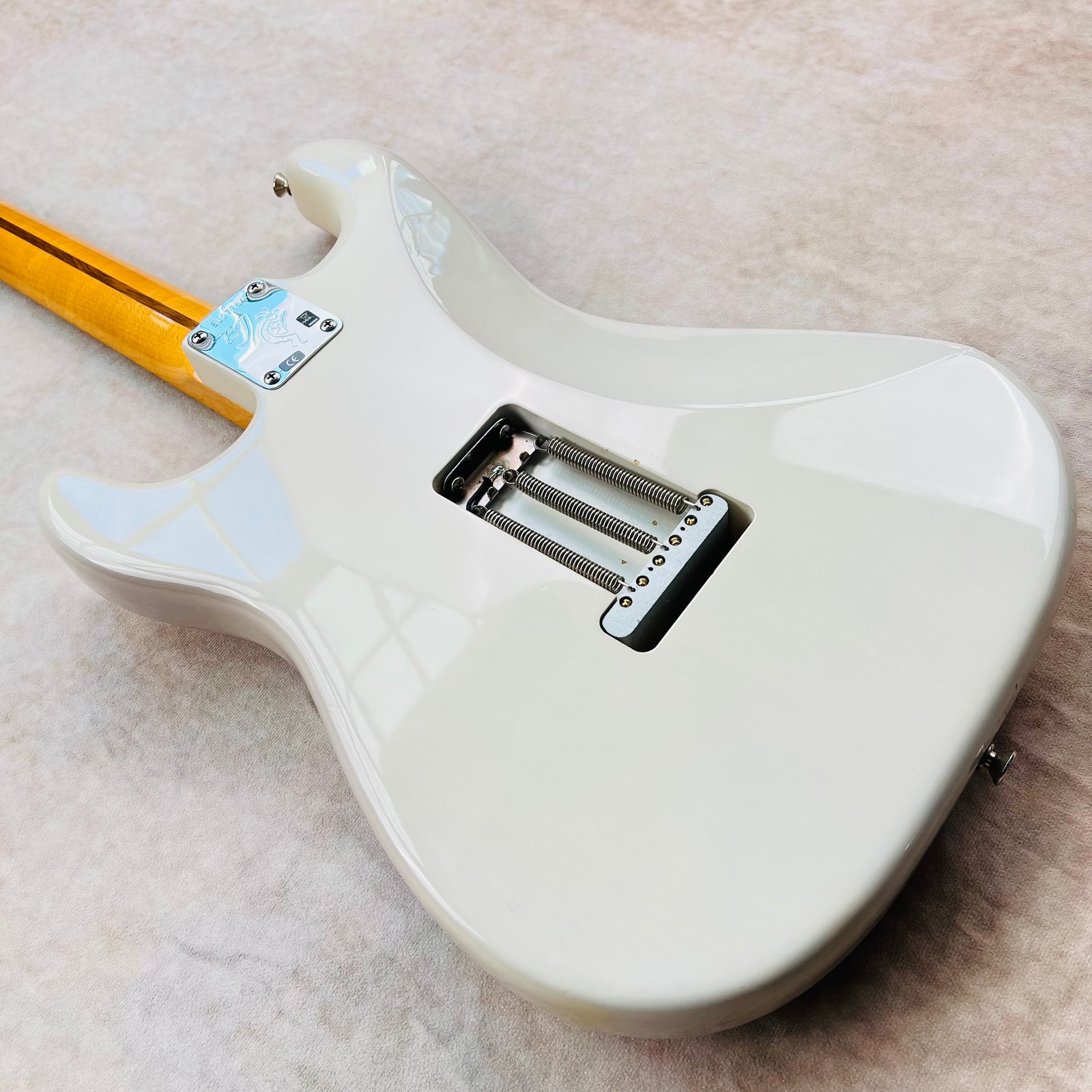

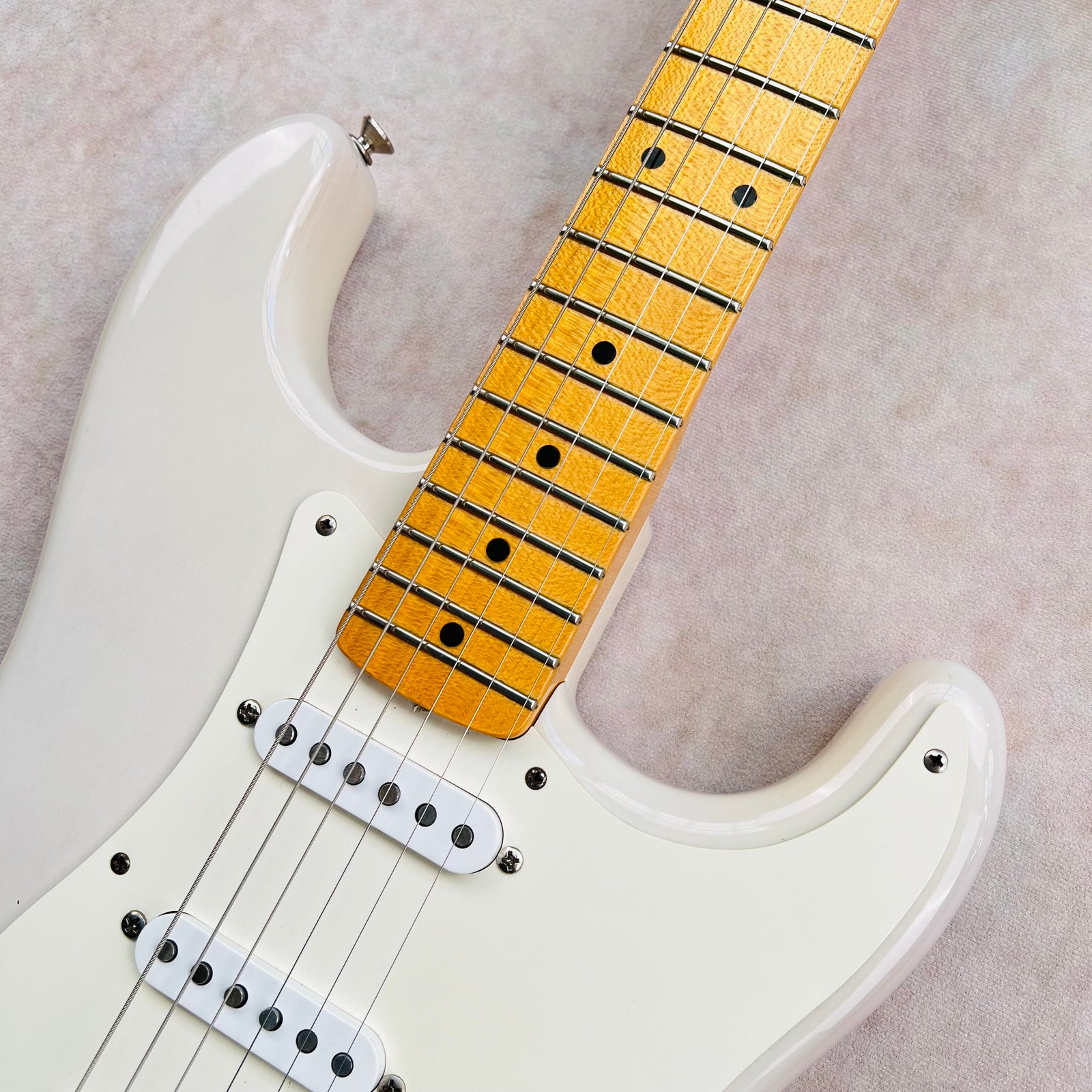

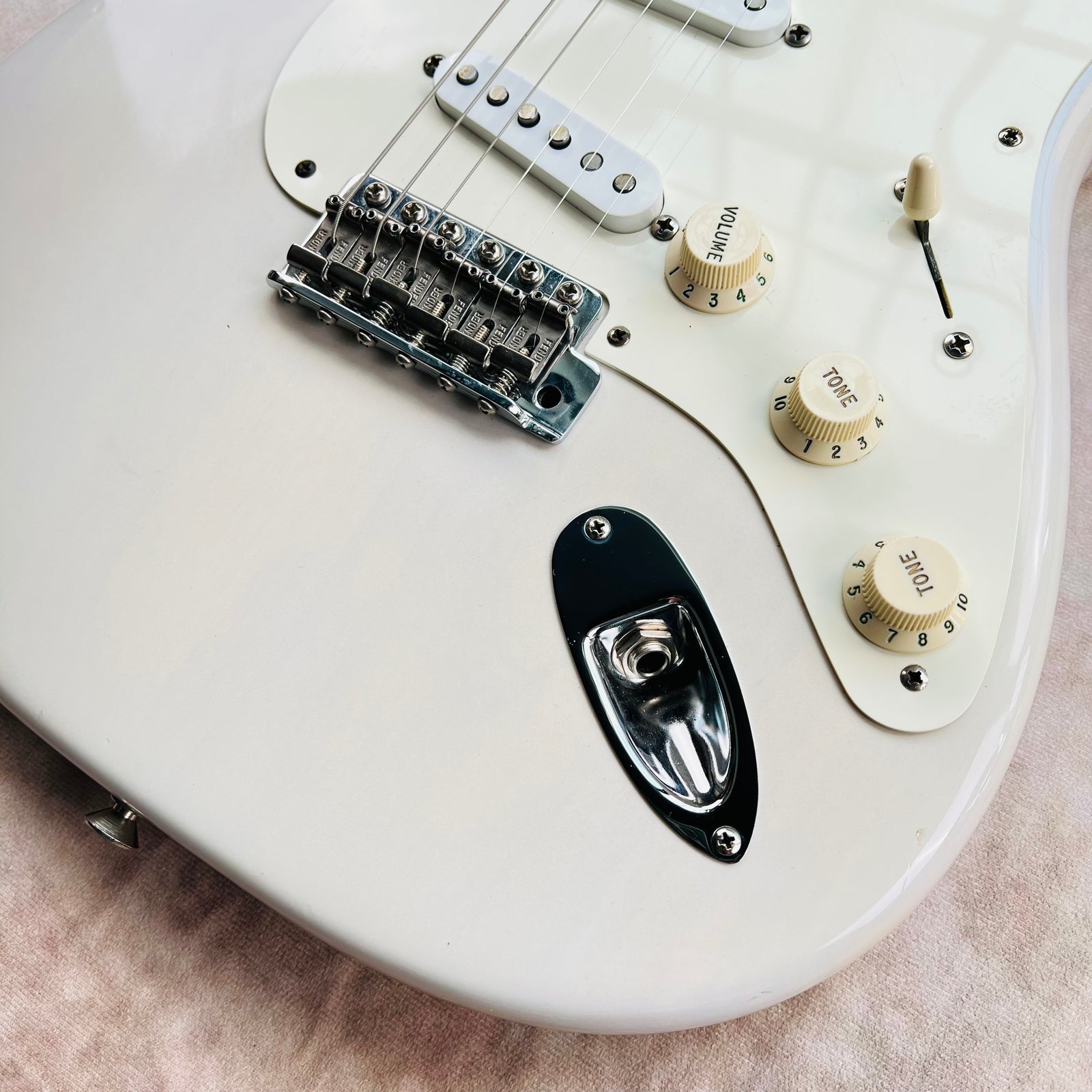

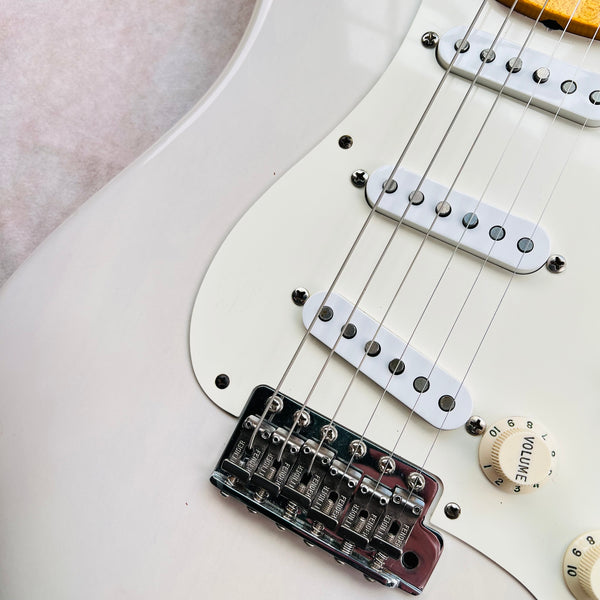

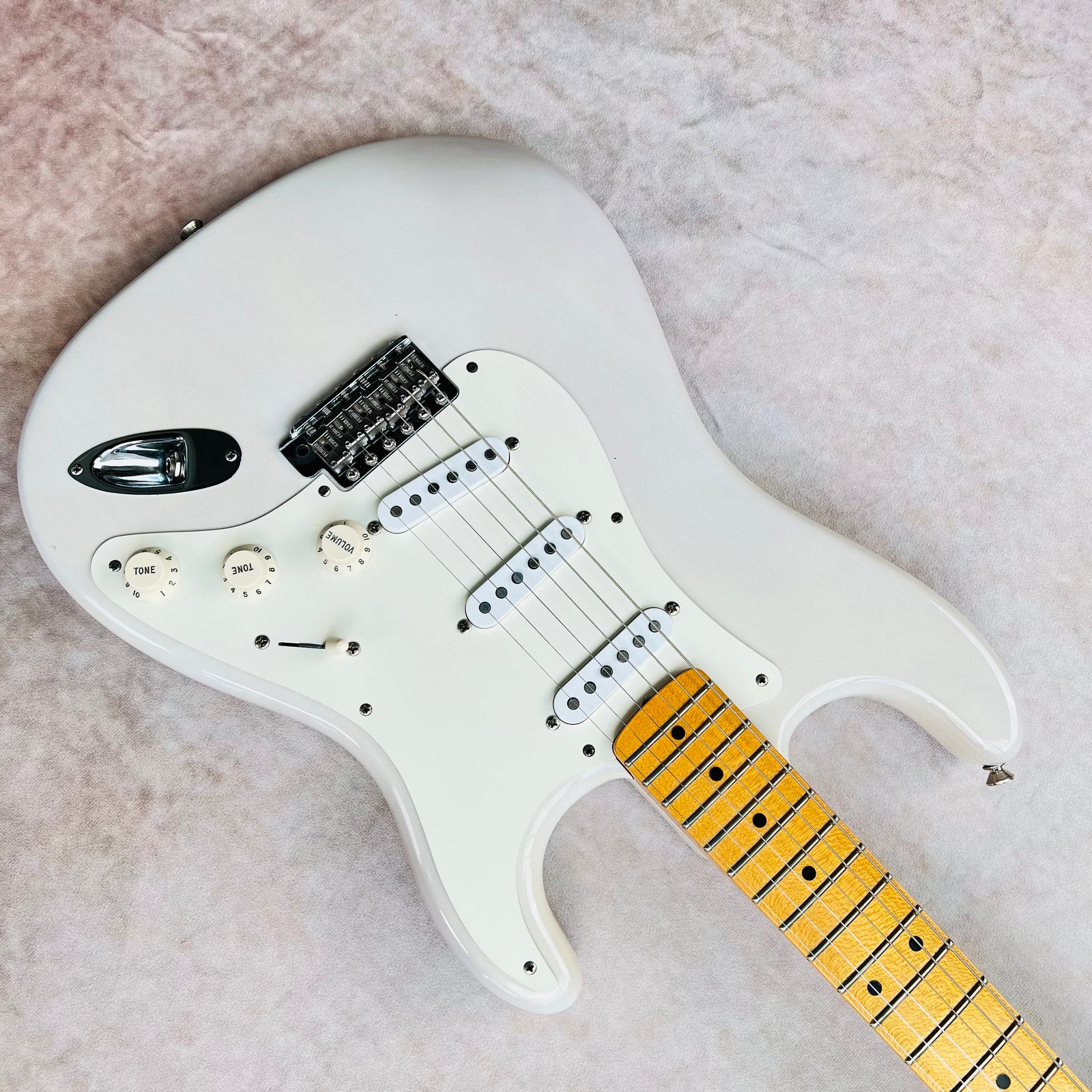

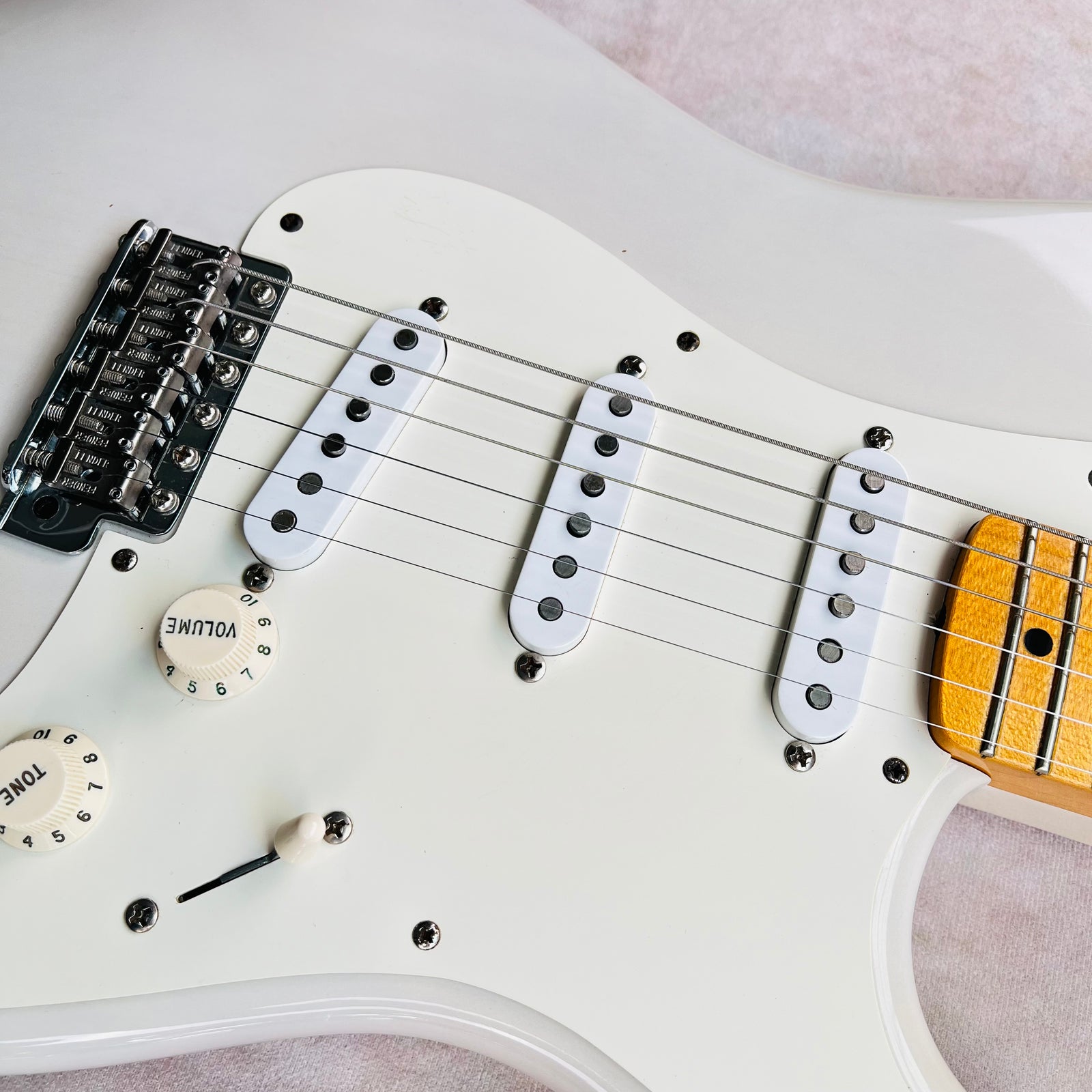

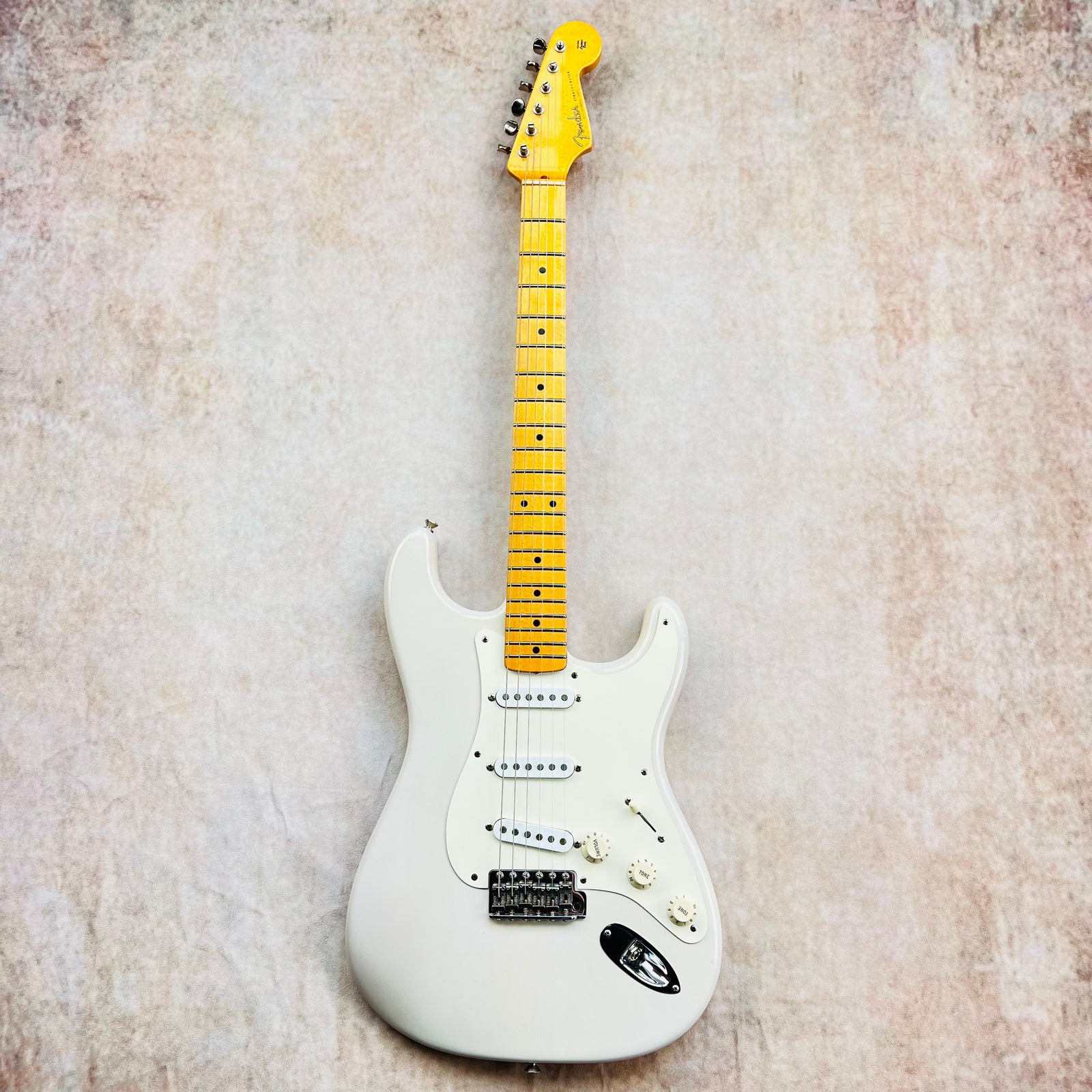

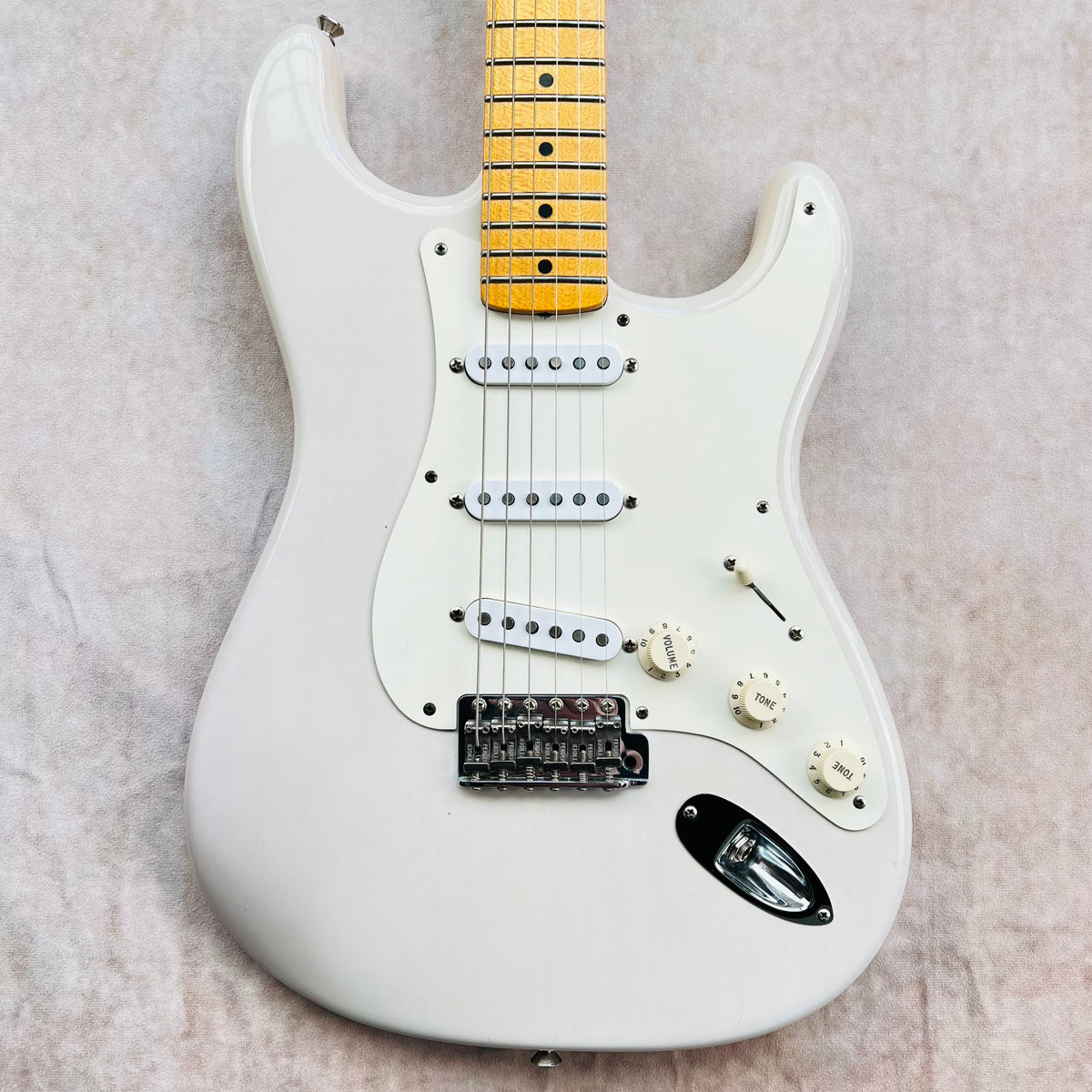

Reference Images

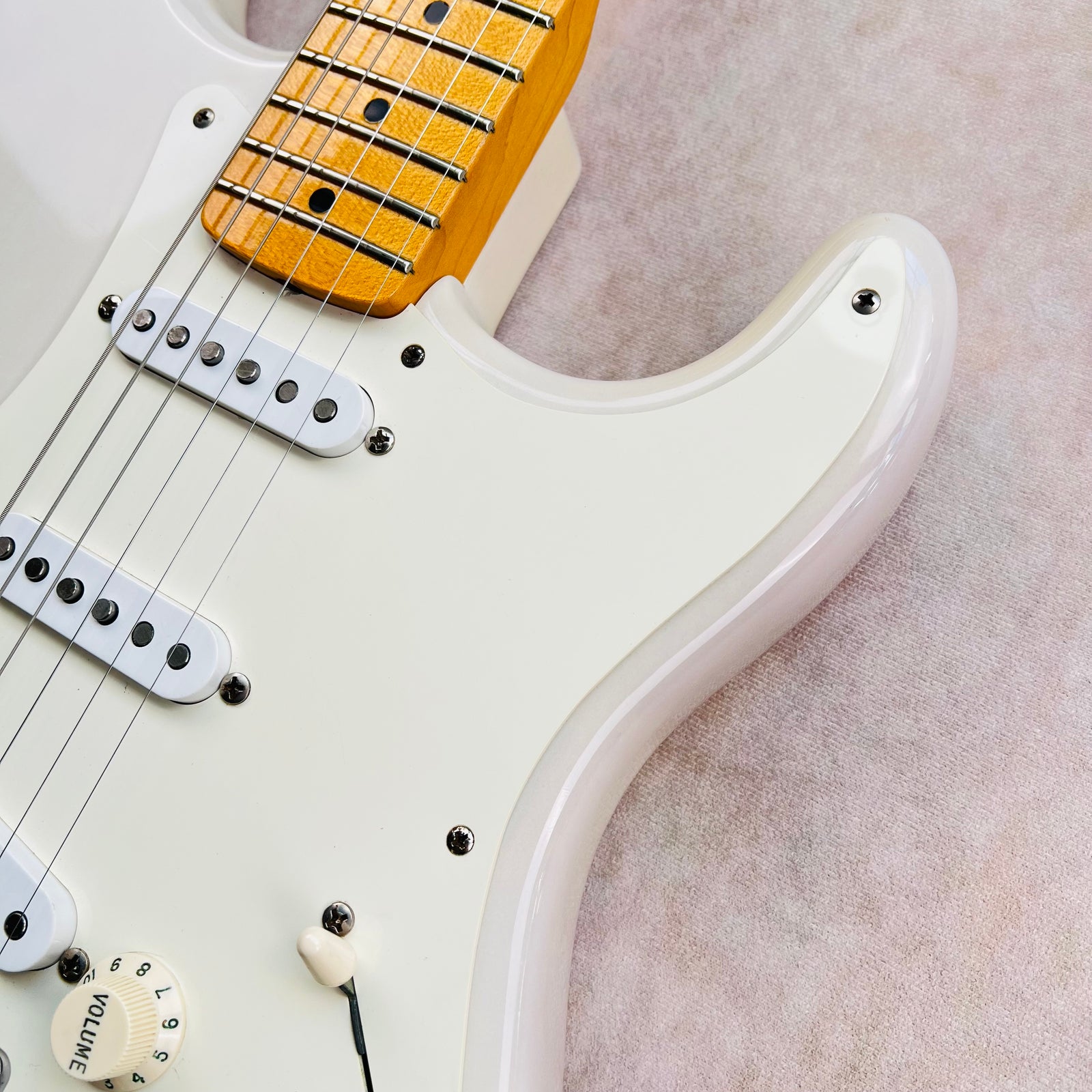

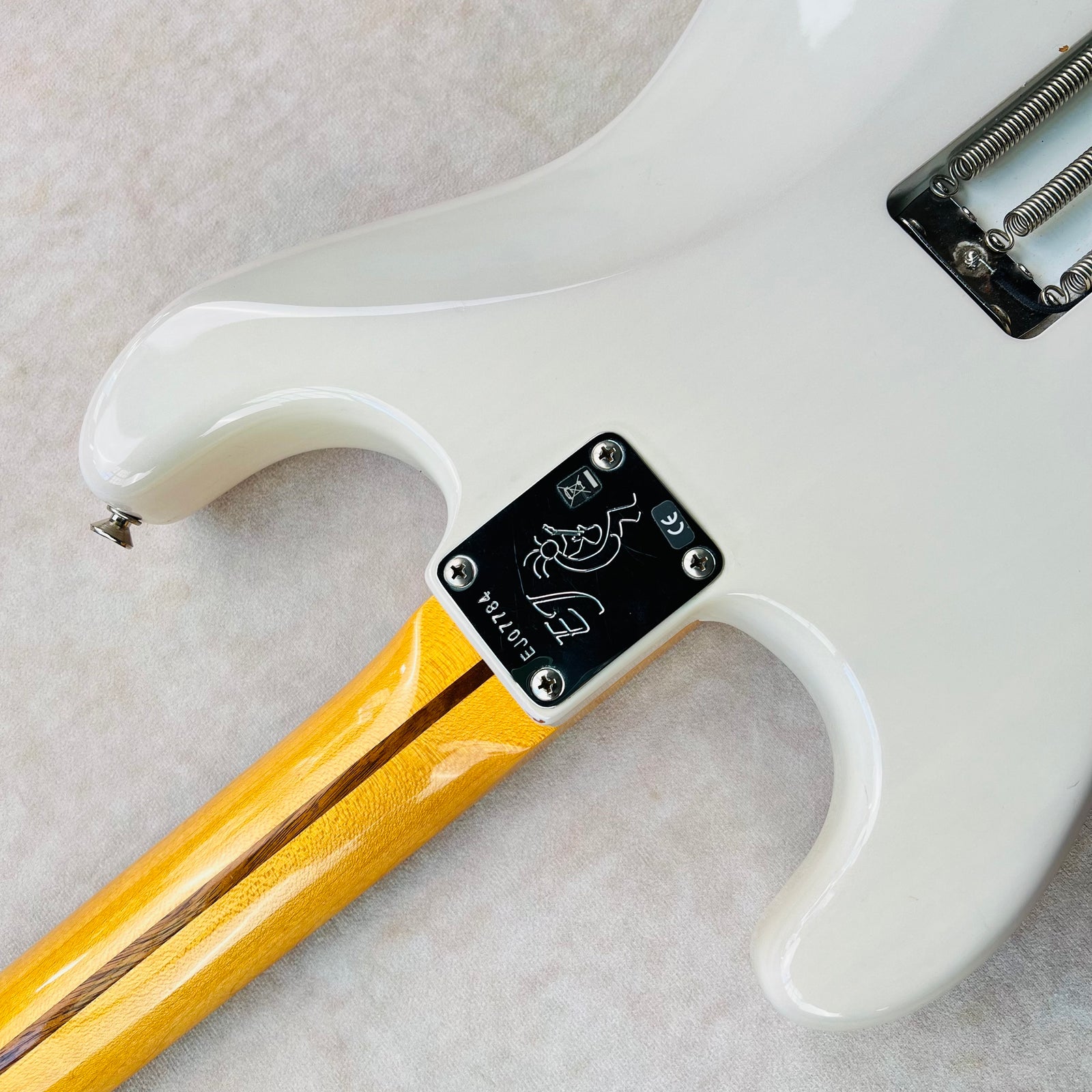

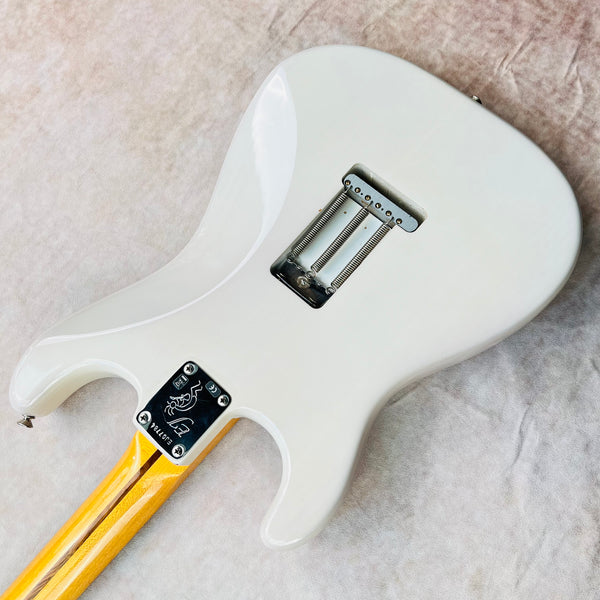

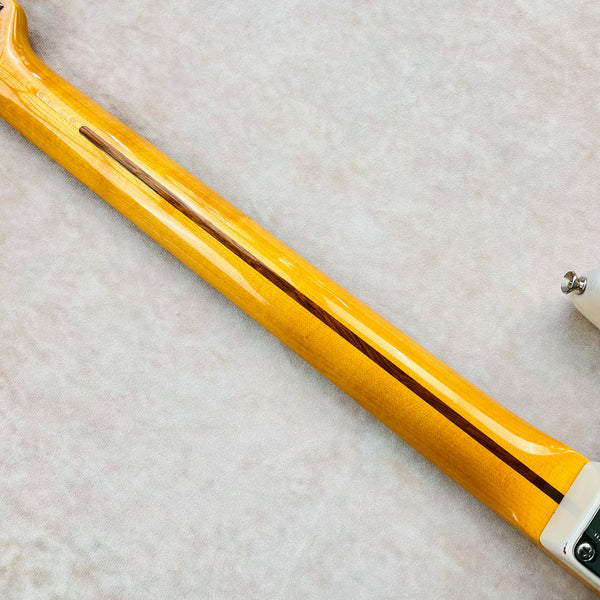

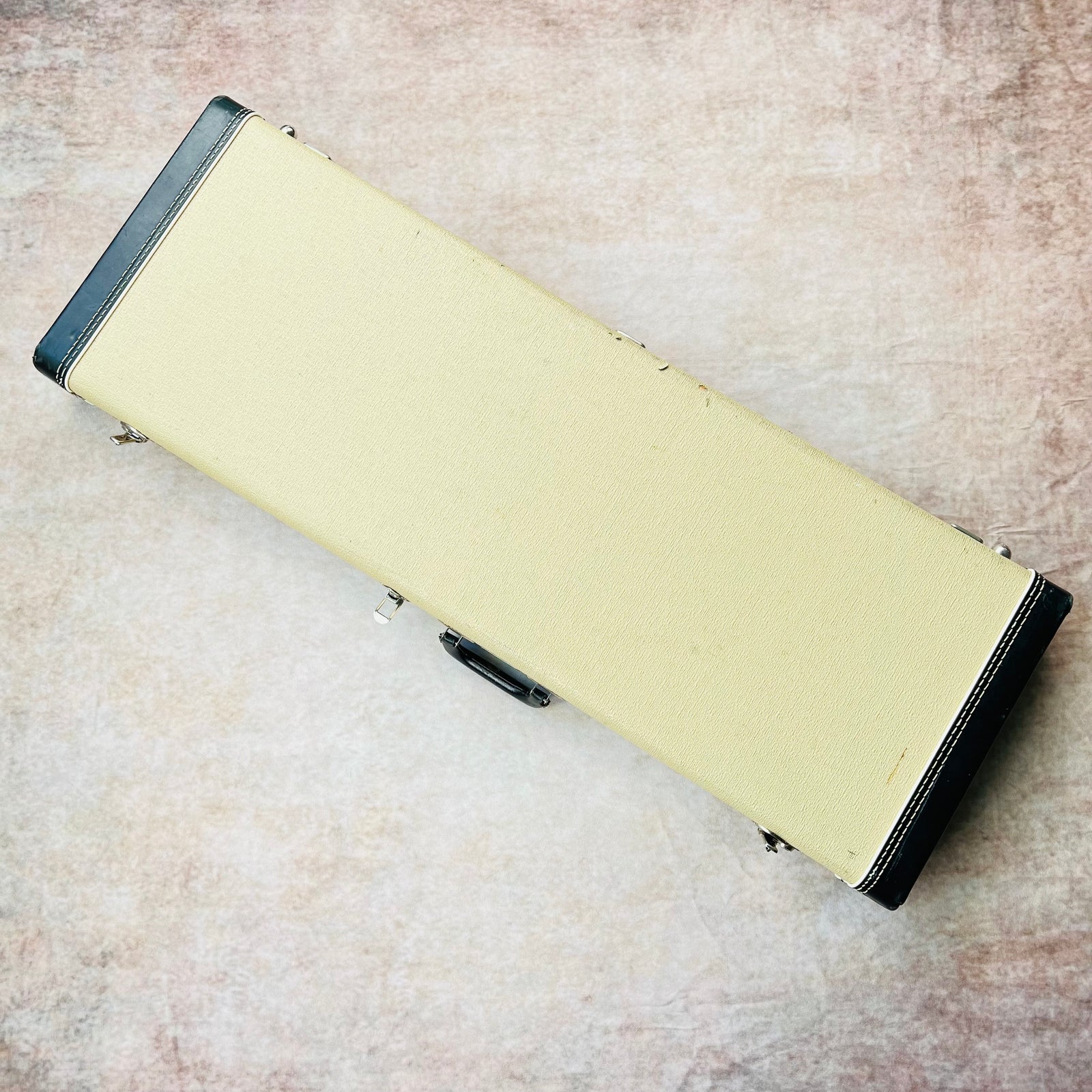

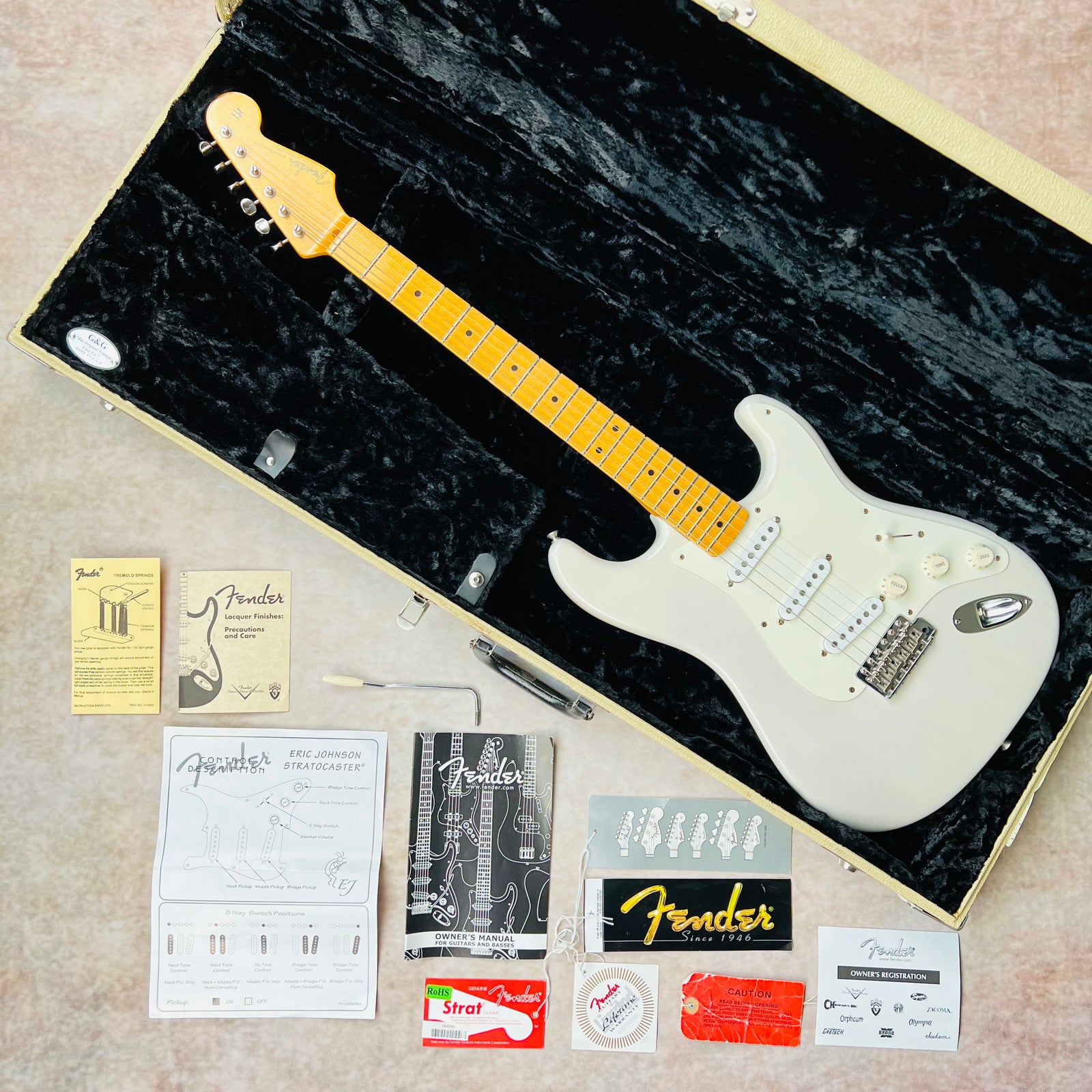

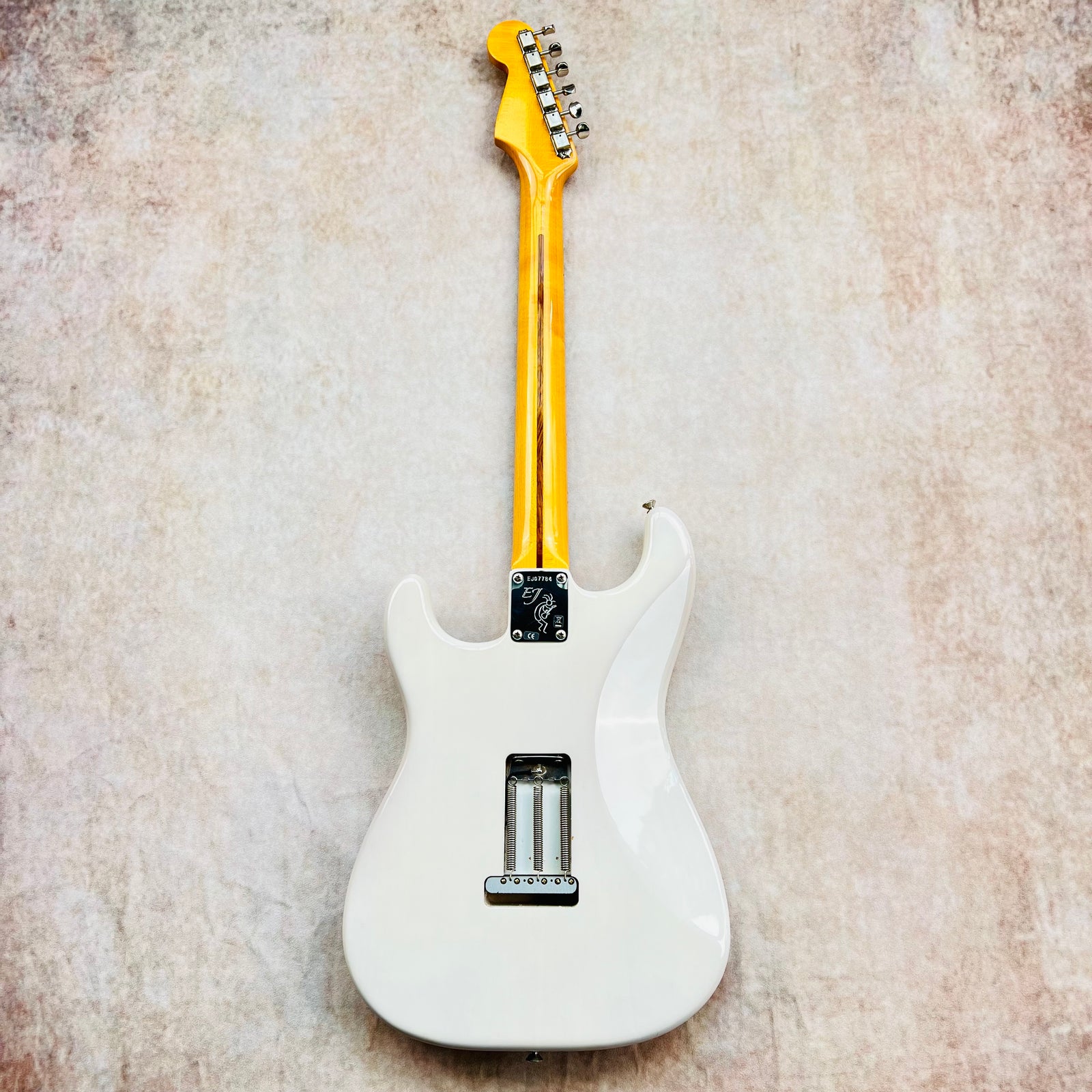

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Eric Johnson Stratocaster Maple listed above. For larger pics, click on an image to open in a new tab.
