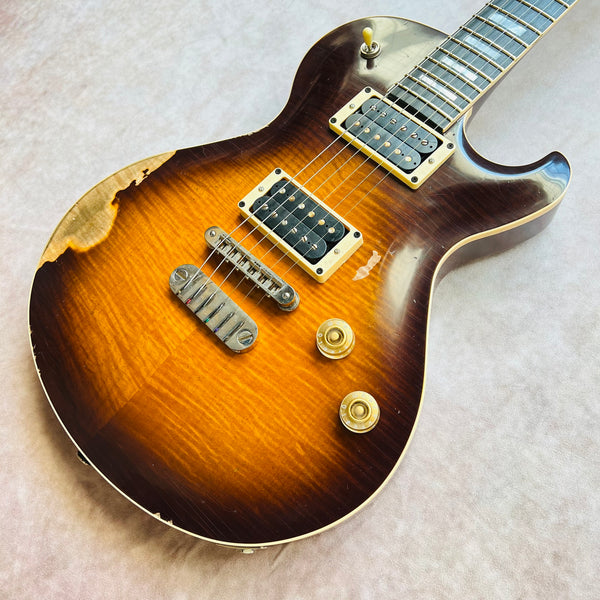

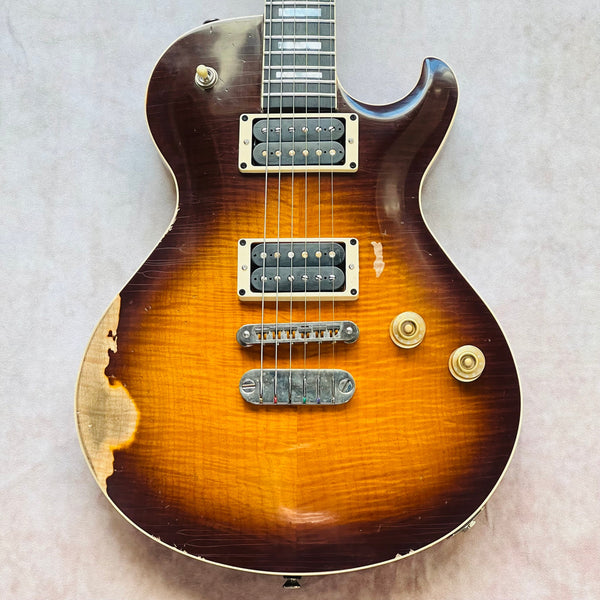

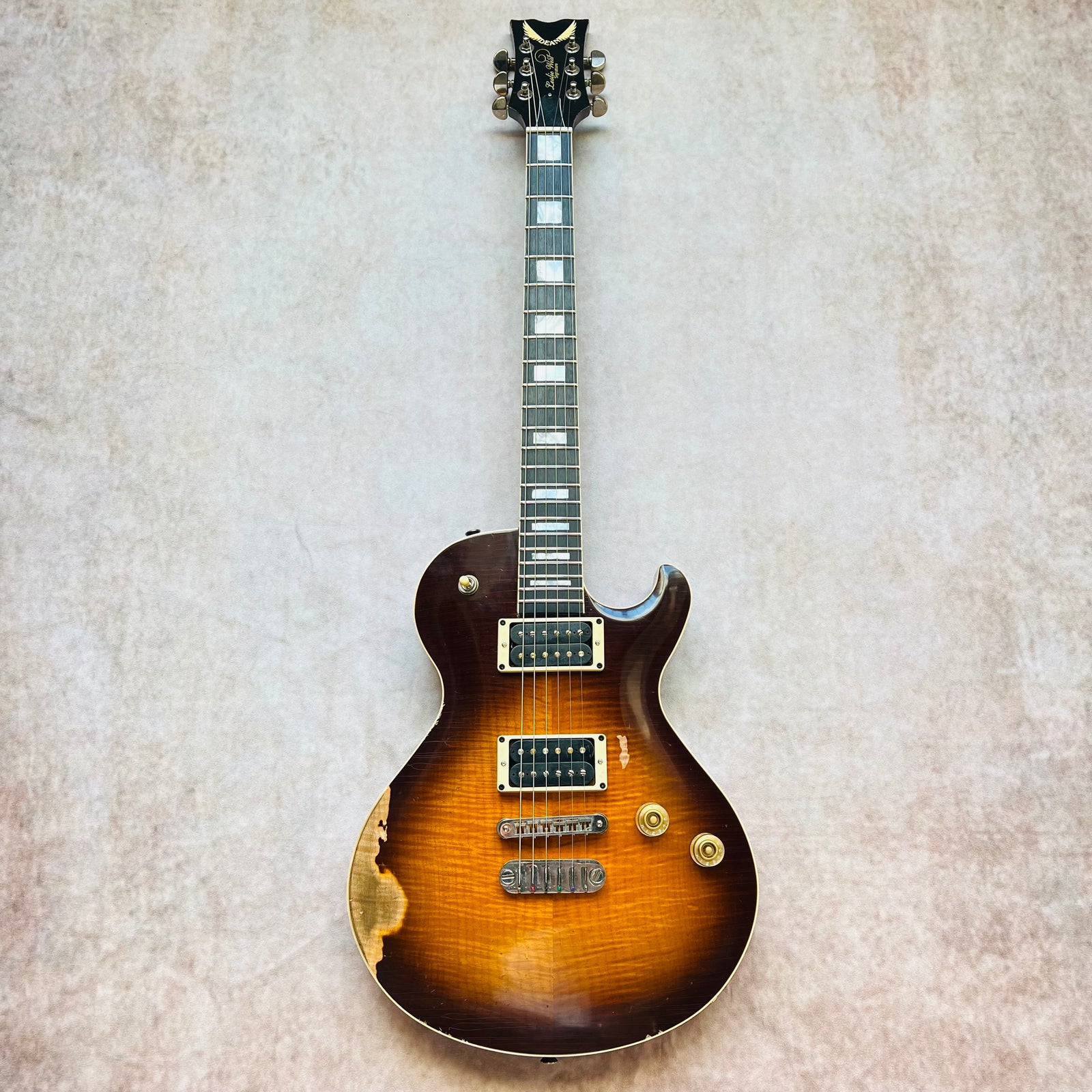

The 2021 USA Leslie West Signature Tattered N Torn Relic is a solid body electric guitar built by Dean. This single cutaway set neck guitar was manufactured in the United States and is a Dean USA Leslie West Signature model. Key features include a Flame Maple Top, Mahogany Body, 3-Piece Mahogany Neck, Ebony Fretboard, DMT Humbucker Pickups and Trans Brazilia Burst finish. The specs listed below pertain to the 2021 product year model pictured on this page.
Factory Specs
- Flame Maple Top
- Mahogany Body
- 3-Piece Mahogany Neck
- Ebony Fretboard
- Block Inlays
- 22 Frets
- Jumbo Fret Wire
- 12" Radius
- 1 11/16" Nut Width
- 24 5/8" Scale Length

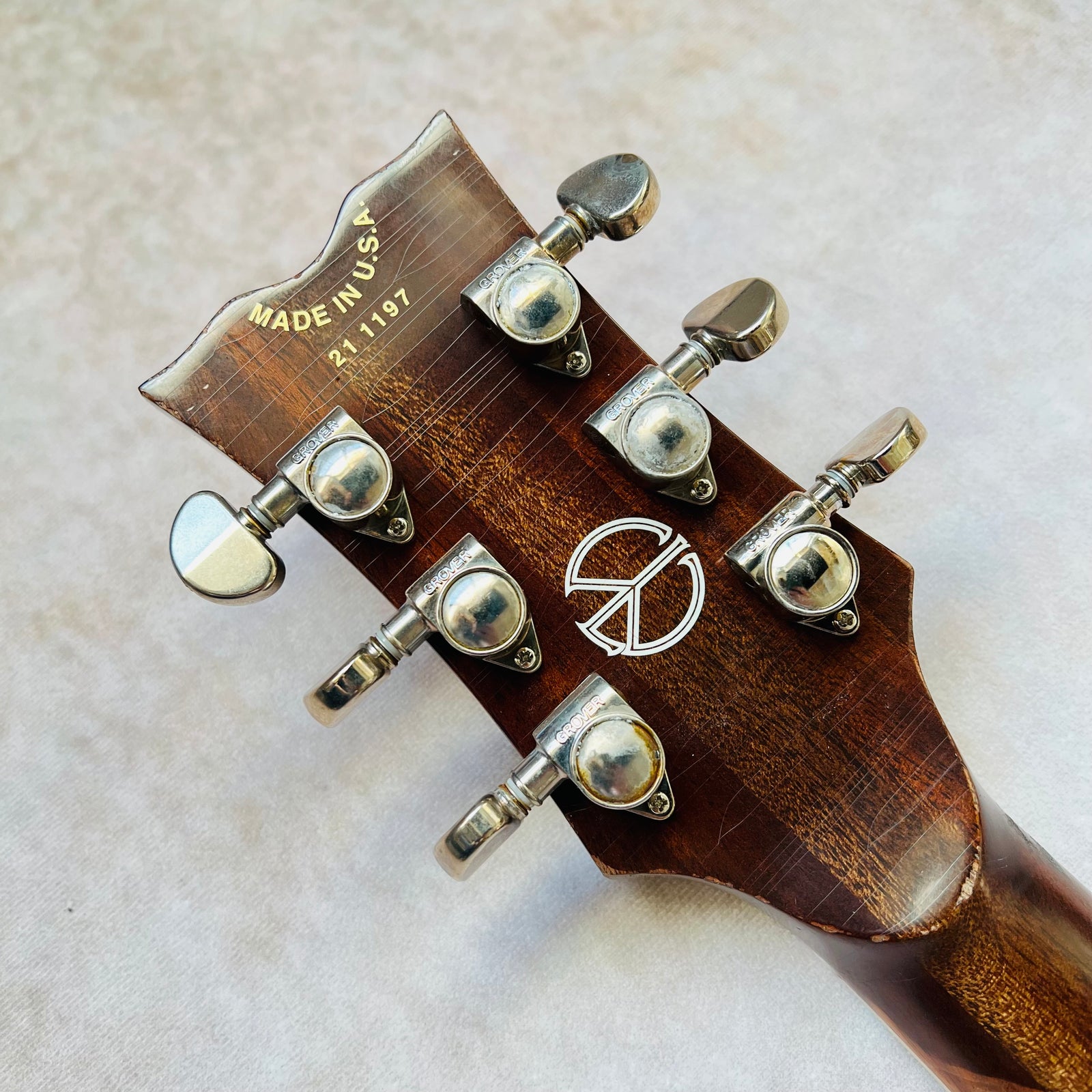

- Grover Tuners

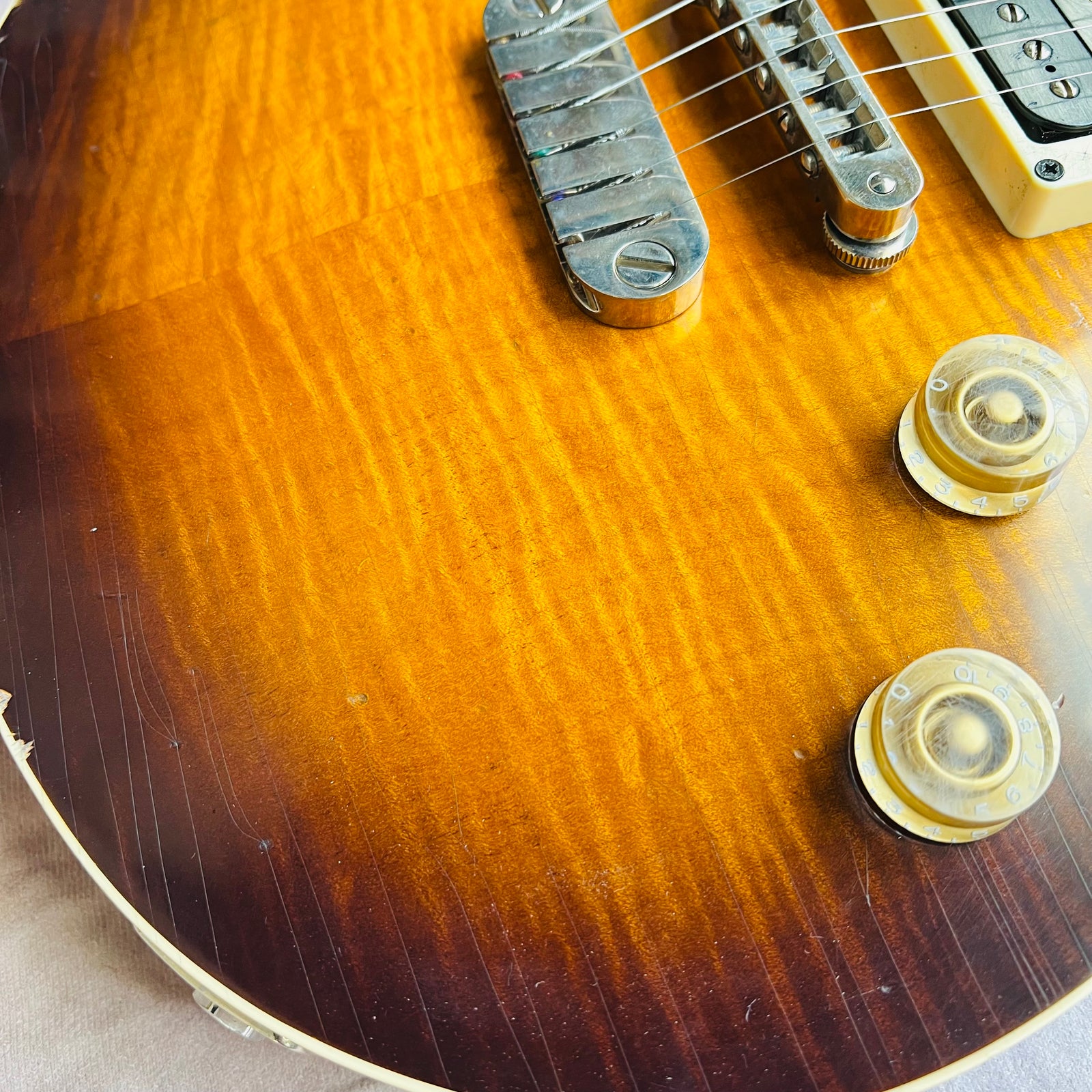

- Tune-o-matic Bridge
- Stop Tailpiece
- DMT Mountain of Tone Bridge Pickup
- DMT Nostalgia Neck Pickup
- One Volume & One Tone Control
- 3-Way Toggle Switch
- Single Cutaway Thoroughbred Body
- Set Neck Construction

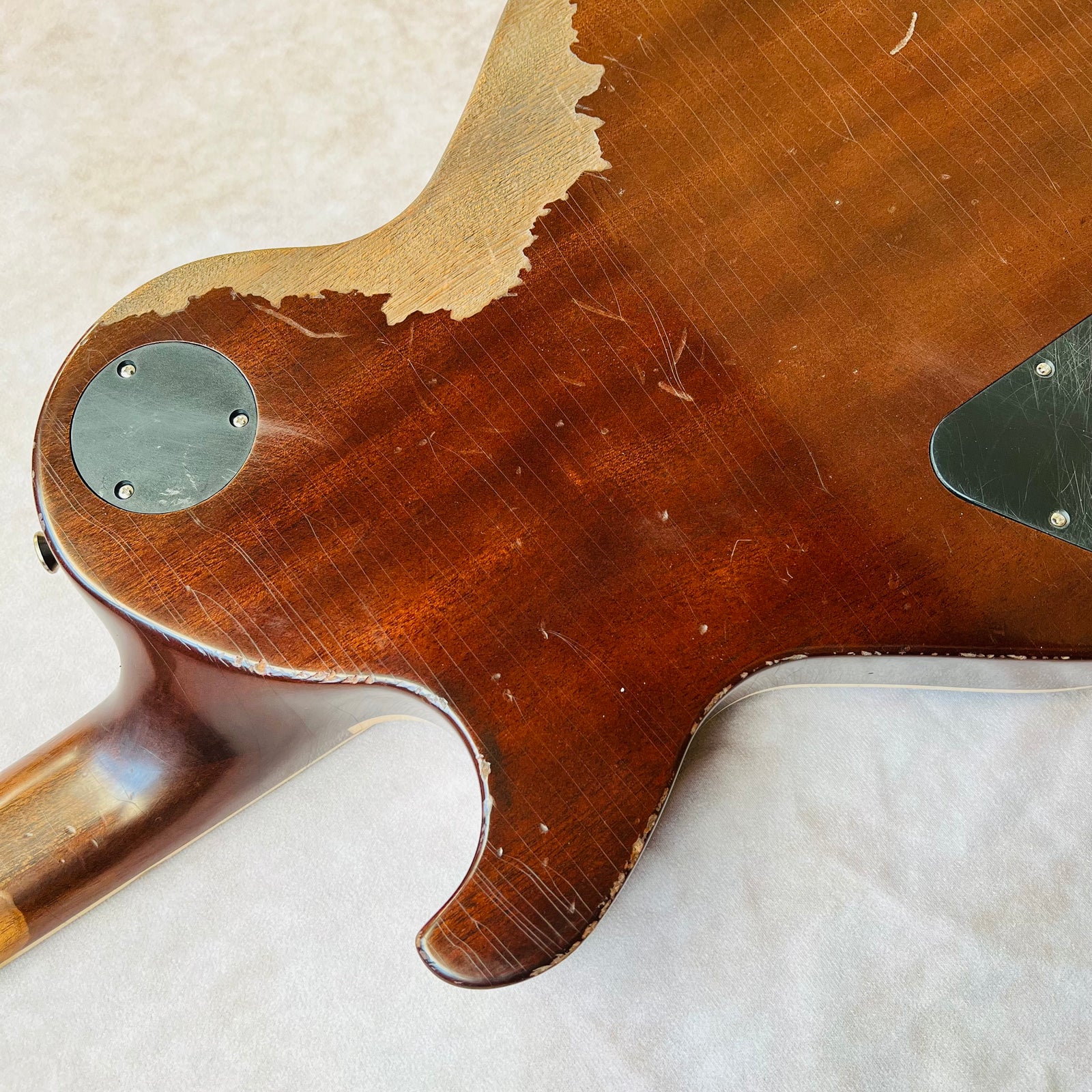

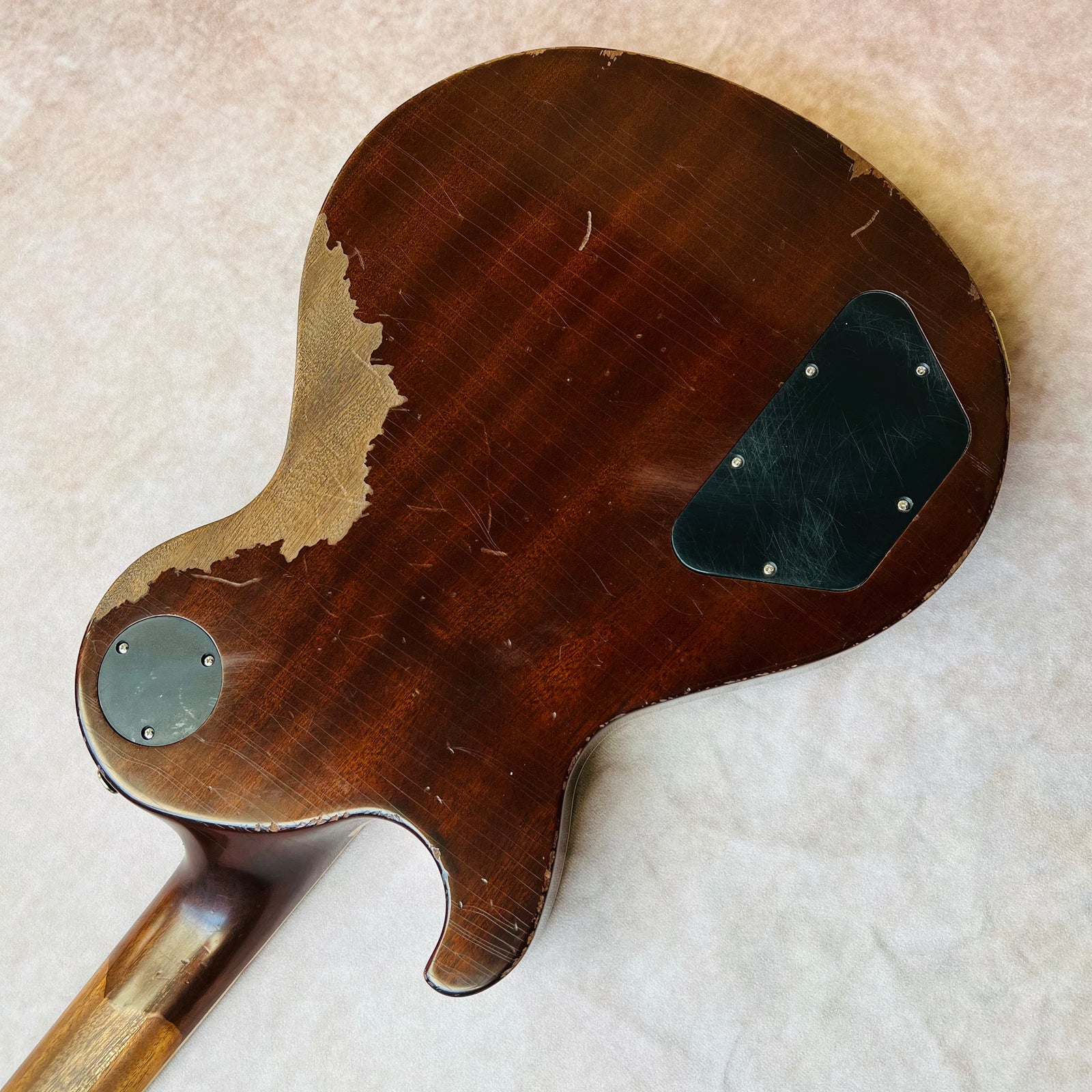

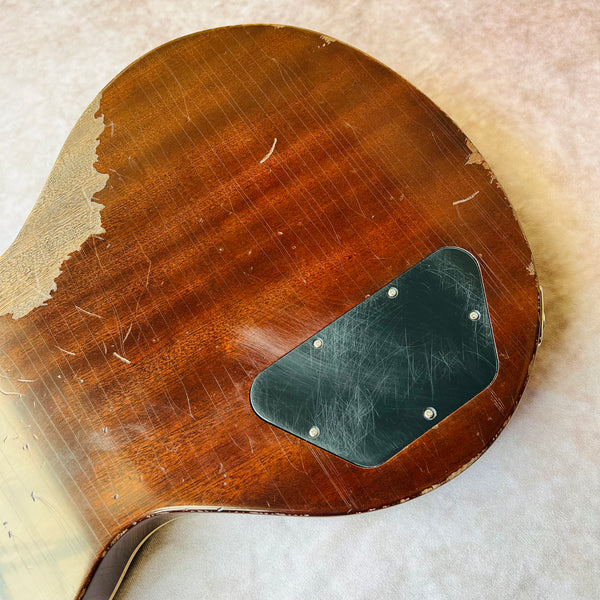

- Aged Lacquer Finish
Reference Images

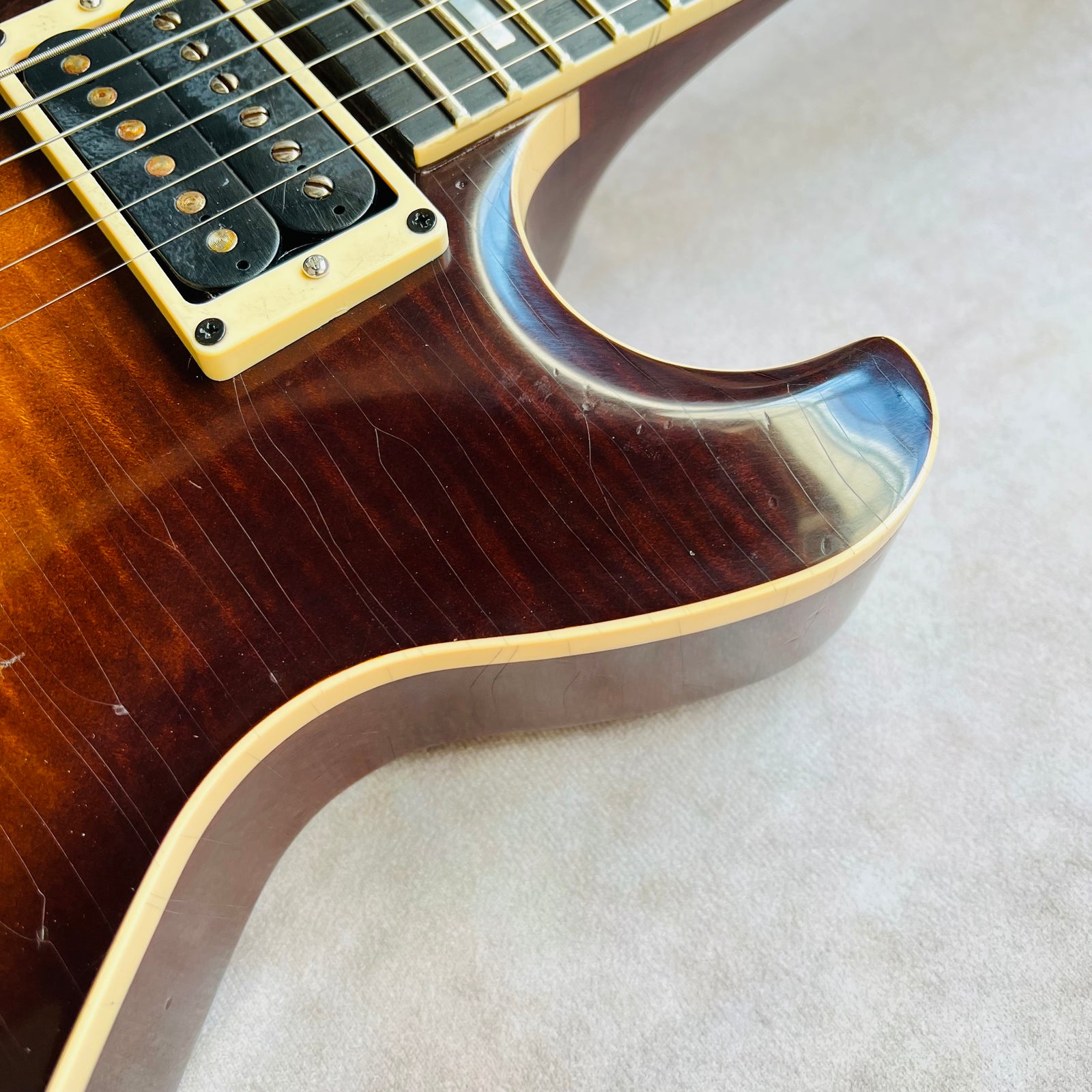

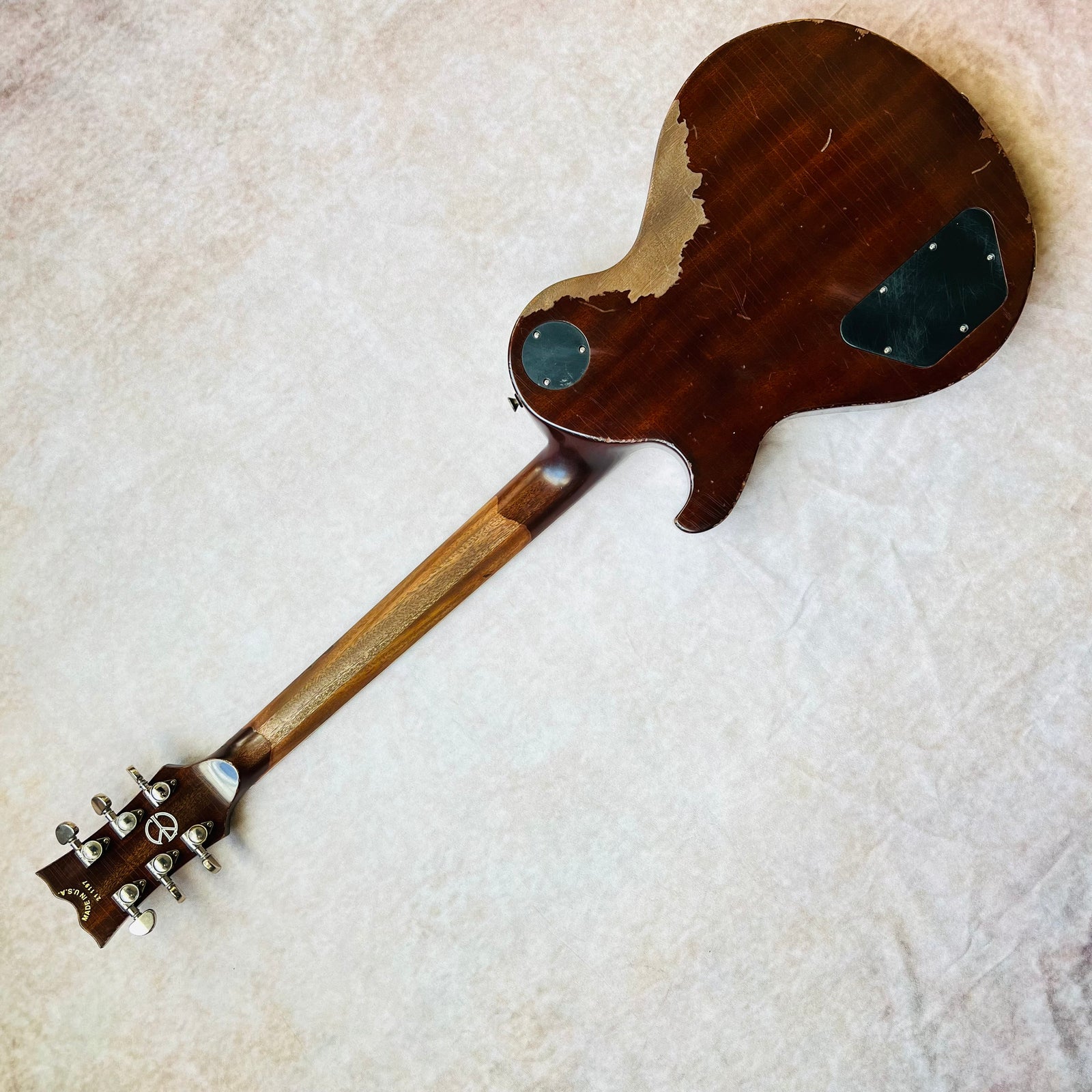

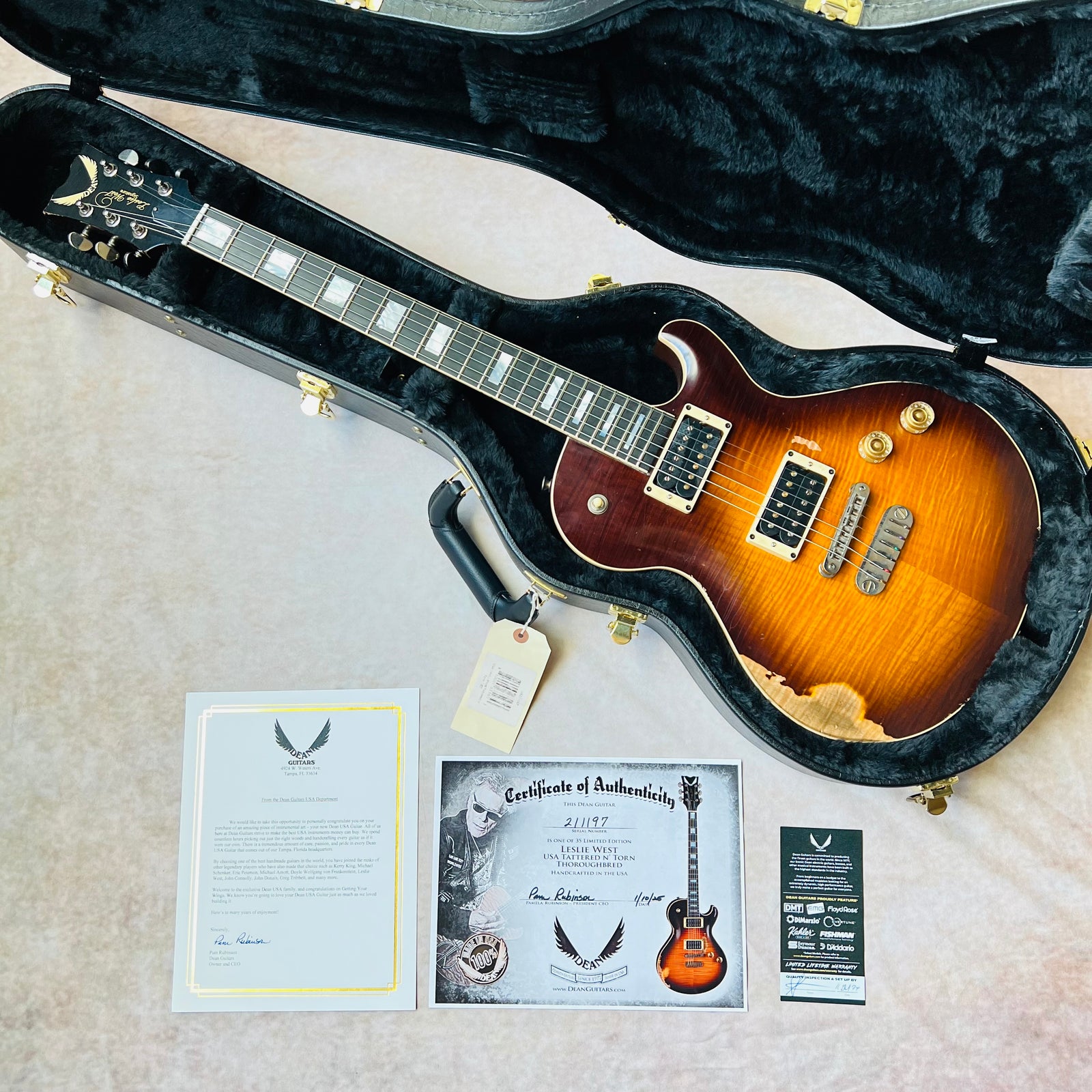

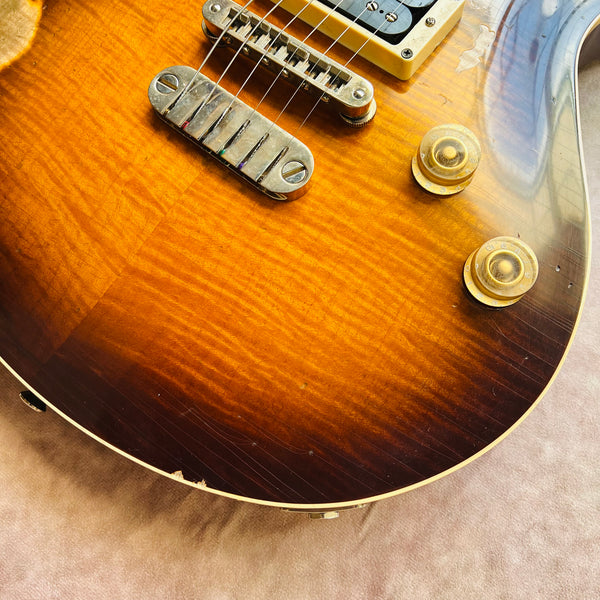

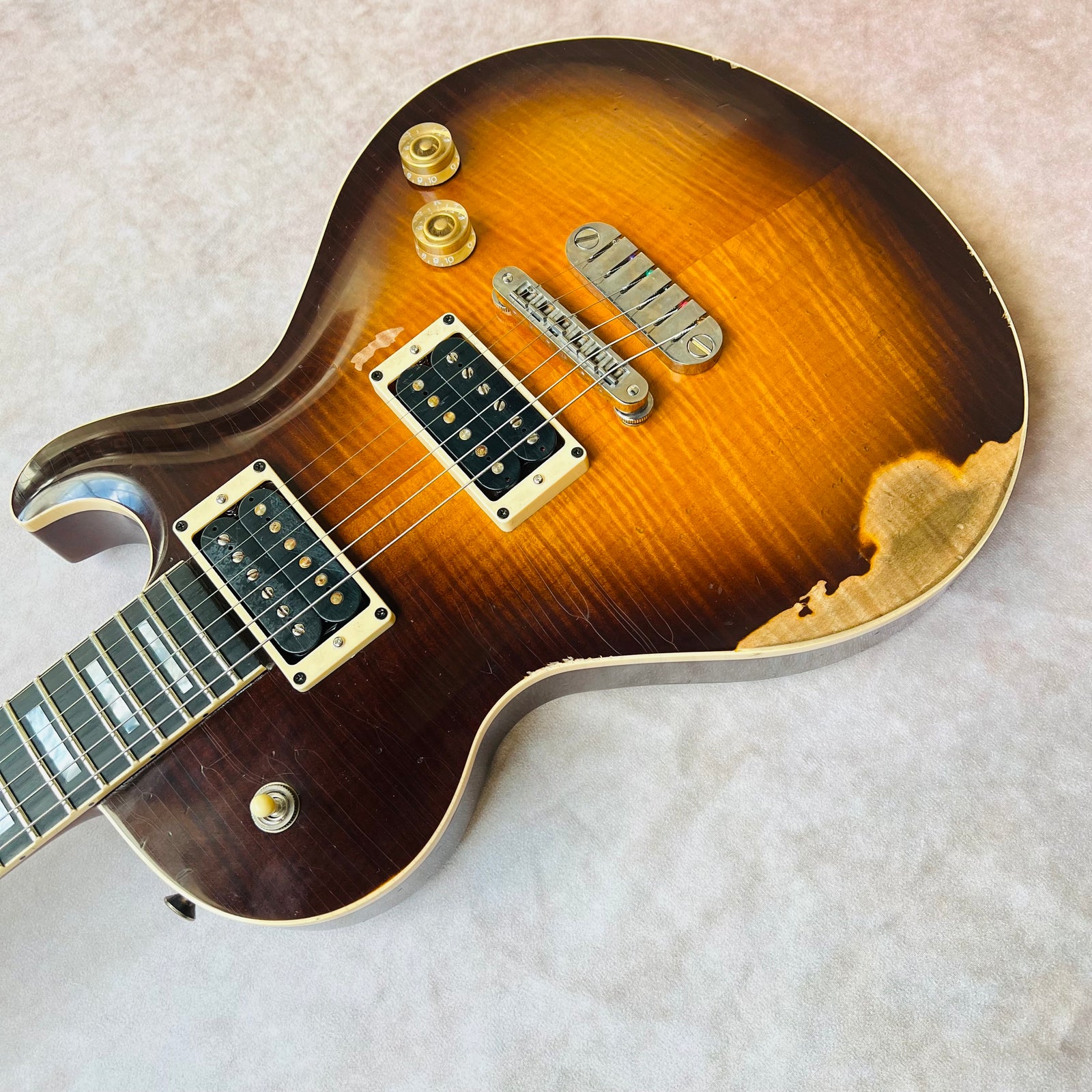

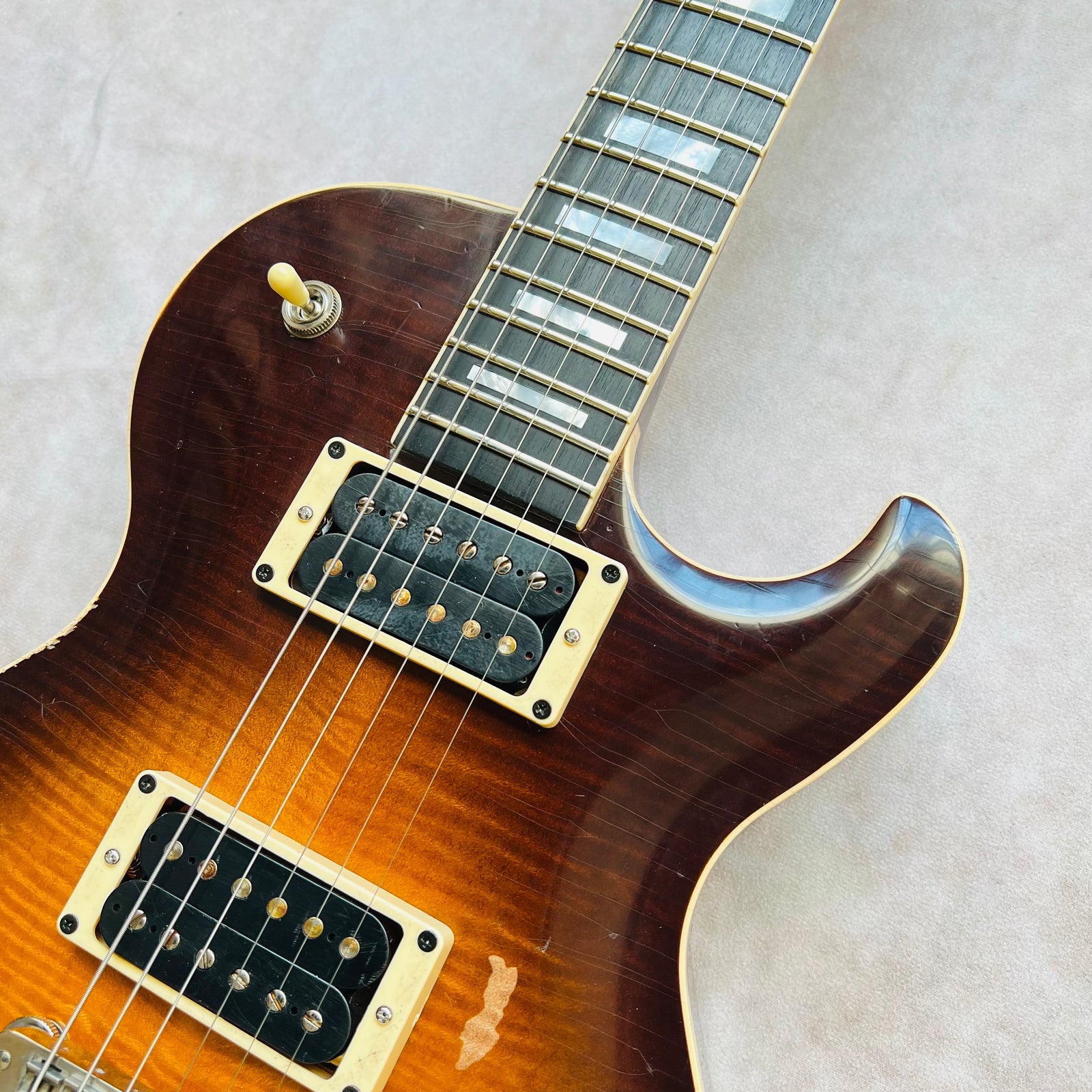

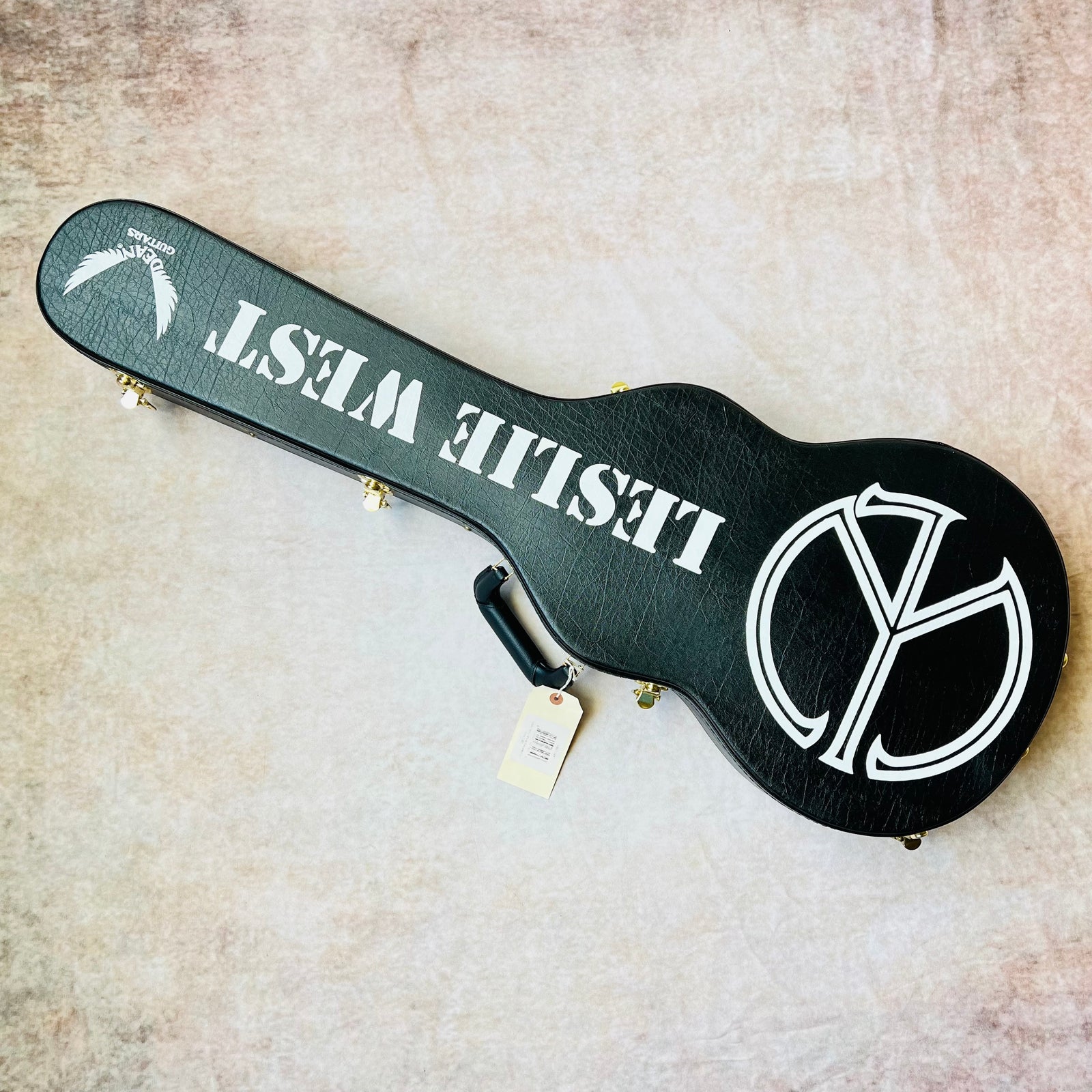

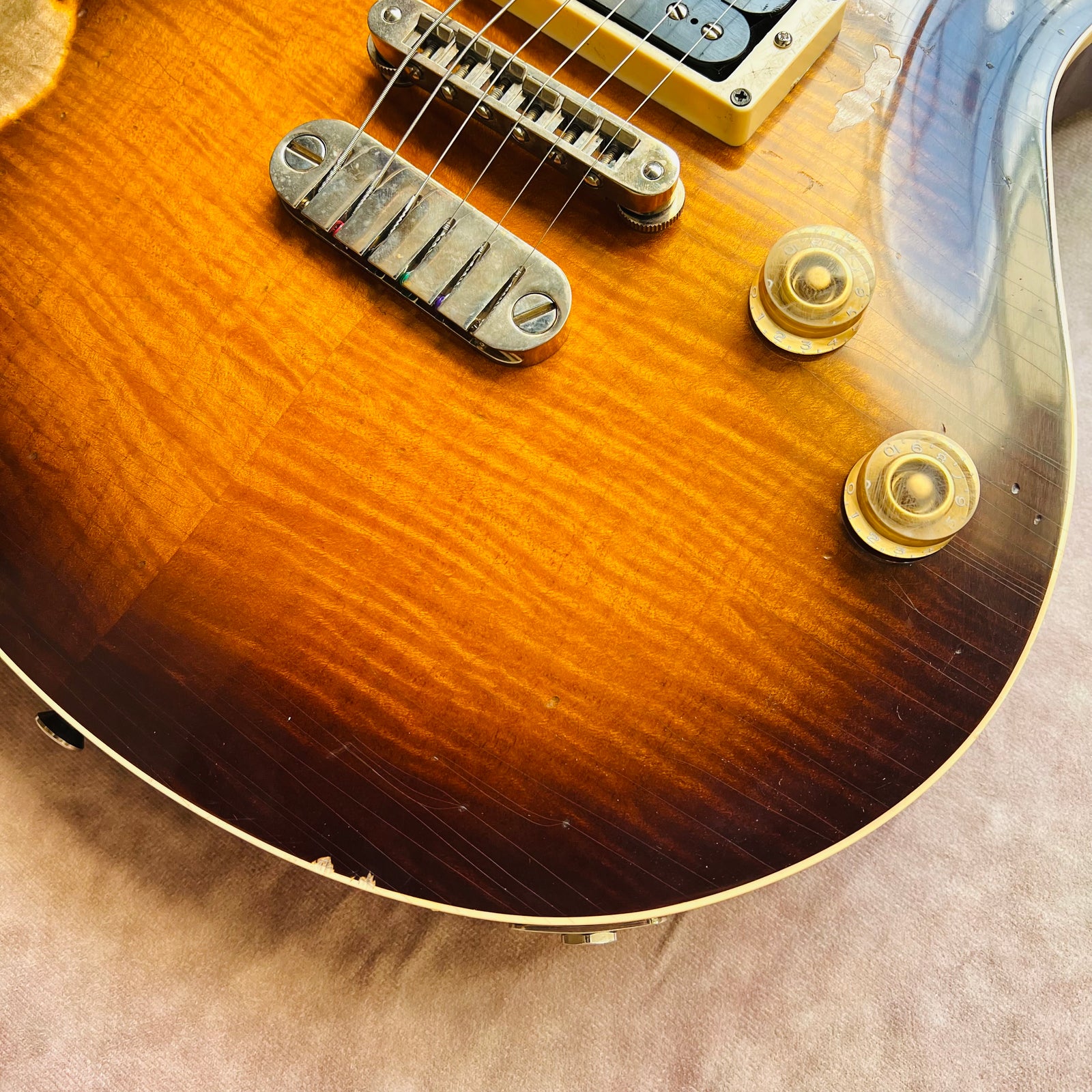

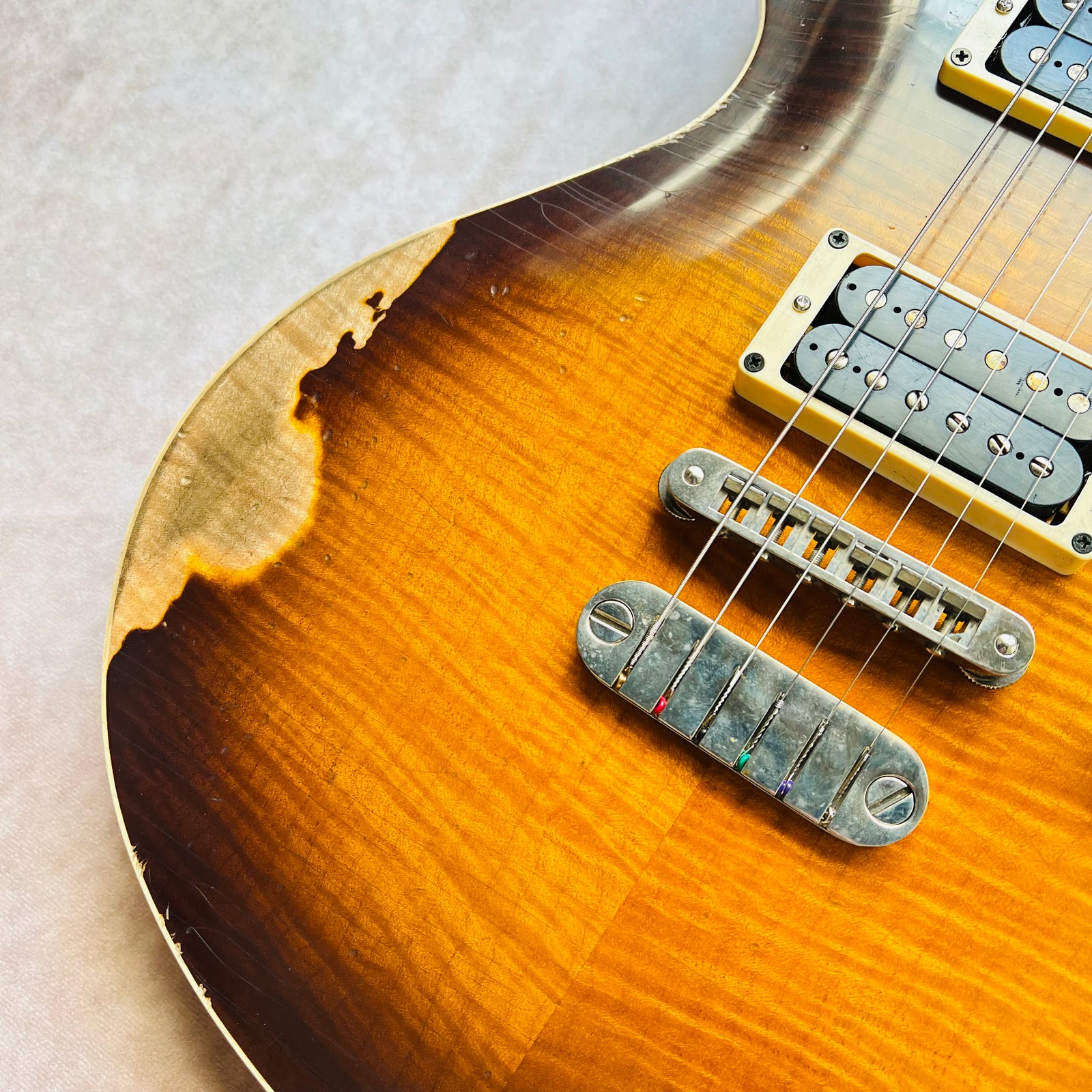

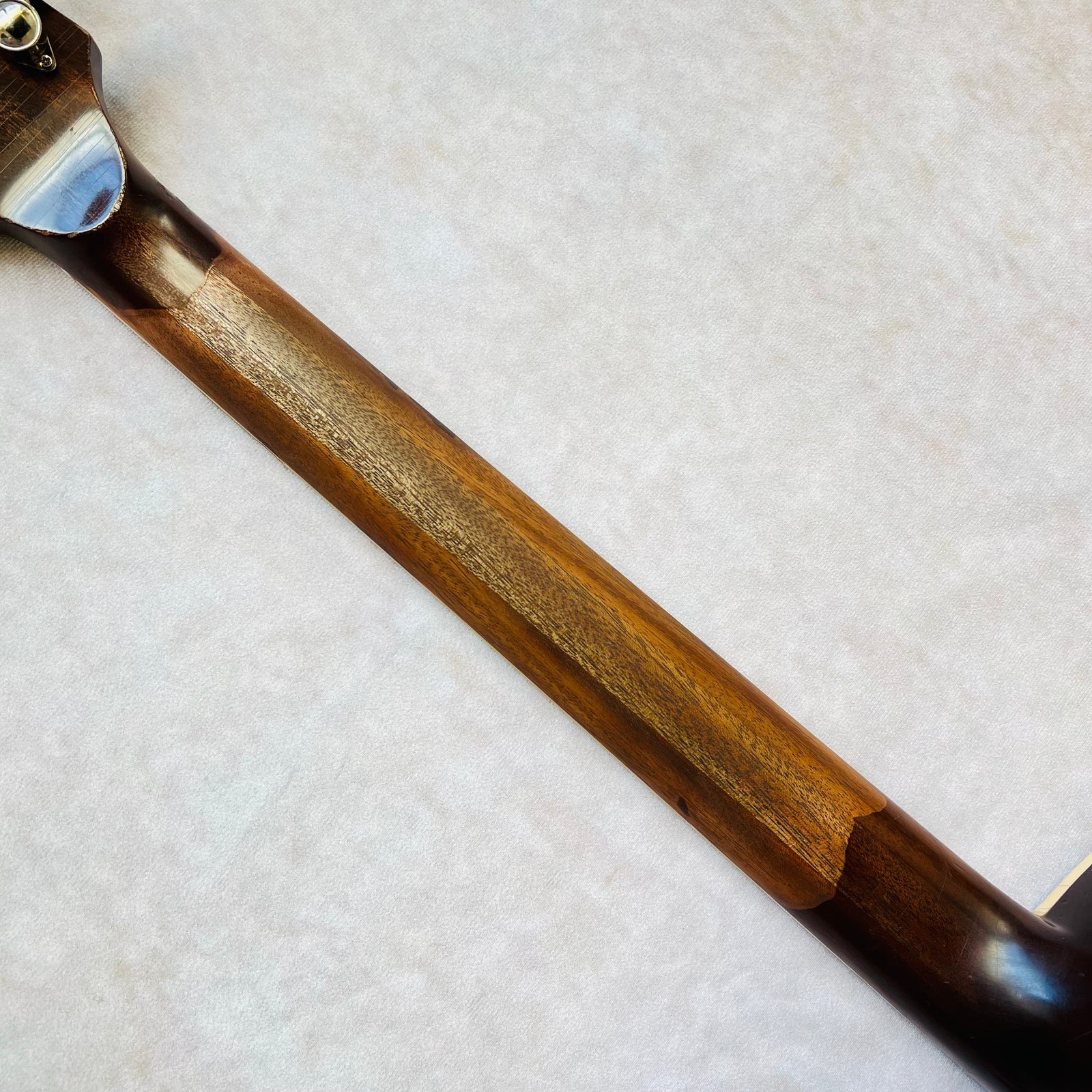

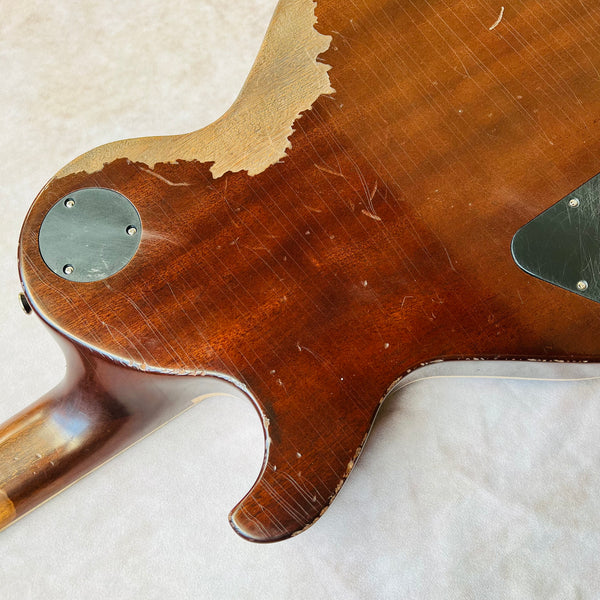

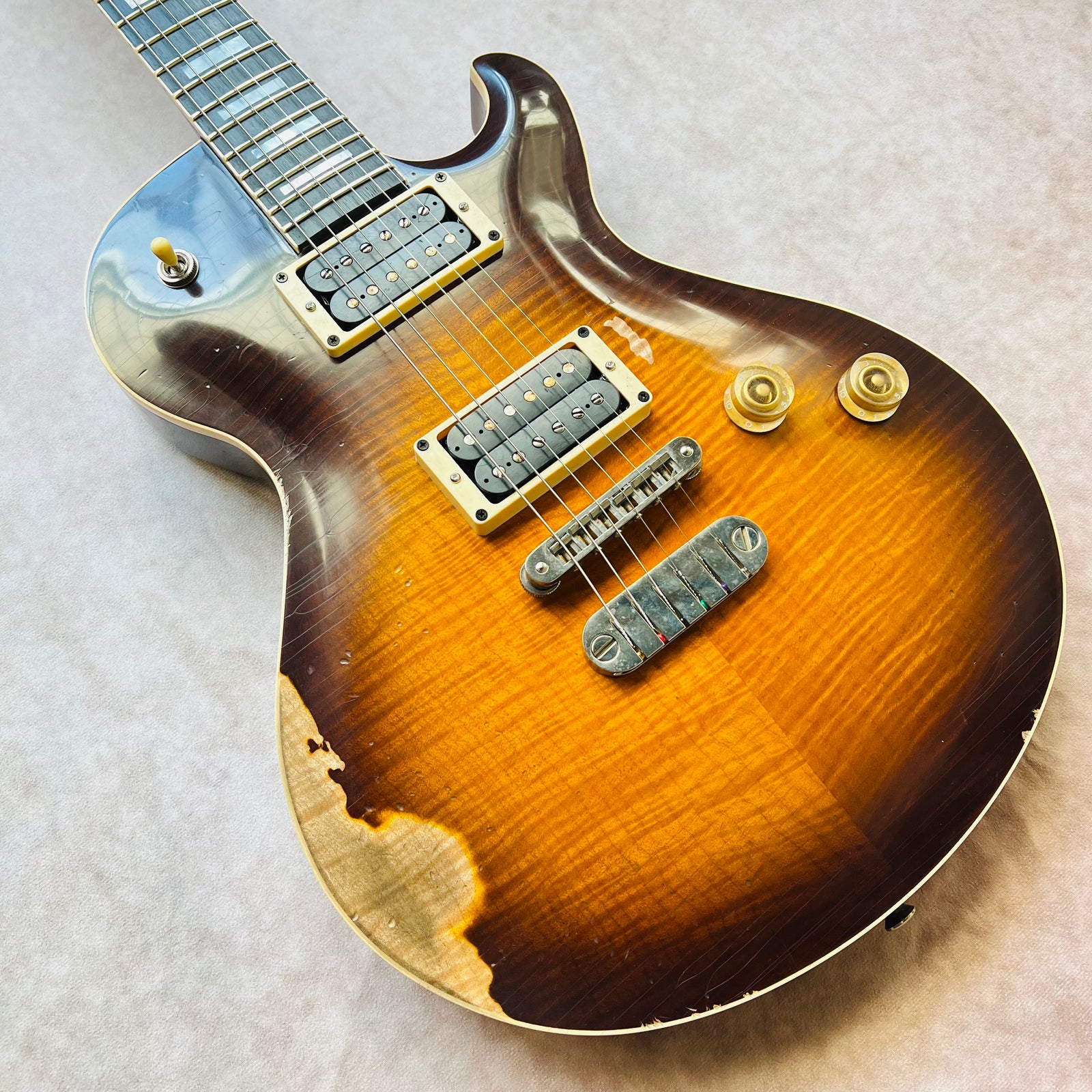

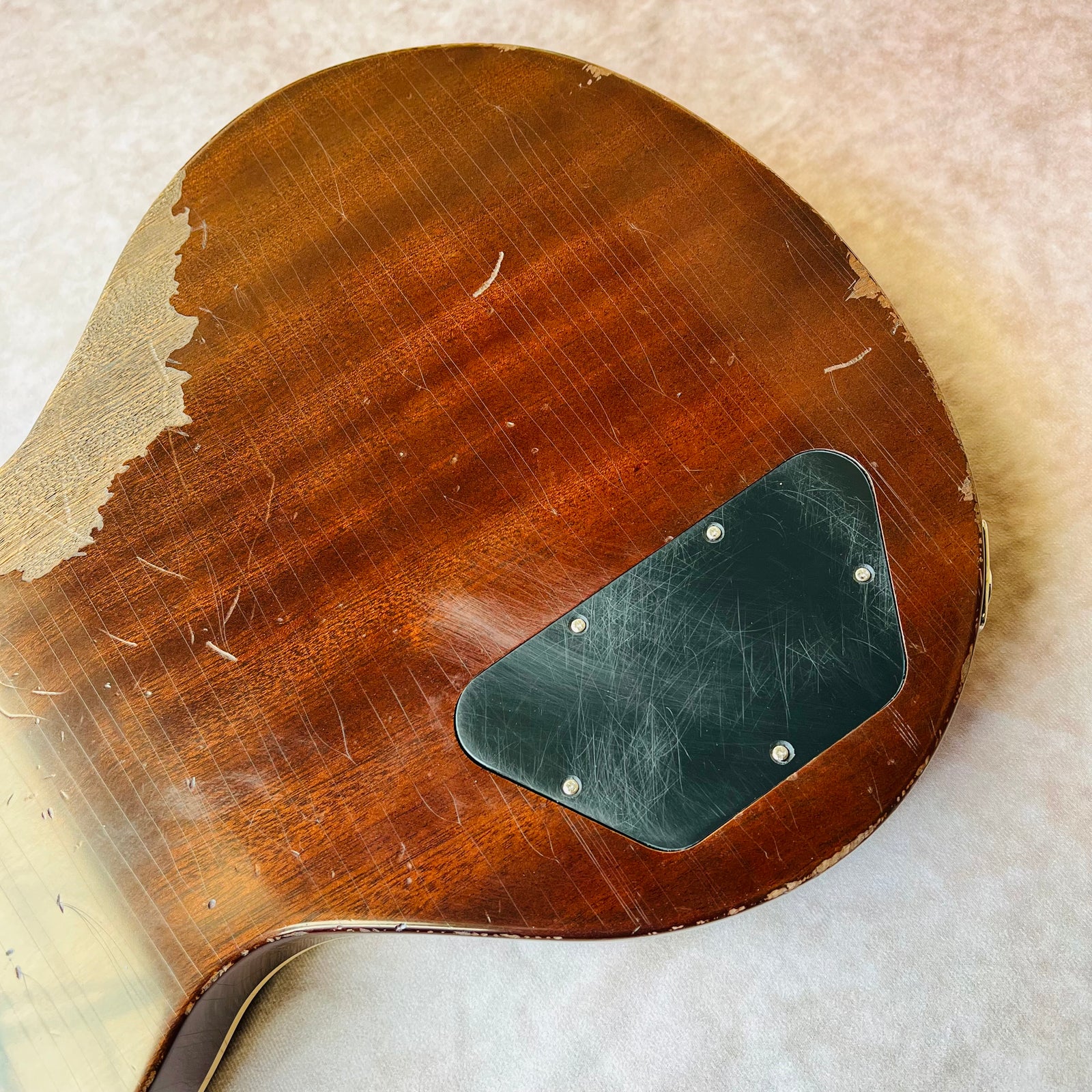

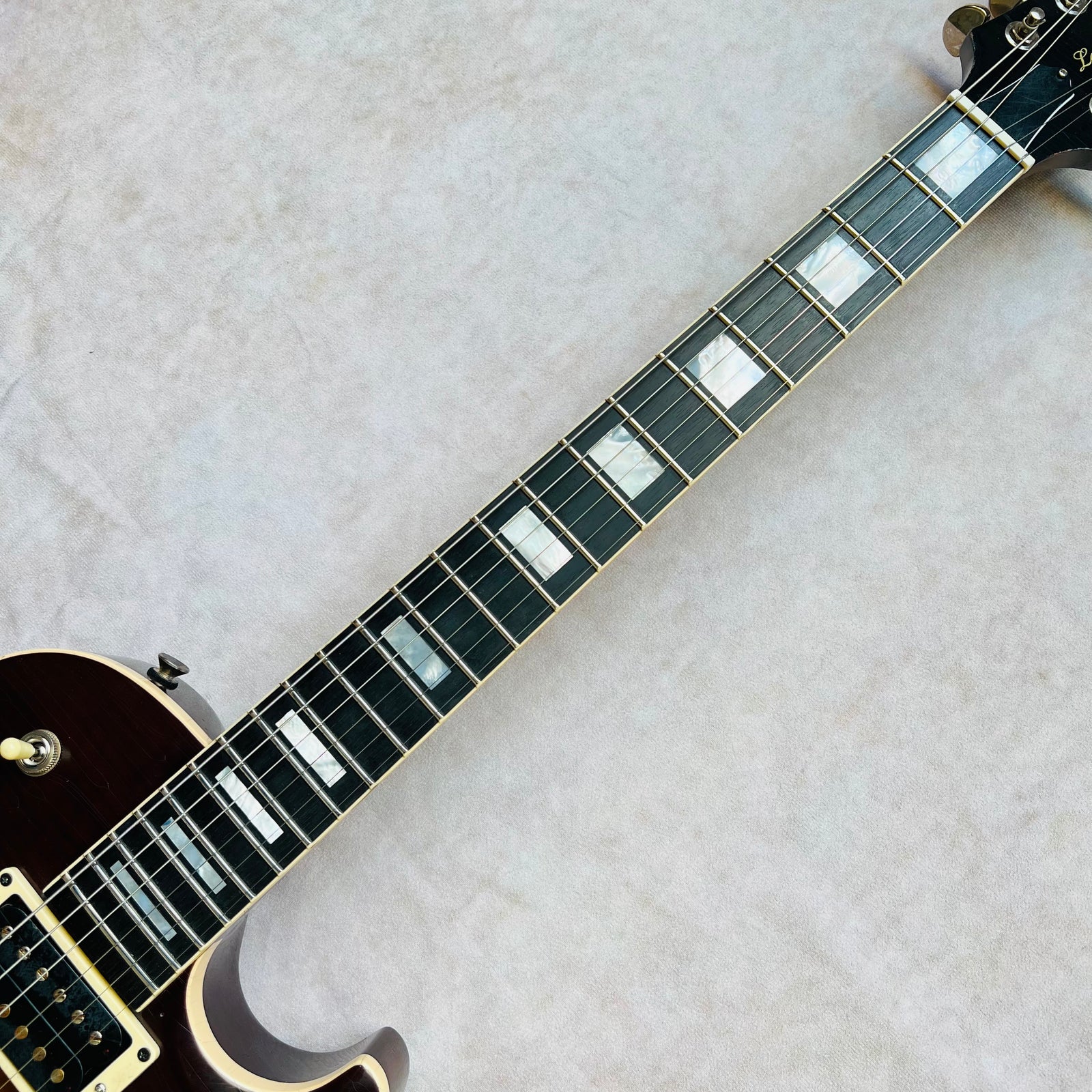

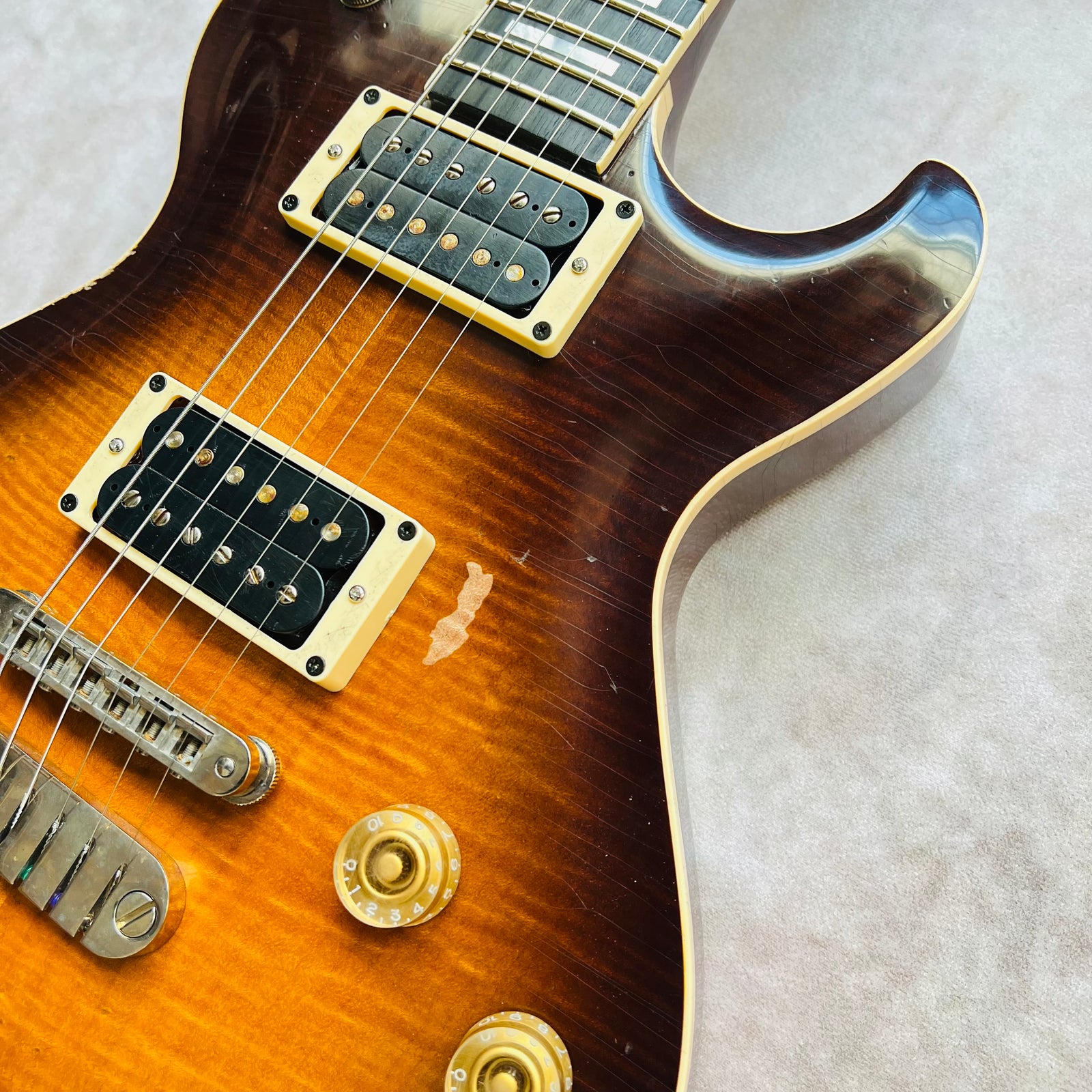

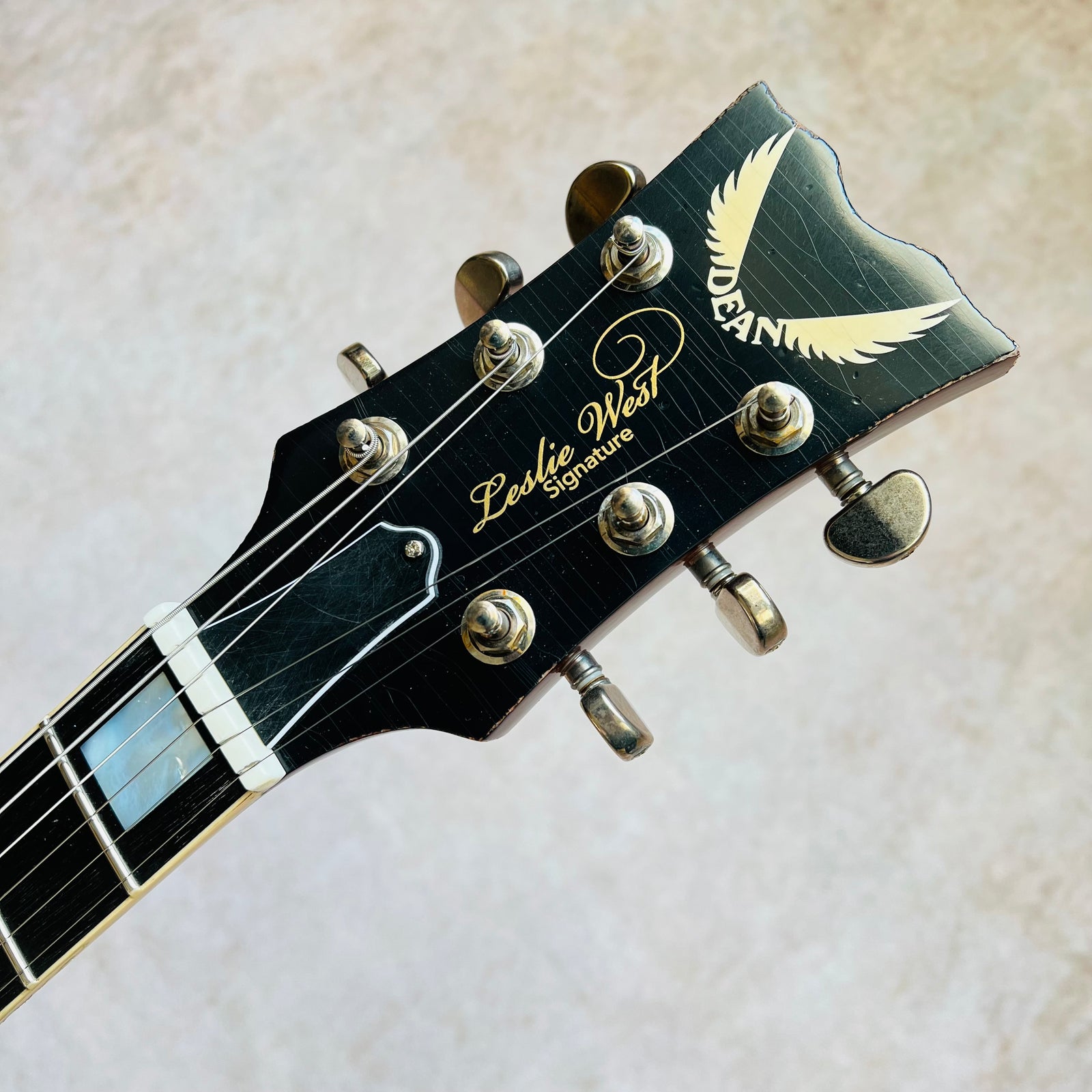

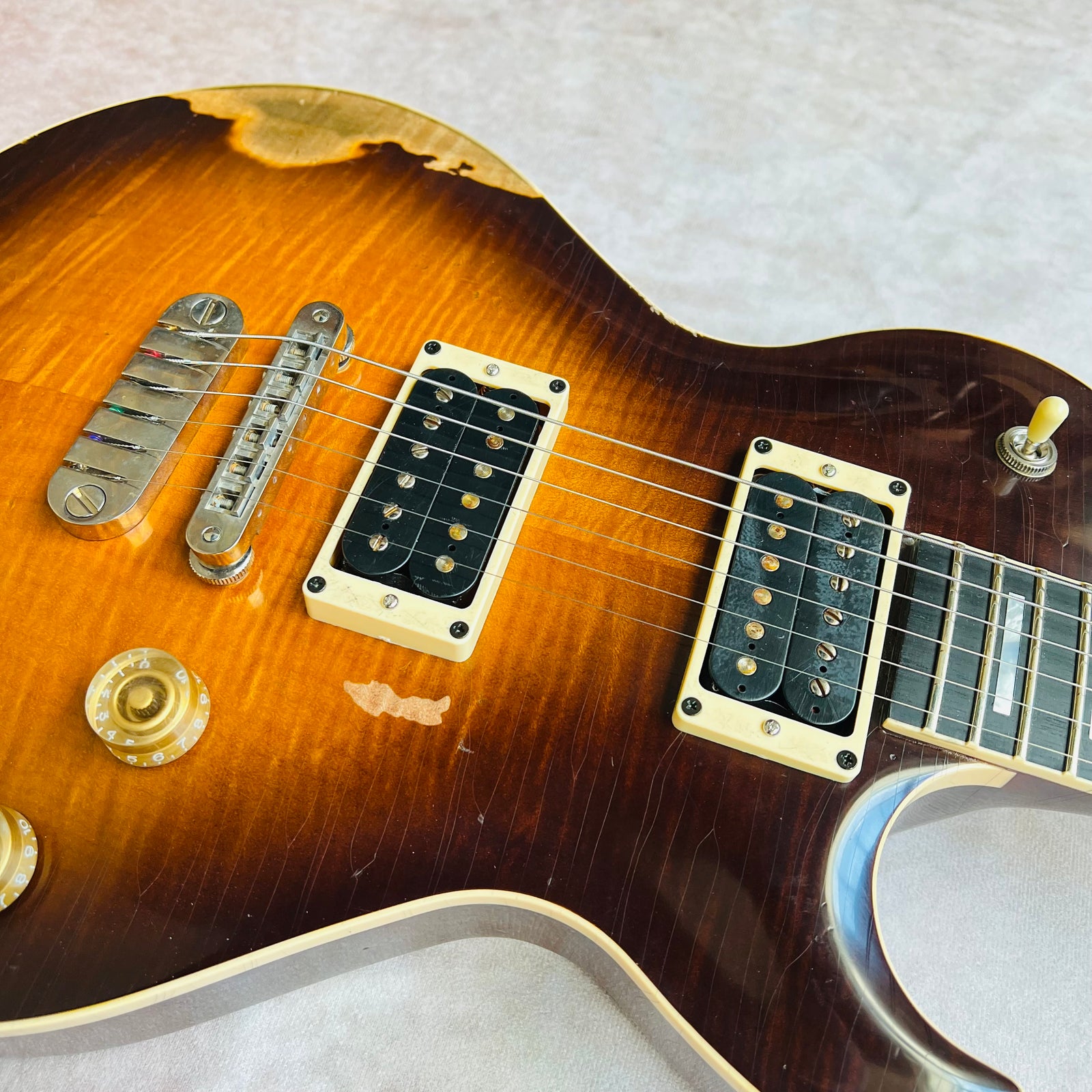

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the USA Leslie West Signature Tattered N Torn Relic listed above. For larger pics, click on an image to open in a new tab.
