The 2010 Custom Esquire Relic is a solid body electric guitar built by Fender Custom Shop. This t-style bolt on guitar was manufactured in Corona, CA in the United States and is a Fender Custom Shop Masterbuilt model. Key features include an Ash Body, AAA Flame Maple Neck, 9.5" Radius, 10/56 V Neck Profile, Hand Wound Texas Special Pickup and Dakota Red finish. The specs listed below pertain to the 2010 product year model pictured on this page.
Factory Specs
- Lightweight Ash Body

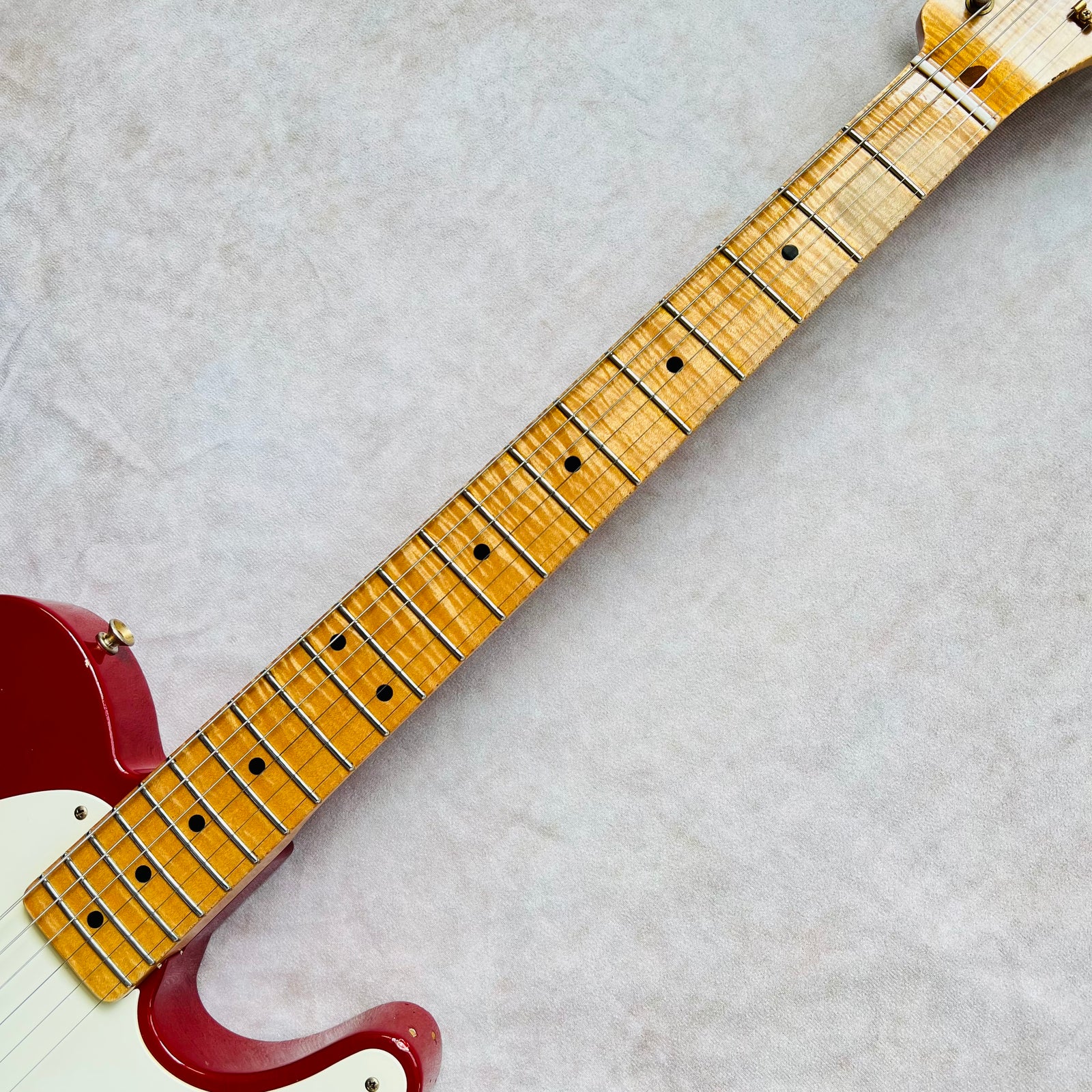

- AAA Flame Maple Neck
- 10/56 V Neck Profile
- 21 Frets
- Black Dot Inlays
- 6105 Fret Wire
- 9.5" Radius
- 1.650" Nut Width
- 25.5" Scale Length
- Wing String Tree

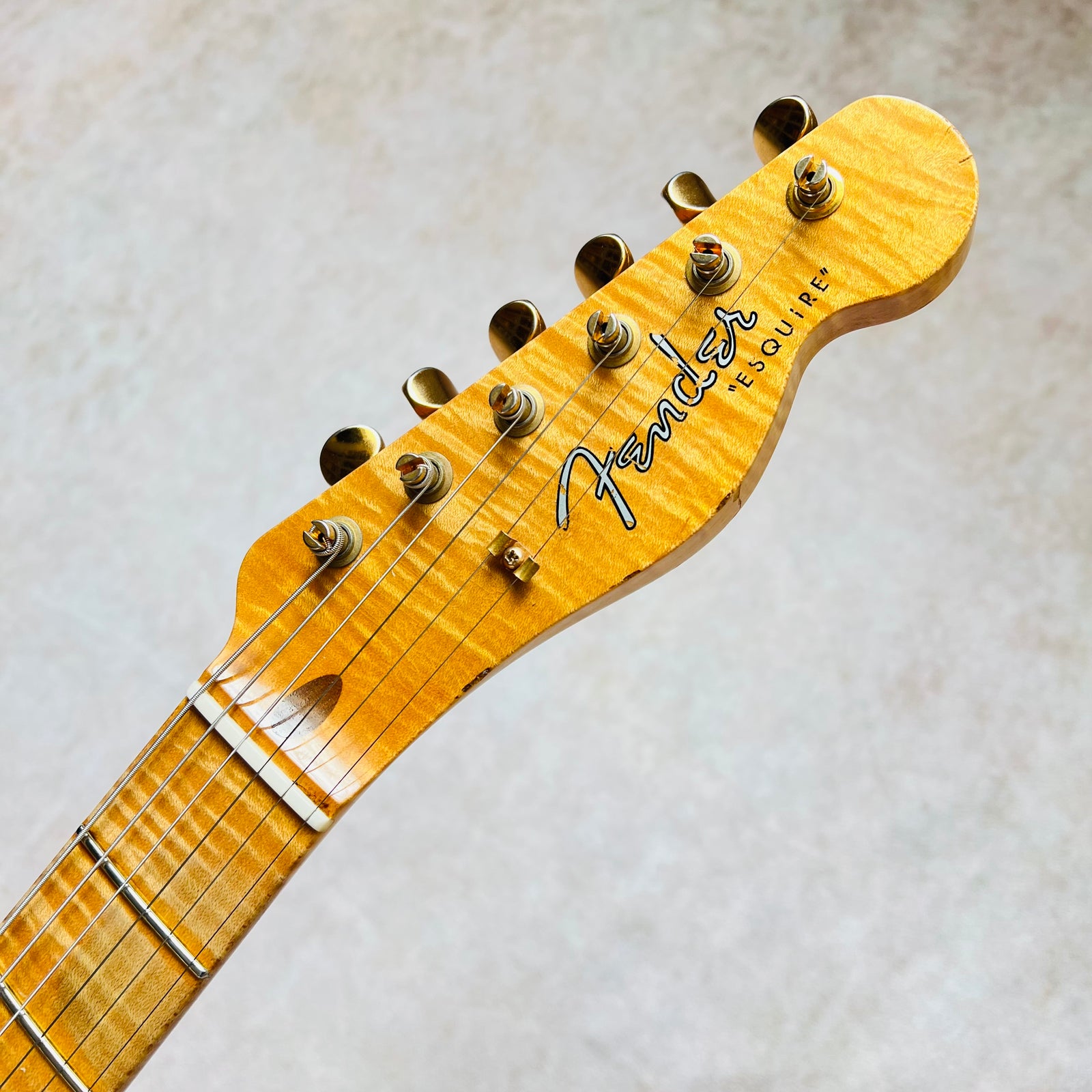

- 50s Esquire Logo
- Kluson Deluxe Tuners

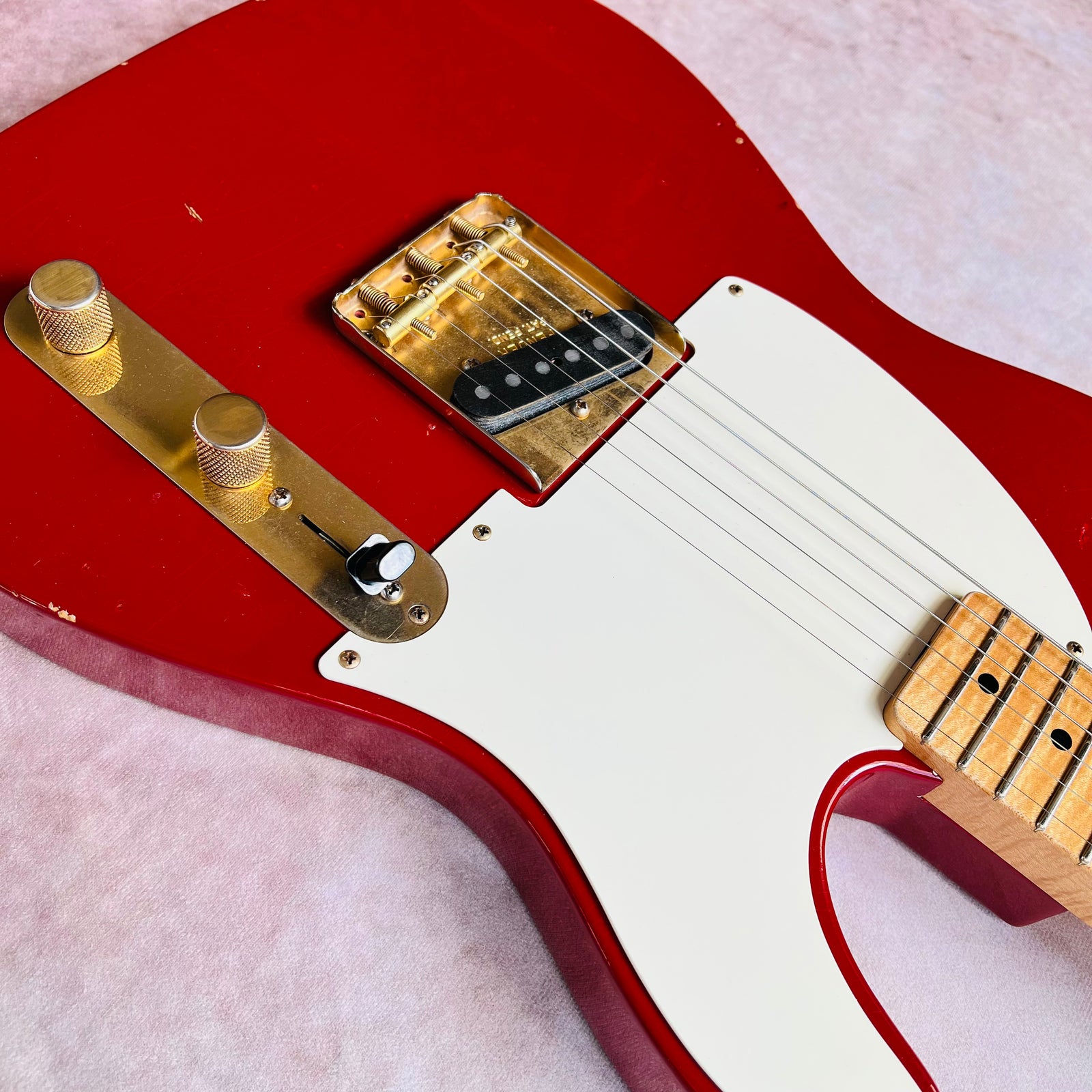

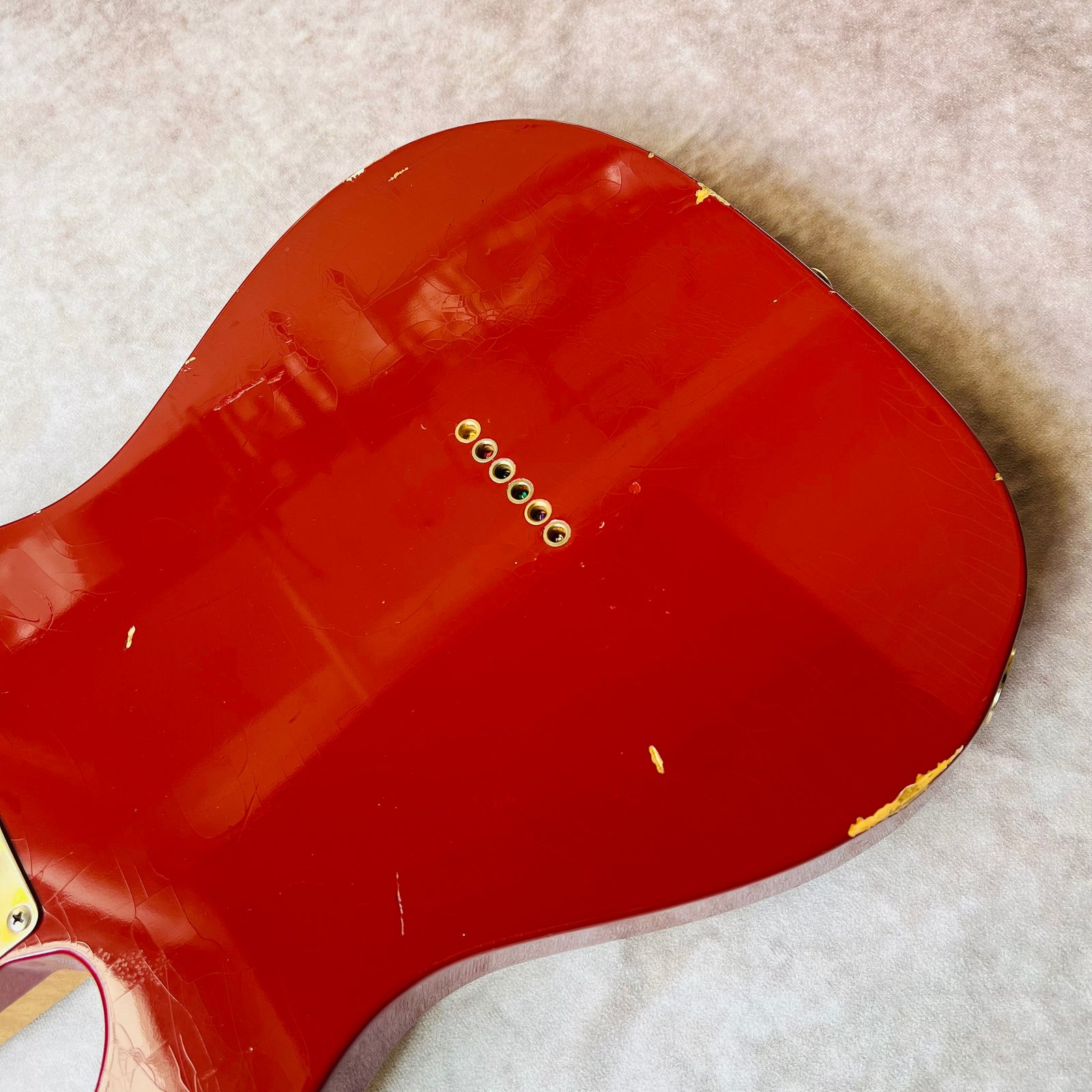

- String Through Body Ashtray Bridge
- Three Adjustable Saddles
- Gold Hardware
- Single Ply Parchment Guard
- 3-Way Selector Switch
- One Volume & One Tone Control
- Hand Wound Texas Special Bridge Pickup
- Relic Lacquer Finish

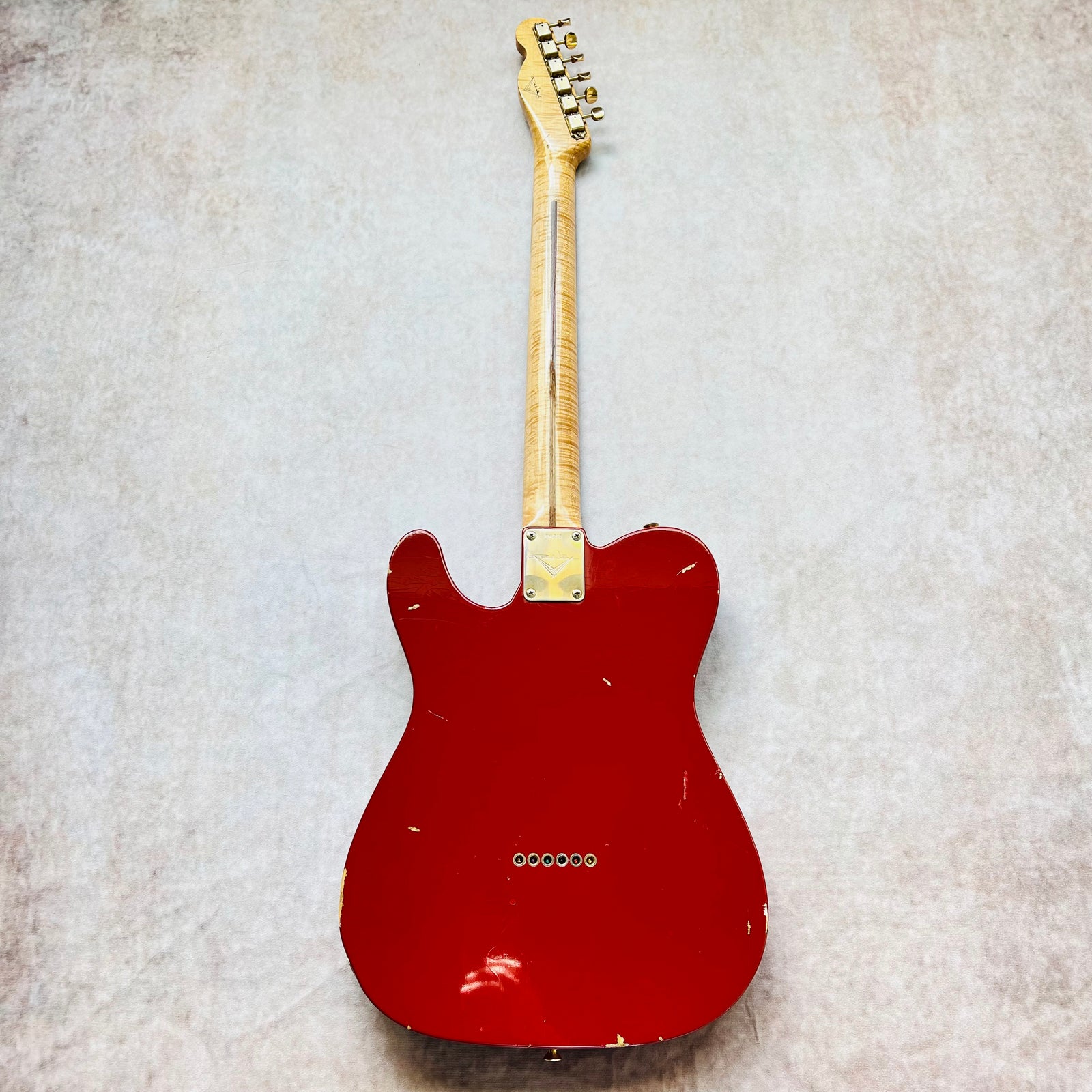

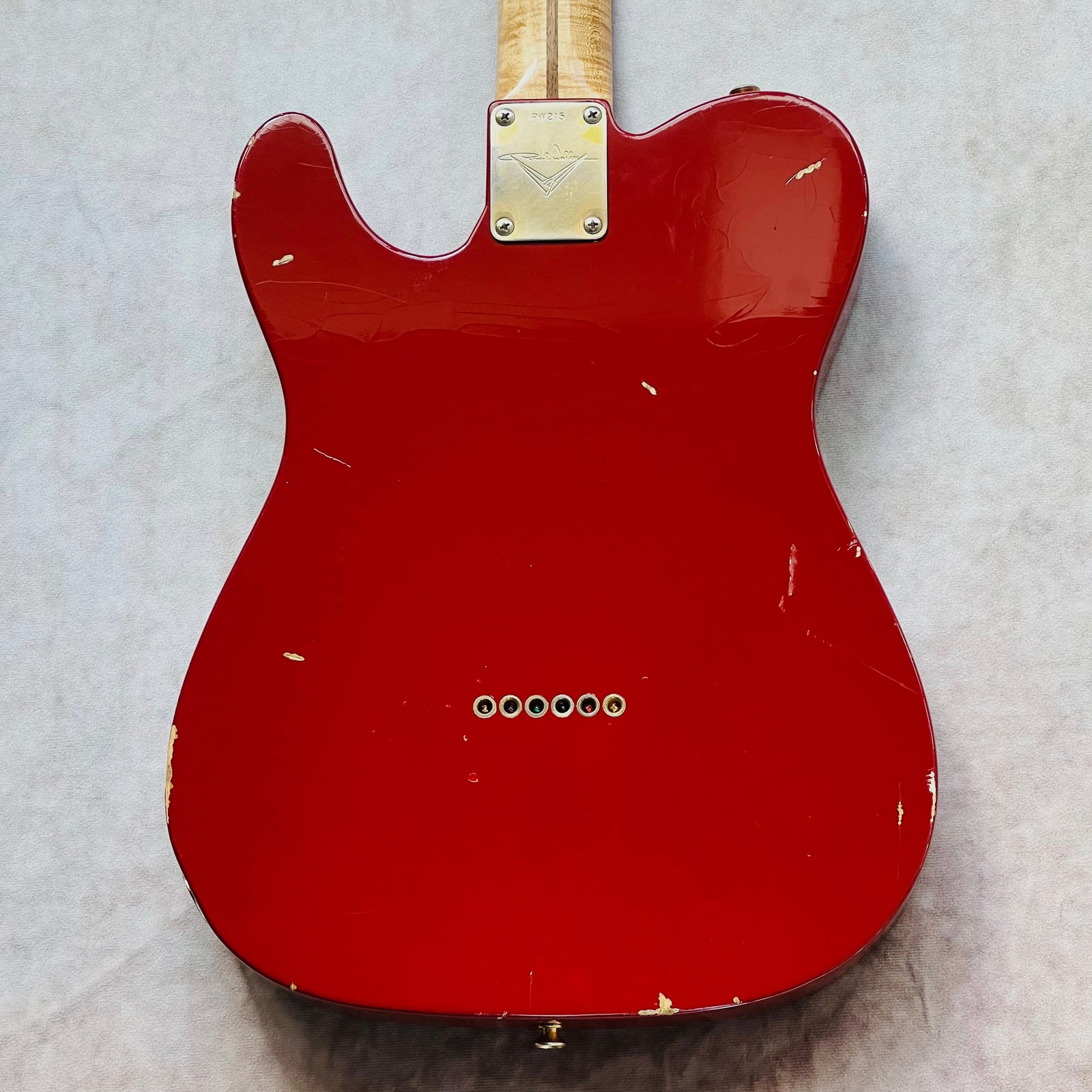

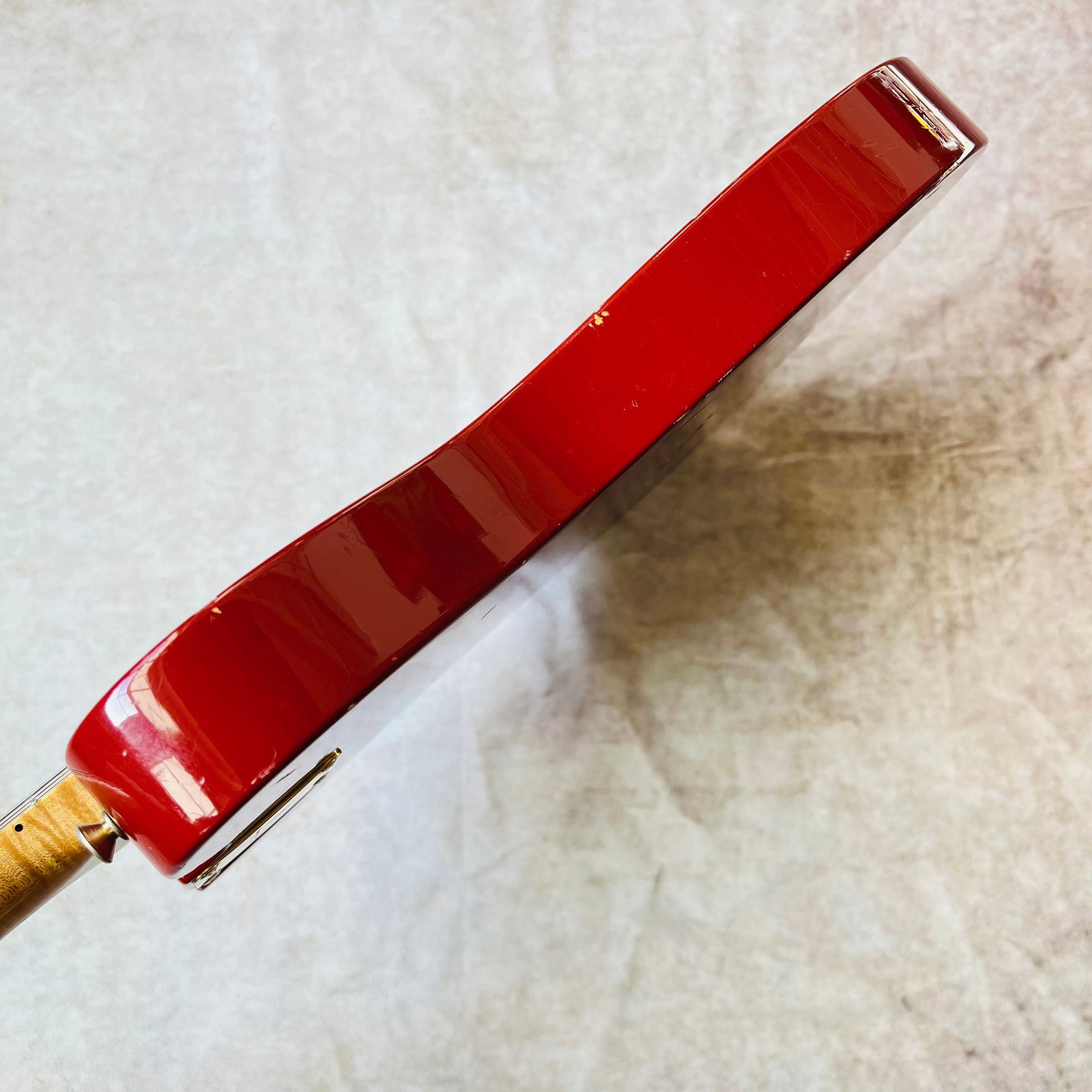

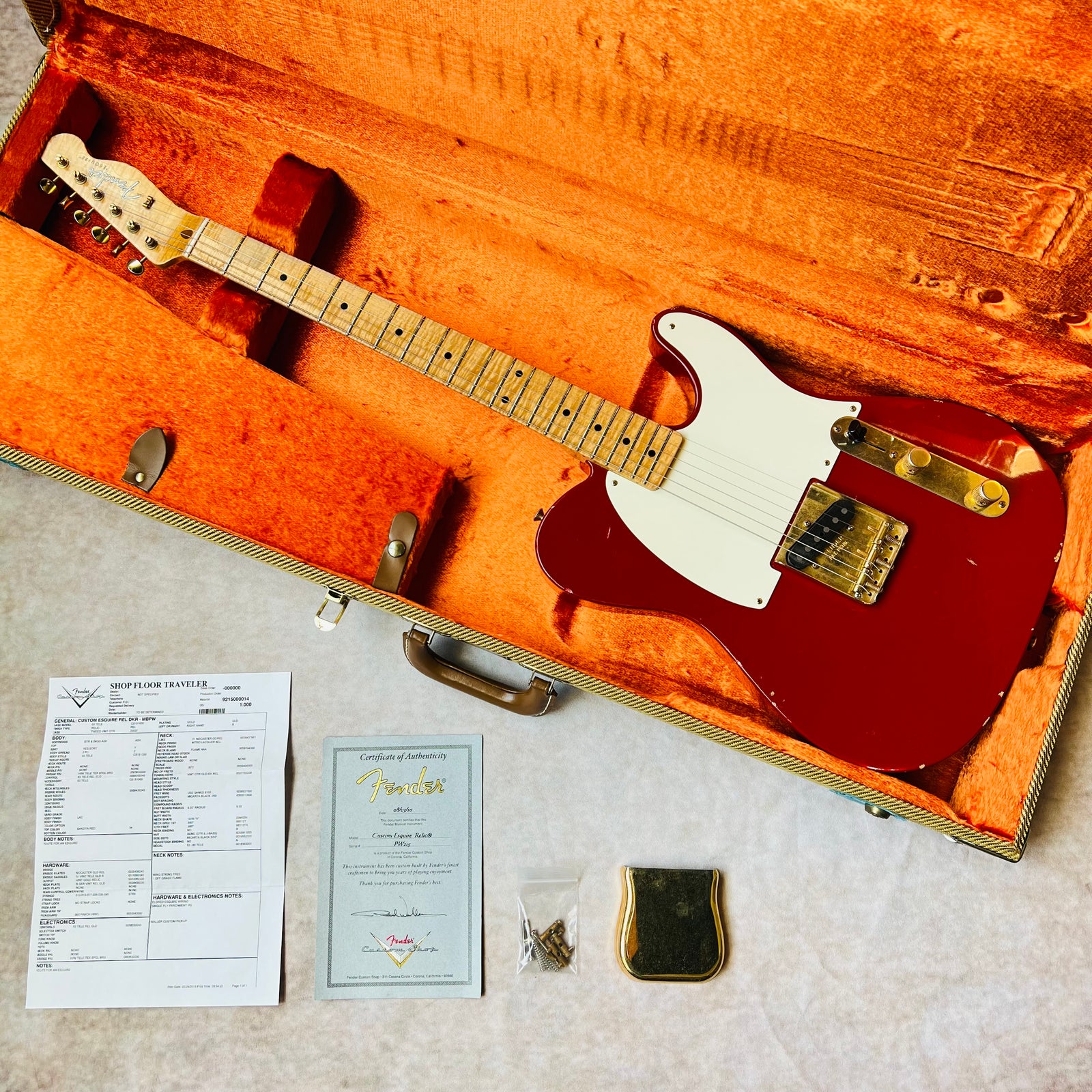

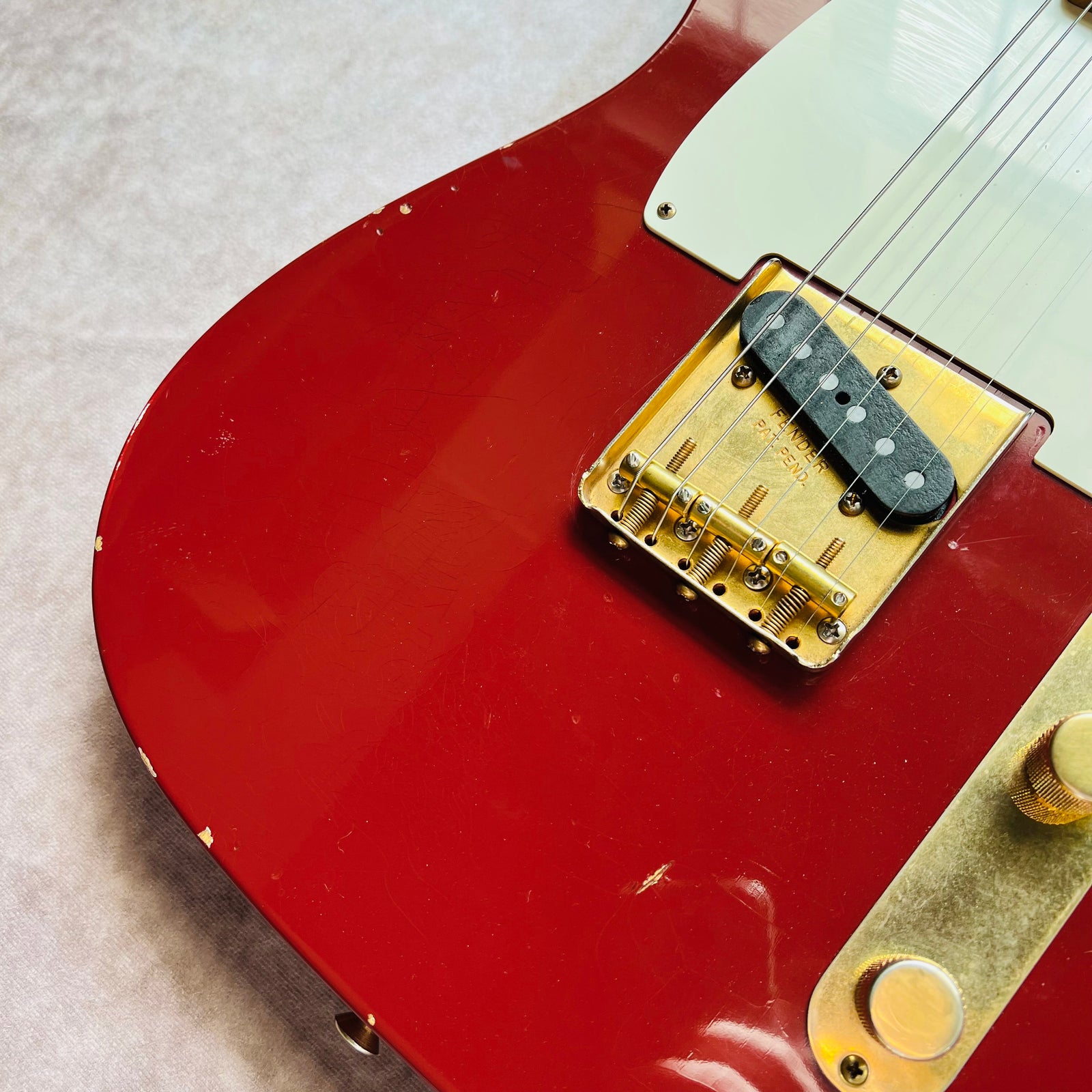

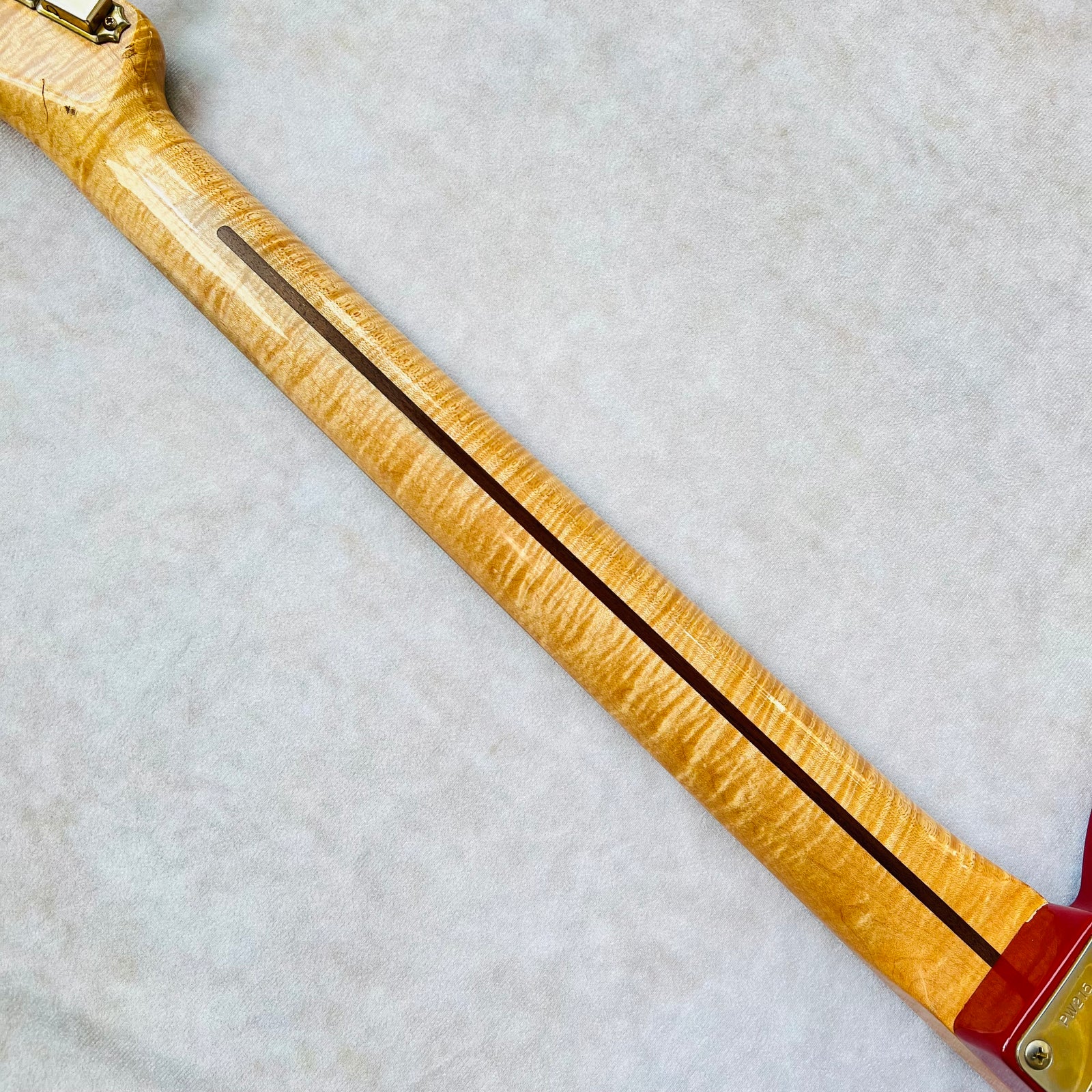

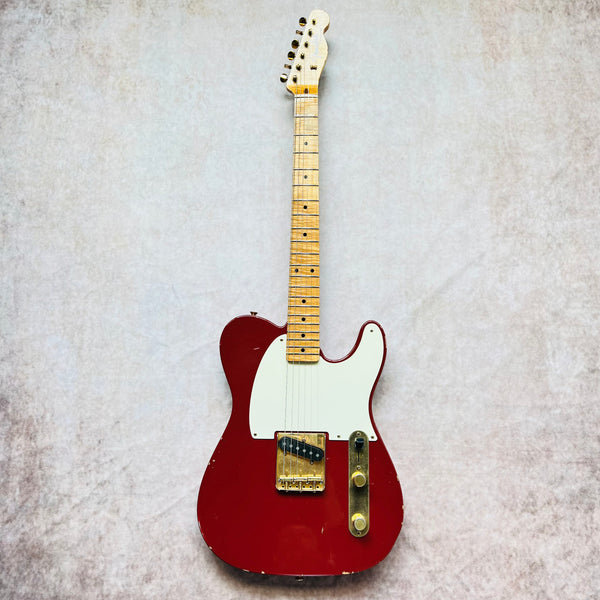

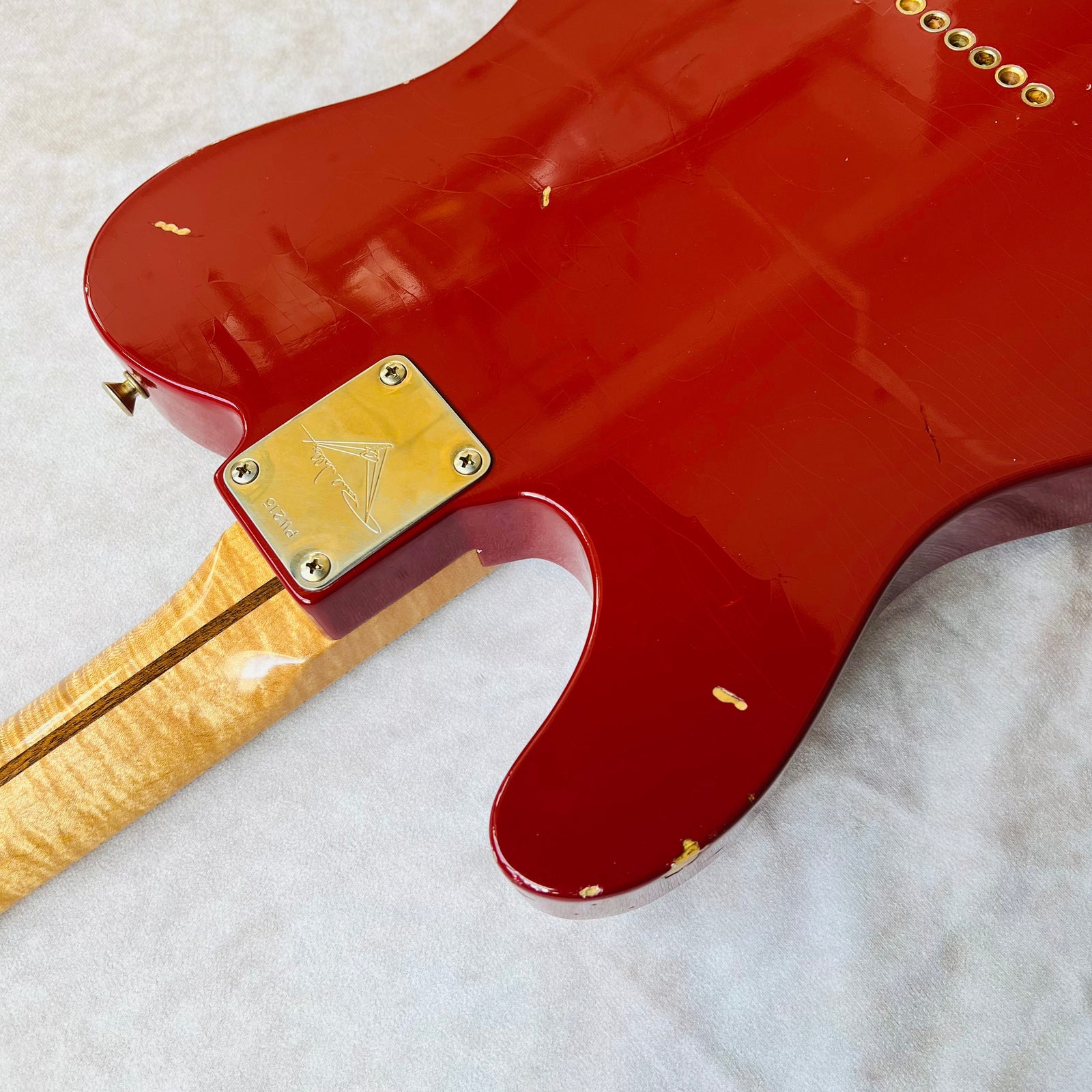

Reference Images

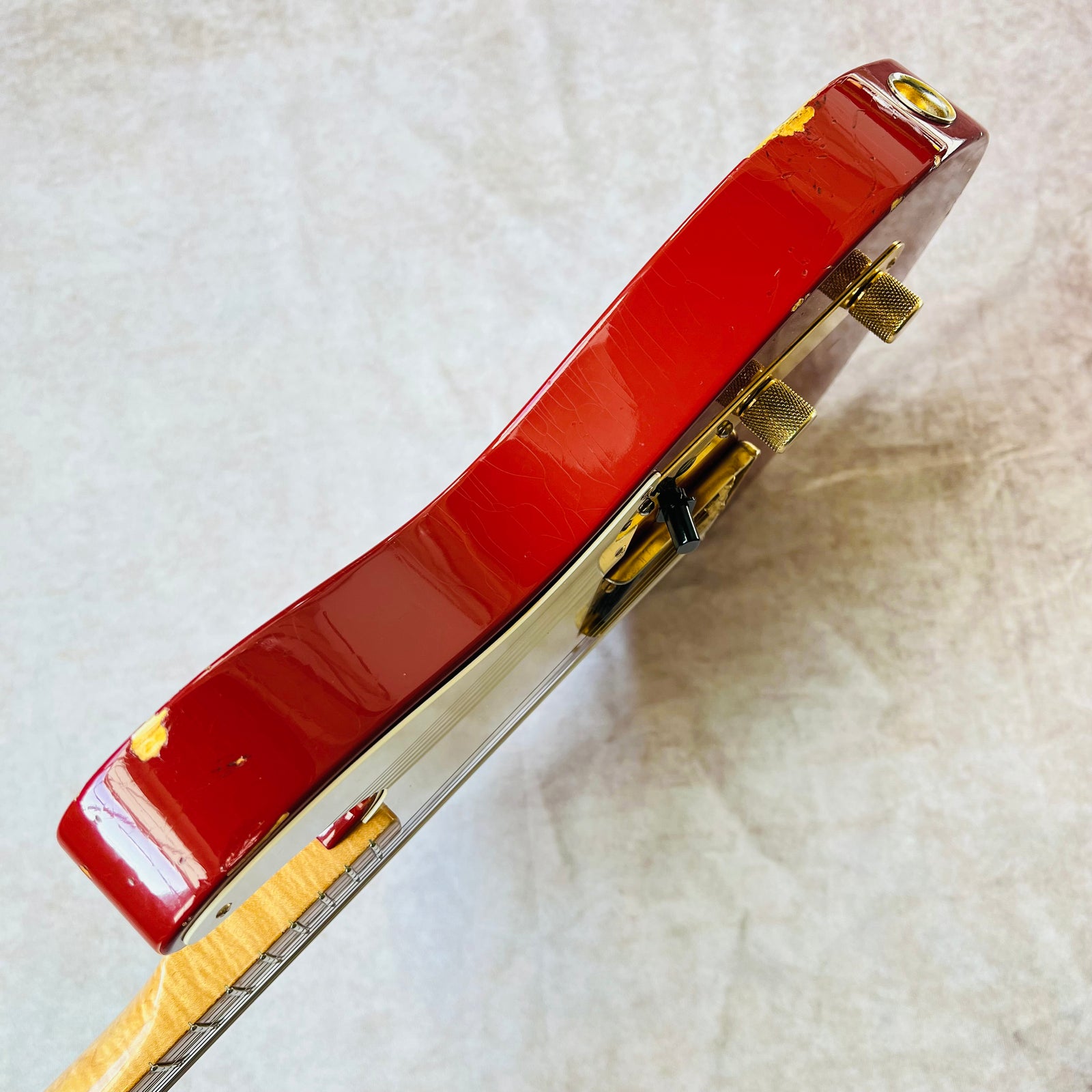

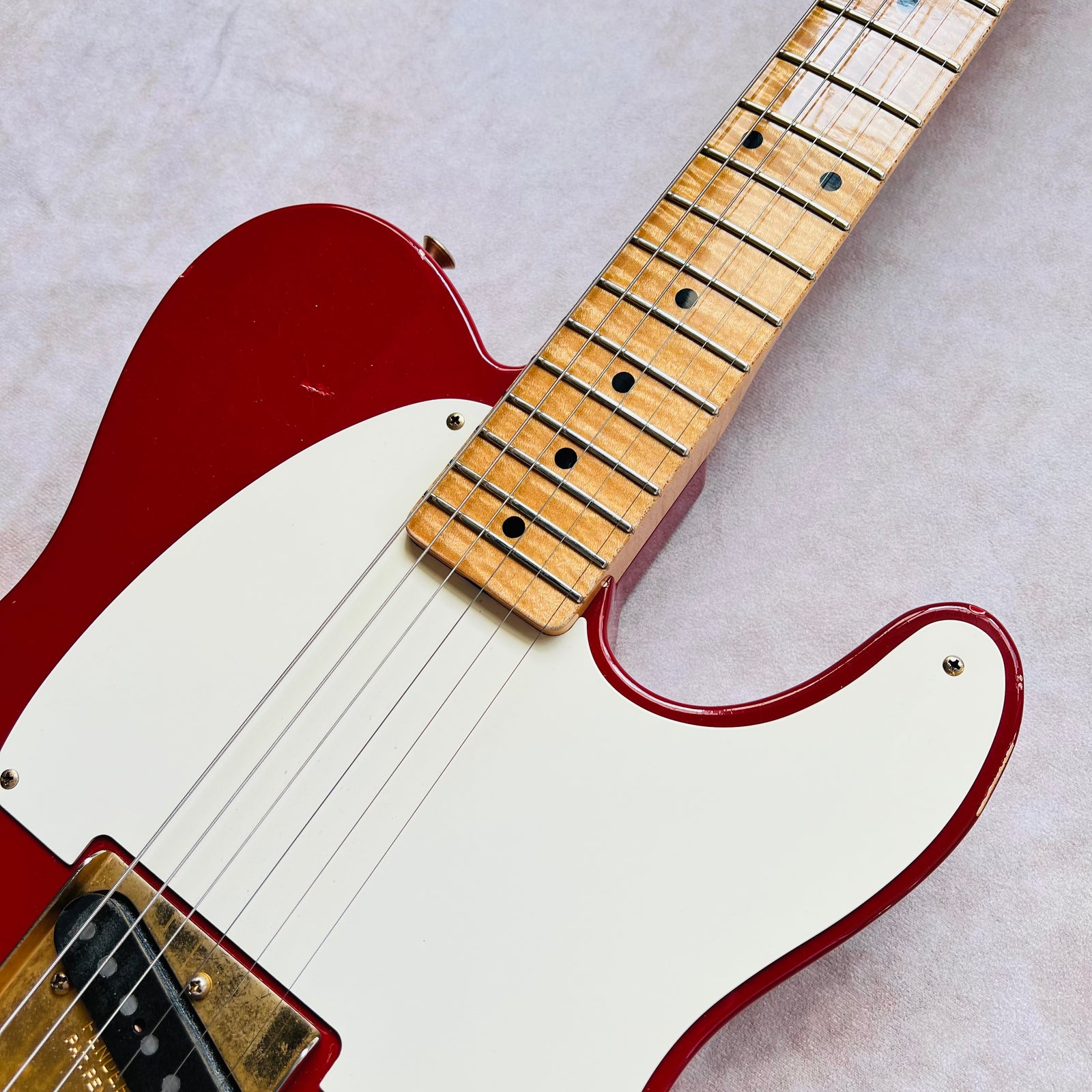

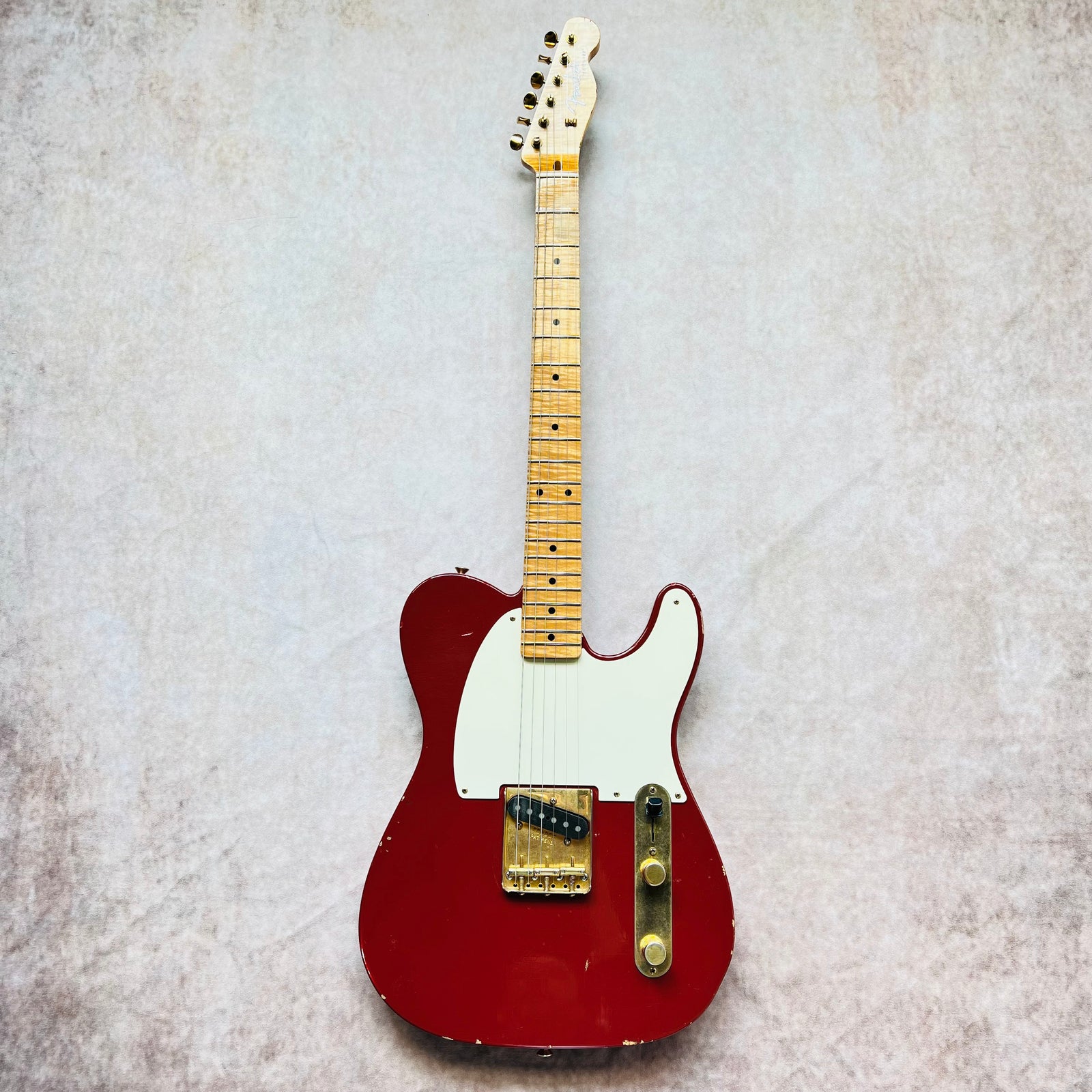

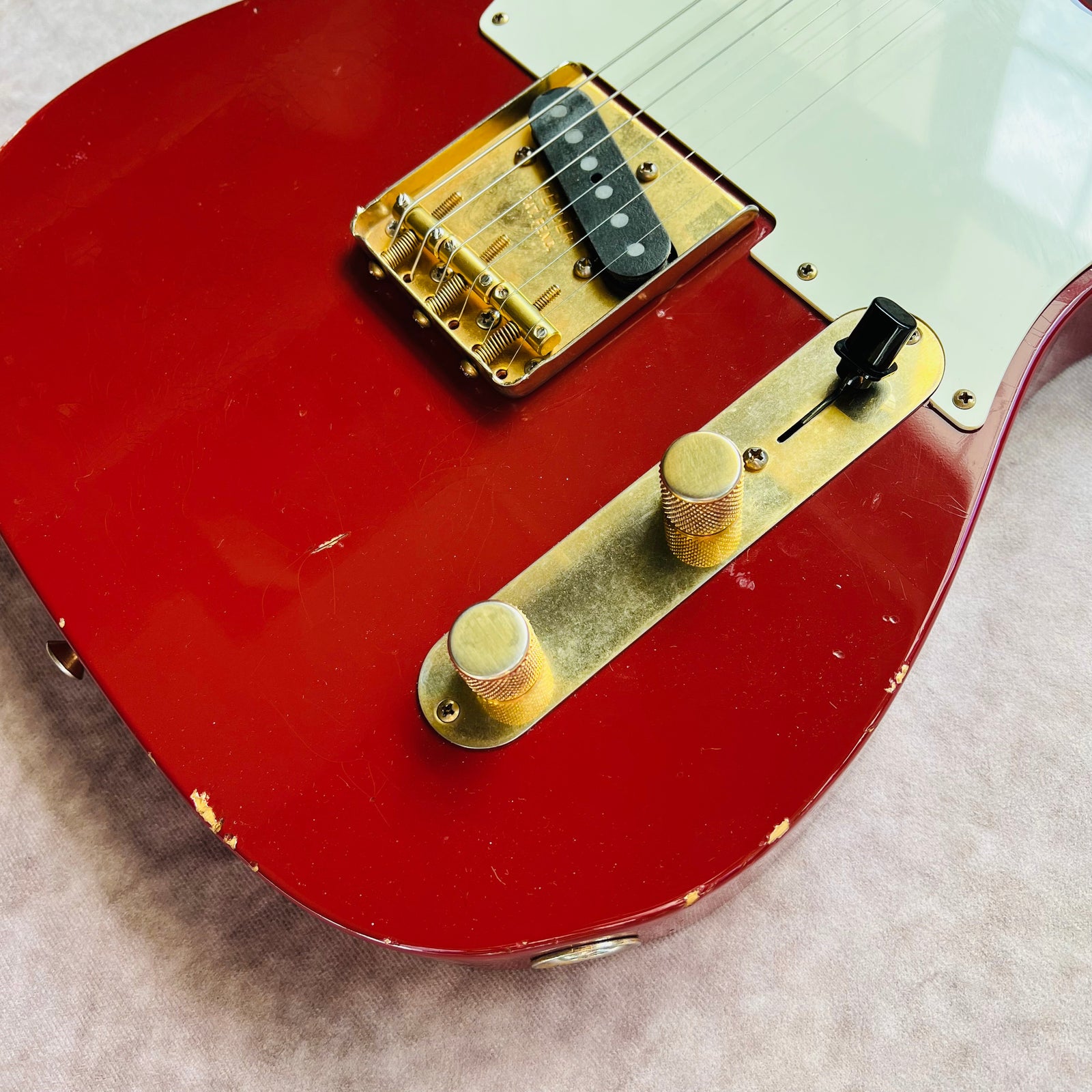

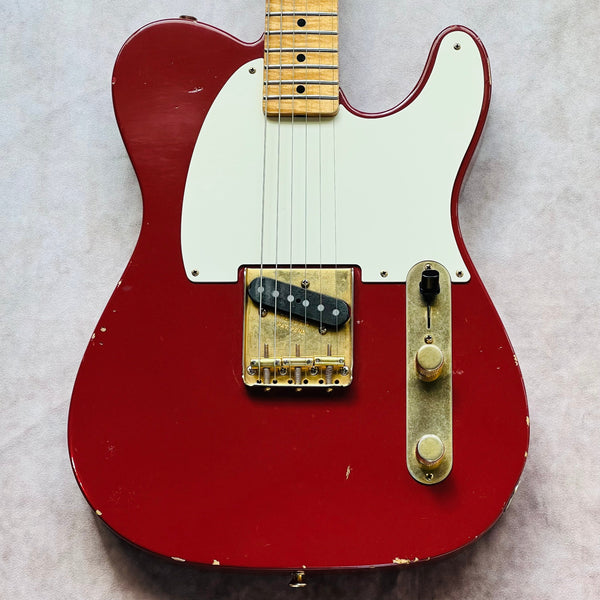

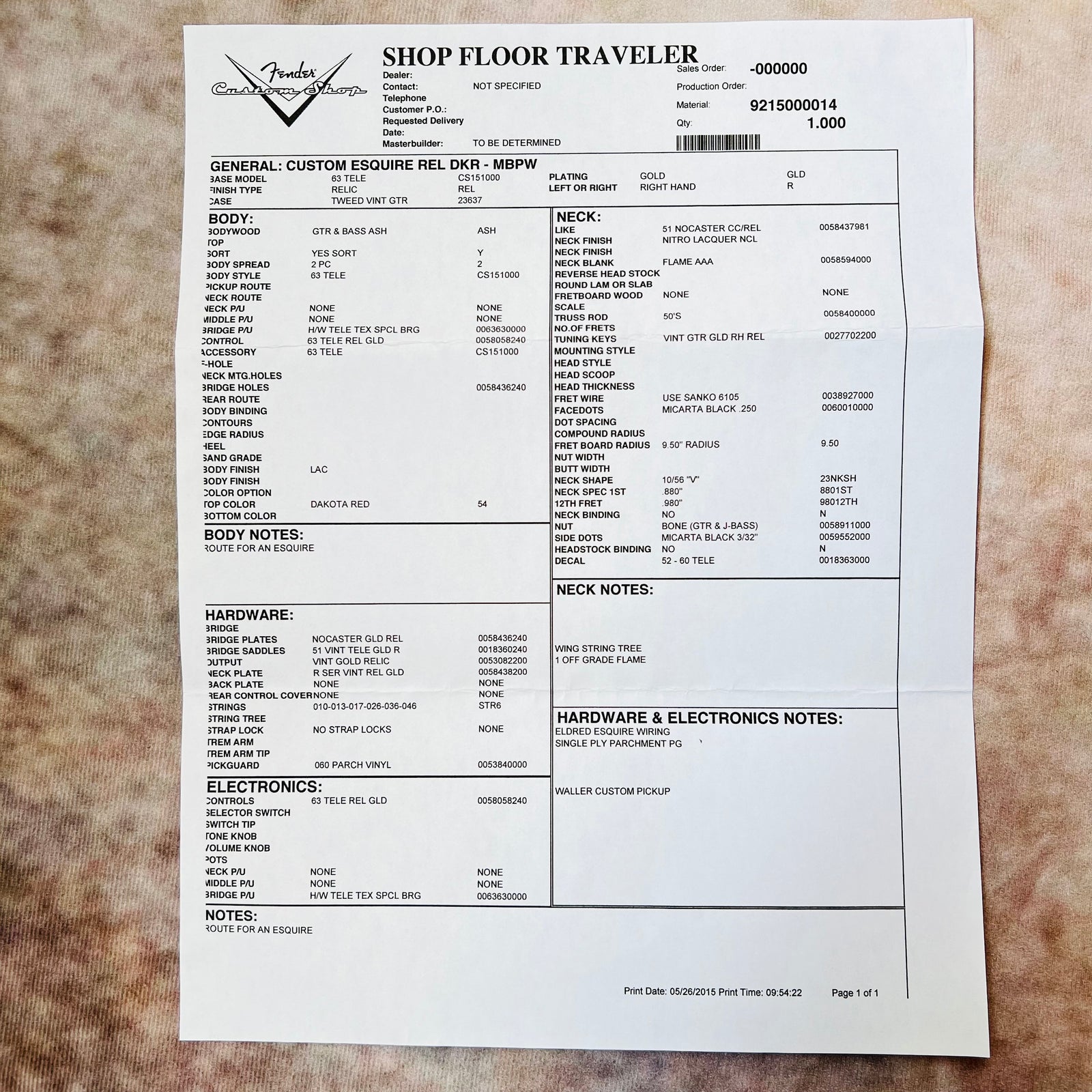

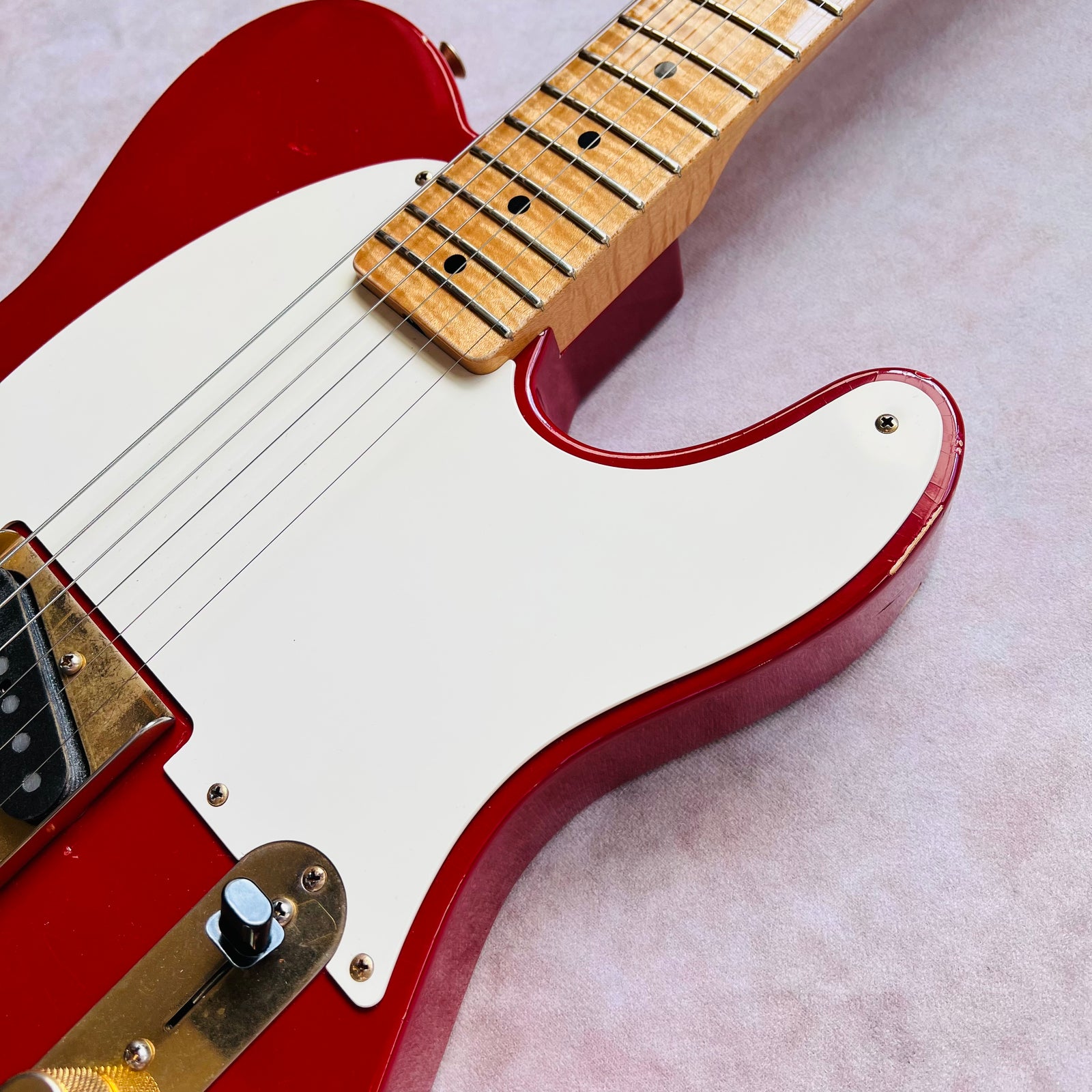

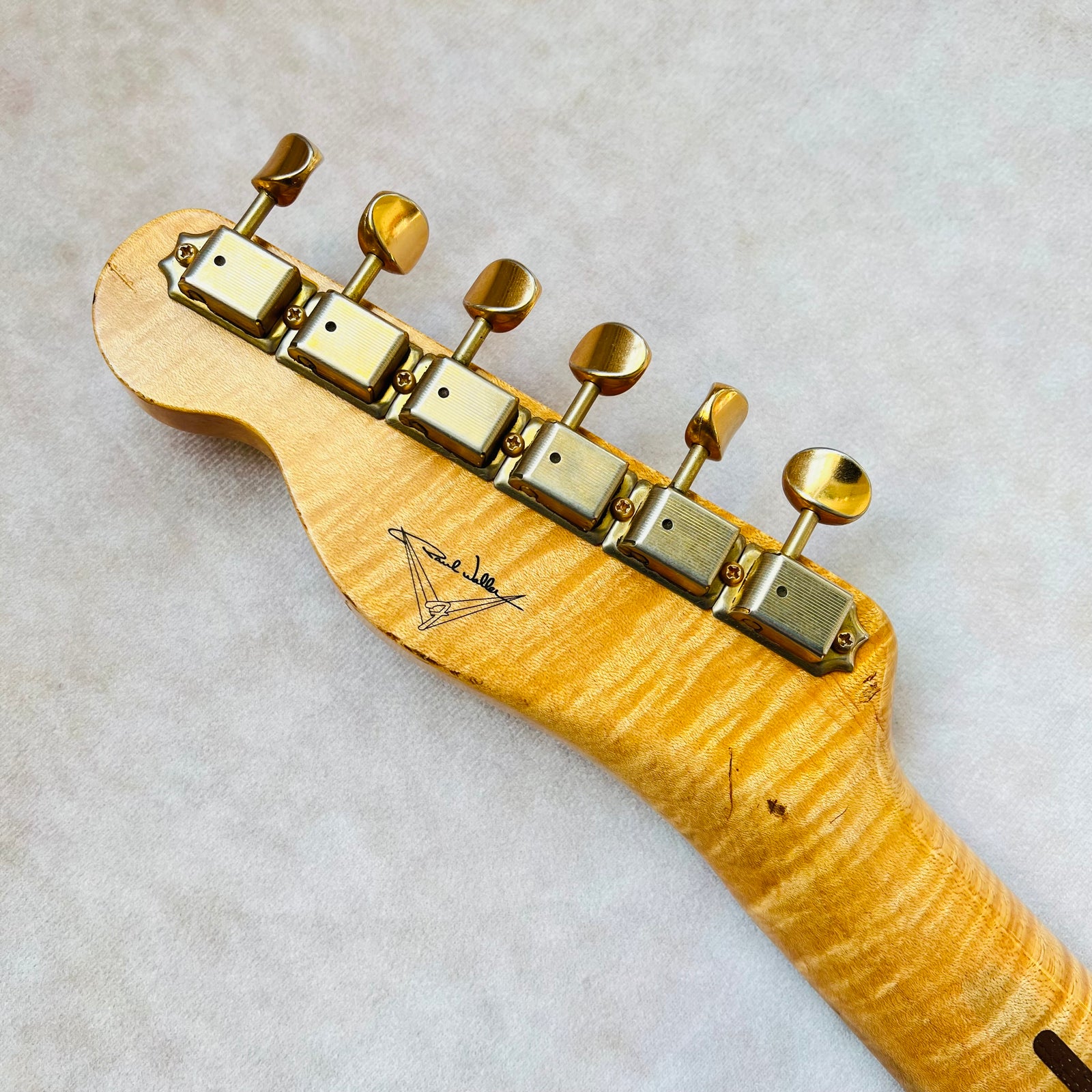

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Custom Esquire Relic listed above. For larger pics, click on an image to open in a new tab.
