Gretsch Limited Edition Falcon Center Block Jr. Bigsby Quilted Maple Roundup Orange Stain Specs

The Limited Edition Falcon Center Block Jr. with Bigsby Quilted Maple Ebony Fingerboard Roundup Orange is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Limited Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2400963822.

Key Features

Quilt Maple Top
Mahogany Body
Mahogany Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Grover Imperial Locking Tuning Machines
TV Jones TV Classic Plus Bridge Pickup
TV Jones TV Classic Neck Pickup

Product Identifiers

Model Name	Limited Edition Falcon Center Block Jr. with Bigsby Quilted Maple
Part Number	2400963822
Product Series	Limited Edition
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978683031

Factory Specifications

Body Construction

Body Material	Quilt Maple Top with Mahogany Back and Sides
Top Material	Quilt Maple
Back Material	Mahogany
Body Shape	Center Block Jr.
Body Binding	Aged White with B/W/B Purfling
Body Finish	Gloss
Bracing	Channel Core Center Block

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Grover Imperial Locking
Pickguard	Gold Plexi with Gold Gretsch Logo and Falcon Graphic
Control Knobs	Jeweled G-Arrow
Bridge Cover / Tailpiece	Bigsby B3GP String-Thru Vibrato Tailpiece
Hardware Finish	Gold

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Mother of Pearl Neo-Classic Thumbnail
Side Dots	Luminlay
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech TUSQ XL
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	Aged White

Electronics

Bridge Pickup	TV Jones TV Classic Plus
Neck Pickup	TV Jones TV Classic
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included: G6251JR/XL Deluxe Hardshell Case

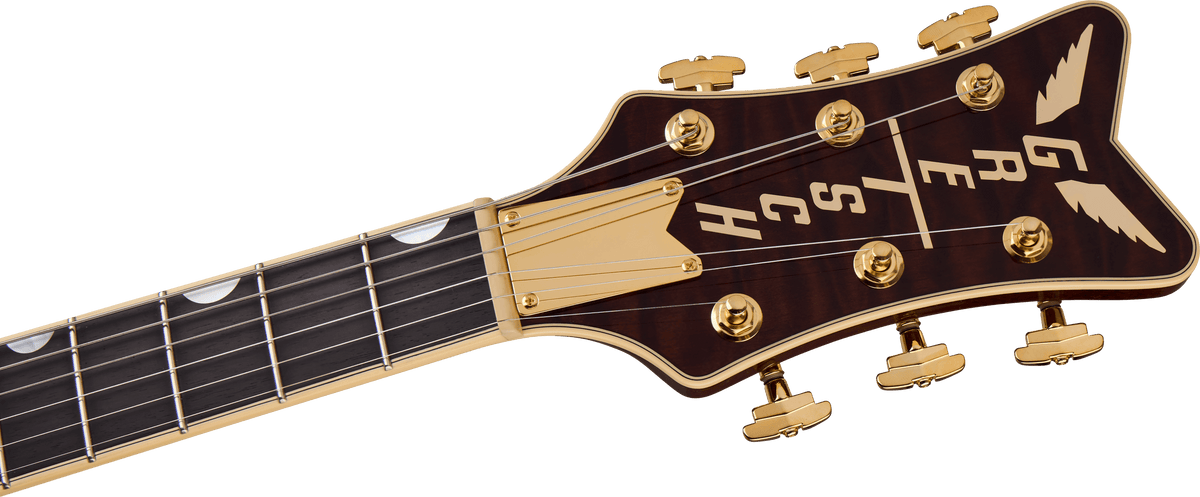

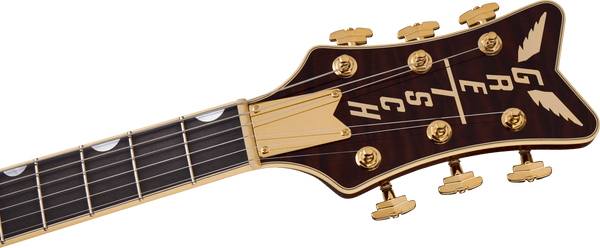

Reference Images

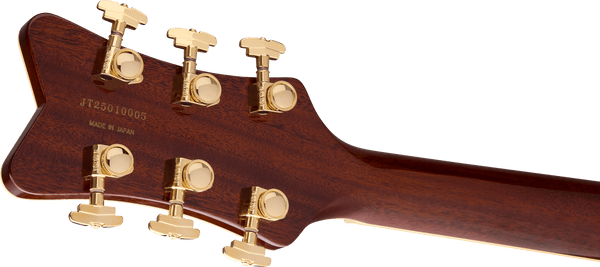

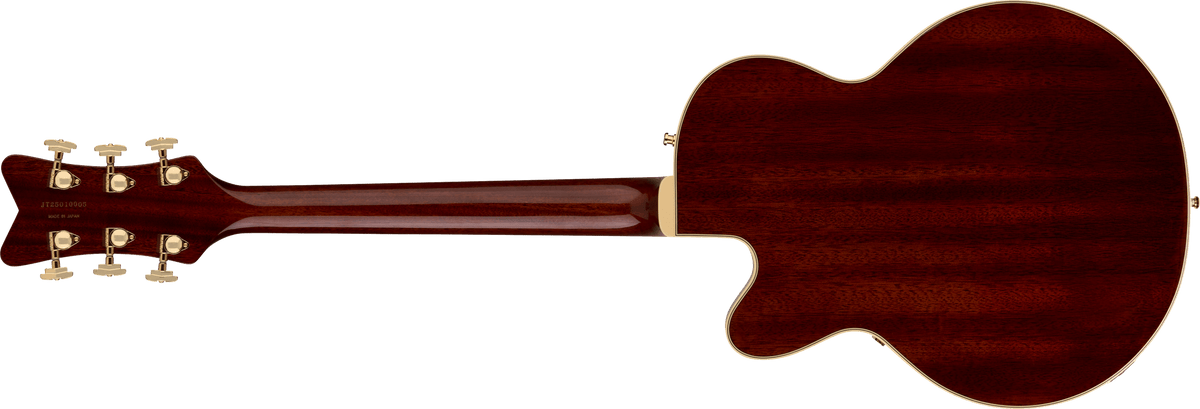

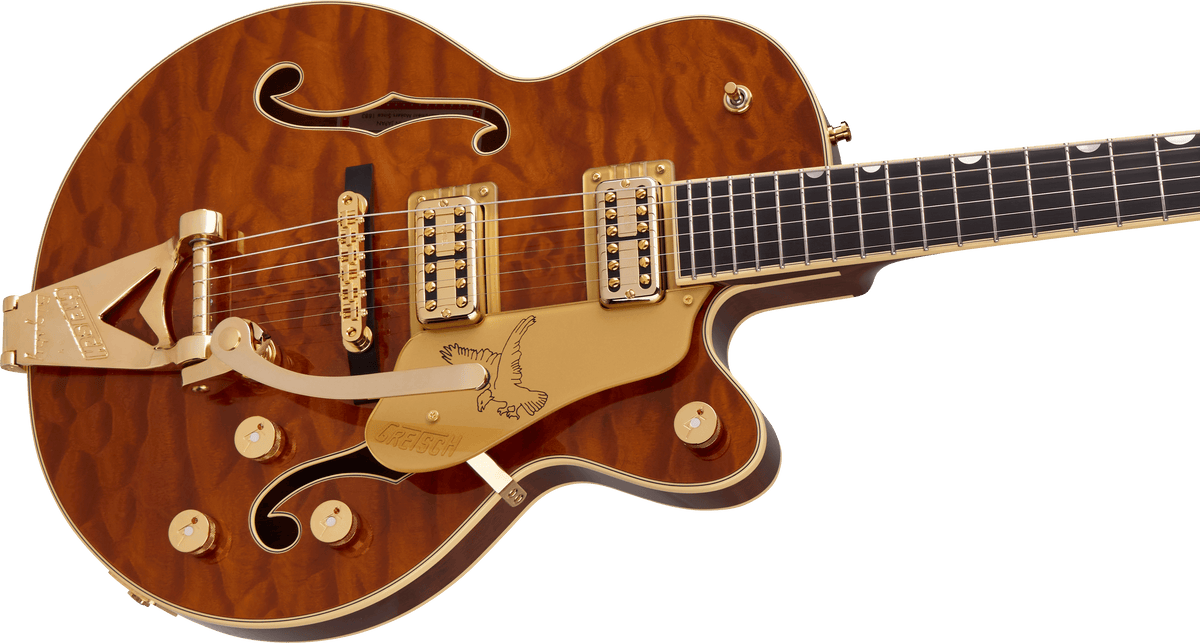

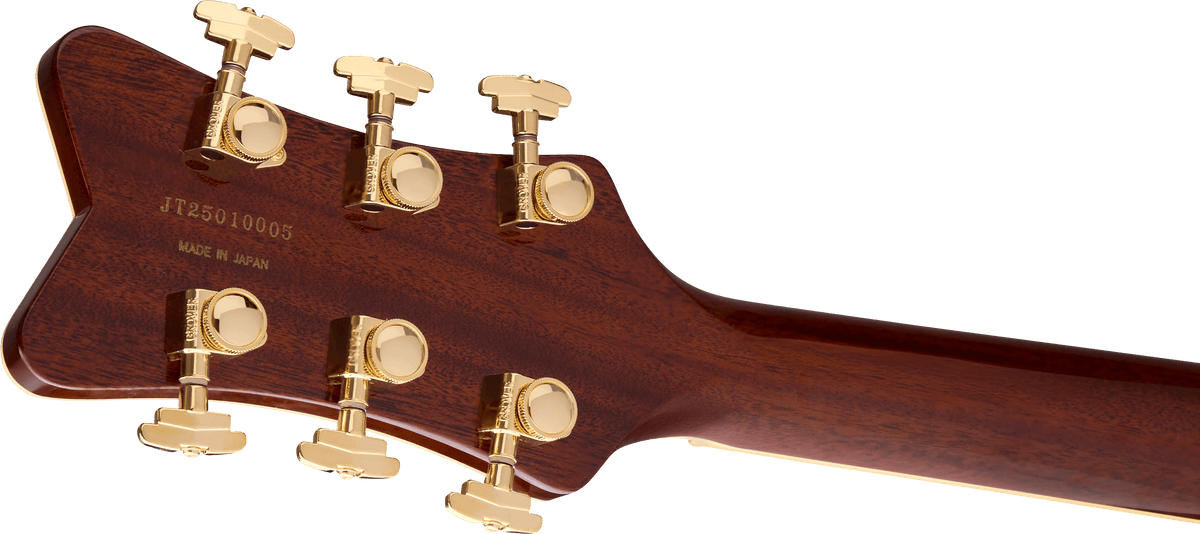

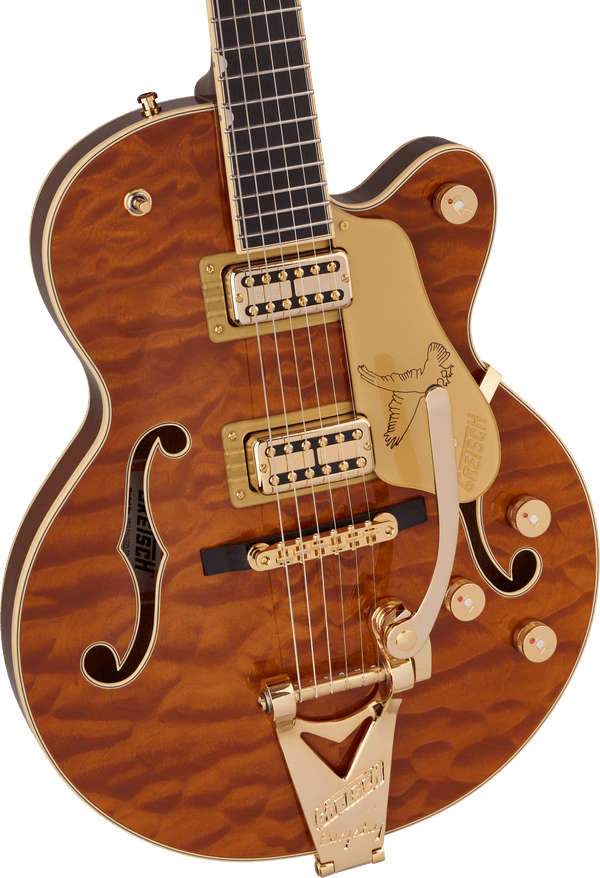

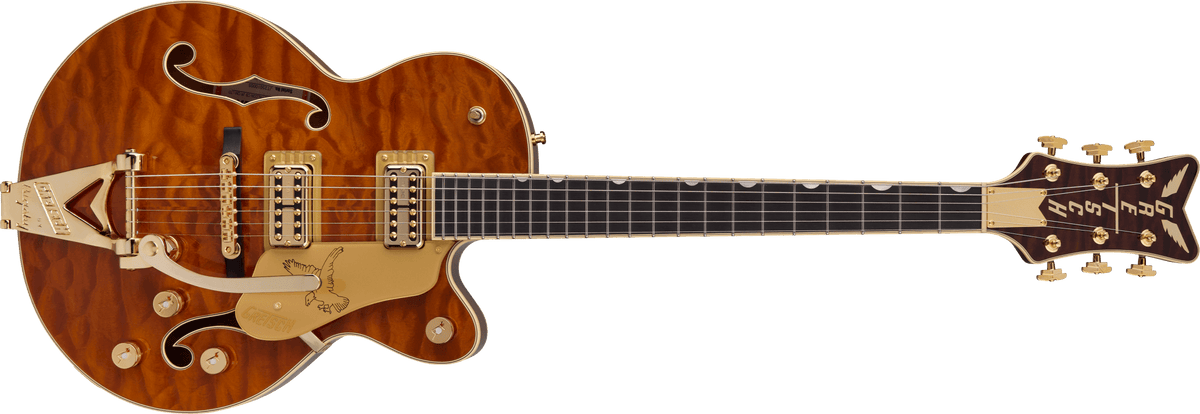

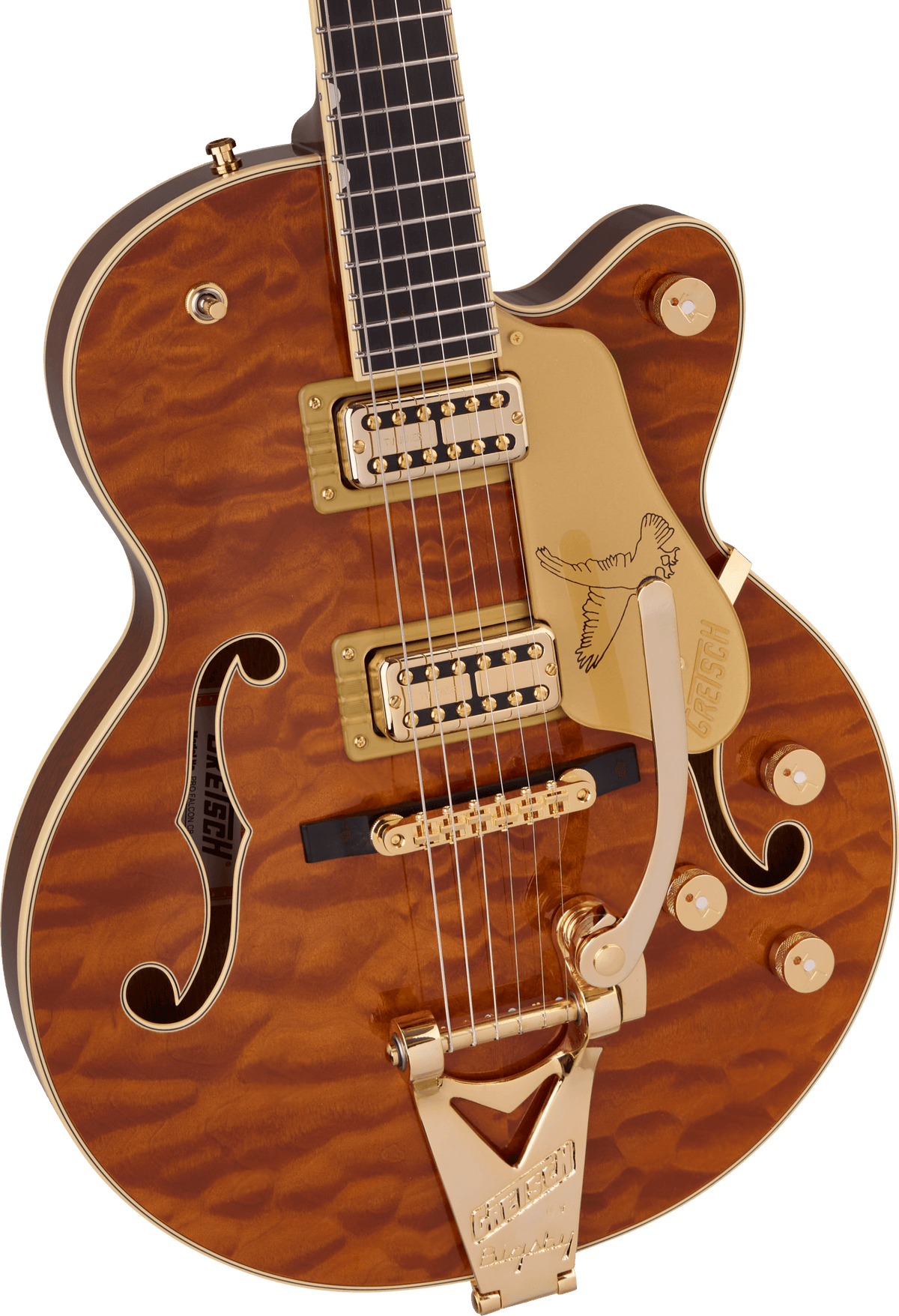

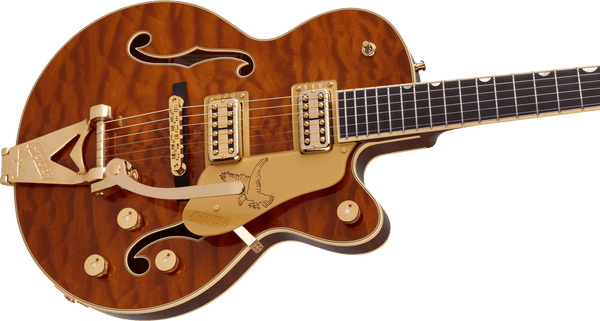

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Limited Edition Falcon Center Block Jr. with Bigsby Quilted Maple Ebony Fingerboard Roundup Orange listed above. For larger pics, click on an image to open in a new tab.
