Gretsch G8424T Billy Duffy Signature Falcon LTD Hollow Body Bigsby Vintage White Specs

The G8424T Billy Duffy Signature Falcon LTD with Bigsby Ebony Fingerboard Vintage White Lacquer is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Limited Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2408424805.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Ebony Fingerboard
25.5" (648 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Vintage Small with Zero Fret Frets
Adjusto-Matic Bridge
Grover Imperial Tuning Machines
Custom Wound Black Top Filter'Tron Bridge Pickup
Custom Wound Black Top Filter'Tron Neck Pickup

Product Identifiers

Model Name	G8424T Billy Duffy Signature Falcon LTD Hollow Body with Bigsby
Part Number	2408424805
Product Series	Limited Edition
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978227983

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Falcon
Body Binding	Gold Sparkle with W/B/W/B Purfling
Body Finish	Gloss Nitrocellulose Lacquer
Bracing	Parallel Spruce Tone Bars with Sound Post

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Grover Imperial
Pickguard	None
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B6GW with Wire Handle
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Big Block
Side Dots	Black
Number of Frets	22 (Plus Zero Fret)
Fret Size	Vintage Small with Zero Fret
Nut Width	1.6875" (42.86 mm)
Scale Length	25.5" (648 mm)
Nut Material	Bone
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Gloss Nitrocellulose Lacquer
Headstock Binding	Gold Sparkle with W/B/W Purfling

Electronics

Bridge Pickup	Custom Wound Black Top Filter'Tron
Neck Pickup	Custom Wound Black Top Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup, 3-Position Tone Switch

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Includes Commemorative Gretsch Billy Duffy Hardshell Case

Reference Images

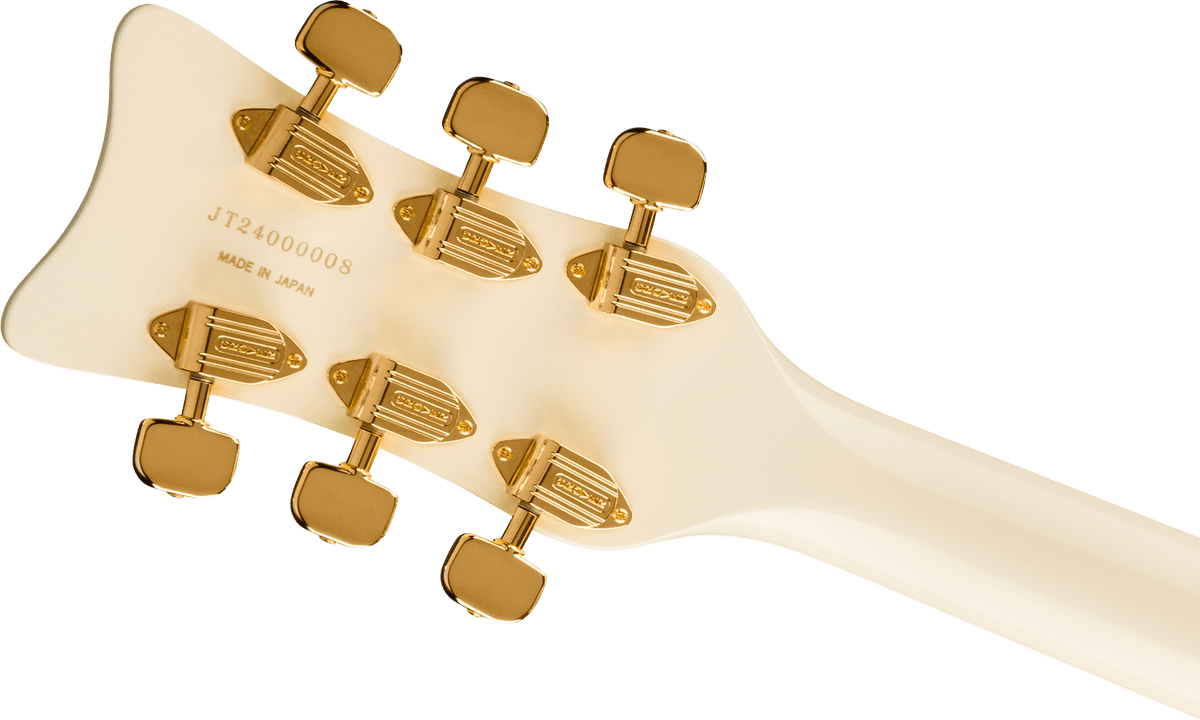

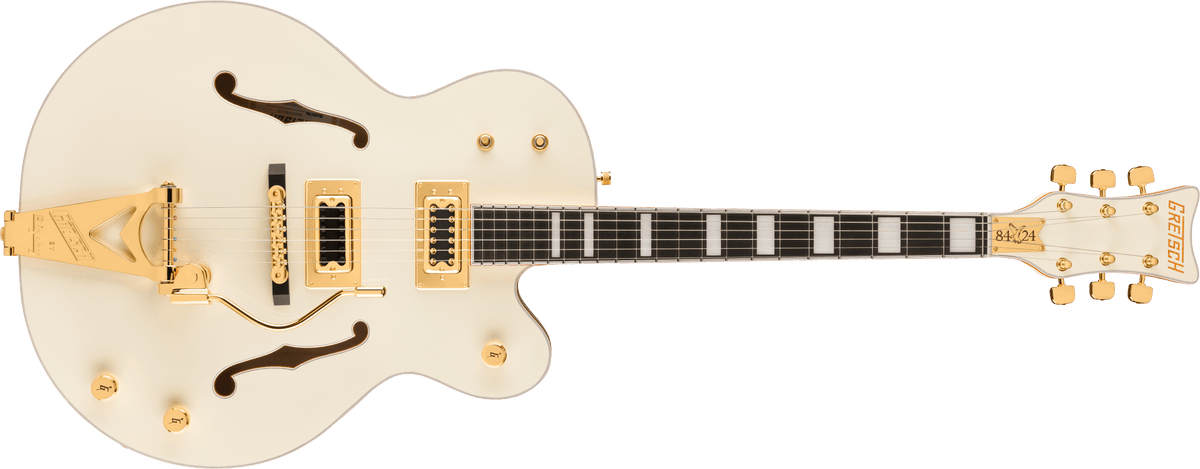

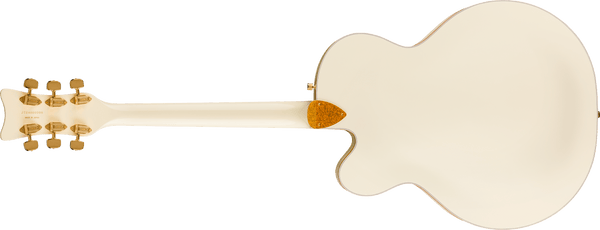

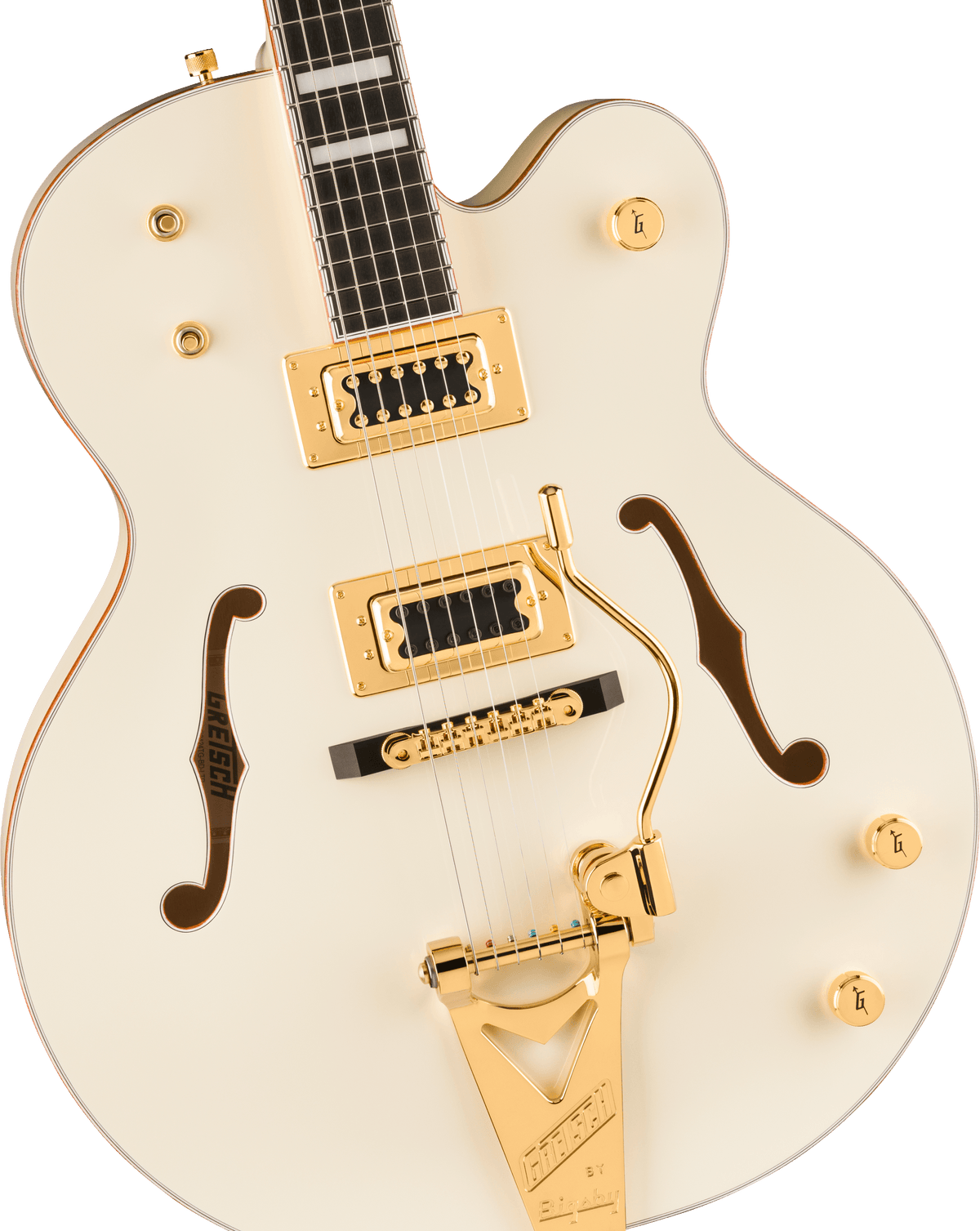

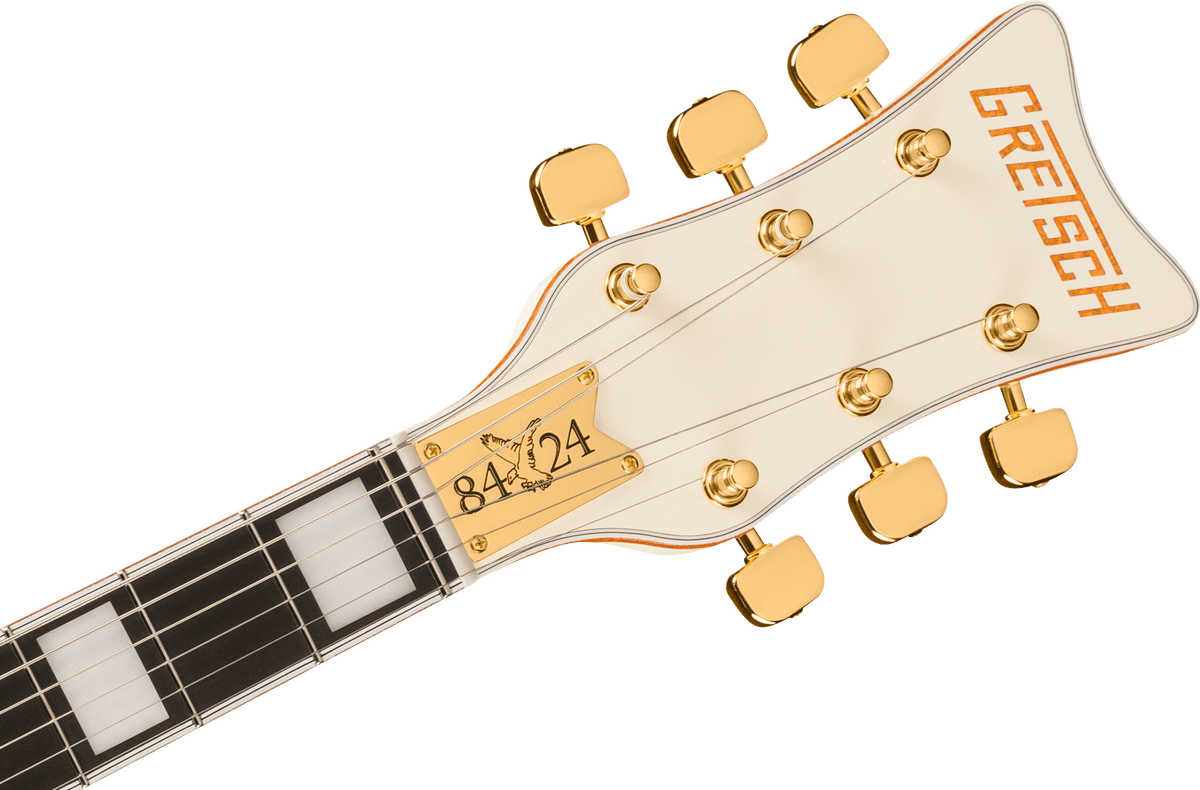

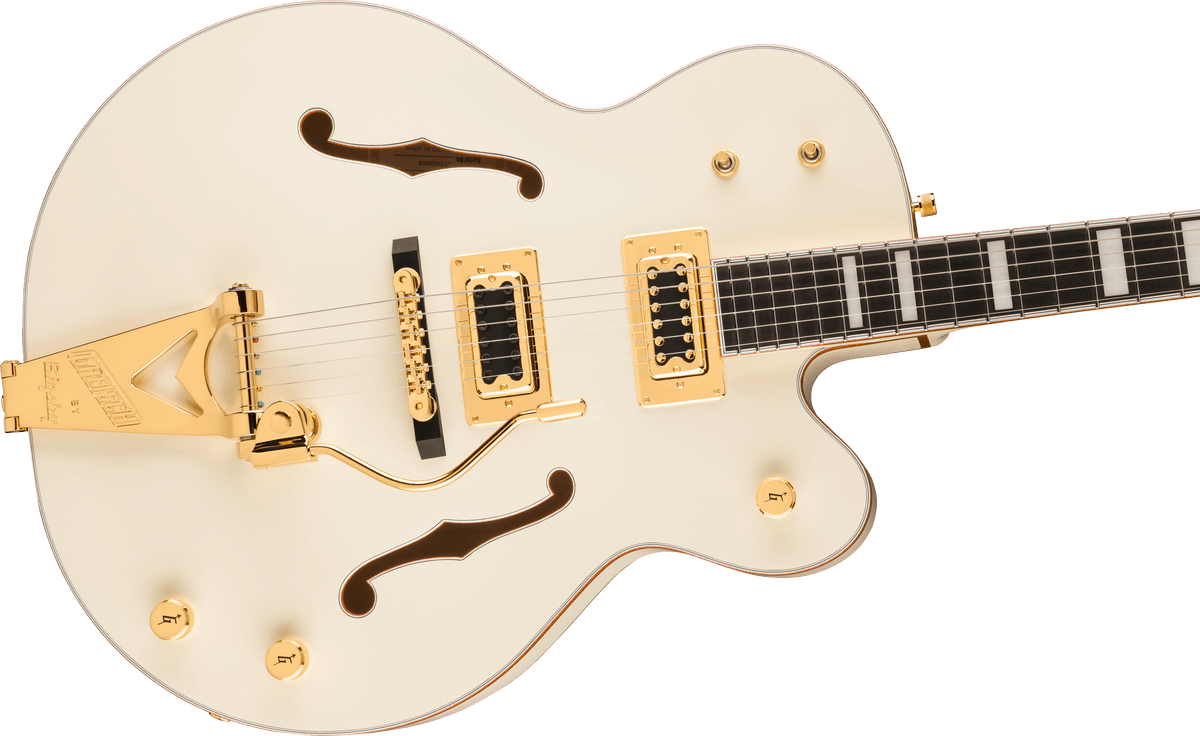

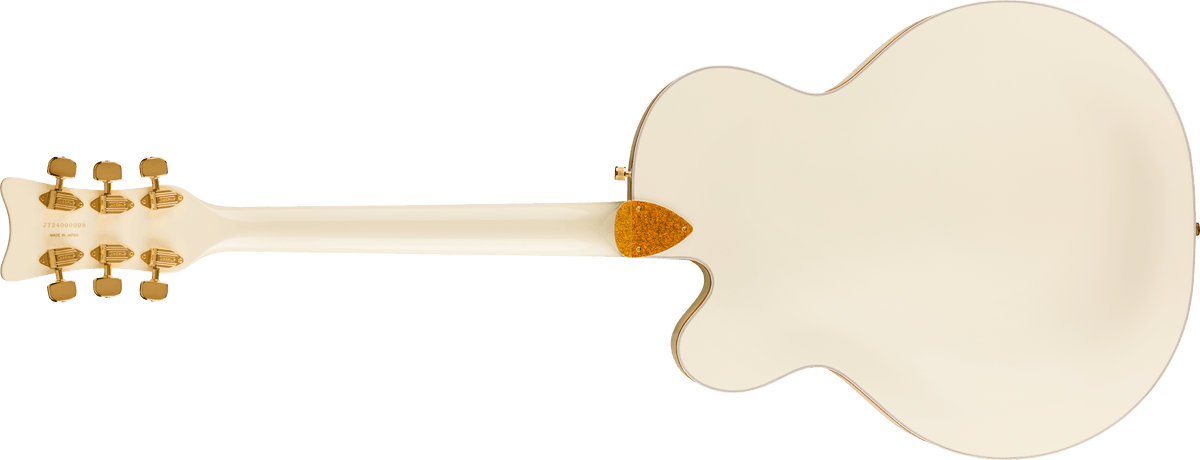

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G8424T Billy Duffy Signature Falcon LTD with Bigsby Ebony Fingerboard Vintage White Lacquer listed above. For larger pics, click on an image to open in a new tab.
