The G9500 Limited Edition Jim Dandy Walnut Fingerboard Oxblood is a concert acoustic guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Roots Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2704000515.
Key Features
- Basswood Top
- Basswood Back
- Basswood Sides
- Nato Neck
- Black Walnut Fingerboard
- 24" (610 mm) Scale Length
- 1.6875" (42.86 mm) Nut Width
- 12" (305 mm) Radius
- Vintage-Style Frets
- Walnut Top-Load with Compensated Saddle Bridge
- Open-Gear Die-Cast Tuning Machines
Product Identifiers
| Model Name | G9500 Limited Edition Jim Dandy |
| Part Number | 2704000515 |
| Product Series | Roots Collection |
| Country of Origin | Indonesia |
| Brand | Gretsch |
| Type | Acoustic Guitar |
| Category | Concert |
| UPC Code | 885978705351 |
Factory Specifications
Body Construction
| Body Material | Basswood |
| Top Material | Basswood |
| Back Material | Basswood |
| Side Material | Basswood |
| Body Shape | Jim Dandy |
| Body Binding | Aged White |
| Body Finish | Semi-Gloss |
| Bracing | X-Bracing |
| Upper Bout Width | 9.63" (244.6 mm) |
| Lower Bout Width | 13.11" (33.30 cm) |
| Waist | 8.25" (210 mm) |
| Rosette | N/A |
Hardware
| Bridge | Walnut Top-Load with Compensated Saddle |
| Tuning Machines | Open-Gear Die-Cast |
| Pickguard | 1-Ply Aged White with Black "G" |
| Hardware Finish | Nickel |
Neck Construction
| Neck Material | Nato |
| Fingerboard Material | Black Walnut |
| Radius | 12" (305 mm) |
| Fingerboard Inlays | Pearloid Dot |
| Number of Frets | 18 |
| Fret Size | Vintage-Style |
| Nut Width | 1.6875" (42.86 mm) |
| Scale Length | 24" (610 mm) |
| Nut Material | Synthetic Bone |
| Neck Shape | "C" Shape |
| Neck Construction | Set-Neck |
| Neck Finish | Semi-Gloss Color Matched |
Electronics
General
| Orientation | Right-Hand |
| Strings | D'Addario EJ16 Phosphor Bronze, Light (.012-.053 Gauges) |
| Case / Gig Bag | Optional G6296 Gretsch Round Neck Resonator Hardshell (p/n 099-6495-000); Optional G2180 Gig Bag (p/n 099-6481-000) |
Reference Images

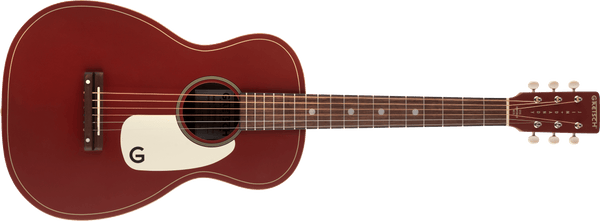

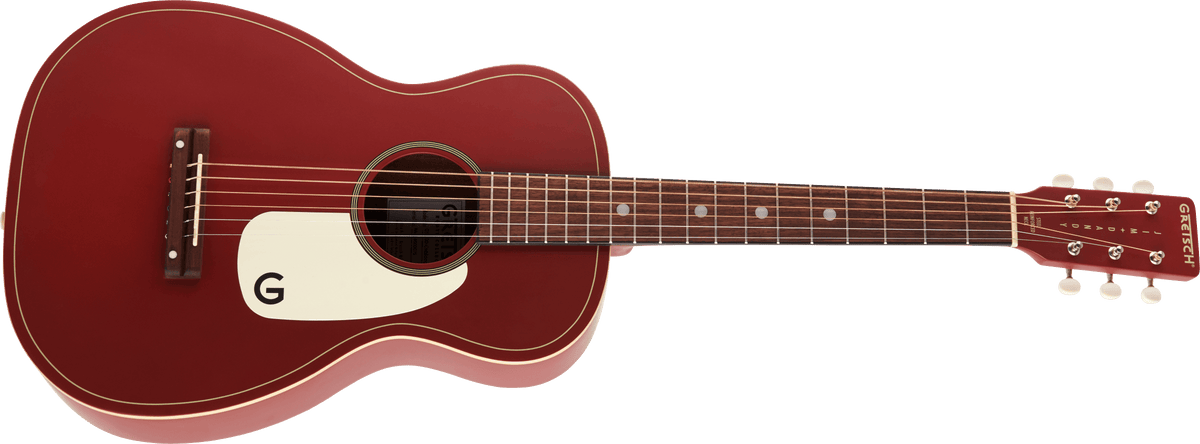

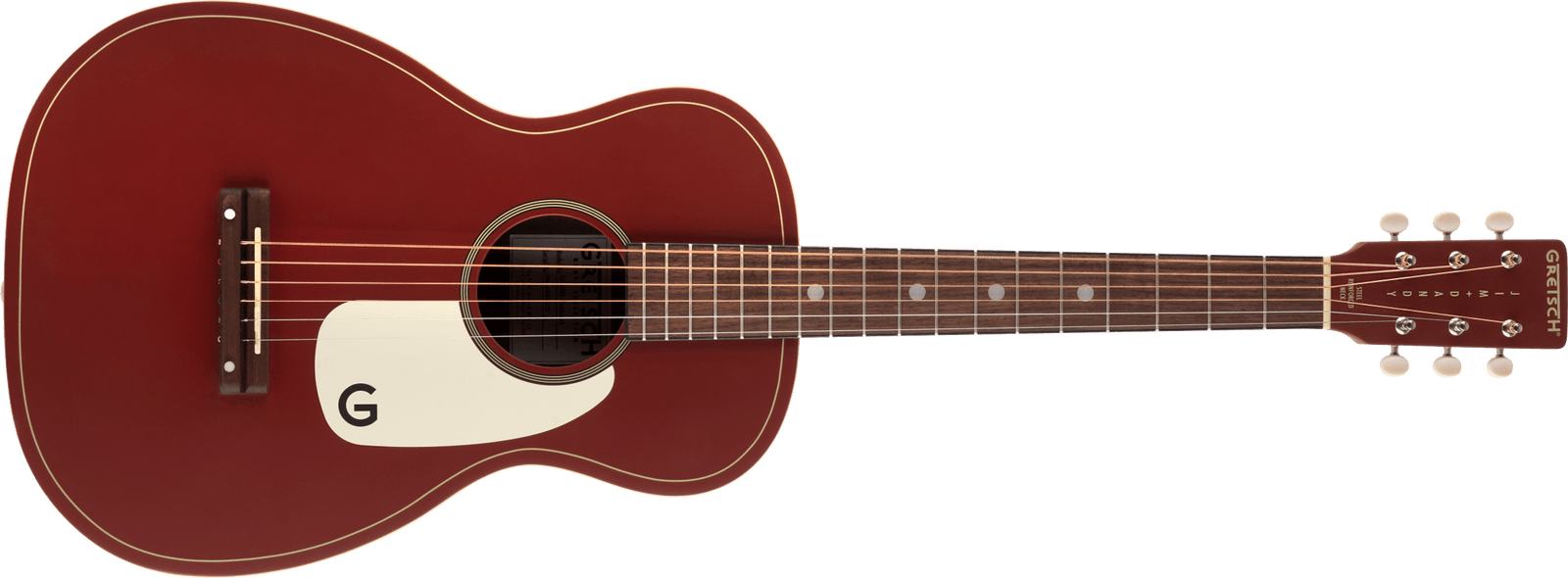

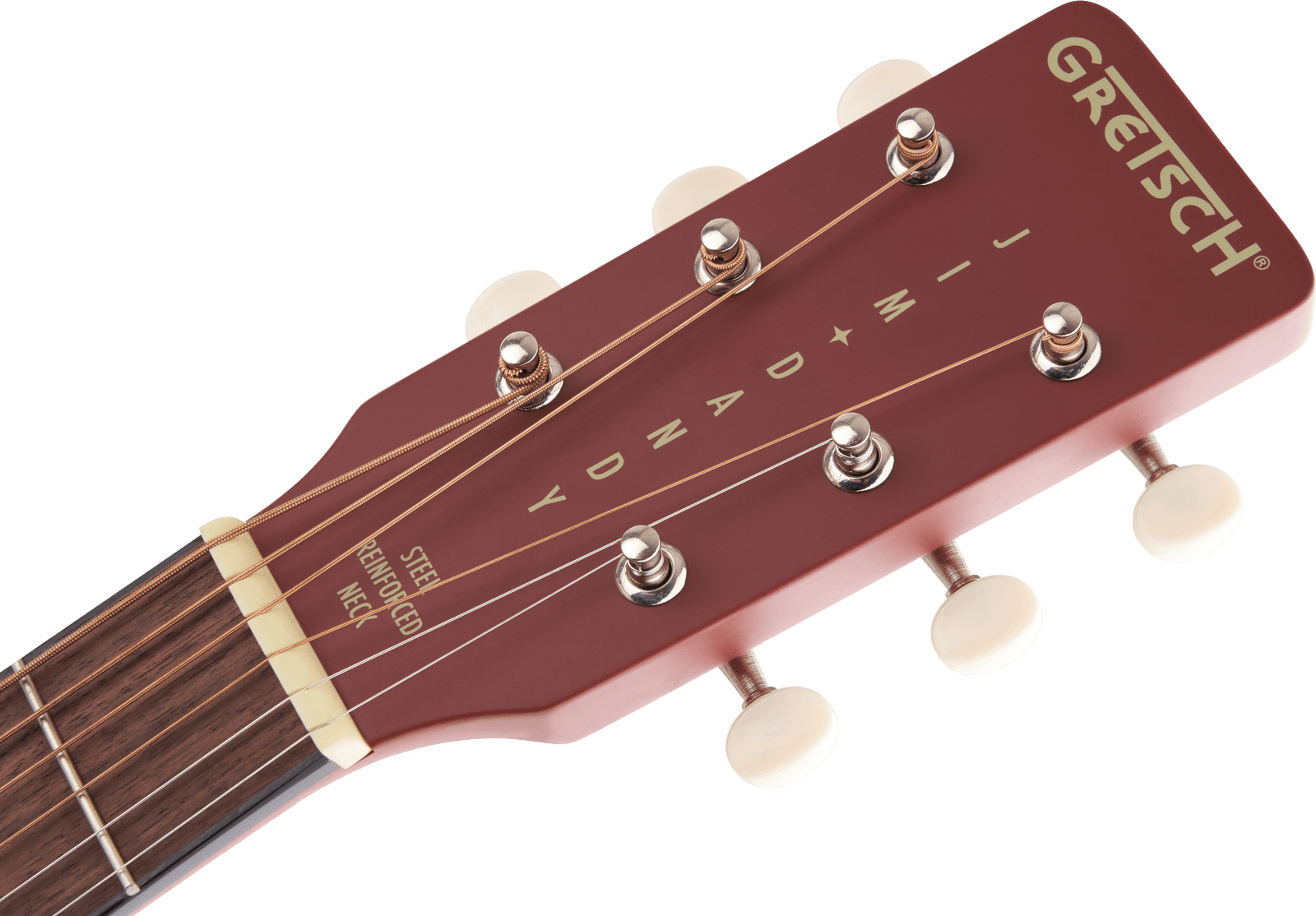

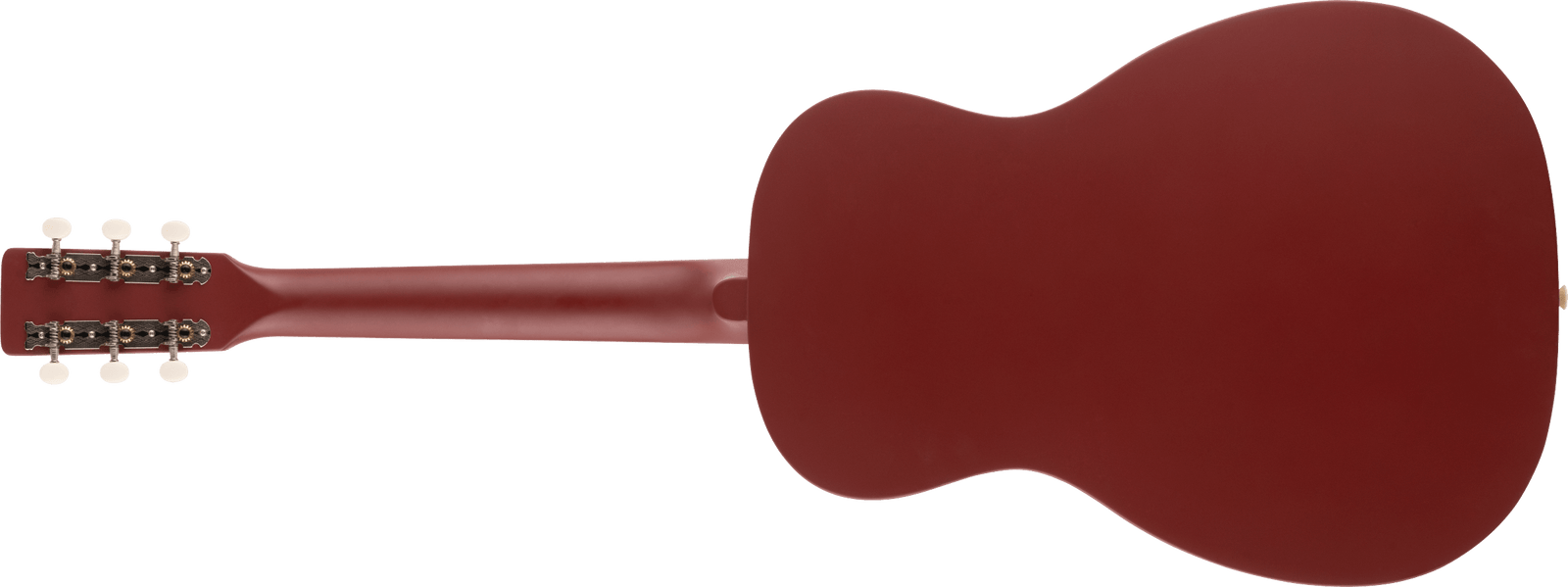

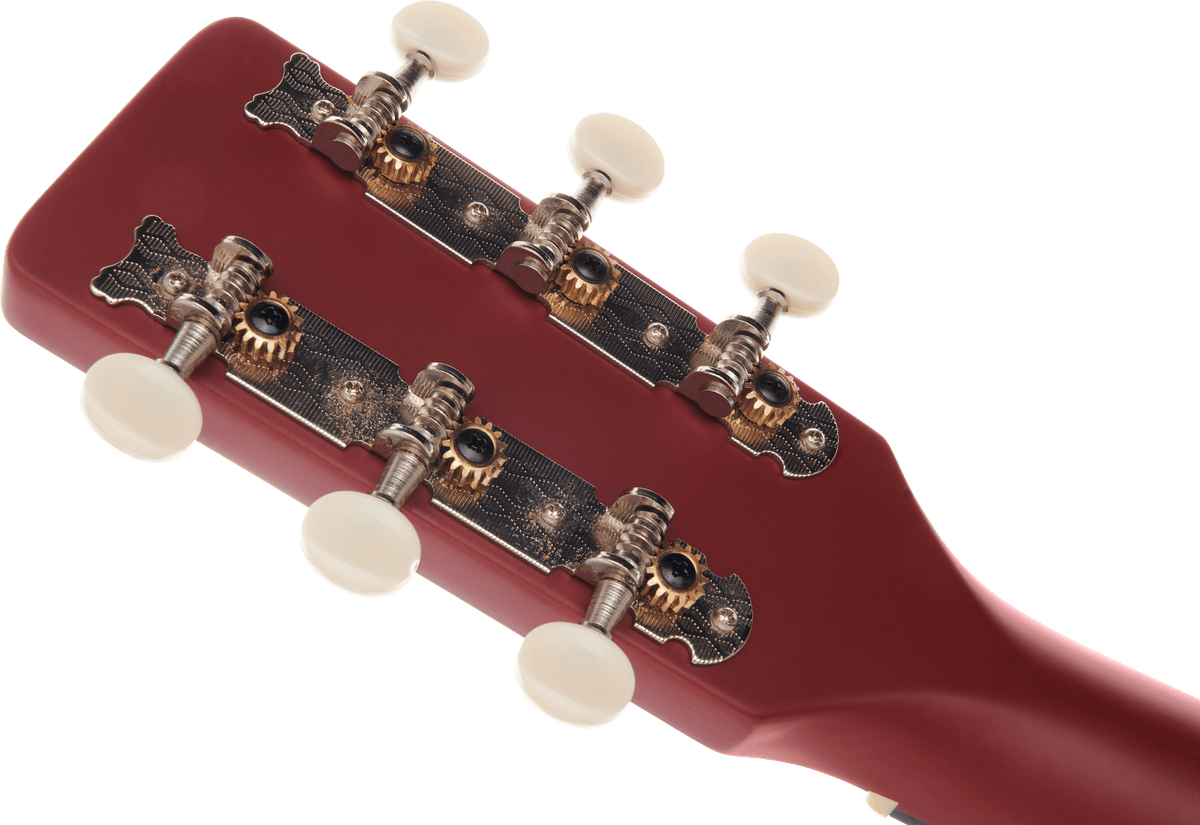

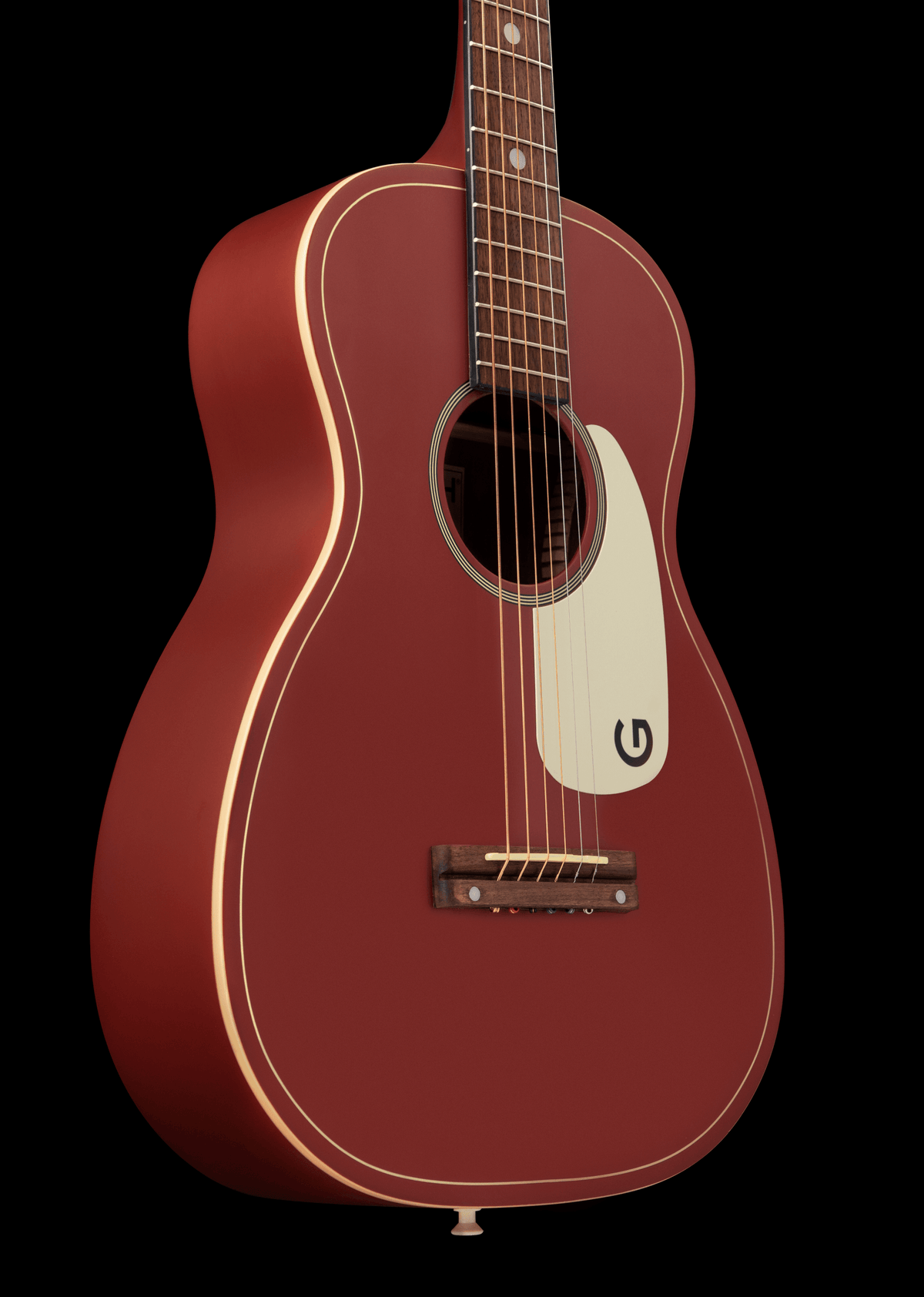

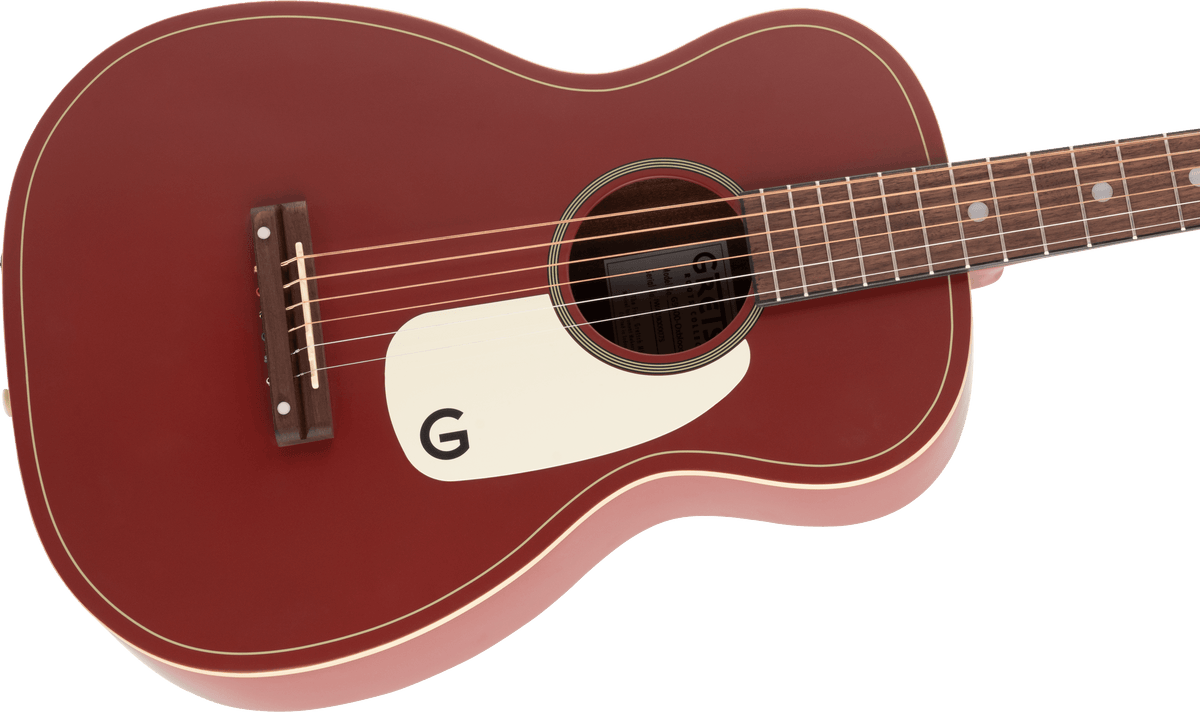

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G9500 Limited Edition Jim Dandy Walnut Fingerboard Oxblood listed above. For larger pics, click on an image to open in a new tab.
