Gretsch G9500 Limited Edition Jim Dandy Nocturne Blue Specs

The G9500 Limited Edition Jim Dandy Black Walnut Fingerboard Nocturne Blue is a concert acoustic guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Roots Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2704000528.

Key Features

Basswood Top
Basswood Back
Basswood Sides
Nato Neck
Black Walnut Fingerboard
24" (610 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Vintage-Style Frets
Walnut Top-Load with Compensated Saddle Bridge
Open-Gear Die-Cast Tuning Machines

Product Identifiers

Model Name	G9500 Limited Edition Jim Dandy
Part Number	2704000528
Product Series	Roots Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Acoustic Guitar
Category	Concert
UPC Code	717669554606

Factory Specifications

Body Construction

Body Material	Basswood
Top Material	Basswood
Back Material	Basswood
Side Material	Basswood
Body Shape	Jim Dandy
Body Binding	Aged White
Body Finish	Semi-Gloss
Bracing	X-Bracing
Upper Bout Width	9.63" (24.46 cm)
Lower Bout Width	13.11" (33.30 cm)
Waist	8.25" (20.96 cm)
Rosette	N/A

Hardware

Bridge	Walnut Top-Load with Compensated Saddle
Tuning Machines	Open-Gear Die-Cast
Pickguard	1-Ply Aged White with Black "G"
Hardware Finish	Nickel

Neck Construction

Neck Material	Nato
Fingerboard Material	Black Walnut
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Dot
Number of Frets	18
Fret Size	Vintage-Style
Nut Width	1.6875" (42.86 mm)
Scale Length	24" (610 mm)
Nut Material	Synthetic Bone
Neck Shape	"C" Shape
Neck Construction	Set-Neck
Neck Finish	Semi-Gloss

Electronics

General

Orientation	Right-Hand
Strings	D'Addario EJ16 Phosphor Bronze, Light (.012-.053 Gauges)
Case / Gig Bag	Optional G6296 Gretsch Round Neck Resonator Hardshell (p/n 099-6495-000); Optional G2180 Gig Bag (p/n 099-6481-000)

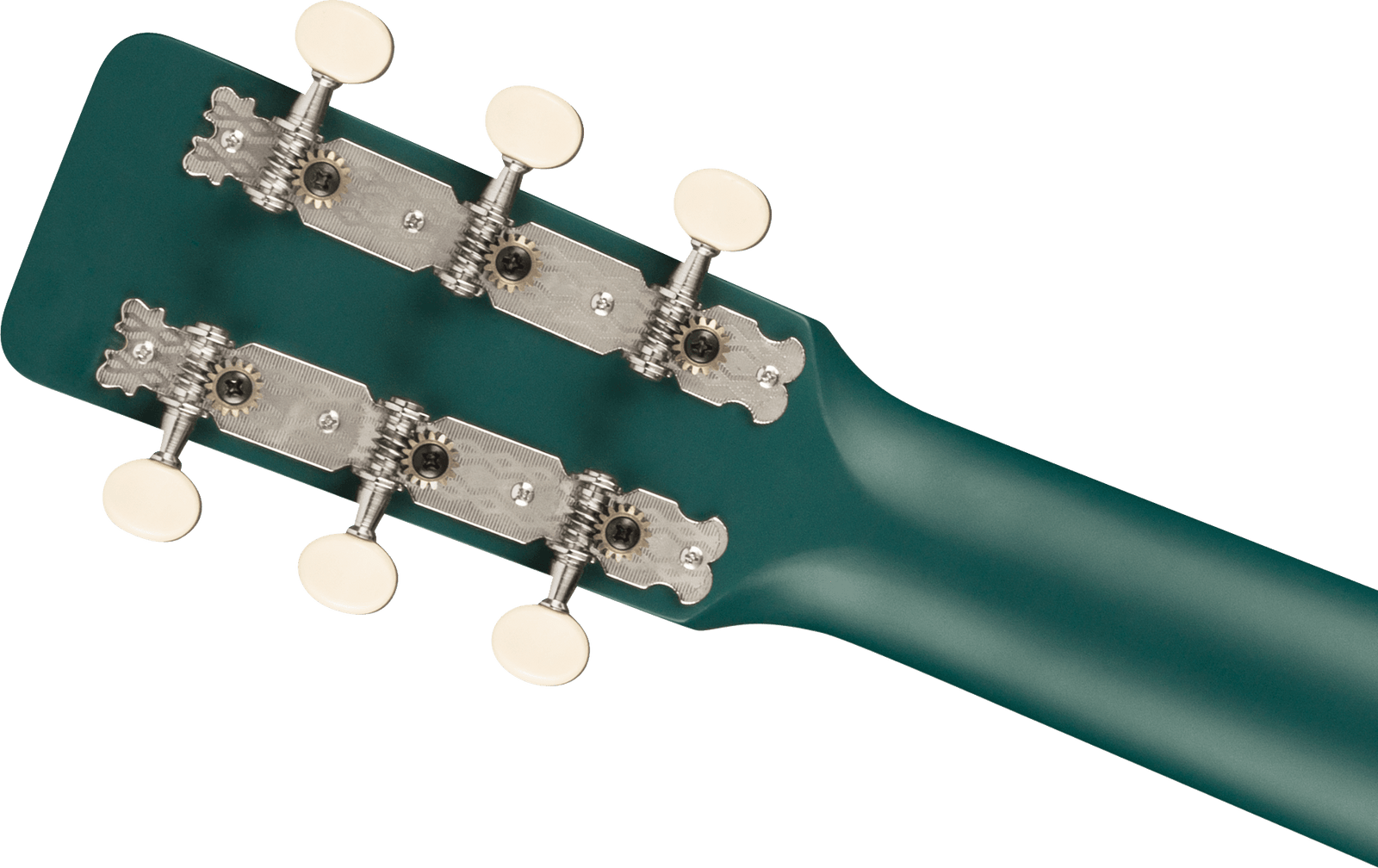

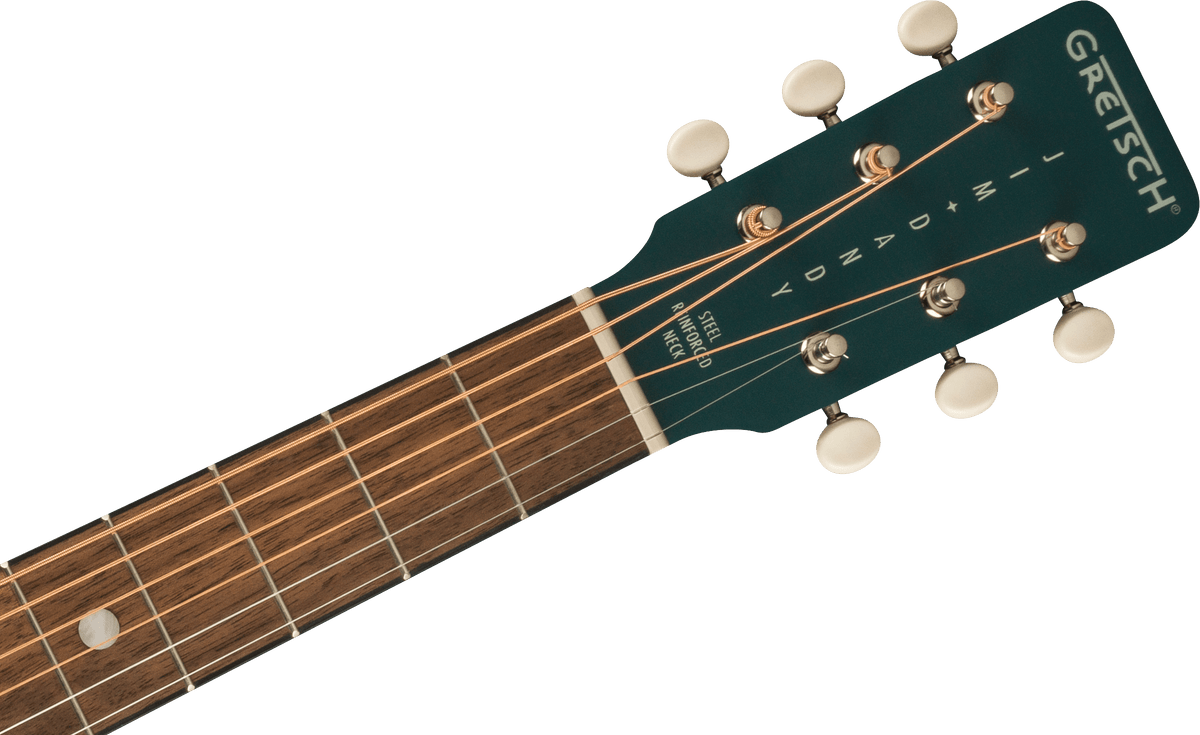

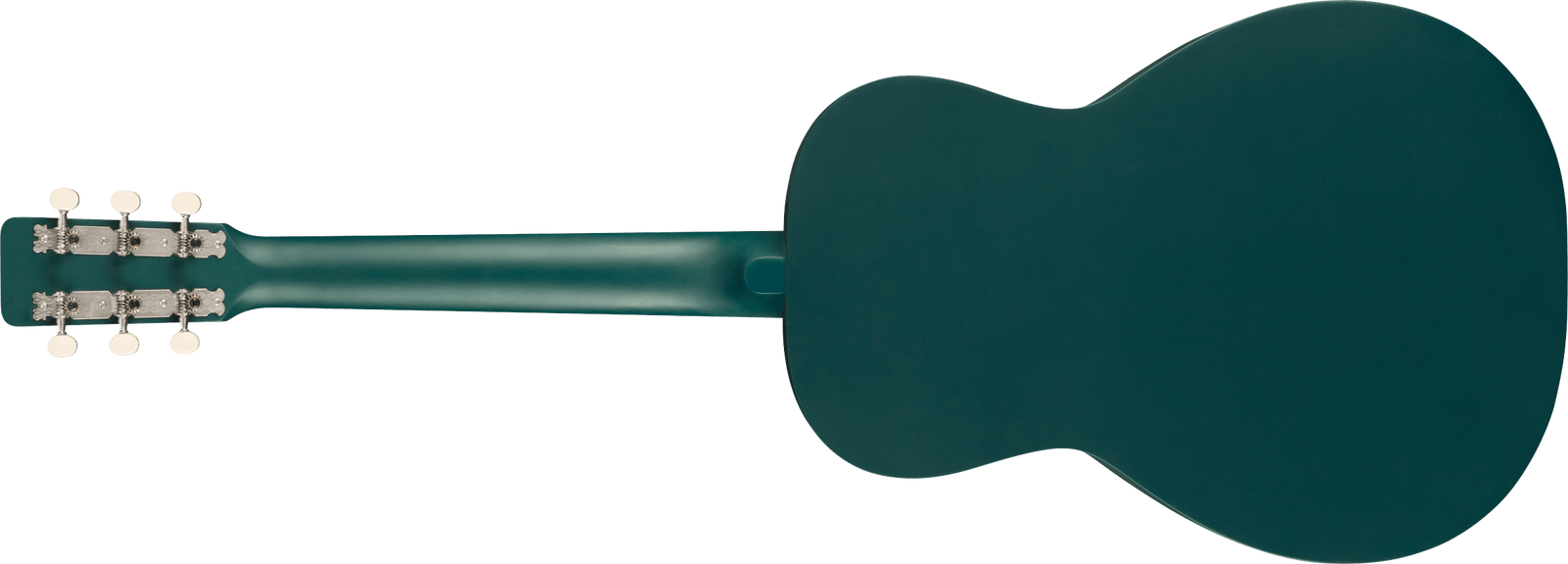

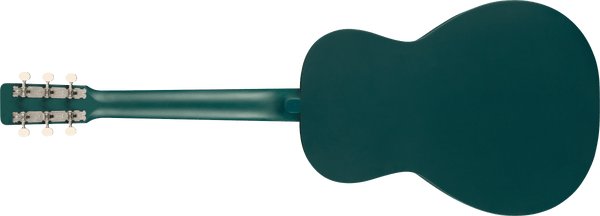

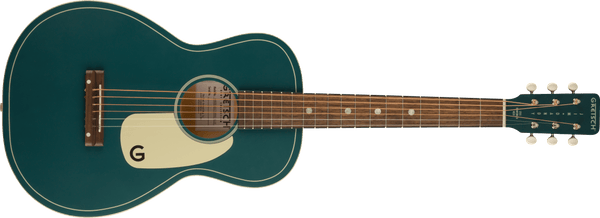

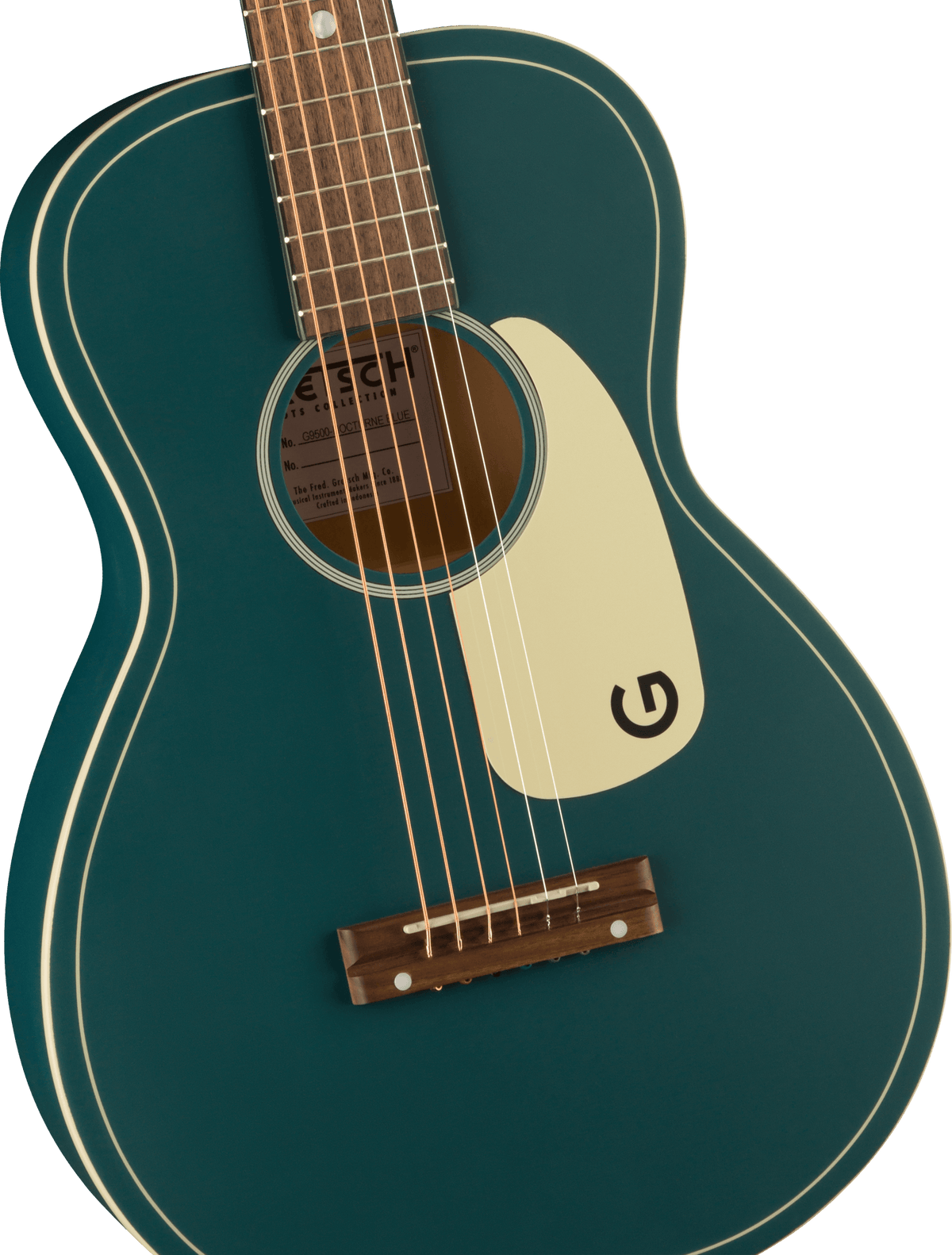

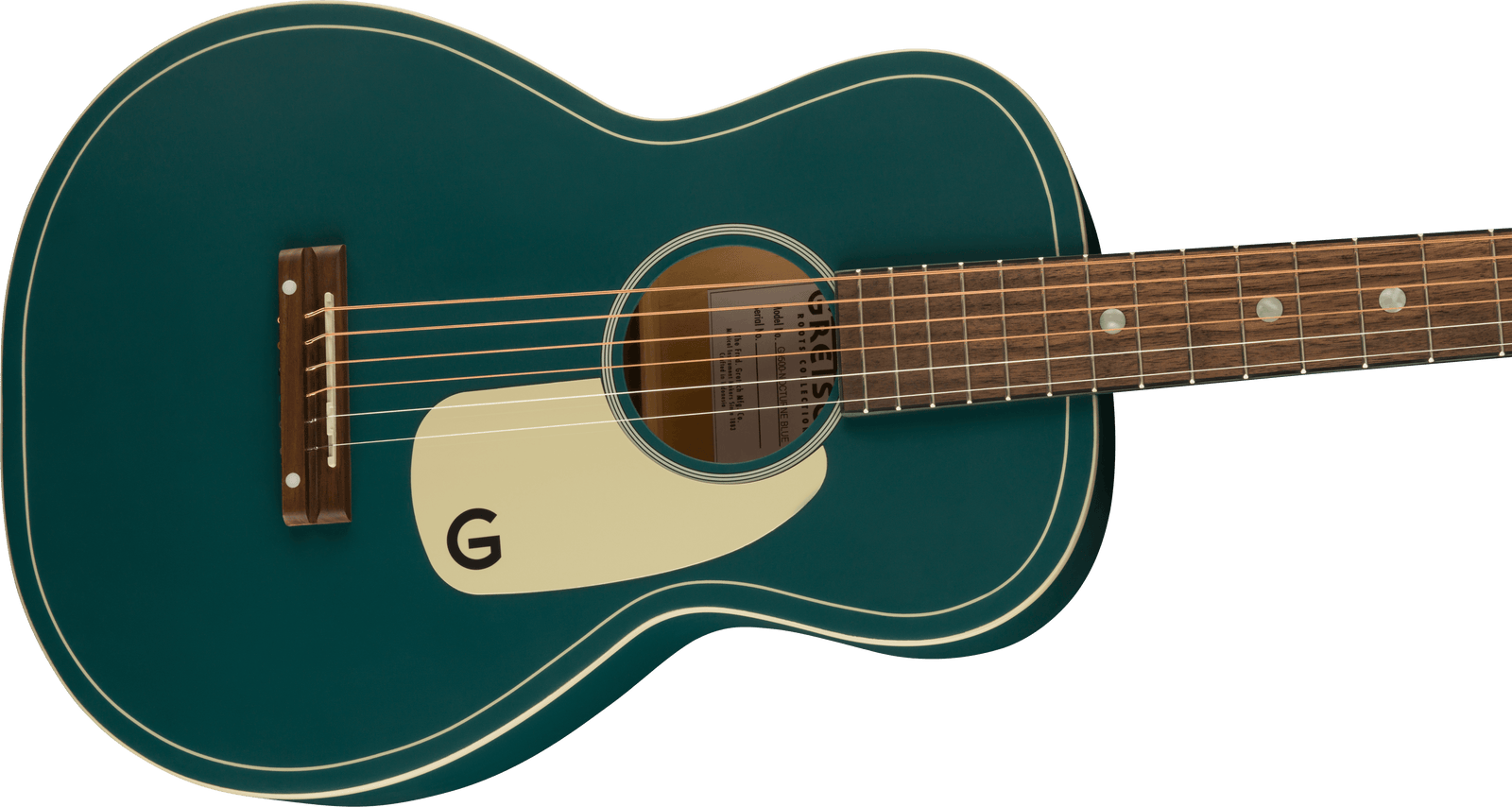

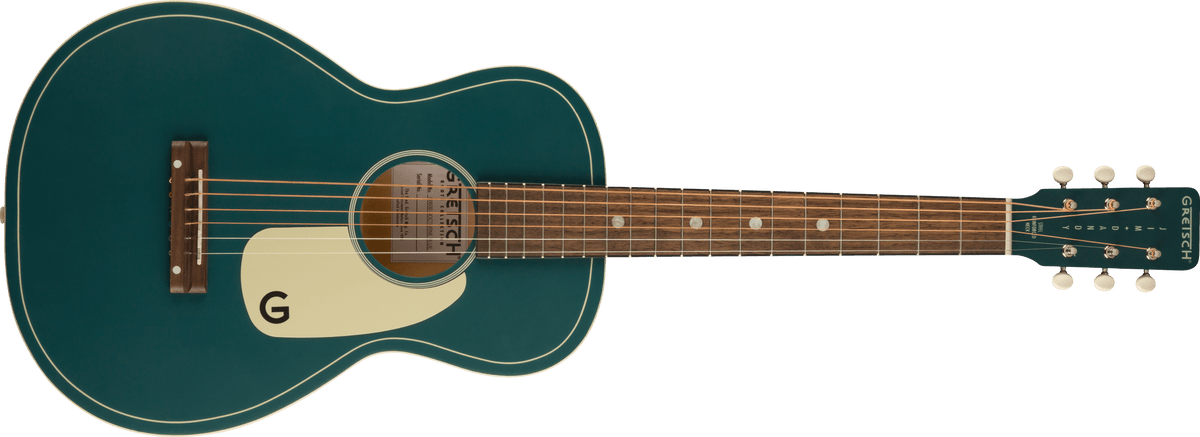

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G9500 Limited Edition Jim Dandy Black Walnut Fingerboard Nocturne Blue listed above. For larger pics, click on an image to open in a new tab.
