Gretsch G6659TFM Players Edition Broadkaster Jr. Center Block Single-Cut Bigsby Flame Maple Dark Cherry Stain Specs

The G6659TFM Players Edition Broadkaster Jr. Center Block Single-Cut with String-Thru Bigsby and Flame Maple USA Full'Tron Pickups Dark Cherry Stain is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401700877.

Key Features

Arched Laminated Flame Maple Top
Arched Laminated Maple Body
Maple Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Gotoh Locking Tuning Machines
Full'Tron Bridge Pickup
N/A Middle Pickup
Full'Tron Neck Pickup

Product Identifiers

Model Name	G6659TFM Players Edition Broadkaster Jr. Center Block Single-Cut with String-Thru Bigsby and Flame Maple
Part Number	2401700877
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978758999

Factory Specifications

Body Construction

Body Material	Laminated Flame Maple
Top Material	Arched Laminated Flame Maple
Back Material	Arched Laminated Maple
Body Shape	Broadkaster
Body Binding	Aged White
Body Finish	Gloss
Bracing	Center Block
Upper Bout Width	10.4375" (265 mm)
Lower Bout Width	14" (35.5 cm)
Waist	8.75" (222mm)

Hardware

Bridge	Anchored Adjusto-Matic
Tuning Machines	Gotoh Locking
Pickguard	None
Control Knobs	Arrow
Bridge Cover / Tailpiece	Bigsby B7CP String-Thru
Hardware Finish	Nickel

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech TUSQ
Neck Shape	Standard "U"
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	Full'Tron
Middle Pickup	N/A
Neck Pickup	Full'Tron
Pickup Configuration	Full'Tron / Full'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Special Electronics	N/A

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included G6241 Gretsch Jr. Hardshell (p/n 099-6412-000); Optional G2162 Hollow Body Gig Bag (p/n 099-6458-000)
Recommended Case	Includes G6251JR/XL Deluxe Hardshell Case

Reference Images

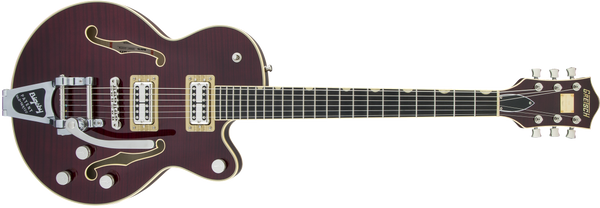

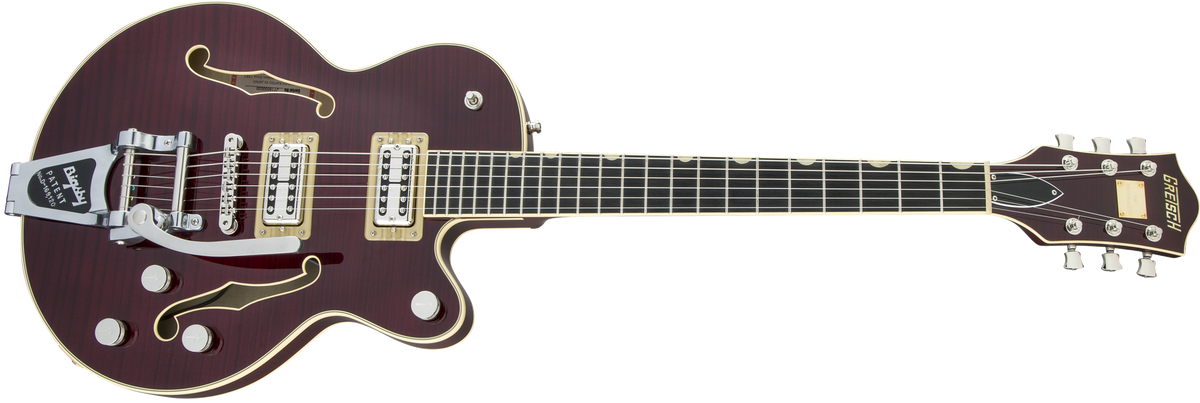

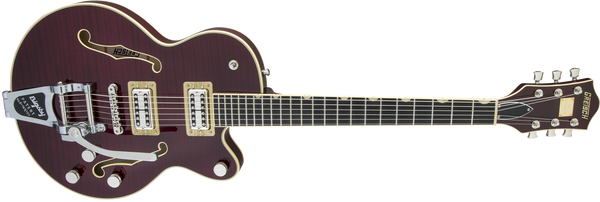

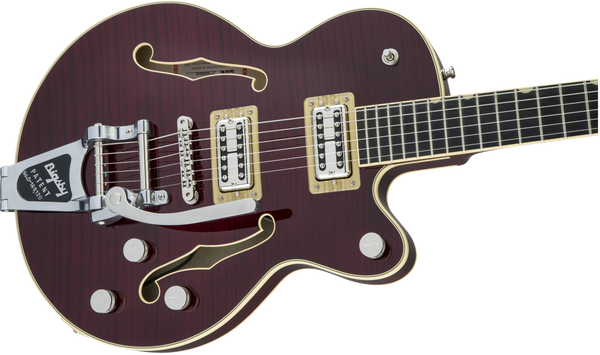

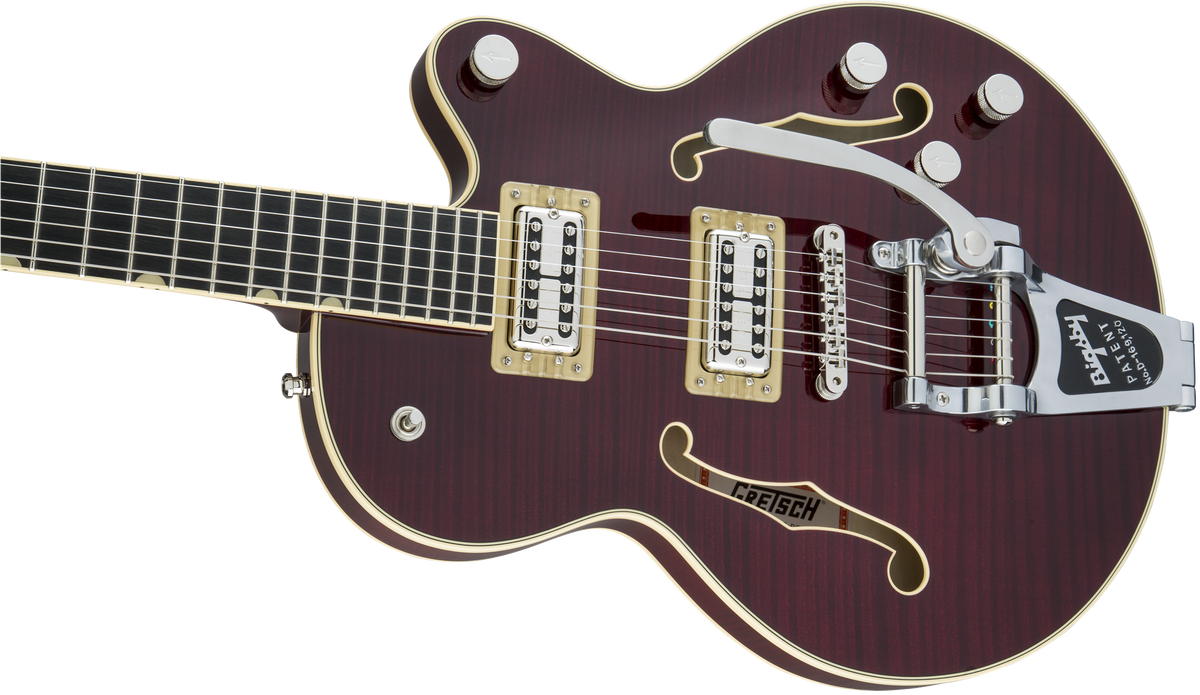

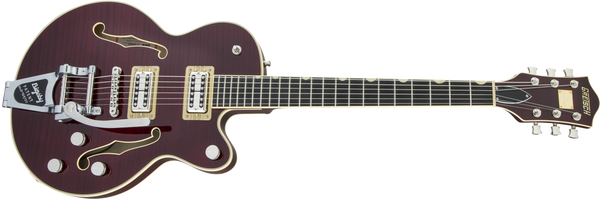

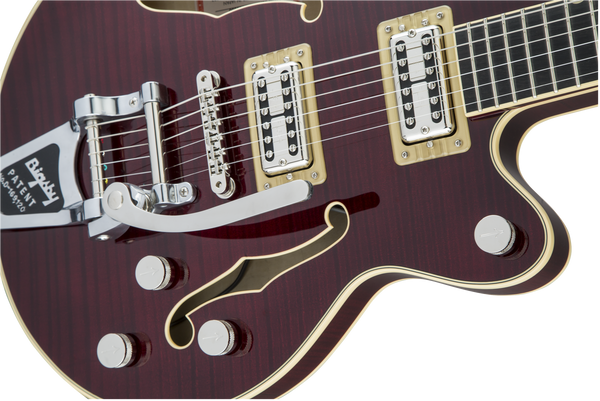

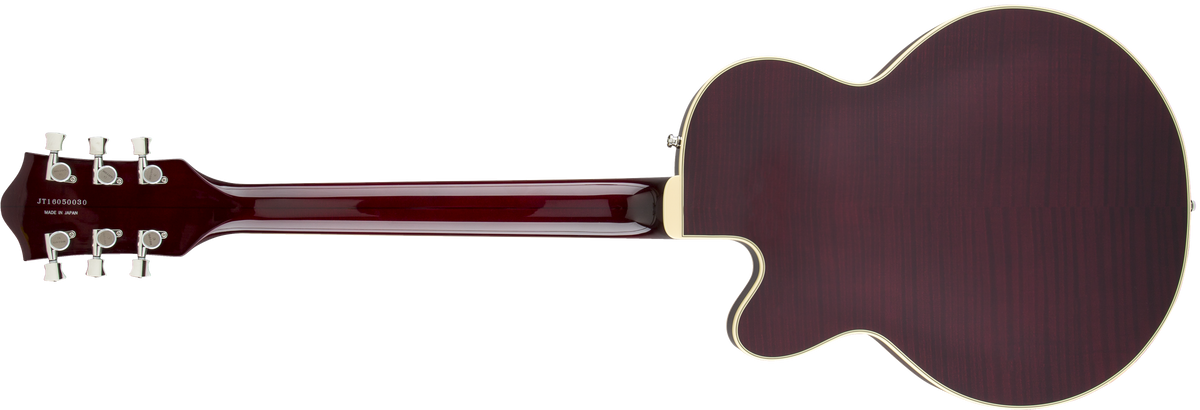

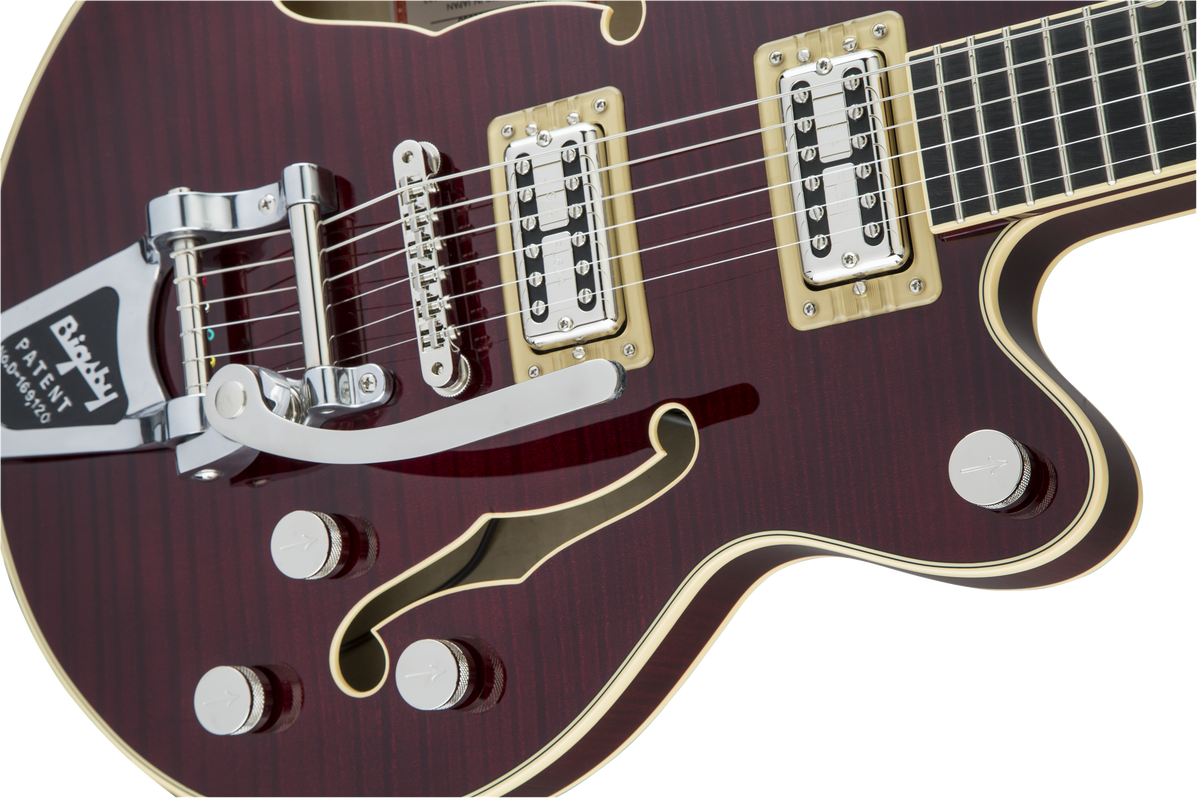

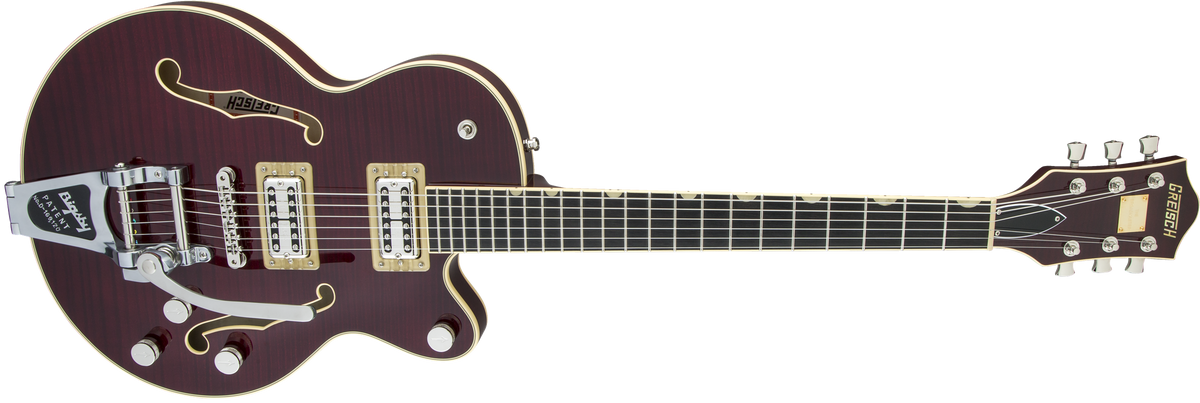

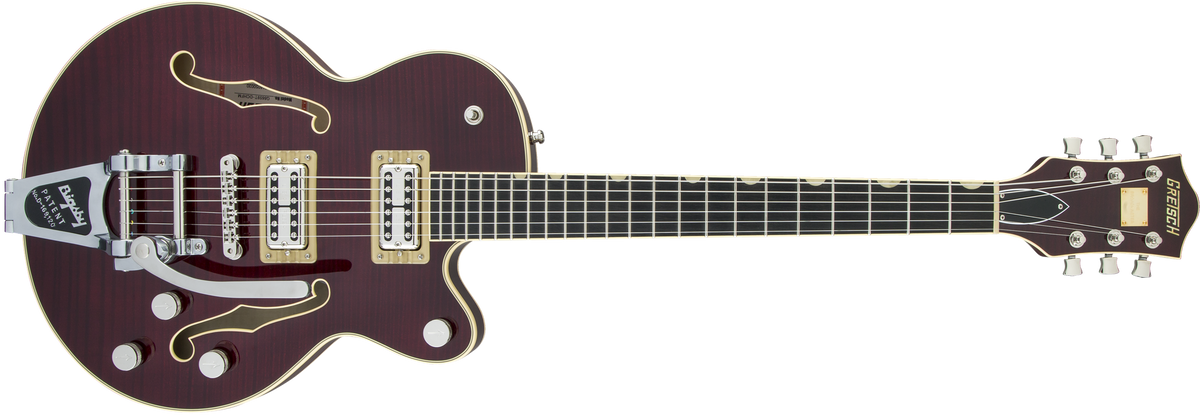

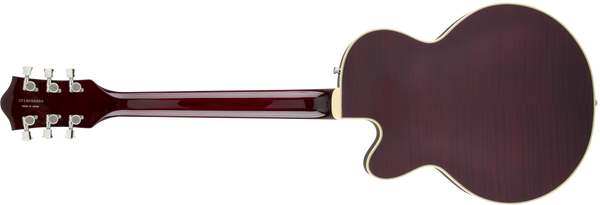

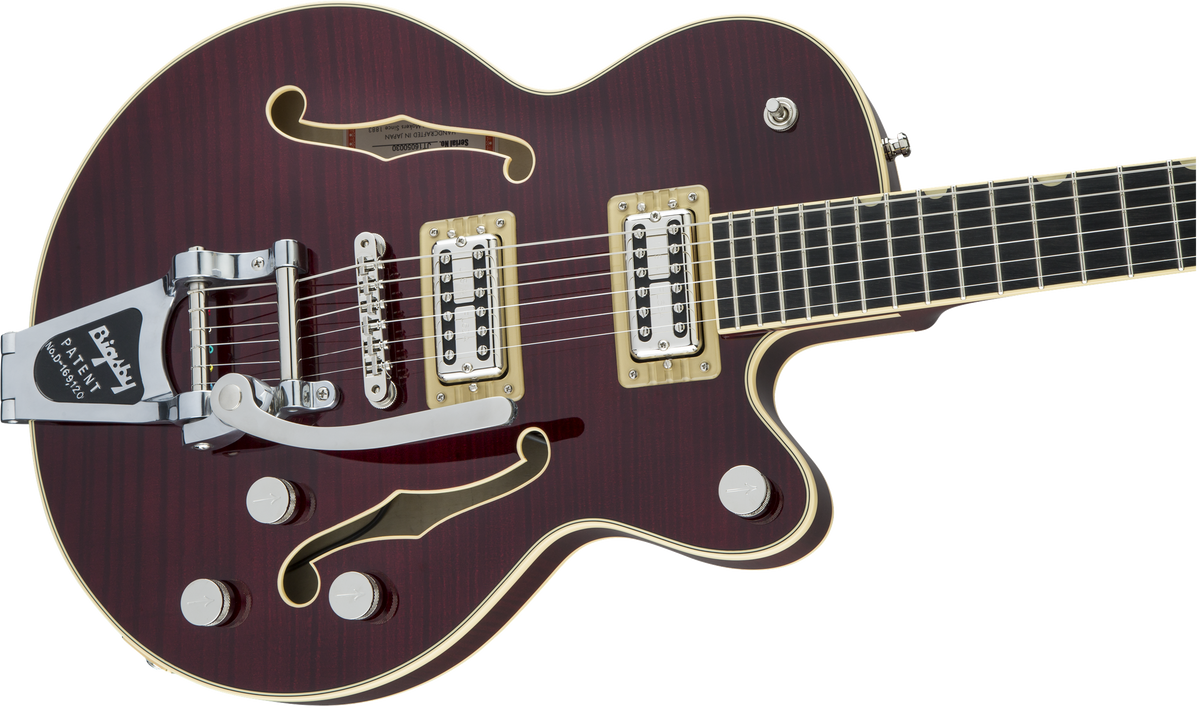

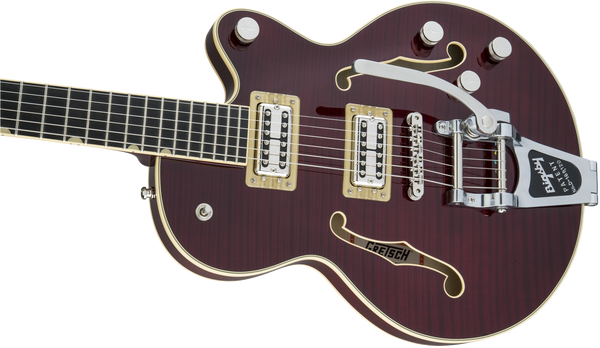

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6659TFM Players Edition Broadkaster Jr. Center Block Single-Cut with String-Thru Bigsby and Flame Maple USA Full'Tron Pickups Dark Cherry Stain listed above. For larger pics, click on an image to open in a new tab.
