Gretsch G6120TB-DE Duane Eddy 6-String Bass Black Pearl Specs

The G6120TB-DE Duane Eddy 6-String Bass Ebony Fingerboard Black Pearl is a hollow body bass guitar built by Gretsch. This guitar is manufactured in Japan and is a Artist Signature Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2406264806.

Key Features

Laminated Maple Top
Arched Laminated Maple Back
Maple Neck
Ebony Fingerboard
30.3" (770 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Vintage Small Frets
Adjusto-Matic Bridge
Grover Sta-Tite Tuning Machines
DynaSonic Bridge Pickup
DynaSonic Neck Pickup

Product Identifiers

Model Name	G6120TB-DE Duane Eddy 6-String Bass
Part Number	2406264806
Product Series	Artist Signature Edition
Country of Origin	Japan
Brand	Gretsch
Type	Bass Guitar
Category	Hollow Body
UPC Code	885978944934

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Double Cutaway
Body Binding	Single-Ply White
Body Finish	Gloss Nitrocellulose Lacquer
Bracing	Trestle
Upper Bout Width	11.375" (289 mm)
Lower Bout Width	16" (40.6 cm)
Waist	9.5" (241mm)

Hardware

Bridge	Adjusto-Matic

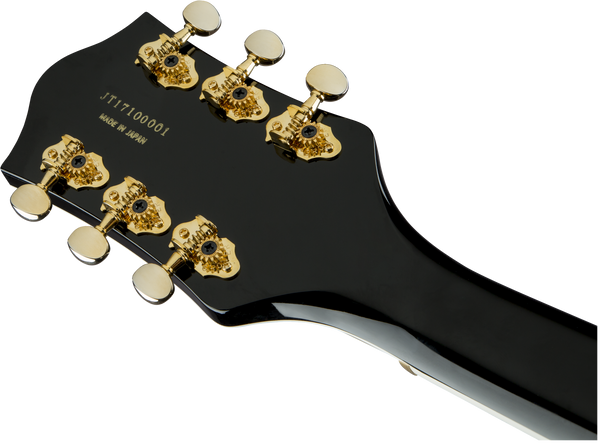

Tuning Machines	Grover Sta-Tite
Pickguard	Gold Plexi with Artist Signature and Gretsch Logo
Control Knobs	Arrow
Bridge Cover / Tailpiece	Bigsby B6CDE
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Mother of Pearl Split Hump-Block
Number of Frets	22
Fret Size	Vintage Small
Nut Width	1.6875" (42.86 mm)
Scale Length	30.3" (770 mm)
Nut Material	Brass
Neck Shape	Standard "U"
Neck Finish	Gloss Nitrocellulose Lacquer

Electronics

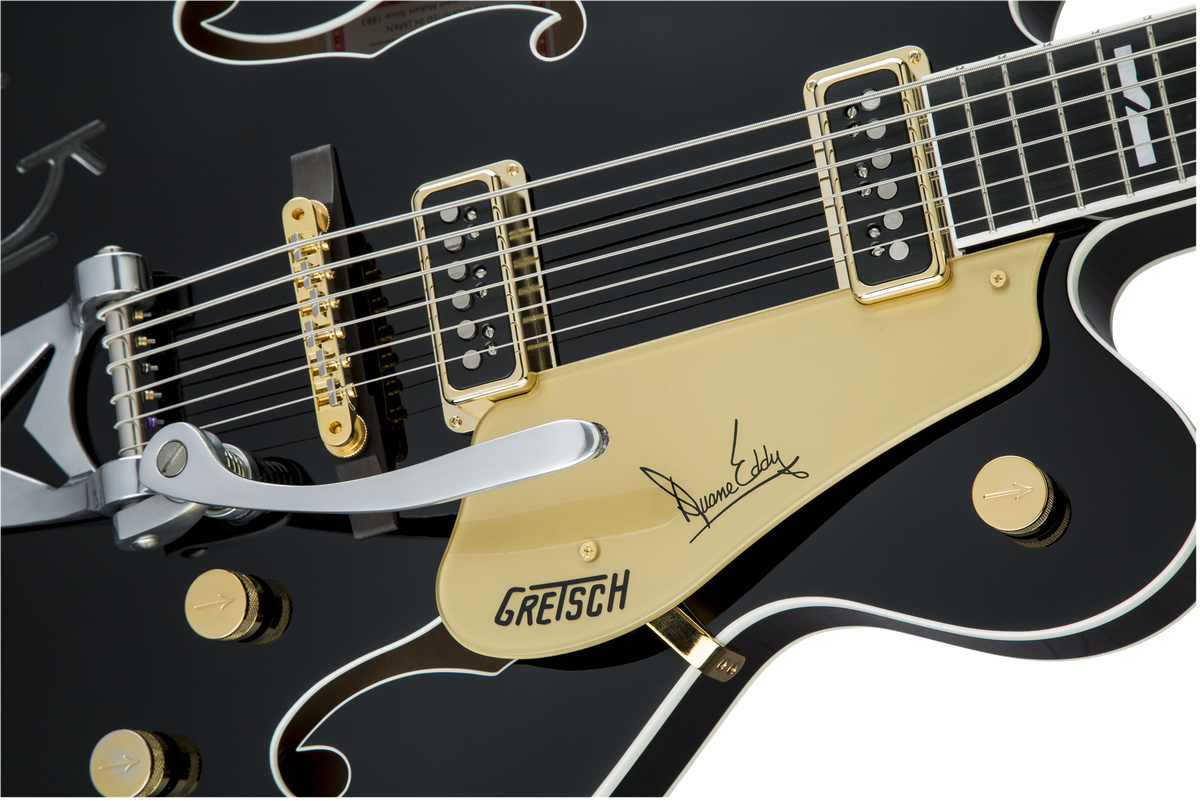

Bridge Pickup	DynaSonic
Neck Pickup	DynaSonic
Pickup Configuration	Dynasonic / Dynasonic
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	D'Addario EXL156 Bass VI Nickel Plated Steel (.024-.084 Gauges)
Case / Gig Bag	Included: G6288 Deluxe Hardshell Case

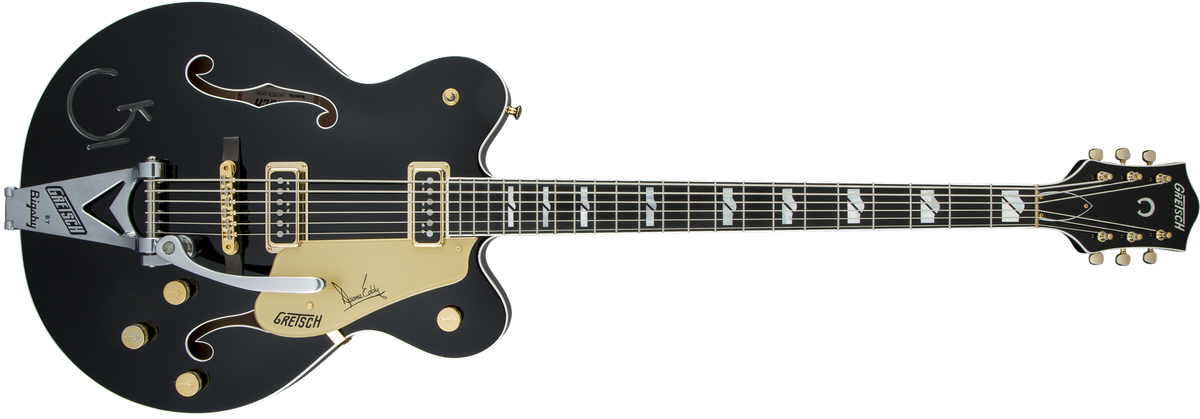

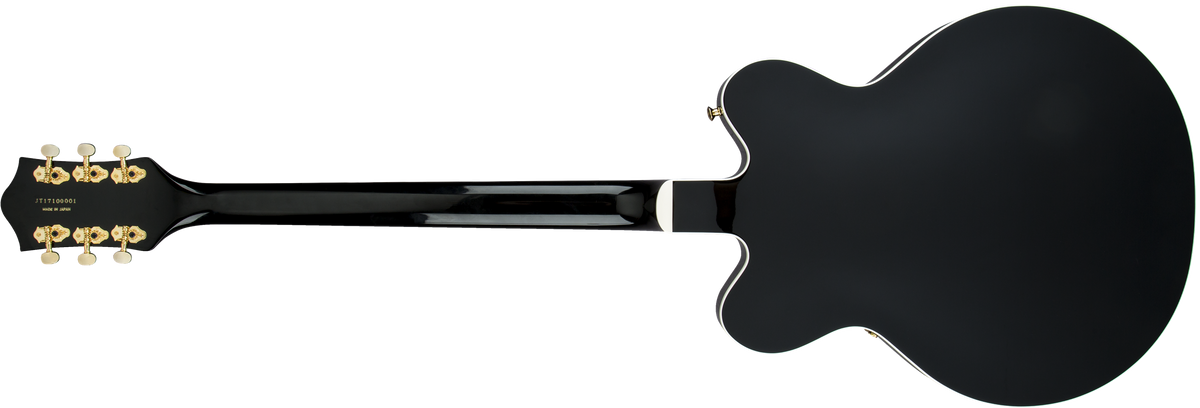

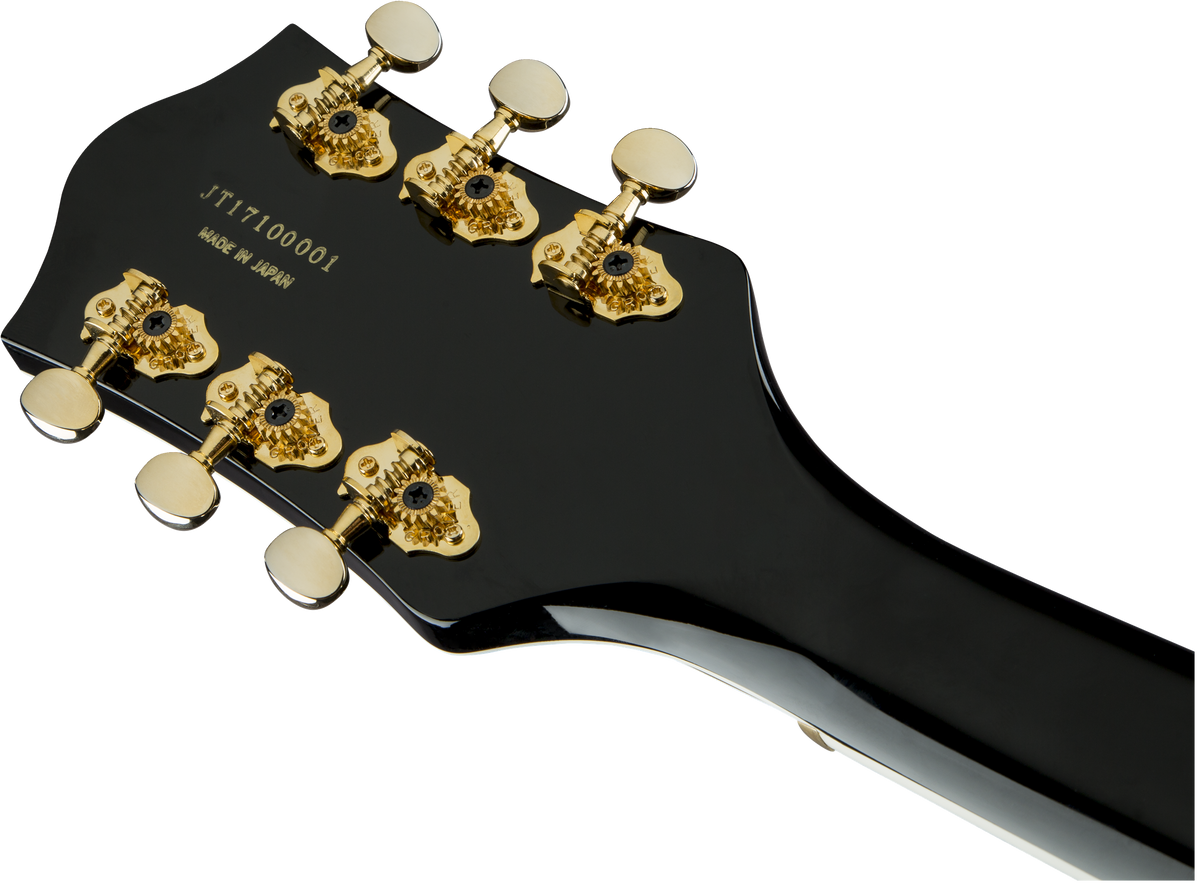

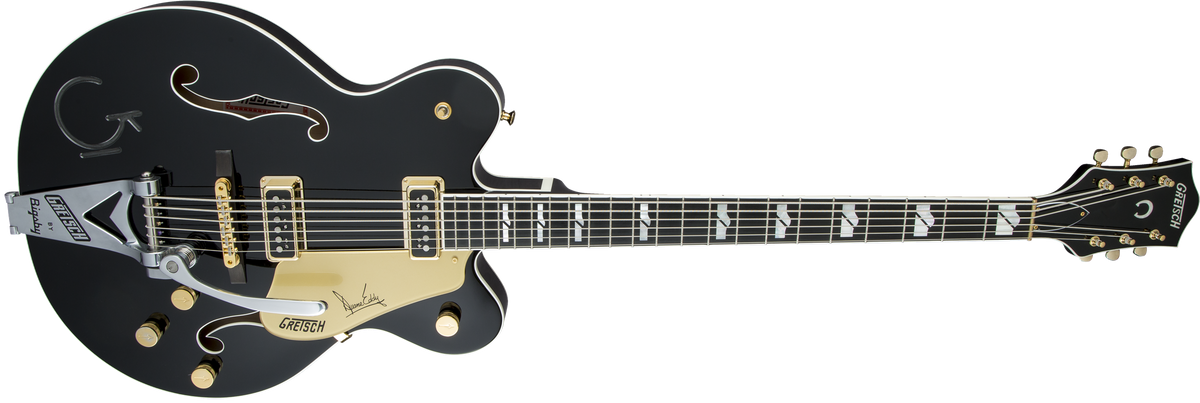

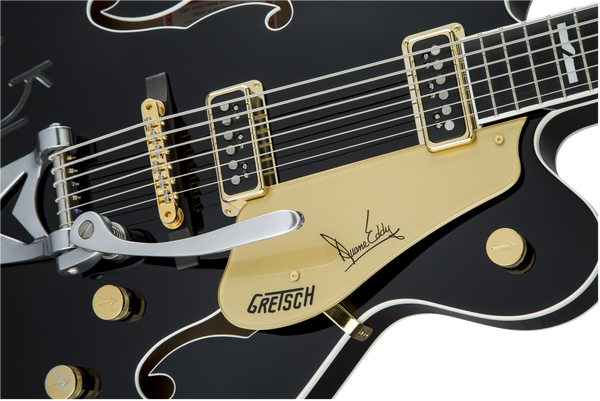

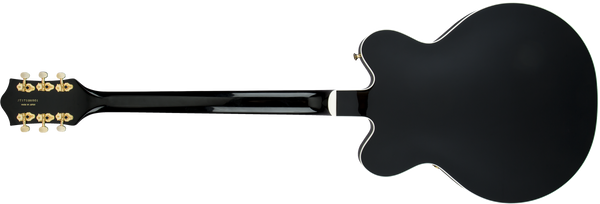

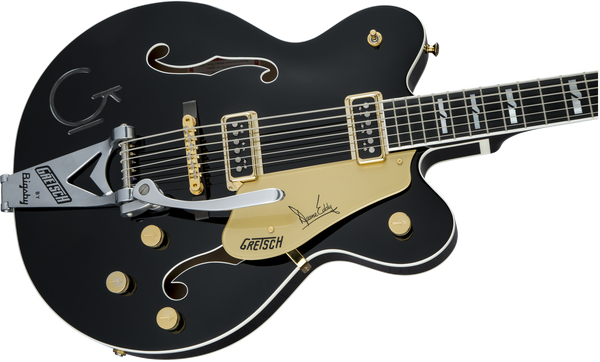

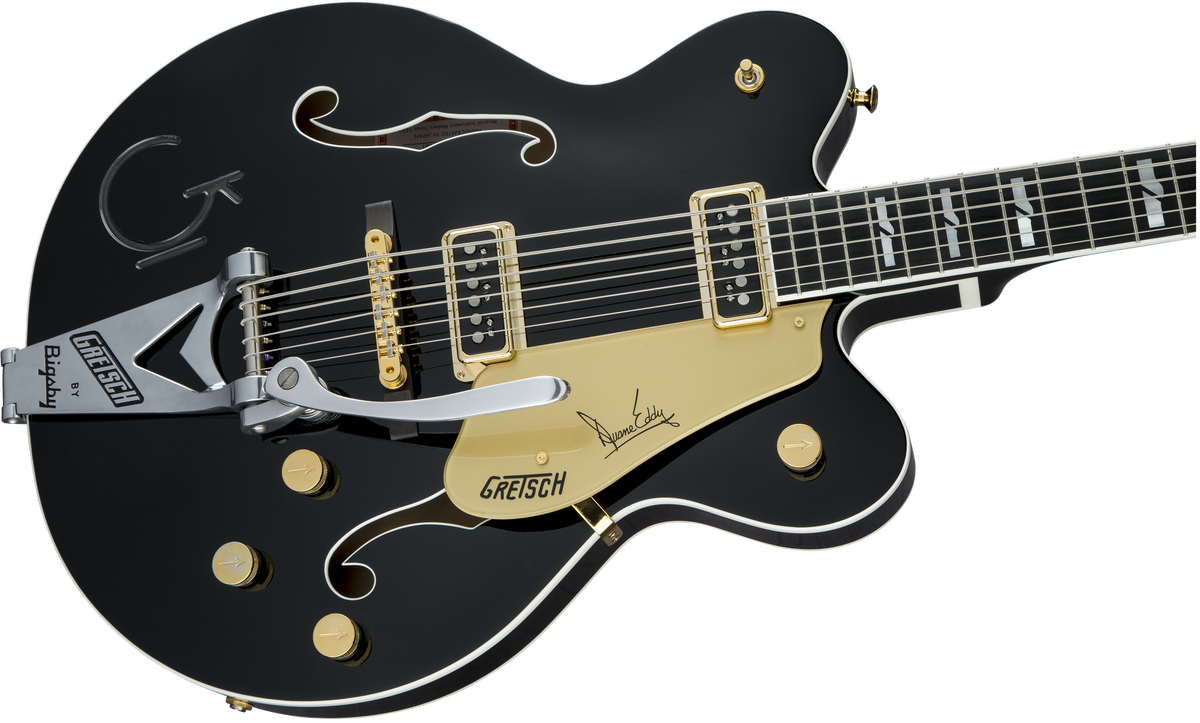

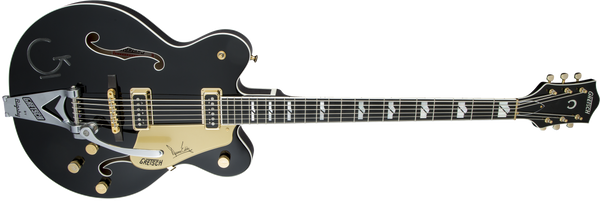

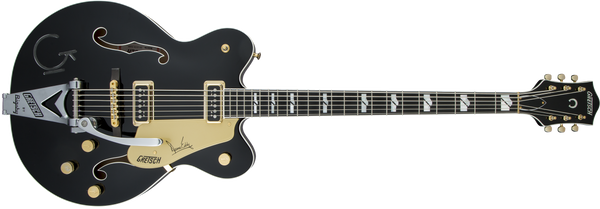

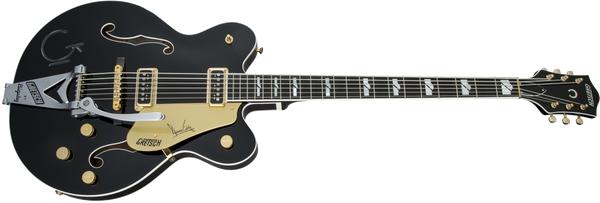

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6120TB-DE Duane Eddy 6-String Bass Ebony Fingerboard Black Pearl listed above. For larger pics, click on an image to open in a new tab.
