Gretsch G6136T-59 Vintage Select Edition '59 Falcon Hollow Body with Bigsby White Lacquer Specs

The G6136T-59 Vintage Select Edition '59 Falcon Hollow Body with Bigsby is a hollow body electric guitar built by Gretsch. This single cutaway set neck guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401513805.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Ebony Fingerboard
25.5" (648 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Space Control Bridge
Grover Imperial Die-Cast Tuning Machines
TV Jones Filter'Tron Classic Bridge Pickup
TV Jones Filter'Tron Classic Neck Pickup

Product Identifiers

Model Name	G6136T-59 Vintage Select Edition '59 Falcon Hollow Body with Bigsby
Part Number	2401513805
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
Subcategory	Single Cutaway Set Neck
UPC Code	0885978663651

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple

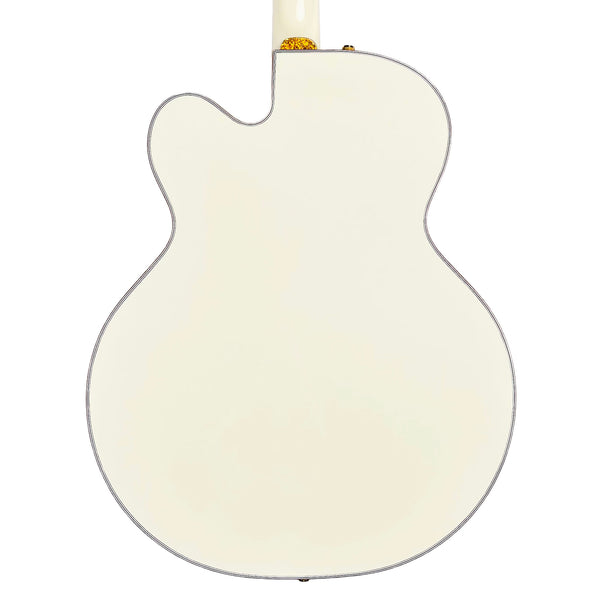

Back Material	Arched Laminated Maple
Body Shape	Falcon
Body Binding	Gold Sparkle with W/B/W/B Purfling
Body Finish	Gloss Nitrocellulose Lacquer
Bracing	1959 Style Trestle

Hardware

Bridge	Space Control

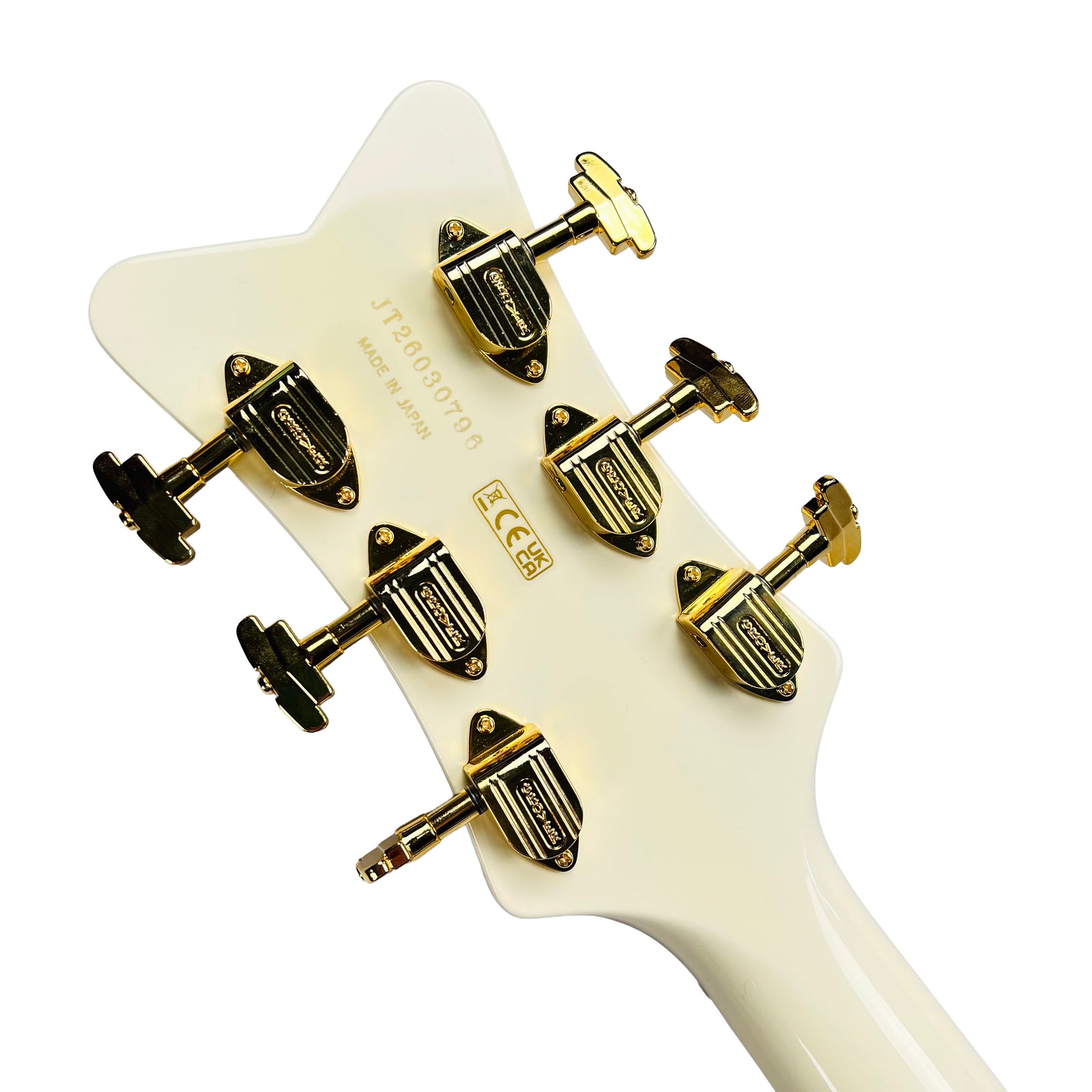

Tuning Machines	Grover Imperial Die-Cast
Pickguard	Gold Plexi with Gold Gretsch Logo
Control Knobs	Jeweled G-Arrow
Bridge Cover / Tailpiece	Bigsby B6G Vibrato Tailpiece with Gretsch Logo
Hardware Finish	Gold

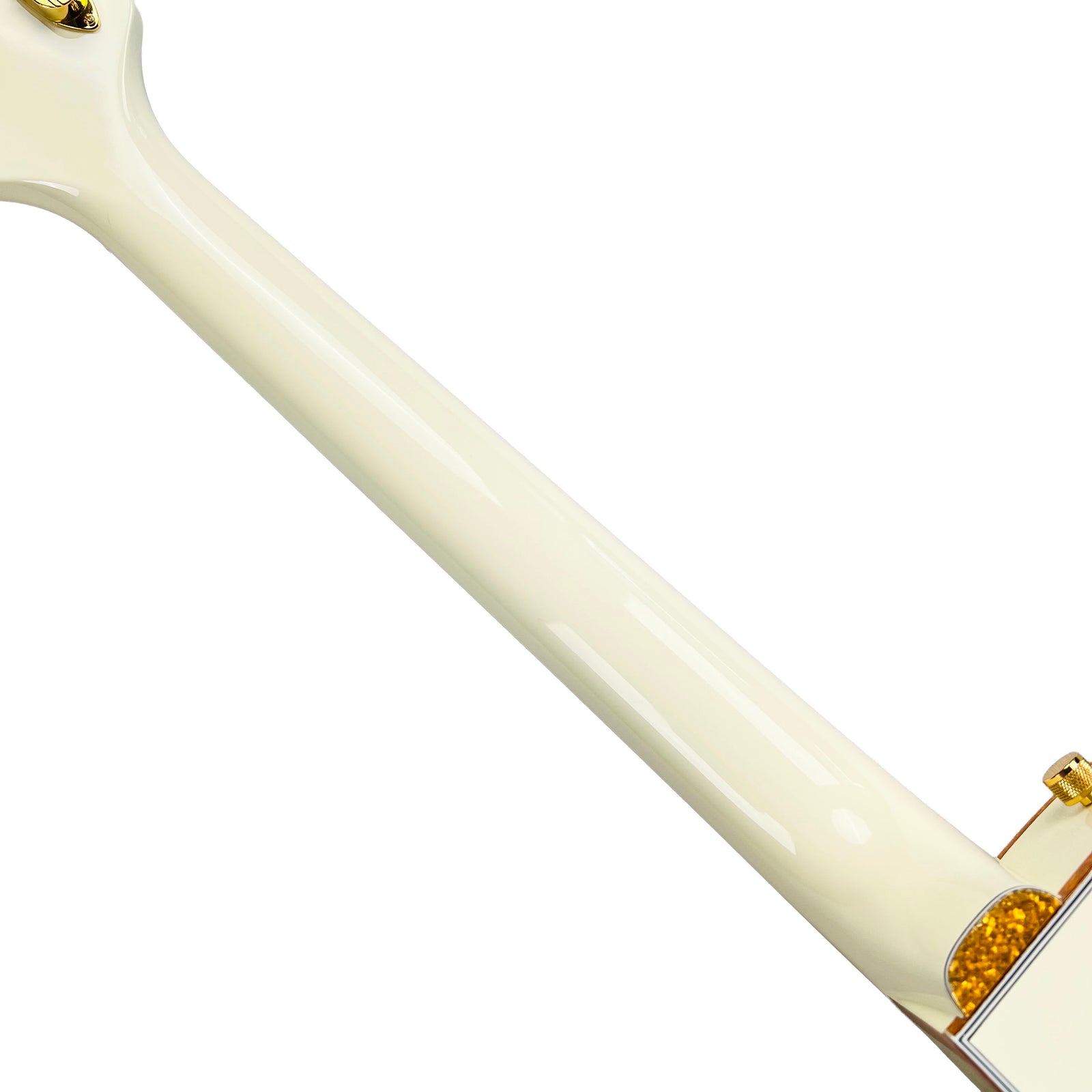

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	25.5" (648 mm)
Nut Material	Bone
Neck Shape	Standard "U"
Neck Finish	Gloss Nitrocellulose Lacquer

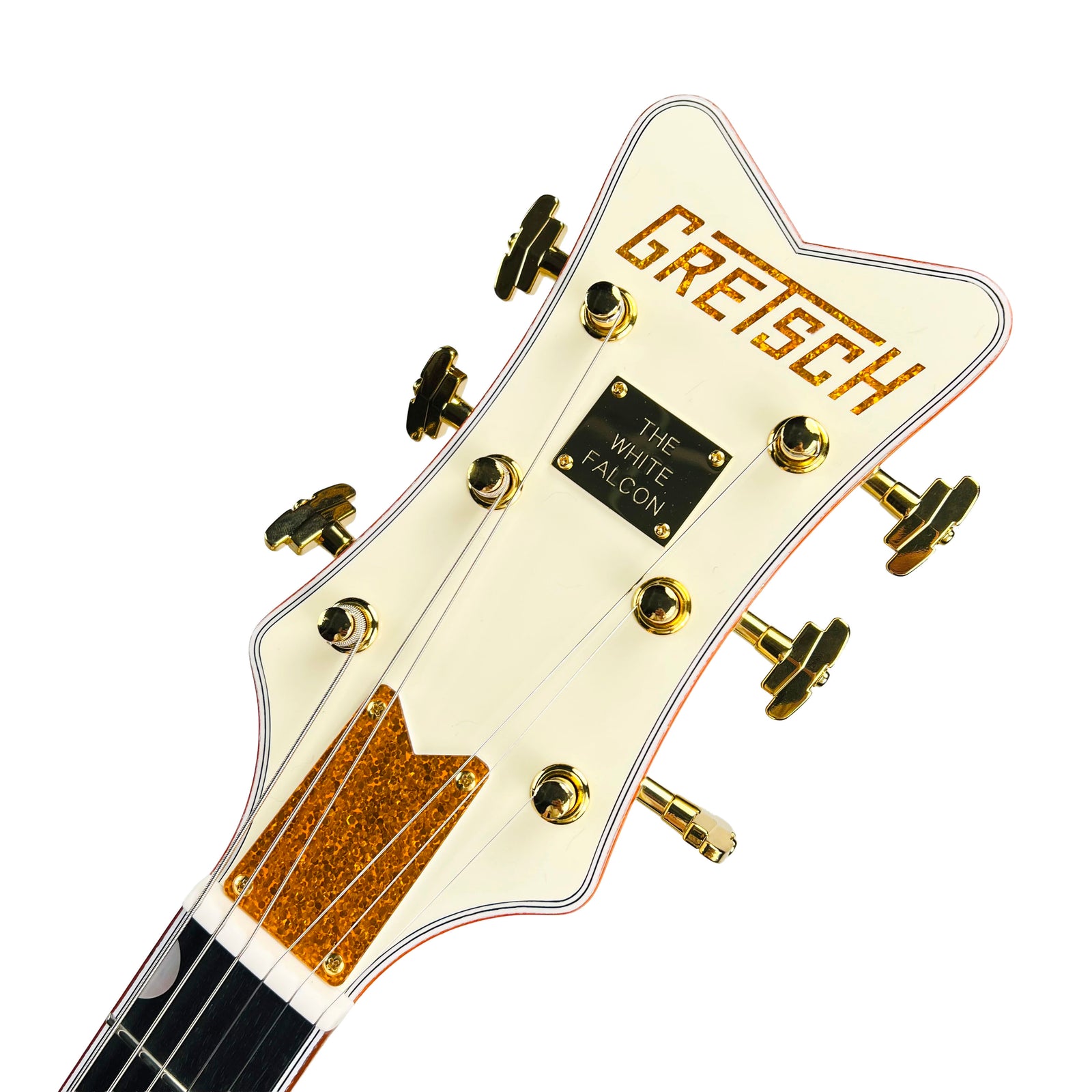

Headstock	Falcon Style

Electronics

Bridge Pickup	TV Jones Filter'Tron Classic
Neck Pickup	TV Jones Filter'Tron Classic
Refinement Pickups	Filter'Tron / Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Auxiliary Switching	3-Position Master Tone Switch: Position 1. Medium Level, High Frequency Roll Off, Position 2. Switch Out of Circuit, Pickup Wide Open, Position 3. Slight Level, High Frequency Roll Off

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)

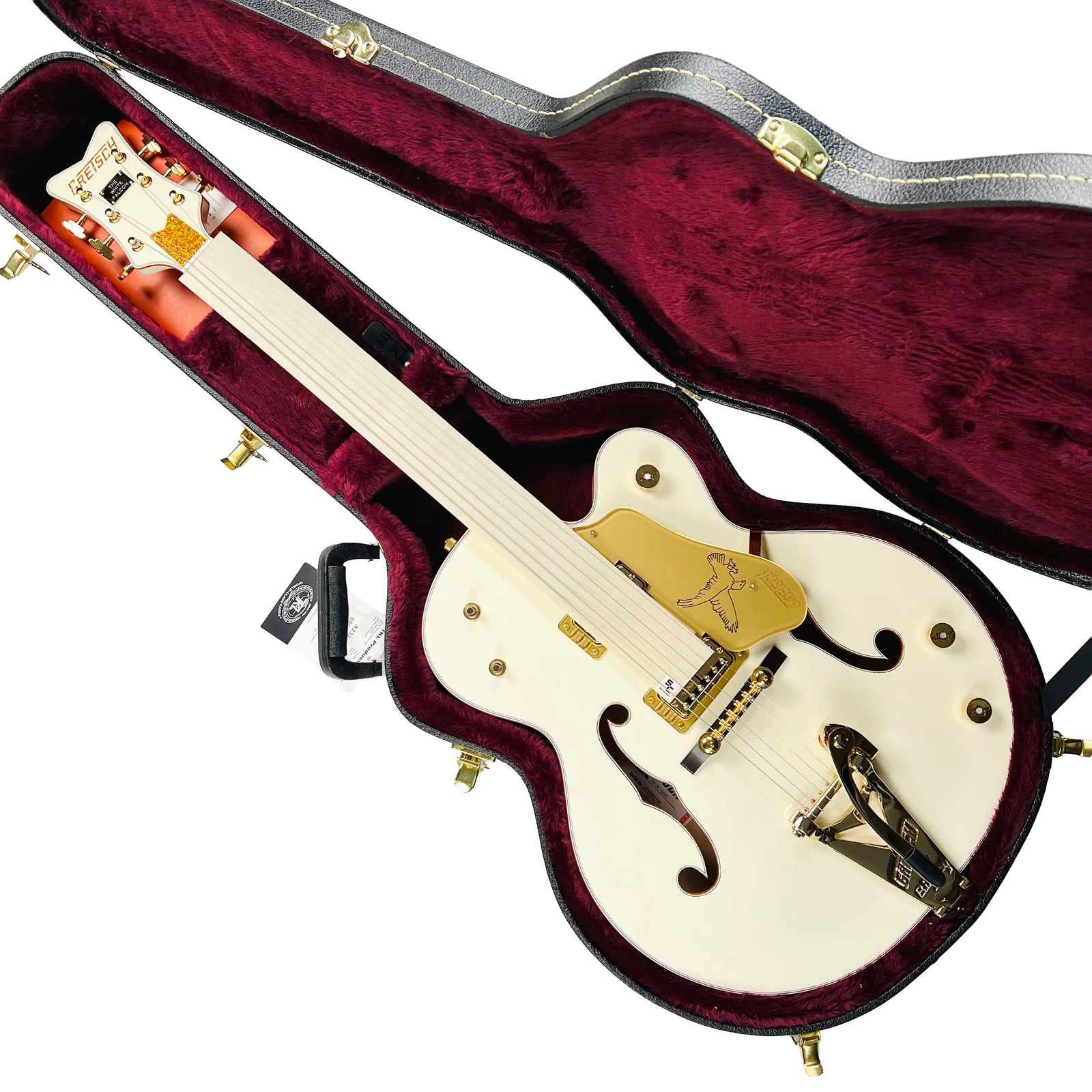

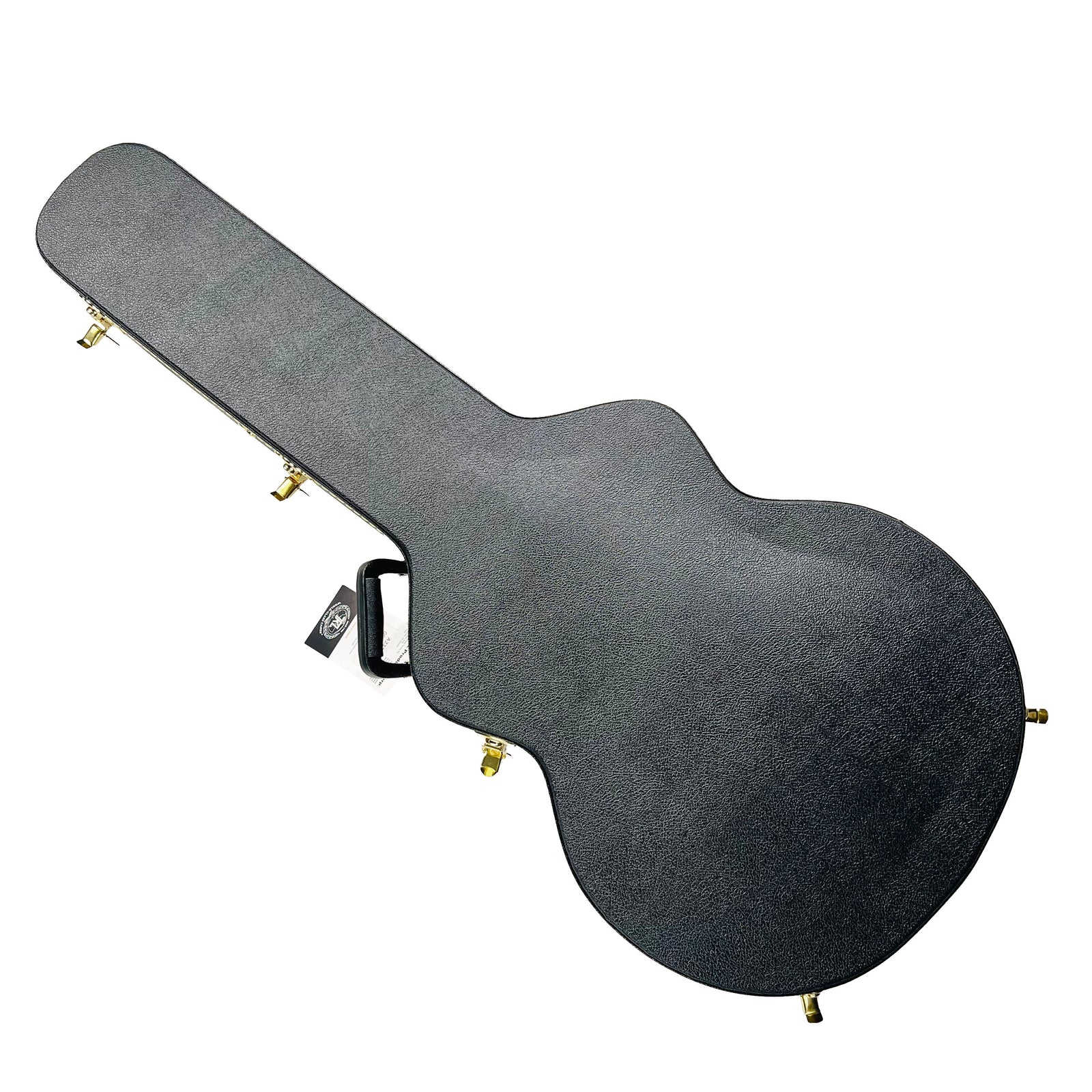

Case / Gig Bag	Included G6242L Gretsch 17" Deluxe Hollow Body Hardshell (p/n 099-6413-000)

Reference Images

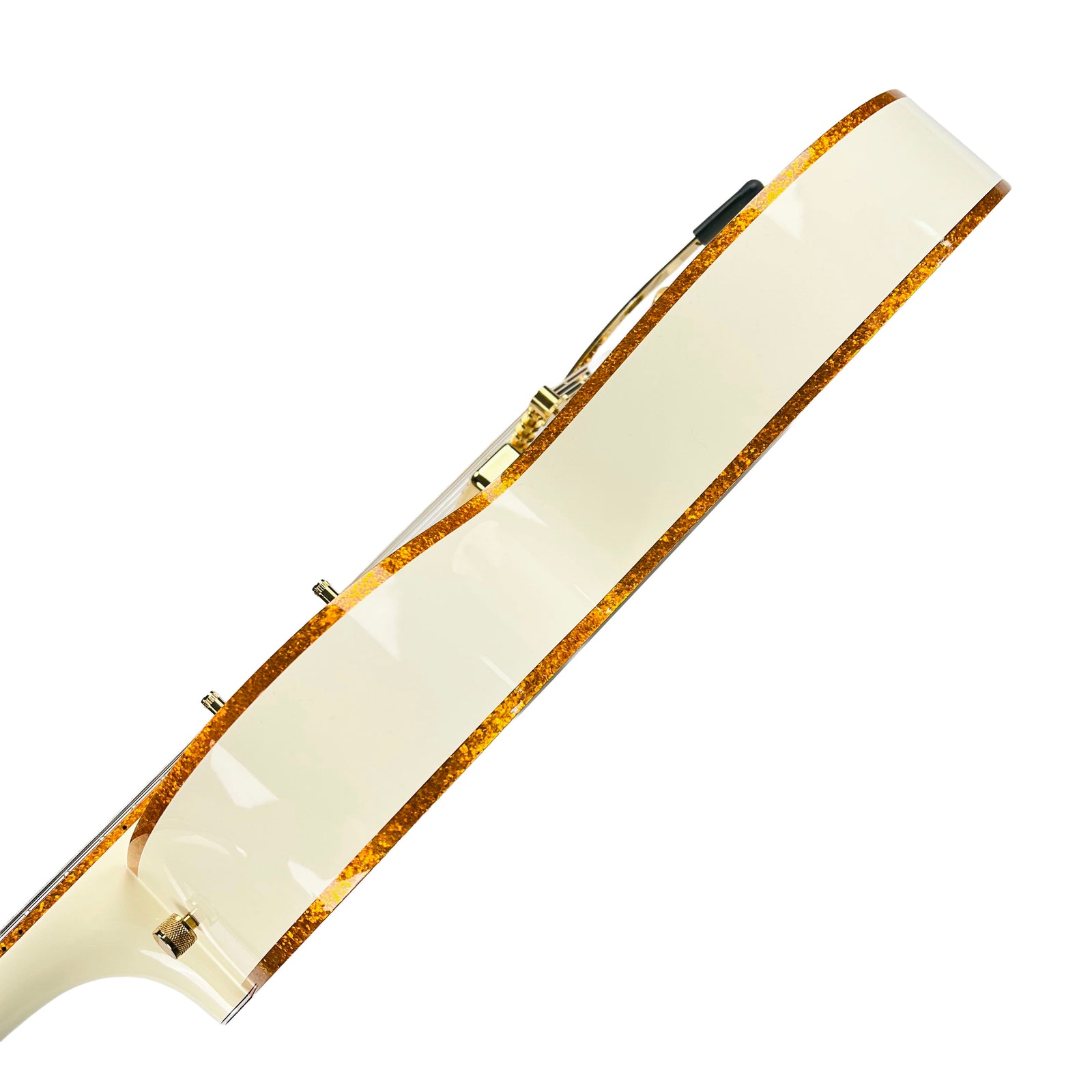

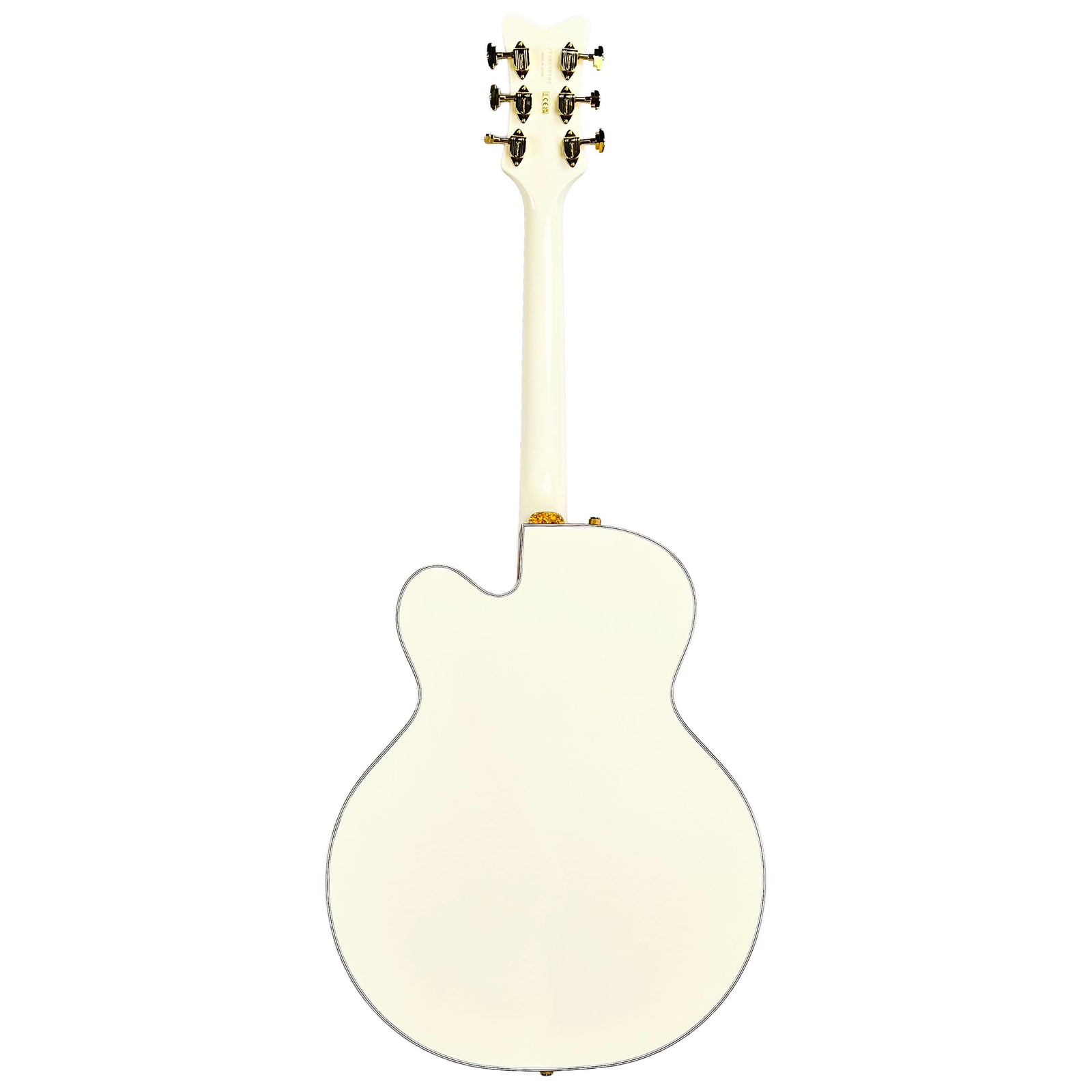

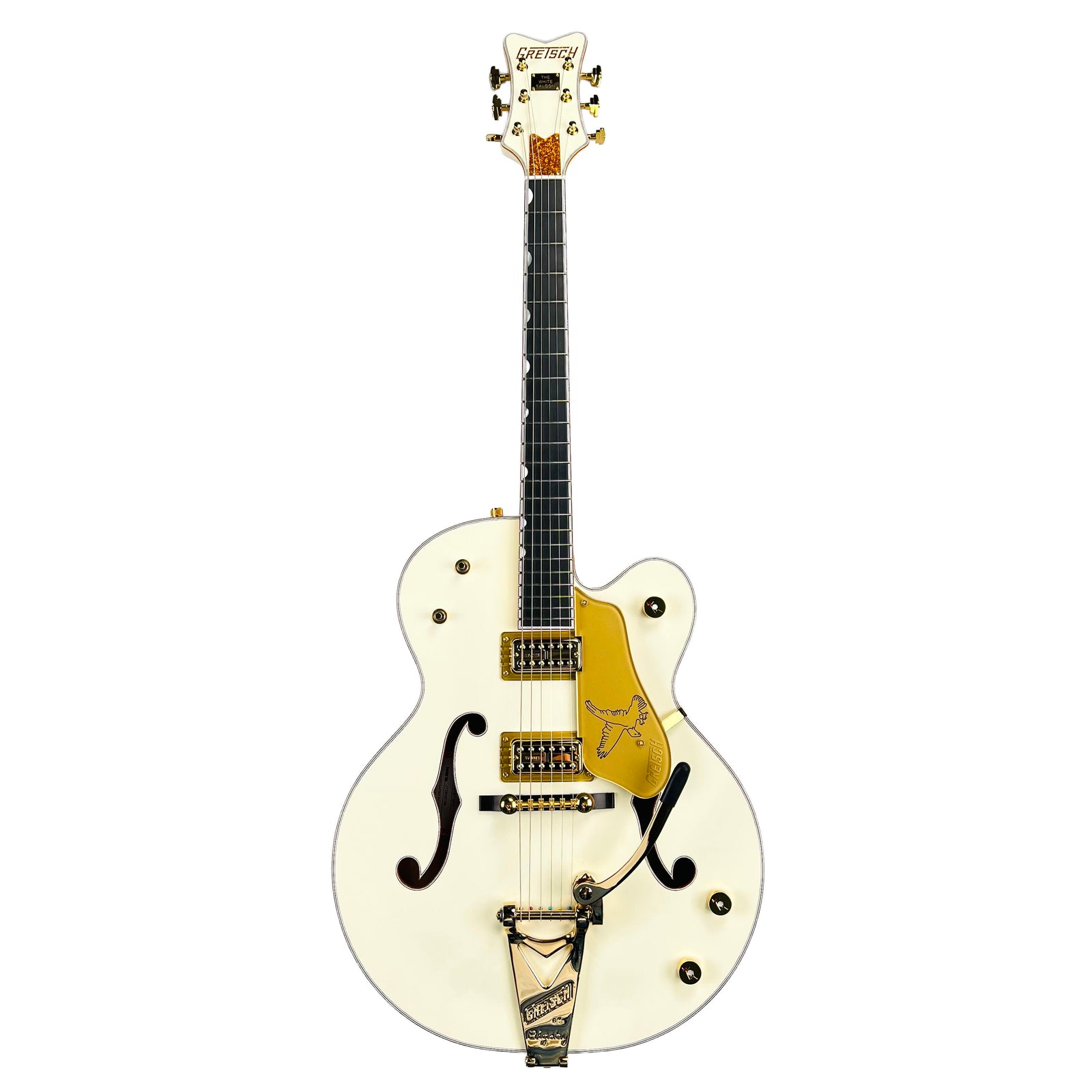

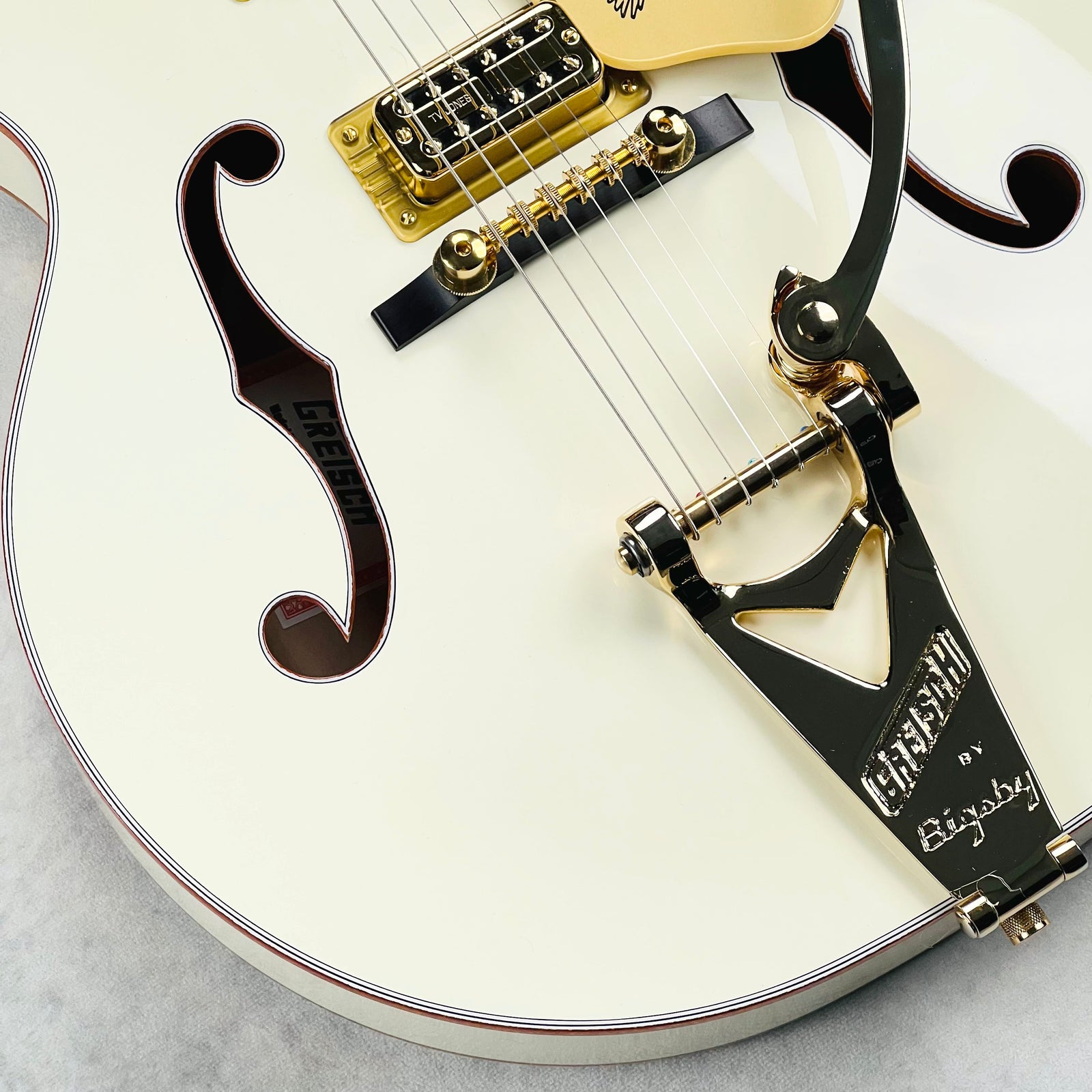

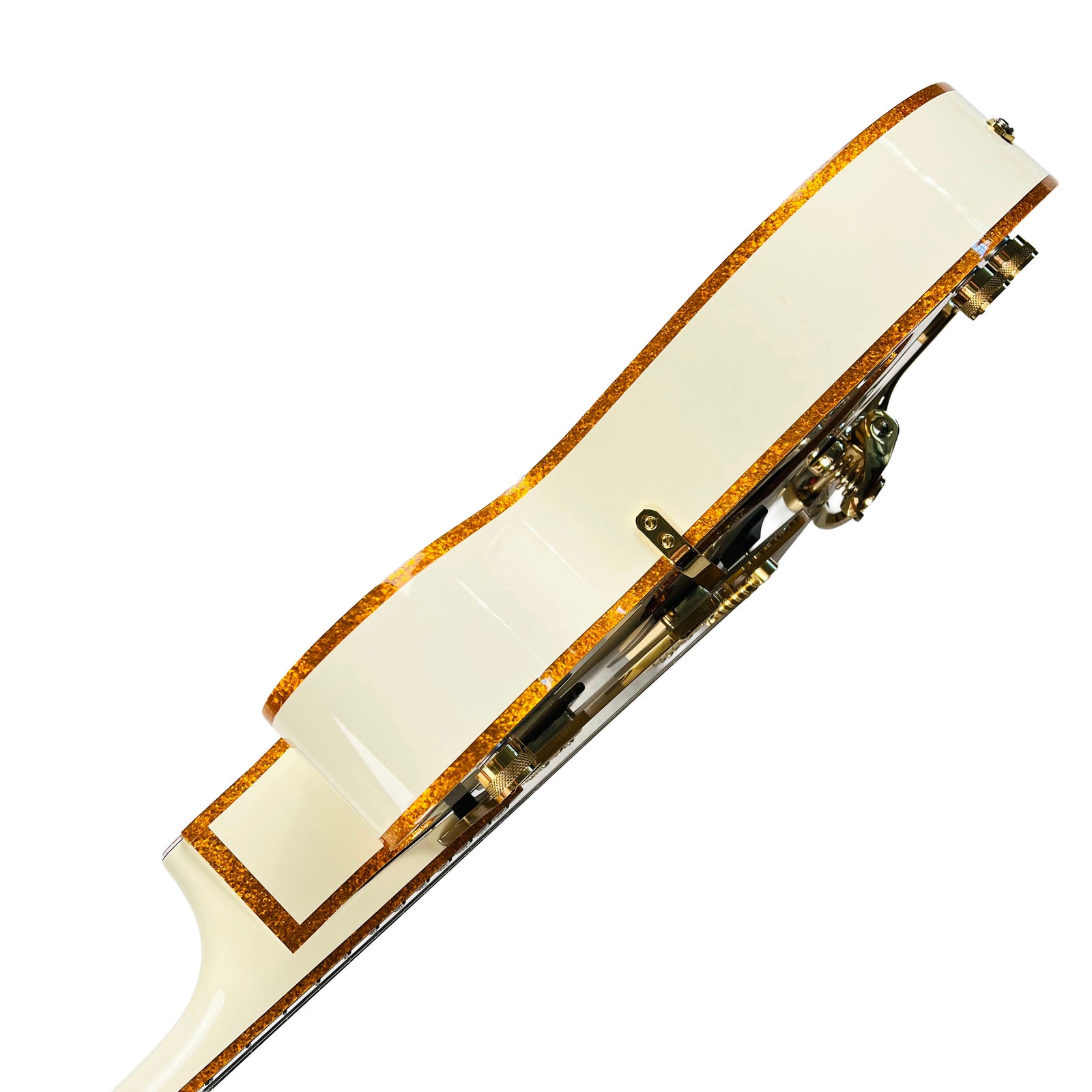

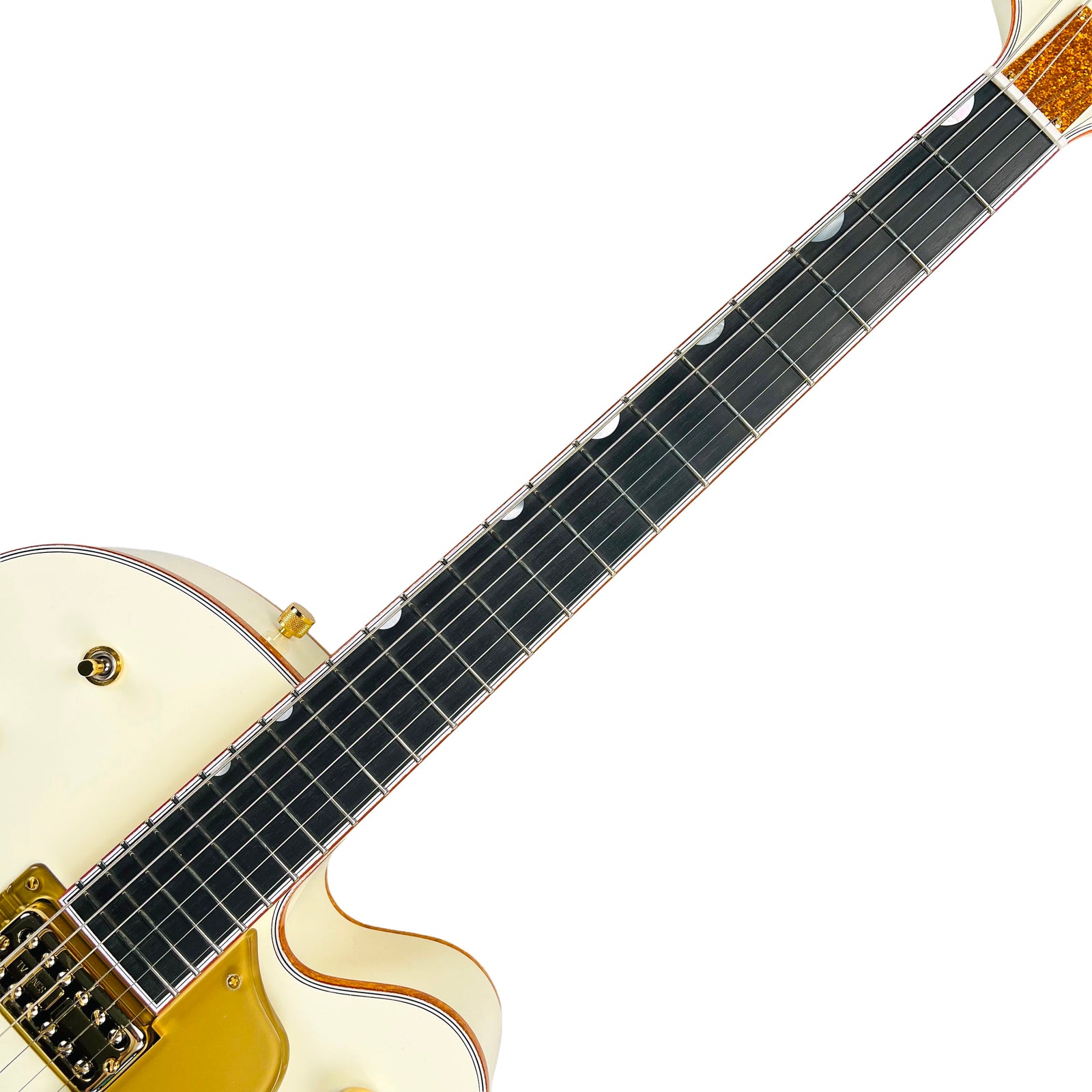

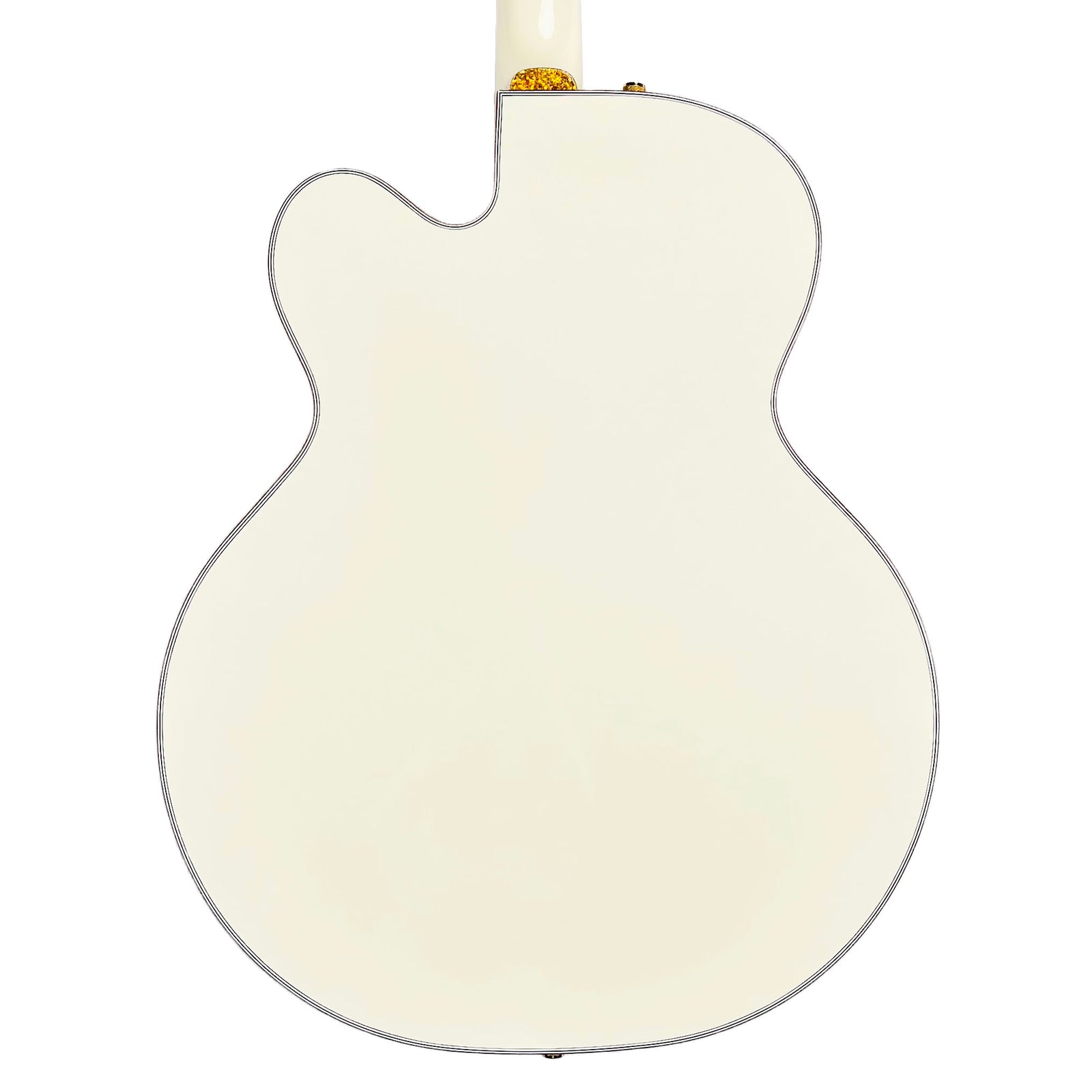

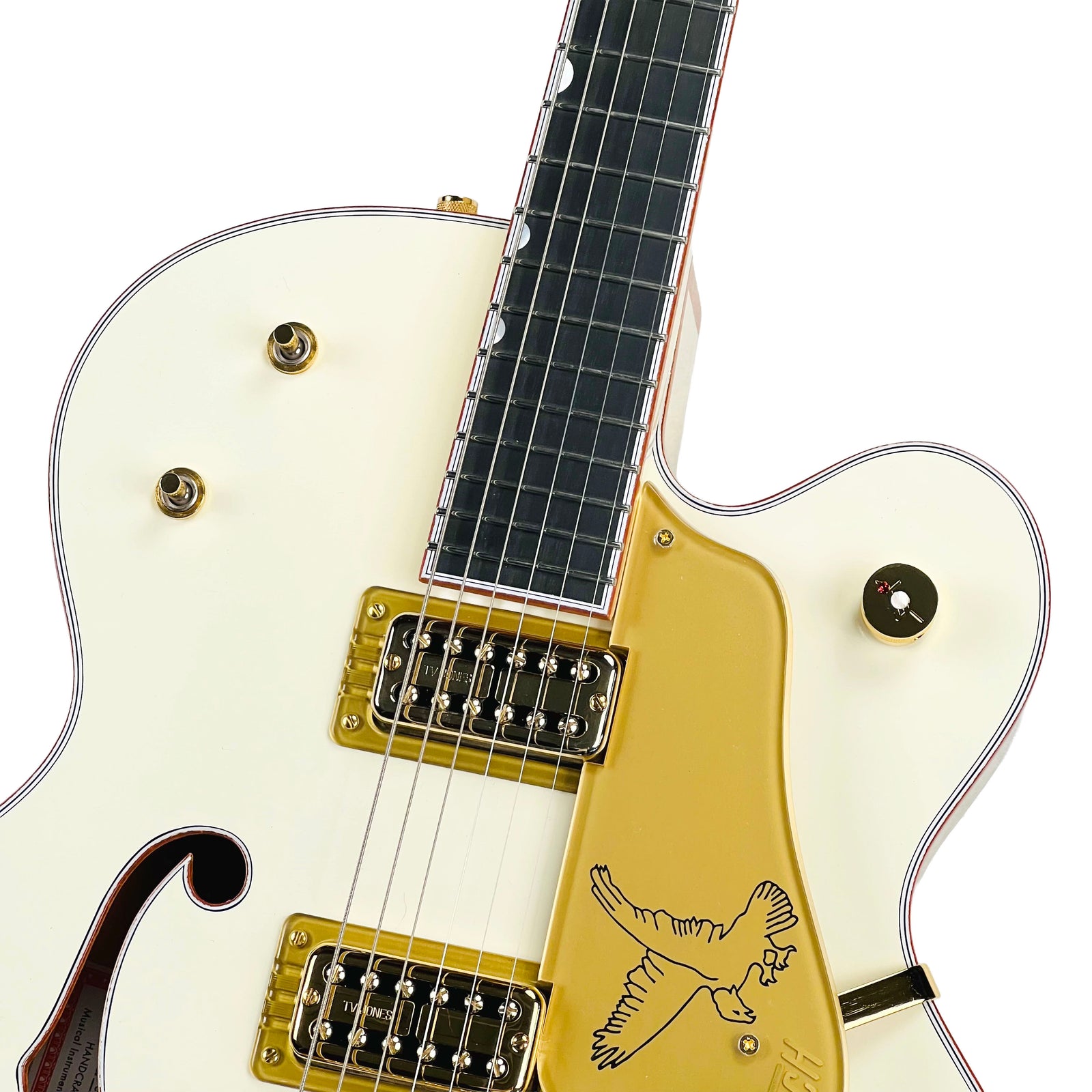

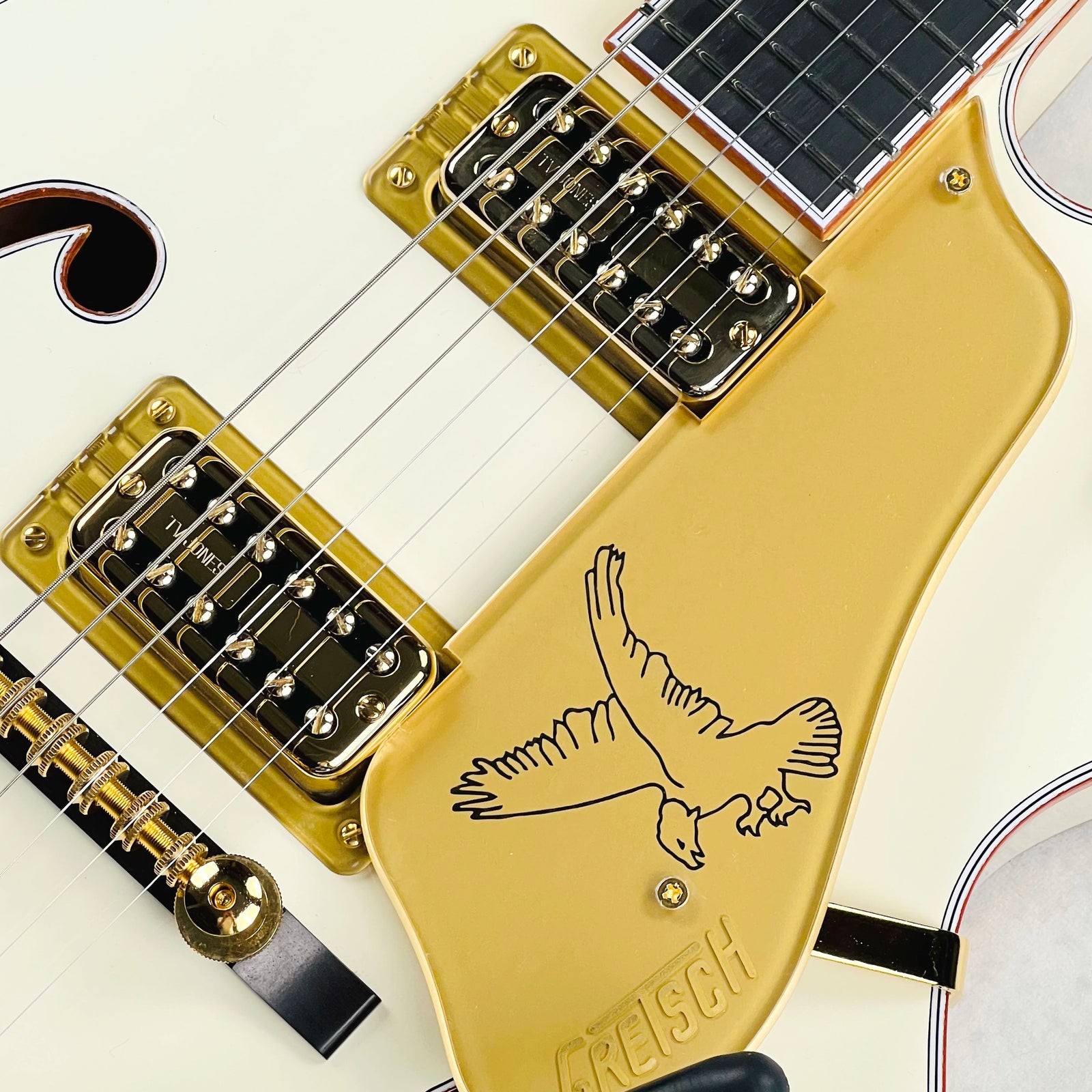

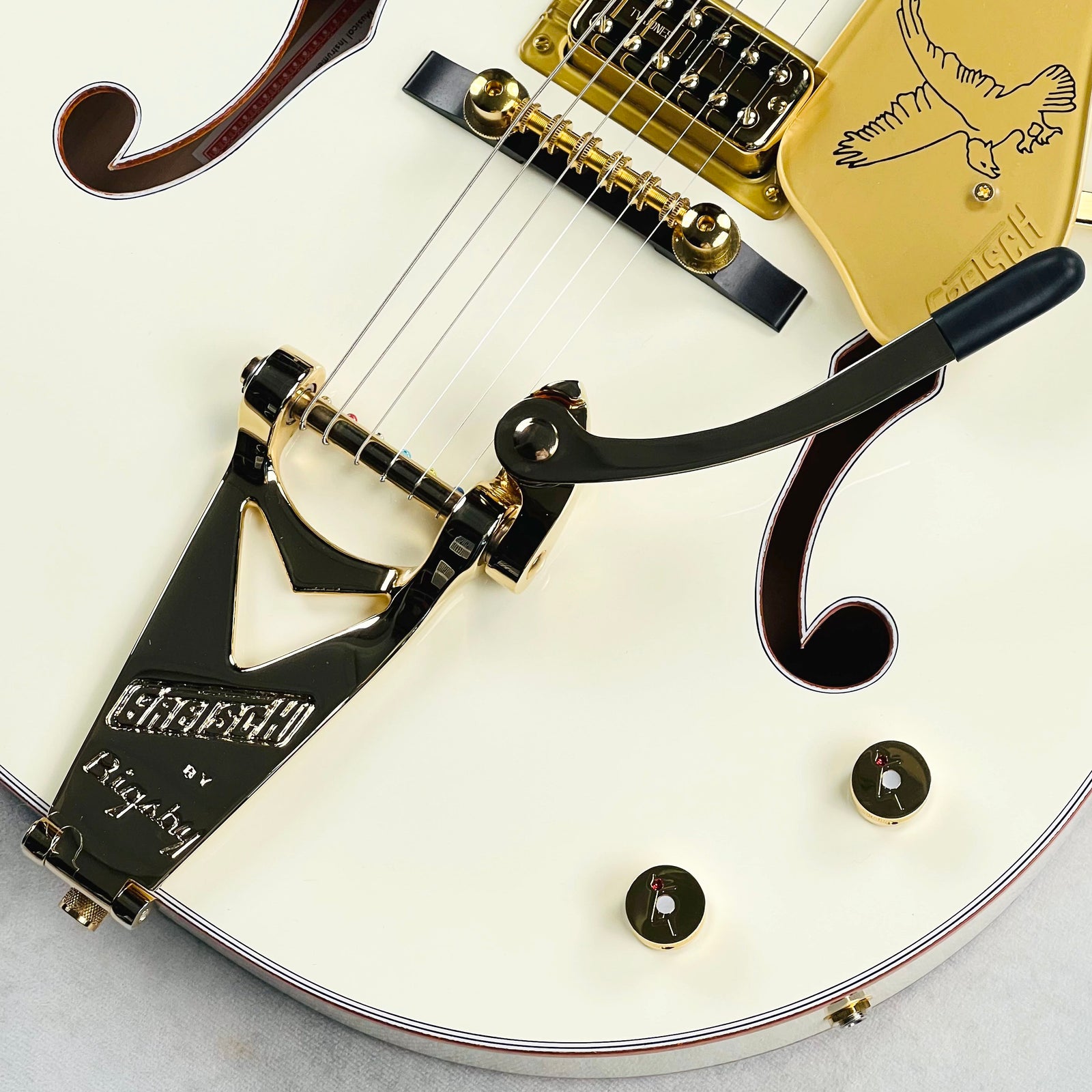

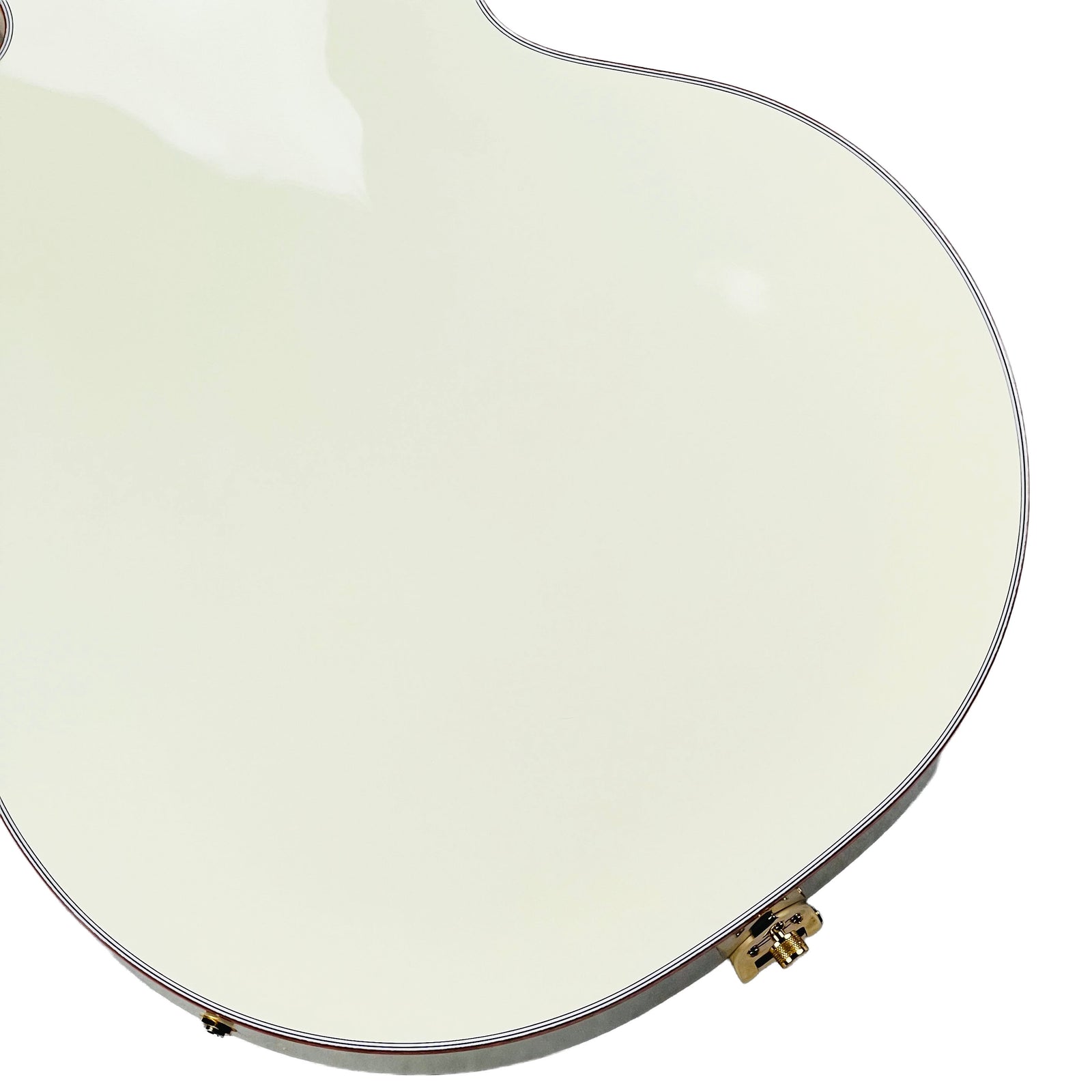

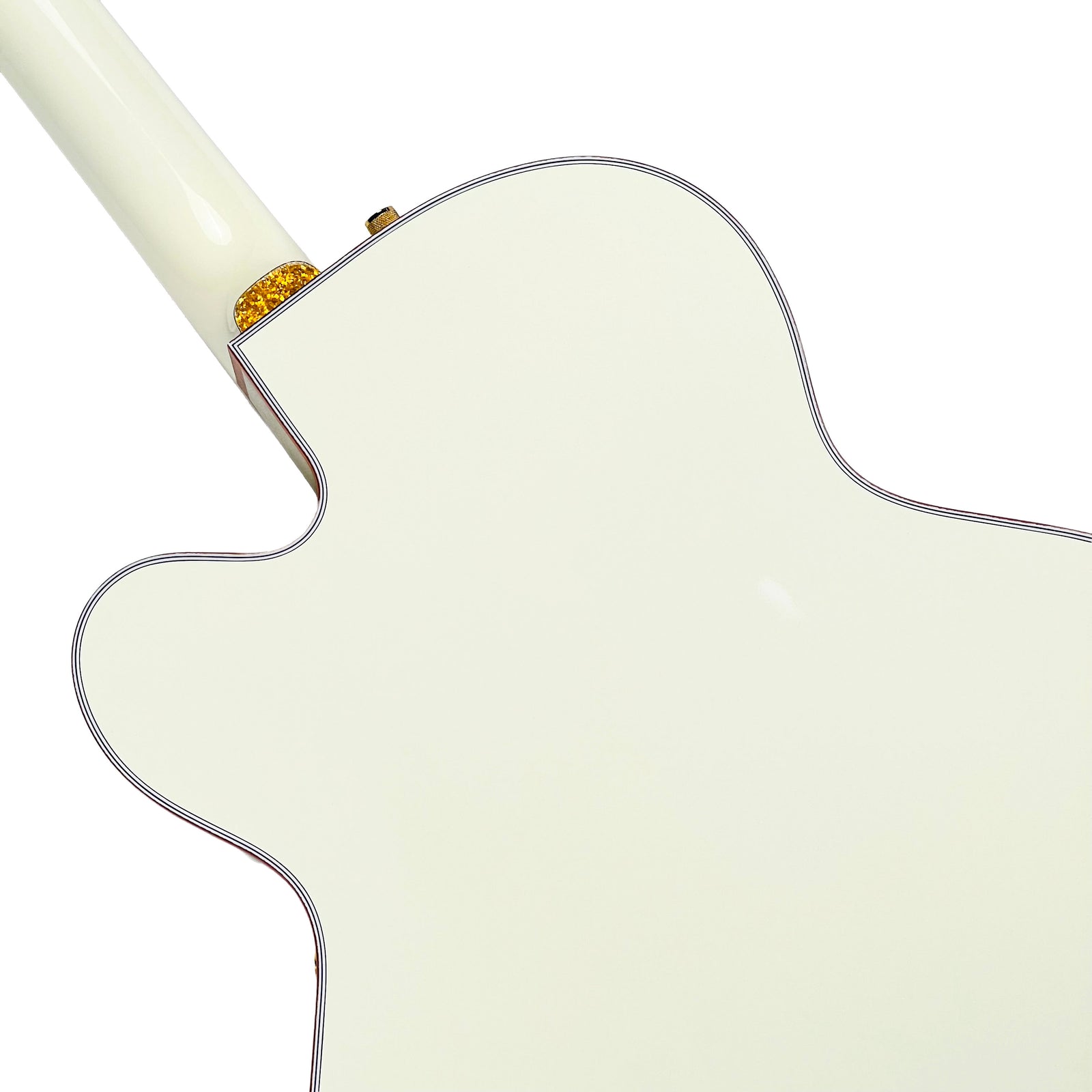

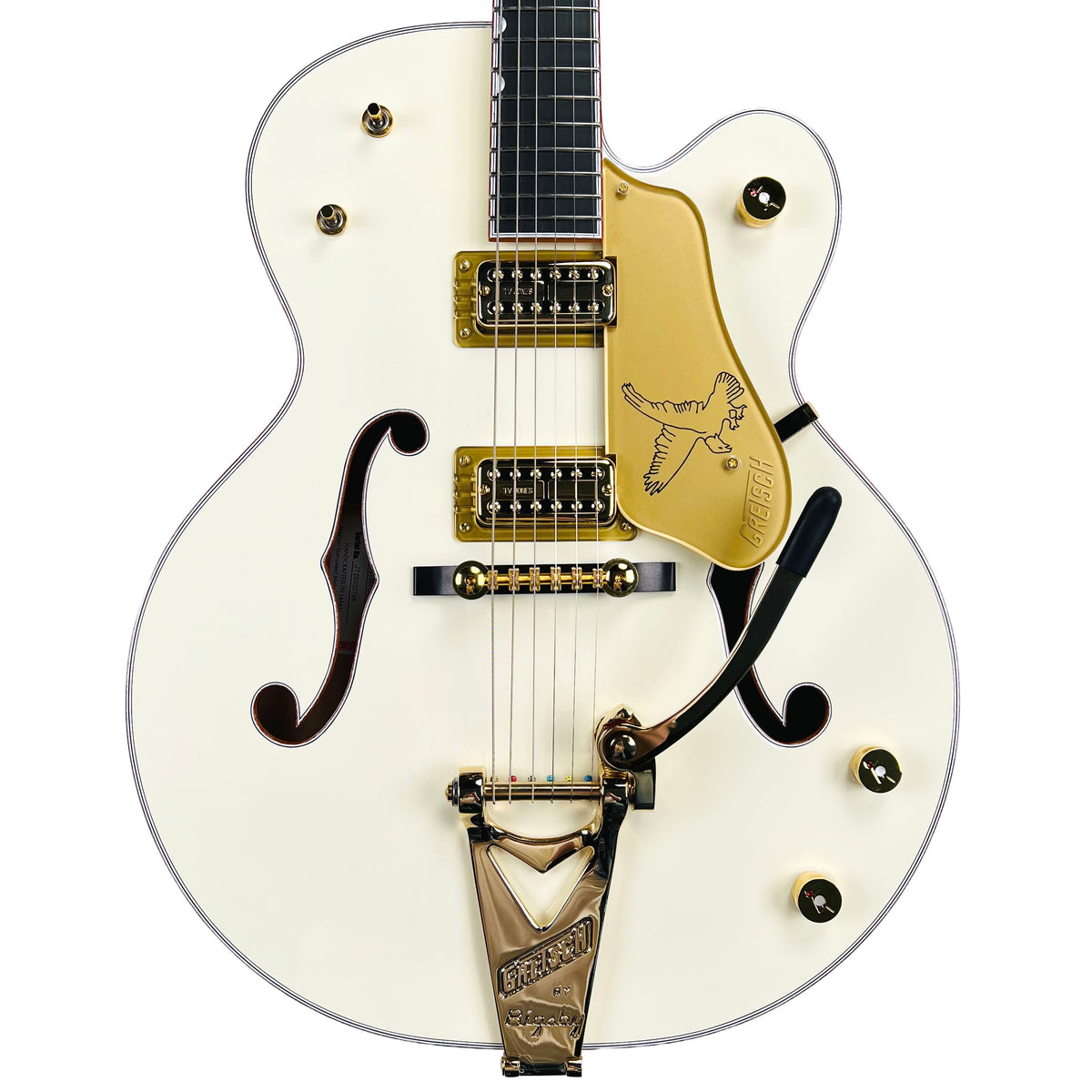

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6136T-59 Vintage Select Edition '59 Falcon Hollow Body with Bigsby listed above. For larger pics, click on an image to open in a new tab.
