Gretsch G6120T-BSSMK Brian Setzer Signature Nashville Hollow Body '59 "Smoke" with Bigsby Smoke Orange Specs

The G6120T-BSSMK Brian Setzer Signature Nashville Hollow Body '59 "Smoke" with Bigsby is a hollow body electric guitar built by Gretsch. This single cutaway set neck guitar is manufactured in Japan and is a Gretsch Artist Signature Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401210812.

Key Features

Maple Top
Maple Body
Maple Sides
Maple Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.685" (42.8 mm) Nut Width
9.5"-12" Compound Radius (241 mm-305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic with Pinned Rosewood Base Bridge
Gotoh Locking Tuning Machines
TV Jones Ray Butts Ful-Fidelity Bridge Pickup
TV Jones Ray Butts Ful-Fidelity Neck Pickup

Product Identifiers

Model Name	G6120T-BSSMK Brian Setzer Signature Nashville Hollow Body '59 "Smoke" with Bigsby
Part Number	2401210812
Product Series	Gretsch Artist Signature Edition
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
Subcategory	Single Cutaway Set Neck
UPC Code	885978254149

Factory Specifications

Body Construction

Body Material	Arched Laminated Maple
Top Material	Maple
Back Material	Maple
Side Material	Maple
Body Shape	Nashville / G6120
Body Binding	Aged White with B/W Purfling
Body Finish	Semi-Gloss Lacquer
Bracing	1959 Trestle Bracing
Upper Bout Width	11.56" (29.4 cm)
Lower Bout Width	16" (40.6 cm)
Waist	9.5" (241mm)

Hardware

Bridge	Adjusto-Matic with Pinned Rosewood Base

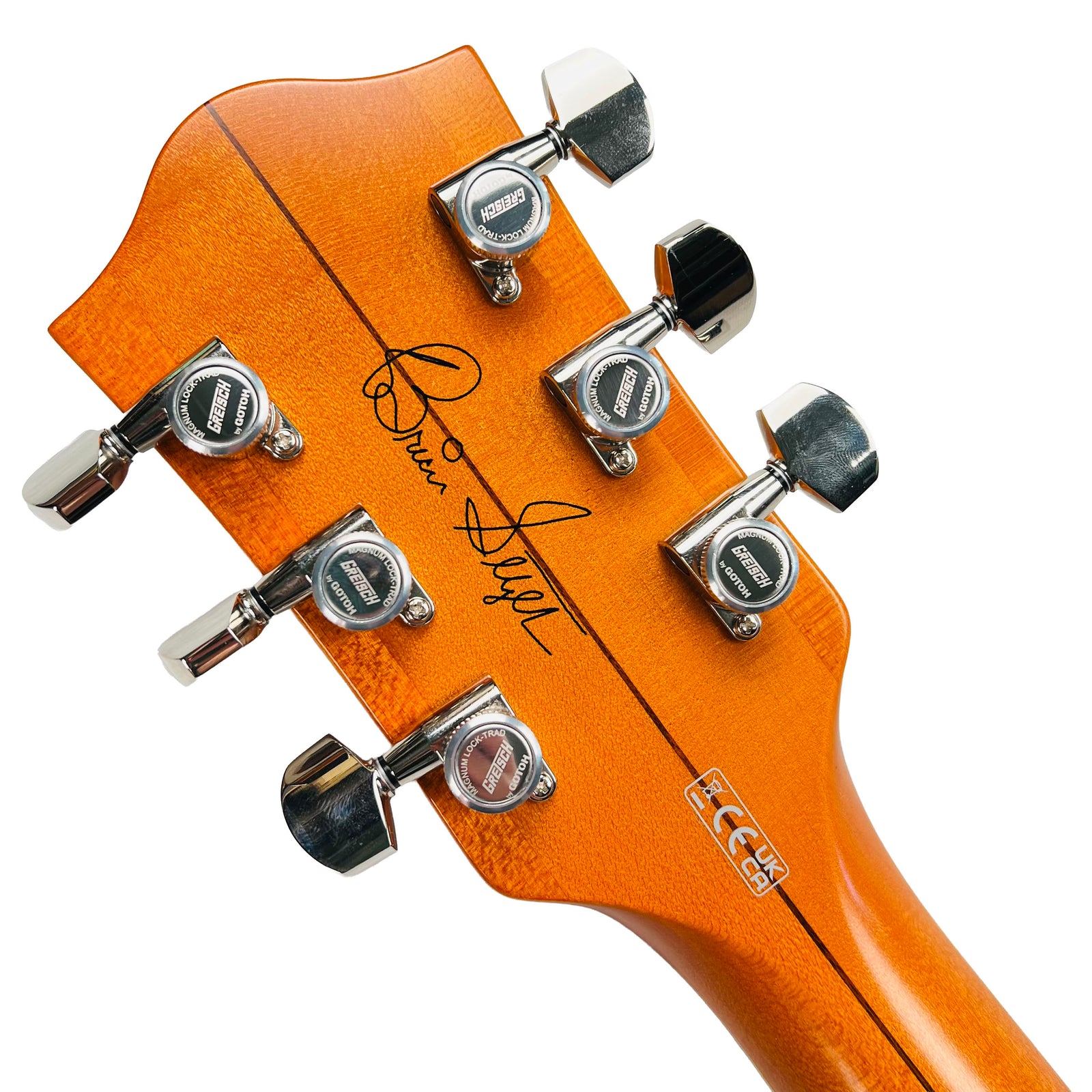

Tuning Machines	Gotoh Locking
Pickguard	Gold Plexi with Artist Signature and Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B6CGH
Hardware Finish	Nickel

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	9.5"-12" Compound Radius (241 mm-305 mm)
Refinement Fingerboard Radius	Compound Radius
Fingerboard Inlays	Pearloid Neo-Classic™ Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.685" (42.8 mm)
Scale Length	24.6" (625 mm)
Nut Material	Delrin
Neck Shape	Vintage "V"
Neck Mounting	Set
Neck Finish	Semi-Gloss Lacquer

Electronics

Bridge Pickup	TV Jones Ray Butts Ful-Fidelity
Neck Pickup	TV Jones Ray Butts Ful-Fidelity
Pickup Configuration	HH
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup, 3-Position Tone Switch

General

Orientation	Right Handed
Strings	Nickel Plated Steel (.010-.046 Gauges)

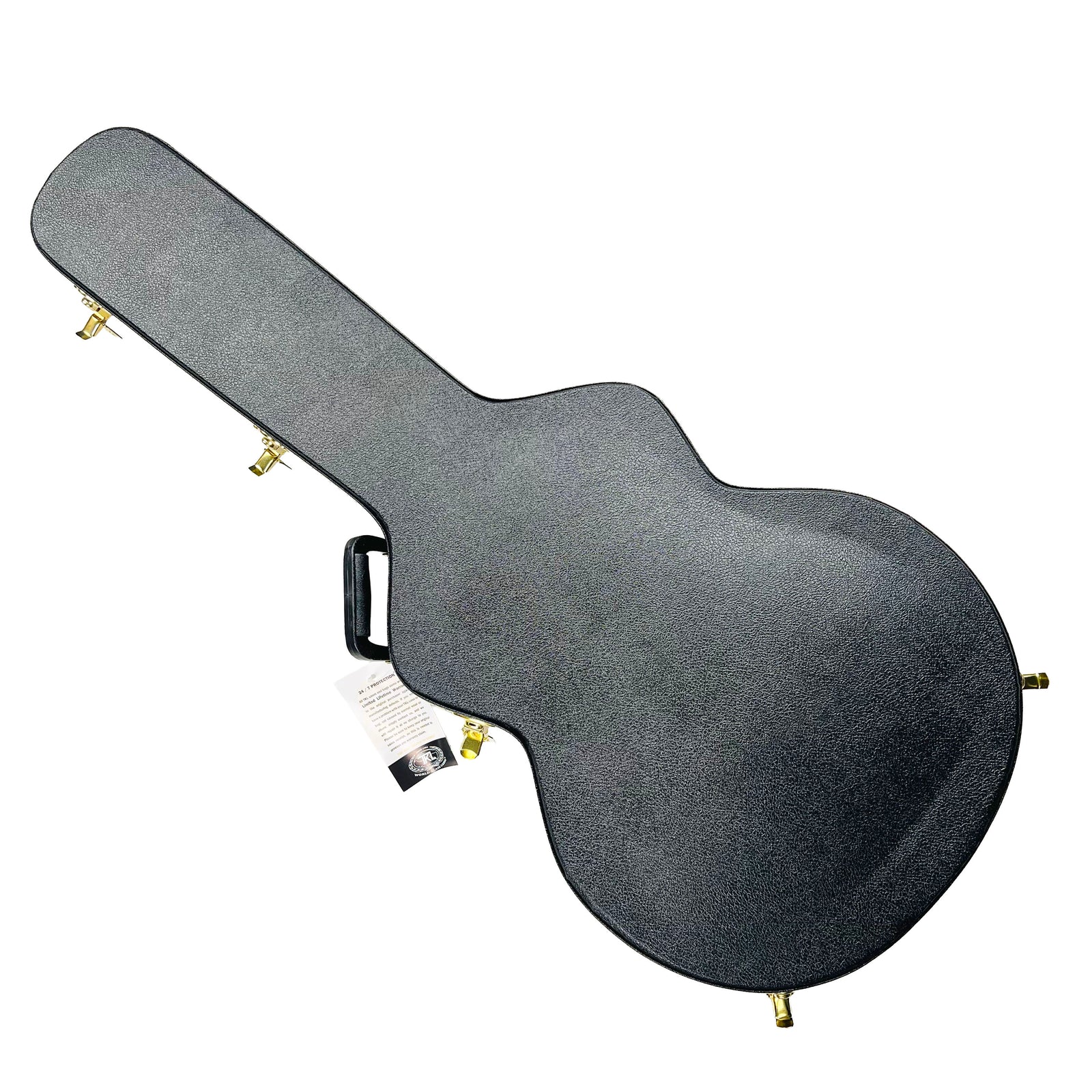

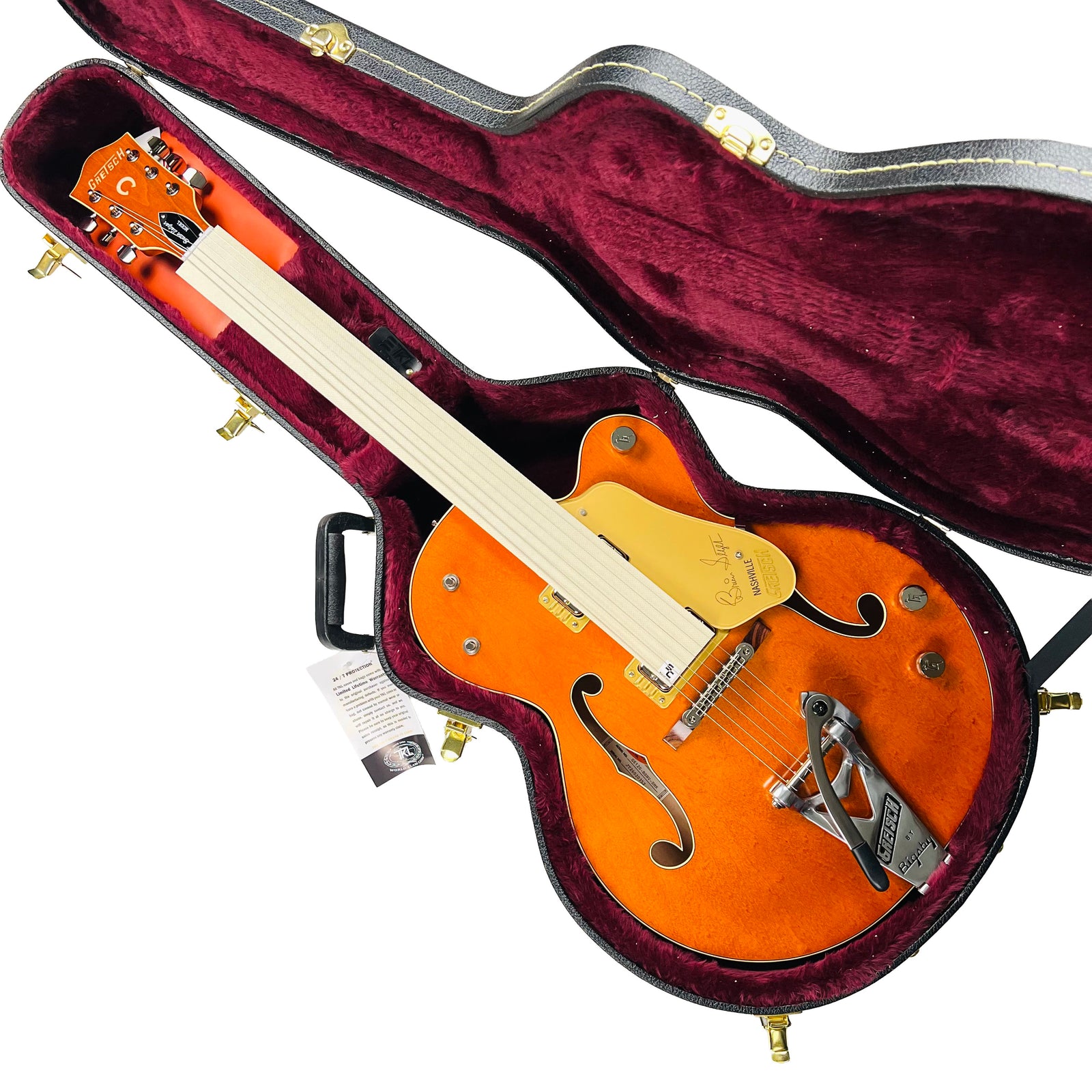

Case / Gig Bag	Included G6241 Gretsch® 16" Deluxe Hollow Body Hardshell (p/n 099-6411-000); Optional G2162 Gretsch® Hollow Body Gig Bag (p/n 099-6458-000)

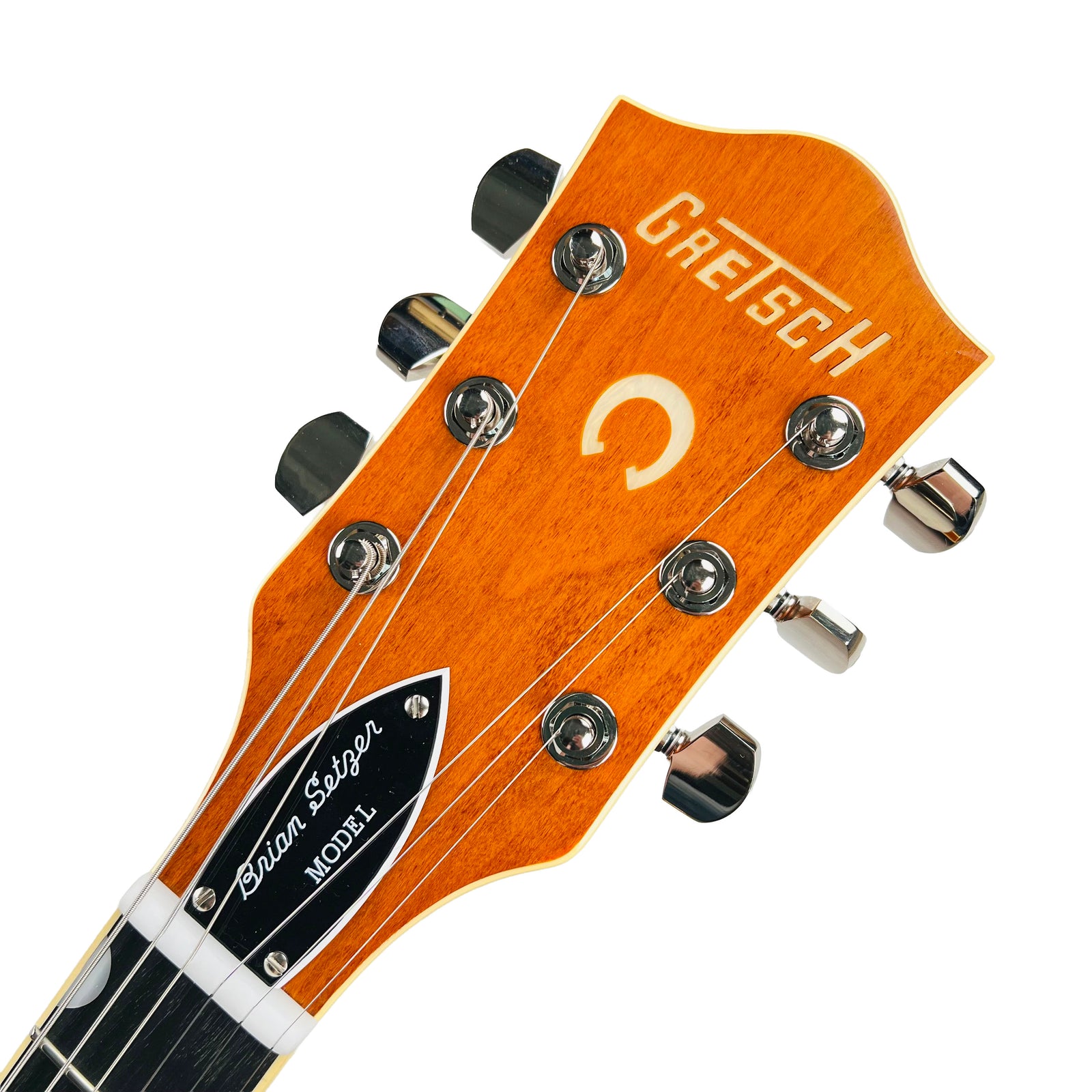

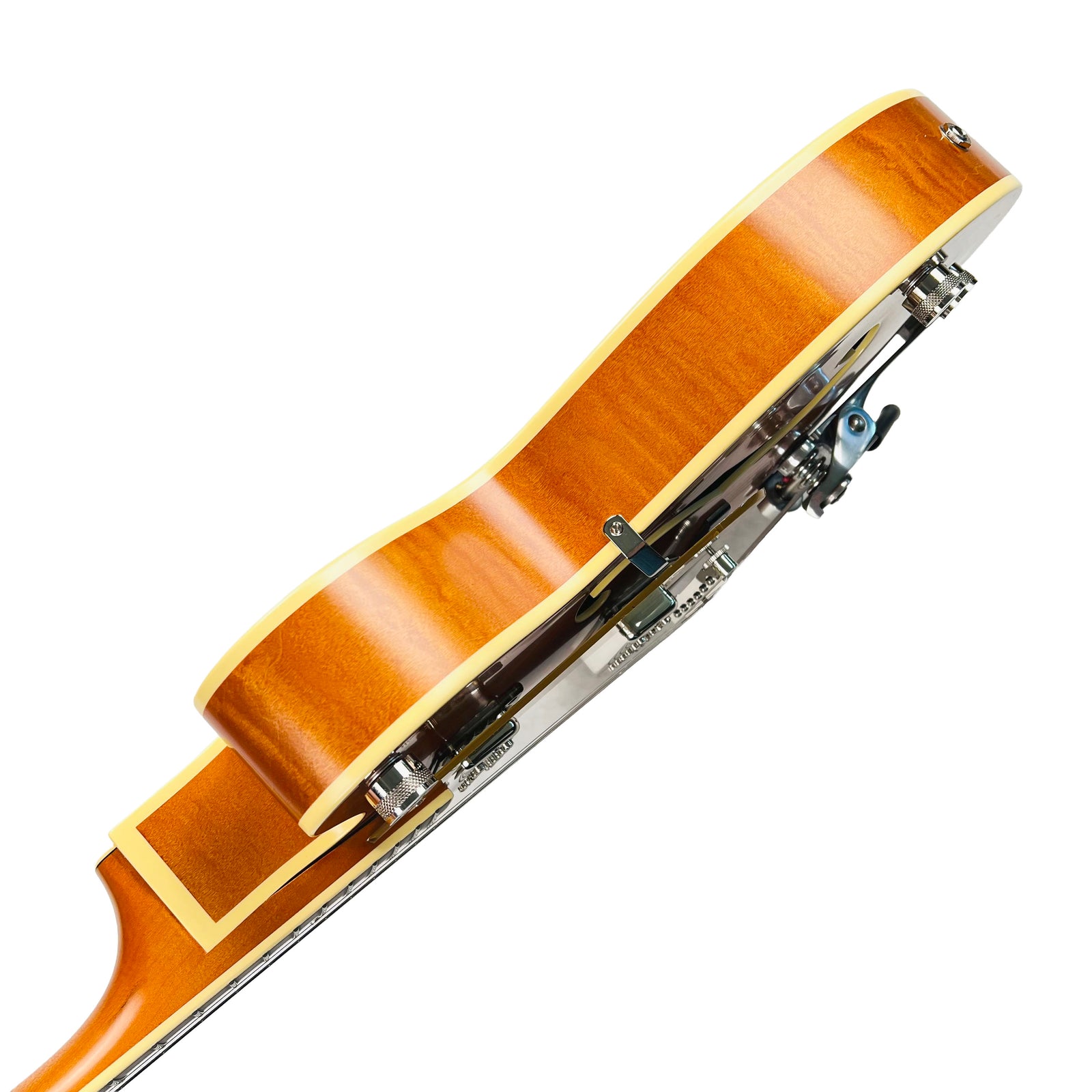

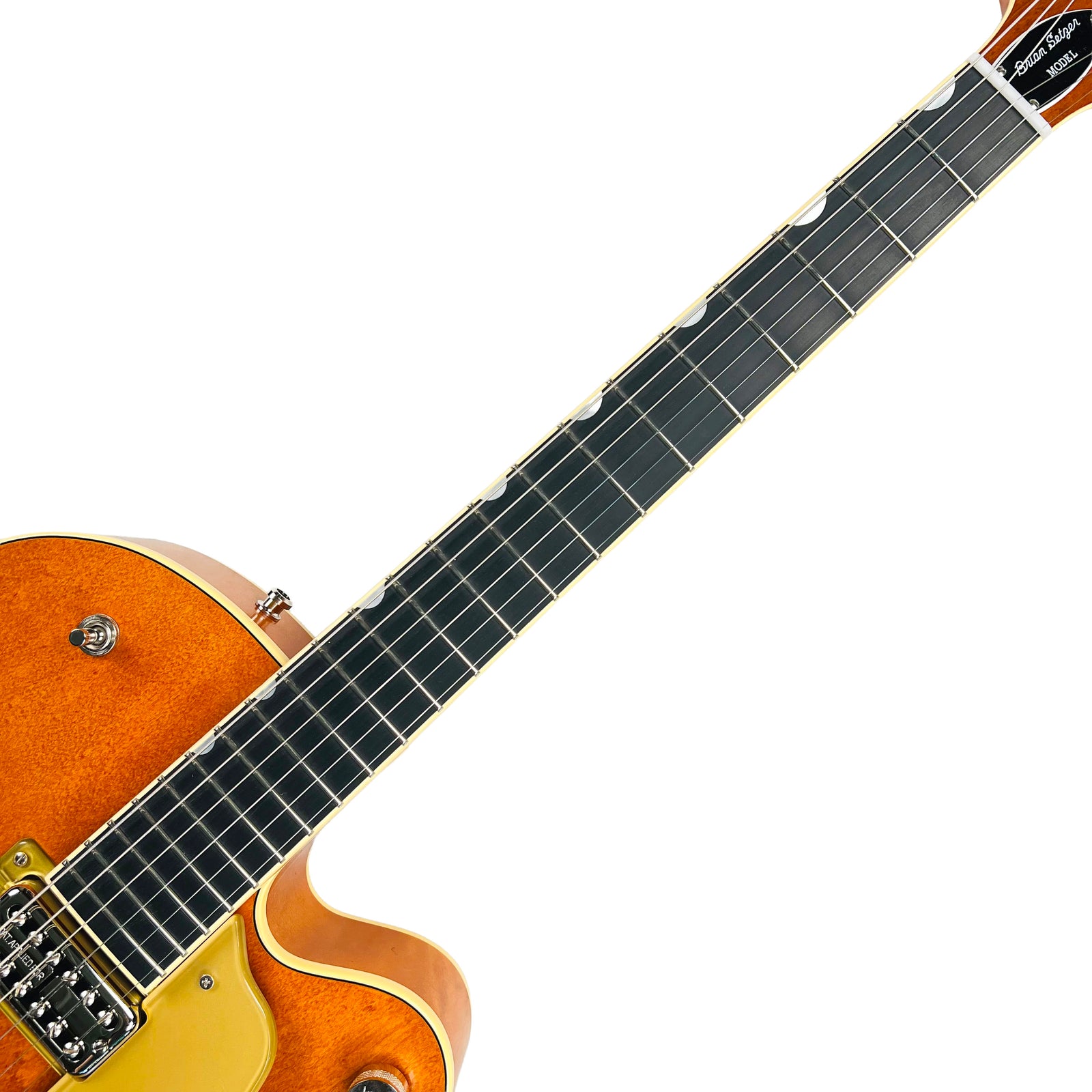

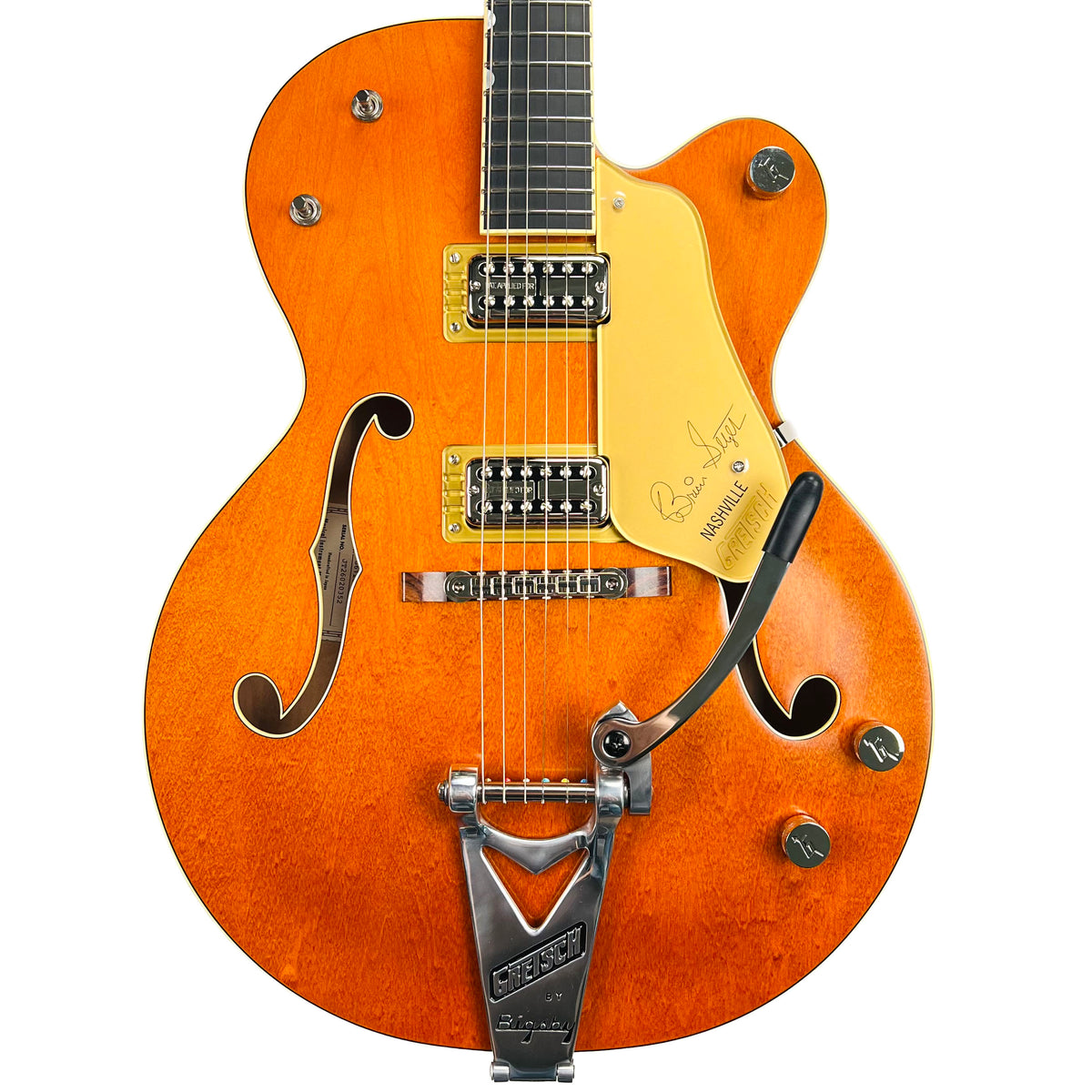

Reference Images

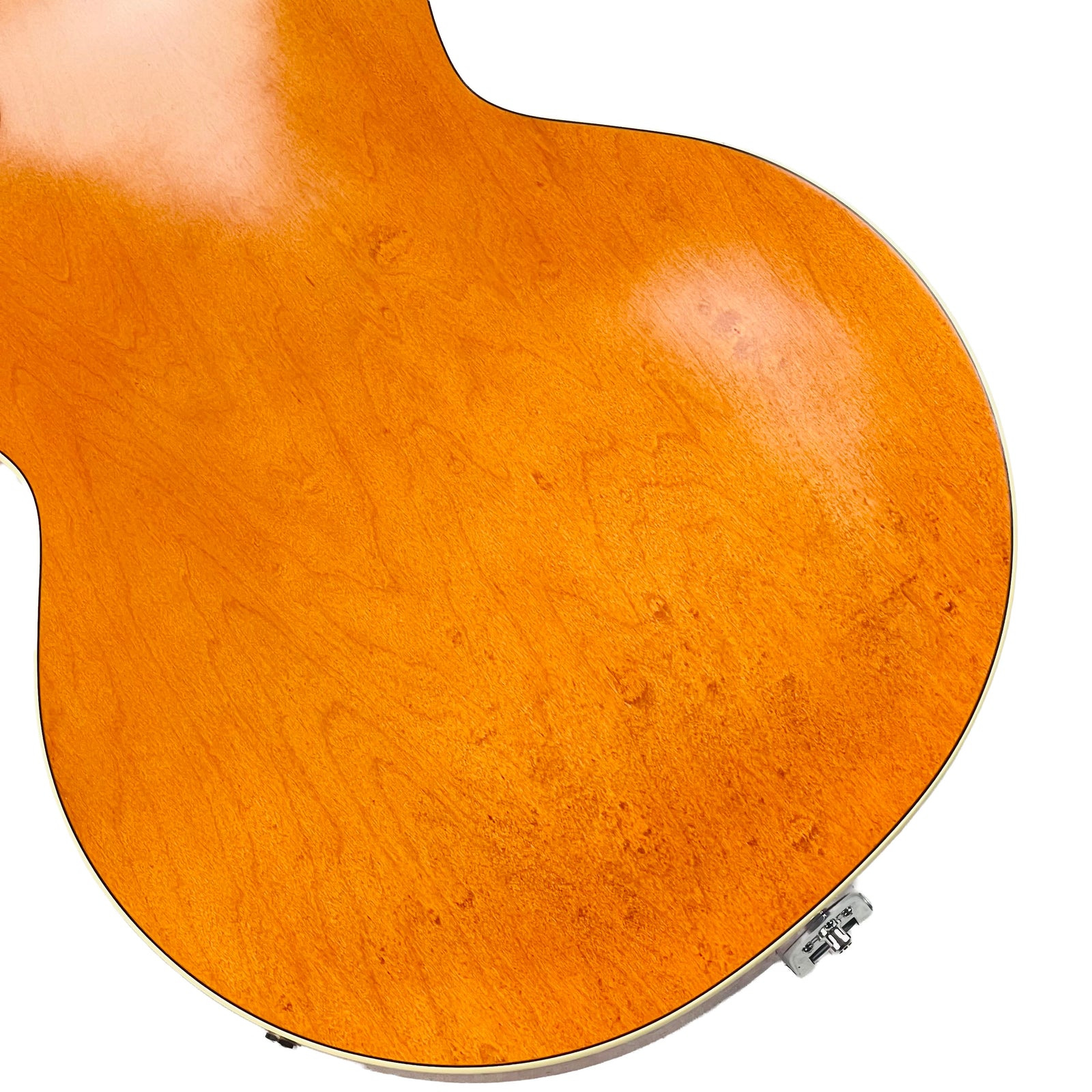

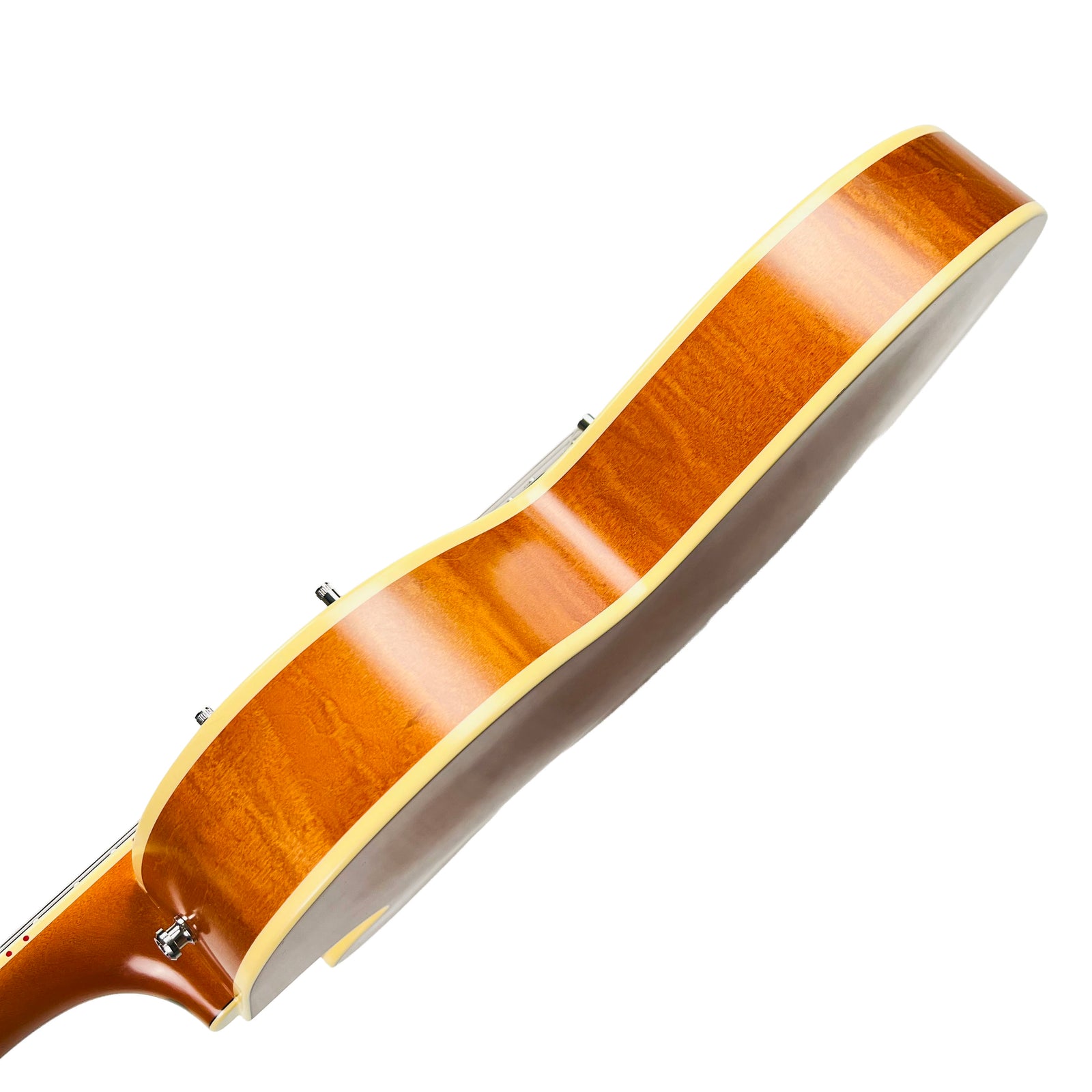

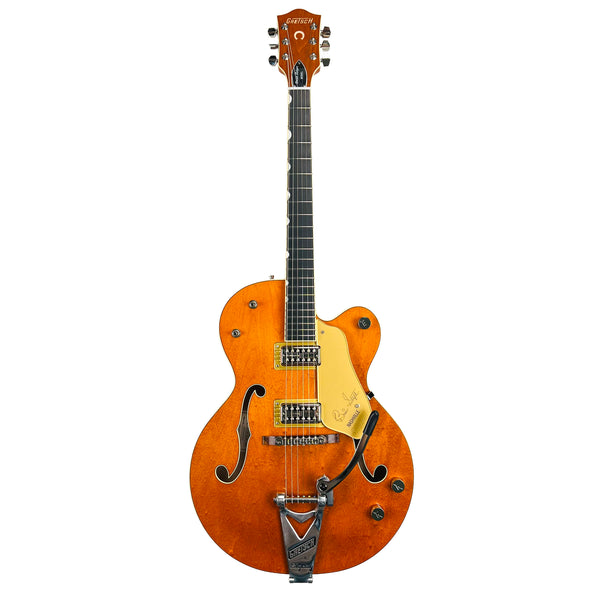

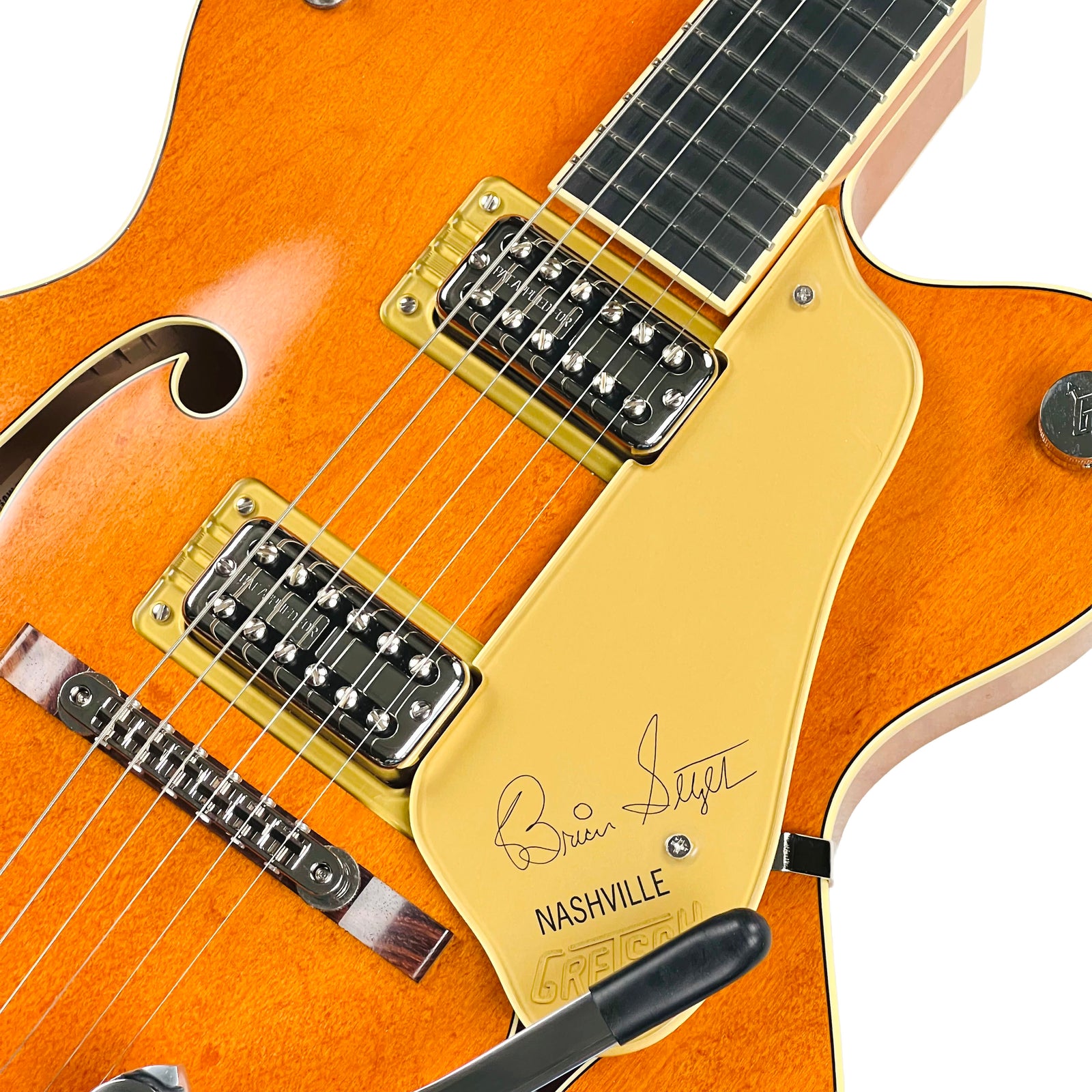

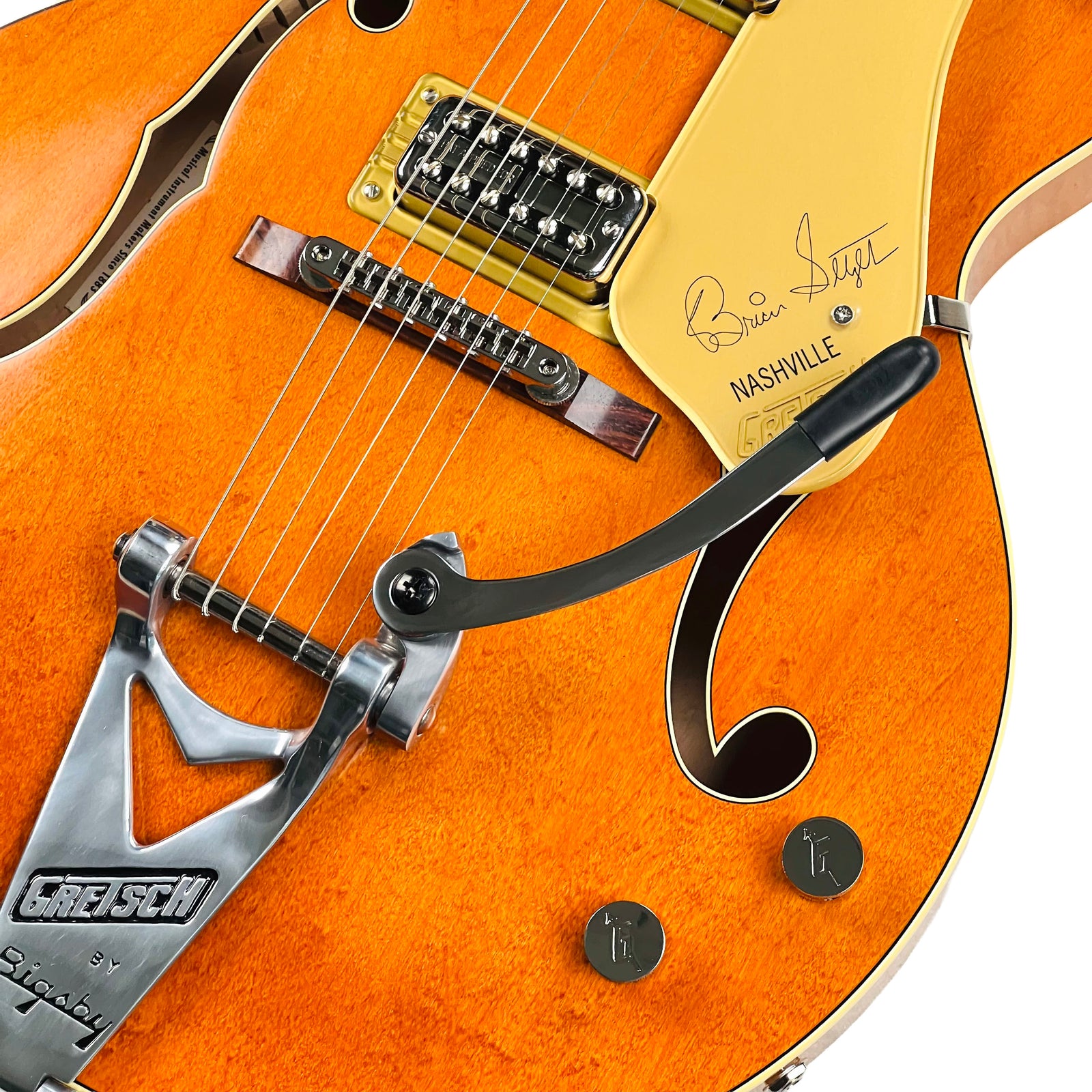

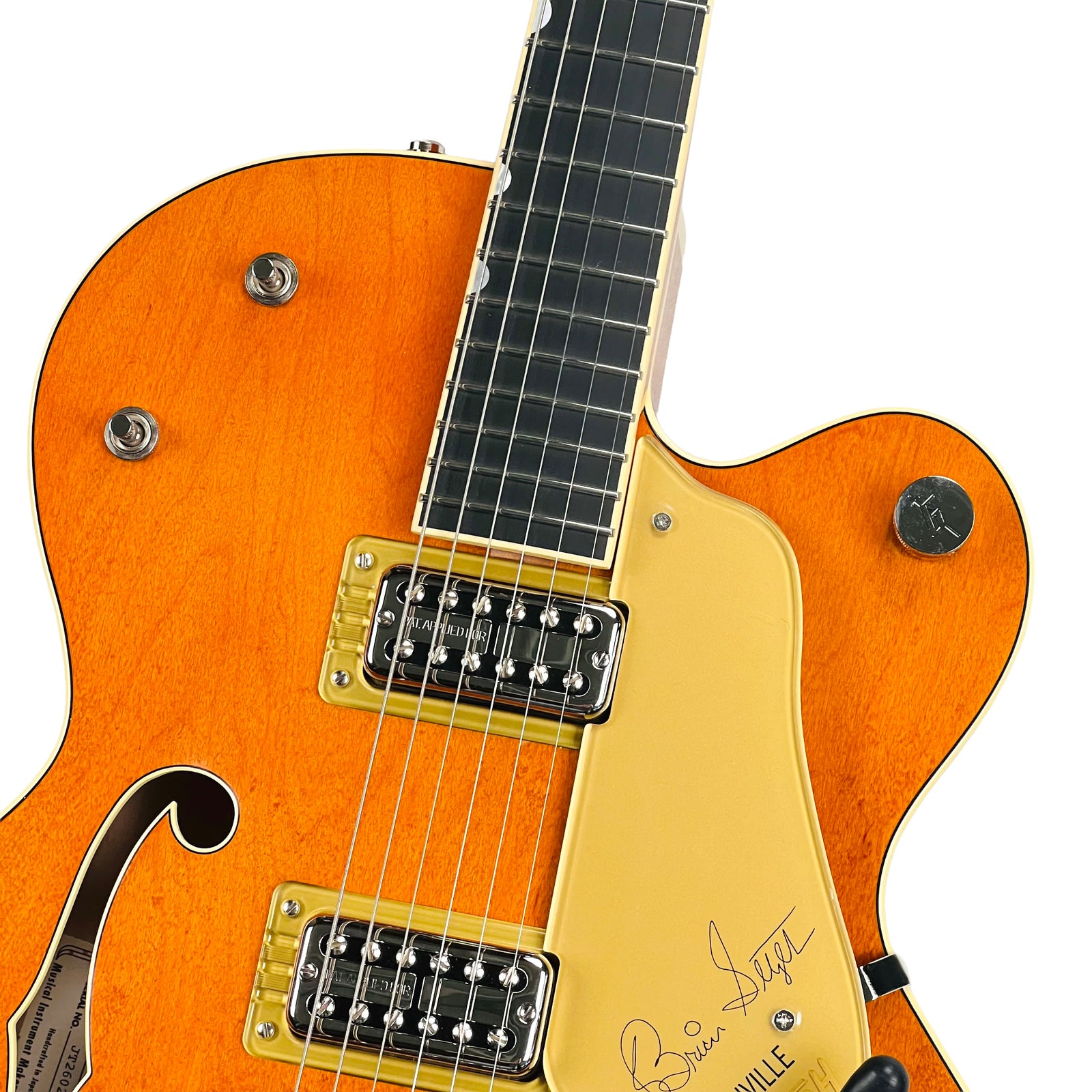

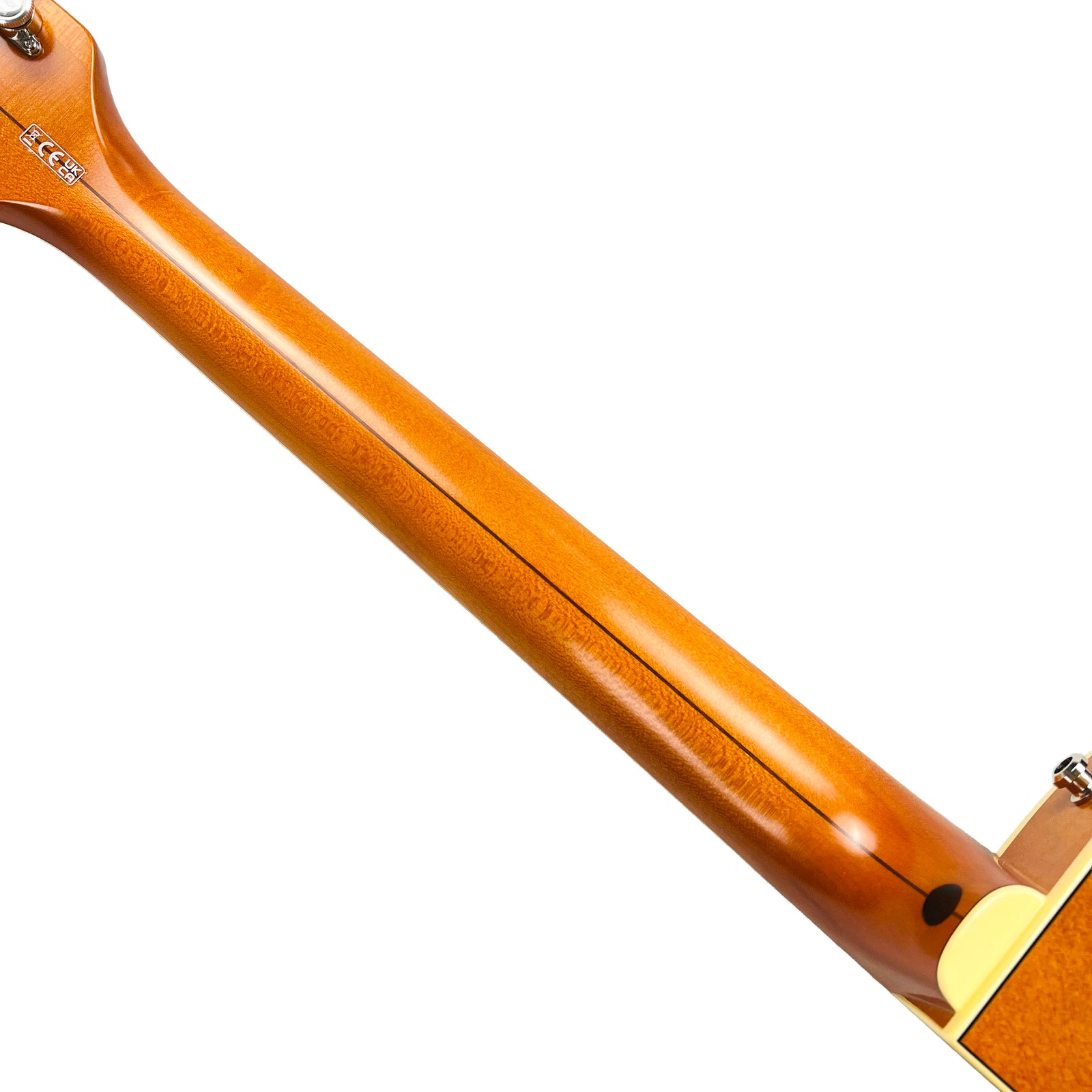

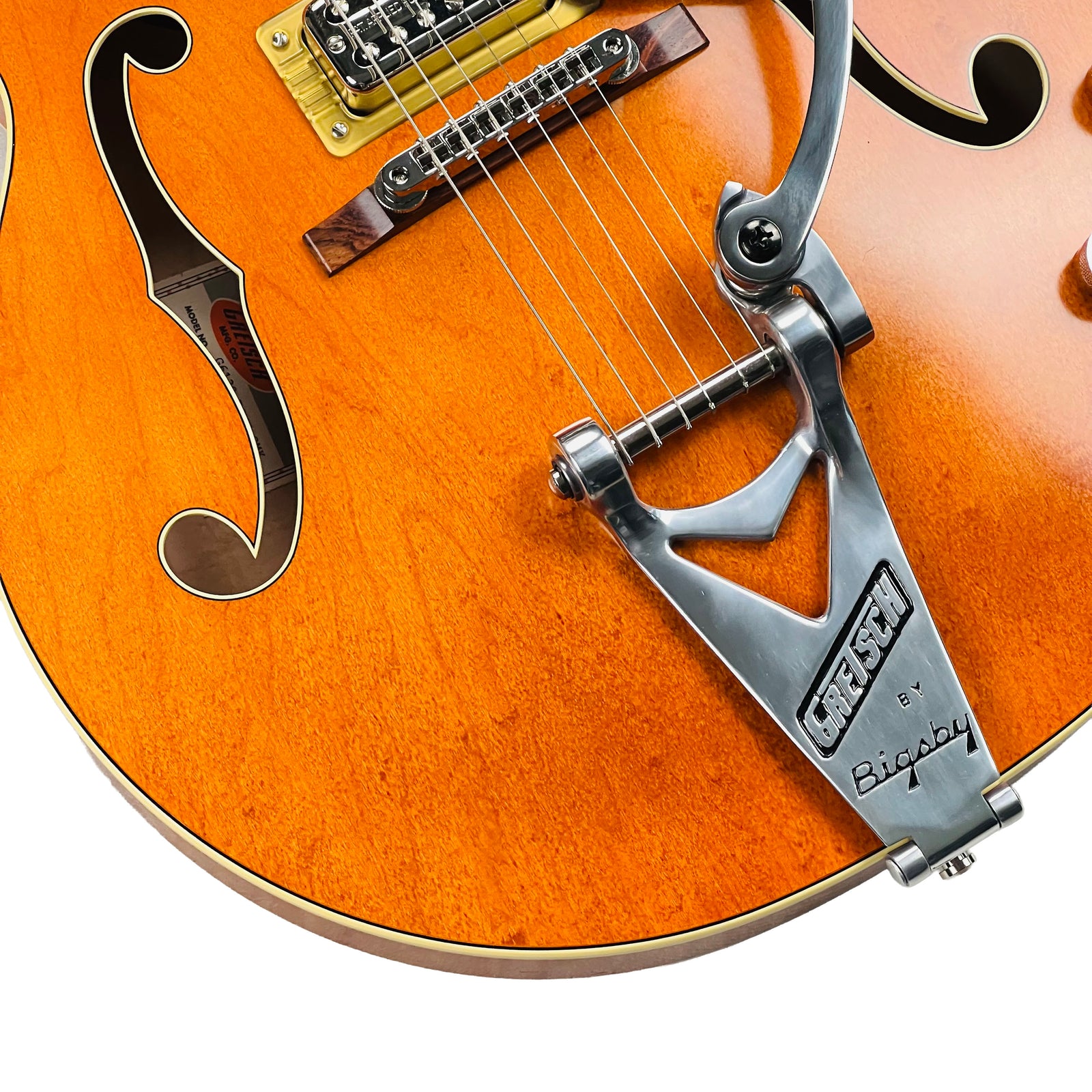

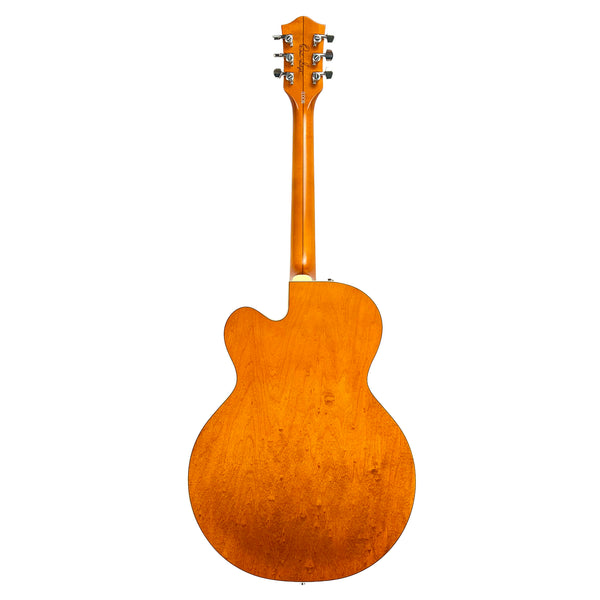

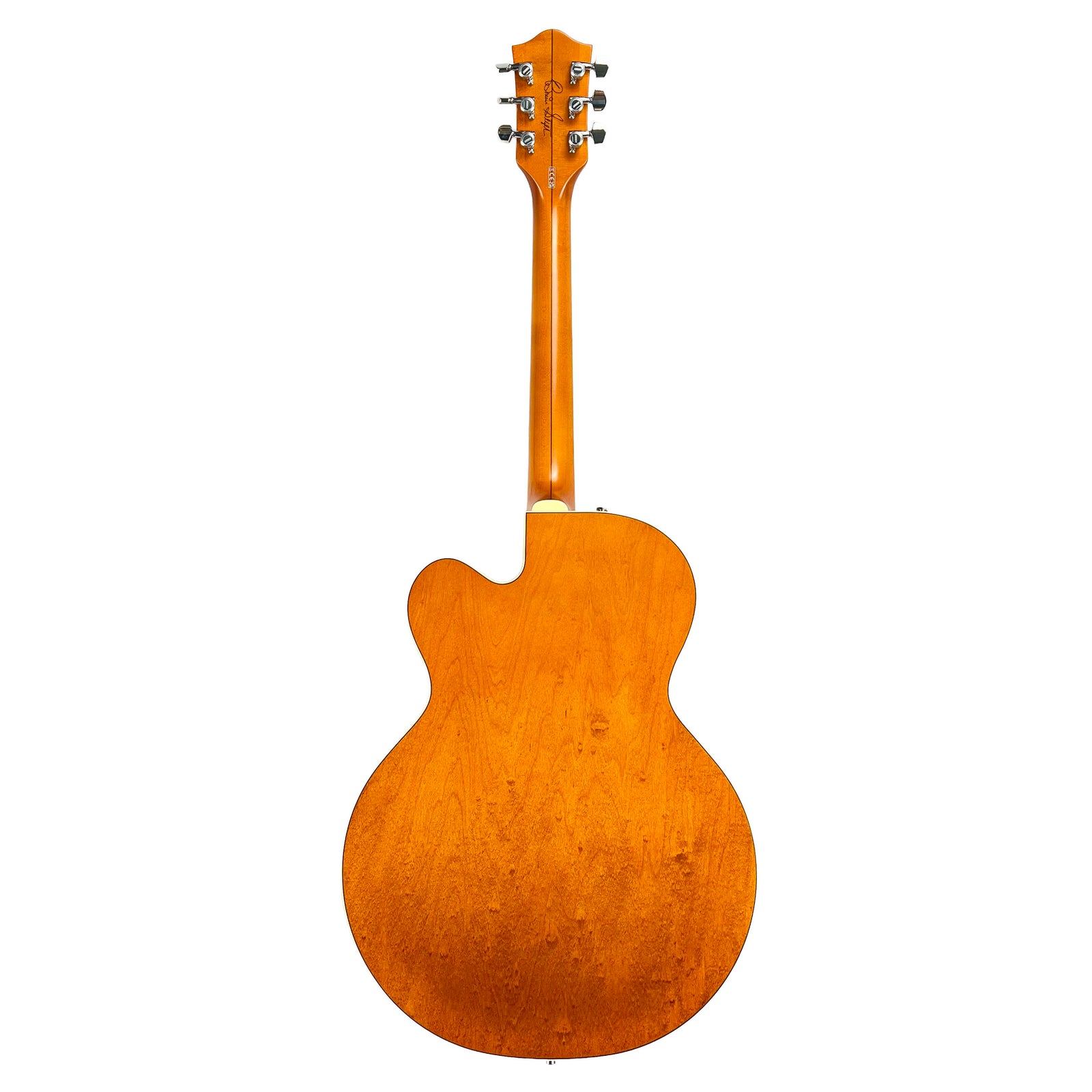

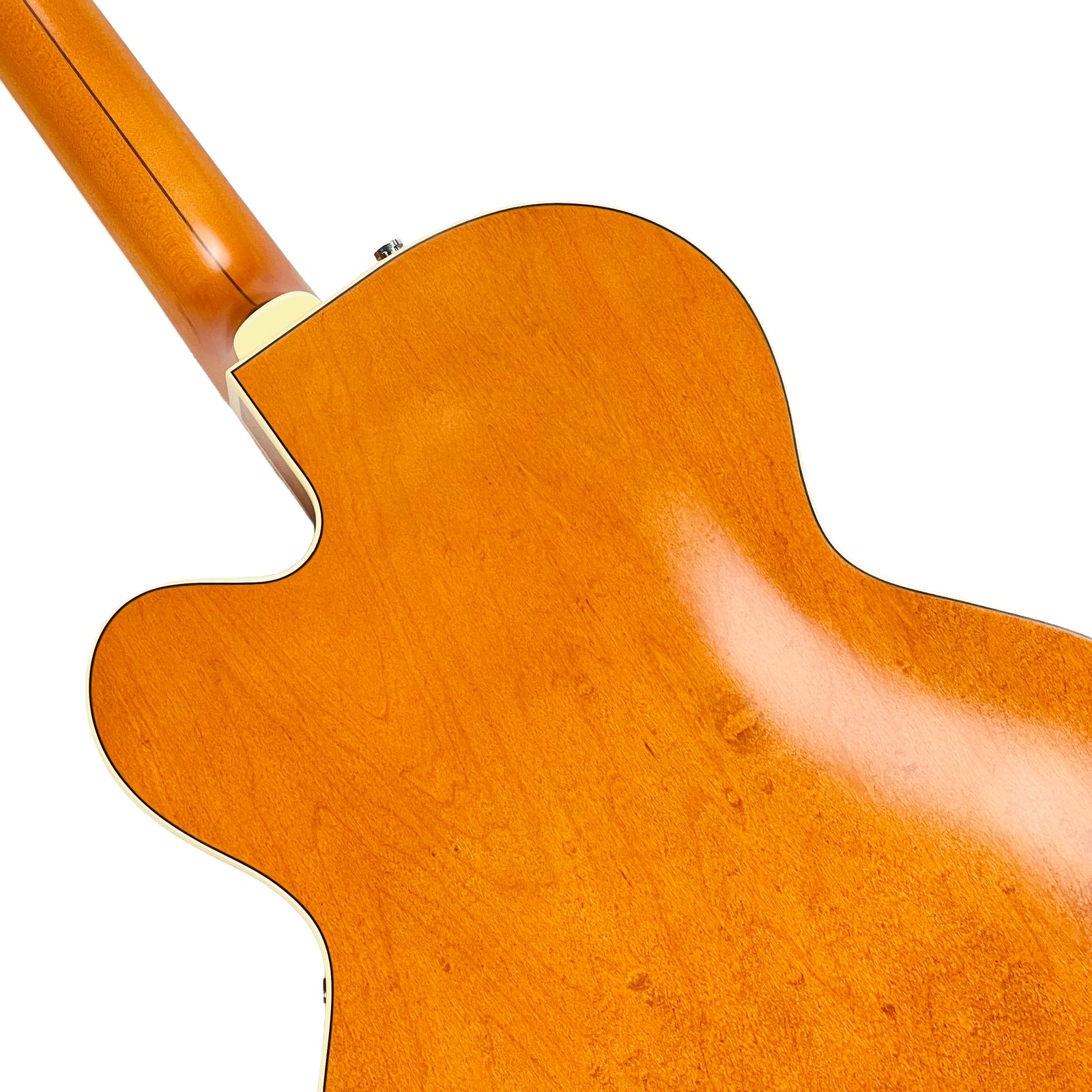

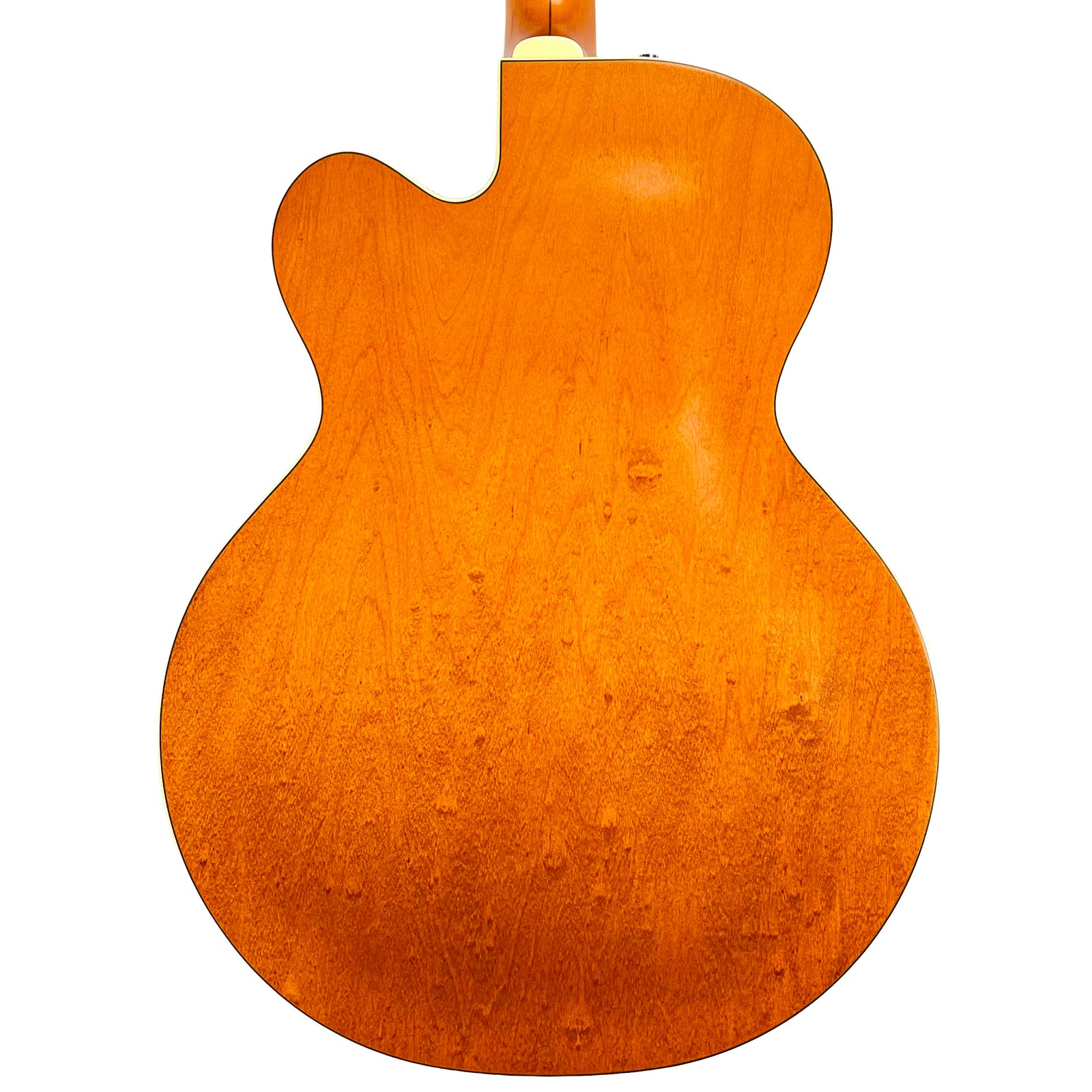

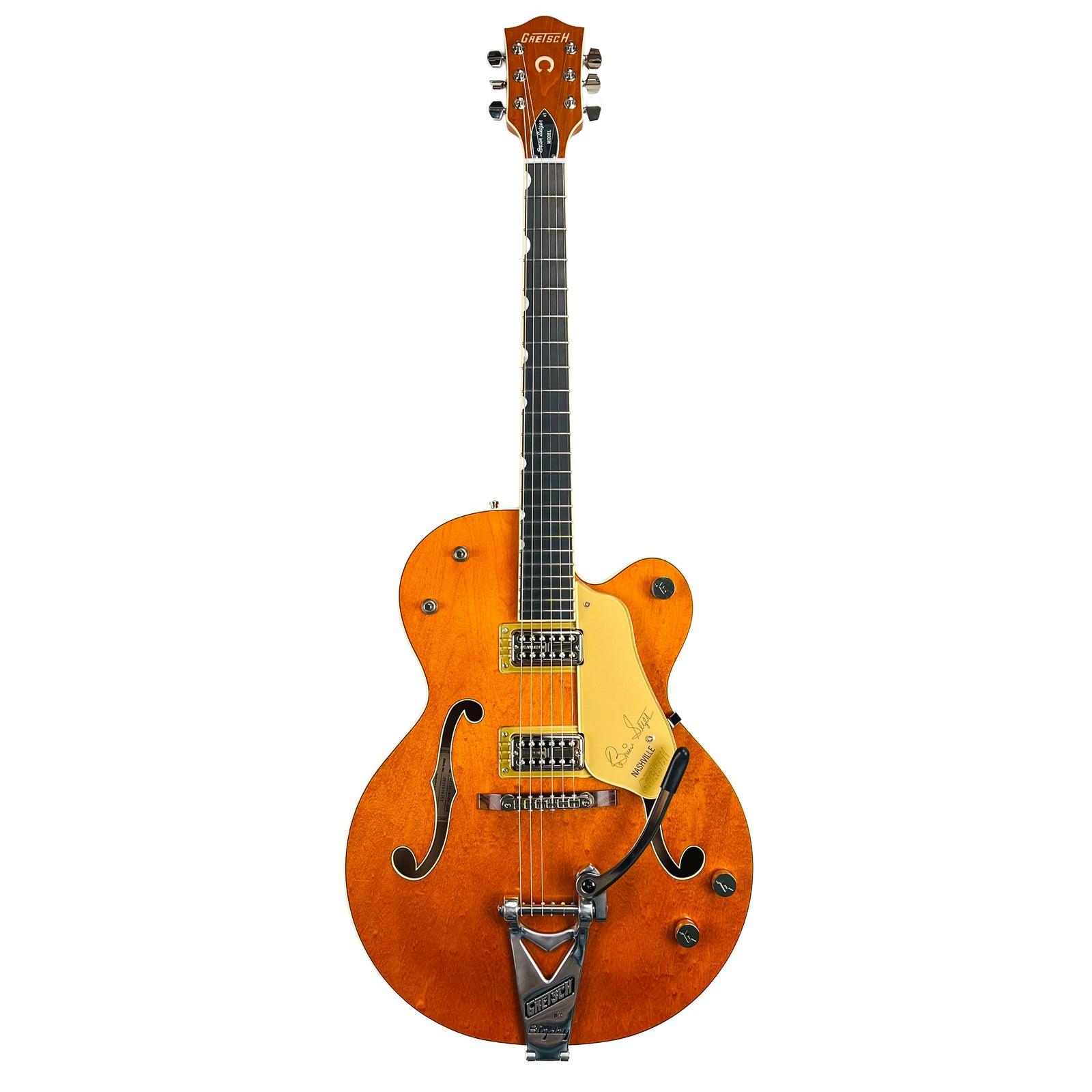

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6120T-BSSMK Brian Setzer Signature Nashville Hollow Body '59 "Smoke" with Bigsby listed above. For larger pics, click on an image to open in a new tab.
