Gretsch G6136T-59 Limited Edition '59 Falcon Bigsby Lake Placid Blue Specs

The G6136T-59 Limited Edition Falcon with Bigsby Ebony Fingerboard Lake Placid Blue is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Limited Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401531802.

Key Features

Laminated Maple Top
Laminated Maple Body
Maple Neck
Ebony Fingerboard
25.5" (648 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Rocking Bar Bridge
Grover Imperial Locking Tuning Machines
TV Jones Ray Butts Ful-Fidelity Bridge Pickup
TV Jones Ray Butts Ful-Fidelity Neck Pickup

Product Identifiers

Model Name	G6136T-59 Limited Edition '59 Falcon with Bigsby
Part Number	2401531802
Product Series	Limited Edition
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978961900

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Laminated Maple
Back Material	Laminated Maple
Body Shape	Falcon
Body Binding	Silver Sparkle with W/B/W/B Purfling
Body Finish	Gloss
Bracing	Trestle
Upper Bout Width	12.125" (30.8 cm)
Lower Bout Width	17" (43.2 cm)
Waist	10.375" (21.9 cm)

Hardware

Bridge	Rocking Bar
Tuning Machines	Grover Imperial Locking
Pickguard	Silver Plexi with Silver Gretsch Logo & Falcon Graphic
Control Knobs	Jeweled Arrow
Bridge Cover / Tailpiece	Bigsby B6CP String-Thru
Hardware Finish	Chrome

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	25.5" (648 mm)
Nut Material	Graph Tech TUSQ XL
Neck Shape	Standard "U"
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	TV Jones Ray Butts Ful-Fidelity
Neck Pickup	TV Jones Ray Butts Ful-Fidelity
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup, 3-Position Tone Switch

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)
Case / Gig Bag	Included G6242L Deluxe Hardshell Case

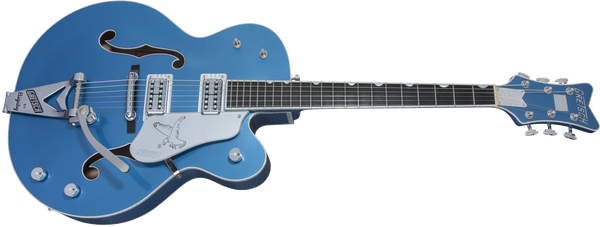

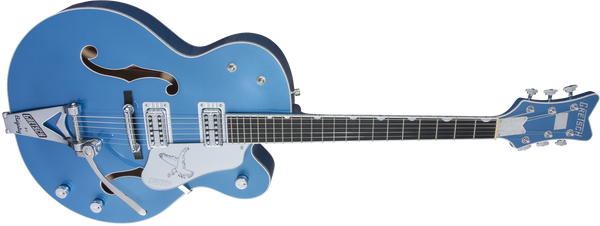

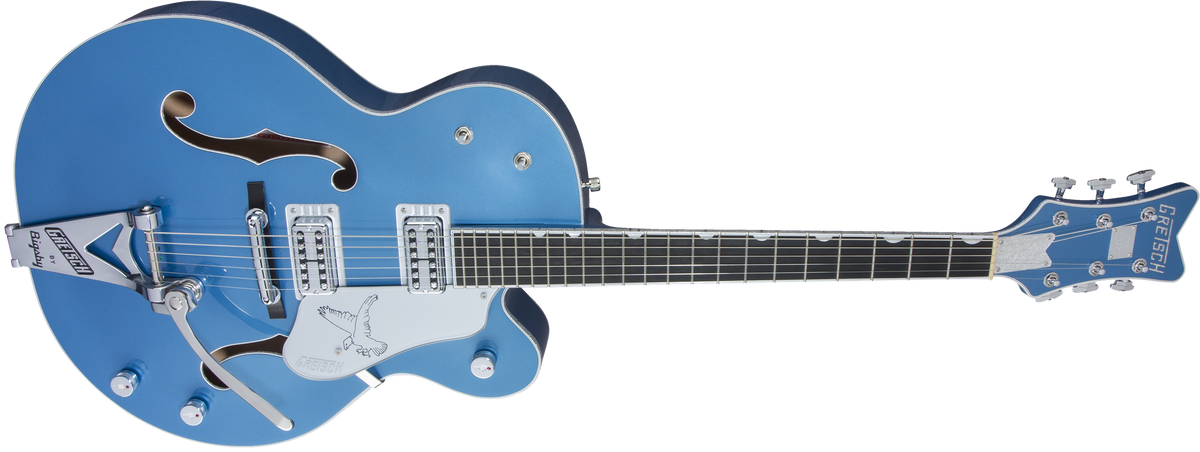

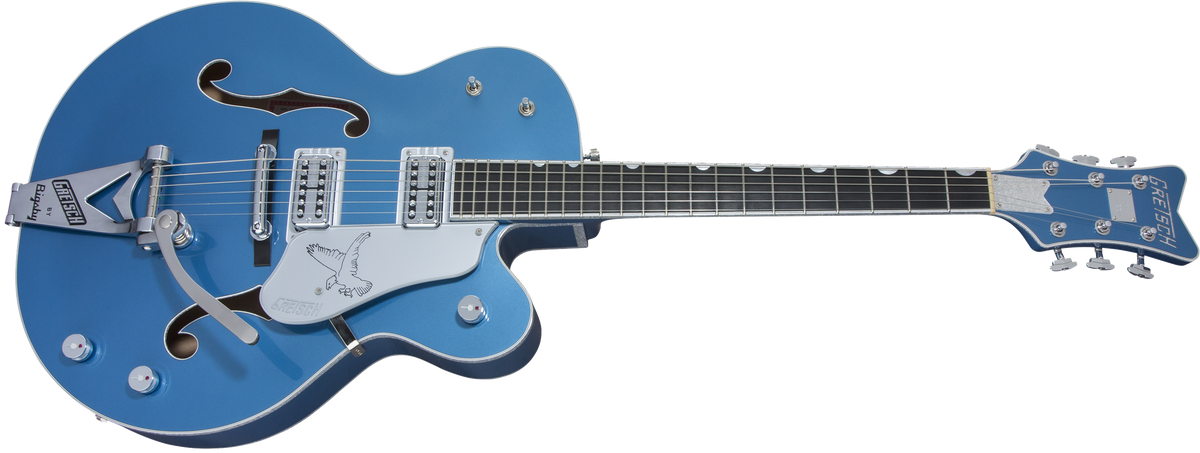

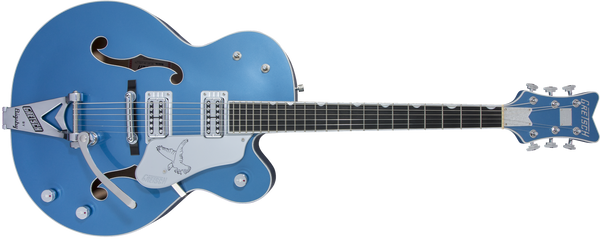

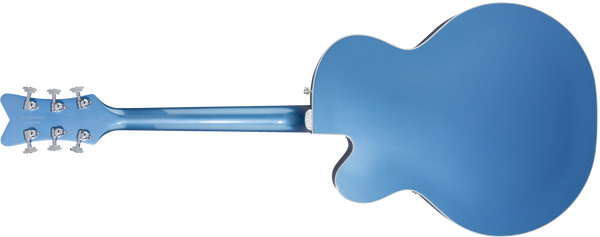

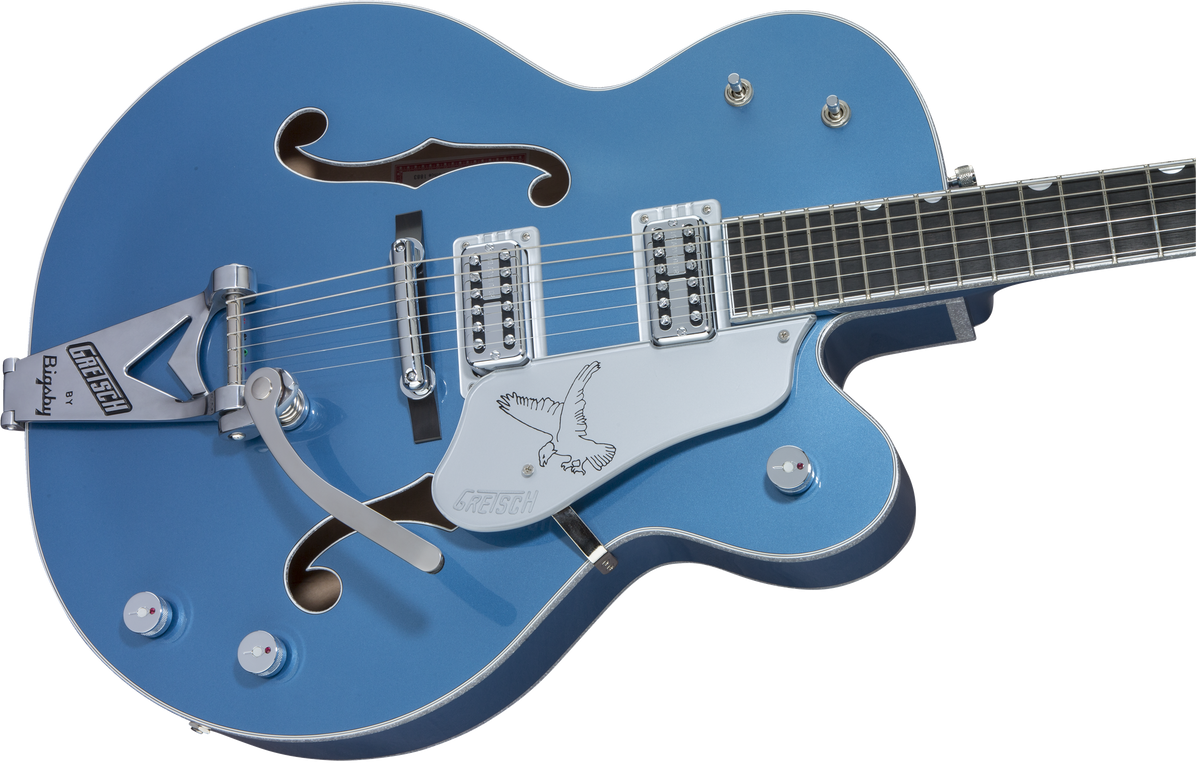

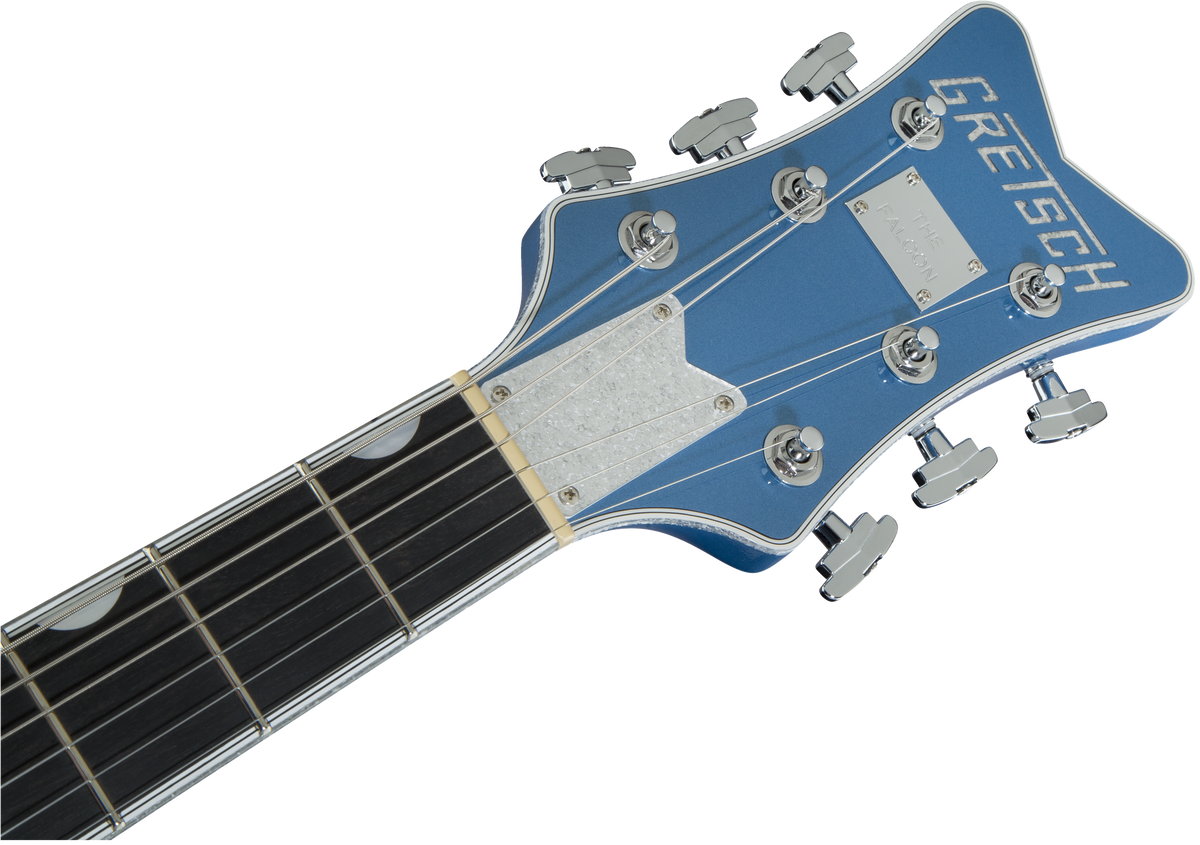

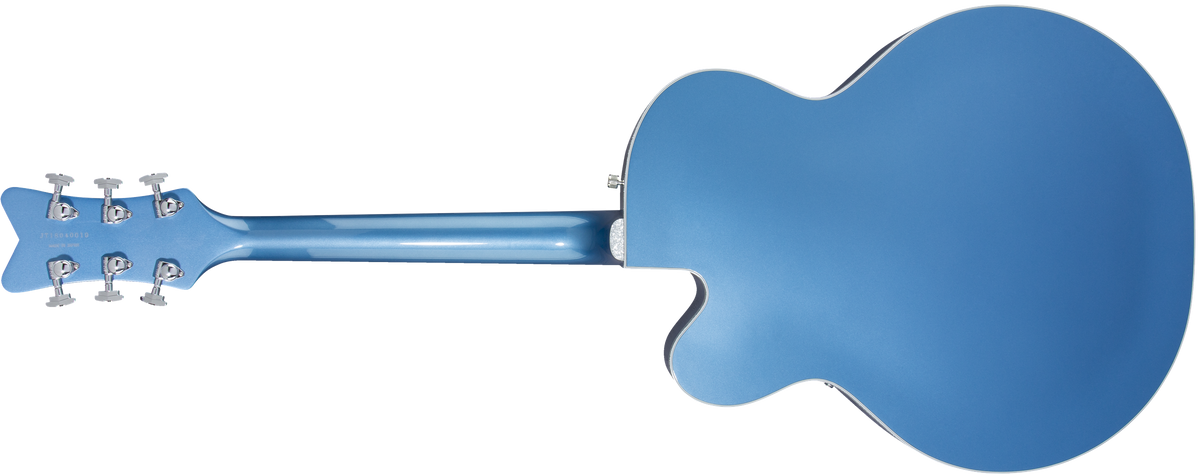

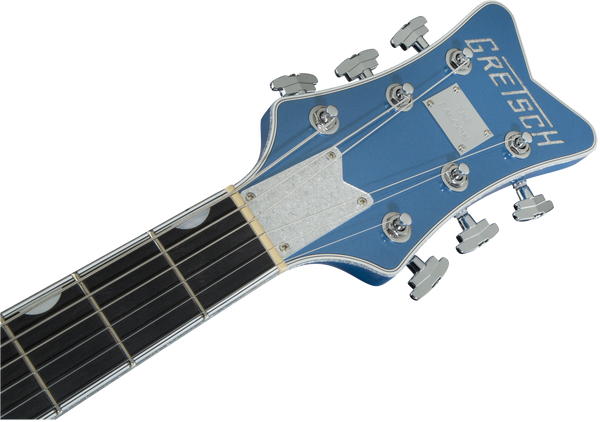

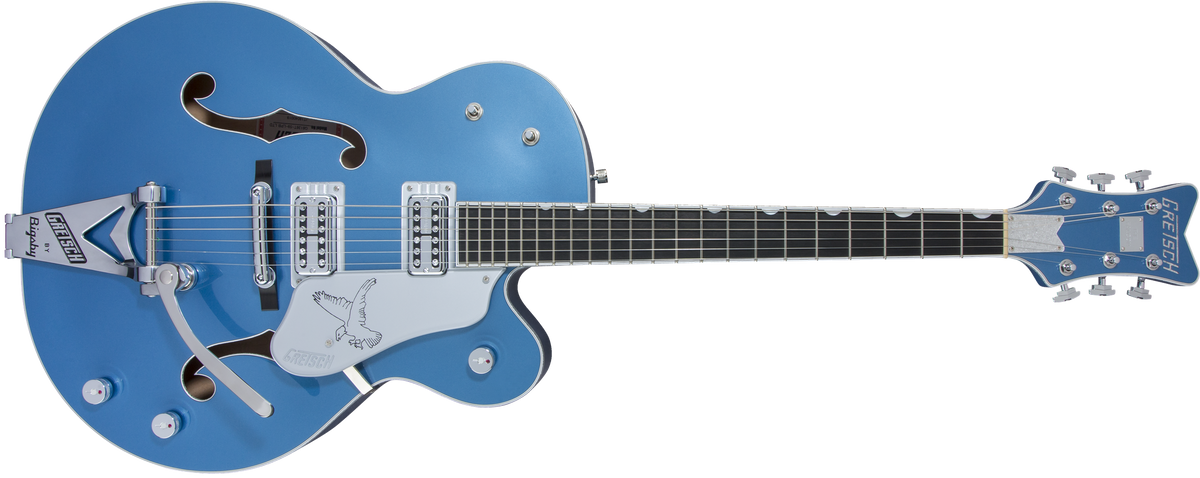

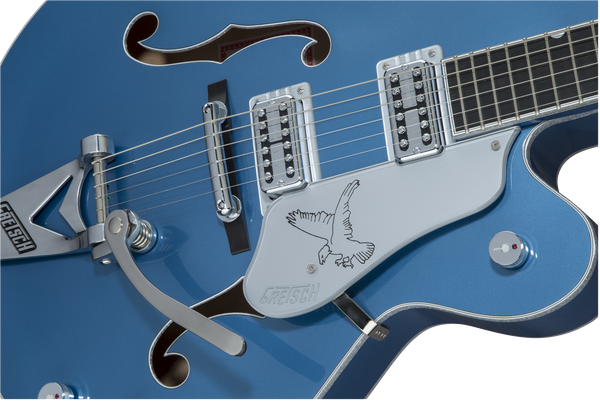

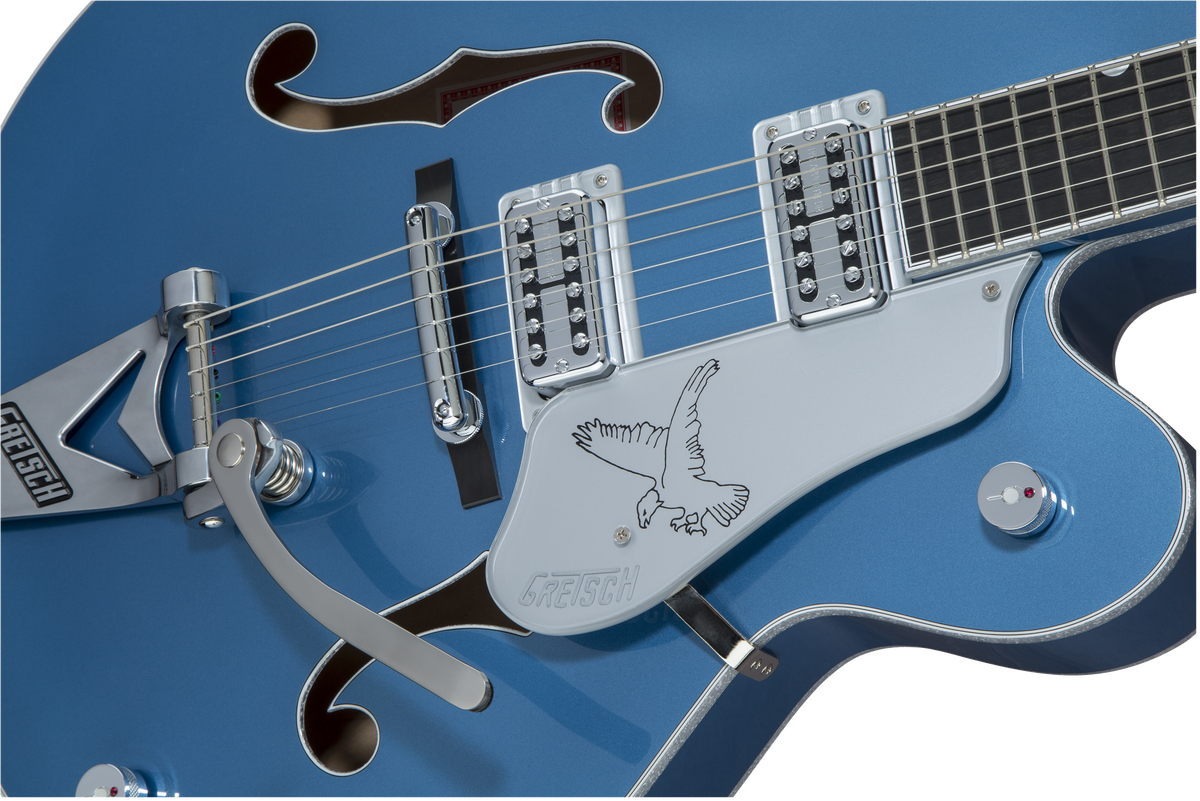

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6136T-59 Limited Edition Falcon with Bigsby Ebony Fingerboard Lake Placid Blue listed above. For larger pics, click on an image to open in a new tab.
