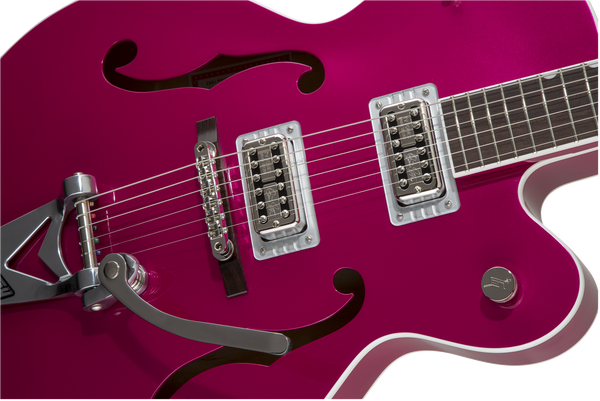

Gretsch G6120T-HR Brian Setzer Signature Hot Rod Hollow Body Bigsby Candy Magenta Specs

The G6120T-HR Brian Setzer Signature Hot Rod Hollow Body with Bigsby Rosewood Fingerboard Candy Magenta is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Artist Signature Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401215856.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
9.5"-12" Compound Radius (241 mm-305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic with Pinned Rosewood Base Bridge
Gotoh Locking Tuning Machines
TV Jones Brian Setzer Signature Filter'Tron Bridge Pickup
TV Jones Brian Setzer Signature Filter'Tron Neck Pickup

Product Identifiers

Model Name	G6120T-HR Brian Setzer Signature Hot Rod Hollow Body with Bigsby
Part Number	2401215856
Product Series	Artist Signature Edition
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978254163

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Nashville / G6120
Body Binding	White
Body Finish	Gloss
Bracing	1959 Trestle Bracing
Upper Bout Width	11.56" (29.4 cm)
Lower Bout Width	16" (40.6 cm)
Waist	9.5" (241mm)

Hardware

Bridge	Adjusto-Matic with Pinned Rosewood Base
Tuning Machines	Gotoh Locking
Pickguard	None
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B6C
Hardware Finish	Nickel

Neck Construction

Neck Material	Maple
Fingerboard Material	Rosewood
Radius	9.5"-12" Compound Radius (241 mm-305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Delrin
Neck Shape	Vintage "V"
Neck Finish	Gloss

Electronics

Bridge Pickup	TV Jones Brian Setzer Signature Filter'Tron
Neck Pickup	TV Jones Brian Setzer Signature Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included G6241 Gretsch 16" Deluxe Hollow Body Hardshell (p/n 099-6411-000); Optional G2162 Gretsch Hollow Body Gig Bag (p/n 099-6458-000)

Reference Images

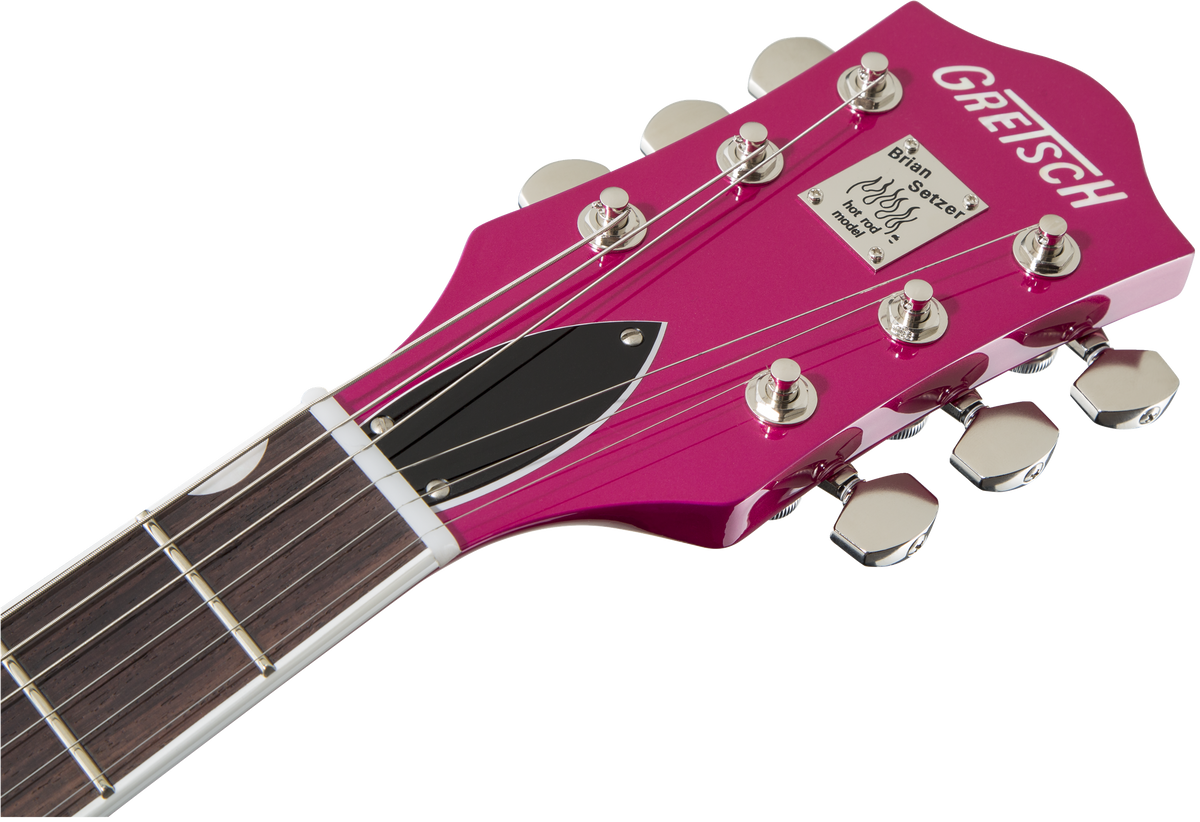

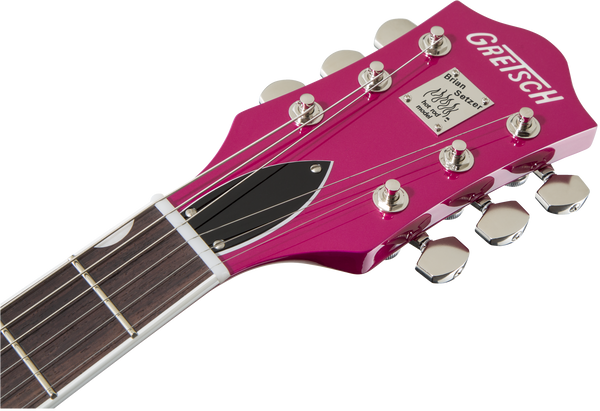

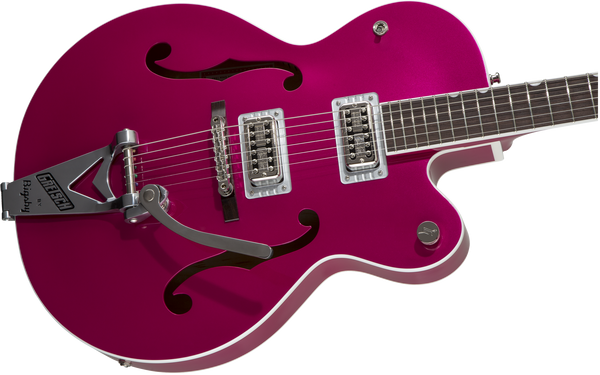

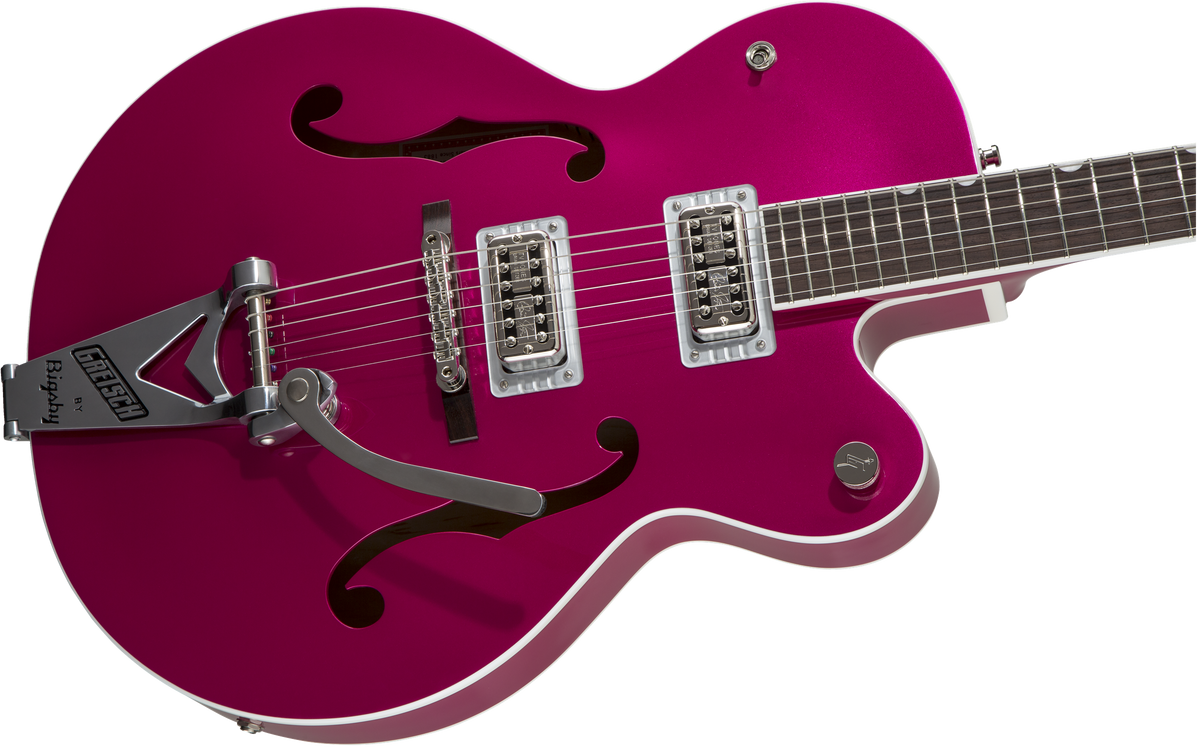

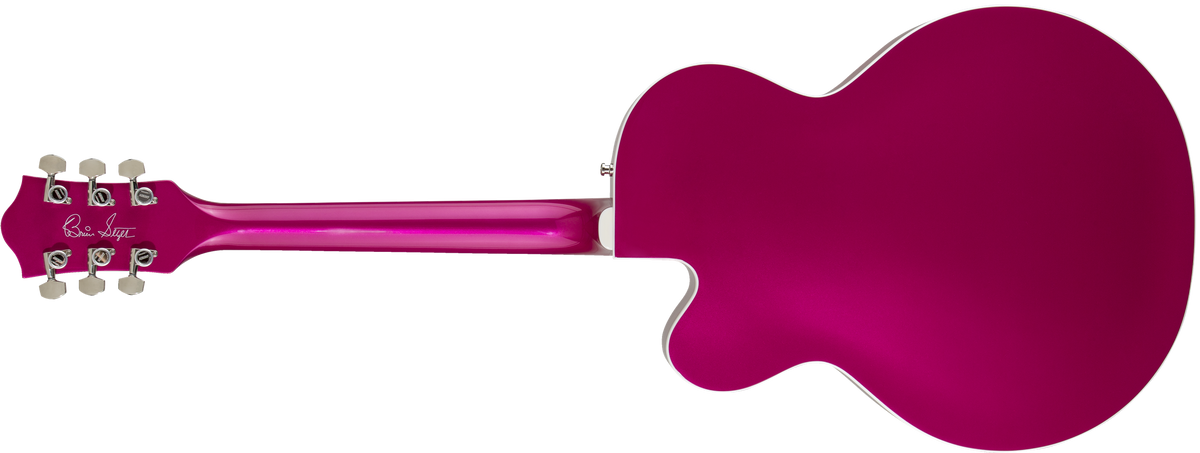

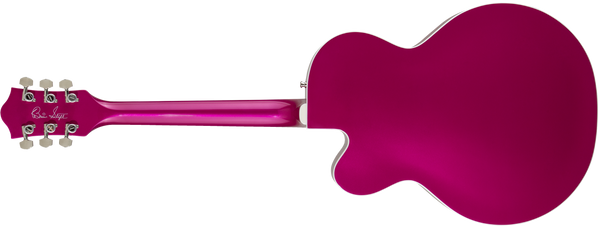

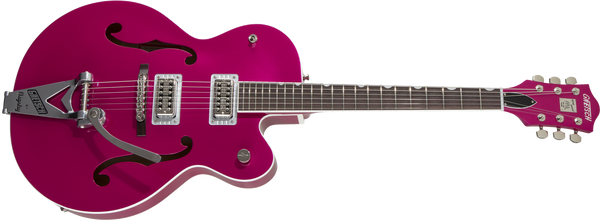

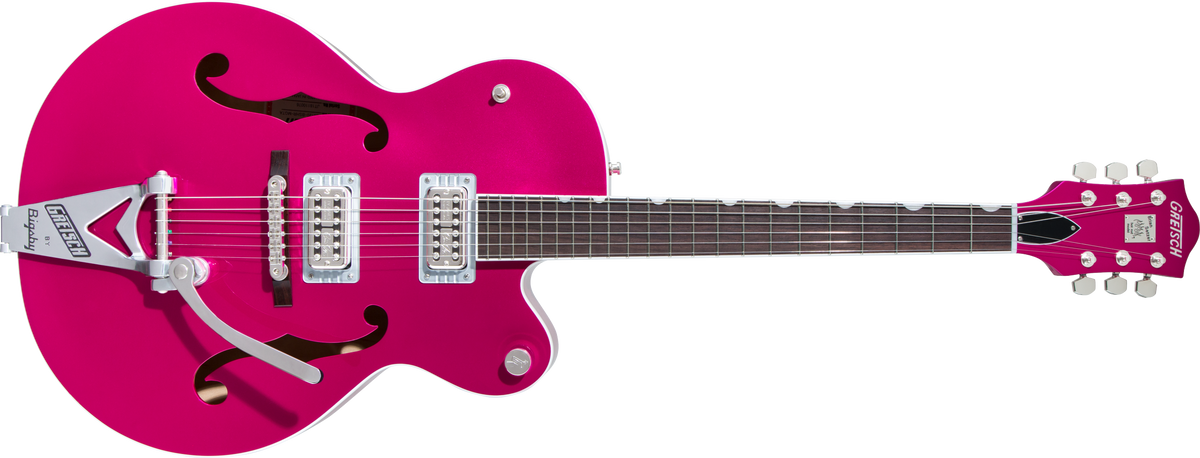

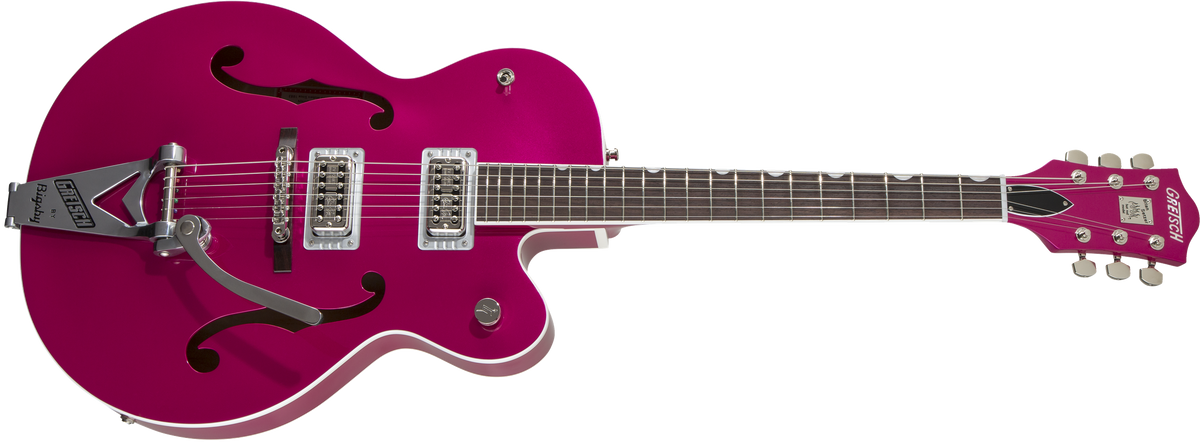

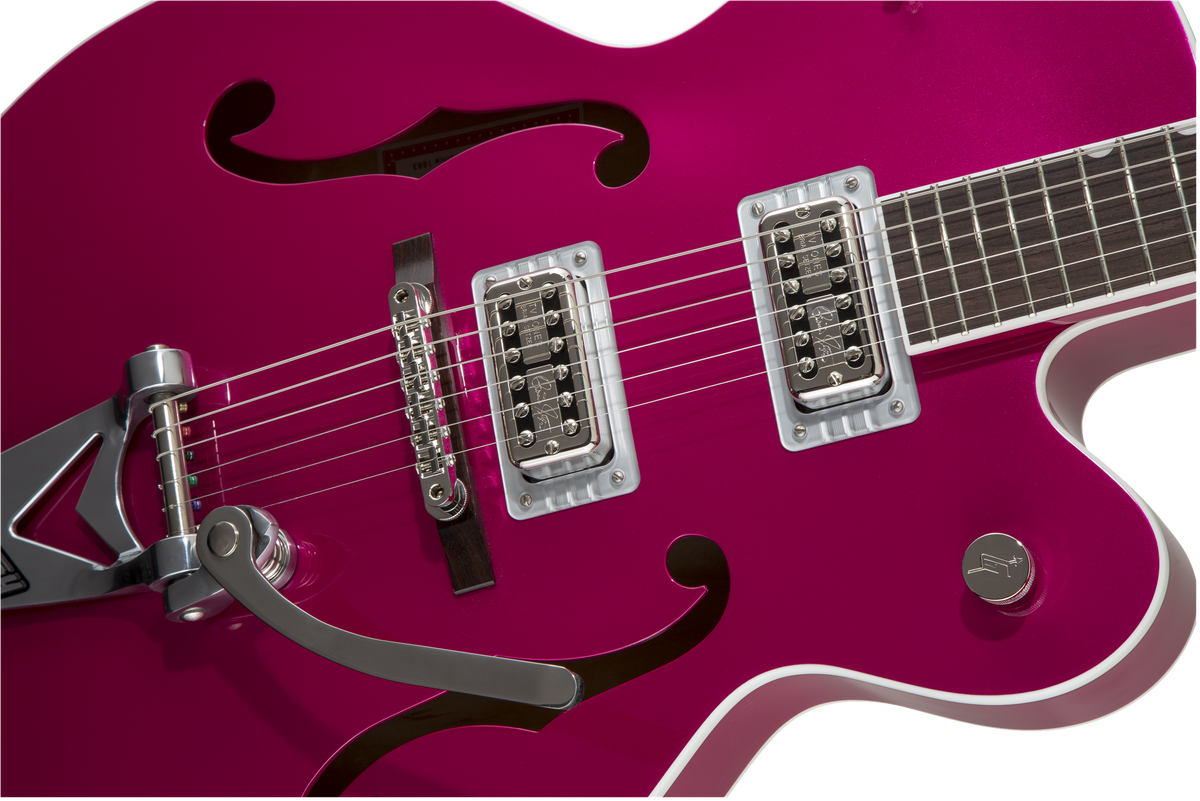

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6120T-HR Brian Setzer Signature Hot Rod Hollow Body with Bigsby Rosewood Fingerboard Candy Magenta listed above. For larger pics, click on an image to open in a new tab.
