Gretsch G6131T-62 Vintage Select '62 Jet with Bigsby Firebird Red Specs

The G6131T-62 Vintage Select '62 Jet with Bigsby is a solid body electric guitar built by Gretsch. This double cutaway set neck guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401912845.

Key Features

Arched Laminated Maple Top
Mahogany Body
Mahogany Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Space Control Bridge
Grover Sta-Tite Die-Cast Tuning Machines
TV Jones Filter'Tron Classic Bridge Pickup
N/A Middle Pickup
TV Jones Filter'Tron Classic Neck Pickup

Product Identifiers

Model Name	G6131T-62 Vintage Select '62 Jet with Bigsby
Part Number	2401912845
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
Subcategory	Double Cutaway Set Neck
UPC Code	0885978770281

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Arched Laminated Maple
Back Material	Mahogany
Body Shape	Jet
Body Binding	Aged White
Body Finish	Gloss
Bracing	Chambered
Upper Bout Width	10.5" (26.7 cm)
Lower Bout Width	13.46" (341.88 mm)
Waist	8.625" (219.08 mm)

Hardware

Bridge	Space Control
Tuning Machines	Grover Sta-Tite Die-Cast
Pickguard	Black Plexi Pickguard with White Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B3G
Hardware Finish	Gold

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Ebony
Radius	12" (305 mm)
Refinement Fingerboard Radius	Modern
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Bone
String Nut	Bone
Neck Shape	Standard "U"
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	TV Jones Filter'Tron Classic
Middle Pickup	N/A
Neck Pickup	TV Jones Filter'Tron Classic
Refinement Pickups	TV Jones Classic / TV Jones Classic
Pickup Configuration	TV Jones / TV Jones
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup, 3-Position Tone Switch
Special Electronics	N/A
Configuration	TV Jones / TV Jones

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included G6238 Gretsch Deluxe Solid Body Hardshell (p/n 099-6410-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)
Included Accessories	Includes G6238 Deluxe Hardshell Case
Recommended Case	Includes G6238 Deluxe Hardshell Case

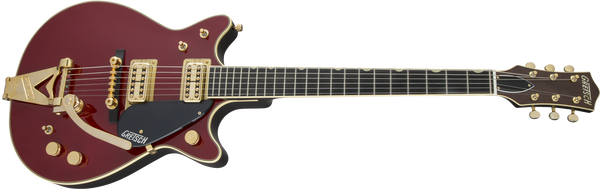

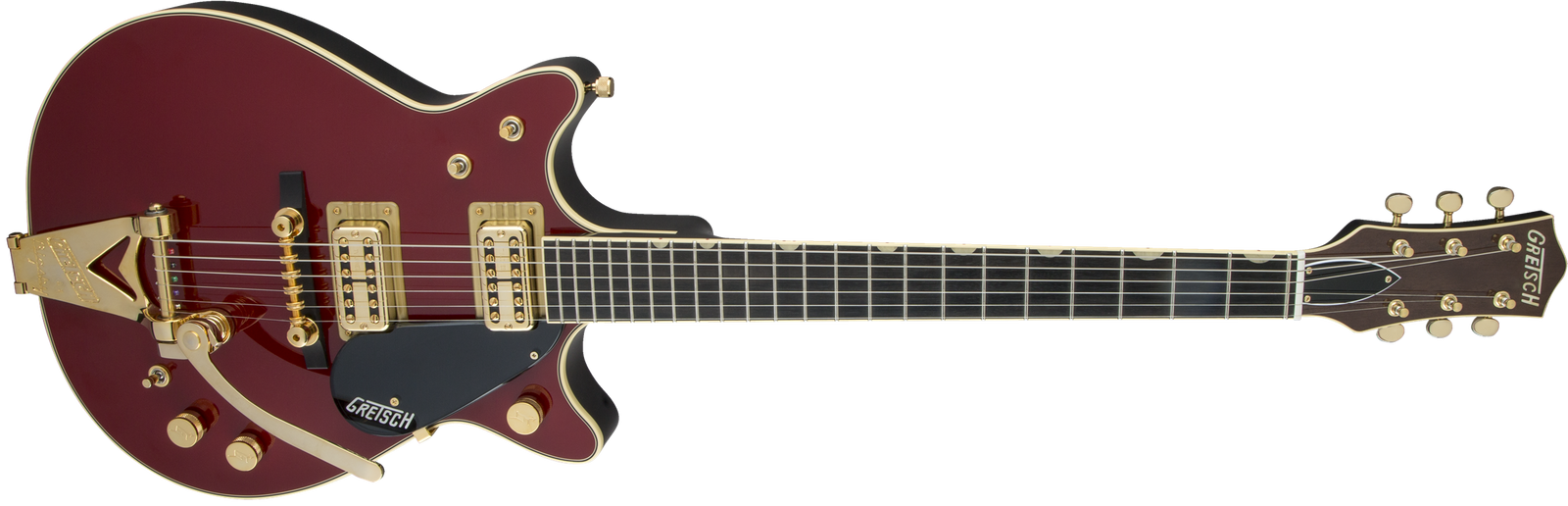

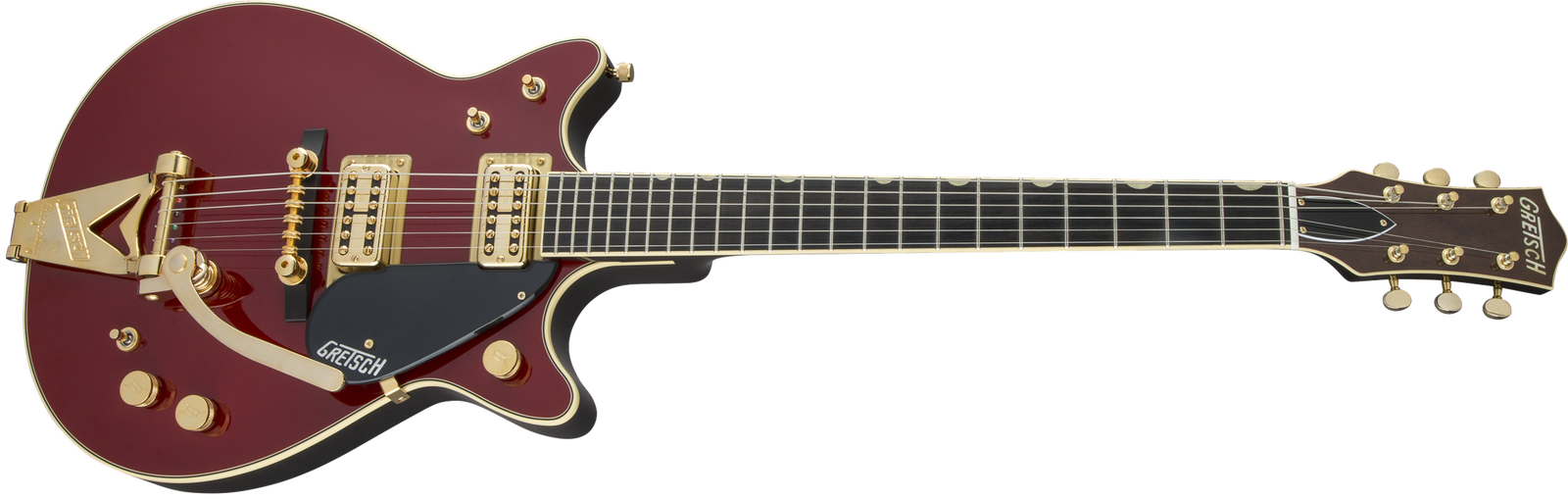

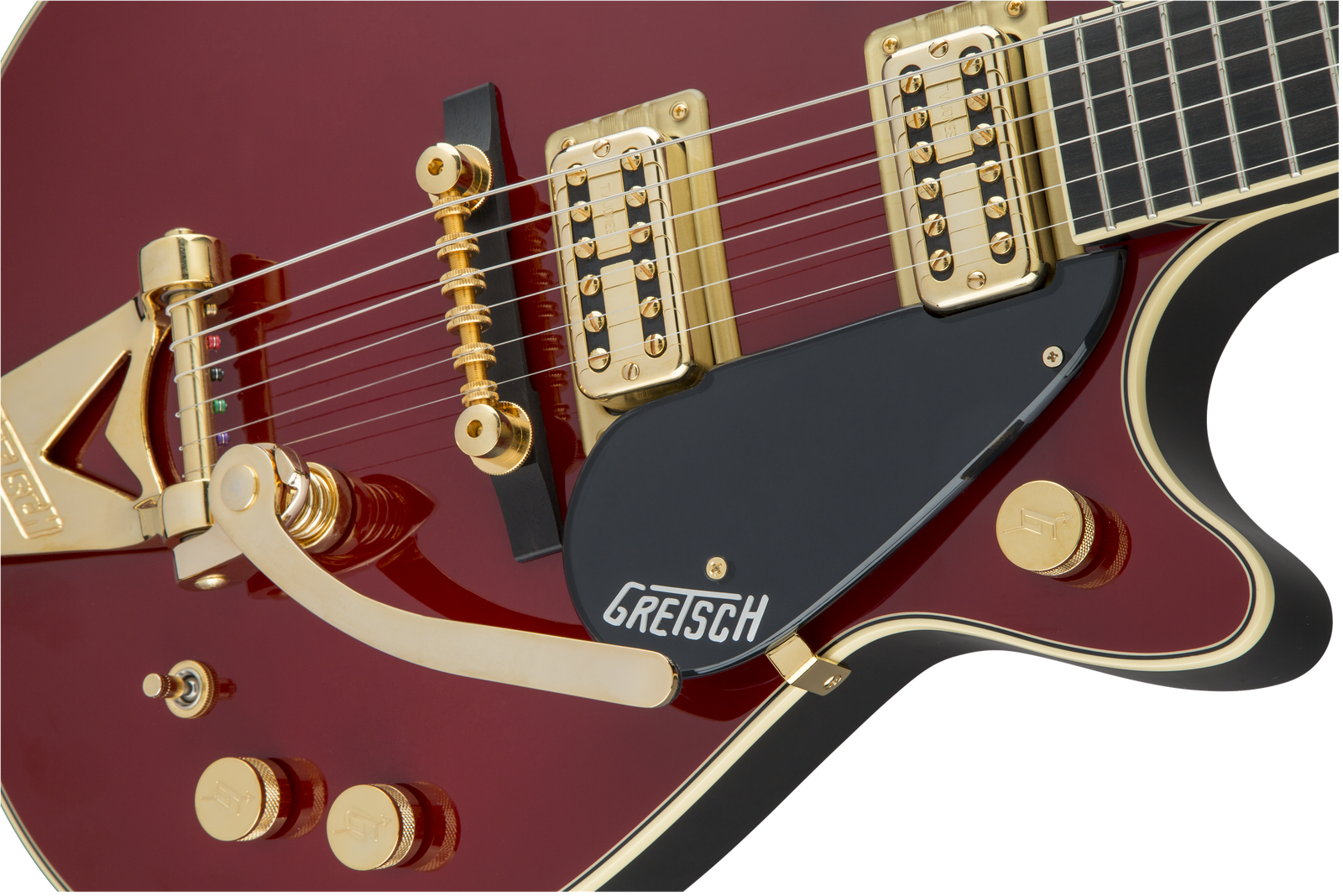

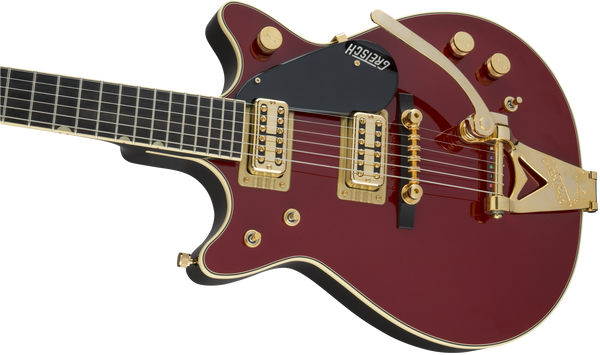

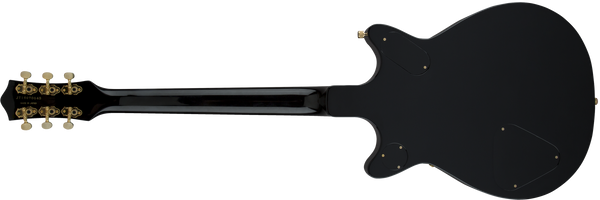

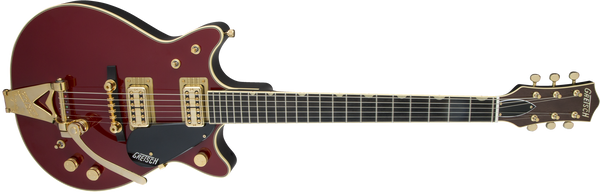

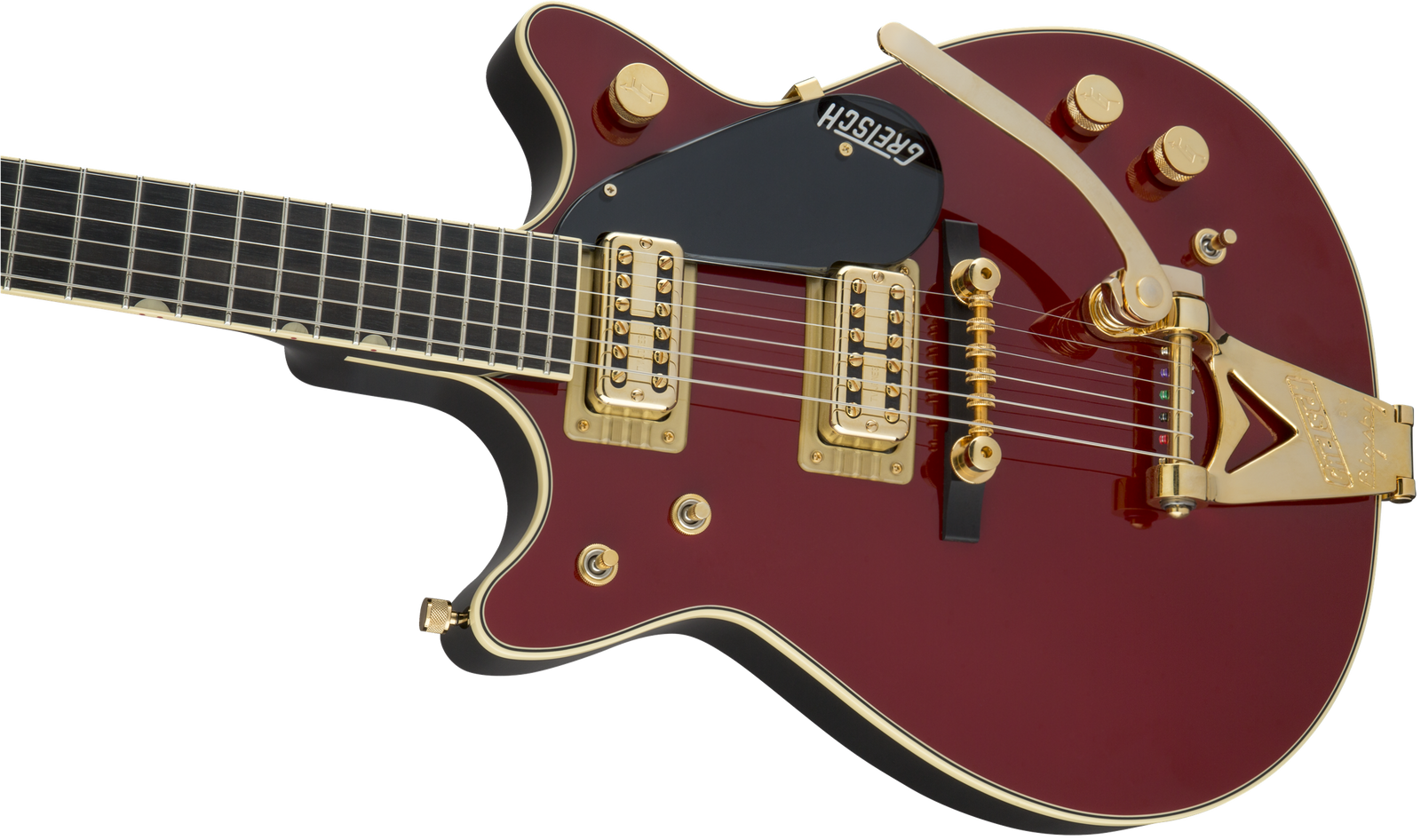

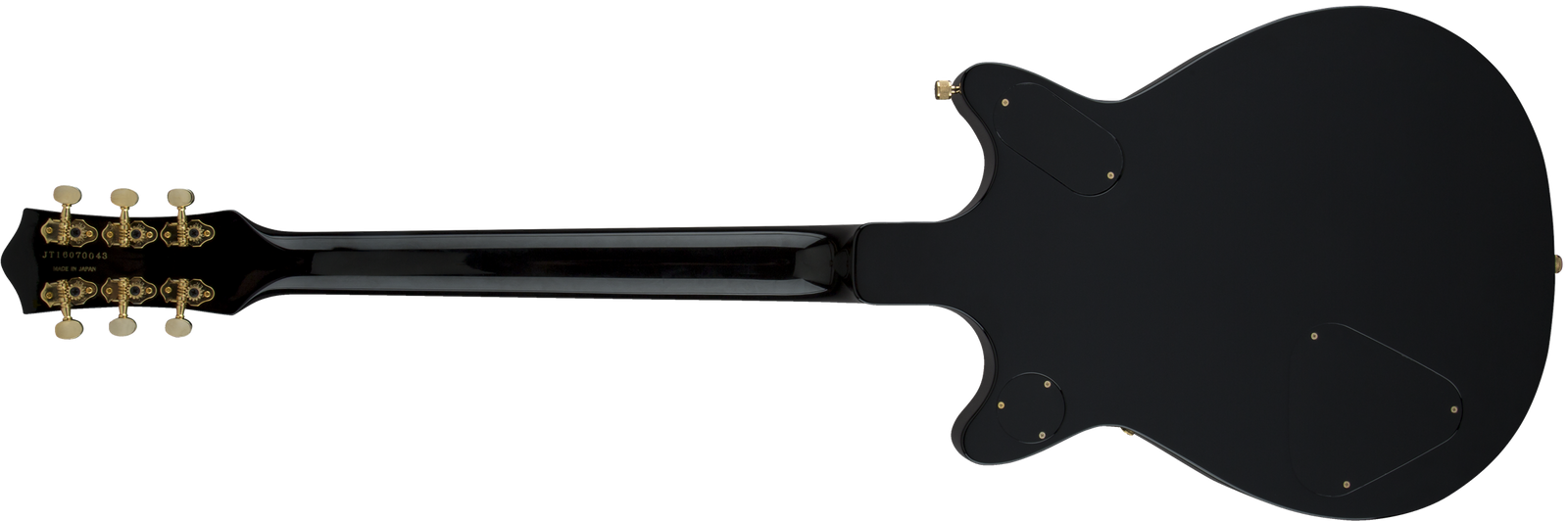

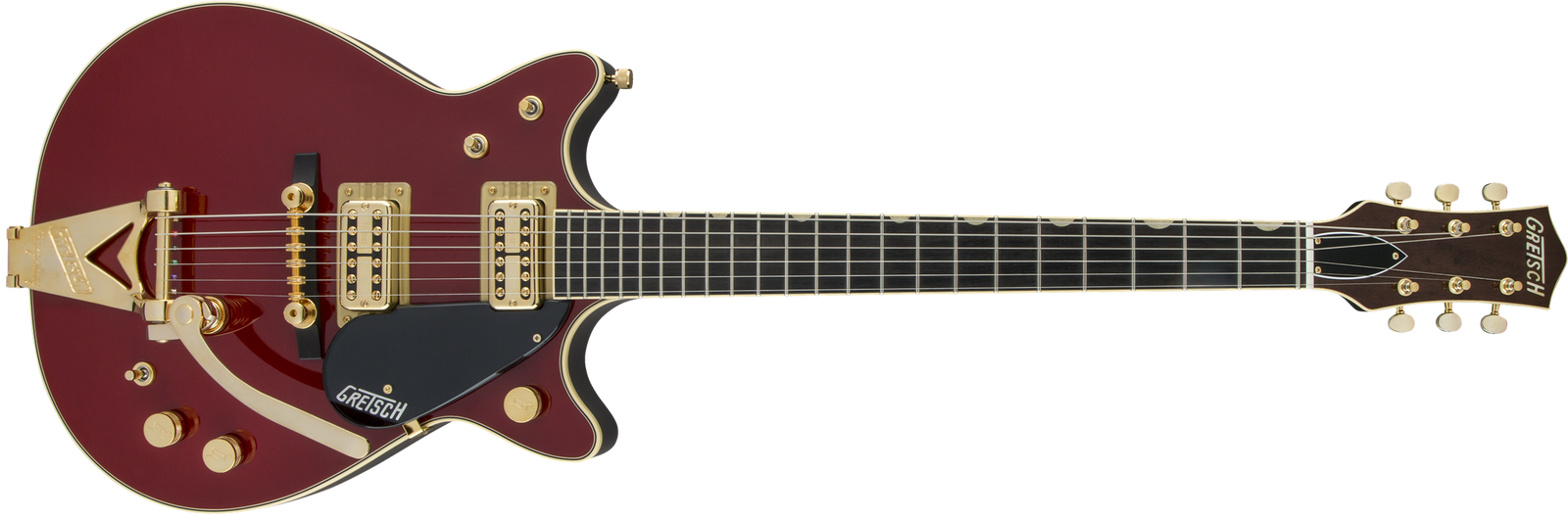

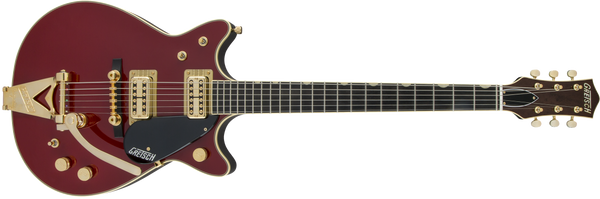

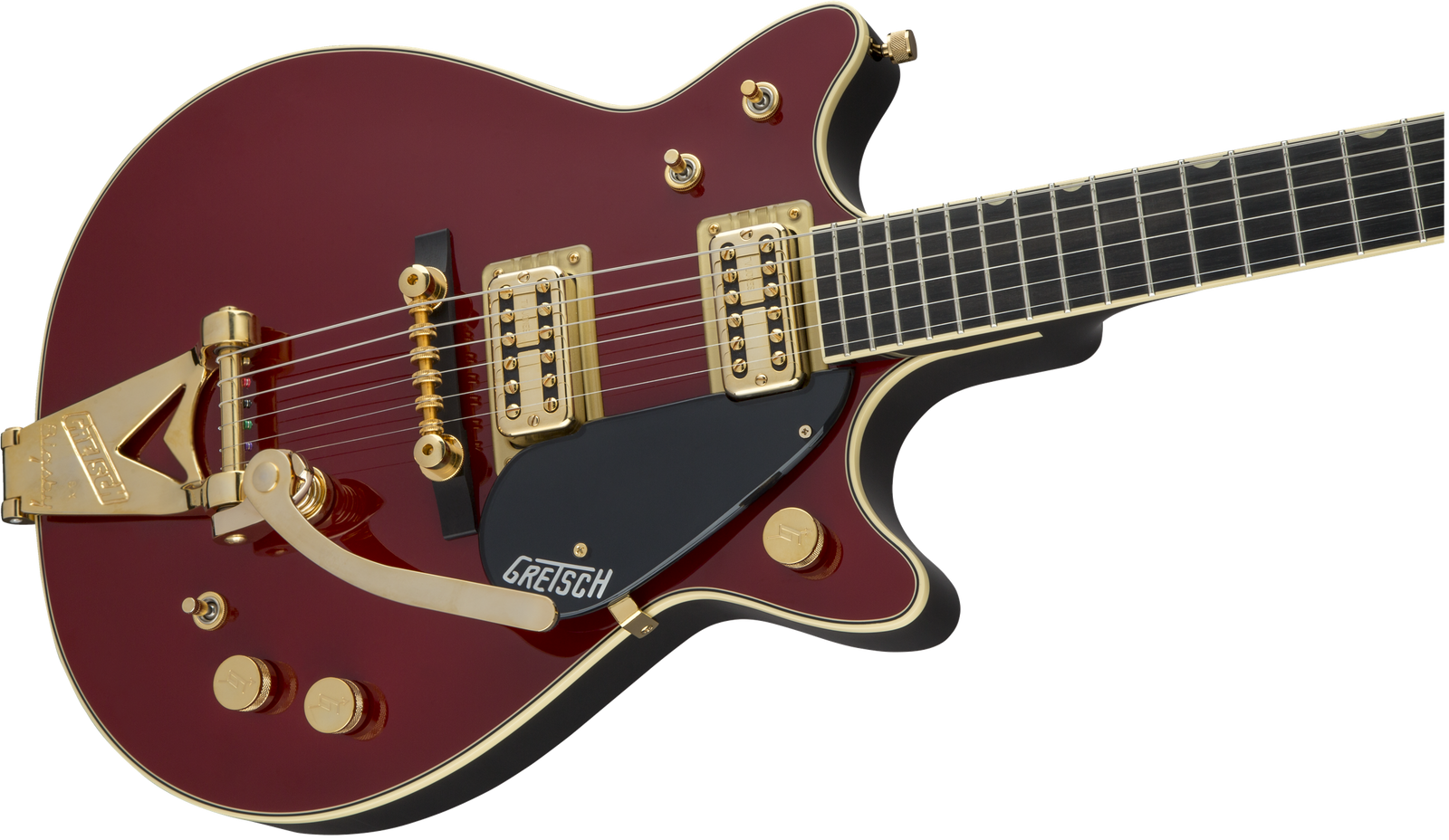

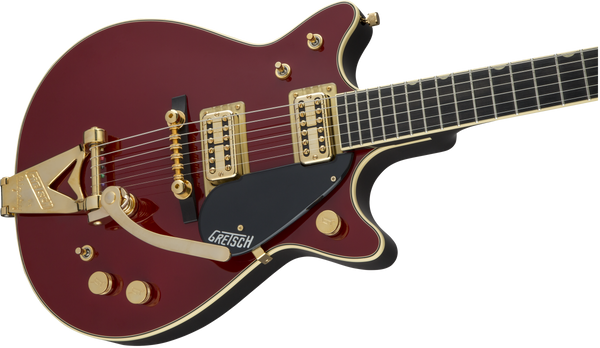

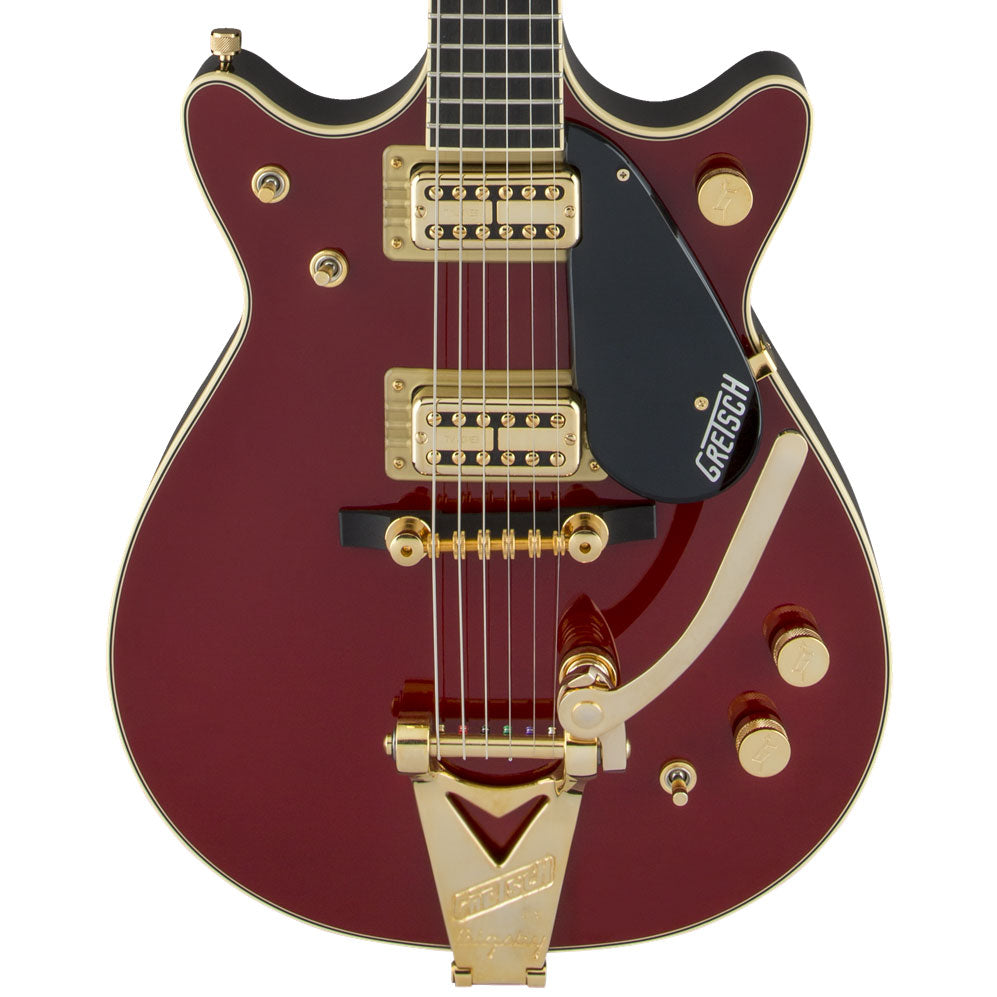

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6131T-62 Vintage Select '62 Jet with Bigsby listed above. For larger pics, click on an image to open in a new tab.
