Gretsch Broadkaster LX Figured Center Block with String-Thru Bigsby and Gold Hardware Bourbon Stain Specs

The Broadkaster LX Figured Center Block with String-Thru Bigsby and Gold Hardware is a semi hollow electric guitar built by Gretsch. This double cutaway set neck guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2400781878.

Key Features

Arched Laminated Flame Maple Top
Arched Laminated Flame Maple Body
Maple Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Gotoh Locking Tuning Machines
Pro Twin Six Bridge Pickup
Pro Twin Six Neck Pickup

Product Identifiers

Model Name	Broadkaster LX Figured Center Block with String-Thru Bigsby and Gold Hardware
Part Number	2400781878
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
Subcategory	Double Cutaway Set Neck
UPC Code	0885978968794

Factory Specifications

Body Construction

Body Material	Laminated Flame Maple
Top Material	Arched Laminated Flame Maple
Back Material	Arched Laminated Flame Maple
Body Shape	Broadkaster
Body Binding	Aged White with B/W/B Purfling
Body Finish	Gloss
Bracing	Center Block

Hardware

Bridge	Anchored Adjusto-Matic
Tuning Machines	Gotoh Locking
Pickguard	Gold Plexi with Gold Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B7GP String-Thru
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Refinement Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Luminlay
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech TUSQ XL
String Nut	Graph Tech TUSQ XL
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	Aged White

Electronics

Bridge Pickup	Pro Twin Six
Neck Pickup	Pro Twin Six
Pickup Configuration	HH
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Configuration	HH

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included G6267 Gretsch 16" Thin Hollowbody Hardshell (p/n 099-6443-000); Optional G2162 Gretsch Hollow Body Gig Bag (p/n 099-6458-000)

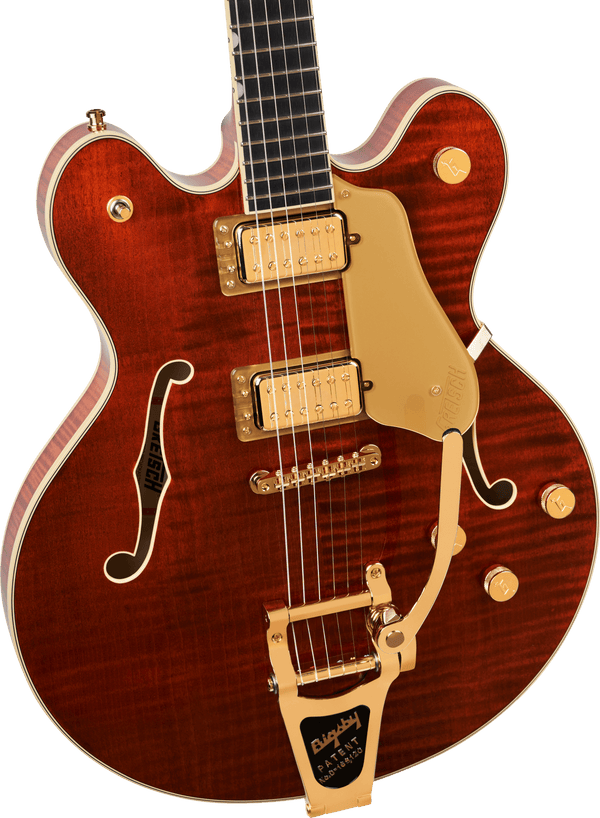

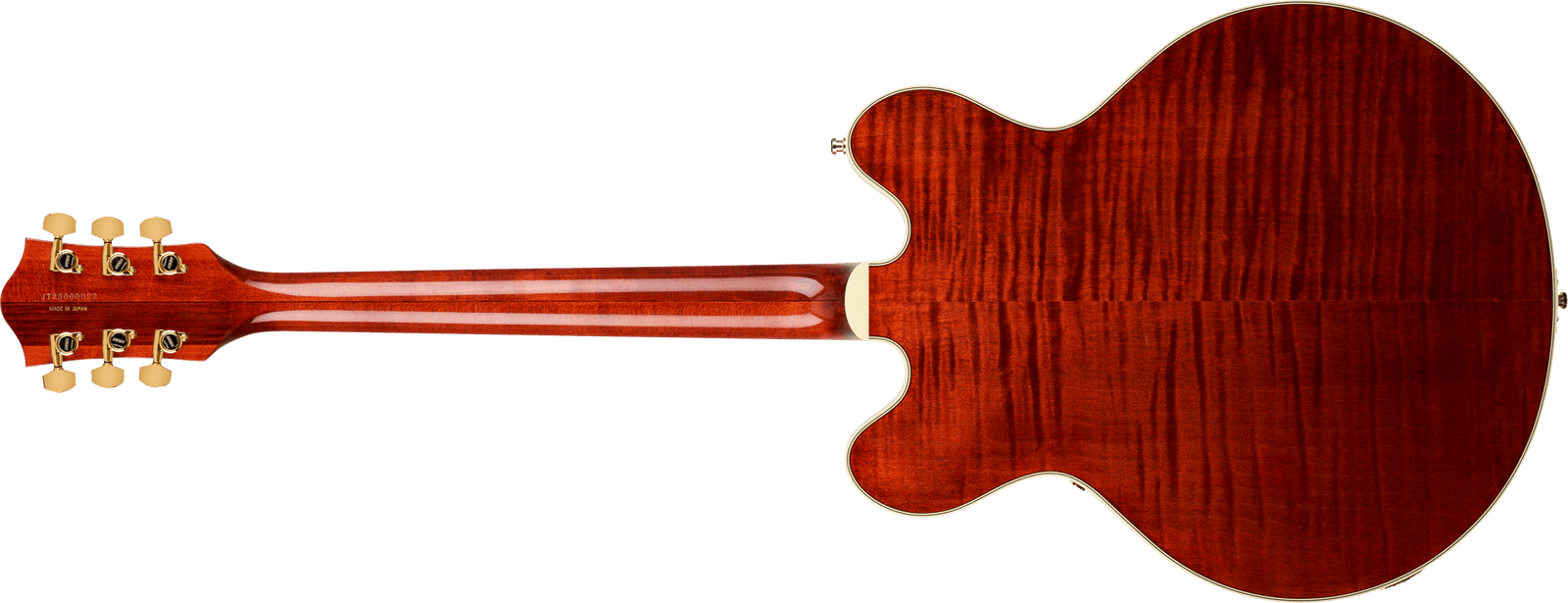

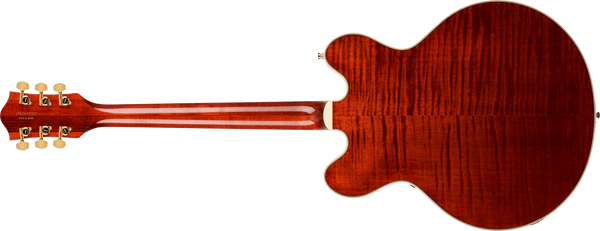

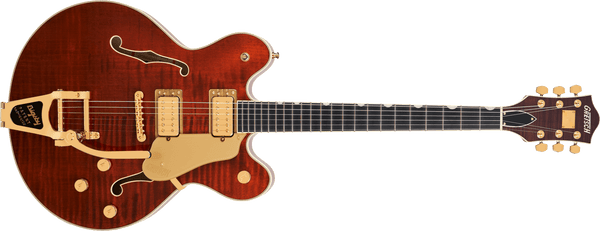

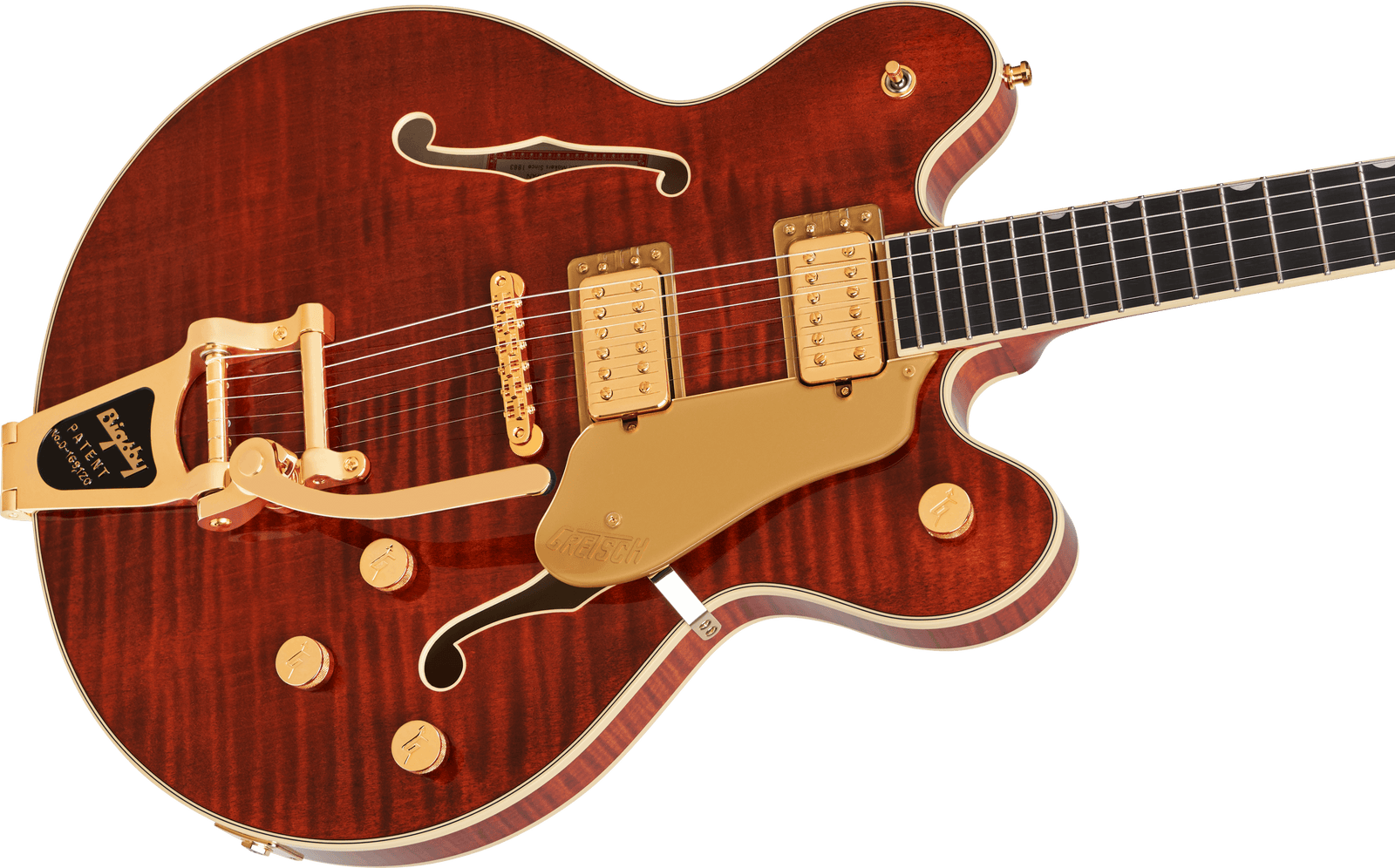

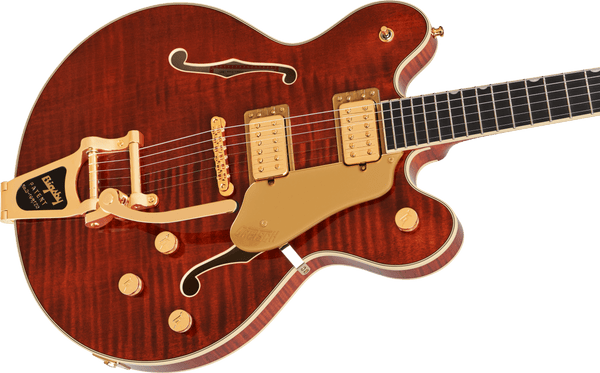

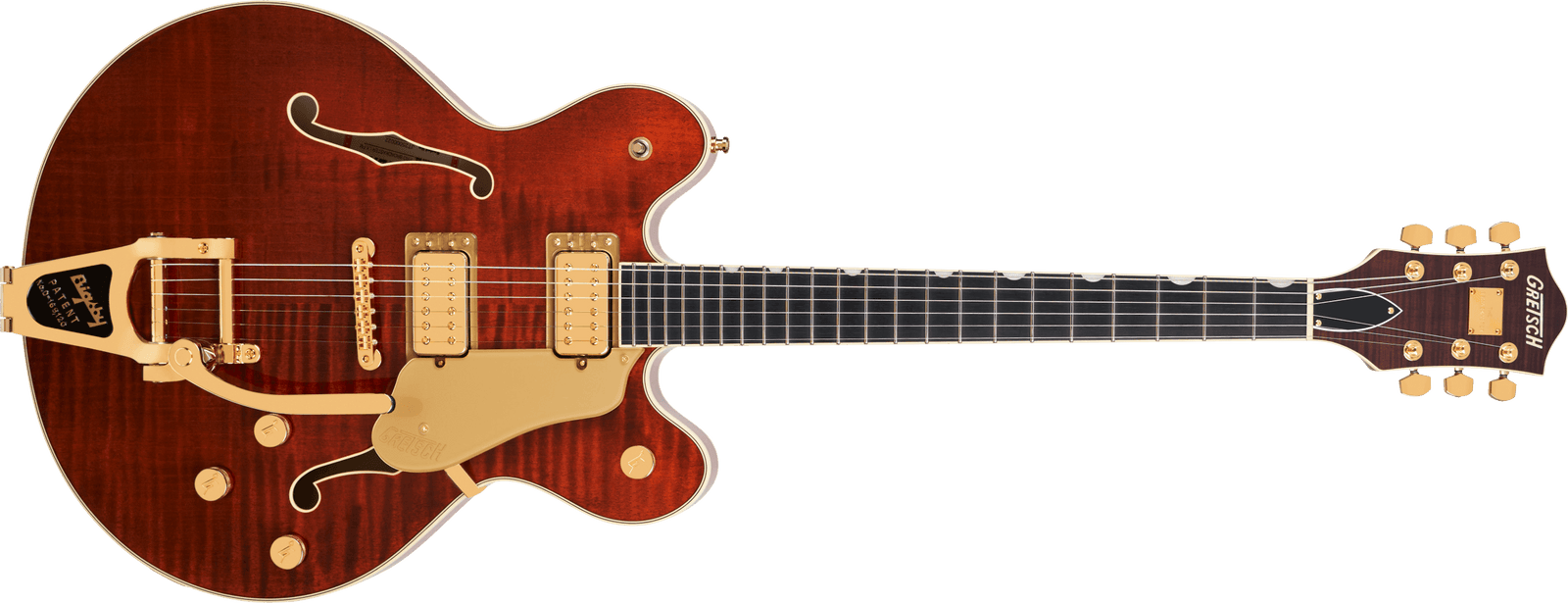

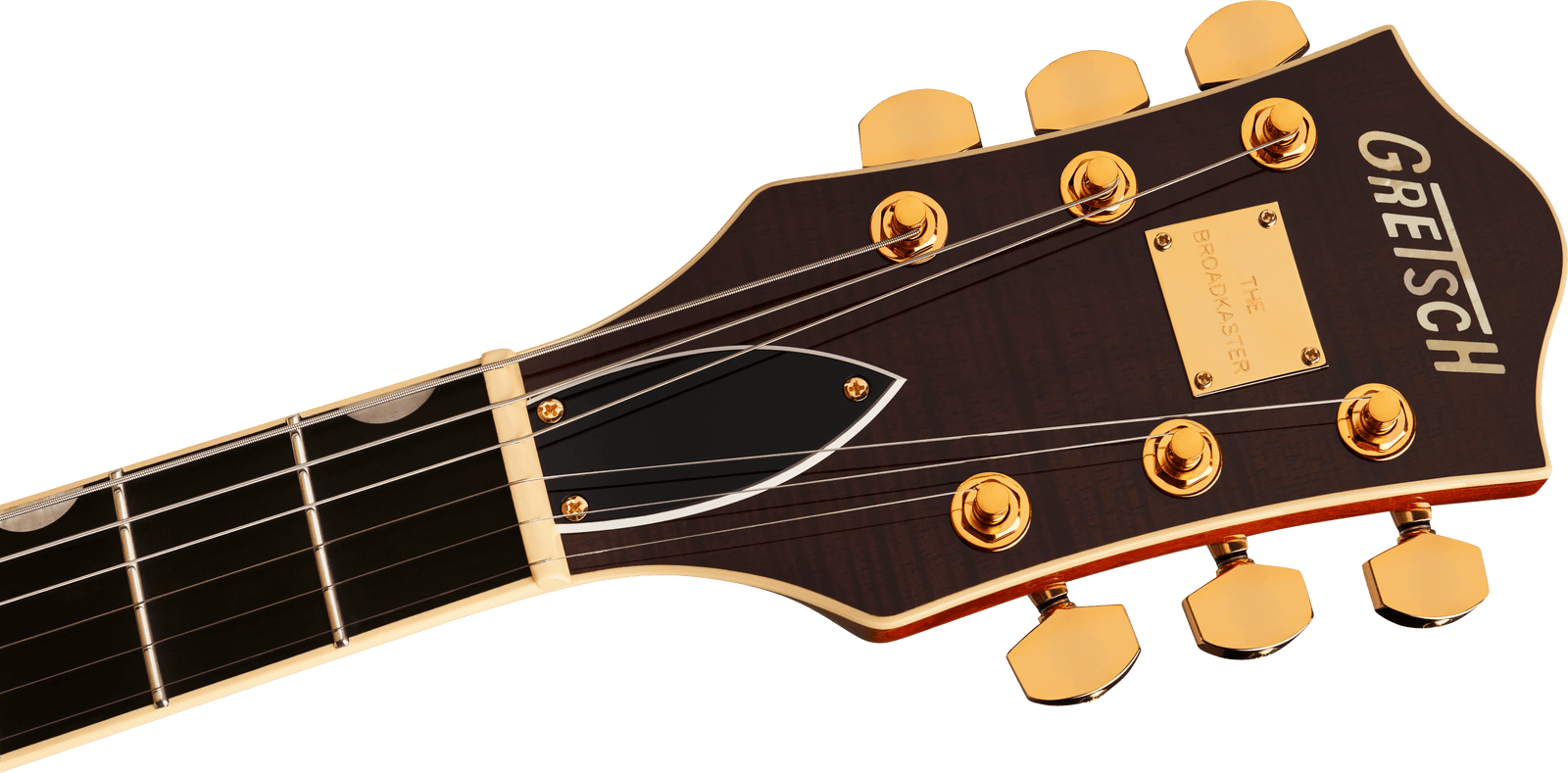

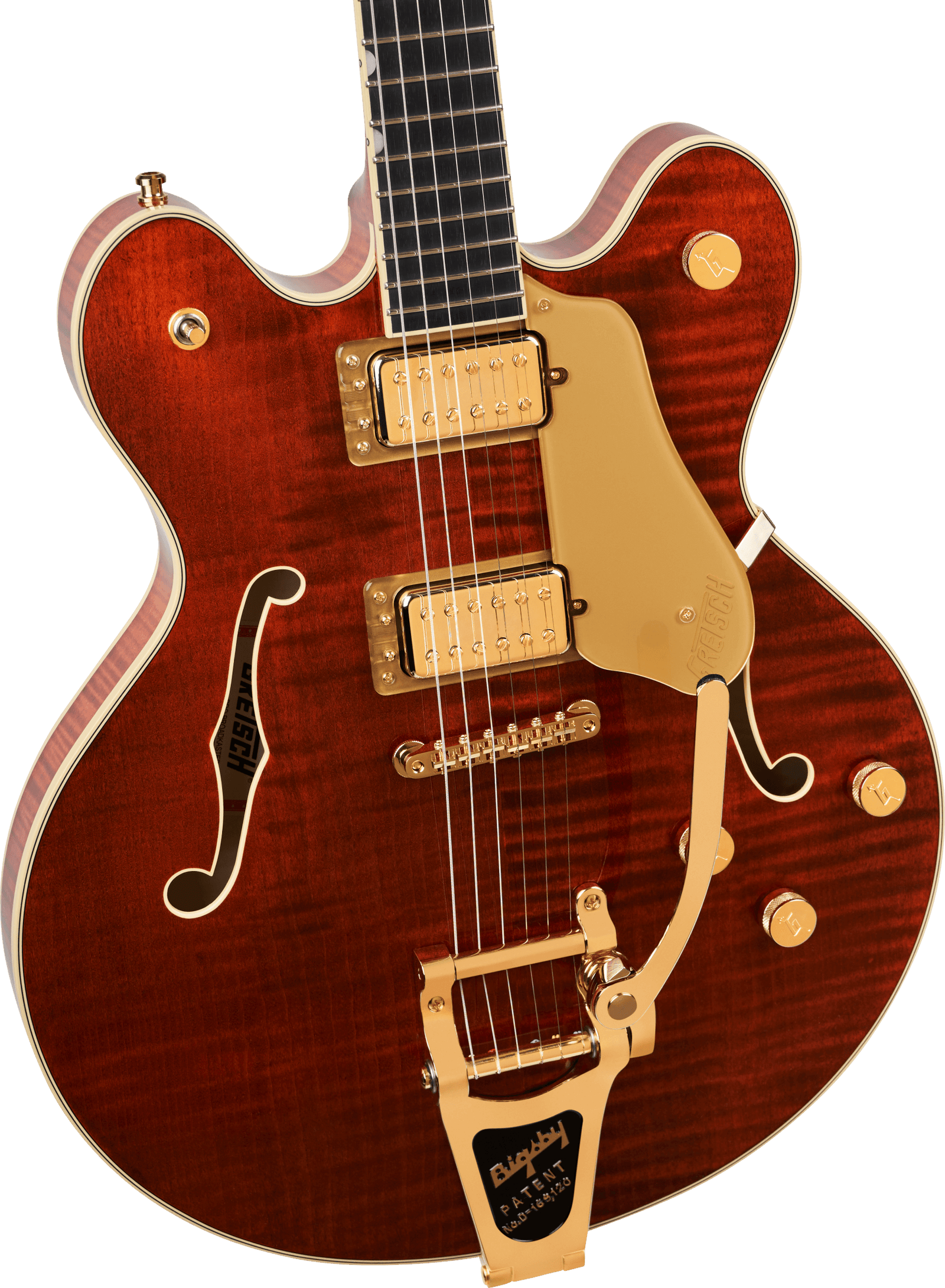

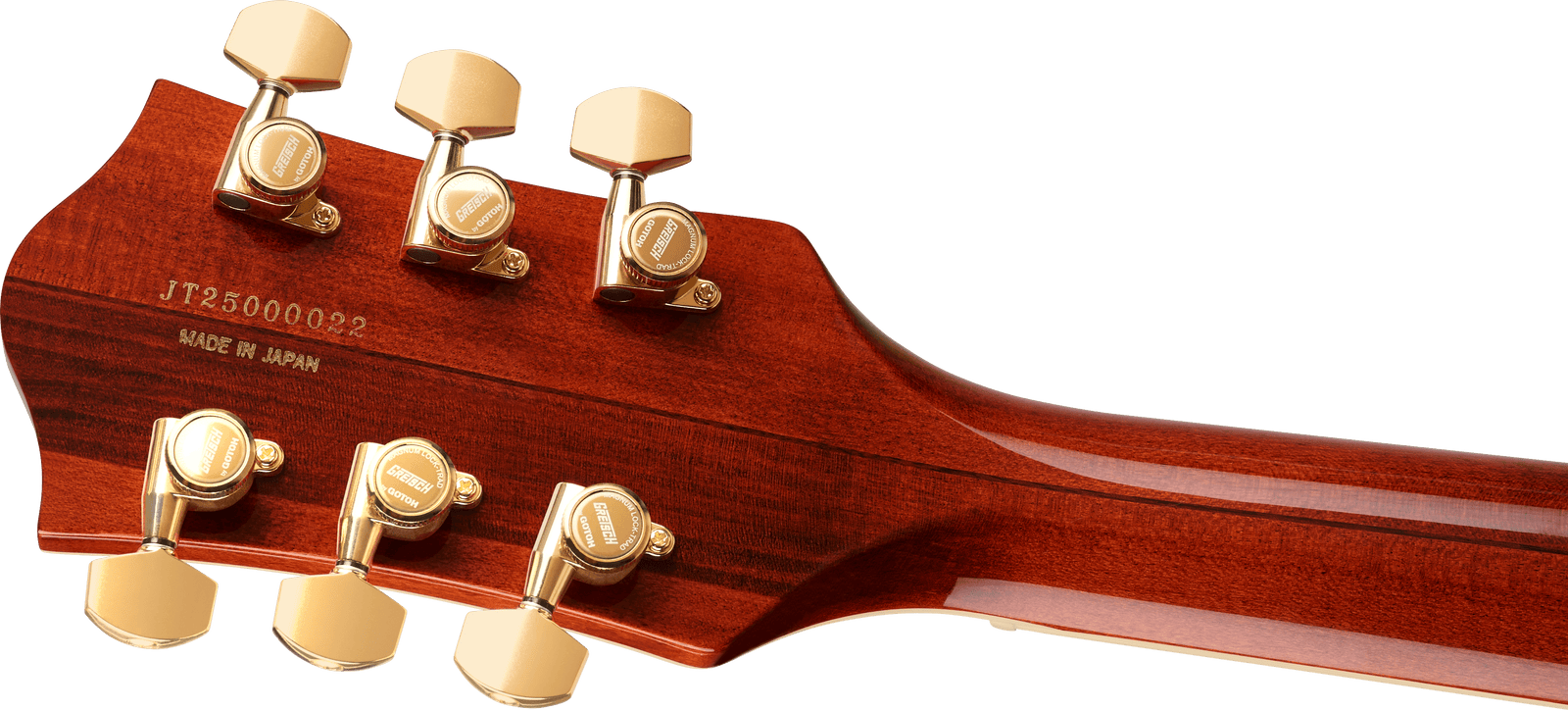

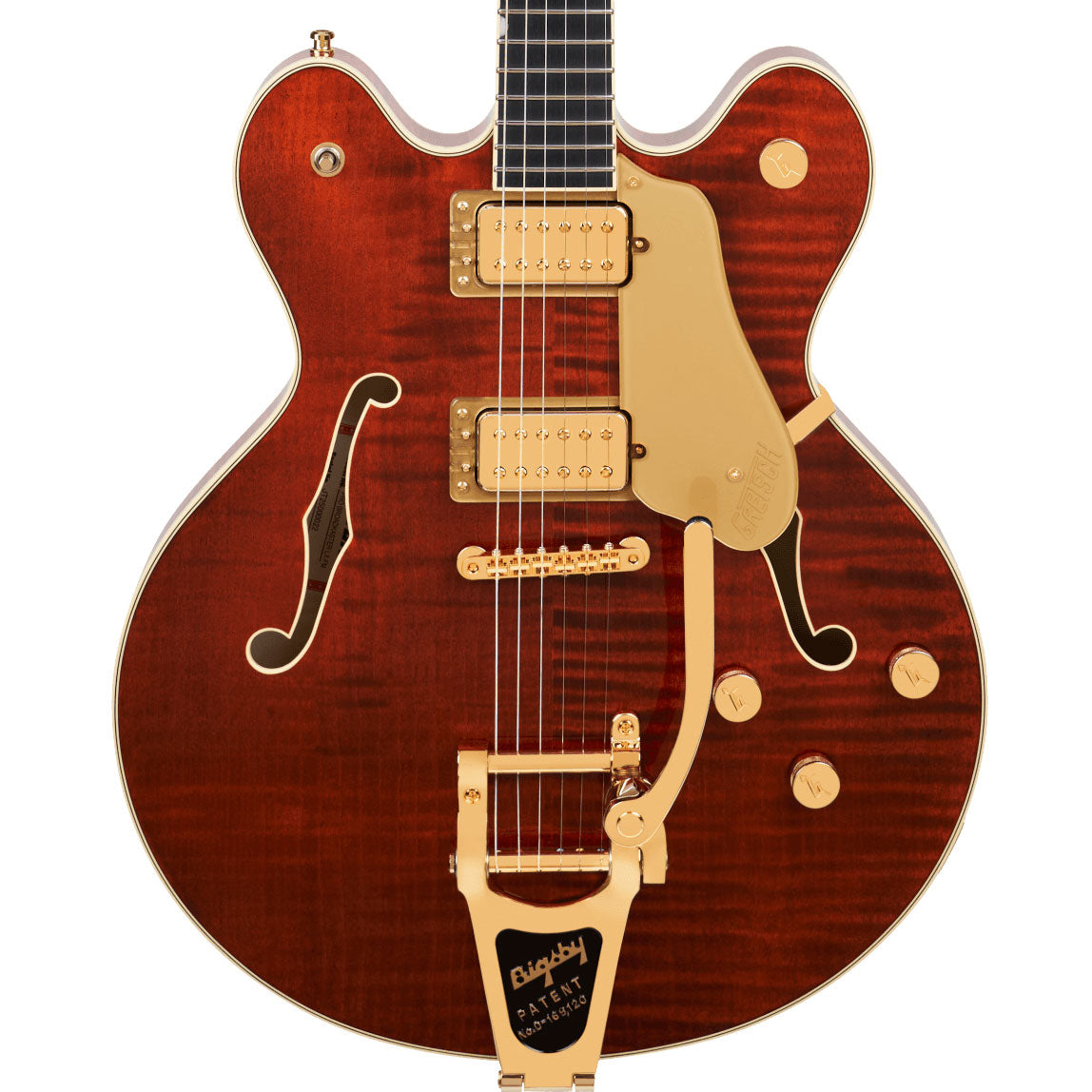

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Broadkaster LX Figured Center Block with String-Thru Bigsby and Gold Hardware listed above. For larger pics, click on an image to open in a new tab.
