Gretsch G6128T-GH George Harrison Signature Duo Jet Solid Body with Bigsby Black Specs

The G6128T-GH George Harrison Signature Duo Jet Solid Body with Bigsby is a solid body electric guitar built by Gretsch. This single cutaway set neck guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2400416806.

Key Features

Arched Laminated Maple Top
Mahogany Body
1-Piece Mahogany Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Vintage Small Frets
Rocking Bar Bridge
Grover Sta-Tite Die-Cast Tuning Machines
DynaSonic Bridge Pickup
DynaSonic Neck Pickup

Product Identifiers

Model Name	G6128T-GH George Harrison Signature Duo Jet Solid Body with Bigsby
Part Number	2400416806
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
Subcategory	Single Cutaway Set Neck
UPC Code	0885978039258

Factory Specifications

Body Construction

Body Material	Chambered Mahogany
Top Material	Arched Laminated Maple
Back Material	Mahogany
Body Shape	Jet
Body Finish	Gloss Urethane
Lower Bout Width	13.46" (341.88 mm)

Hardware

Bridge	Rocking Bar
Tuning Machines	Grover Sta-Tite Die-Cast
Pickguard	Silver Plexi with Black Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby�� B3C Vibrato Tailpiece with Gretsch Logo
Hardware Finish	Chrome-Plated

Neck Construction

Neck Material	1-Piece Mahogany
Refinement Neck Material	Mahogany
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Refinement Fingerboard Radius	Modern
Fingerboard Inlays	Pearloid Hump Block
Number of Frets	22
Fret Size	Vintage Small
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Bone
String Nut	Bone
Neck Shape	"U" Shape
Neck Finish	Gloss Urethane
Headstock	Jet Style
Truss Rod Nut	5/16" (7.9375 mm)

Electronics

Bridge Pickup	DynaSonic
Neck Pickup	DynaSonic
Refinement Pickups	DynaSonic / DynaSonic
Pickup Configuration	Dynasonic / Dynasonic
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Configuration	Dynasonic / Dynasonic

General

Orientation	Right-Hand
Strings	D'Addario EXL110 Nickel Plated Steel (.010-.046 Gauges)
Unique Features	Mid-'50s body chamber style, all BLACK color scheme (body top, back and sides & back of neck), B3C Bigby tailpiece with black "phillips-head" trem arm pivot bolt, off-set mounted strap carrage bolt on butt of body.
Case / Gig Bag	Included G6276 Gretsch Solid Body Hardshell (p/n 099-6465-000); Optional G2164 Solid Body Gig Bag (p/n 099-6460-000)
Included Accessories	G6276 Premium Solid Body Guitar Hardshell, Tweed
Recommended Case	Included: 099-6410-000 Deluxe Case - G6238 - Solid Body Models
Truss Rod Wrench	5/16" Hex (Allen)

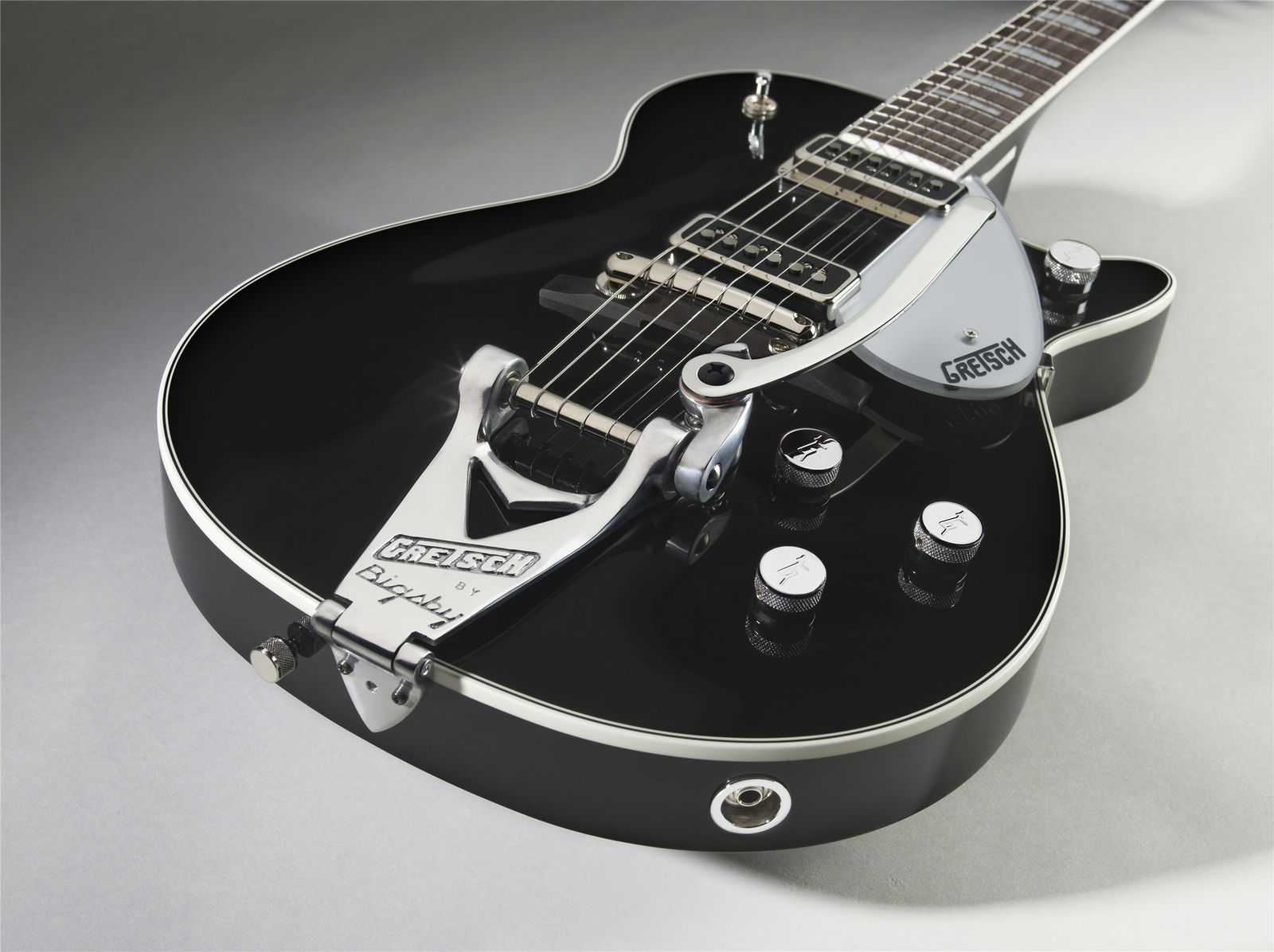

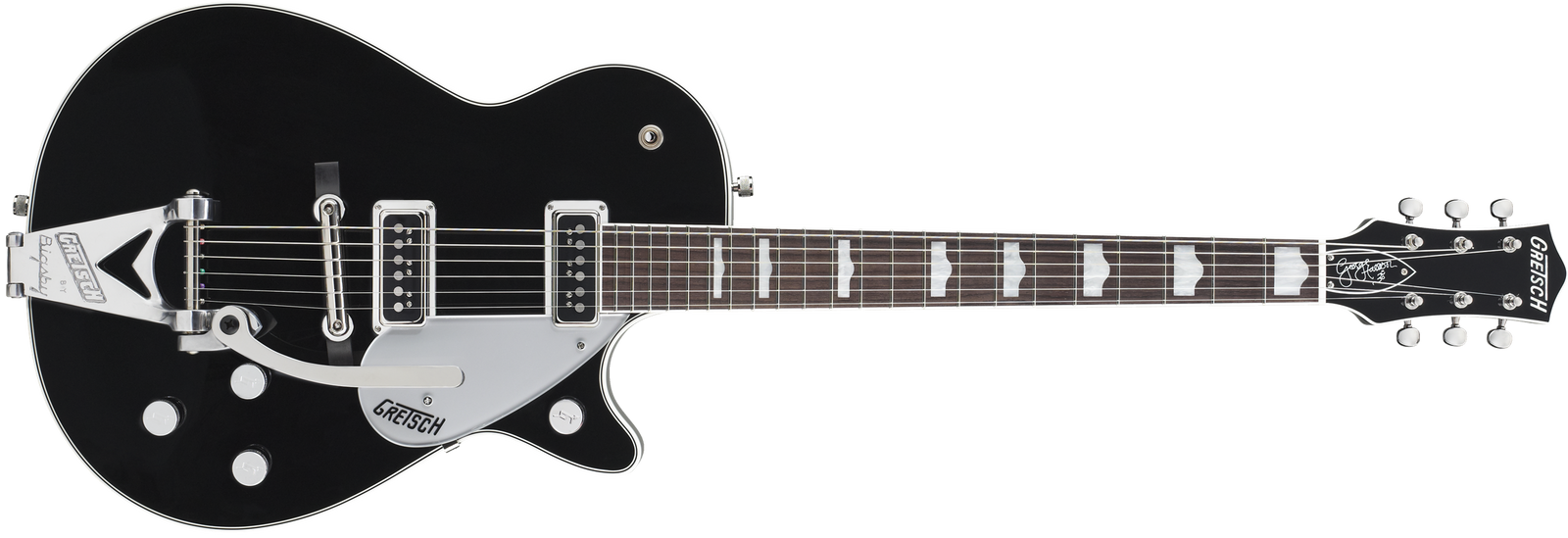

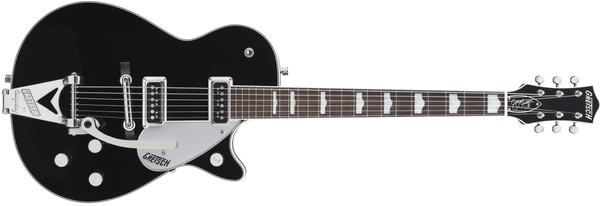

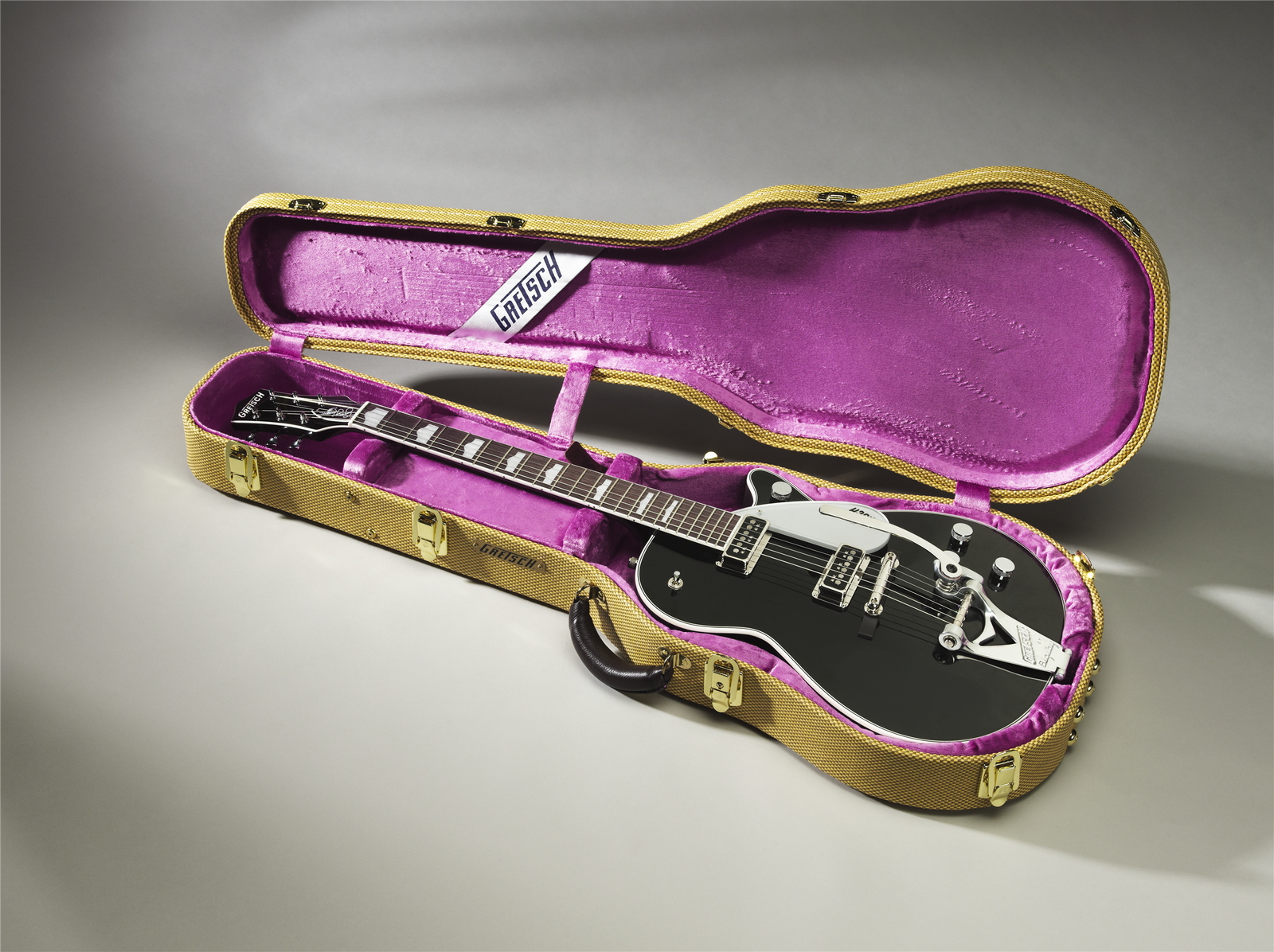

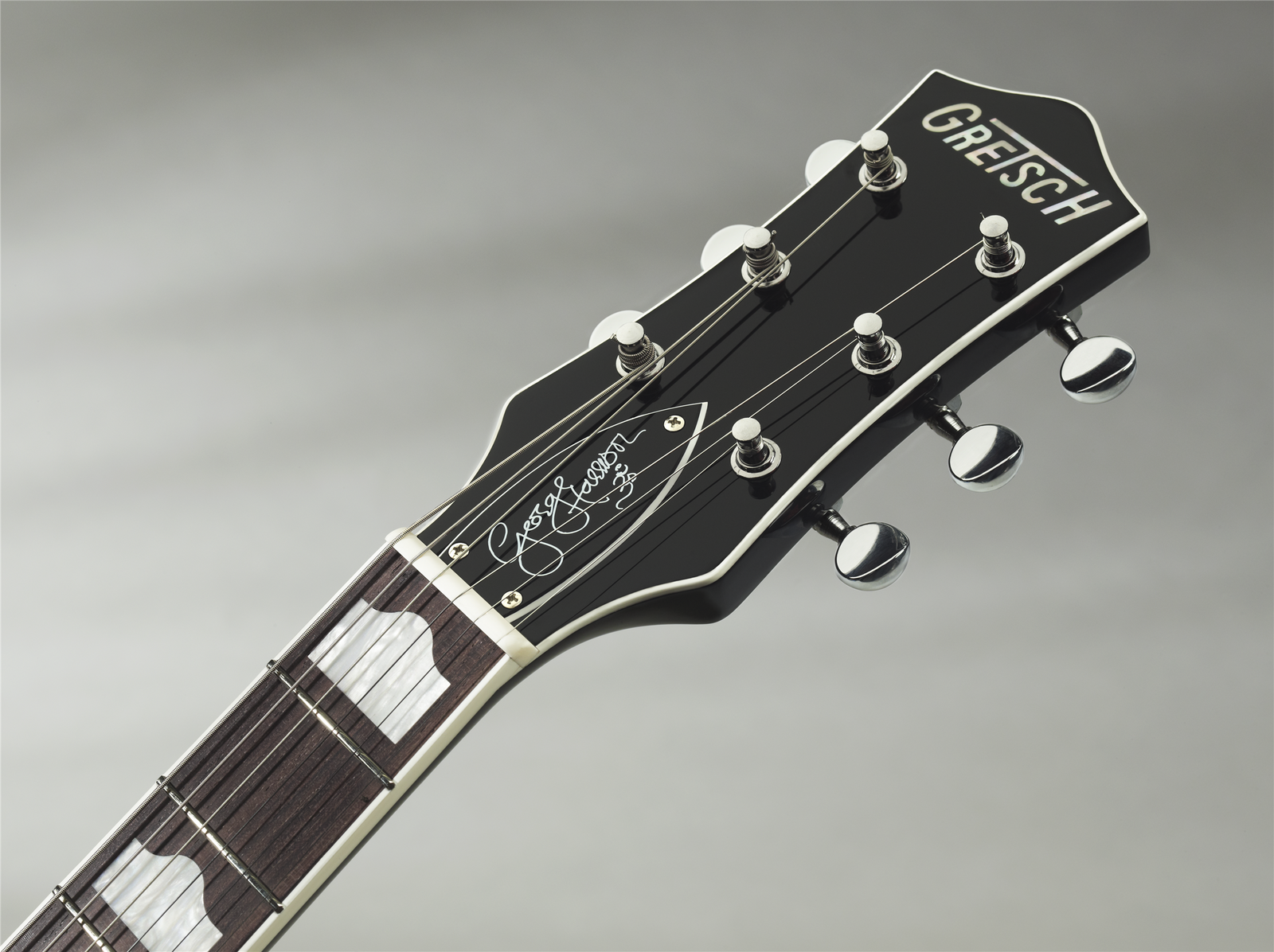

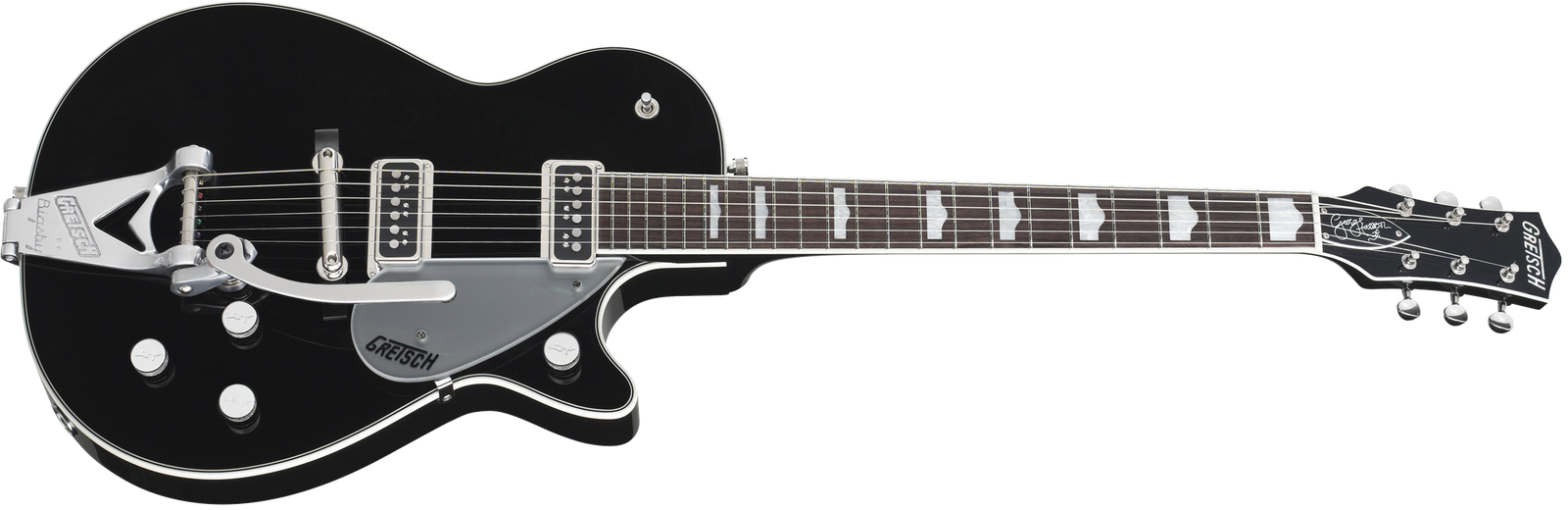

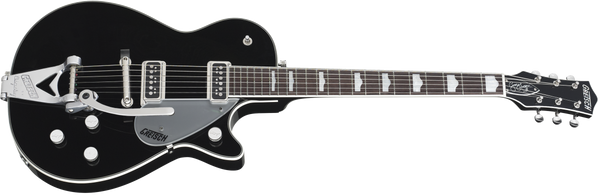

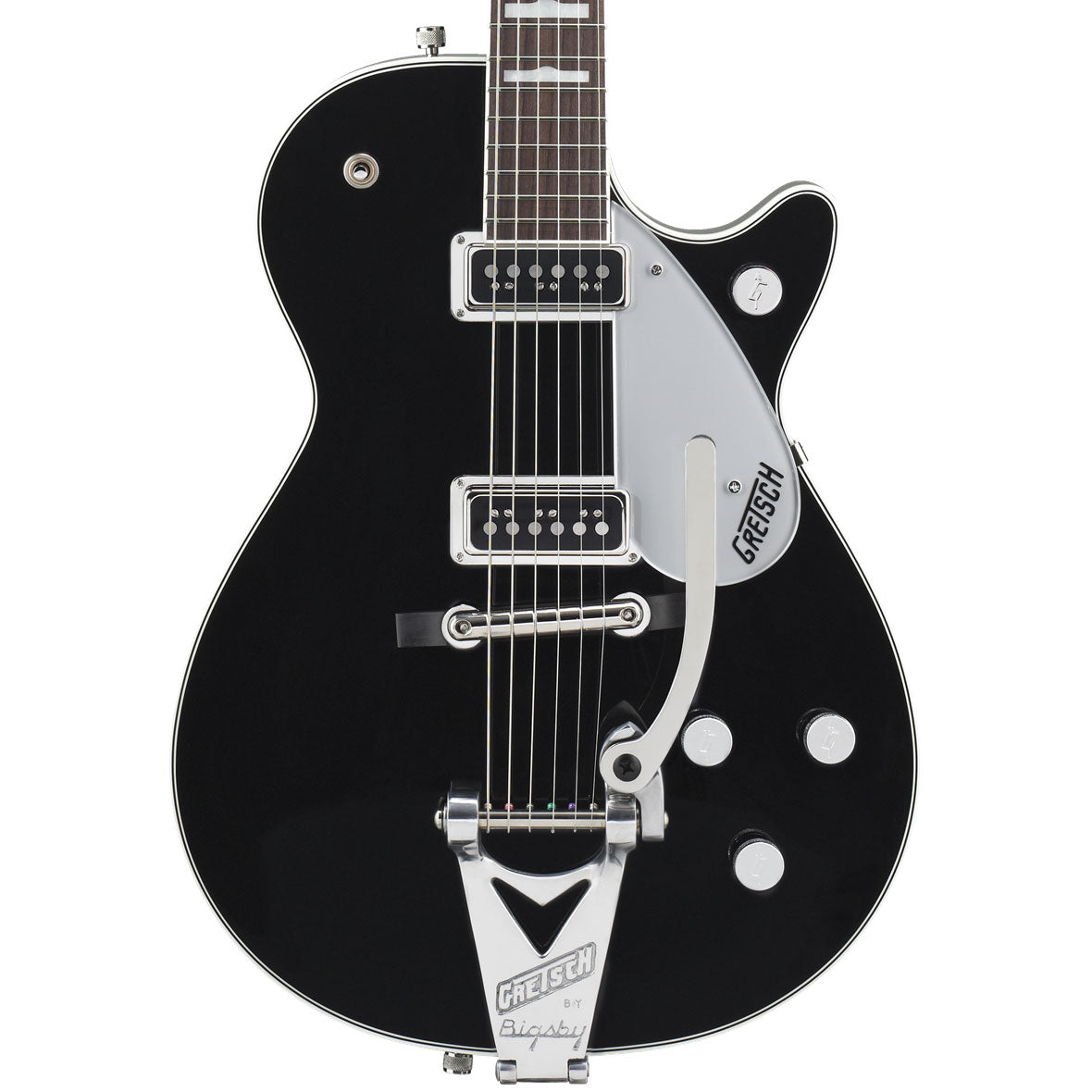

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6128T-GH George Harrison Signature Duo Jet Solid Body with Bigsby listed above. For larger pics, click on an image to open in a new tab.
