Gretsch G6128T-89 Vintage Select '89 Duo Jet with Bigsby Black Specs

The G6128T-89 Vintage Select '89 Duo Jet with Bigsby is a solid body electric guitar built by Gretsch. This single cutaway set neck guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401814806.

Key Features

Arched Laminated Maple Top
Mahogany Body
Maple Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Gotoh Die-Cast Tuning Machines
TV Jones TV Classic Plus Bridge Pickup
TV Jones TV Classic Neck Pickup

Product Identifiers

Model Name	G6128T-89 Vintage Select '89 Duo Jet with Bigsby
Part Number	2401814806
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
Subcategory	Single Cutaway Set Neck
UPC Code	0885978746385

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Arched Laminated Maple
Back Material	Mahogany
Body Shape	Jet
Body Binding	White with B/W/B Purfling
Body Finish	Gloss
Bracing	Chambered
Upper Bout Width	10.5" (267 mm)
Lower Bout Width	13.5" (343 mm)
Waist	8.625" (219.08 mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Gotoh Die-Cast
Pickguard	Silver Plexi with Silver Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B3C Vibrato Tailpiece with Gretsch Logo
Hardware Finish	Nickel

Neck Construction

Neck Material	Maple
Refinement Neck Material	Maple
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Refinement Fingerboard Radius	Modern
Fingerboard Inlays	Pearloid Hump Block
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Bone
String Nut	Bone
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	White

Electronics

Bridge Pickup	TV Jones TV Classic Plus
Neck Pickup	TV Jones TV Classic
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Configuration	Filter'Tron / Filter'Tron

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included G6238 Gretsch Deluxe Solid Body Hardshell (p/n 099-6410-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)

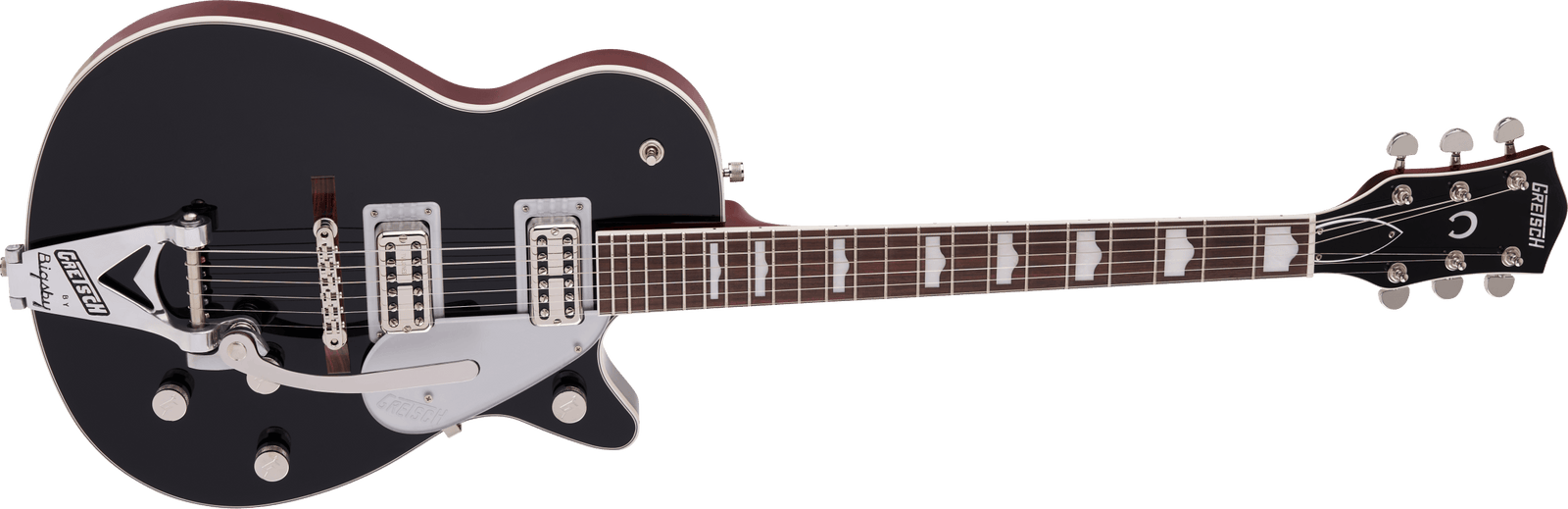

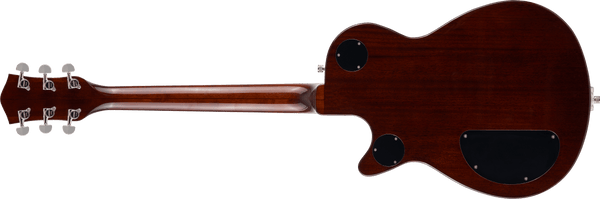

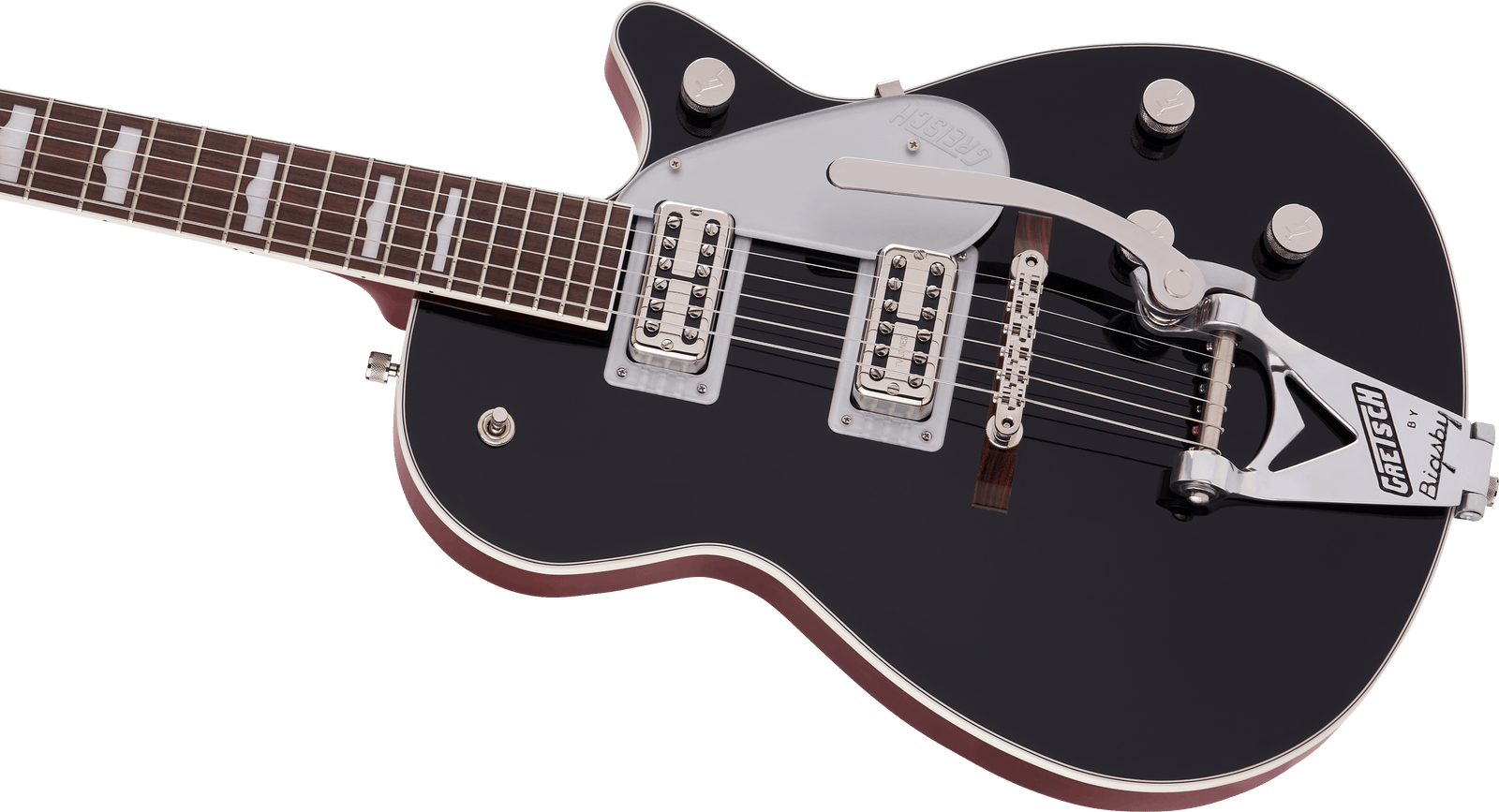

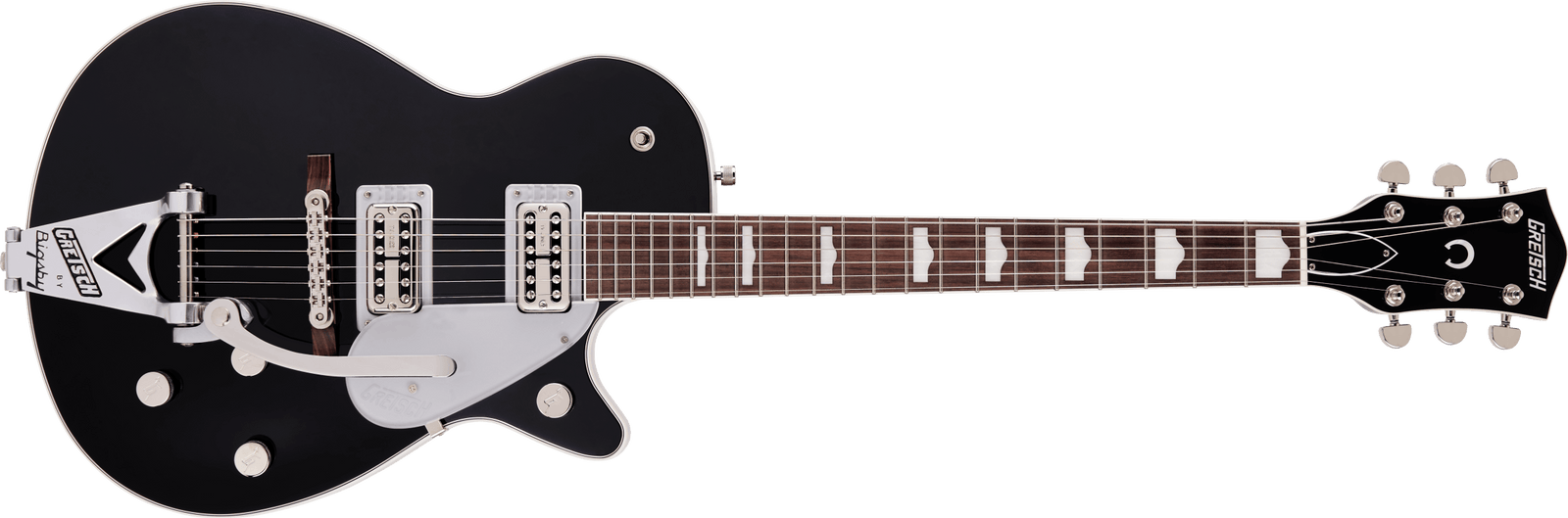

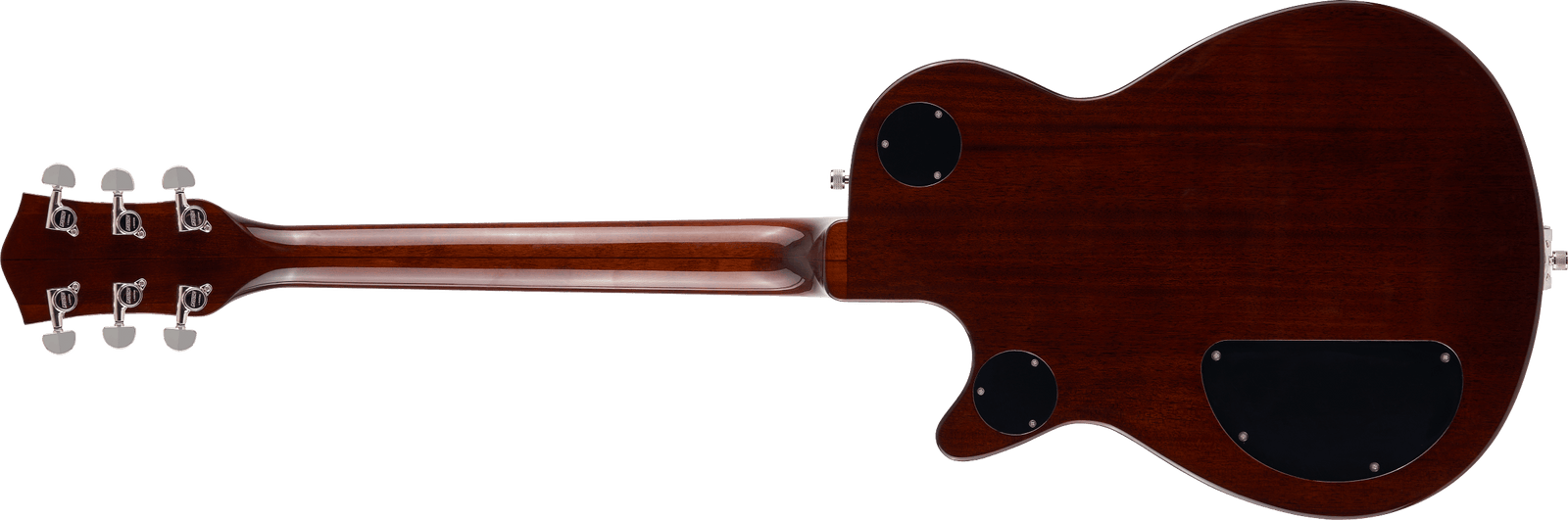

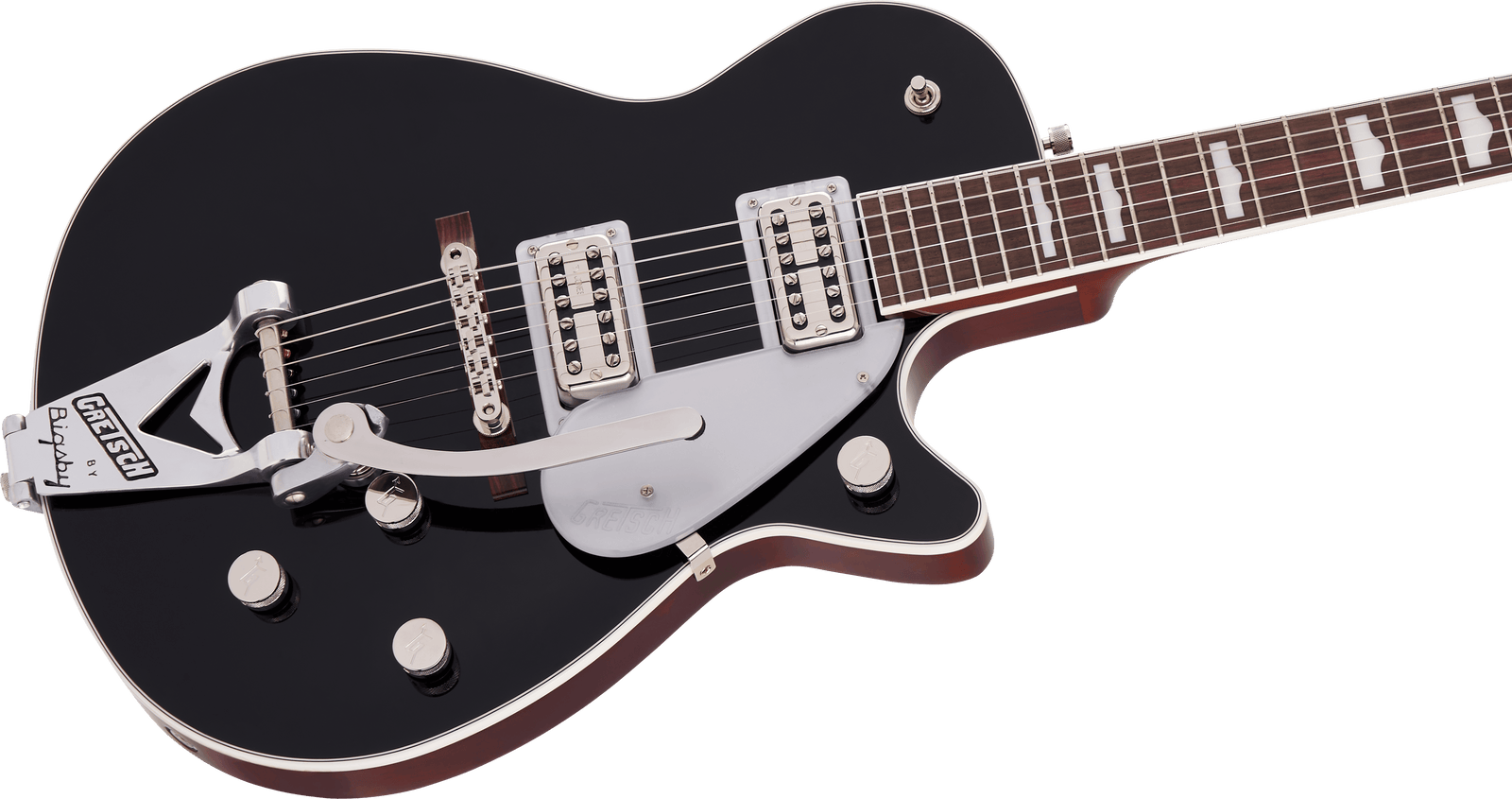

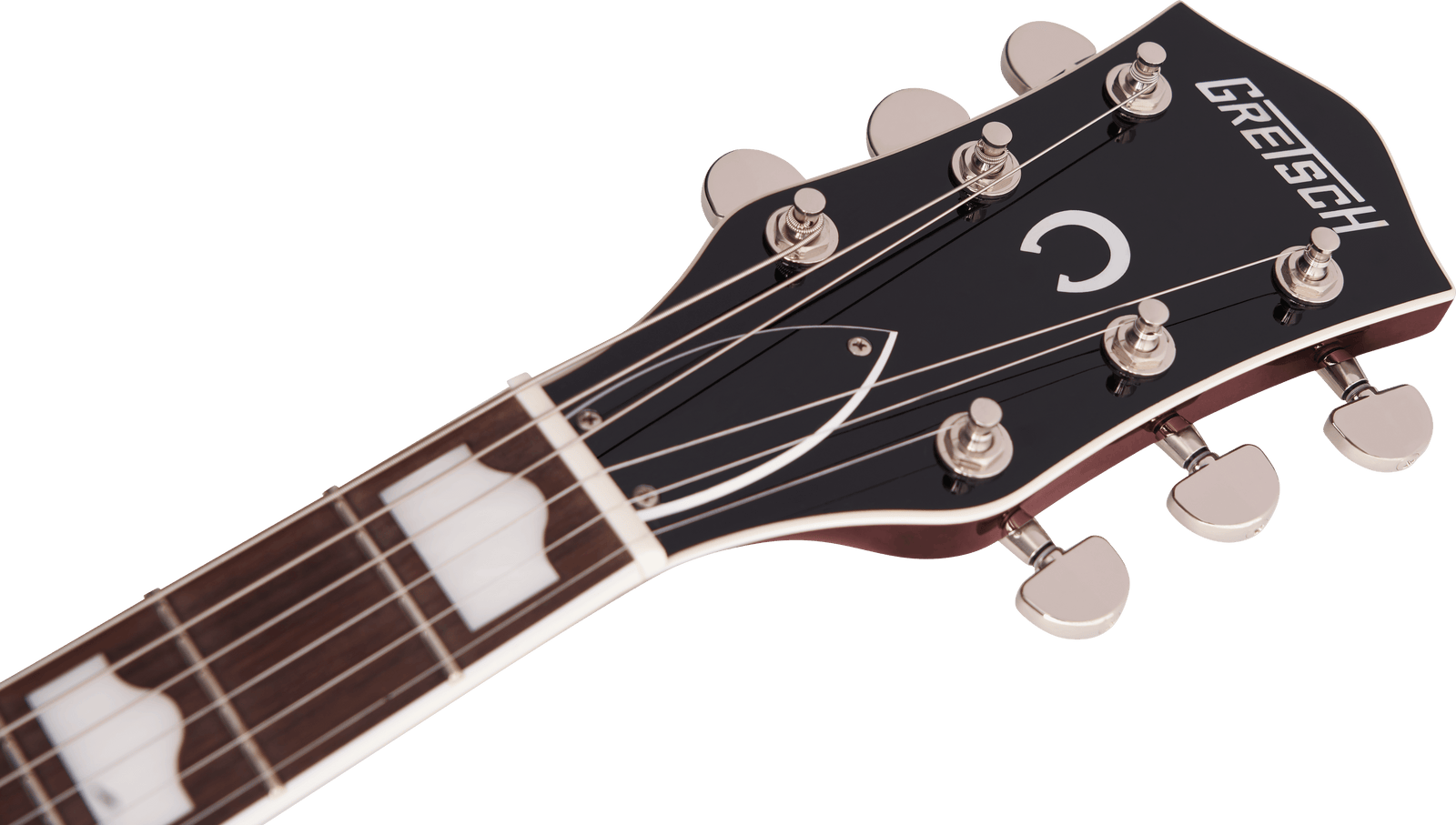

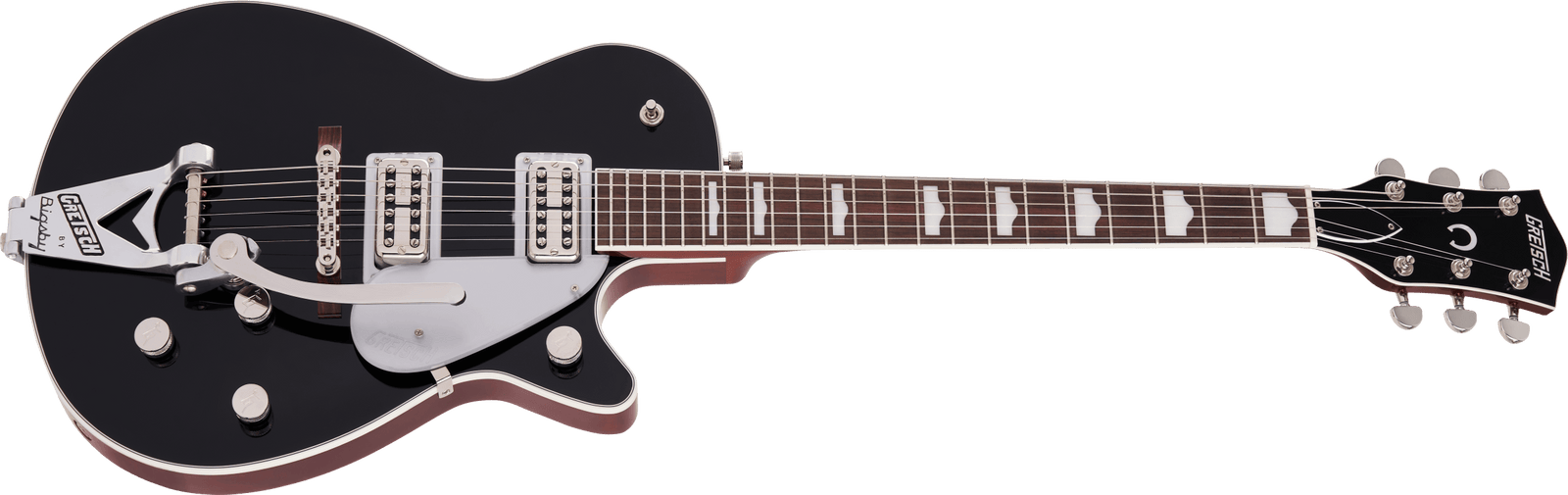

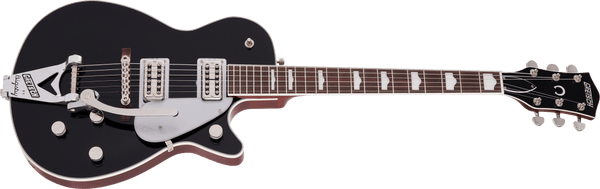

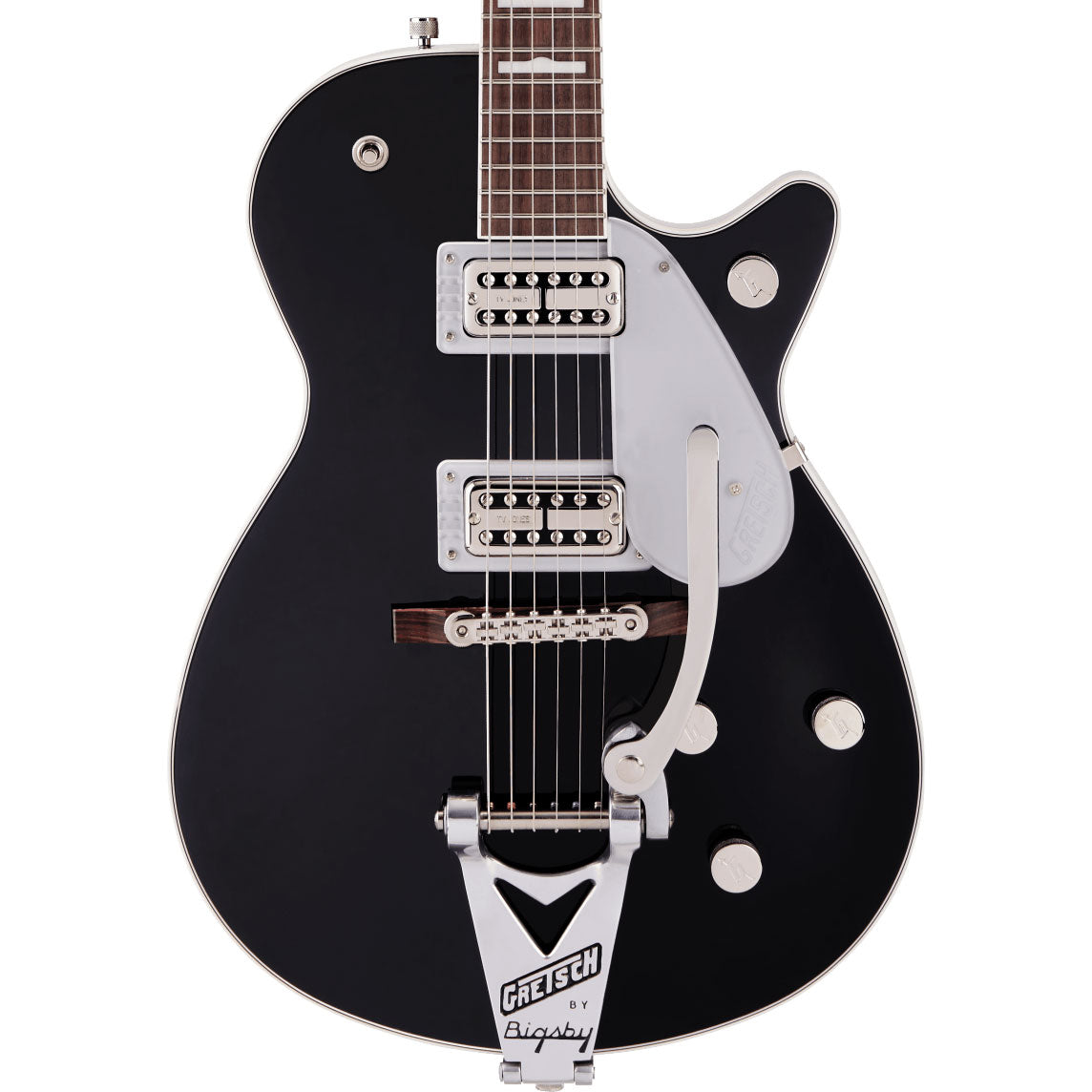

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6128T-89 Vintage Select '89 Duo Jet with Bigsby listed above. For larger pics, click on an image to open in a new tab.
