Gretsch G6128T-57 Vintage Select '57 Duo Jet with Bigsby Cadillac Green Specs

The G6128T-57 Vintage Select '57 Duo Jet with Bigsby is a solid body electric guitar built by Gretsch. This single cutaway set neck guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401612846.

Key Features

Arched Laminated Maple Top
Mahogany Body
Mahogany Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Synchro-Sonic Bridge
Grover Sta-Tite Die-Cast Tuning Machines
TV Jones T-Armond Bridge Pickup
N/A Middle Pickup
TV Jones T-Armond Neck Pickup

Product Identifiers

Model Name	G6128T-57 Vintage Select '57 Duo Jet with Bigsby
Part Number	2401612846
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
Subcategory	Single Cutaway Set Neck
UPC Code	0885978771547

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Arched Laminated Maple
Back Material	Mahogany
Body Shape	Jet
Body Binding	Aged White
Body Finish	Gloss
Bracing	Chambered
Upper Bout Width	10.5" (26.7 cm)
Lower Bout Width	13.46" (341.88 mm)
Waist	8.625" (219.08 mm)

Hardware

Bridge	Synchro-Sonic
Tuning Machines	Grover Sta-Tite Die-Cast
Pickguard	Gold Plexi with Black Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B3CBDE
Hardware Finish	Gold

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Refinement Fingerboard Radius	Modern
Fingerboard Inlays	Vintage Pearloid Hump-Block Position Marker Inlays
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Bone
String Nut	Bone
Neck Shape	Standard "U"
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	TV Jones T-Armond
Middle Pickup	N/A
Neck Pickup	TV Jones T-Armond
Refinement Pickups	TV Jones T-Armond / TV Jones T-Armond
Pickup Configuration	TV Jones / TV Jones
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Special Electronics	N/A
Configuration	TV Jones / TV Jones

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included G6238 Gretsch Deluxe Solid Body Hardshell (p/n 099-6410-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)
Included Accessories	Includes G6238 Deluxe Hardshell Case
Recommended Case	Includes G6238 Deluxe Hardshell Case

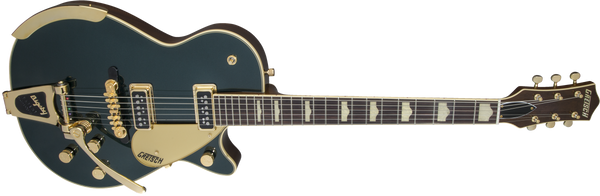

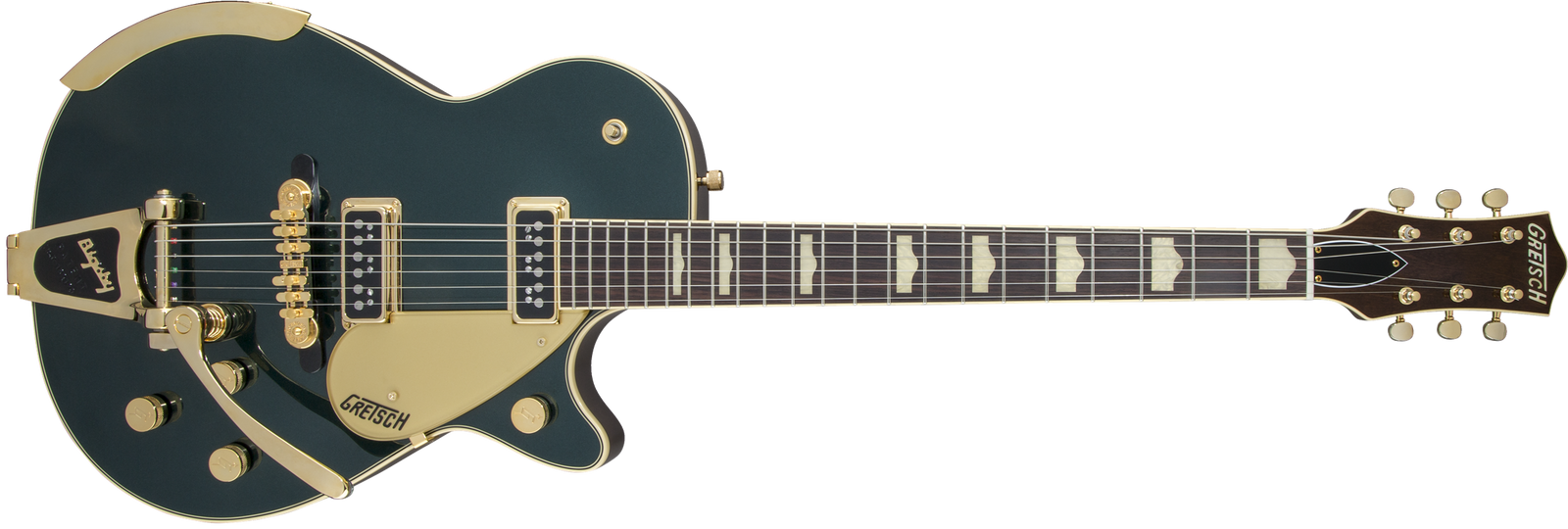

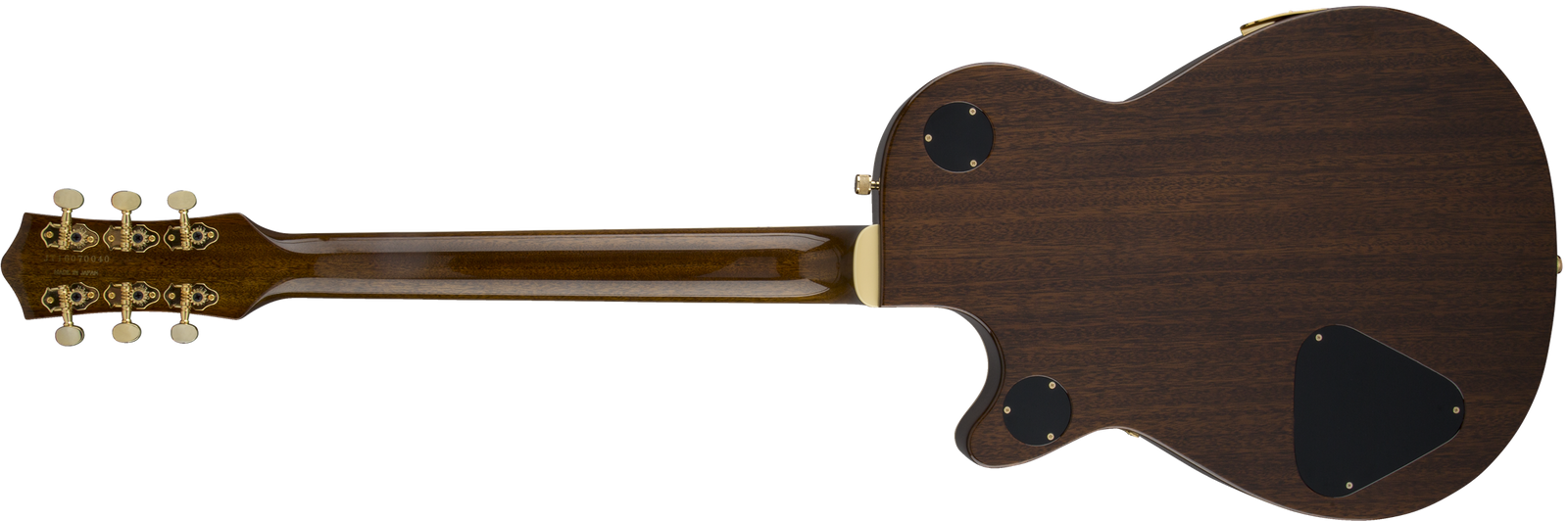

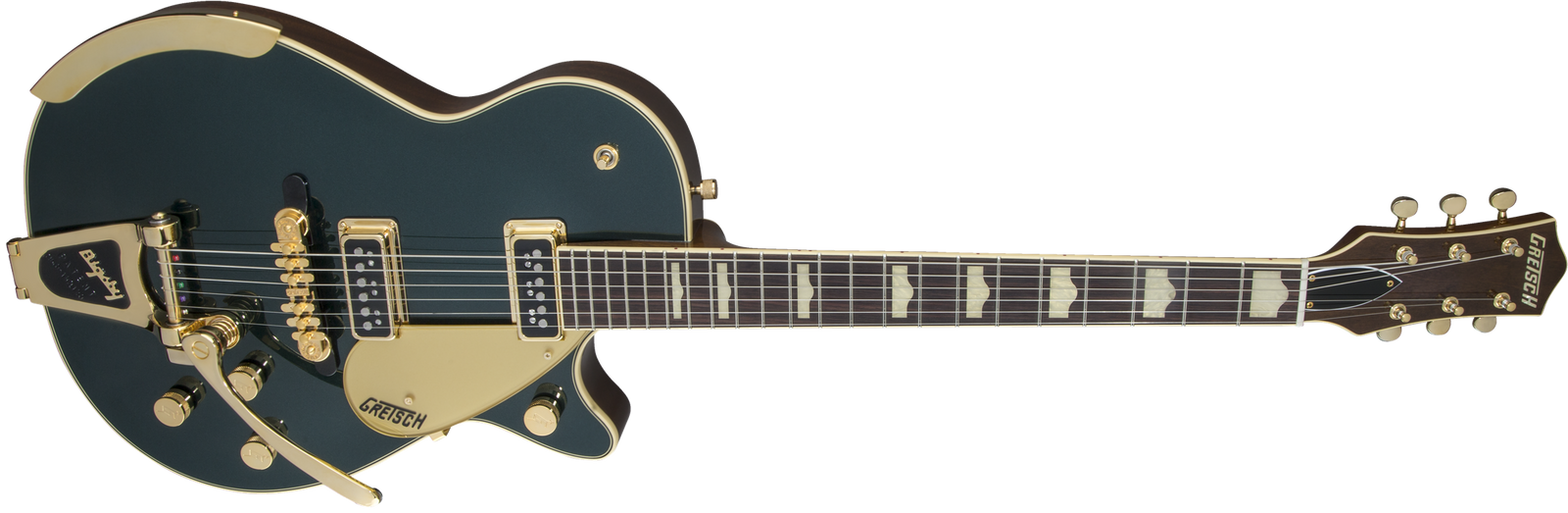

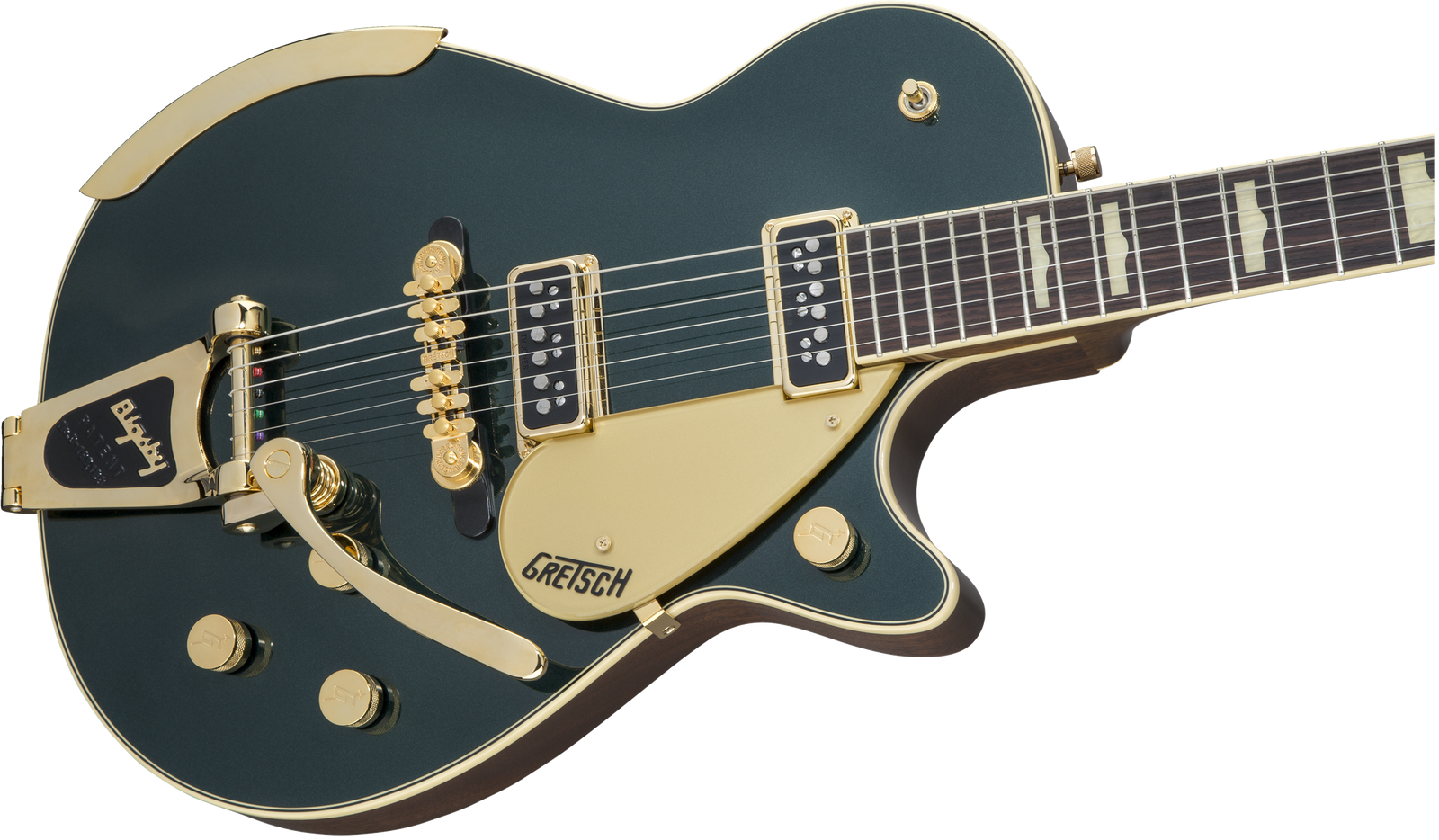

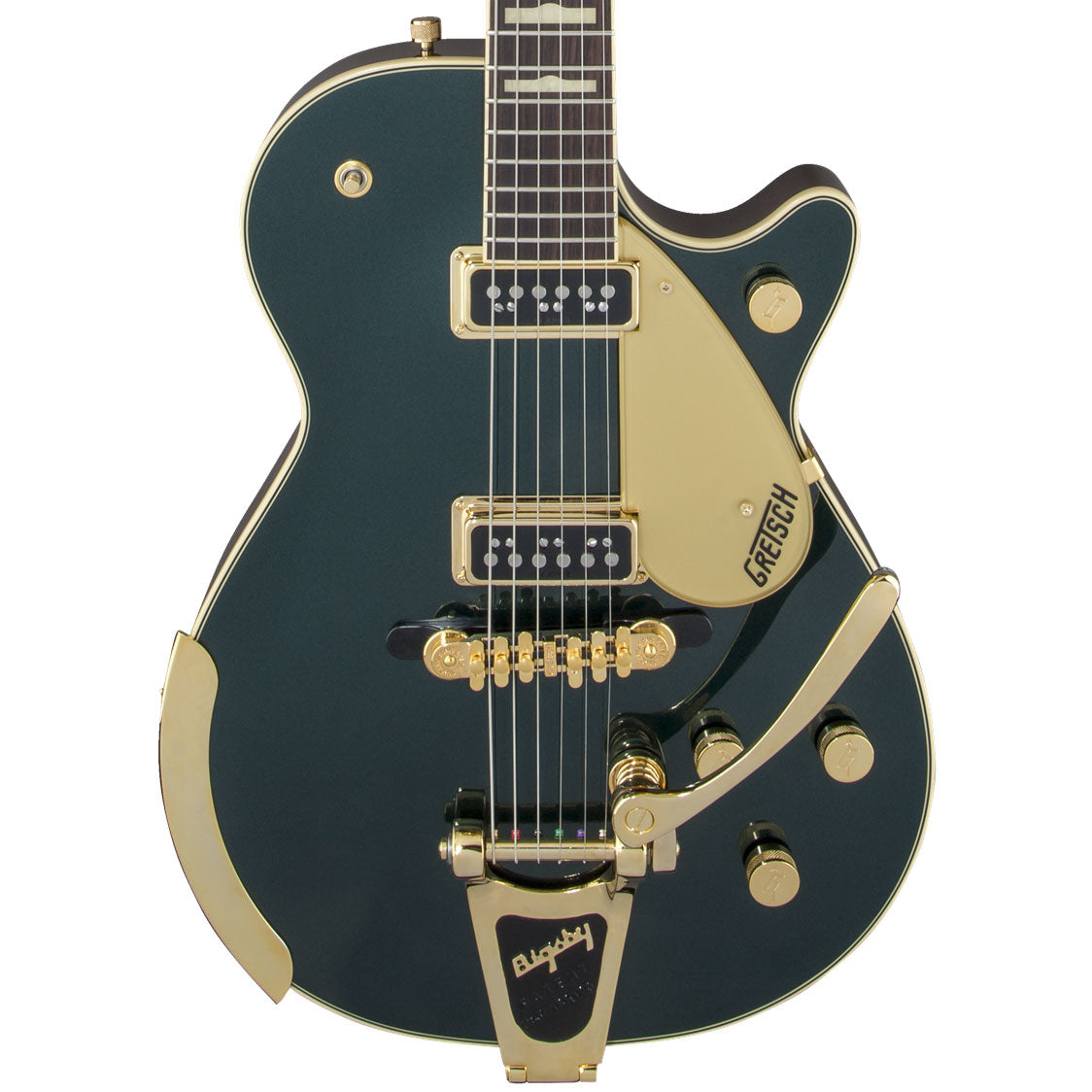

Reference Images

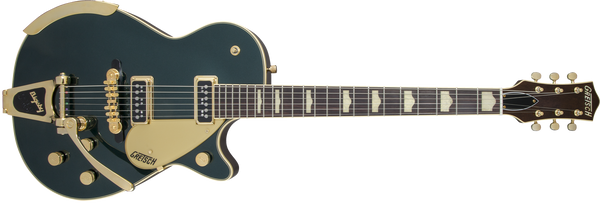

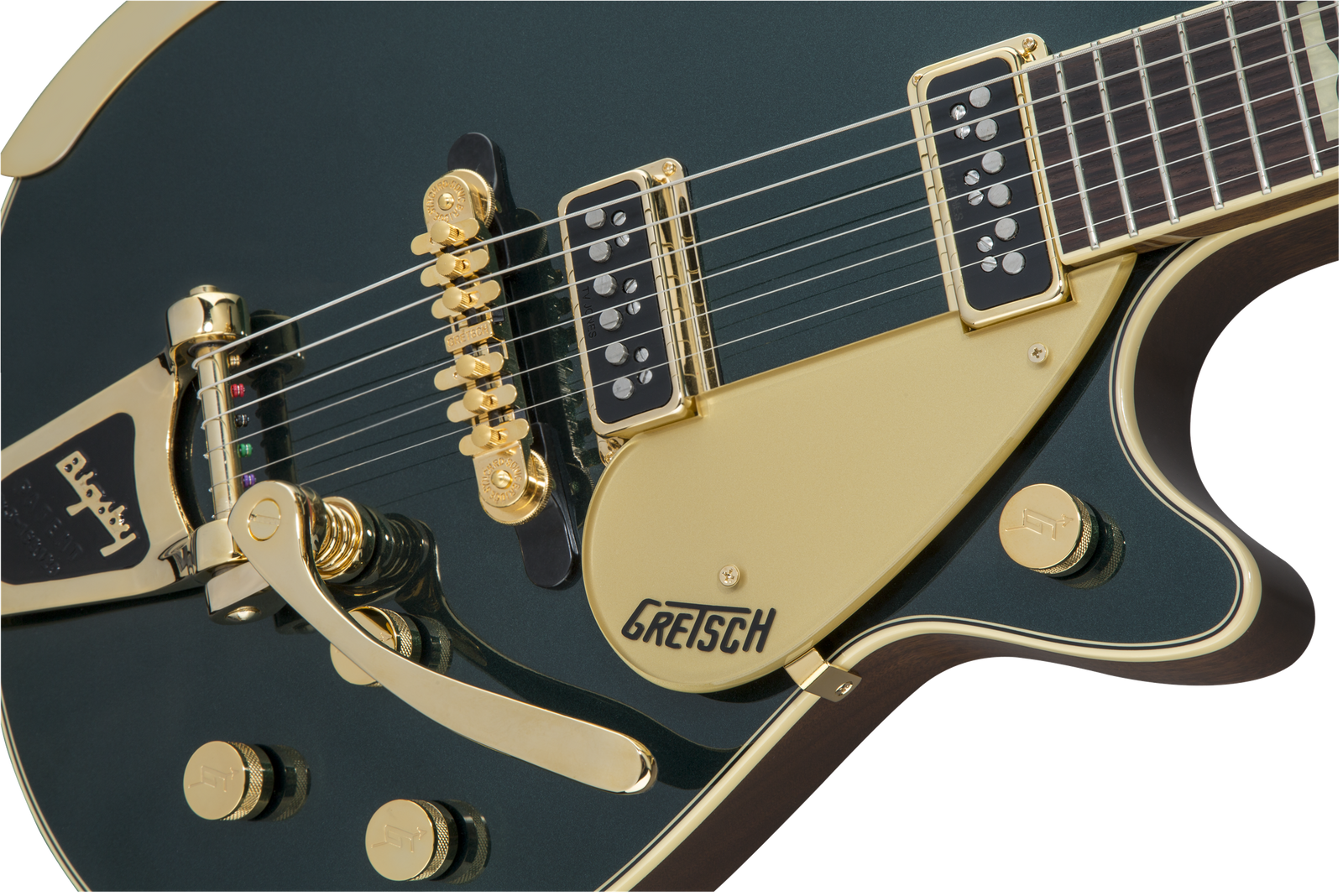

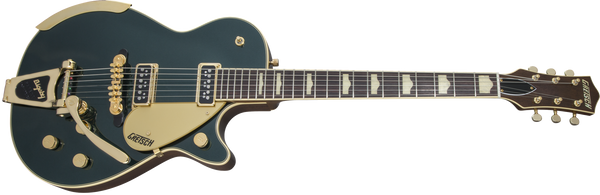

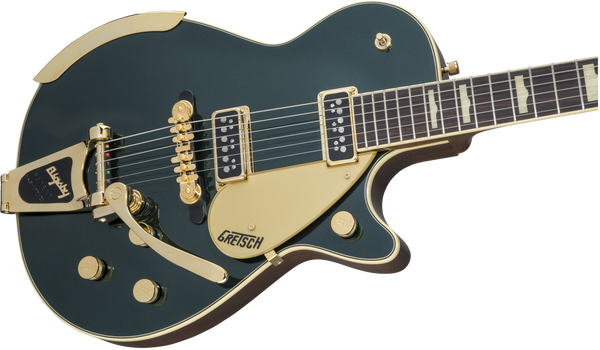

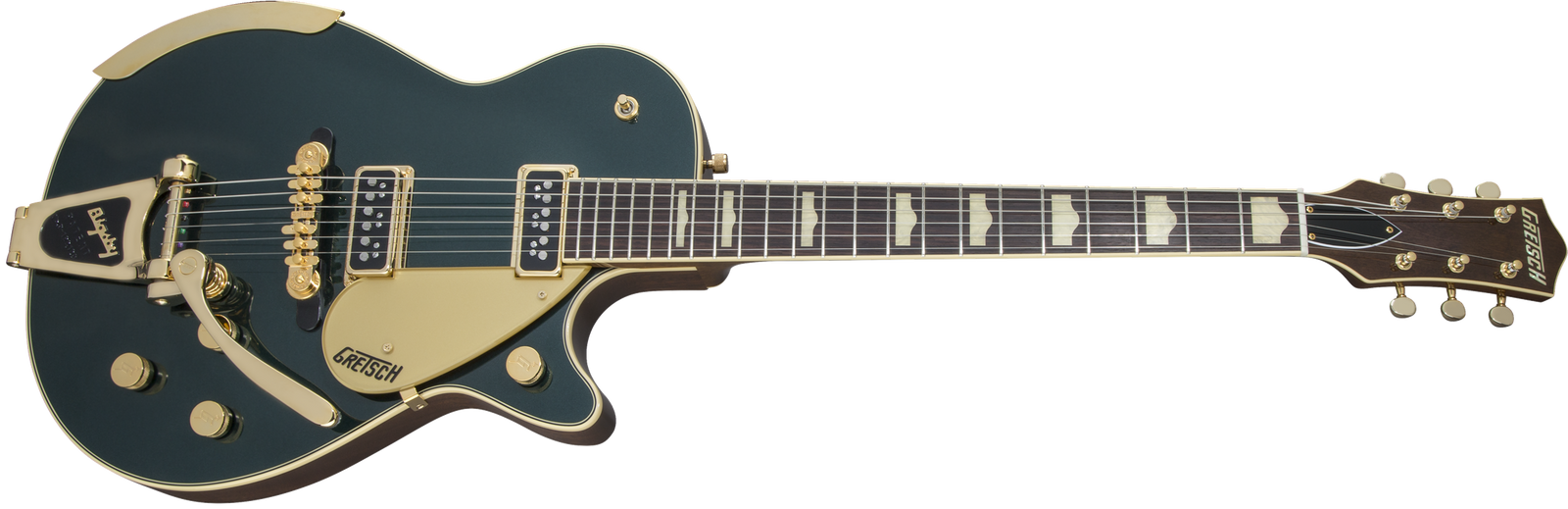

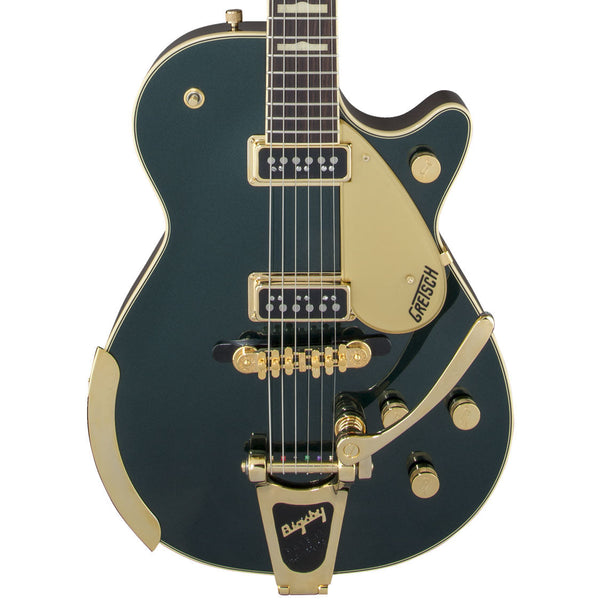

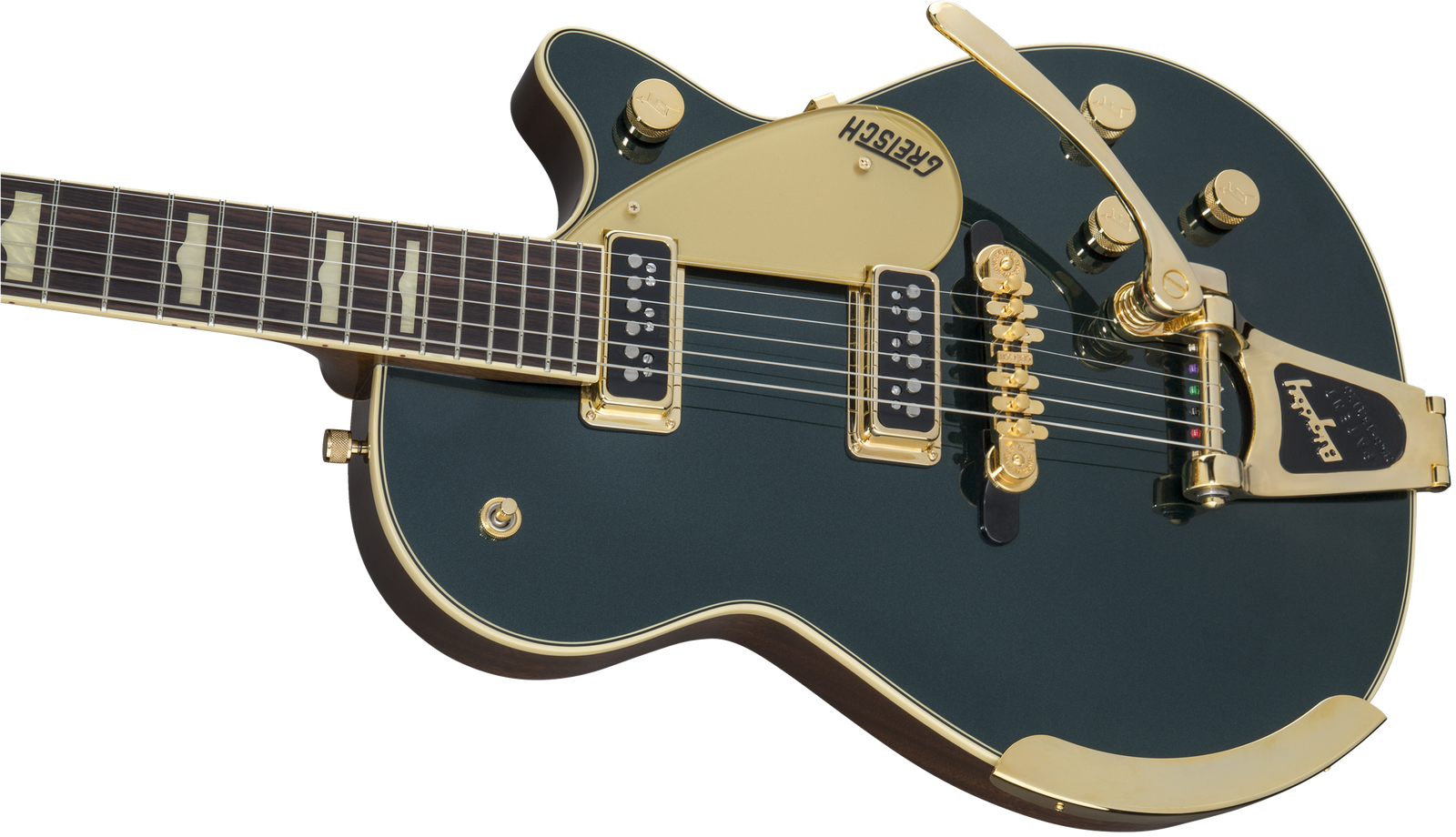

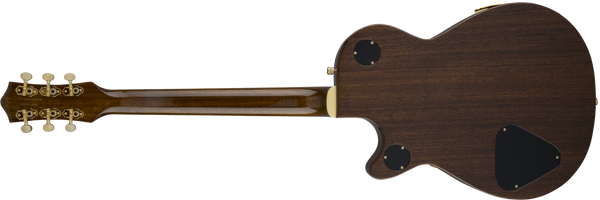

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6128T-57 Vintage Select '57 Duo Jet with Bigsby listed above. For larger pics, click on an image to open in a new tab.
