Gretsch G6122T-62 Vintage Select Edition '62 Chet Atkins Country Gentleman Hollow Body with Bigsby Walnut Stain Specs

The G6122T-62 Vintage Select Edition '62 Chet Atkins Country Gentleman Hollow Body with Bigsby is a hollow body electric guitar built by Gretsch. This double cutaway set neck guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401235892.

Key Features

Laminated 3-Ply Maple with Simulated F-Holes Top
Laminated Maple Body
Maple Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Vintage Small Frets
Rocking Bar Bridge
Grover Imperial Die-Cast Tuning Machines
TV Jones Filter'Tron Classic Bridge Pickup
TV Jones Filter'Tron Classic Neck Pickup

Product Identifiers

Model Name	G6122T-62 Vintage Select Edition '62 Chet Atkins Country Gentleman Hollow Body with Bigsby
Part Number	2401235892
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
Subcategory	Double Cutaway Set Neck
UPC Code	0885978662807

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Laminated 3-Ply Maple with Simulated F-Holes
Back Material	Laminated Maple
Body Shape	Country Gentleman
Body Binding	Aged White with B/I/B Purfling
Body Finish	Gloss Urethane
Bracing	Parallel Tone Bars

Hardware

Bridge	Rocking Bar
Tuning Machines	Grover Imperial Die-Cast
Pickguard	Gold Plexi with Black Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B6G Vibrato Tailpiece with Gretsch Logo
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Refinement Fingerboard Radius	Modern
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Vintage Small
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Bone
Neck Shape	Standard "U"
Neck Finish	Gloss Urethane
Headstock	Late '50s Gretsch

Electronics

Bridge Pickup	TV Jones Filter'Tron Classic
Neck Pickup	TV Jones Filter'Tron Classic
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Auxiliary Switching	3-Position Master Tone Switch: Position 1. Medium Level, High Frequency Roll Off, Position 2. Switch Out of Circuit, Pickup Wide Open, Position 3. Slight Level, High Frequency Roll Off, 3-Position Standby Switch

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)

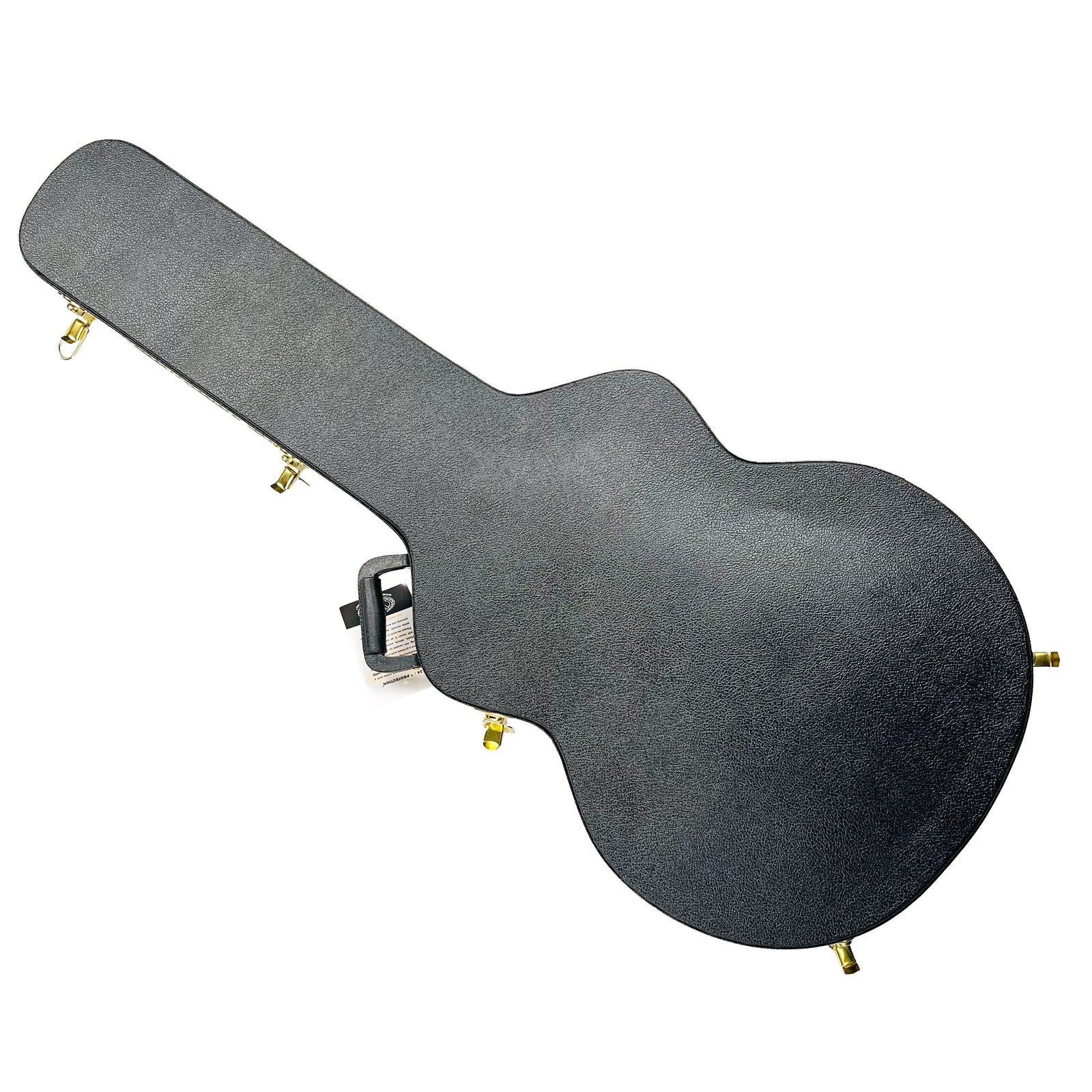

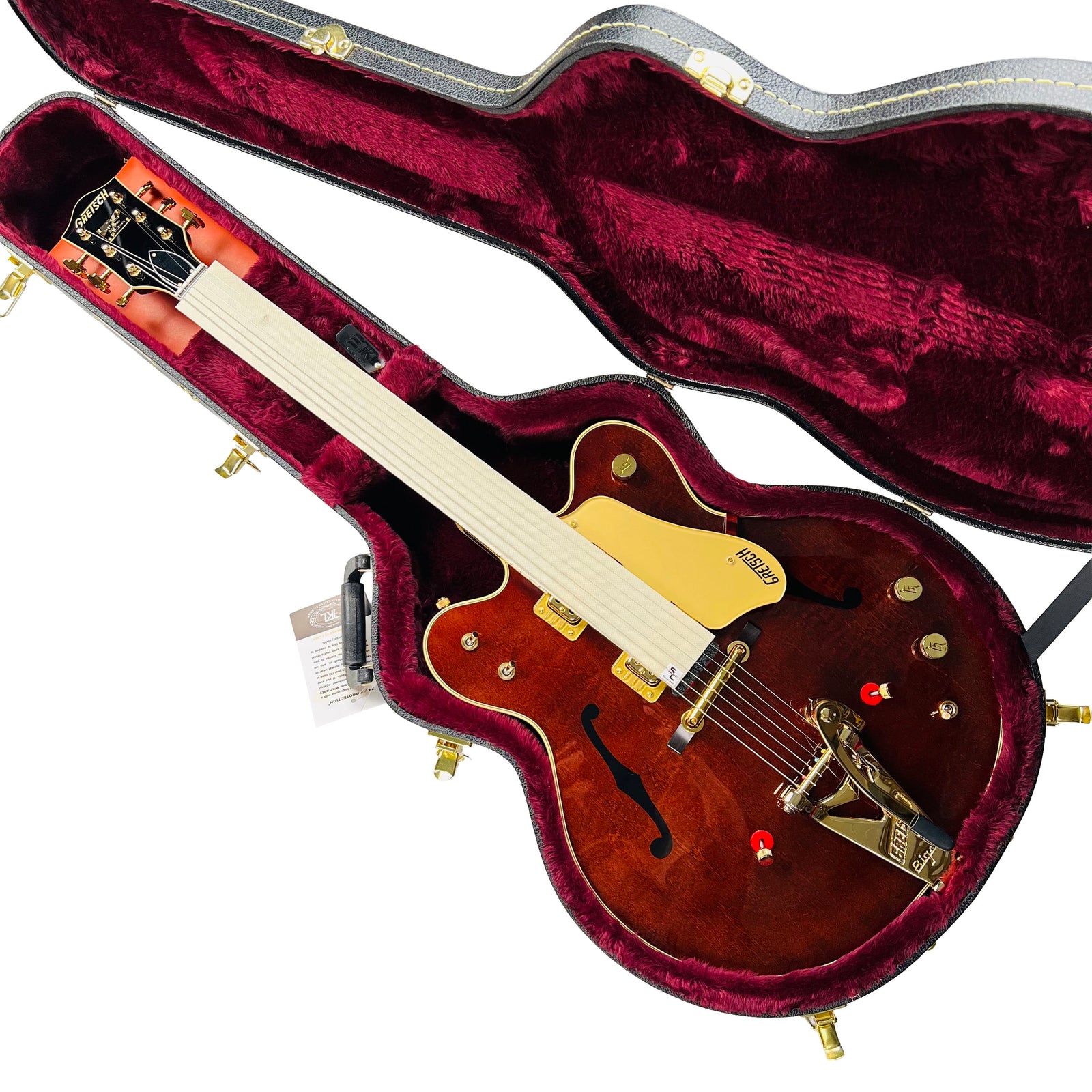

Case / Gig Bag	Included G6242L Gretsch 17" Deluxe Hollow Body Hardshell (p/n 099-6413-000)
Included Accessories	Included: 099-6413-000 Deluxe Case - G6242L - 17" Hollow Body Models

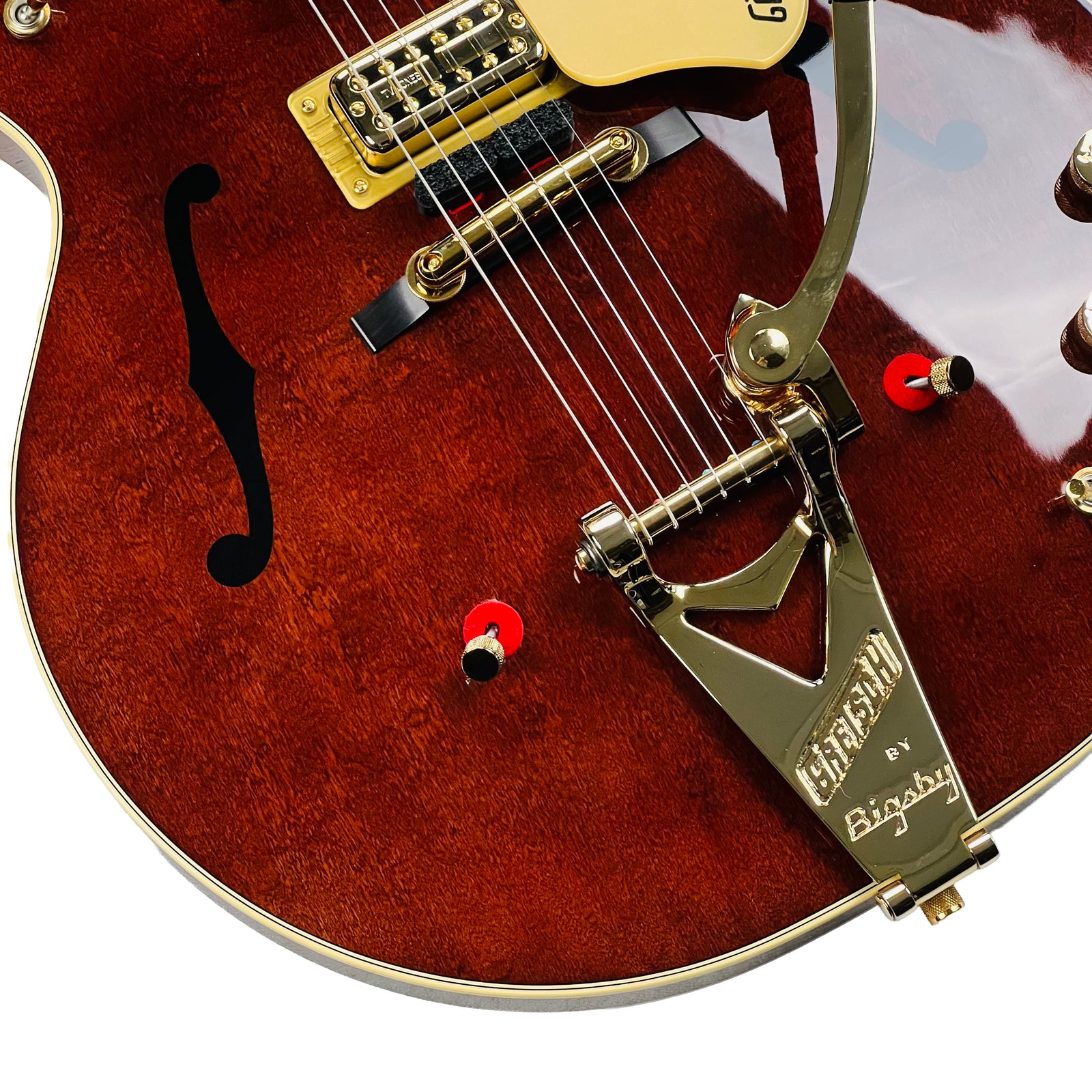

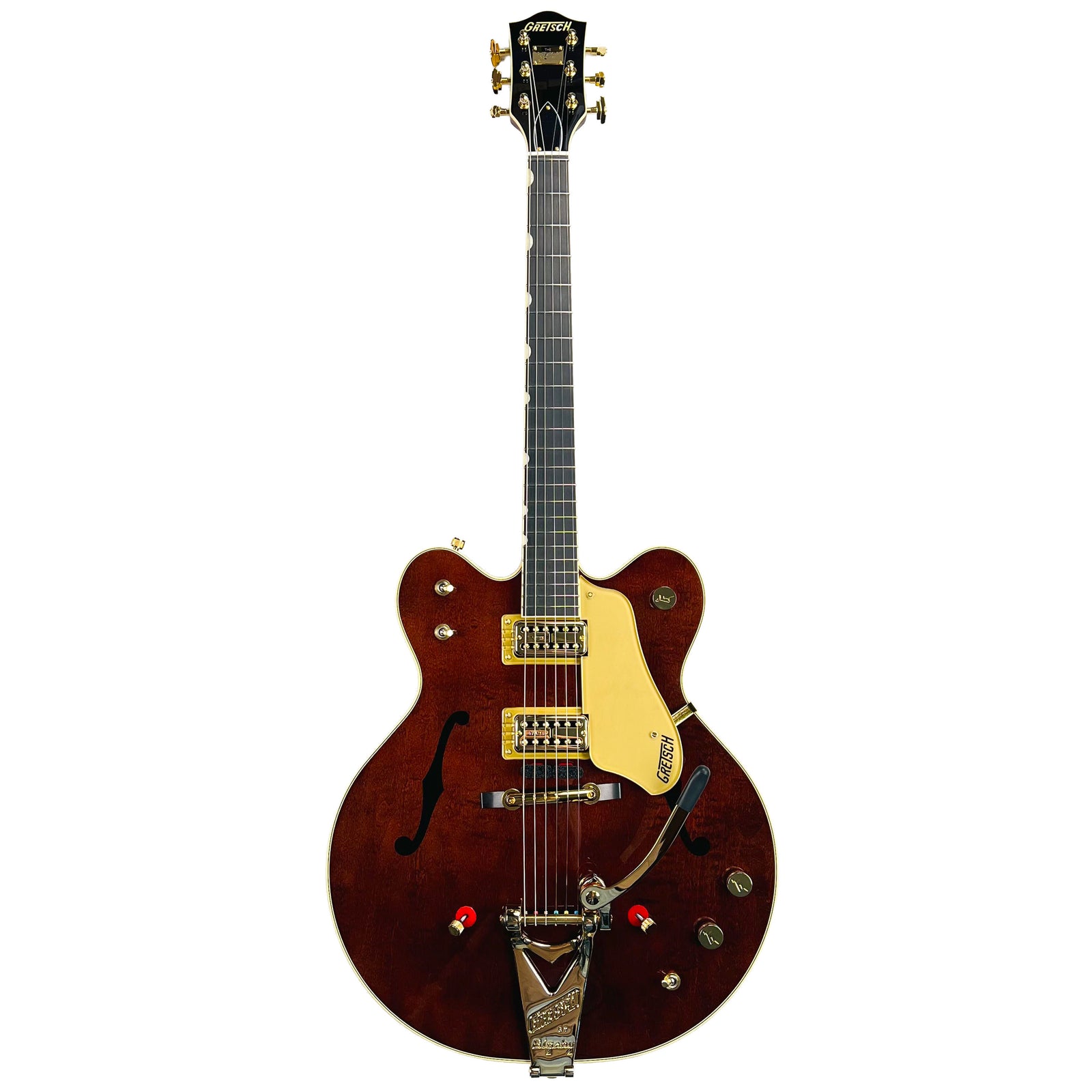

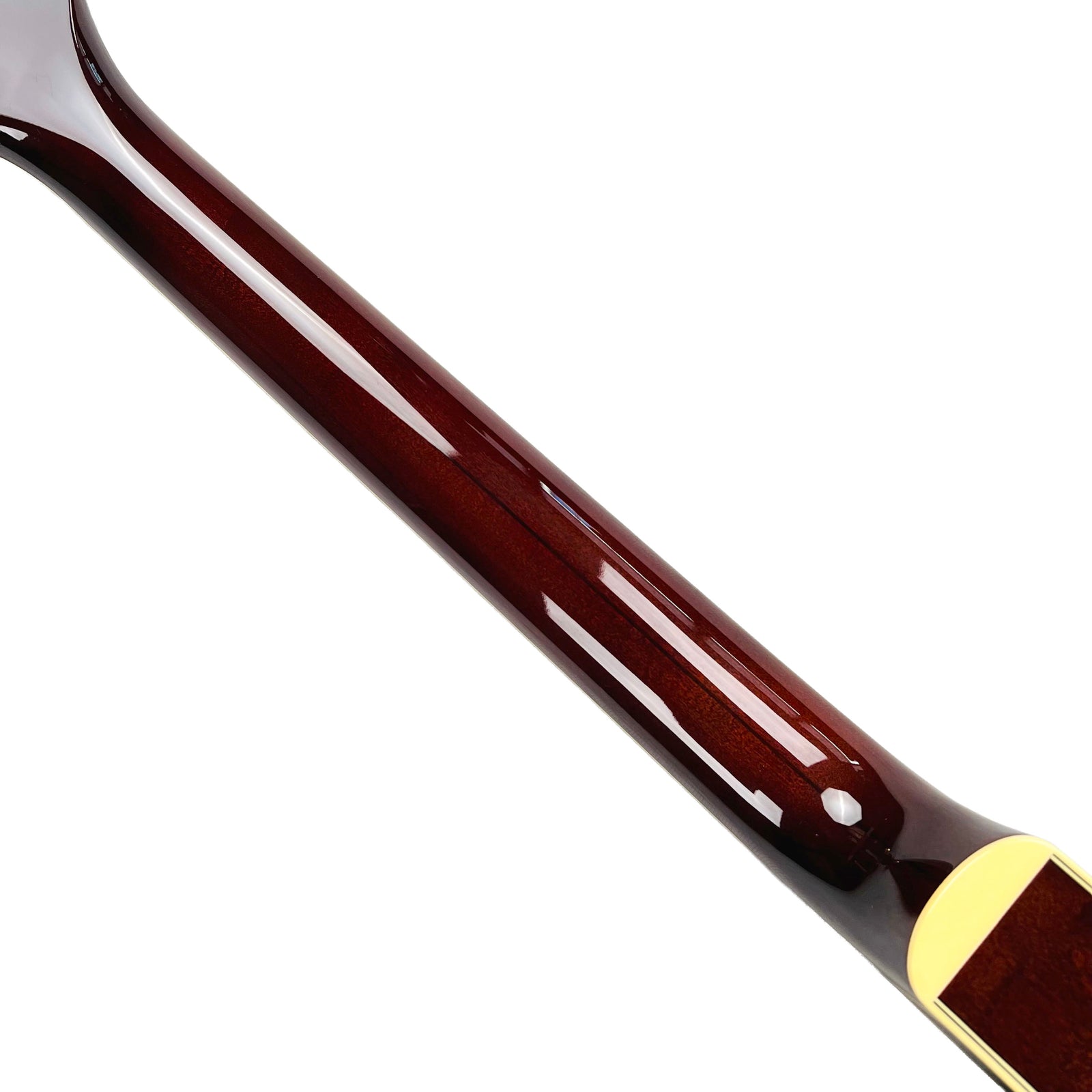

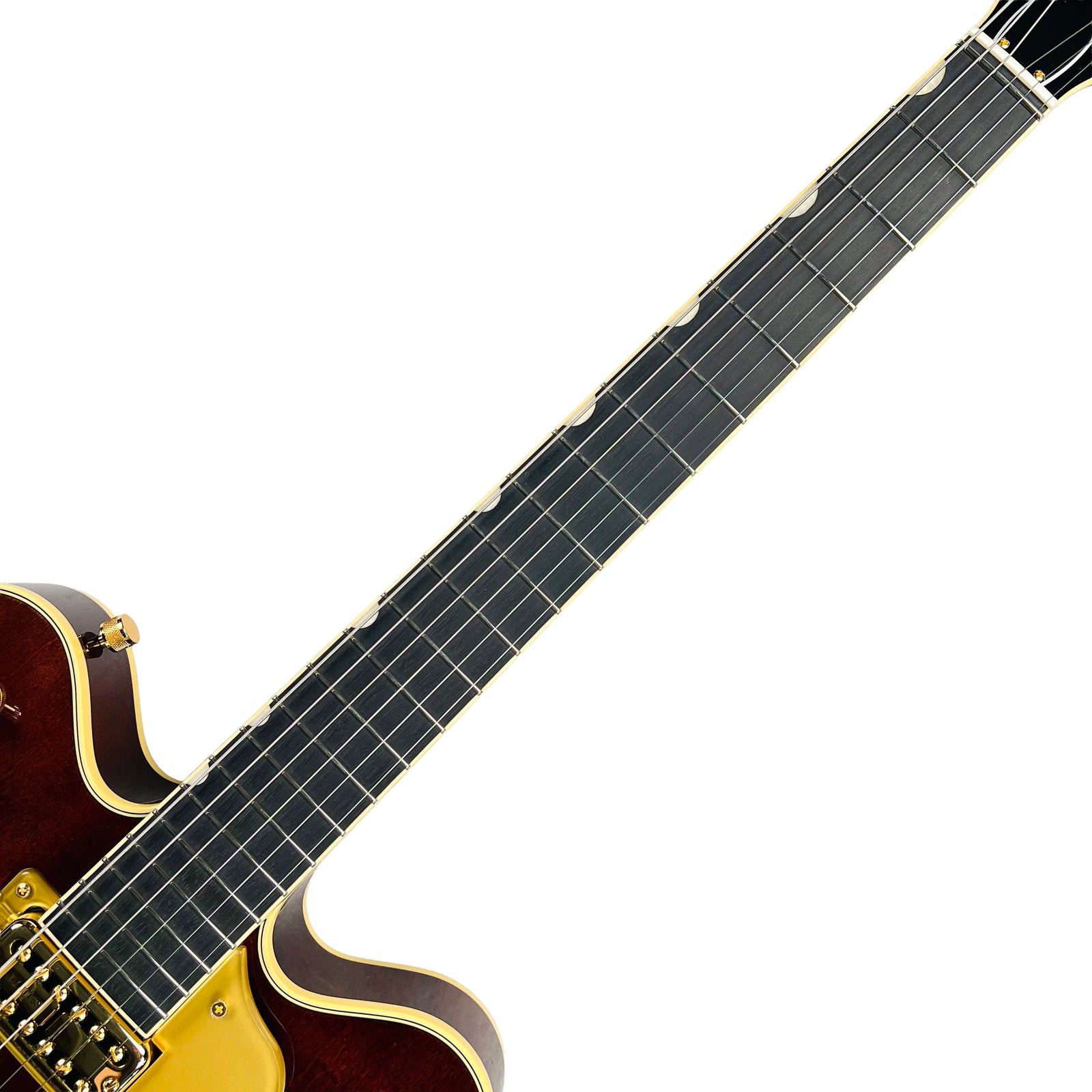

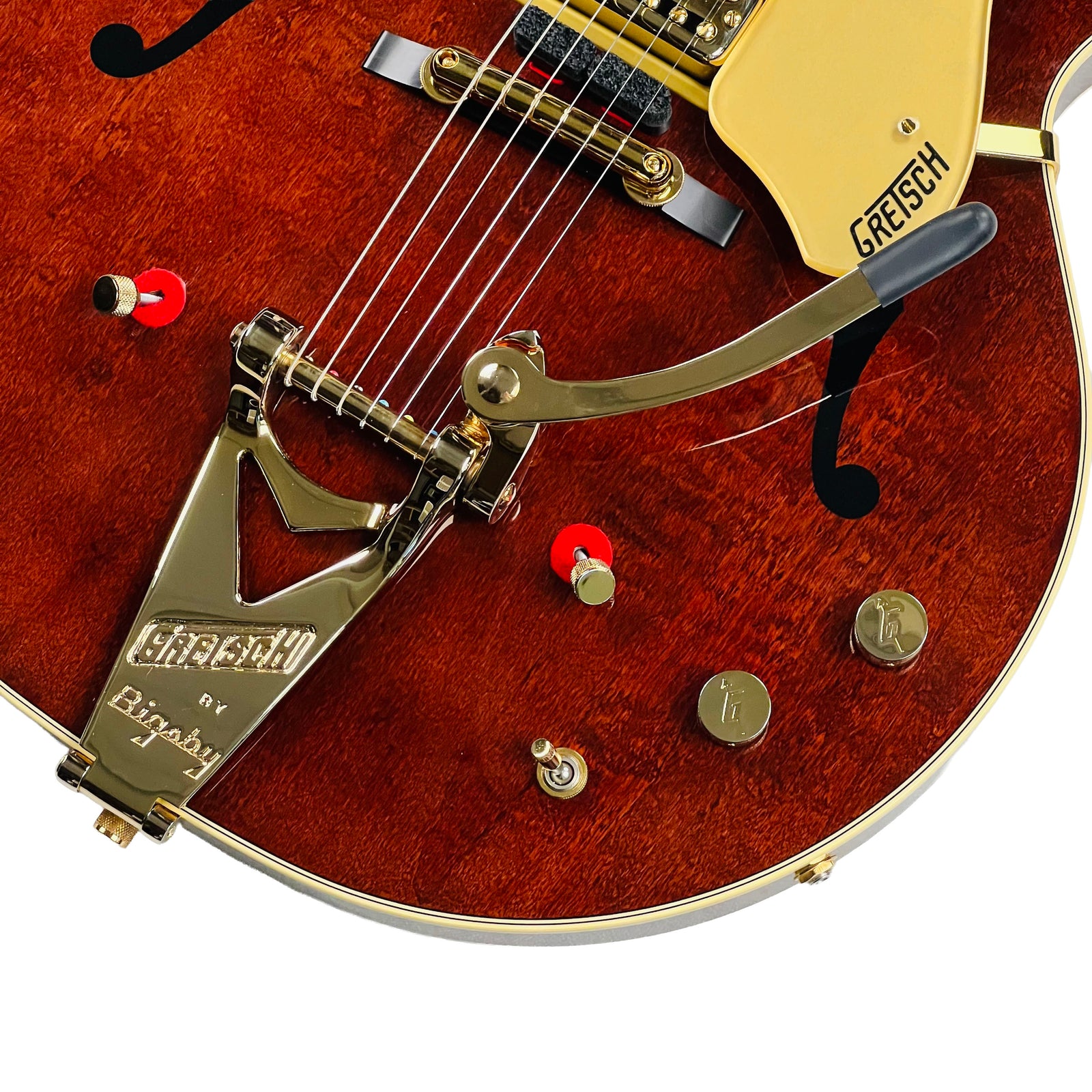

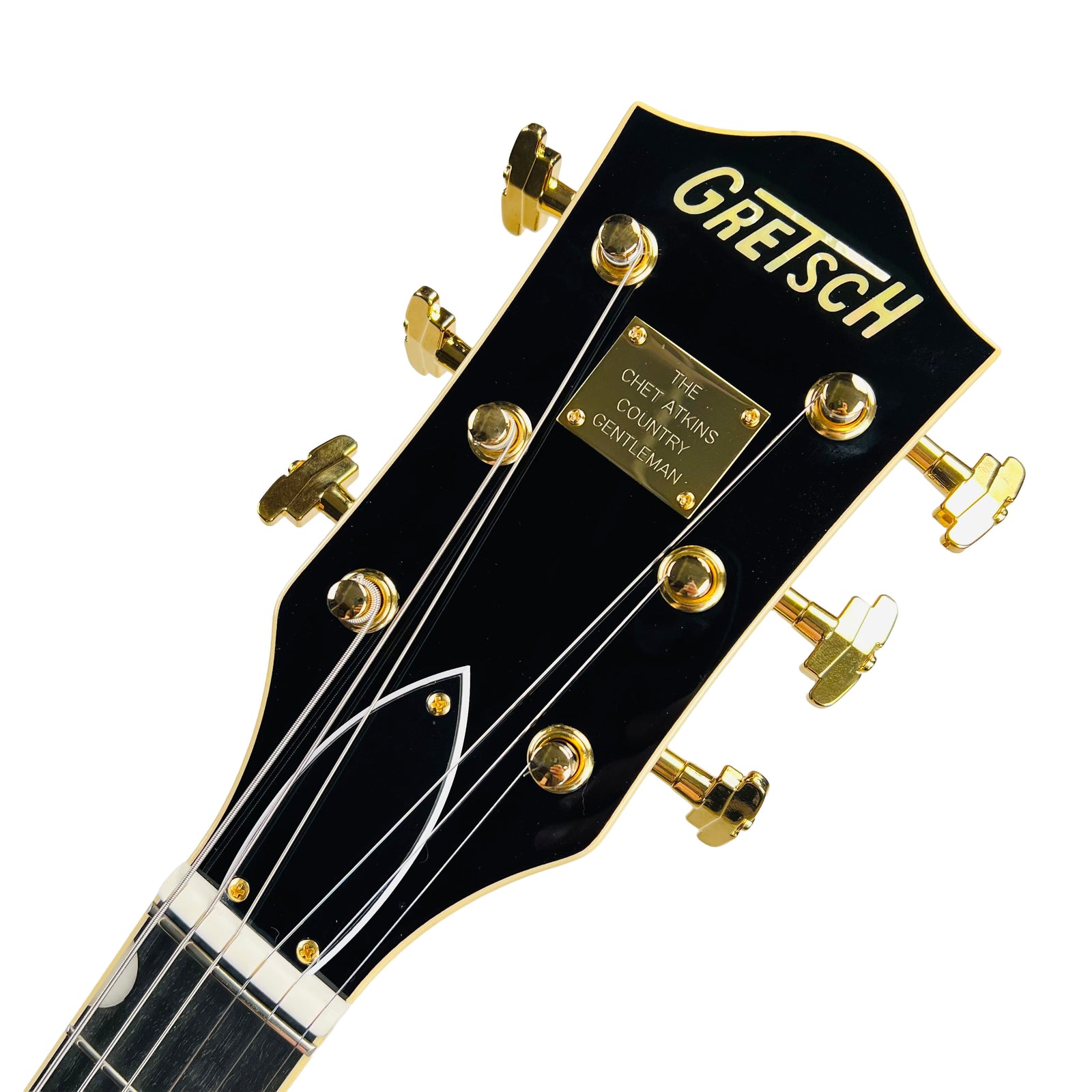

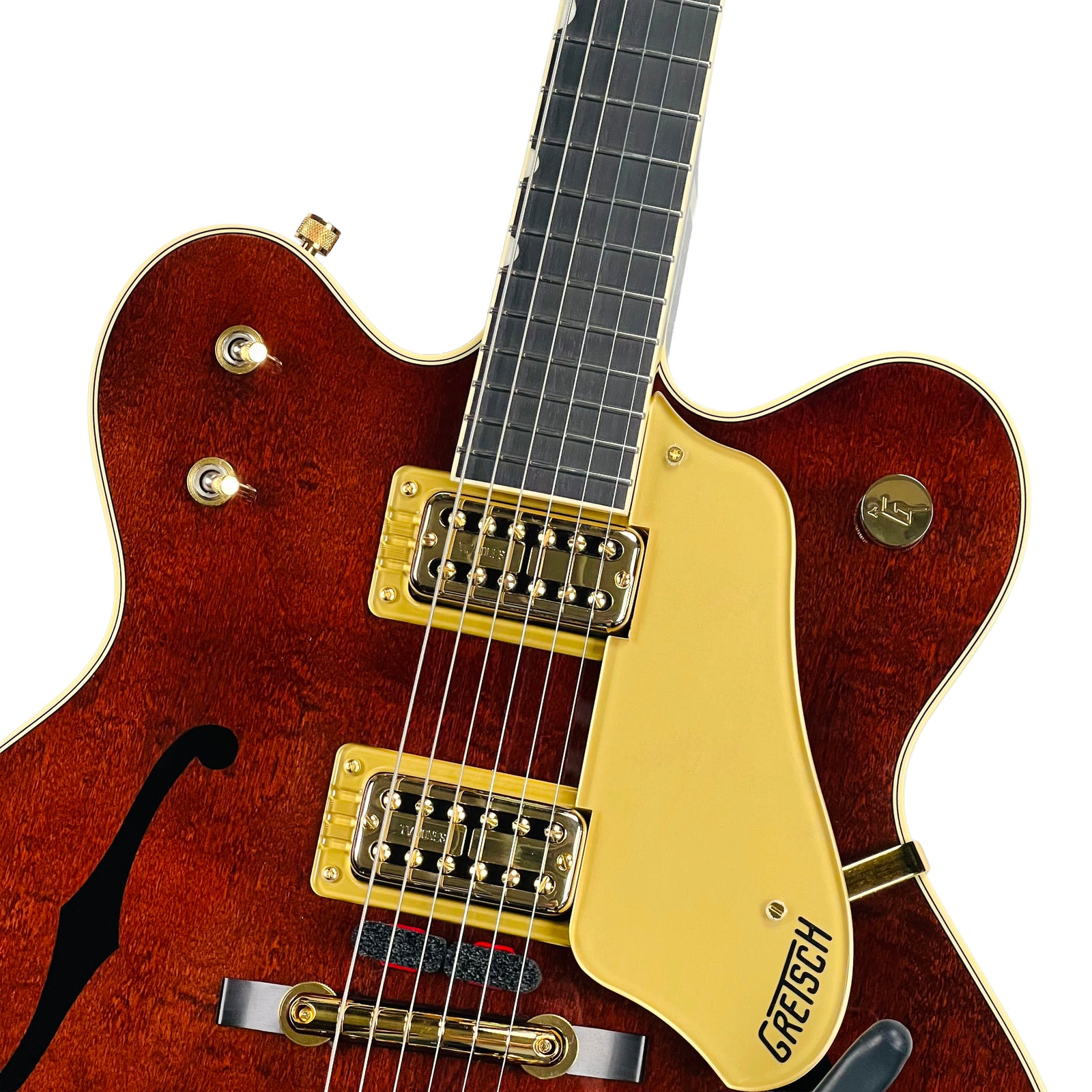

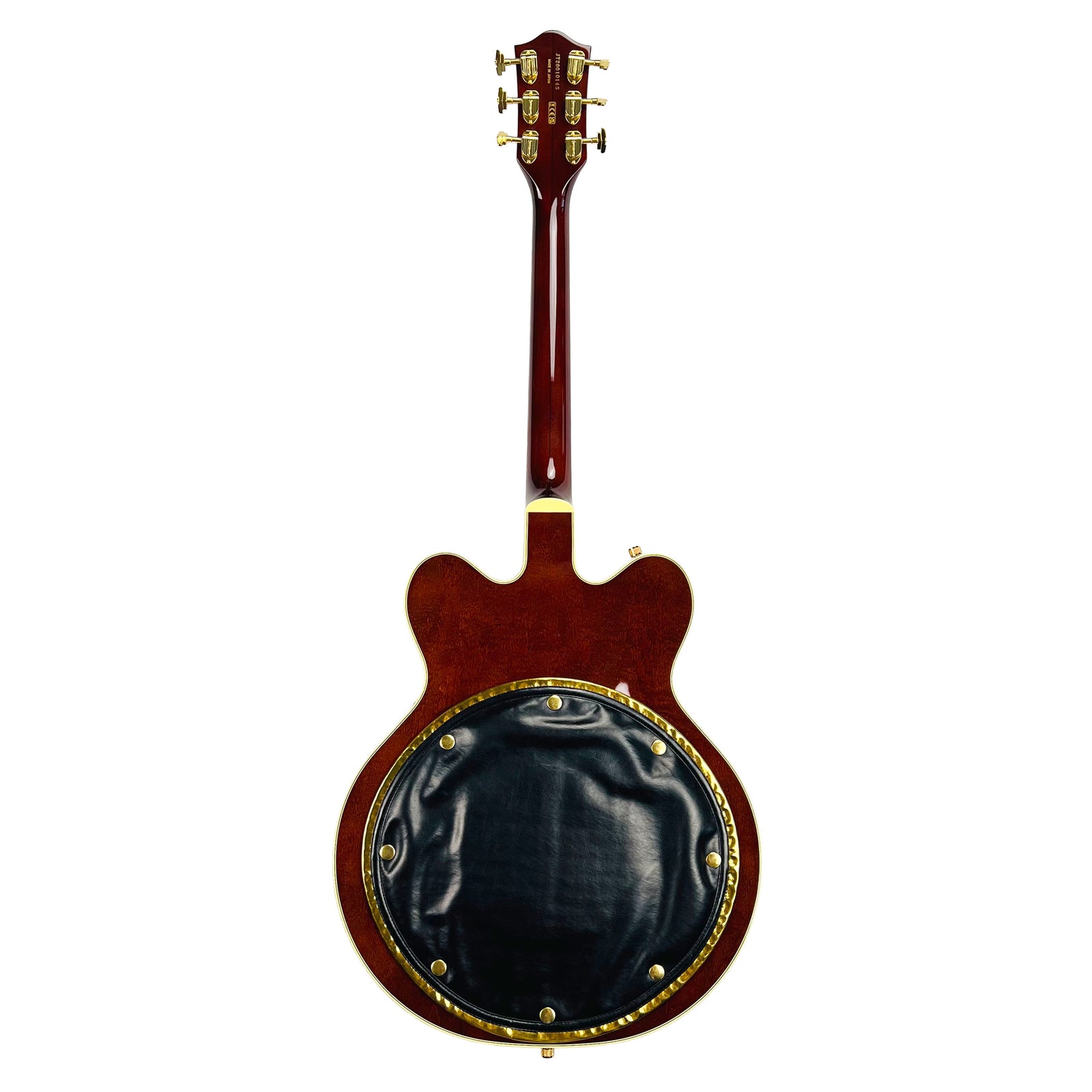

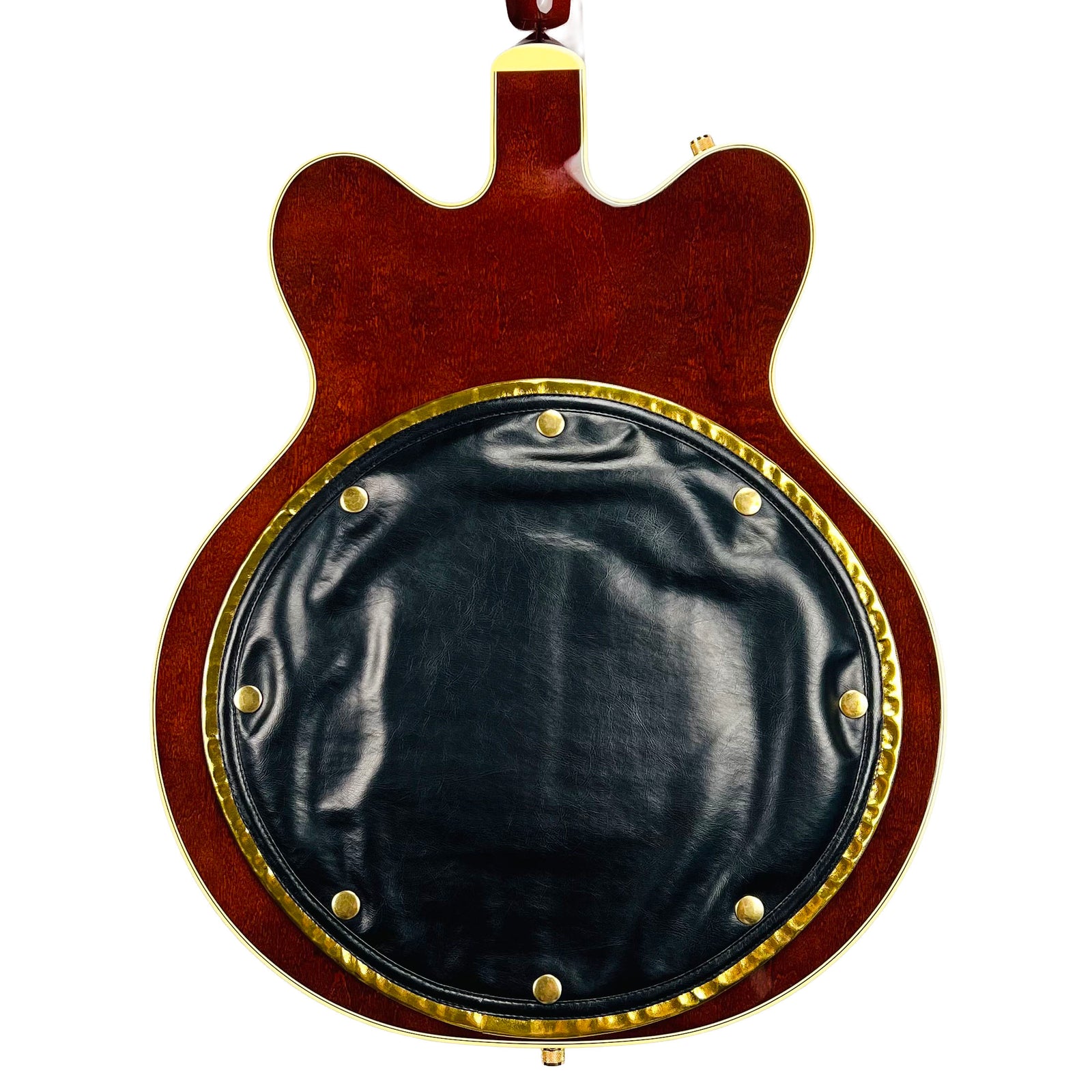

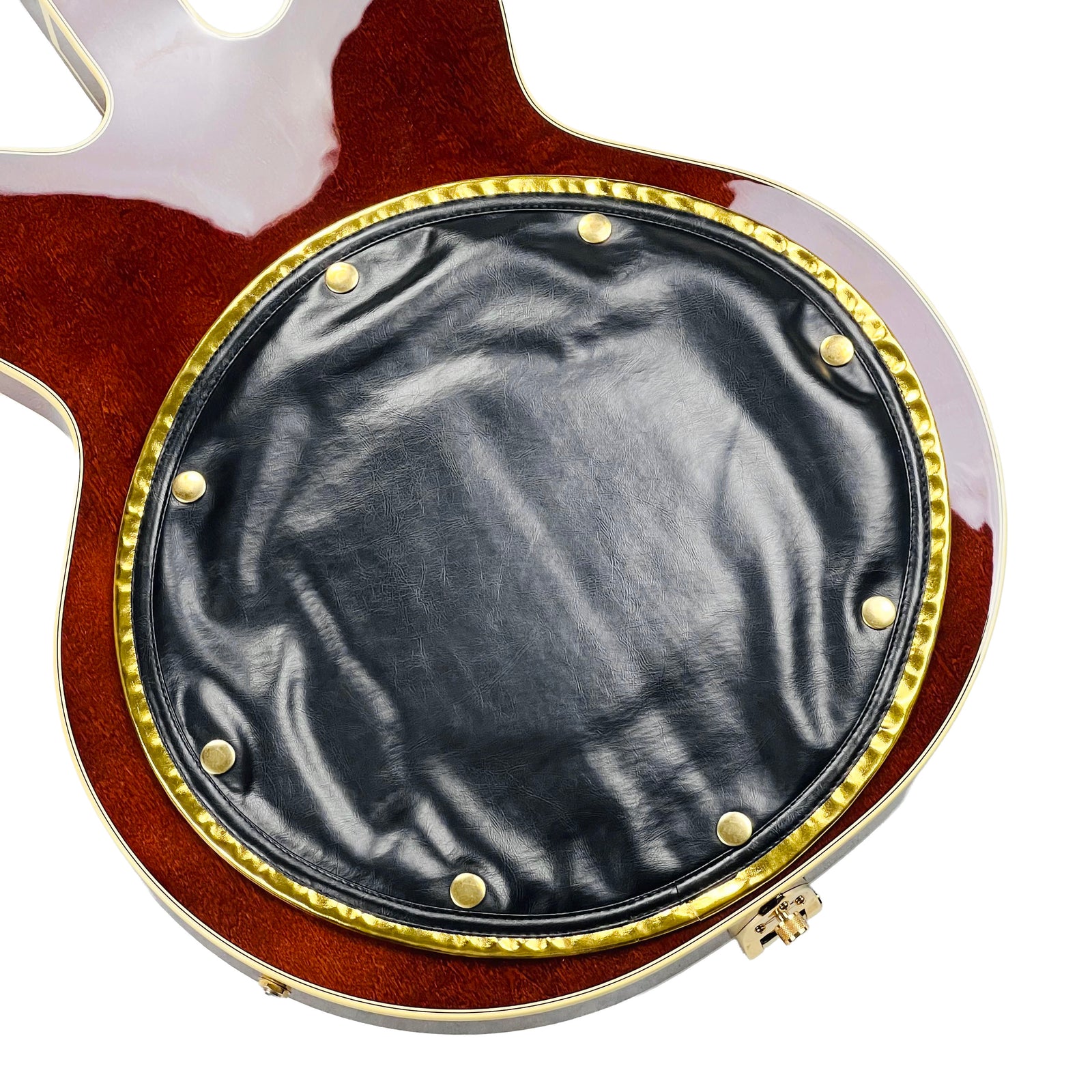

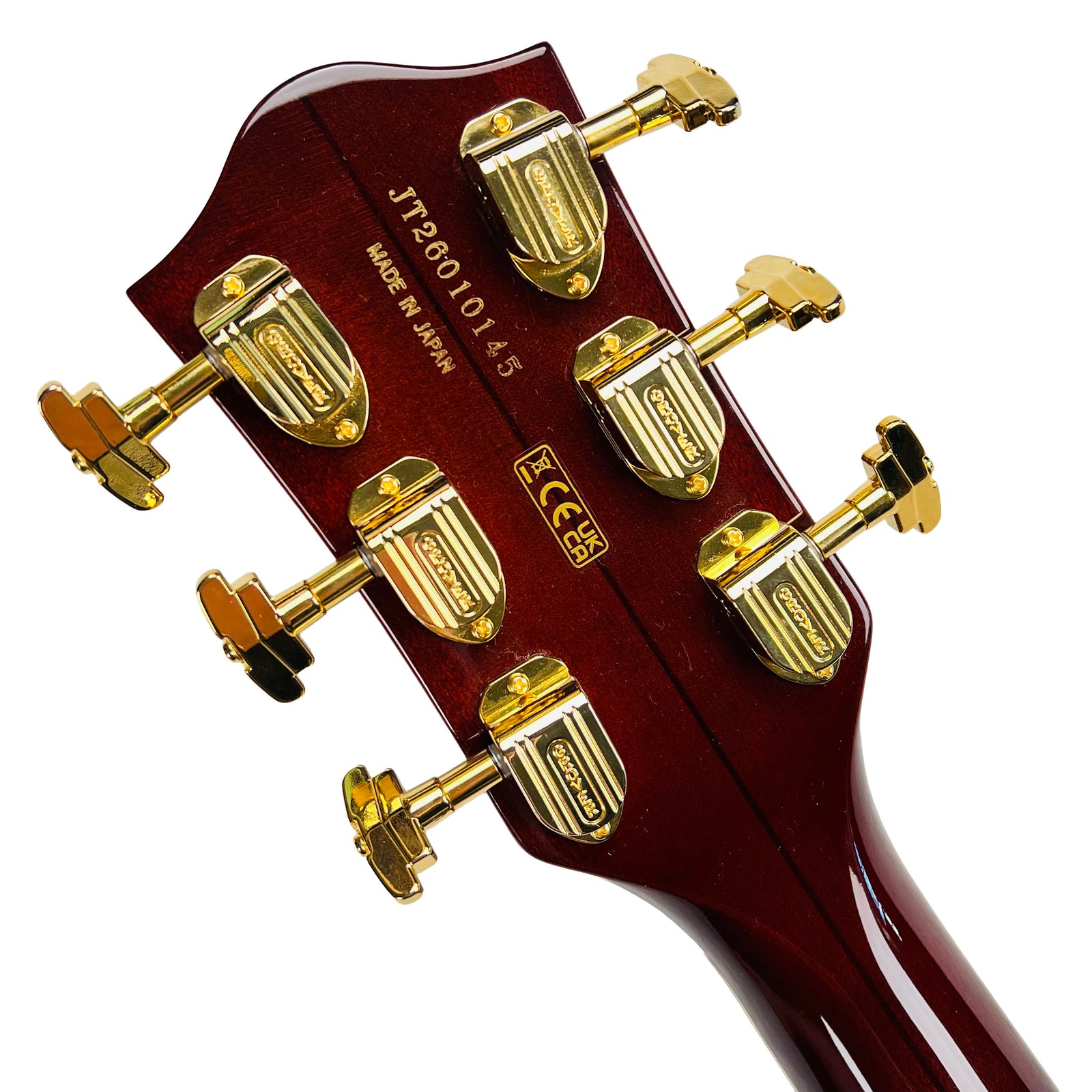

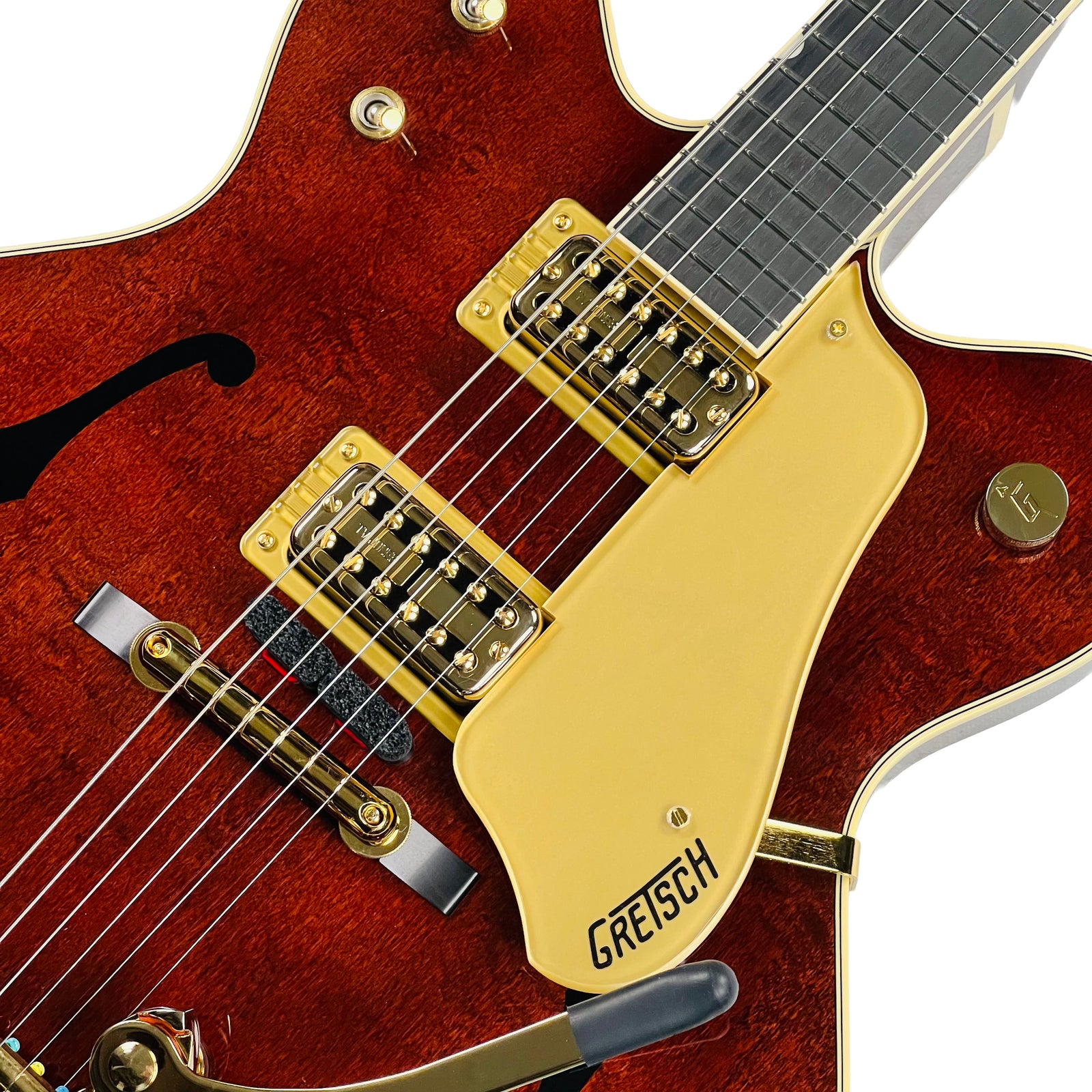

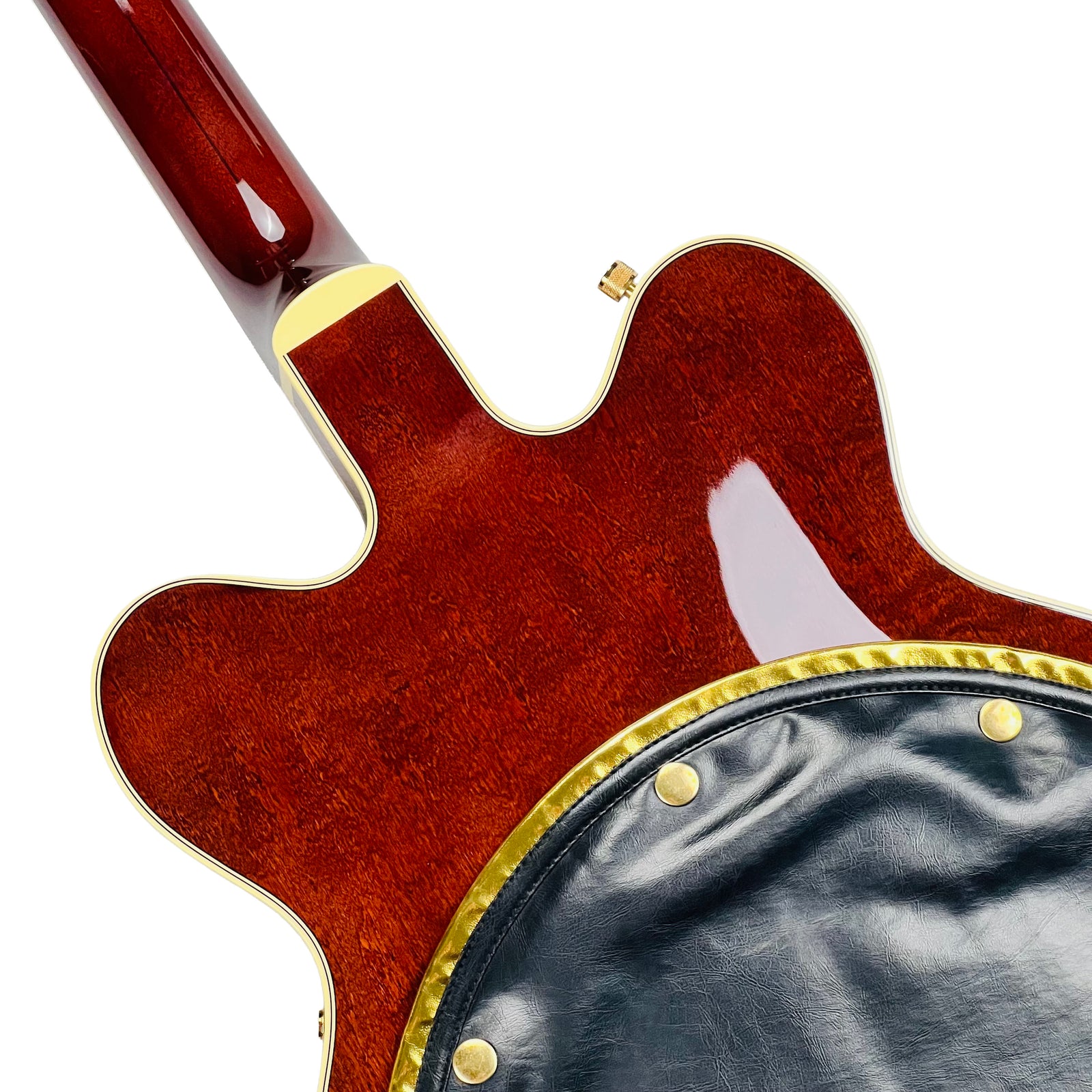

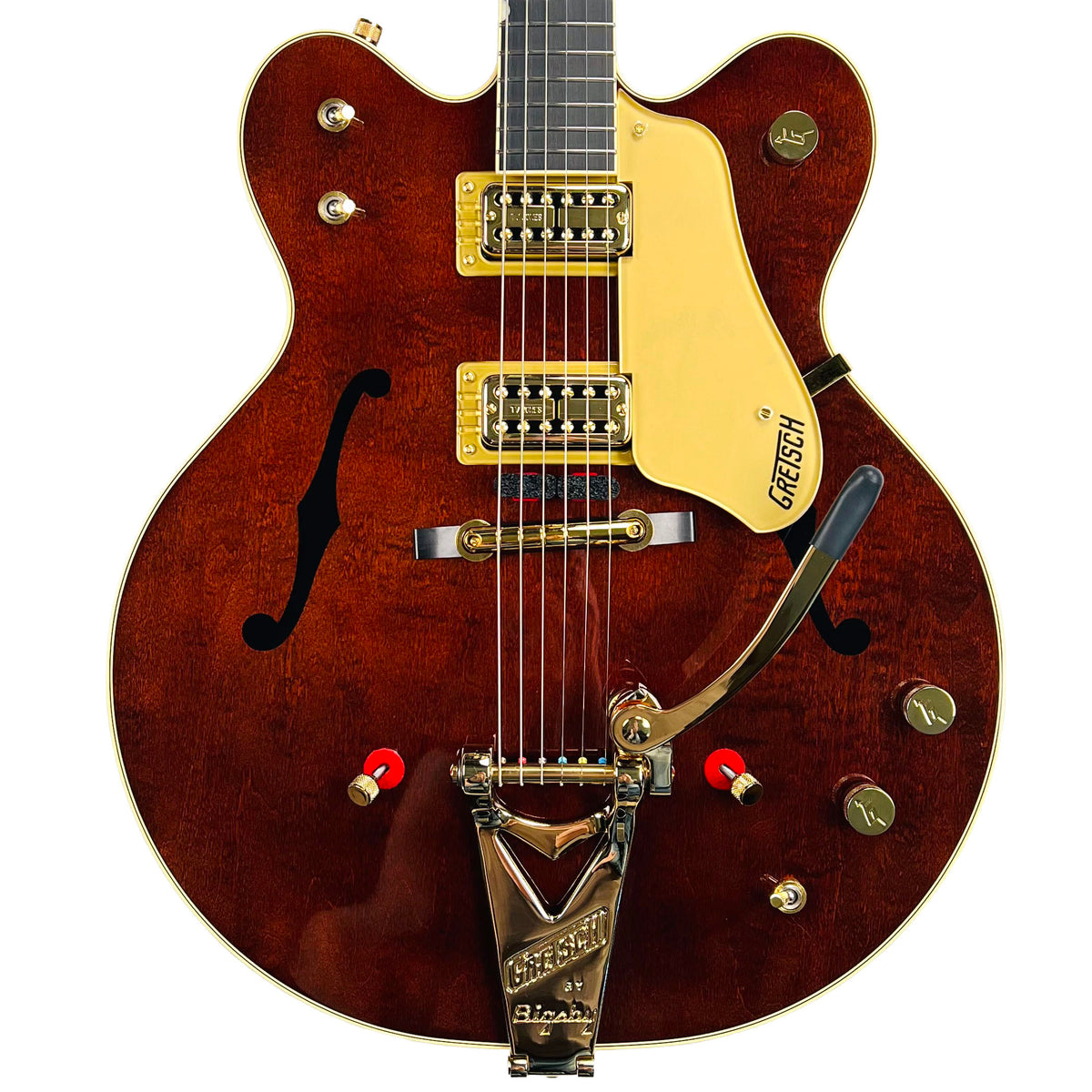

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6122T-62 Vintage Select Edition '62 Chet Atkins Country Gentleman Hollow Body with Bigsby listed above. For larger pics, click on an image to open in a new tab.
