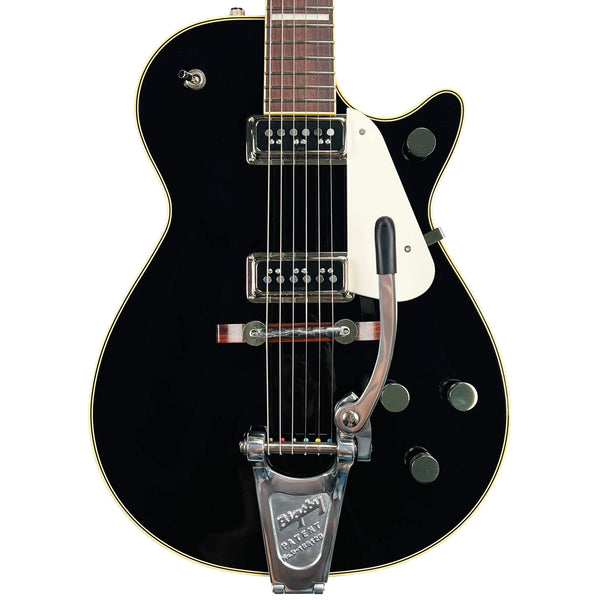

Gretsch G6128T-53 Vintage Select '53 Duo Jet with Bigsby Black Specs

The G6128T-53 Vintage Select '53 Duo Jet with Bigsby is a solid body electric guitar built by Gretsch. This single cutaway set neck guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401512806.

Key Features

Arched Laminated Maple Top
Mahogany Body
Mahogany Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Aluminum Compensated Bridge
Grover Sta-Tite Die-Cast Tuning Machines

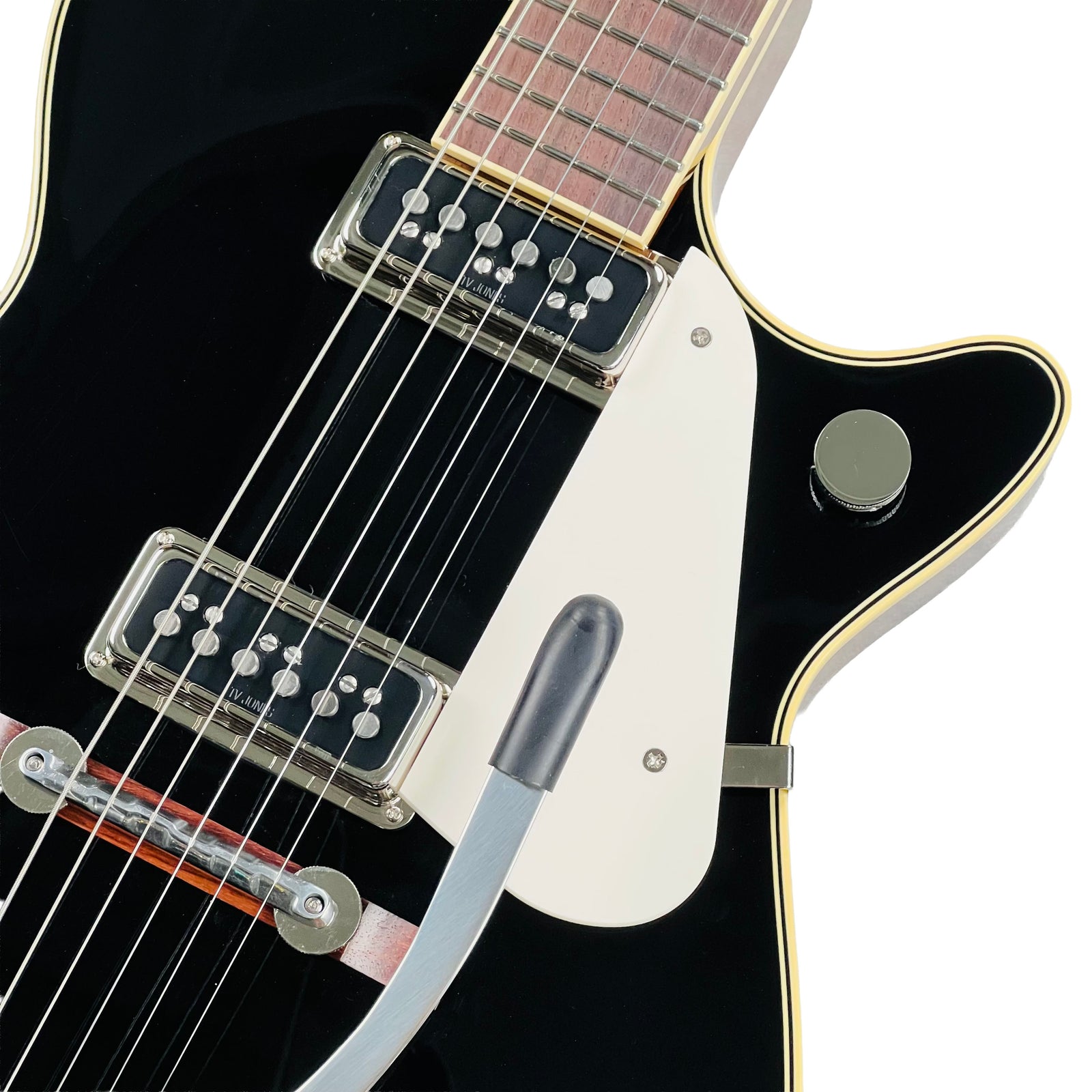

TV Jones T-Armond Bridge Pickup
TV Jones T-Armond Neck Pickup

Product Identifiers

Model Name	G6128T-53 Vintage Select '53 Duo Jet with Bigsby
Part Number	2401512806
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
Subcategory	Single Cutaway Set Neck
UPC Code	0885978771530

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Arched Laminated Maple

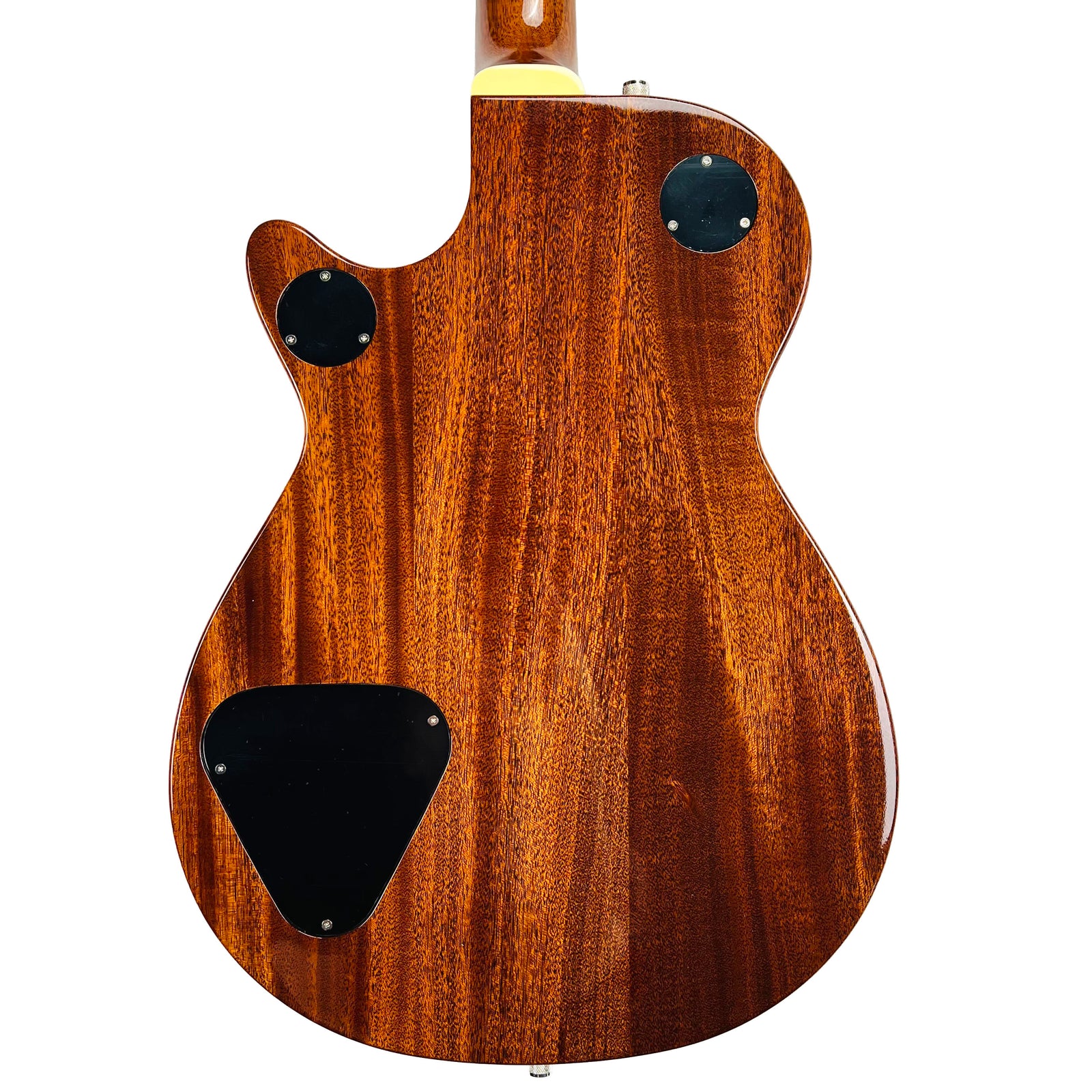

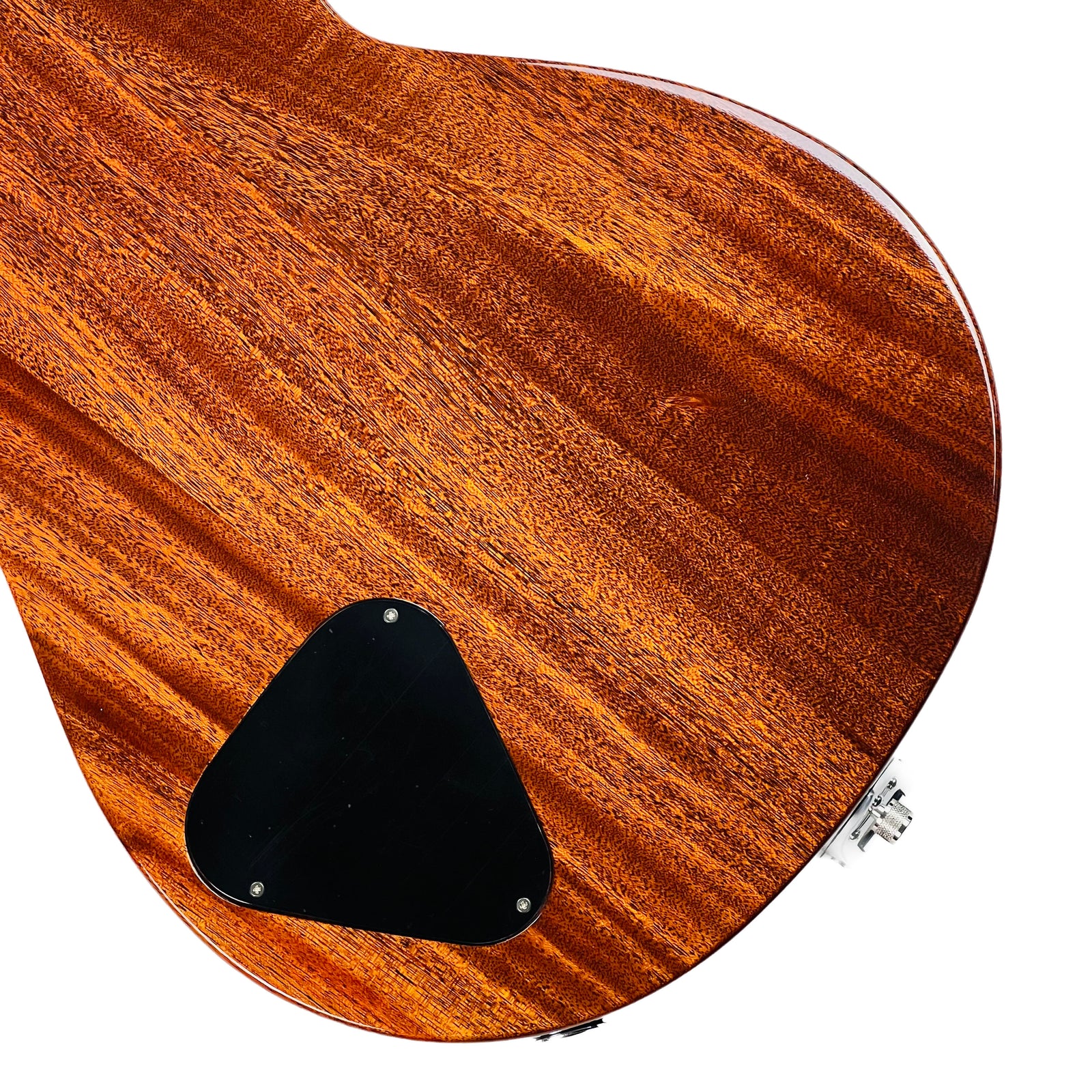

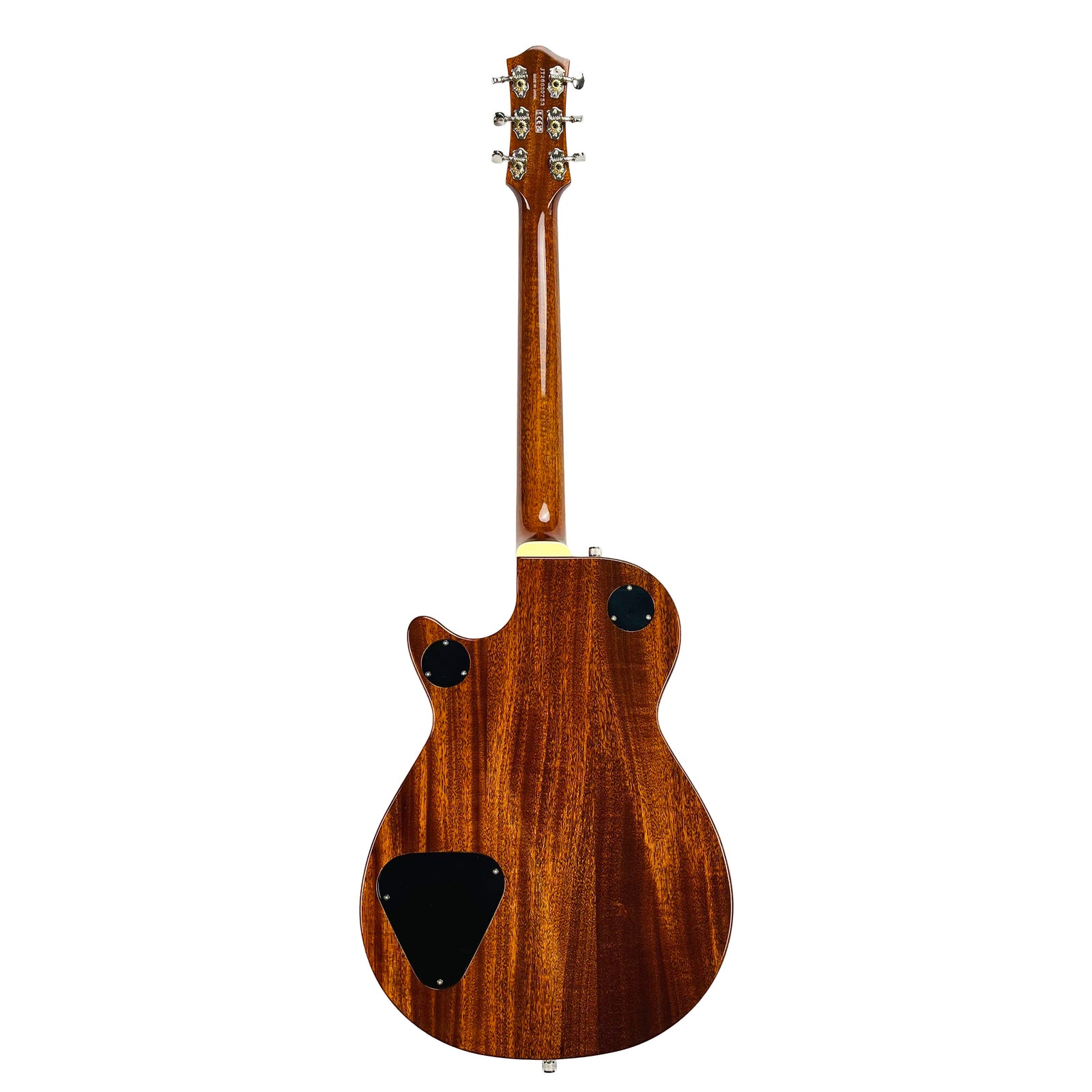

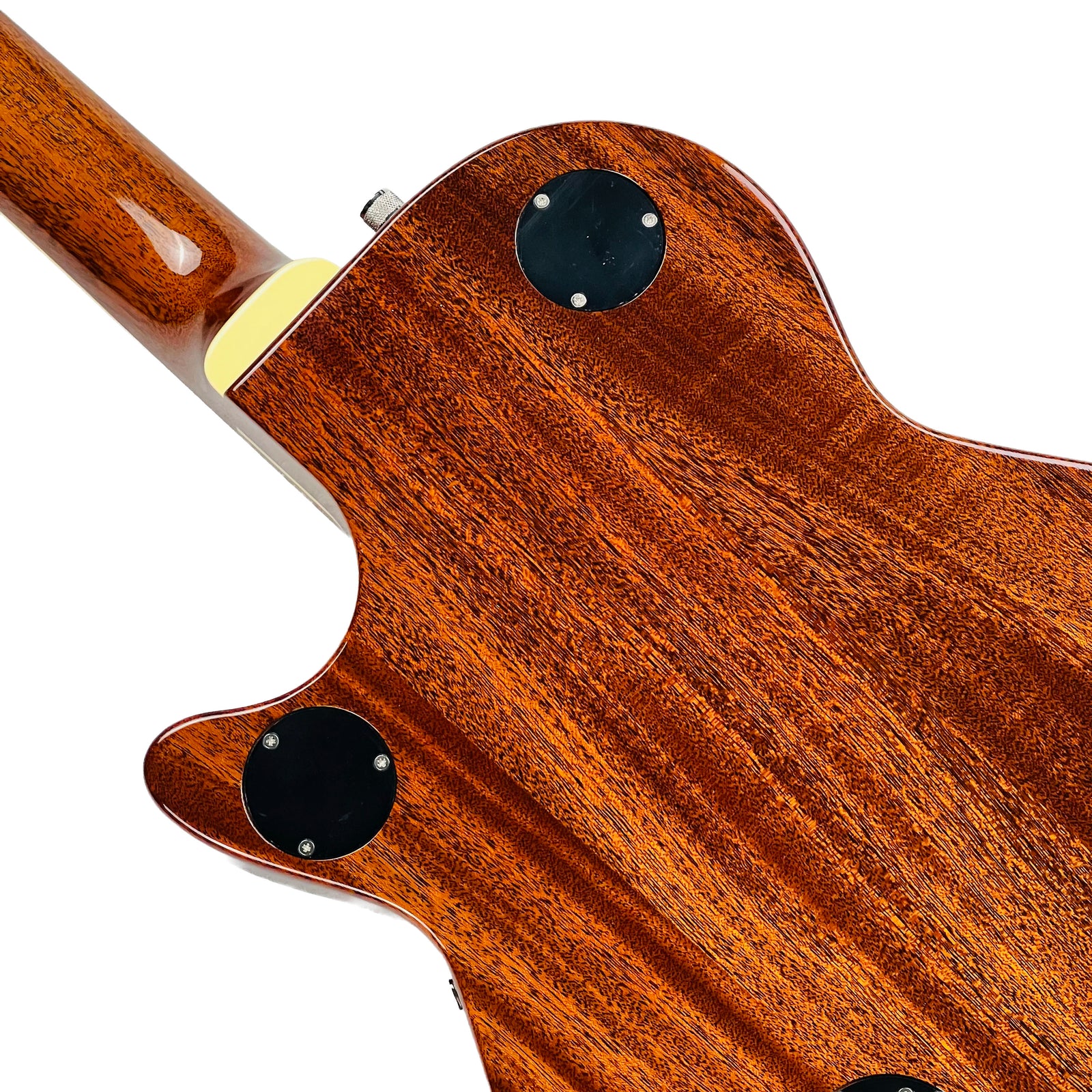

Back Material	Mahogany
Body Shape	Jet
Body Binding	Aged White
Body Finish	Gloss
Bracing	Chambered
Upper Bout Width	10.5" (26.7 cm)
Lower Bout Width	13.46" (341.88 mm)
Waist	8.625" (219.08 mm)

Hardware

Bridge	Aluminum Compensated

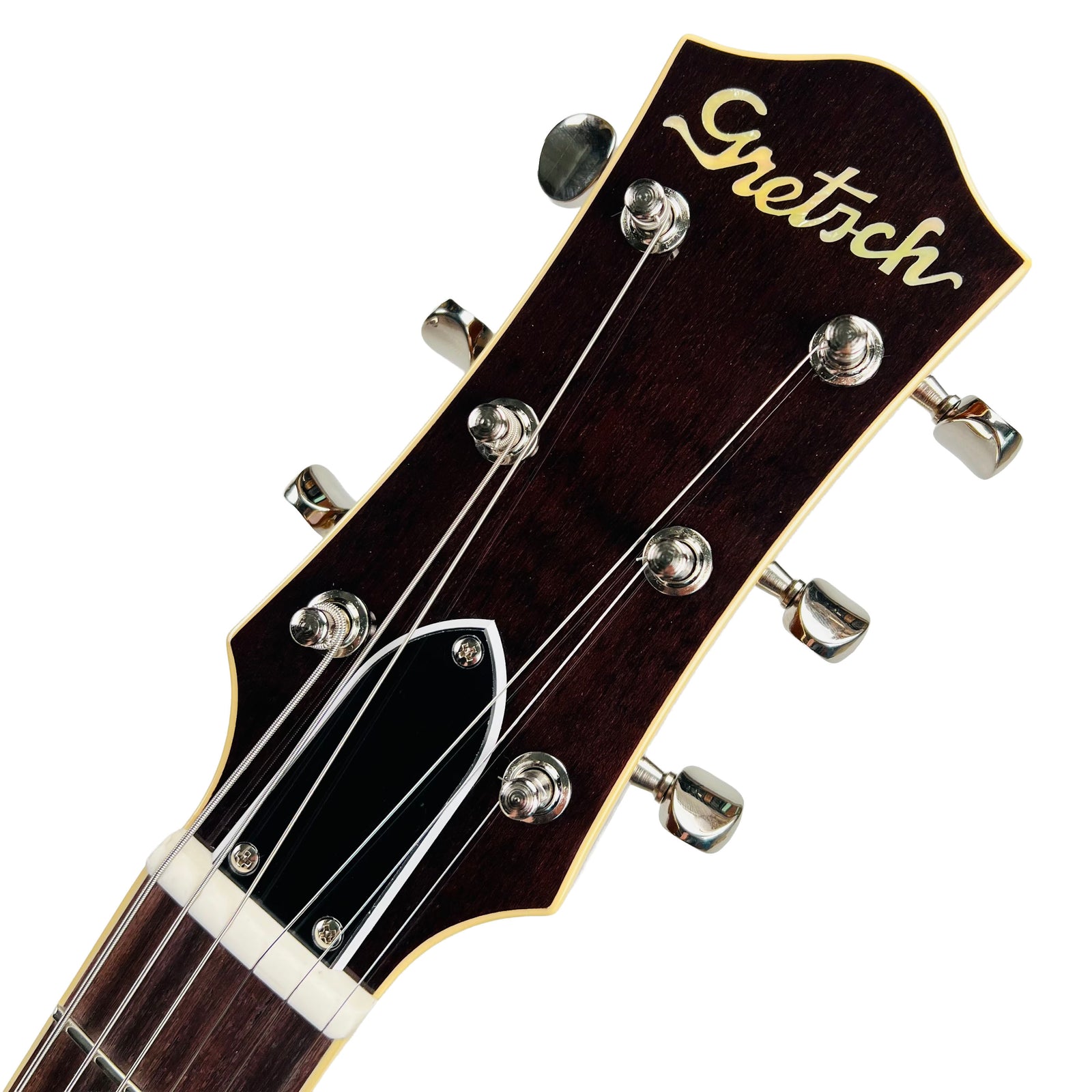

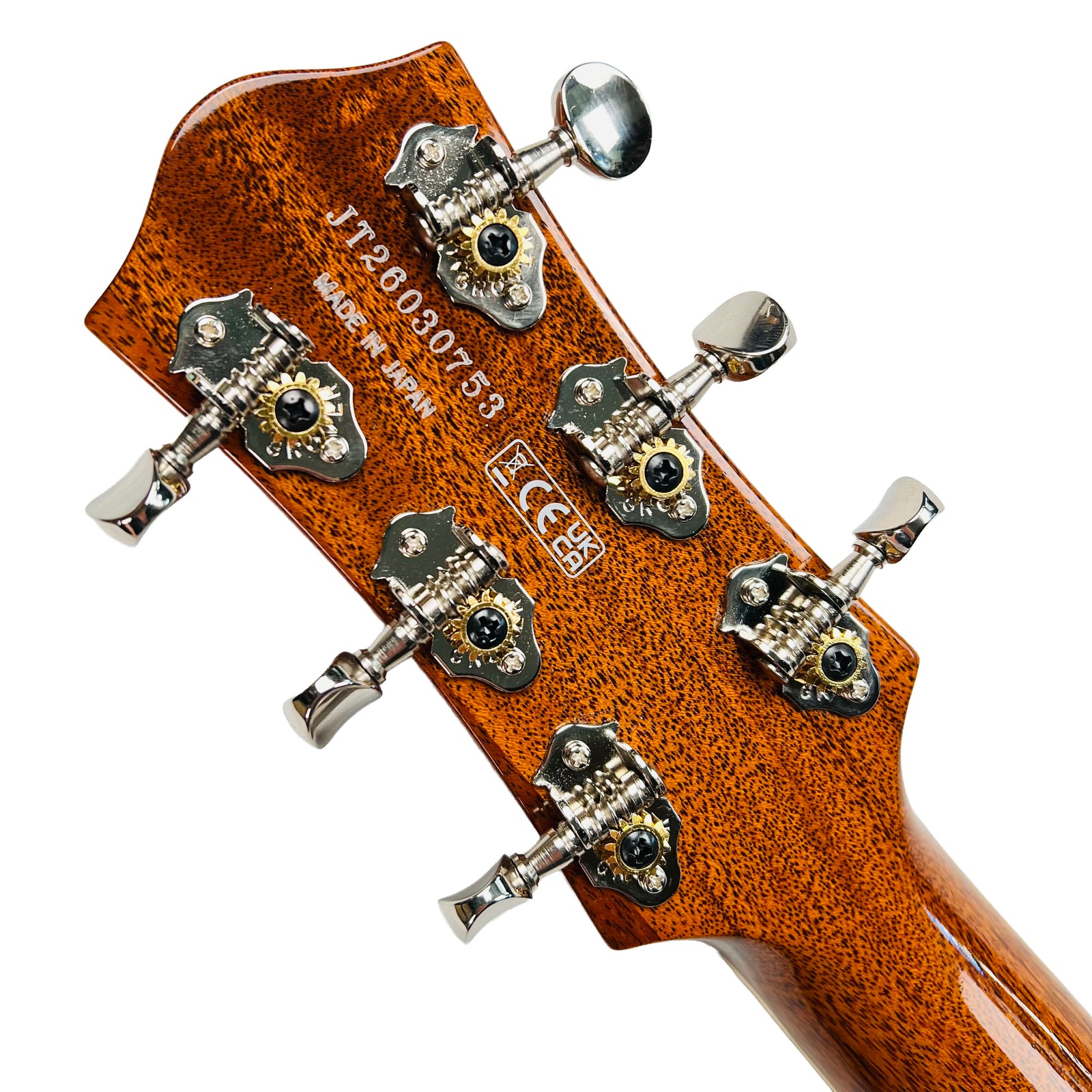

Tuning Machines	Grover Sta-Tite Die-Cast
Pickguard	1-Ply Vintage White
Control Knobs	Plain

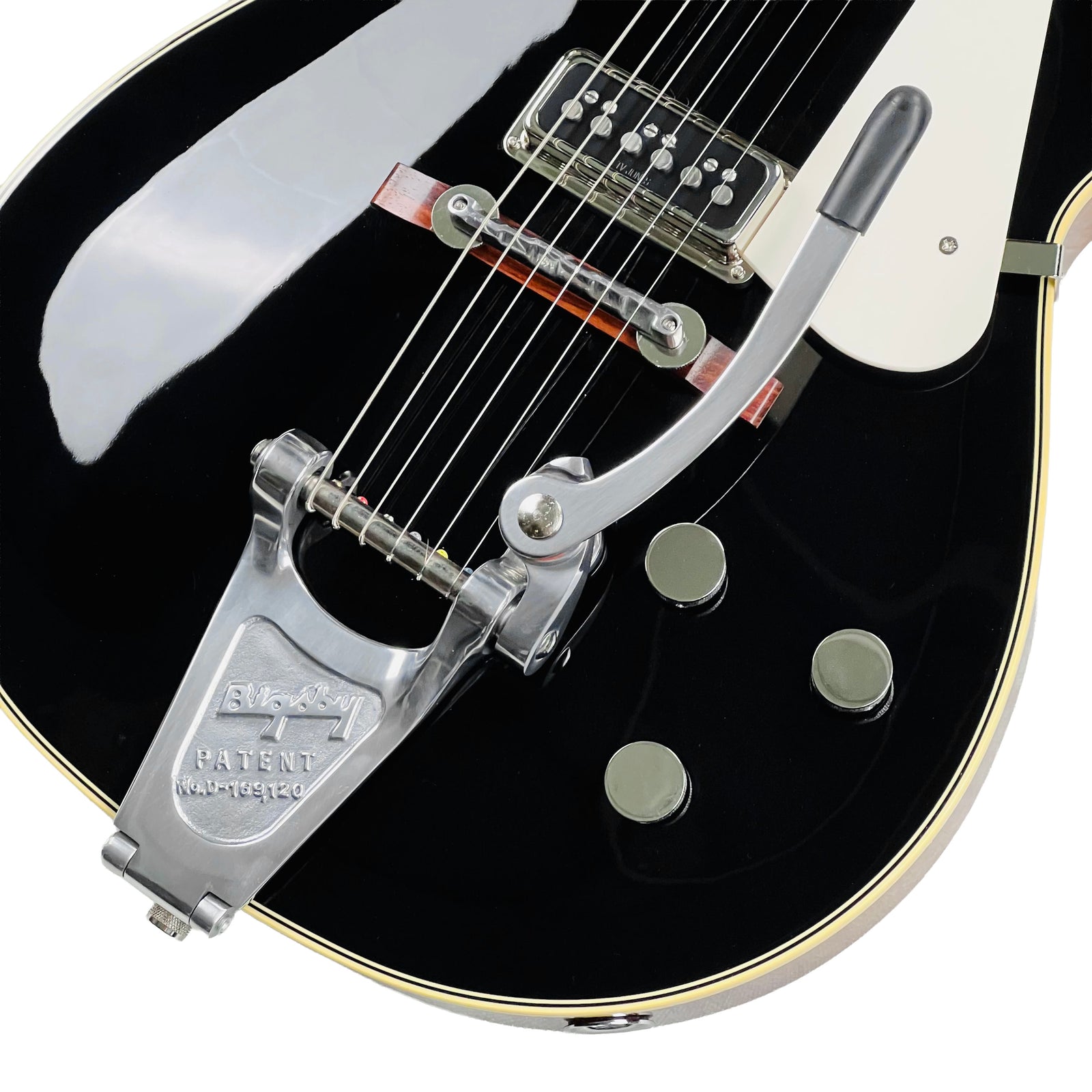

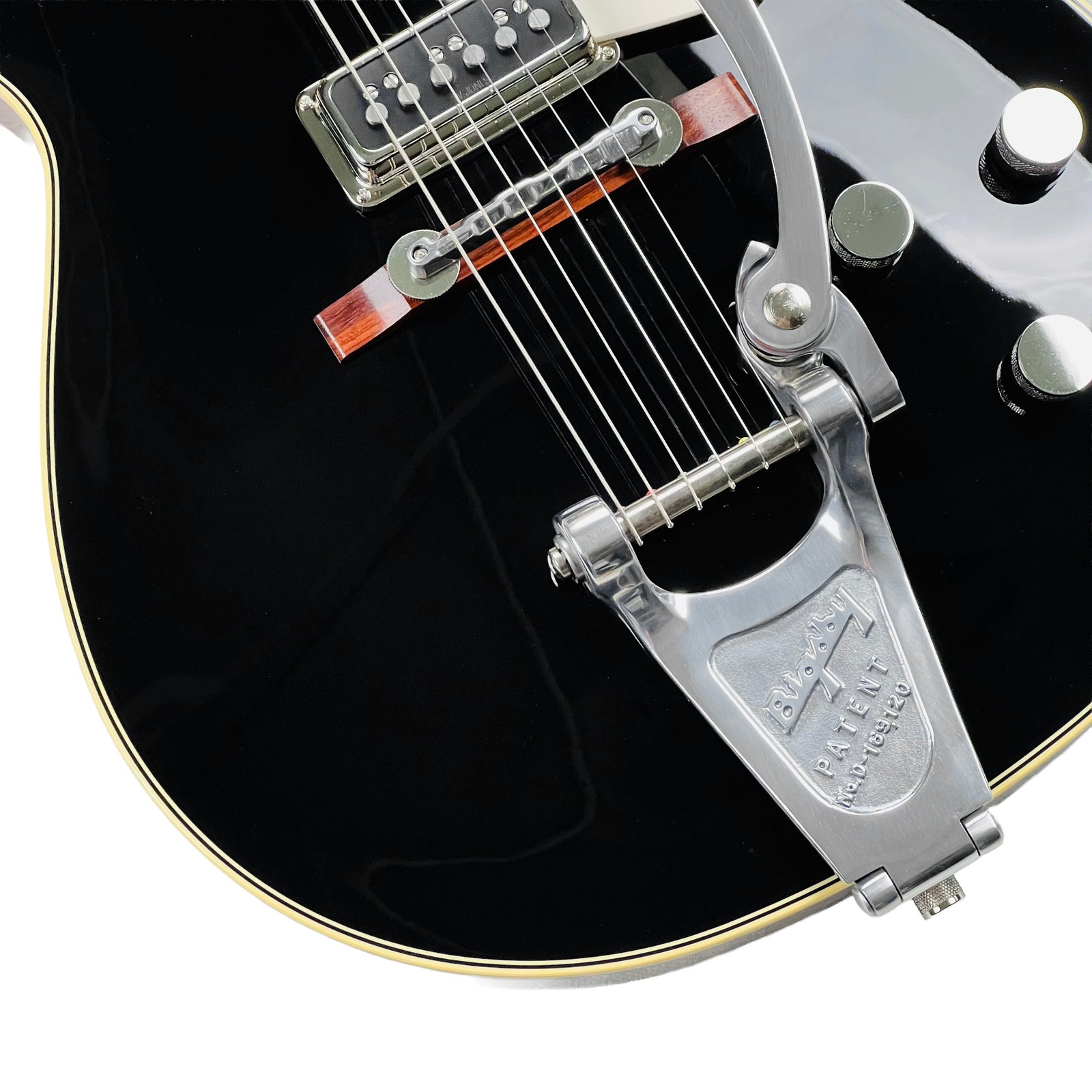

Bridge Cover / Tailpiece	Bigsby B3CCB
Hardware Finish	Nickel

Neck Construction

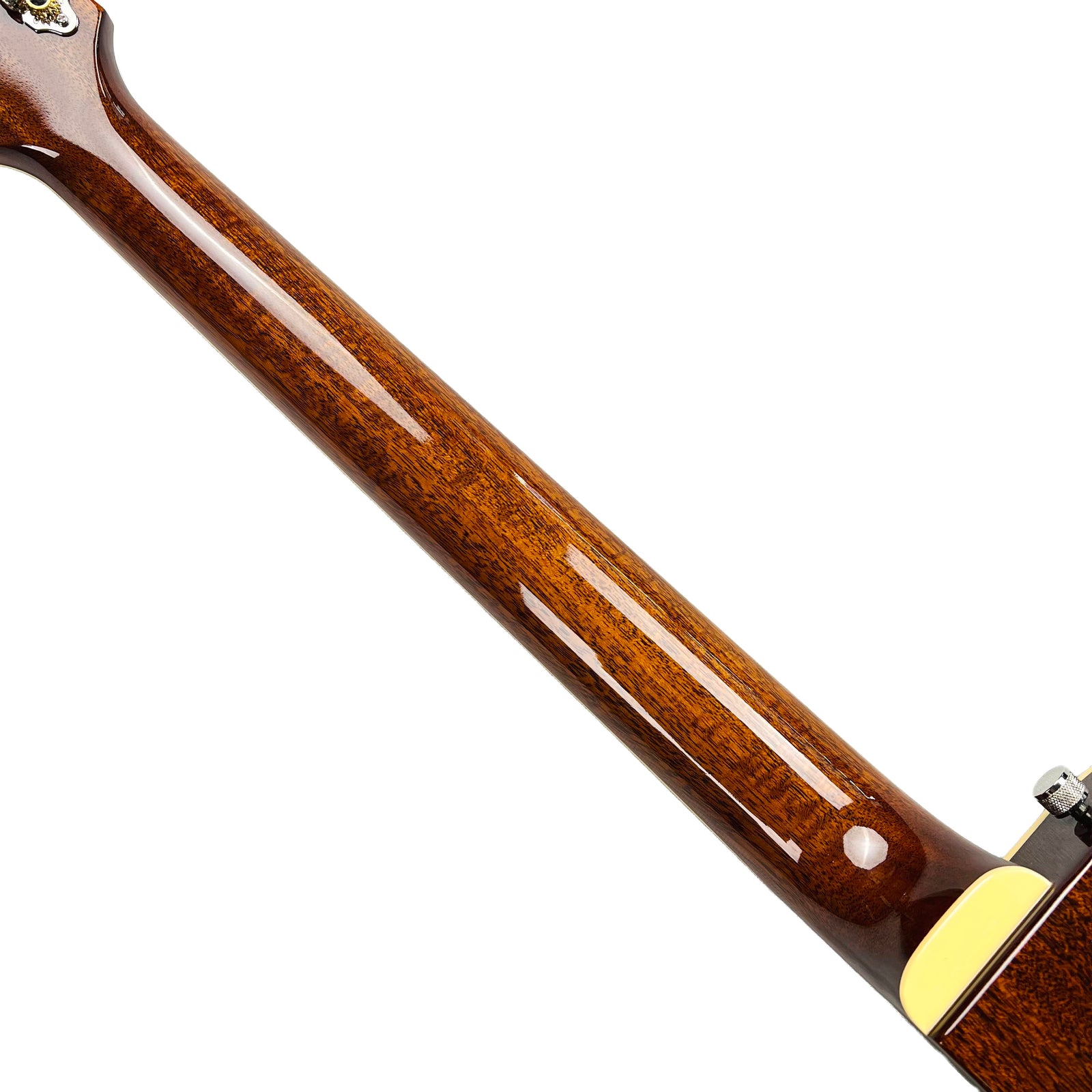

Neck Material	Mahogany
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Refinement Fingerboard Radius	Modern

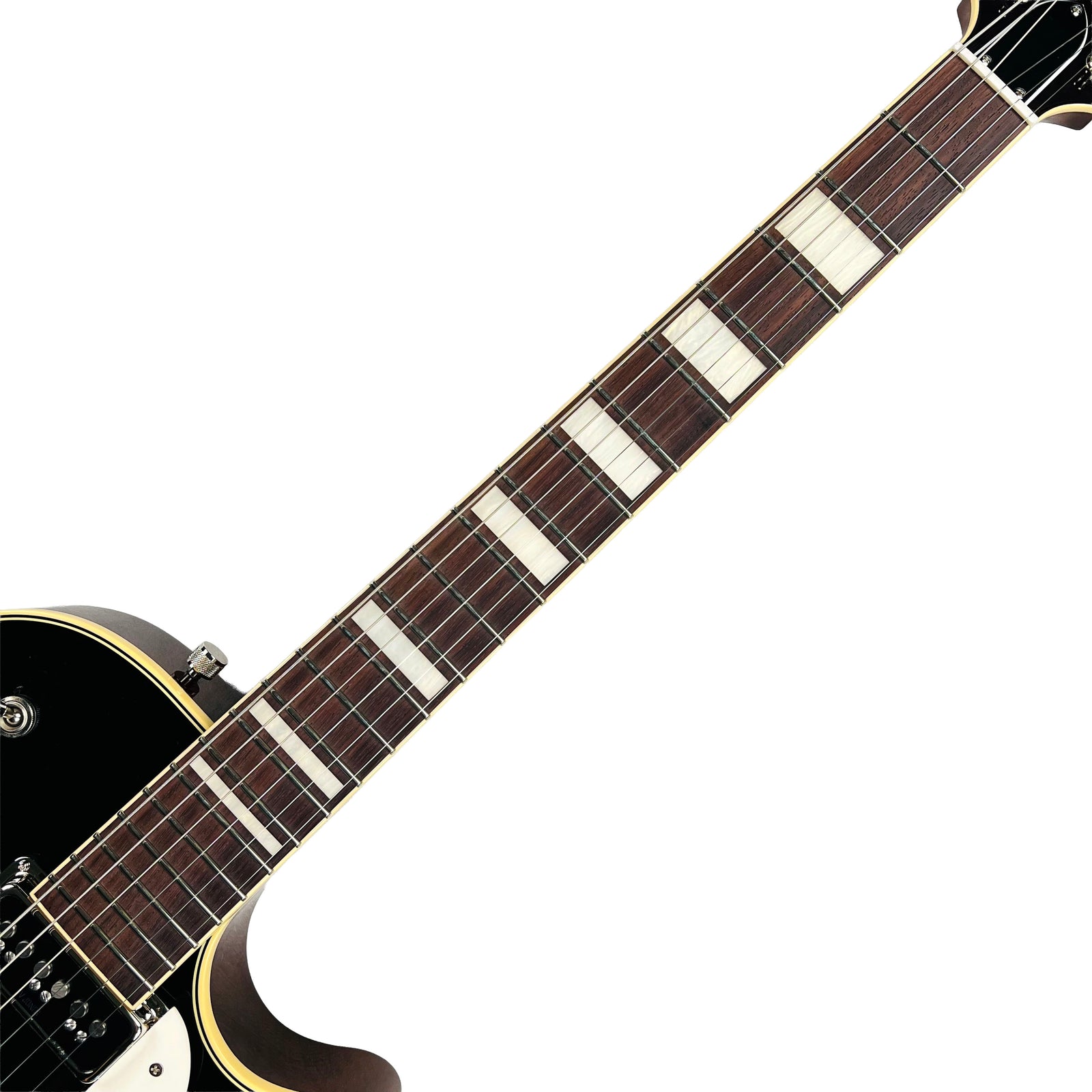

Fingerboard Inlays	Aged Pearloid Blocks
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Bone
Neck Shape	Standard "U"
Neck Finish	Gloss Urethane

Electronics

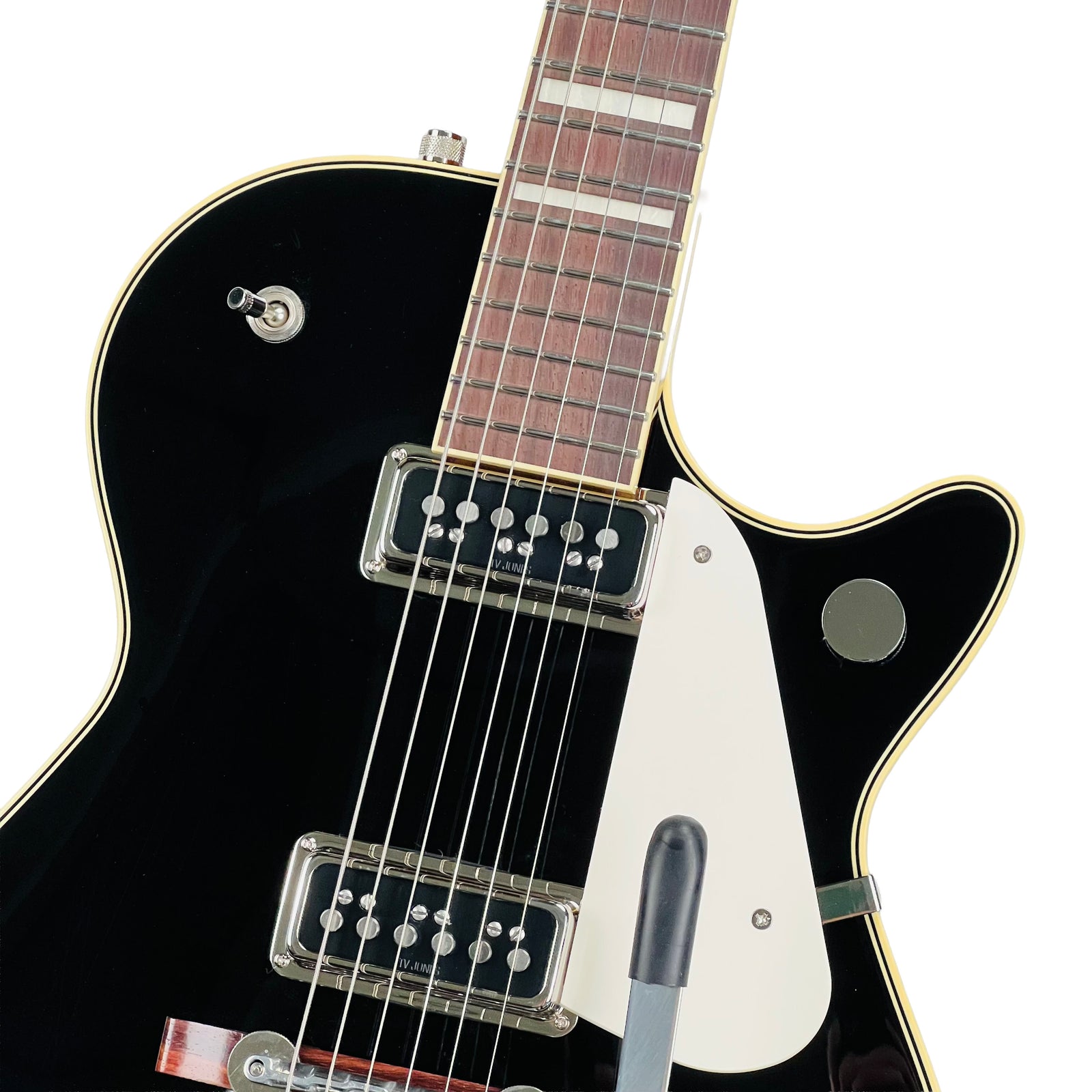

Bridge Pickup	TV Jones T-Armond
Neck Pickup	TV Jones T-Armond
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)

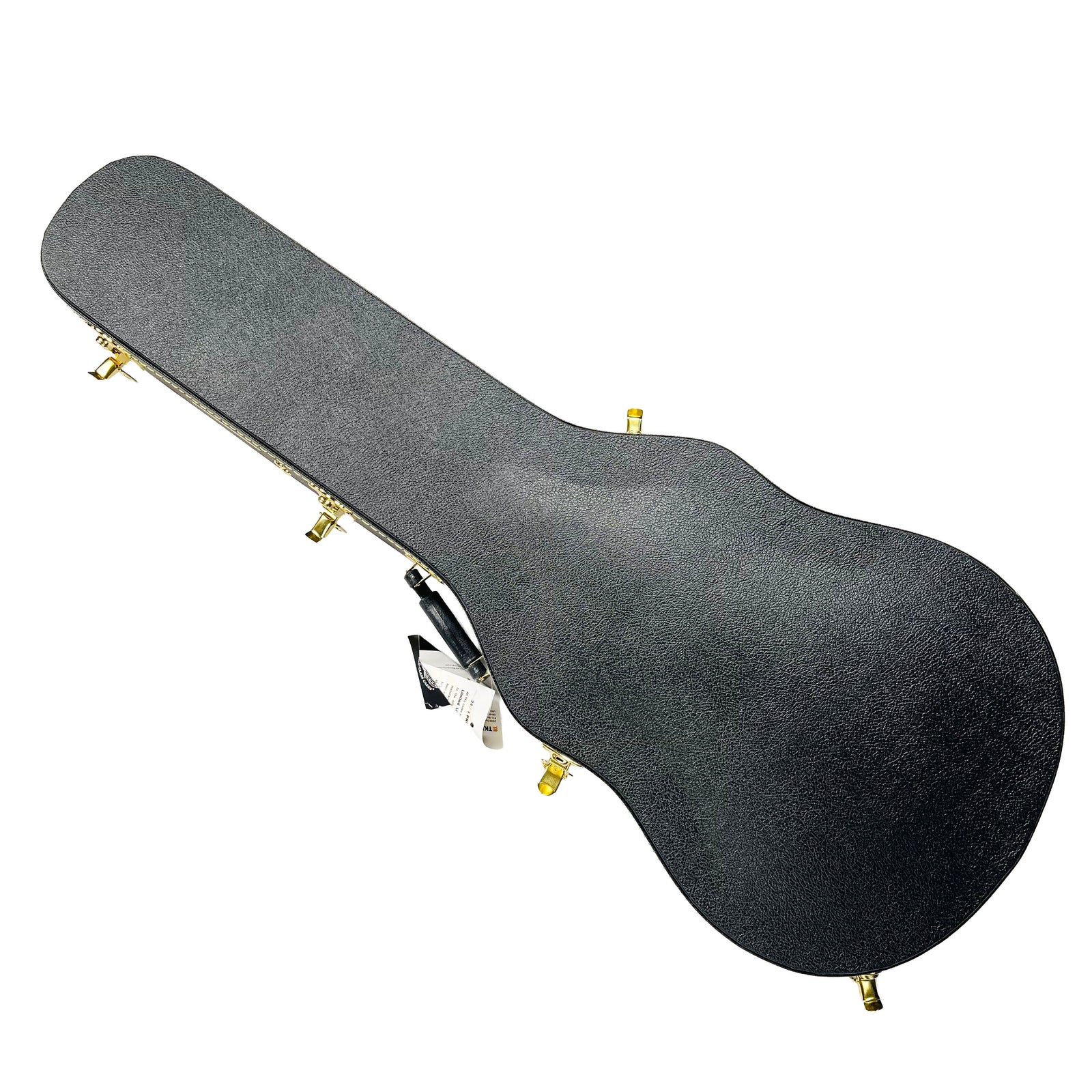

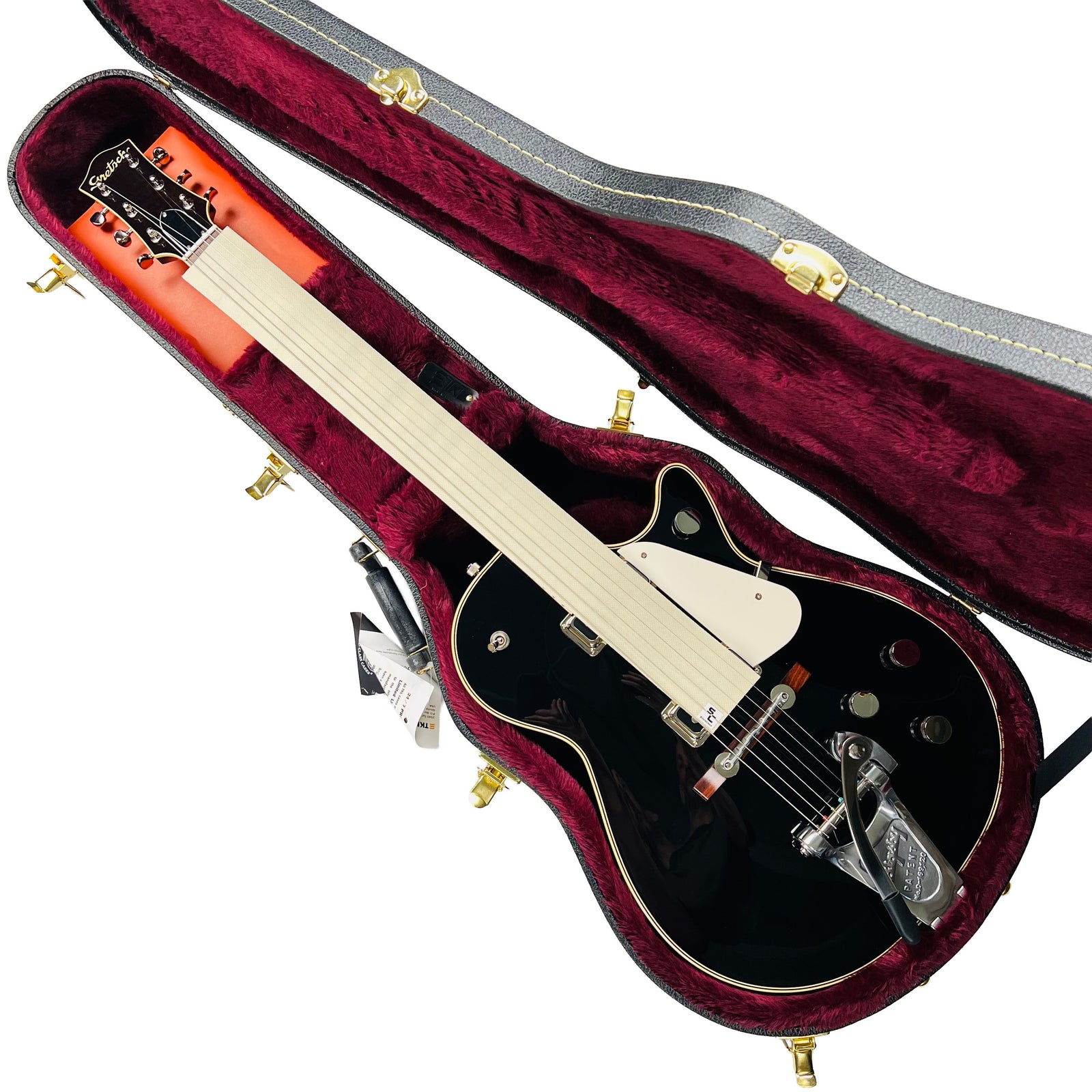

Case / Gig Bag	Included G6238 Gretsch Deluxe Solid Body Hardshell (p/n 099-6410-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)

Reference Images

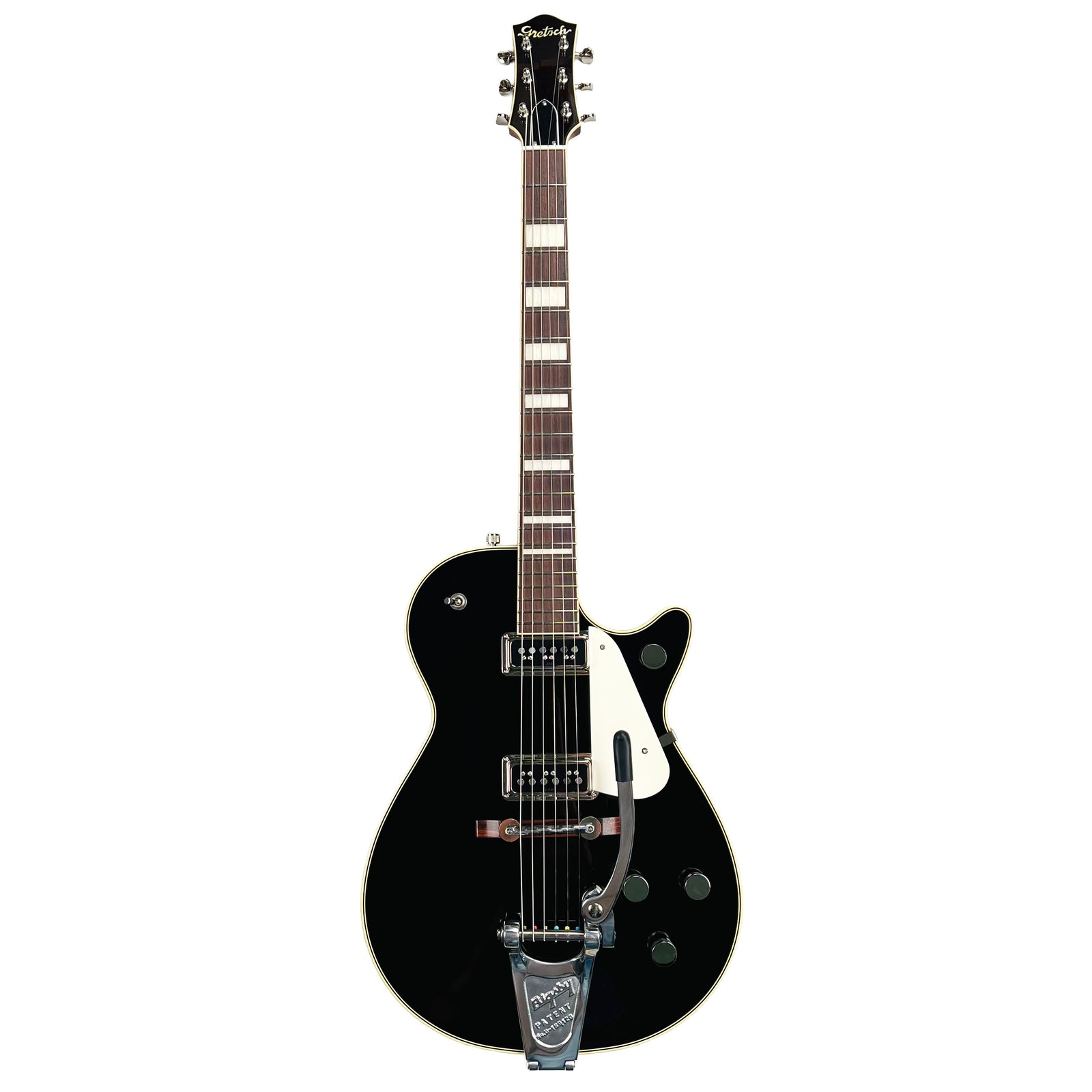

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6128T-53 Vintage Select '53 Duo Jet with Bigsby listed above. For larger pics, click on an image to open in a new tab.
