Gretsch Tennessean Hollow Body with String-Thru Bigsby and Nickel Hardware Havana Burst Specs

The Tennessean Hollow Body with String-Thru Bigsby and Nickel Hardware is a hollow body electric guitar built by Gretsch. This single cutaway set neck guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401419831.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Gotoh Locking Tuning Machines
PRO-FT Filter'Tron Bridge Pickup
PRO-FT Filter'Tron Neck Pickup

Product Identifiers

Model Name	Tennessean Hollow Body with String-Thru Bigsby and Nickel Hardware
Part Number	2401419831
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
Subcategory	Single Cutaway Set Neck
UPC Code	0885978048540

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Tennessean
Body Binding	White with Black Purfling
Body Finish	Gloss
Bracing	Arc-Tone Bracing
Upper Bout Width	11.563" (294 mm)
Lower Bout Width	16" (406 mm)
Waist	9.5" (241mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Gotoh Locking
Pickguard	Gold Plexi with Gold Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B6CP String-Thru
Hardware Finish	Nickel

Neck Construction

Neck Material	Maple
Refinement Neck Material	Maple
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Refinement Fingerboard Radius	Modern
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Luminlay
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech TUSQ XL
String Nut	Graph Tech TUSQ XL
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	White

Electronics

Bridge Pickup	PRO-FT Filter'Tron
Neck Pickup	PRO-FT Filter'Tron
Refinement Pickups	Filter'Tron / Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Middle Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Configuration	Filter'Tron / Filter'Tron

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)
Case / Gig Bag	Included: 099-6411-000 G6241 Deluxe Hardshell Case

Reference Images

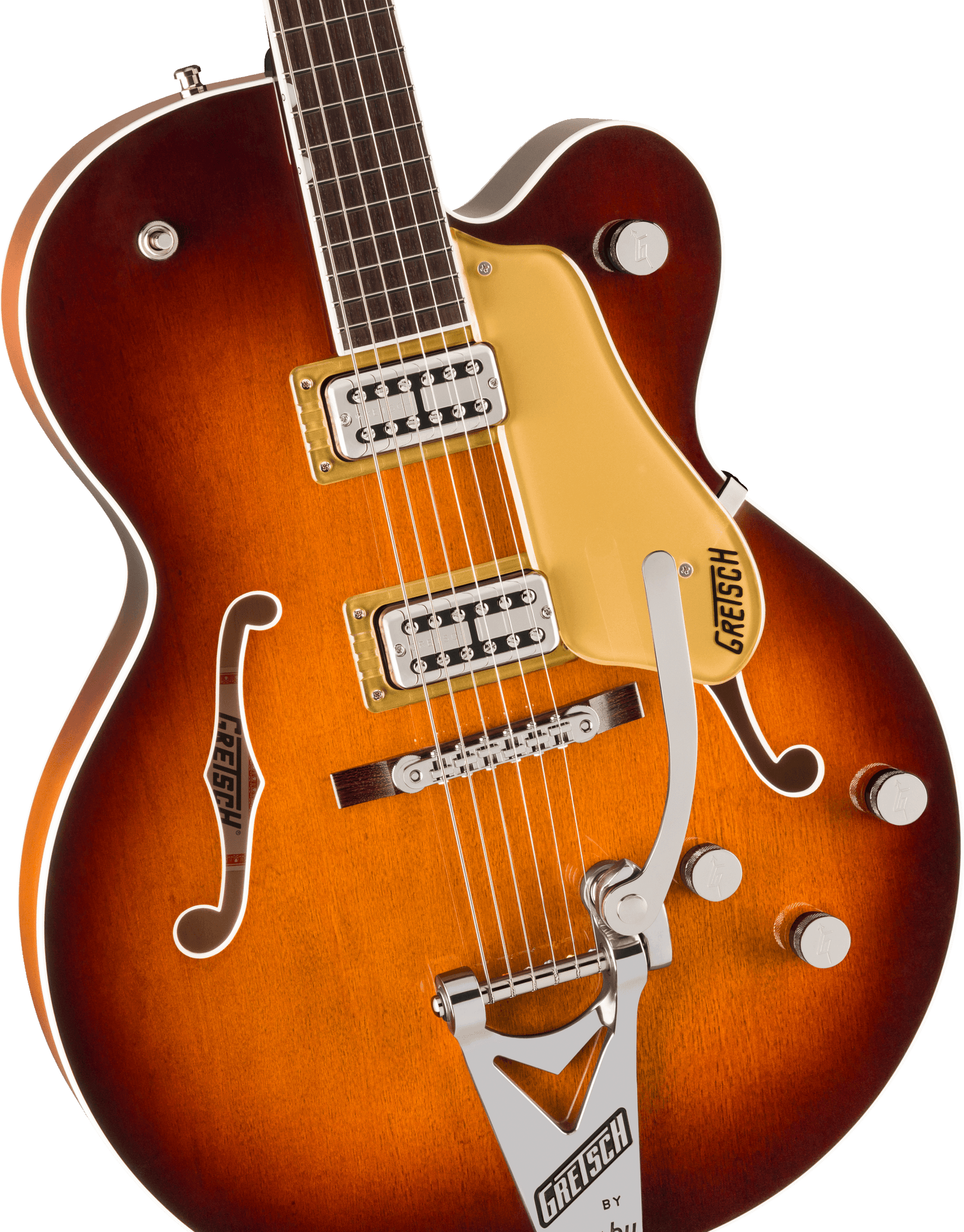

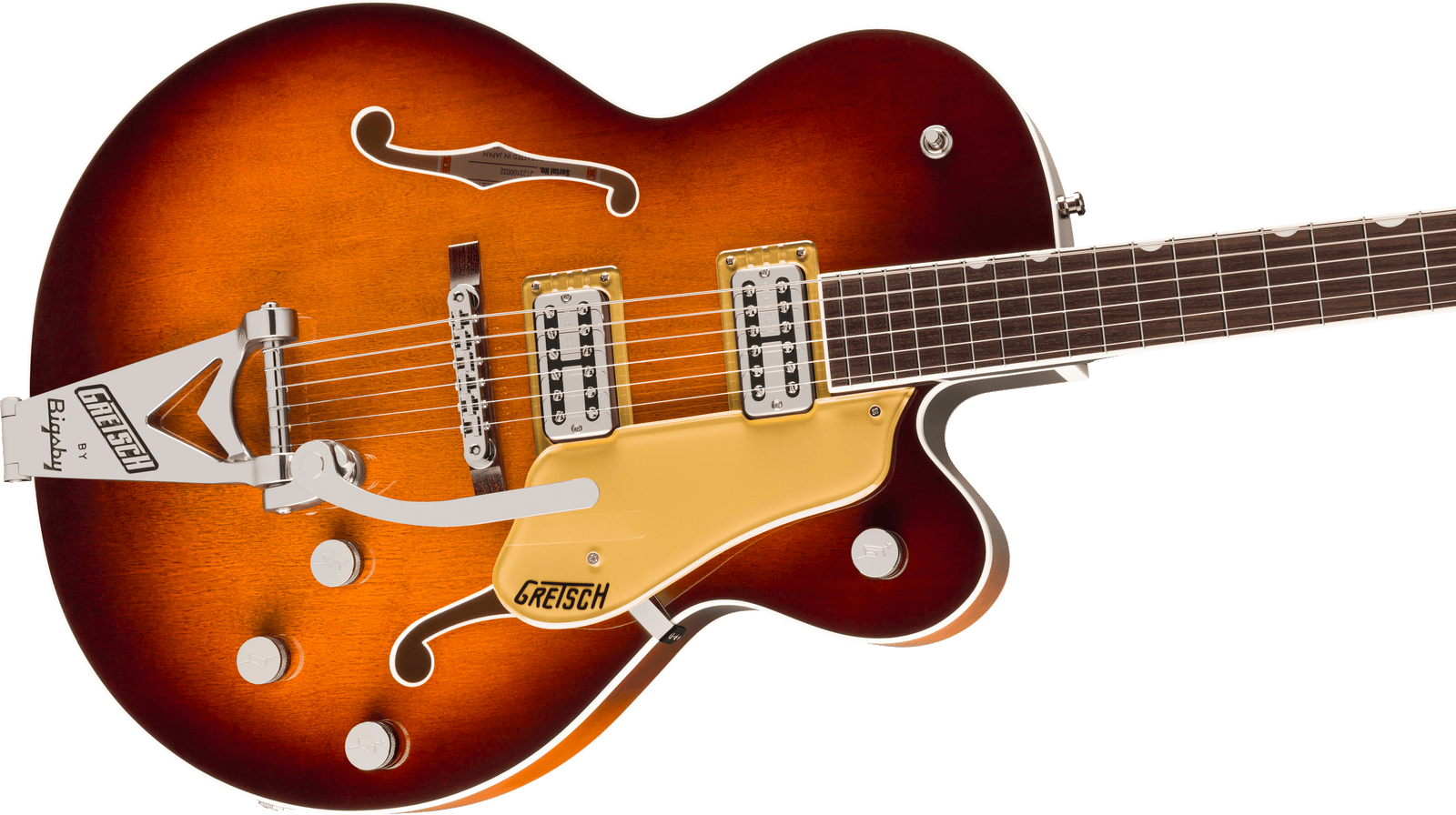

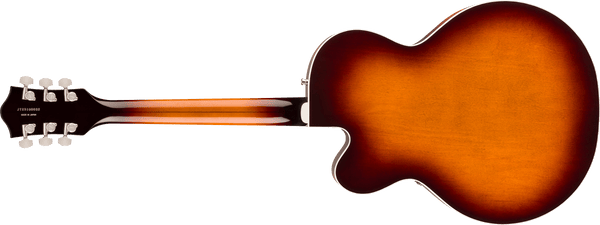

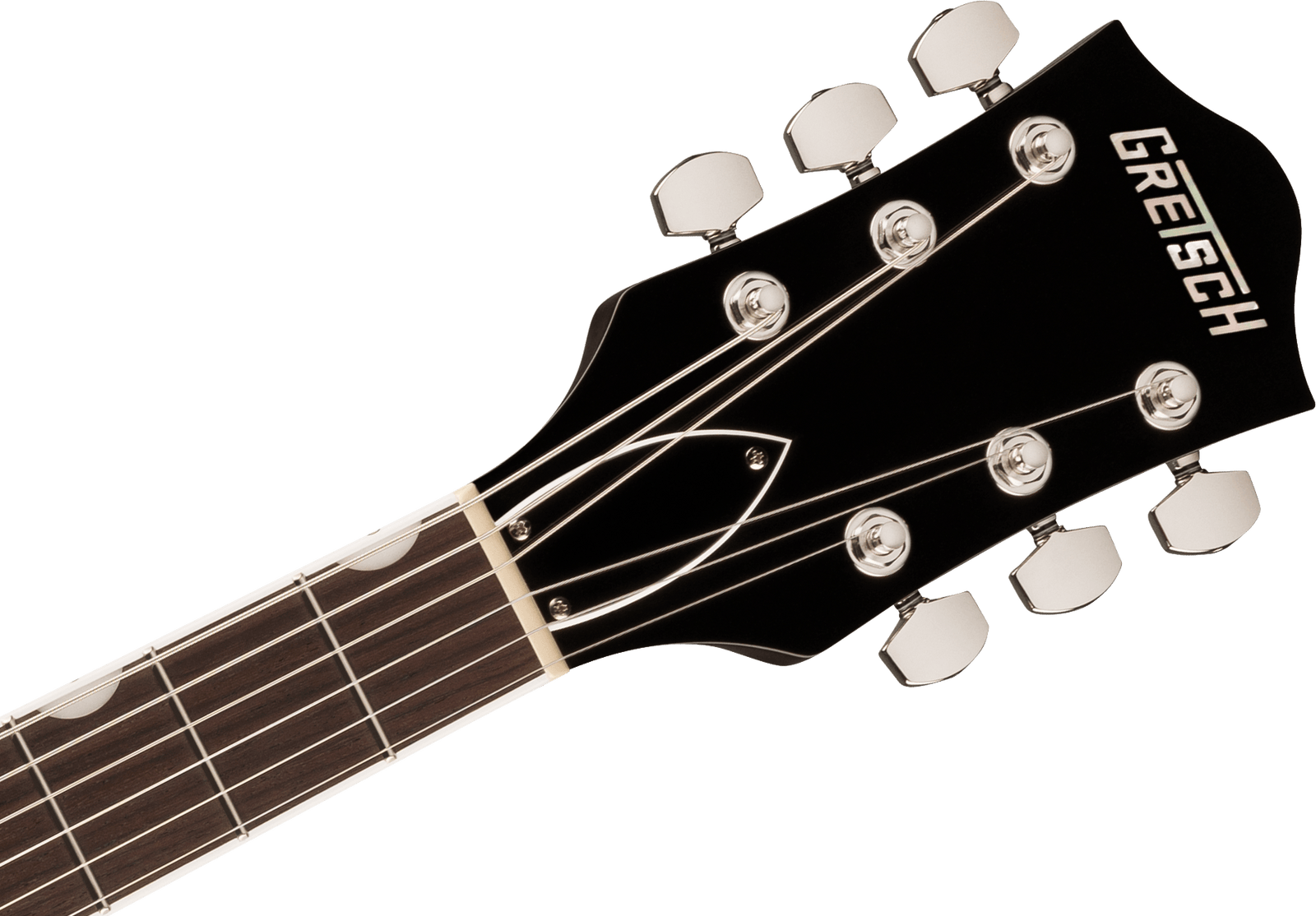

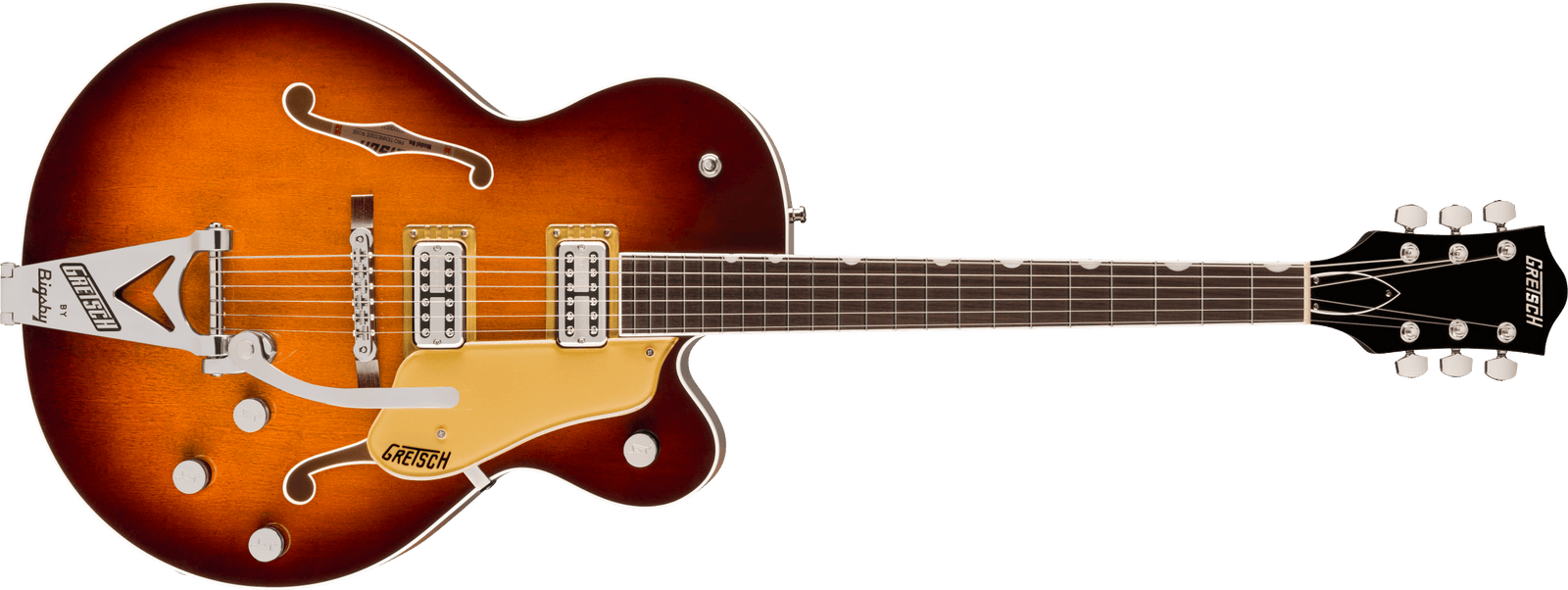

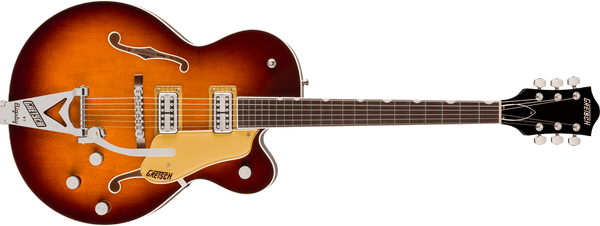

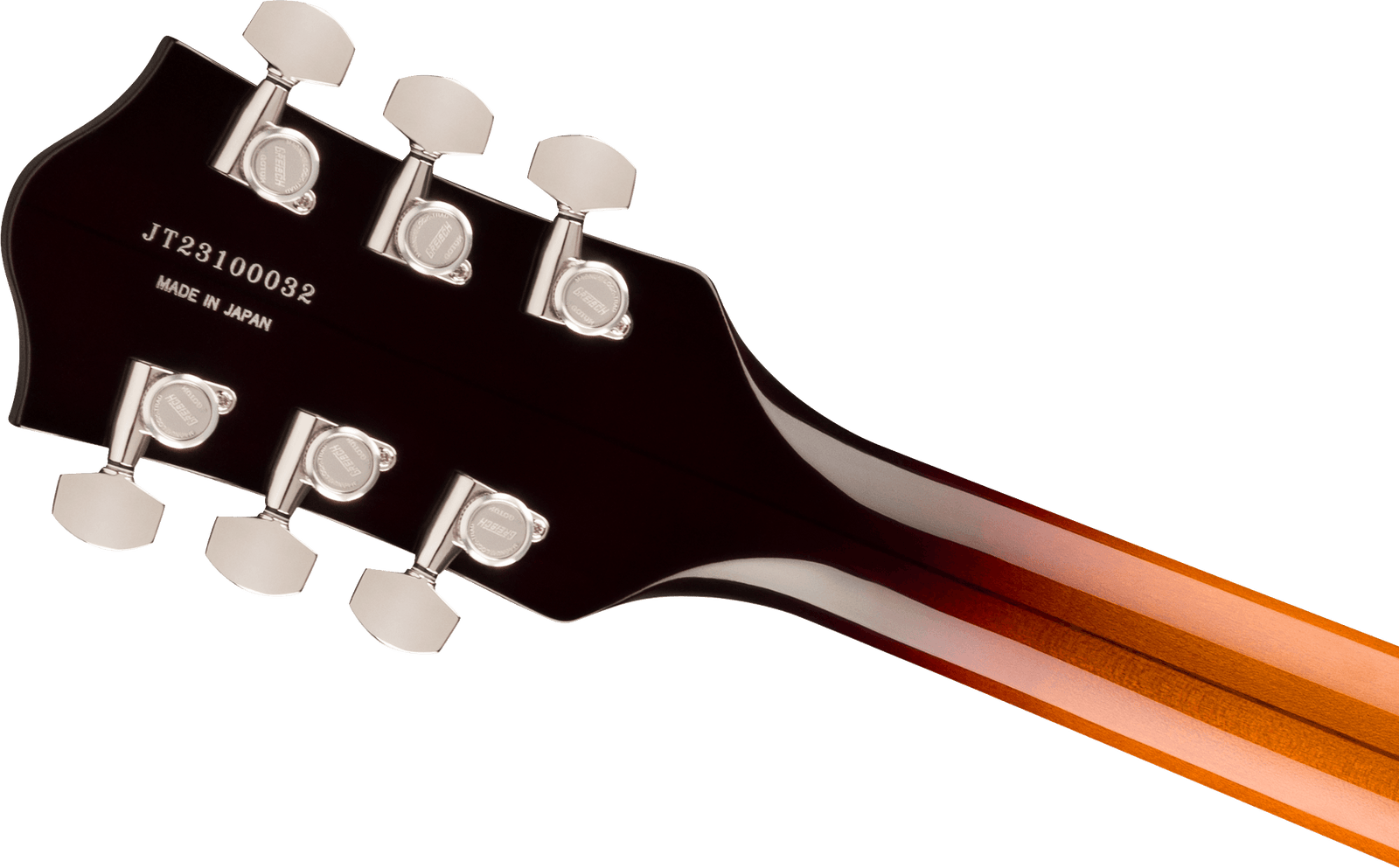

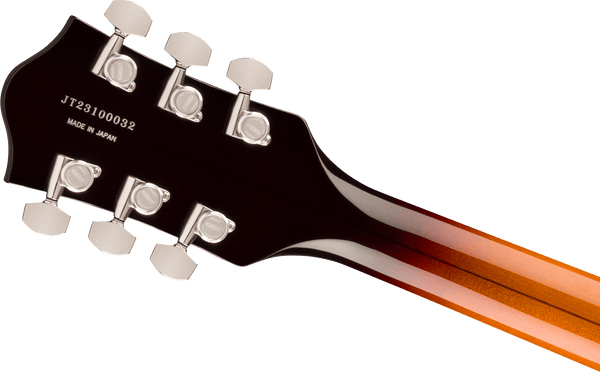

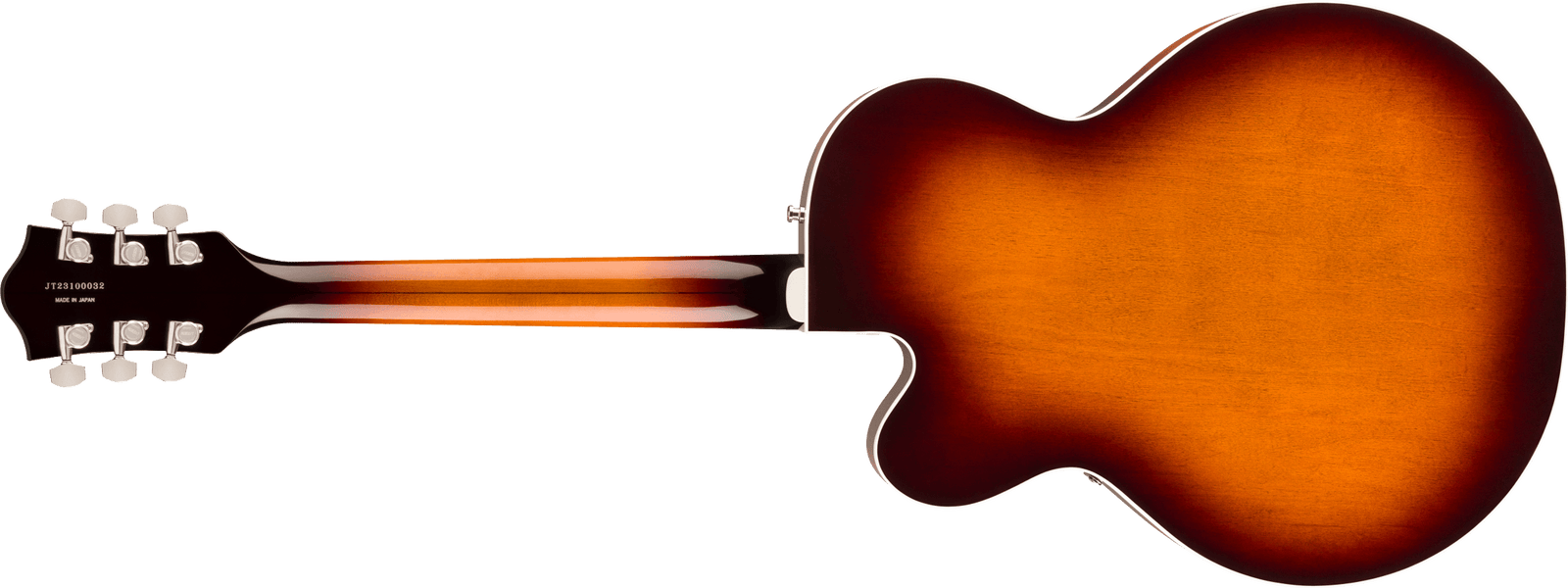

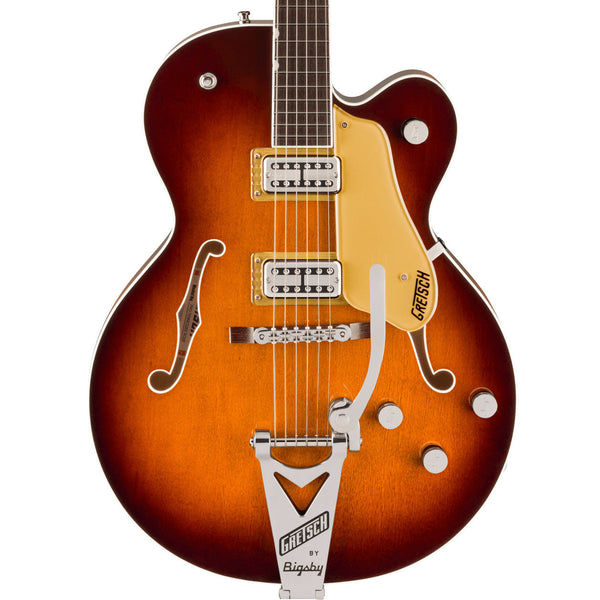

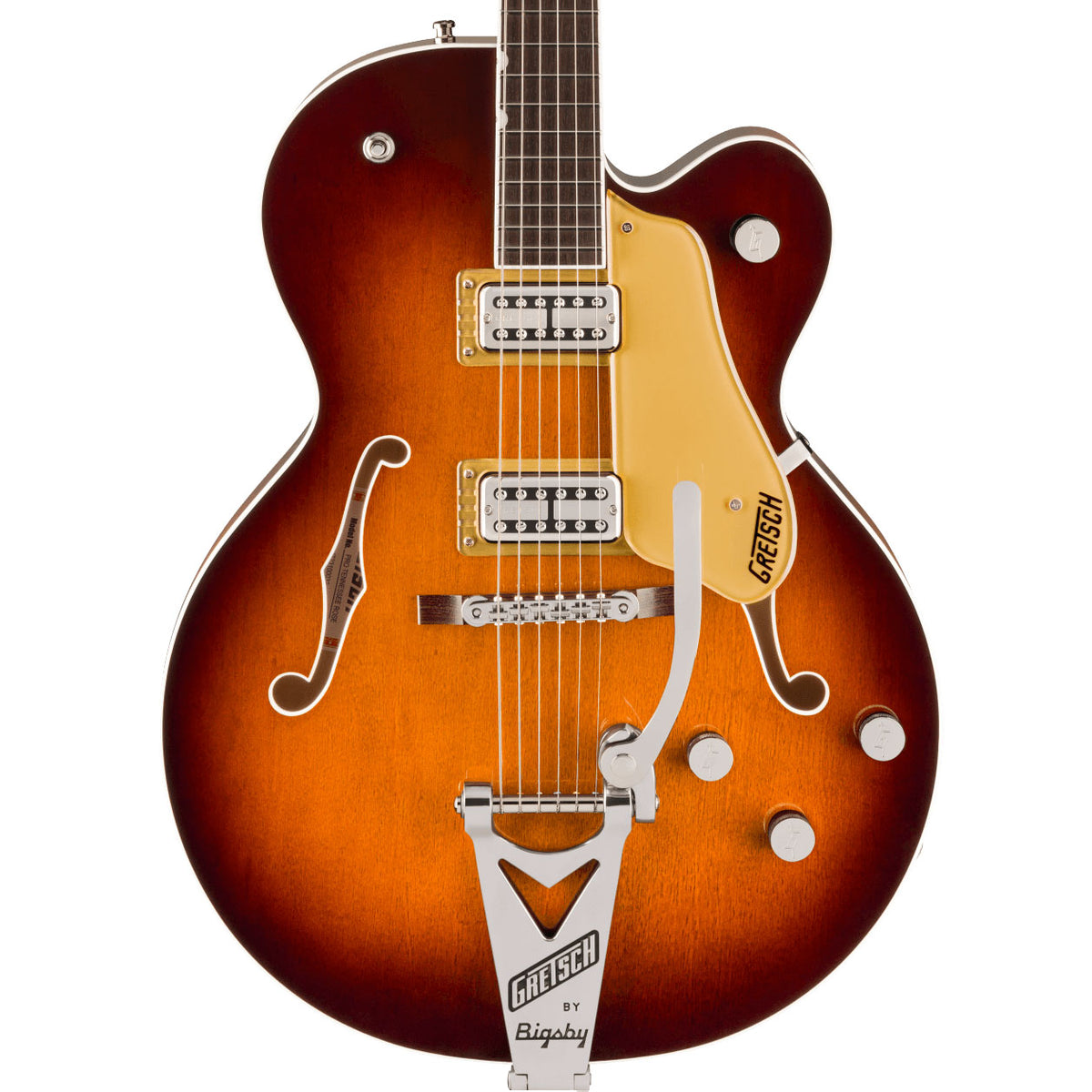

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Tennessean Hollow Body with String-Thru Bigsby and Nickel Hardware listed above. For larger pics, click on an image to open in a new tab.
