Gretsch G5422TG Electromatic Pristine LTD Hollow Body Double-Cut Bigsby Petrol Specs

The G5422TG Electromatic Pristine LTD Hollow Body Double-Cut with Bigsby Laurel Fingerboard Petrol is a hollow body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2506239548.

Key Features

Sapele Body
Mahogany Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12.6" (320 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Vintage-Style Open-Back Tuning Machines
FT-5E Filter’Tron Bridge Pickup
FT-5E Filter’Tron Neck Pickup

Product Identifiers

Model Name	G5422TG Electromatic Pristine LTD Hollow Body Double-Cut with Bigsby
Part Number	2506239548
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	197955147673

Factory Specifications

Body Construction

Body Material	Sapele
Body Shape	Hollow-Body
Body Binding	Aged White with B/AW/B Purfling
Body Finish	Gloss

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Vintage-Style Open-Back
Pickguard	Gold Plexi
Control Knobs	Gold
Bridge Cover / Tailpiece	Bigsby B60
Hardware Finish	Gold

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel
Radius	12.6" (320 mm)
Fingerboard Inlays	Pearloid Hump Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech NuBone
Neck Shape	Classic "C"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock	Late '50s Gretsch
Headstock Binding	Aged White

Electronics

Bridge Pickup	FT-5E Filter’Tron
Neck Pickup	FT-5E Filter’Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume with Treble Bleed, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge, Position 2. Bridge and Neck, Position 3. Neck

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)
Case / Gig Bag	Optional Gig Bag G2162 (p/n 099-6458-000); G6241FT Hardshell Case (p/n 099-6475-000)

Reference Images

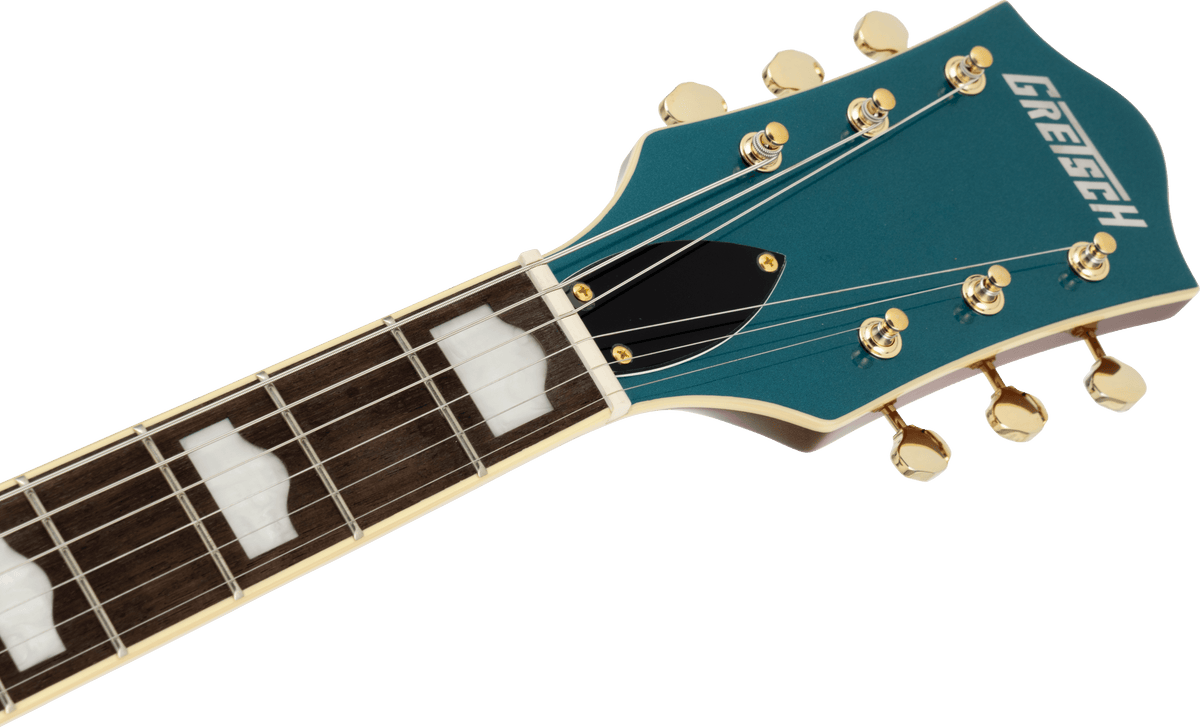

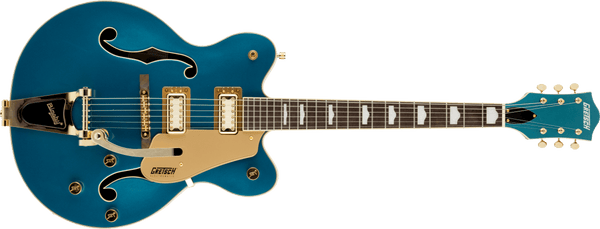

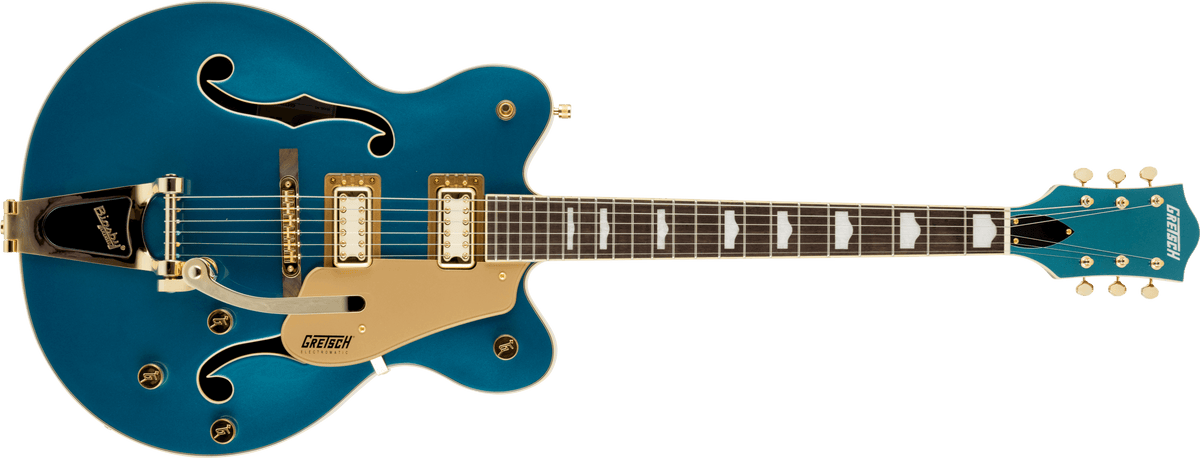

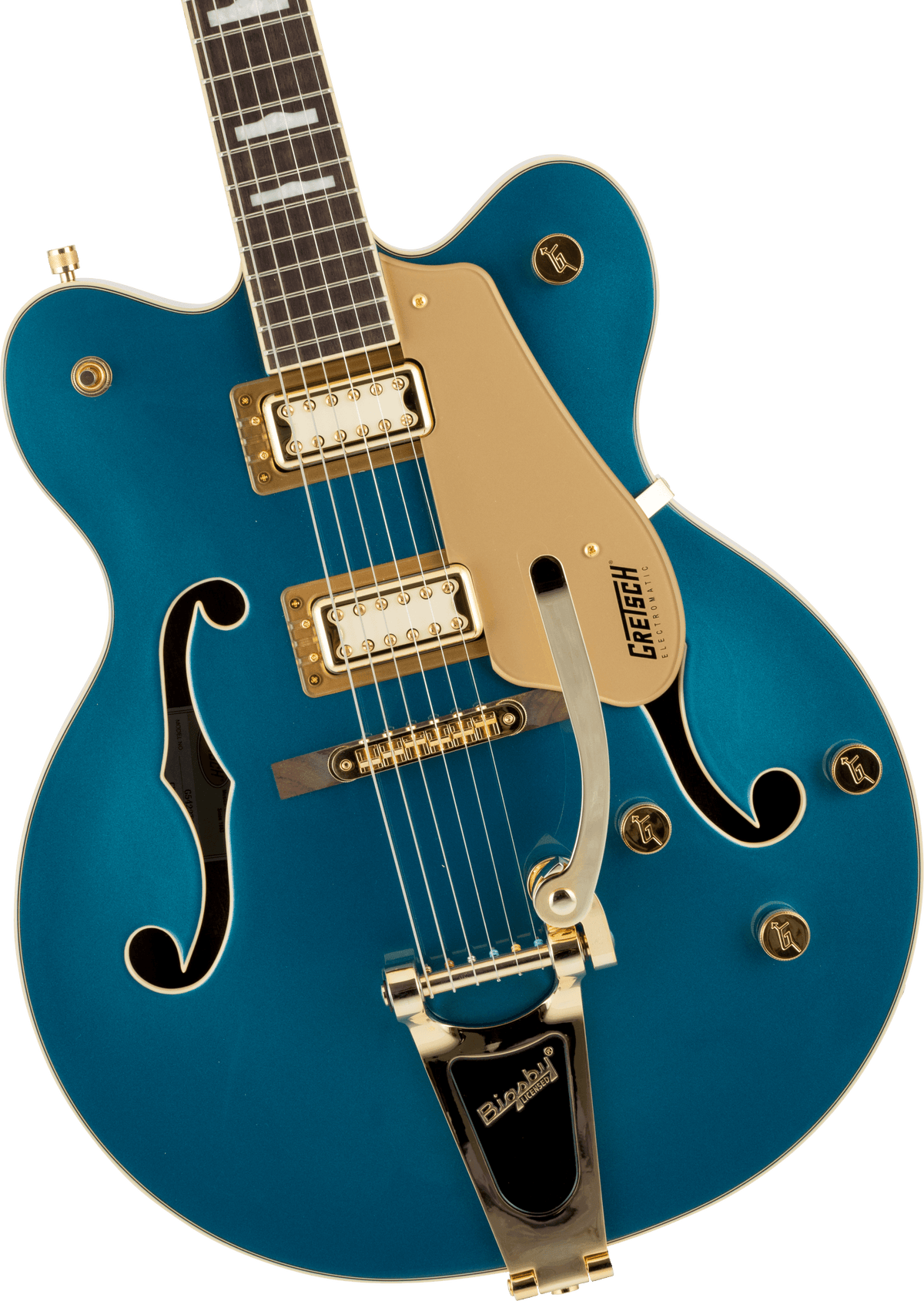

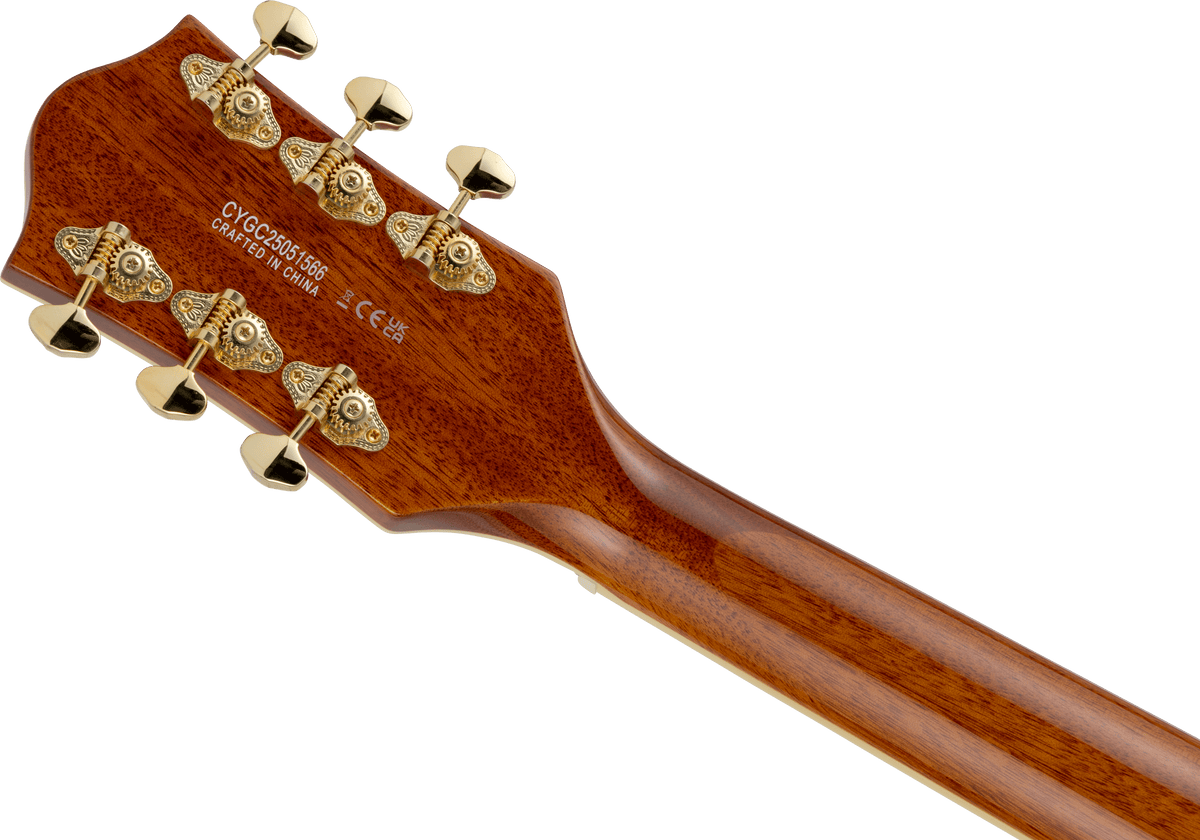

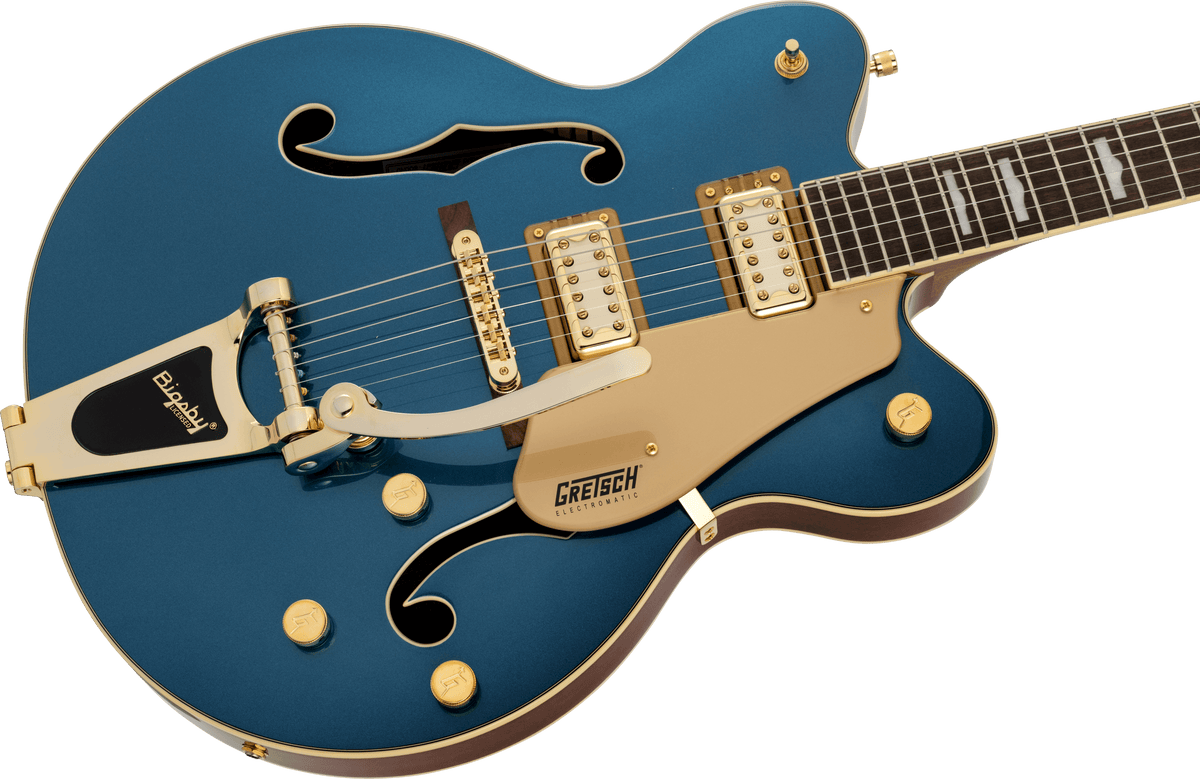

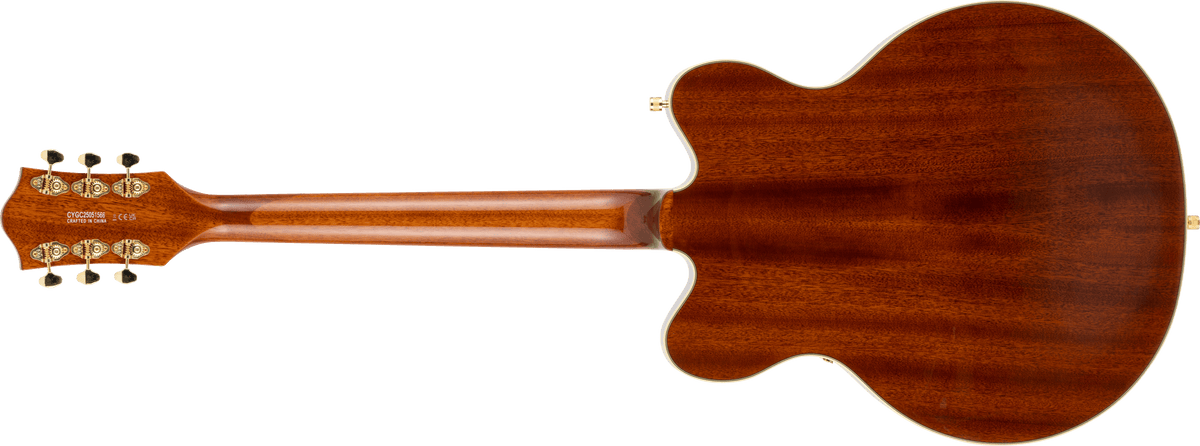

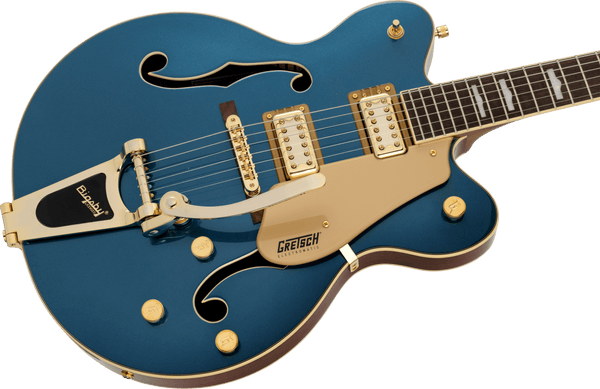

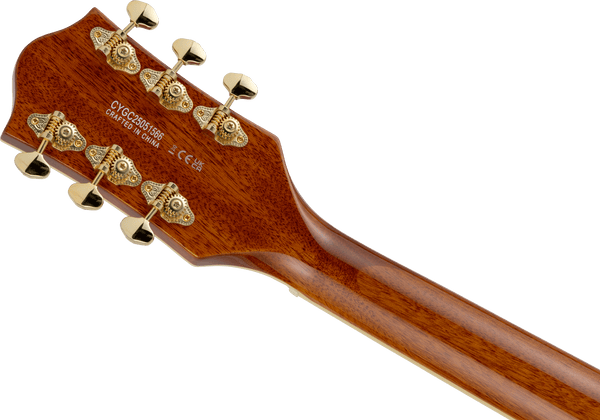

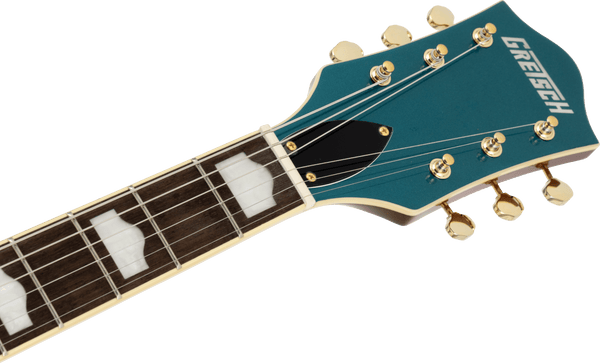

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5422TG Electromatic Pristine LTD Hollow Body Double-Cut with Bigsby Laurel Fingerboard Petrol listed above. For larger pics, click on an image to open in a new tab.
