Gretsch G5422G-12 Electromatic Classic Hollow Body Double-Cut 12-String Gold Hardware Single Barrel Burst Specs

The G5422G-12 Electromatic Classic Hollow Body Double-Cut 12-String with Gold Hardware Laurel Fingerboard Single Barrel Burst is a hollow body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2516319593.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Laurel Fingerboard
24.72" (628 mm) Scale Length
1.77" (45 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic with Secured Laurel Base Bridge
Die-Cast Sealed Tuning Machines
FT-5E Filter’Tron Bridge Pickup
FT-5E Filter’Tron Neck Pickup

Product Identifiers

Model Name	G5422G-12 Electromatic Classic Hollow Body Double-Cut 12-String with Gold Hardware
Part Number	2516319593
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978877102

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Electromatic Hollow Body
Body Binding	White with B/W/B Purfling
Body Finish	Gloss
Bracing	Trestle Block
Upper Bout Width	11.5" (292 mm)
Lower Bout Width	16" (406 mm)
Waist	9.75" (248 mm)

Hardware

Bridge	Adjusto-Matic with Secured Laurel Base
Tuning Machines	Die-Cast Sealed
Pickguard	Gold Plexi with Black Gretsch and Electromatic Logos
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Gretsch G-Cutout Tailpiece
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Hump Block
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.77" (45 mm)
Scale Length	24.72" (628 mm)
Nut Material	Graph Tech NuBone
Neck Shape	Classic "C"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	White

Electronics

Bridge Pickup	FT-5E Filter’Tron
Neck Pickup	FT-5E Filter’Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume with Treble Bleed, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G6298 Gretsch Electromatic Hardshell (p/n 099-6408-000); Optional G2162 Hollow Body Gig Bag (p/n 099-6458-000)

Reference Images

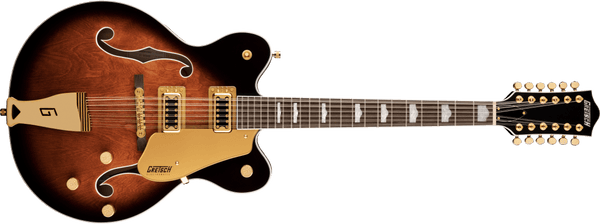

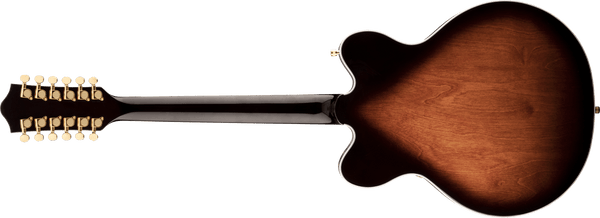

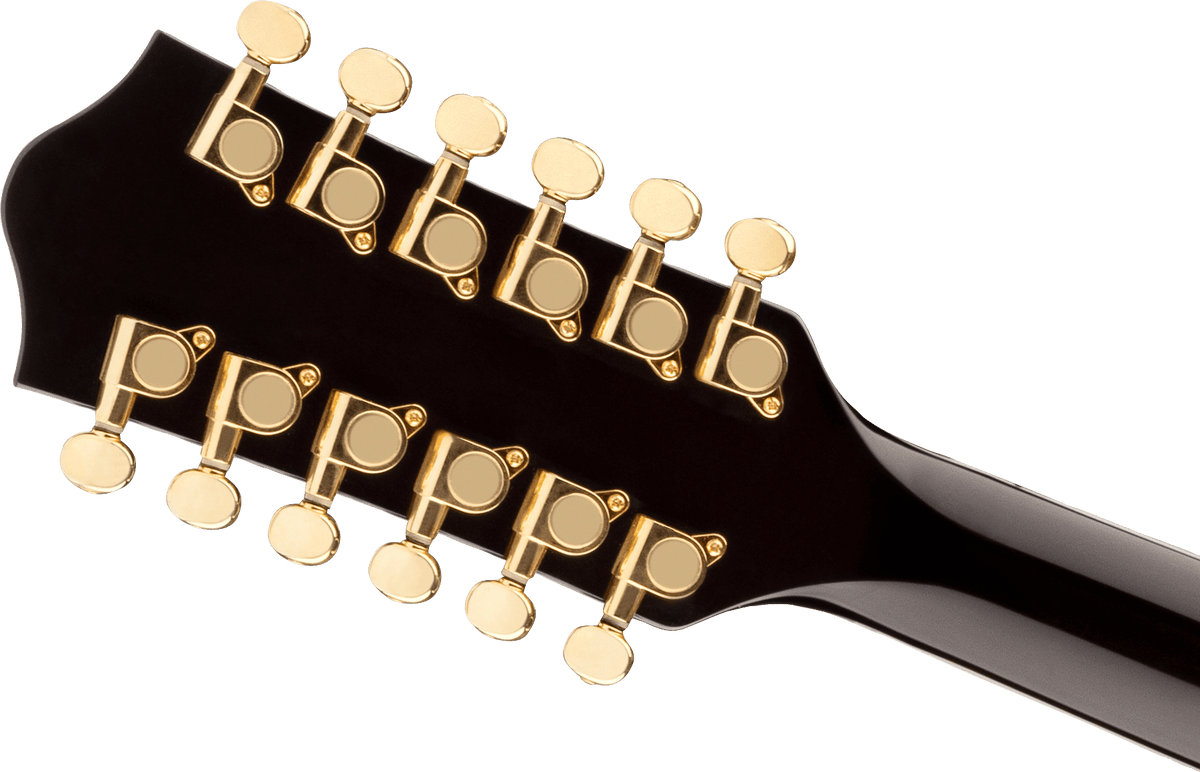

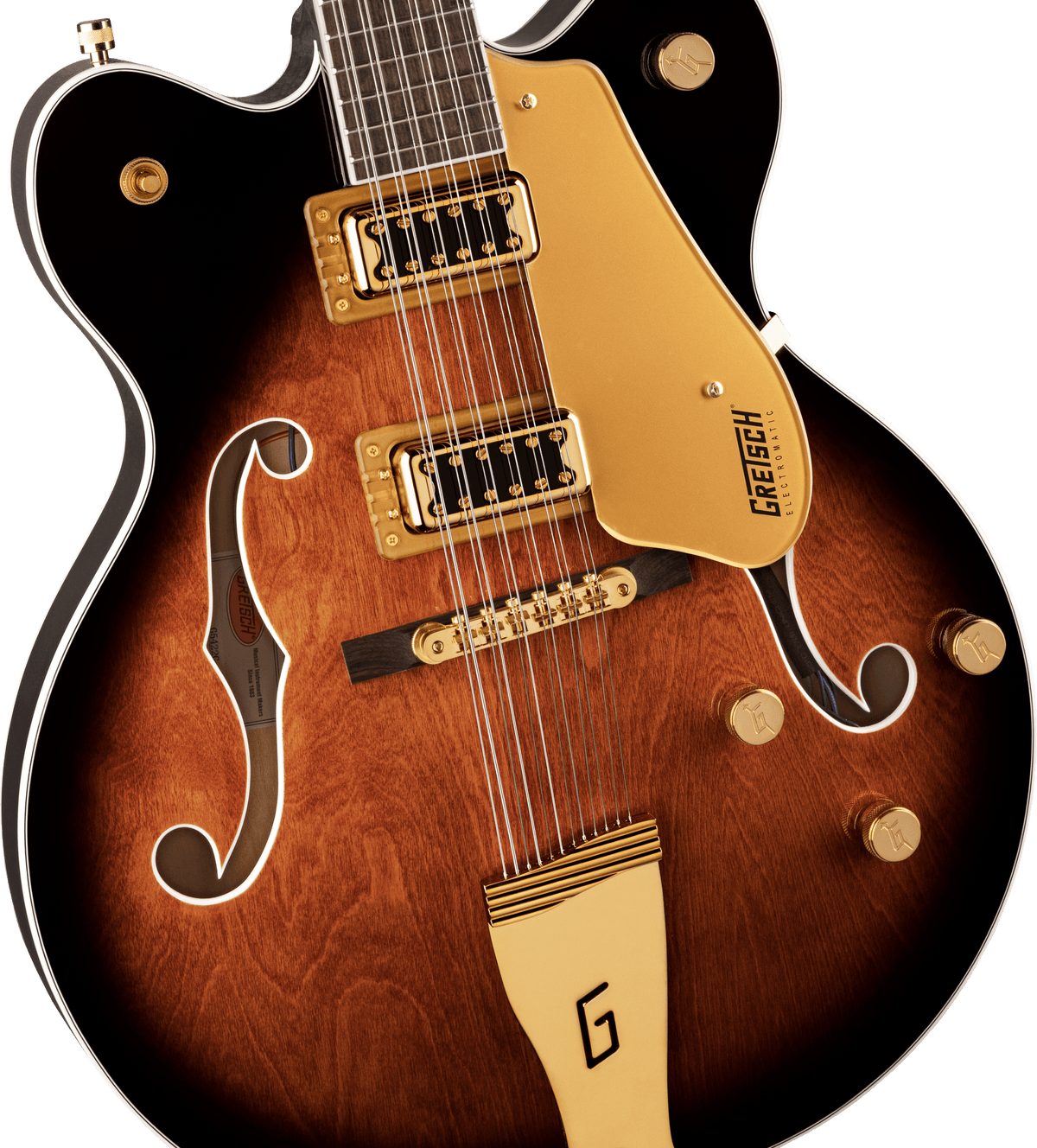

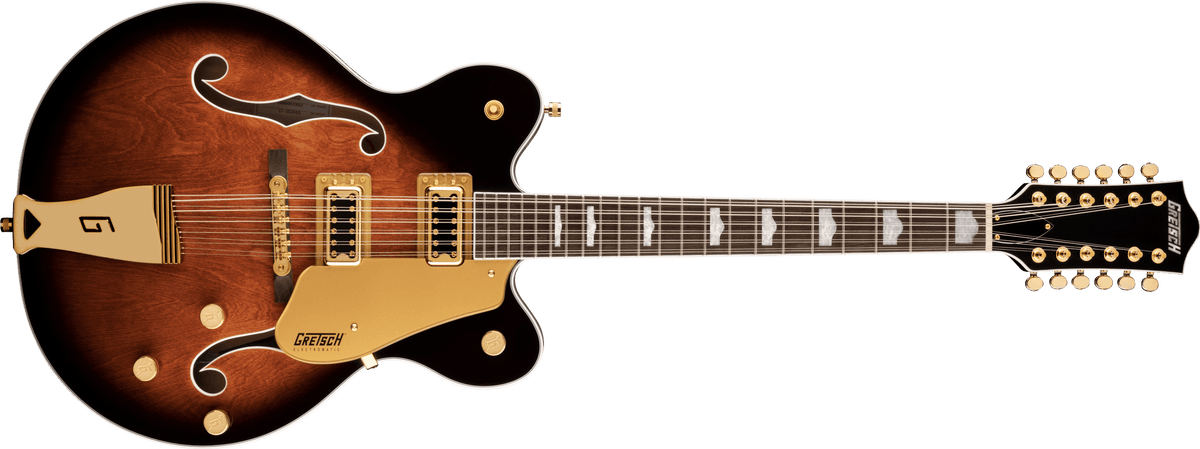

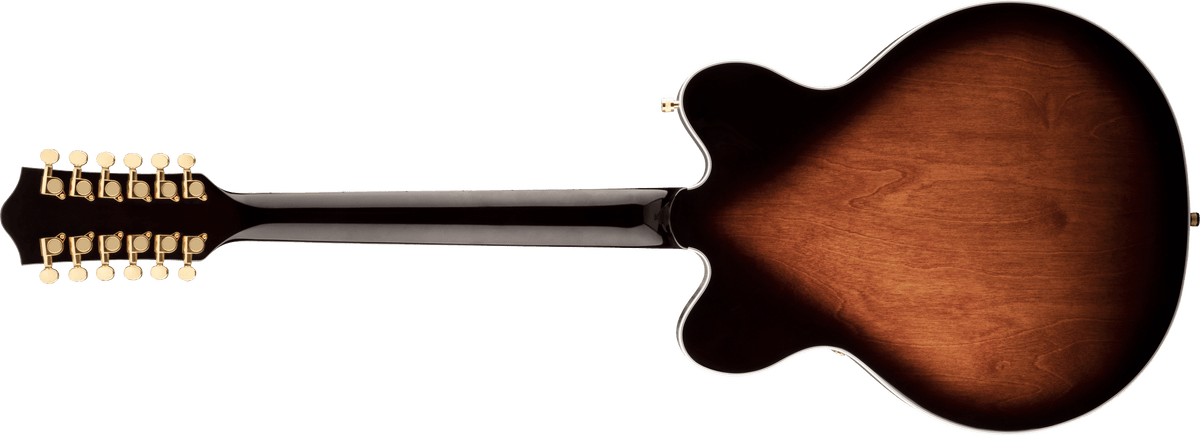

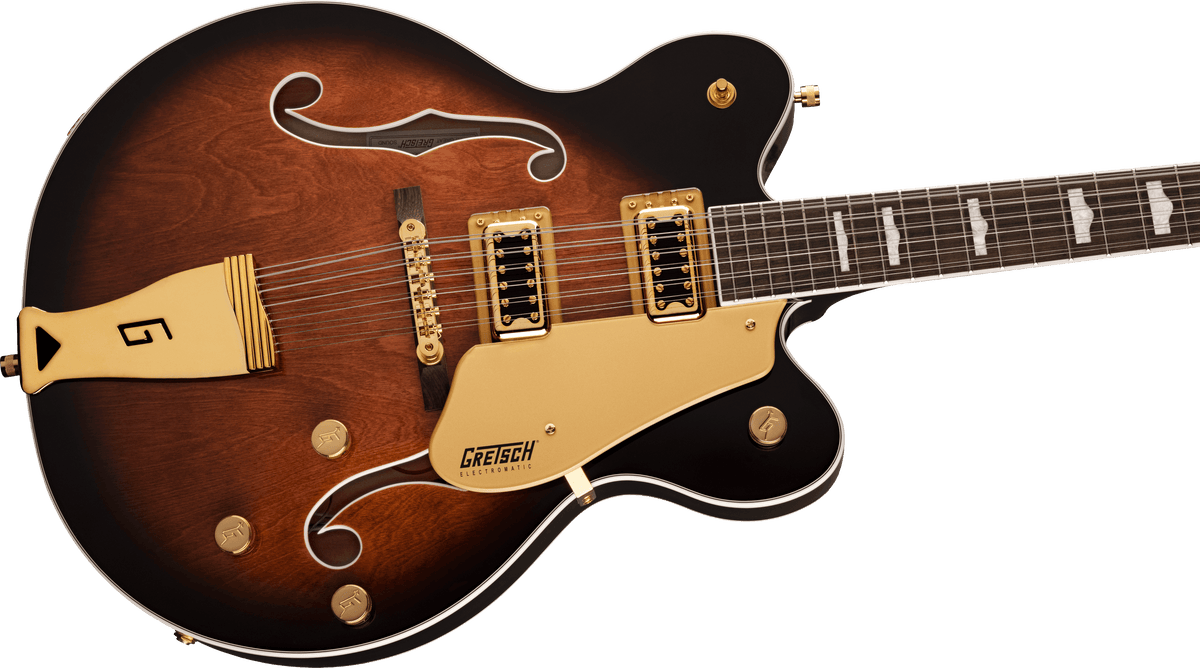

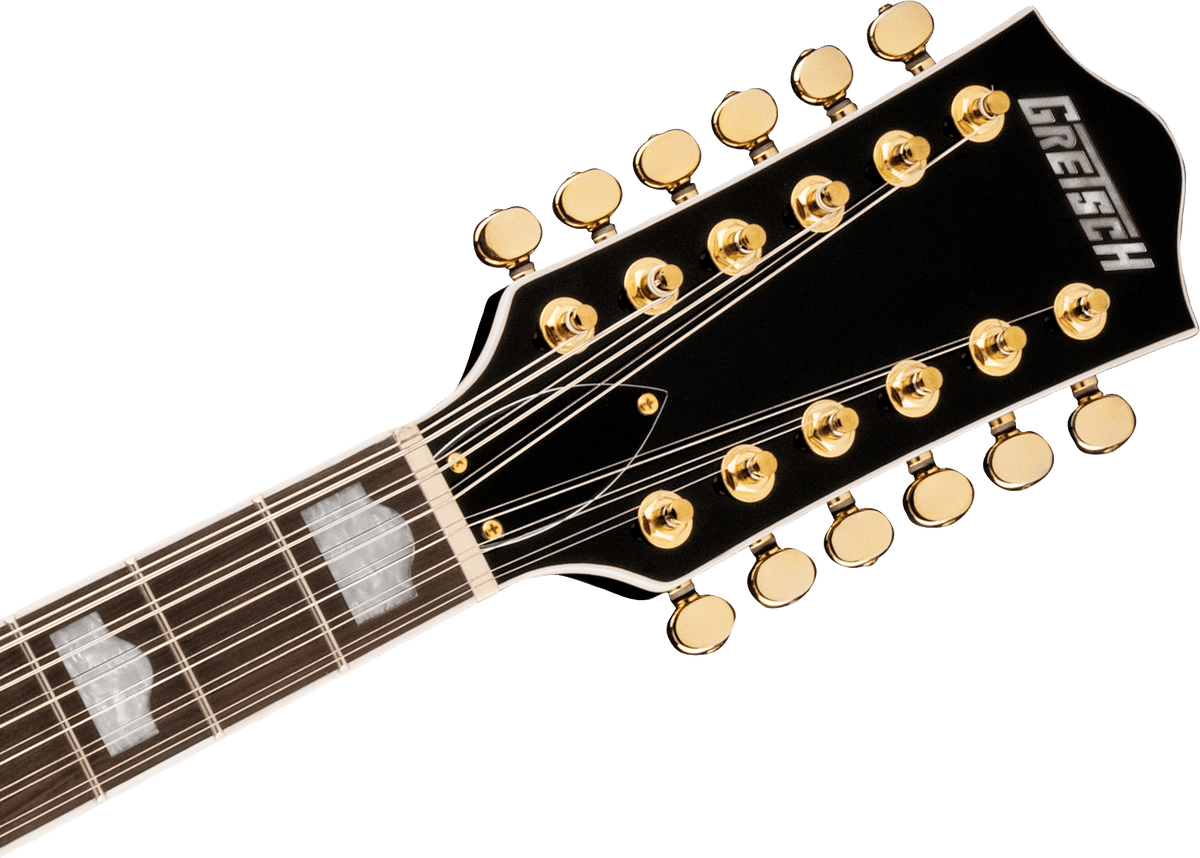

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5422G-12 Electromatic Classic Hollow Body Double-Cut 12-String with Gold Hardware Laurel Fingerboard Single Barrel Burst listed above. For larger pics, click on an image to open in a new tab.
