The G5420TG Electromatic Pristine LTD Hollow Body Single-Cut with Bigsby Laurel Fingerboard Mako is a hollow body electric guitar
built by Gretsch. This guitar is manufactured in China
and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2506137572.
Key Features
Sapele Body
Mahogany Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic with Secured Laurel Base Bridge
Vintage-Style Open-Back Tuning Machines
FT-5E Filter’Tron Bridge Pickup
FT-5E Filter’Tron Neck Pickup
Product Identifiers
Model Name
G5420TG Electromatic Pristine LTD Hollow Body Single-Cut with Bigsby
Part Number
2506137572
Product Series
Electromatic
Country of Origin
China
Brand
Gretsch
Type
Electric Guitar
Category
Hollow Body
UPC Code
197955147635
Factory Specifications
Body Construction
Body Material
Sapele
Body Shape
Electromatic Hollow Body
Body Binding
Aged White with B/AW/B Purfling
Body Finish
Gloss
Bracing
Trestle Block
Hardware
Bridge
Adjusto-Matic with Secured Laurel Base
Tuning Machines
Vintage-Style Open-Back
Pickguard
Gold Plexi
Control Knobs
G-Arrow
Bridge Cover / Tailpiece
Bigsby B60
Hardware Finish
Gold
Neck Construction
Neck Material
Mahogany
Fingerboard Material
Laurel
Radius
12" (305 mm)
Fingerboard Inlays
Pearloid Neo-Classic Thumbnail
Number of Frets
22
Fret Size
Medium Jumbo
Nut Width
1.6875" (42.86 mm)
Scale Length
24.6" (625 mm)
Nut Material
Graph Tech NuBone
Neck Shape
Classic "C"
Neck Construction
Set-Neck
Neck Finish
Gloss
Headstock
Late '50s Gretsch
Headstock Binding
Aged White
Electronics
Bridge Pickup
FT-5E Filter’Tron
Neck Pickup
FT-5E Filter’Tron
Pickup Configuration
Filter'Tron / Filter'Tron
Controls
Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume with Treble Bleed, Master Tone
Pickup Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
General
Orientation
Right-Hand
Strings
Nickel Plated Steel (.011-.049 Gauges)
Case / Gig Bag
Optional Gig Bag G2162 (p/n 099-6458-000); G6241FT Hardshell Case (p/n 099-6475-000)
Reference Images

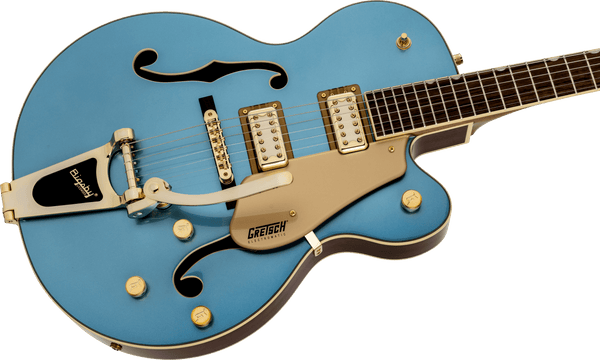

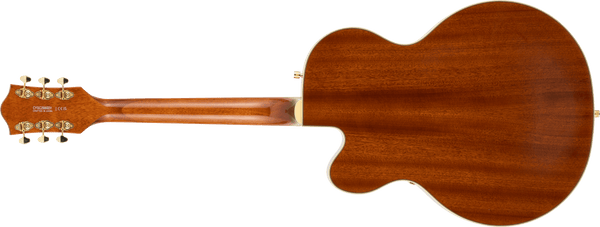

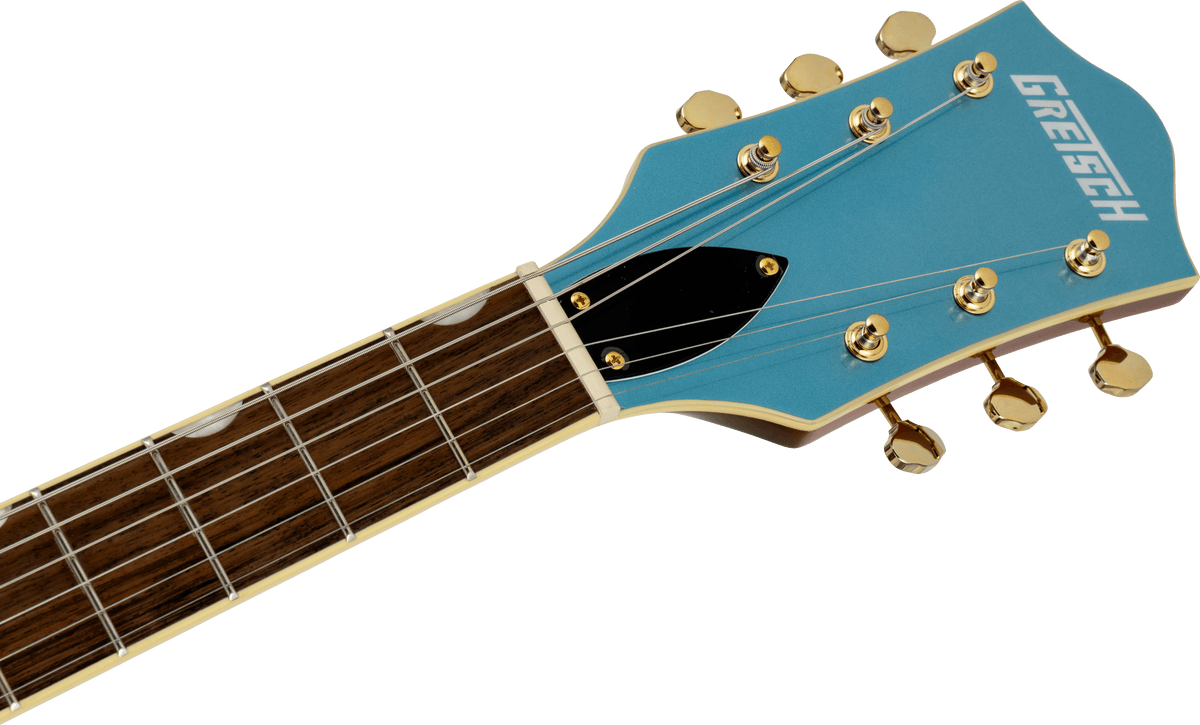

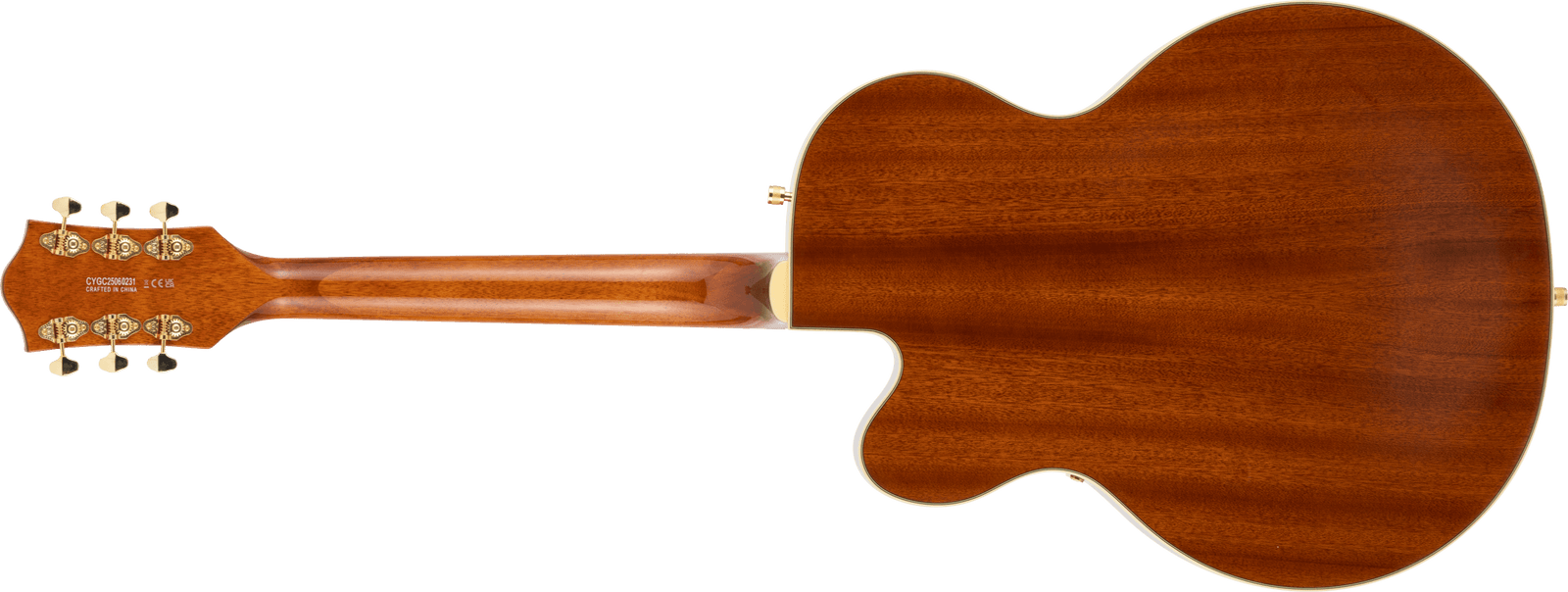

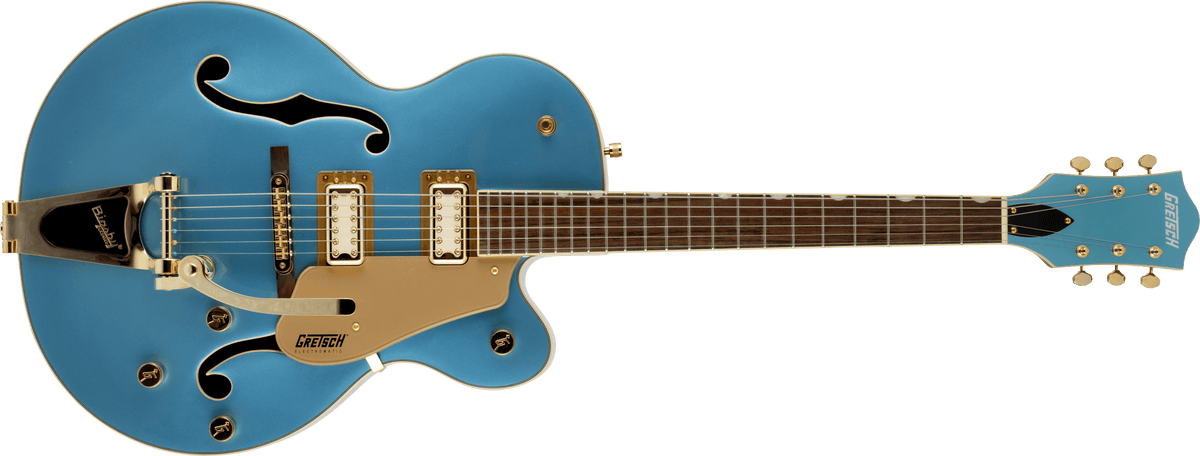

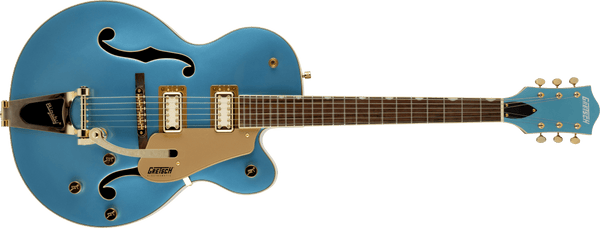

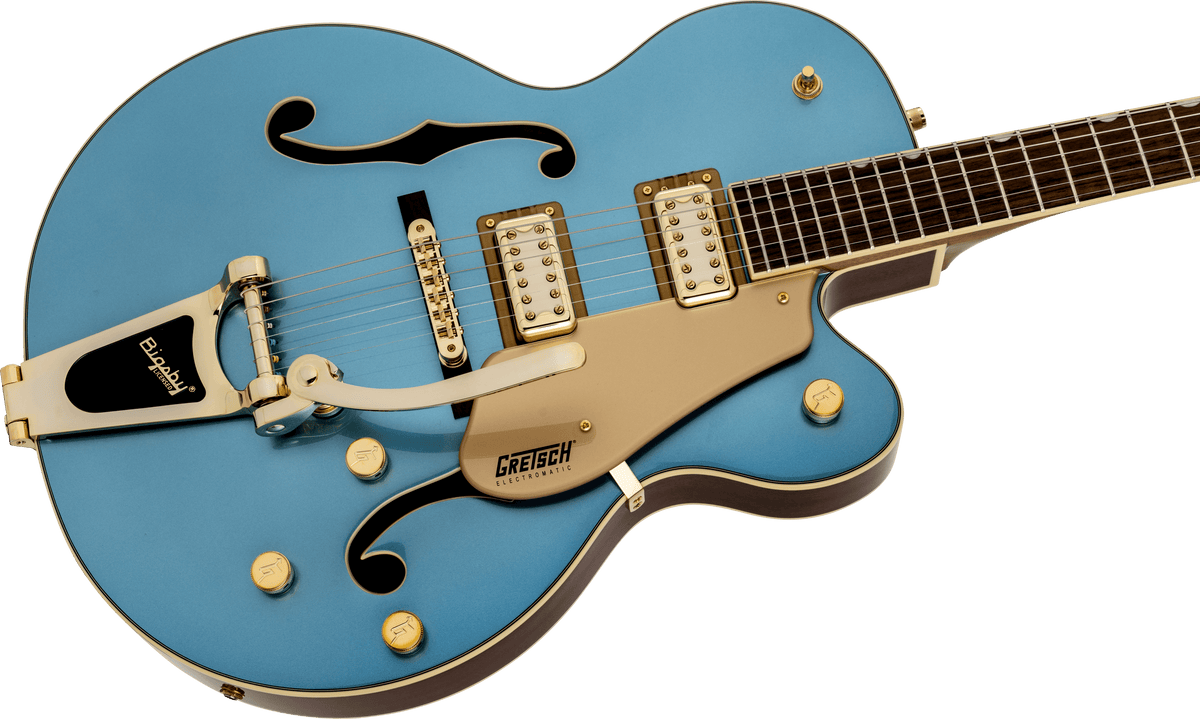

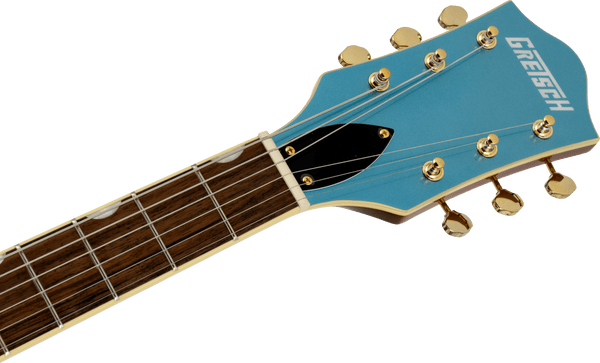

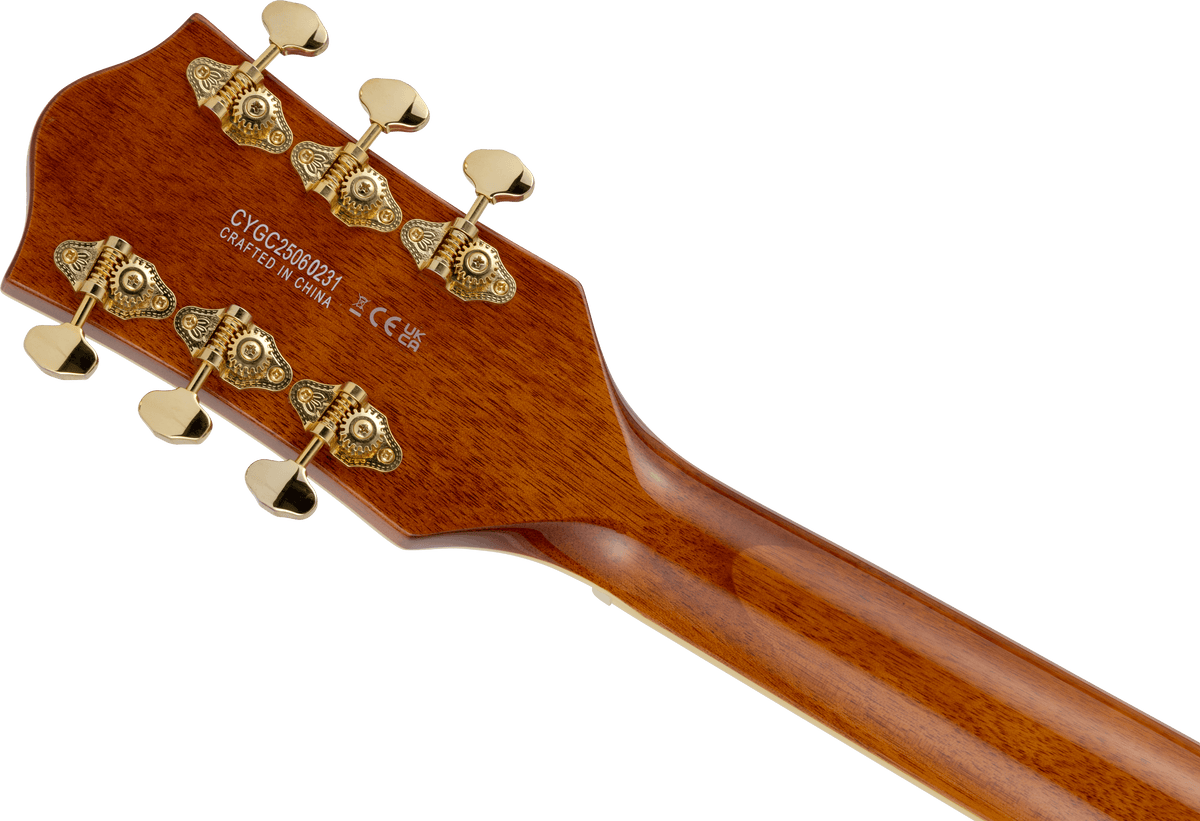

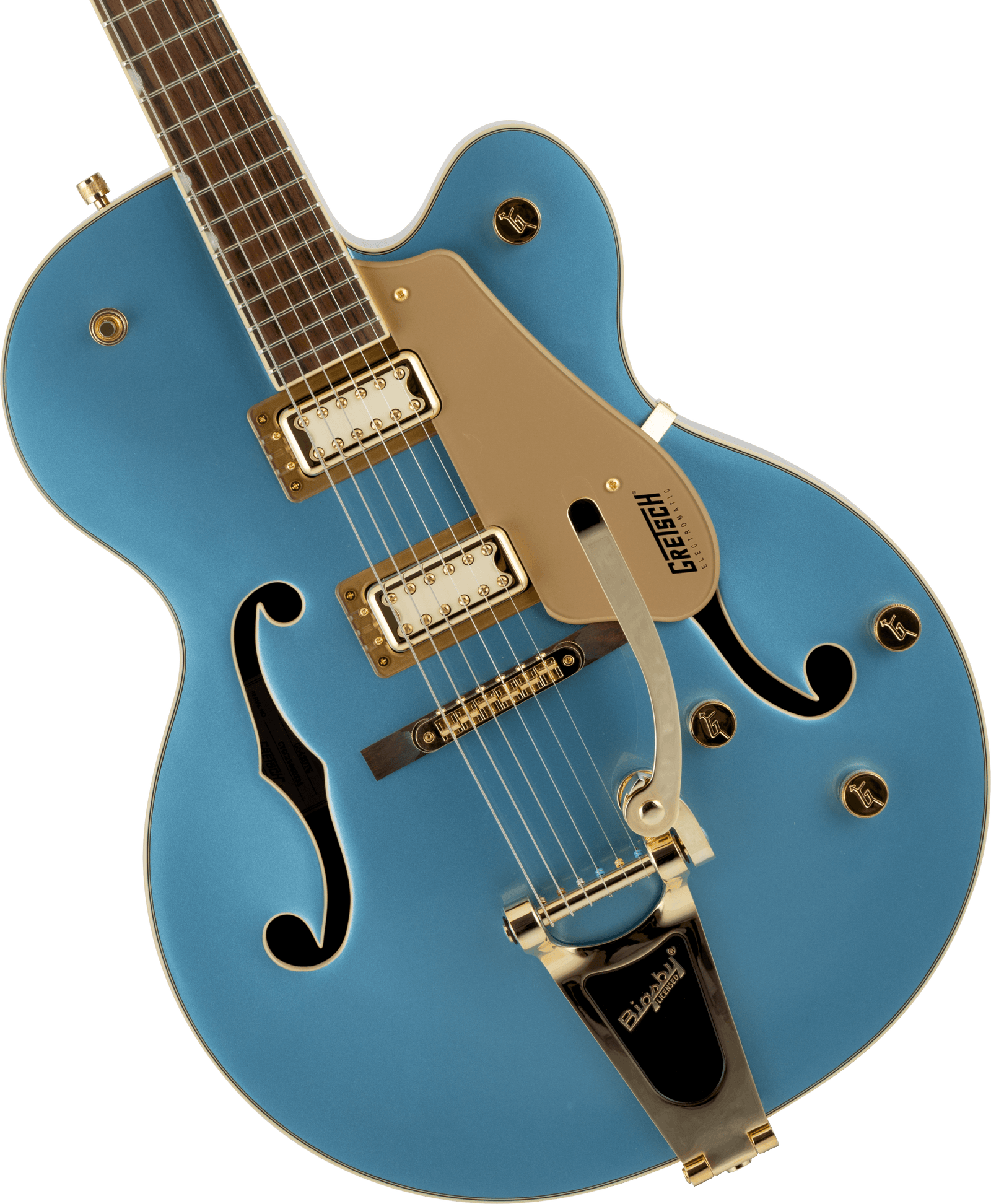

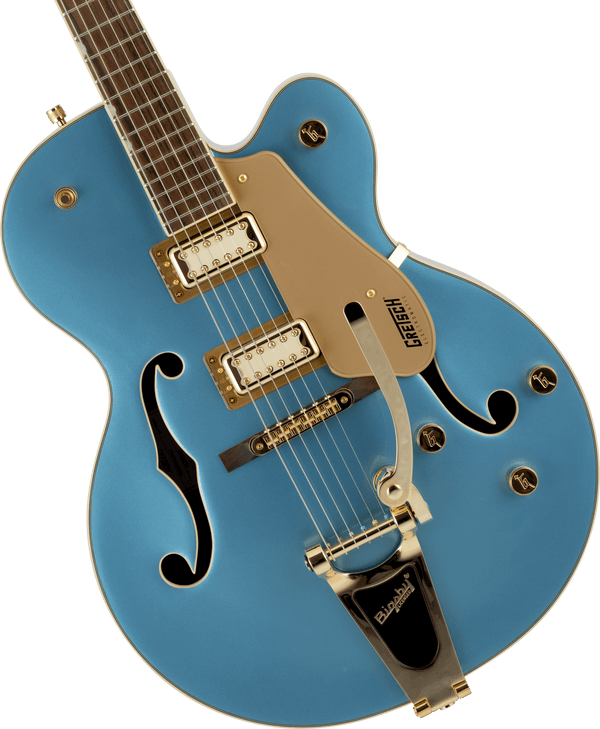

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5420TG Electromatic Pristine LTD Hollow Body Single-Cut with Bigsby Laurel Fingerboard Mako listed above. For larger pics, click on an image to open in a new tab.
