Gretsch Electromatic Pristine LTD Center Block Double-Cut Bigsby Dark Cherry Metallic Specs

The Electromatic Pristine LTD Center Block Double-Cut with Bigsby Laurel Fingerboard Dark Cherry Metallic is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2508630539.

Key Features

Arched Laminated Mahogany Top
Arched Laminated Mahogany Body
Mahogany Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Sealed Tuning Machines
P-90E Single-Coil Bridge Pickup
P-90E Single-Coil Neck Pickup

Product Identifiers

Model Name	Electromatic Pristine LTD Center Block Double-Cut with Bigsby
Part Number	2508630539
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	717669887056

Factory Specifications

Body Construction

Body Material	Laminated Mahogany
Top Material	Arched Laminated Mahogany
Back Material	Arched Laminated Mahogany
Body Shape	Center Block
Body Binding	Aged White with B/W/B Purfling
Body Finish	Gloss
Bracing	Center Block

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast Sealed
Pickguard	Gold Plexi with Black Gretsch and Electromatic Logos
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B70
Hardware Finish	Gold

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech NuBone
Neck Shape	Thin "U"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	Aged White

Electronics

Bridge Pickup	P-90E Single-Coil
Neck Pickup	P-90E Single-Coil
Pickup Configuration	P90 / P90
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional: G6298 Hardshell Case (0996408000), G6267 Deluxe Hardshell Case (0996443000)

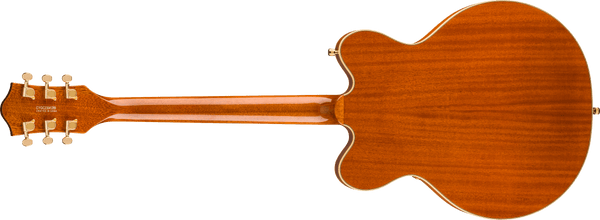

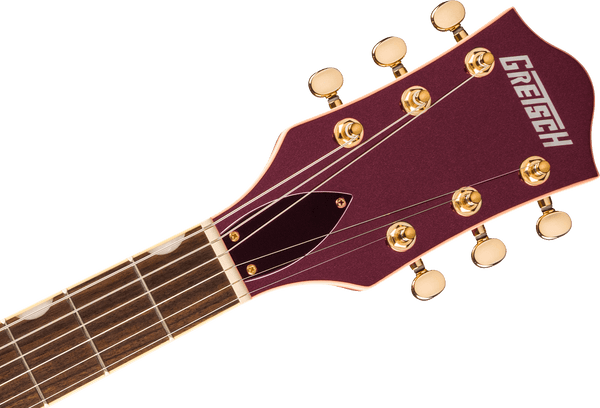

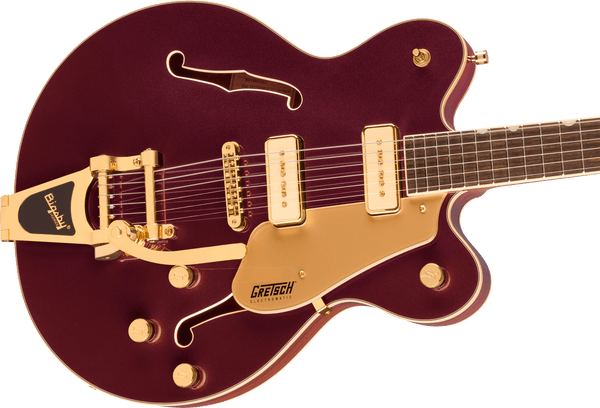

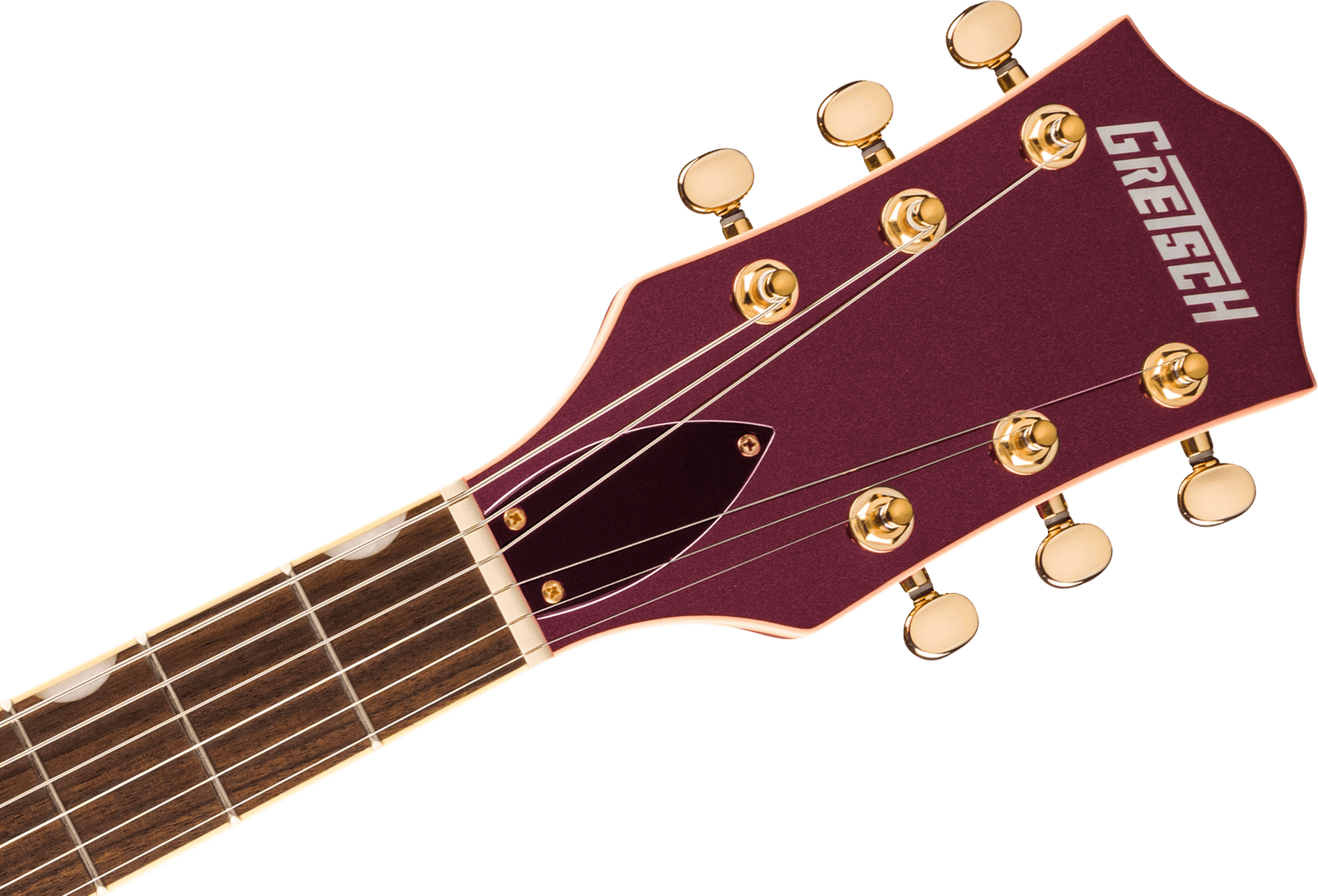

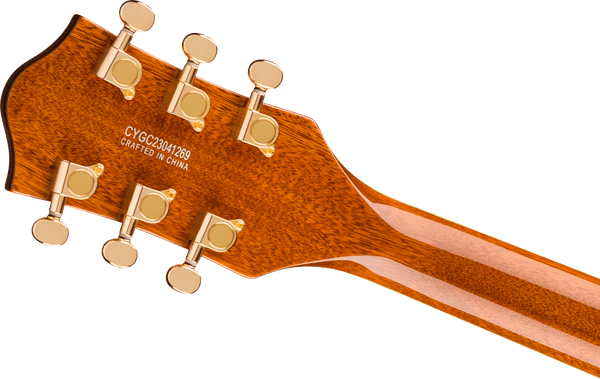

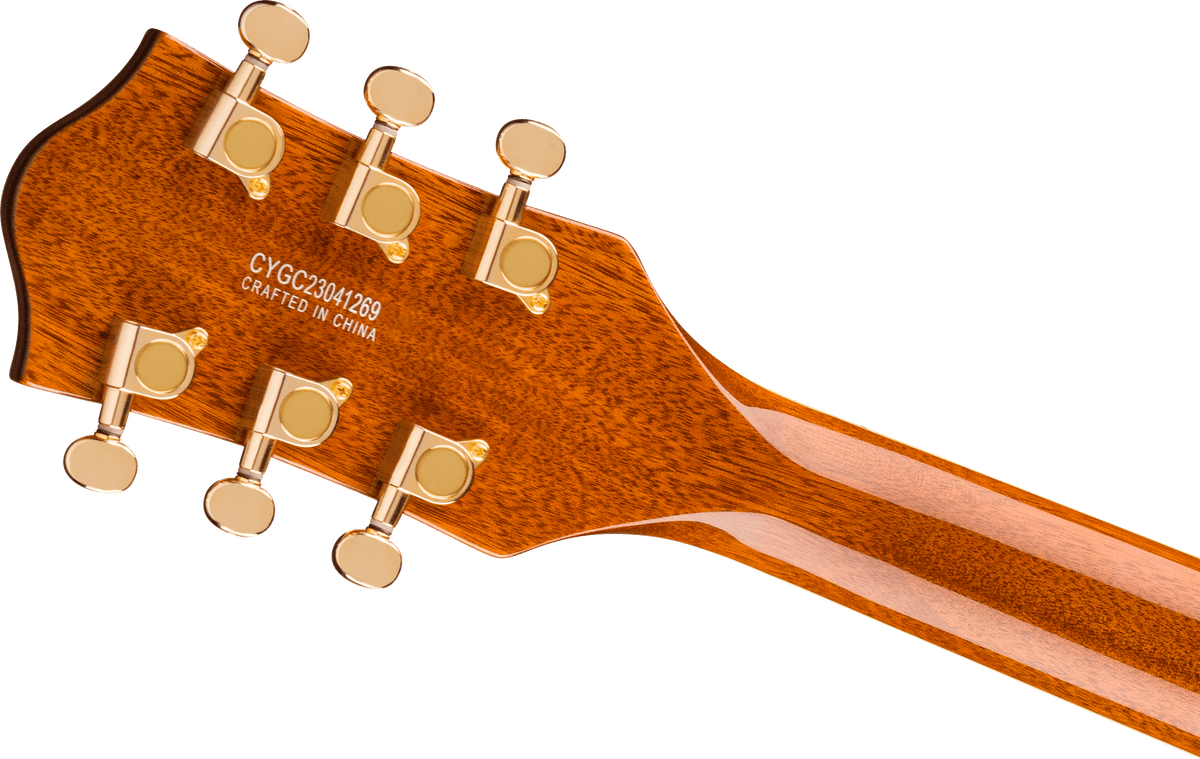

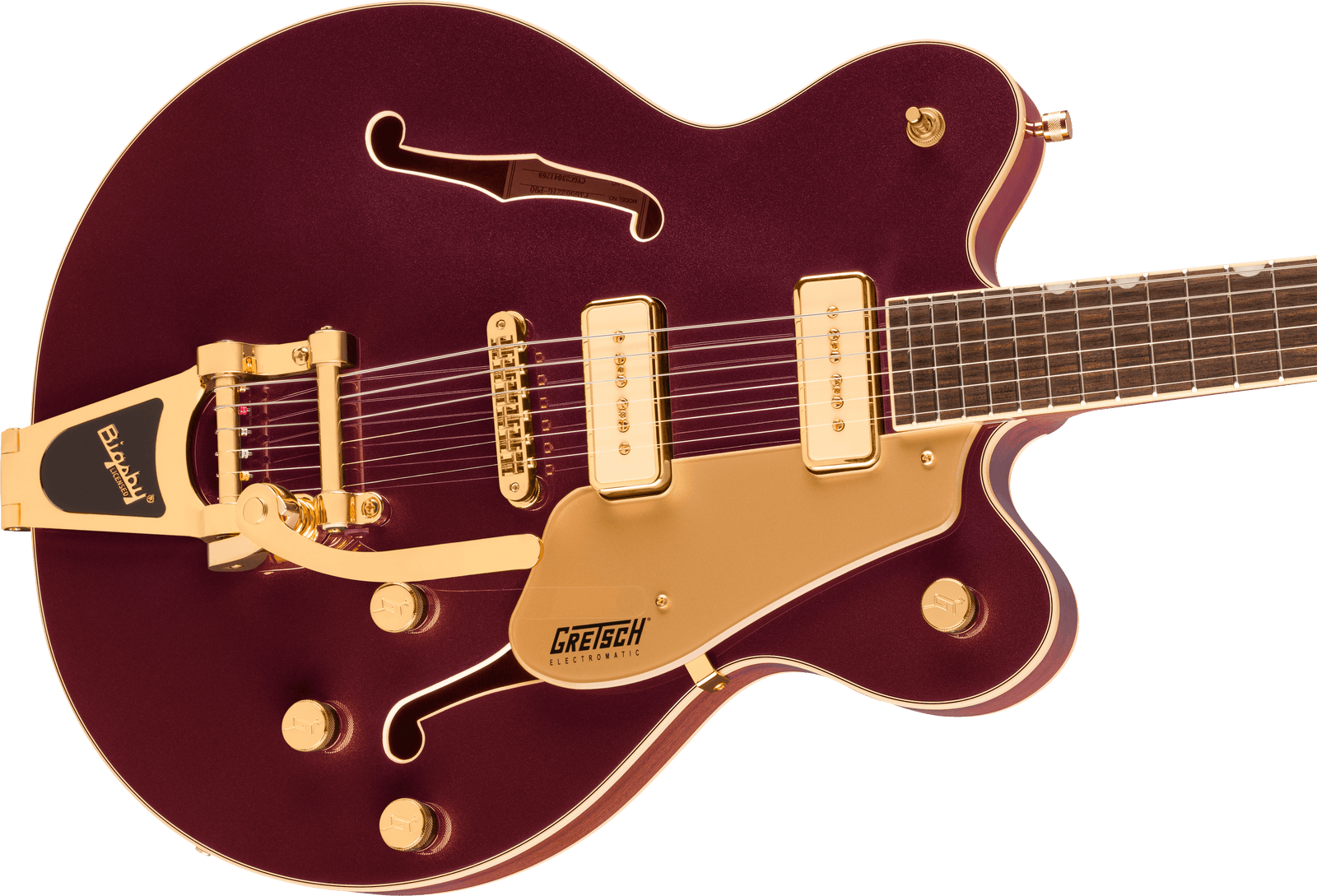

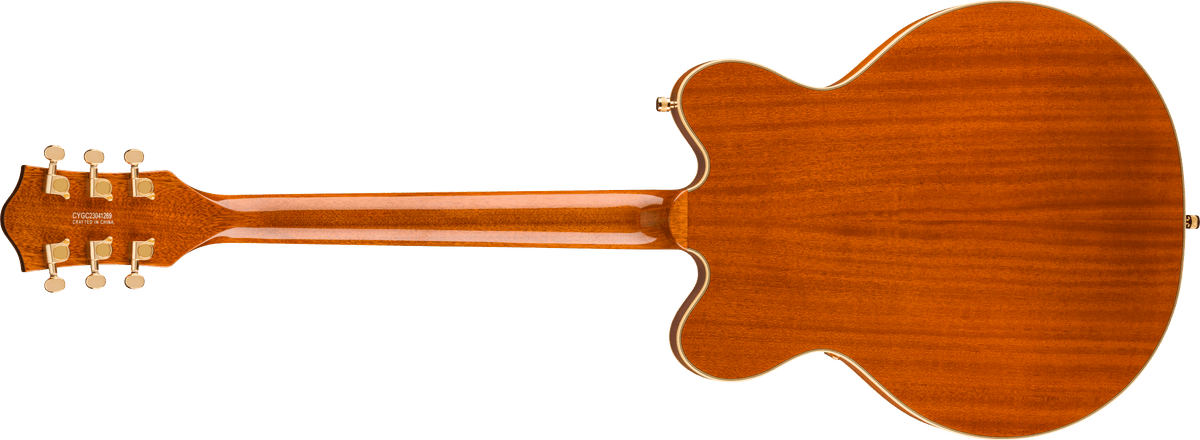

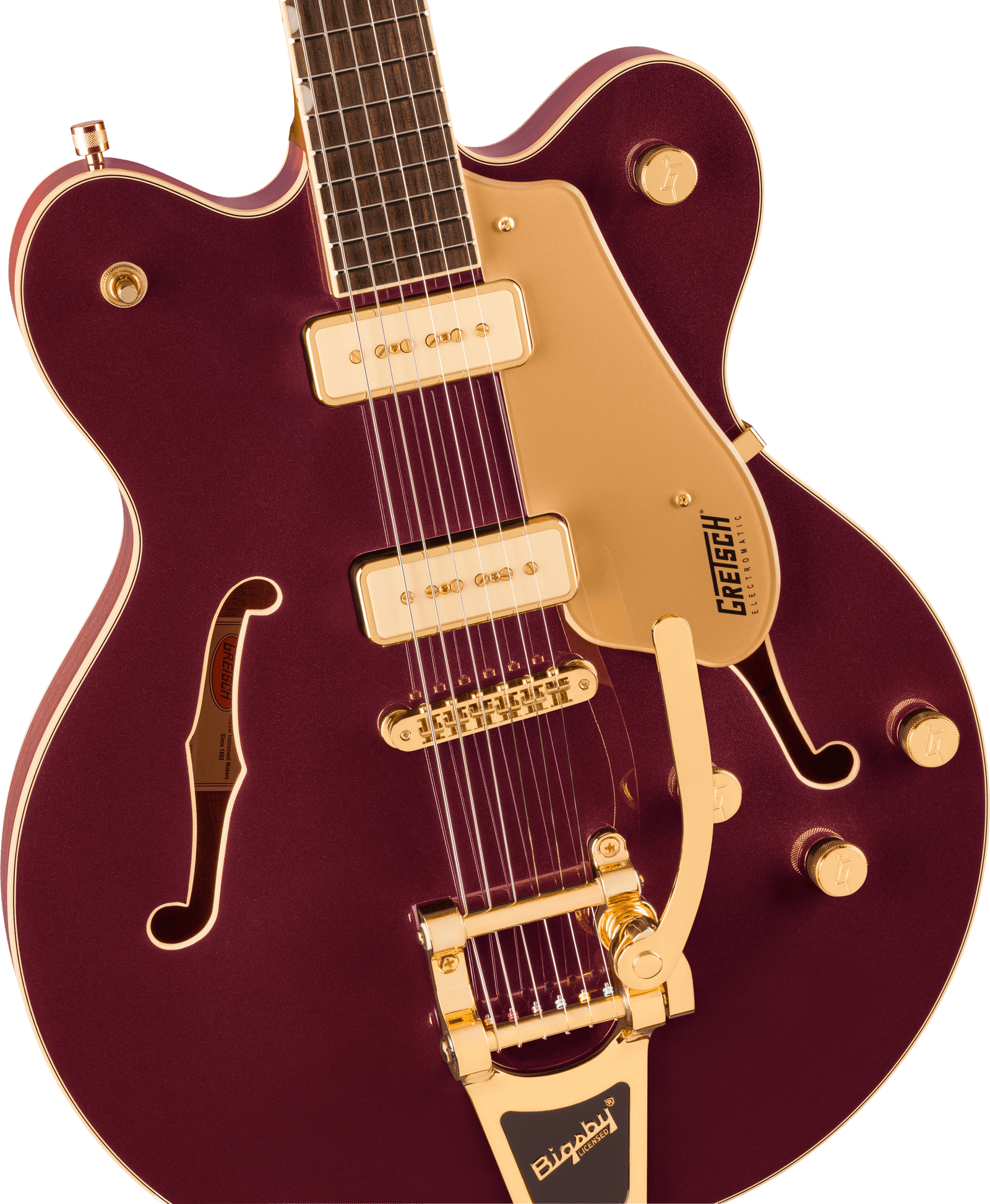

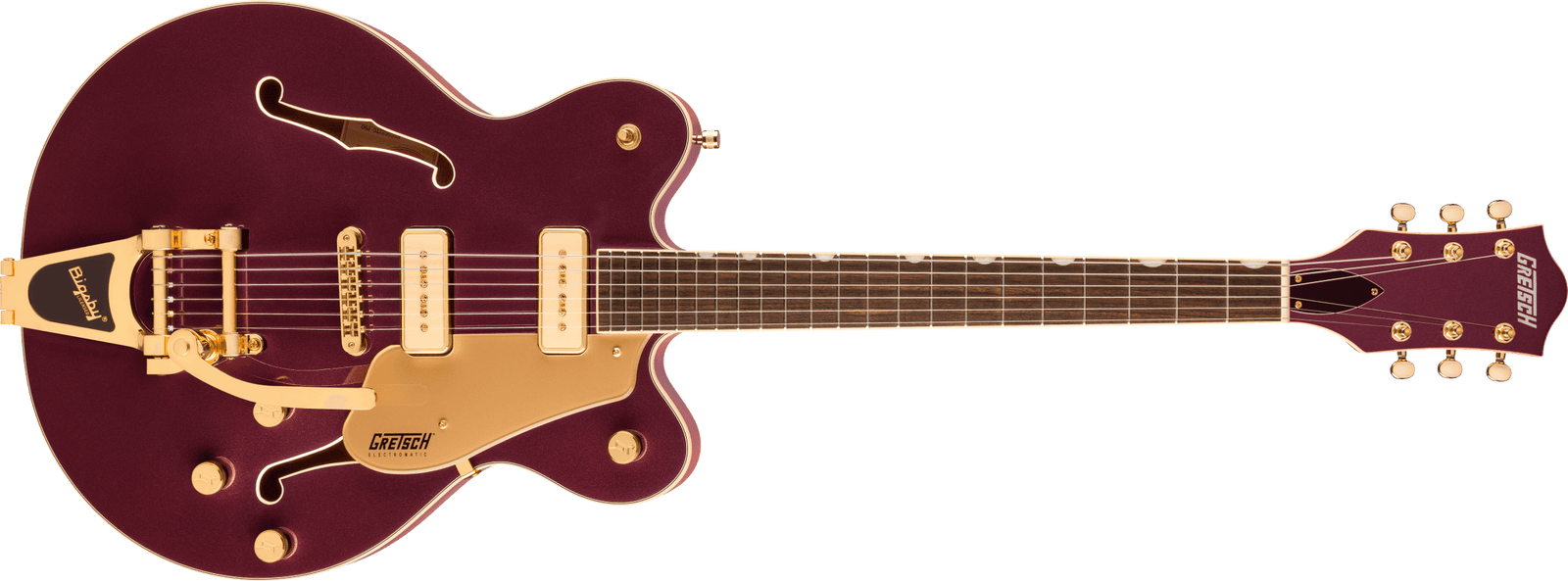

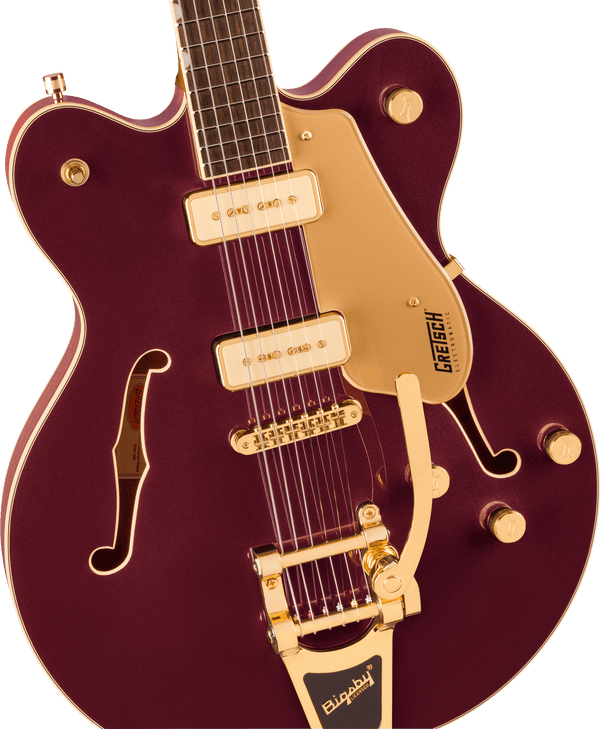

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Electromatic Pristine LTD Center Block Double-Cut with Bigsby Laurel Fingerboard Dark Cherry Metallic listed above. For larger pics, click on an image to open in a new tab.
