Gretsch G5260 Electromatic Jet Baritone V-Stoptail London Grey Specs

The G5260 Electromatic Jet Baritone with V-Stoptail Laurel Fingerboard London Grey is a solid body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2516002569.

Key Features

Mahogany Top
Mahogany Body
Maple Neck
Laurel Fingerboard
29.75" (756 mm) Scale Length
1.685" (42.8 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Die-Cast Tuning Machines
Gretsch Mini Humbucking Bridge Pickup
Gretsch Mini Humbucking Neck Pickup

Product Identifiers

Model Name	G5260 Electromatic Jet Baritone with V-Stoptail
Part Number	2516002569
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	885978416288

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Mahogany
Back Material	Mahogany
Body Shape	Jet
Body Binding	White with B/W Purfling
Body Finish	Gloss
Upper Bout Width	10" (254 mm)
Lower Bout Width	13" (330.2 mm)
Waist	8.25" (21.0 cm)

Hardware

Bridge	Anchored Adjusto-Matic
Tuning Machines	Die-Cast
Pickguard	Black Plexi w/ Silver Gretsch & Electromatic Logos
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Gretsch V-Stoptail
Hardware Finish	Chrome

Neck Construction

Neck Material	Maple
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Big Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.685" (42.8 mm)
Scale Length	29.75" (756 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Construction	Bolt-On
Neck Finish	Gloss

Electronics

Bridge Pickup	Gretsch Mini Humbucking
Neck Pickup	Gretsch Mini Humbucking
Pickup Configuration	Gretsch Mini Humbucker / Gretsch Mini Humbucker
Controls	Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel Gauges .014-.018-.024-.044-.056-.072, Tuned B to B
Case / Gig Bag	Optional G2168 Baritone/Junior Jet Bass Gig Bag (p/n 099-6468-000)

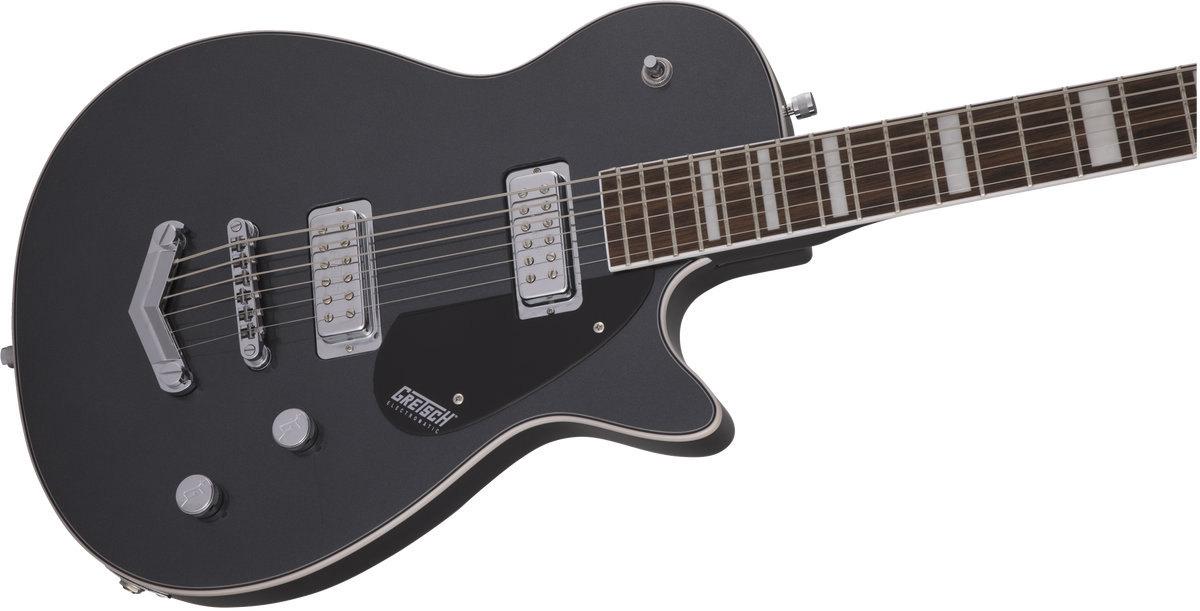

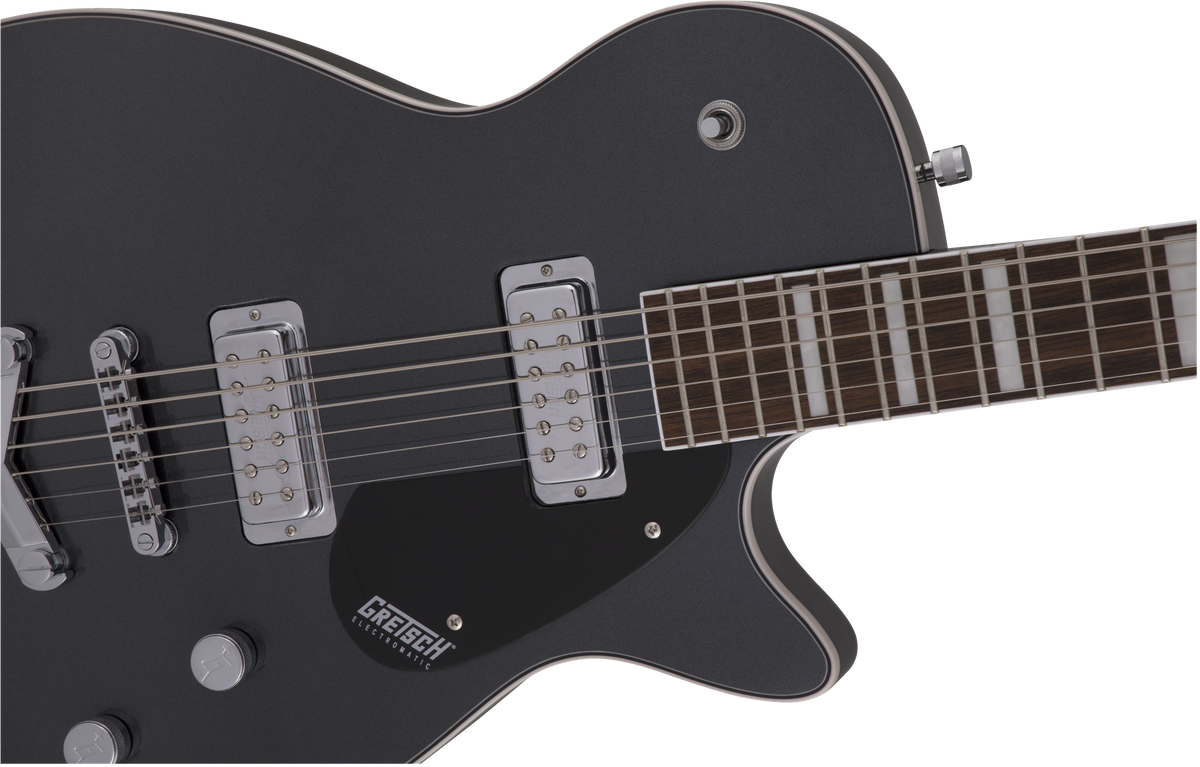

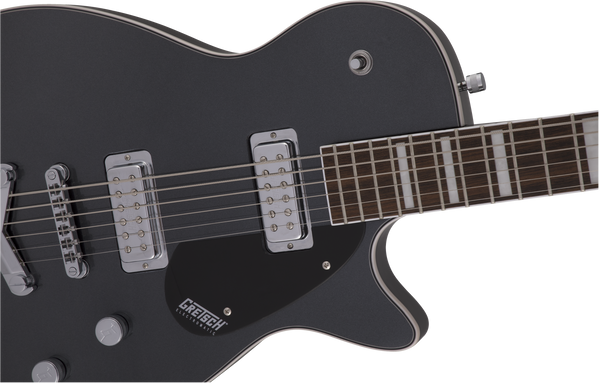

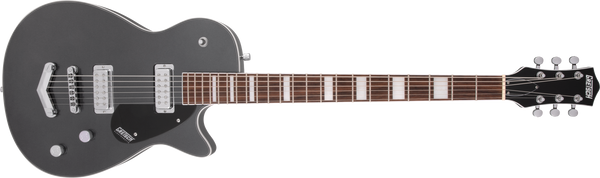

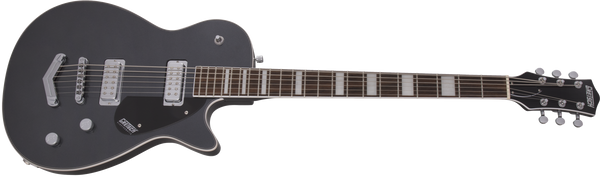

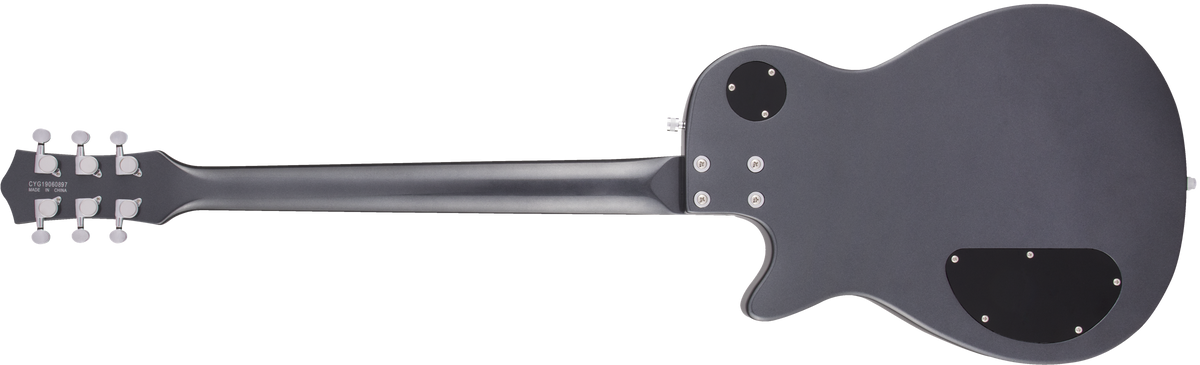

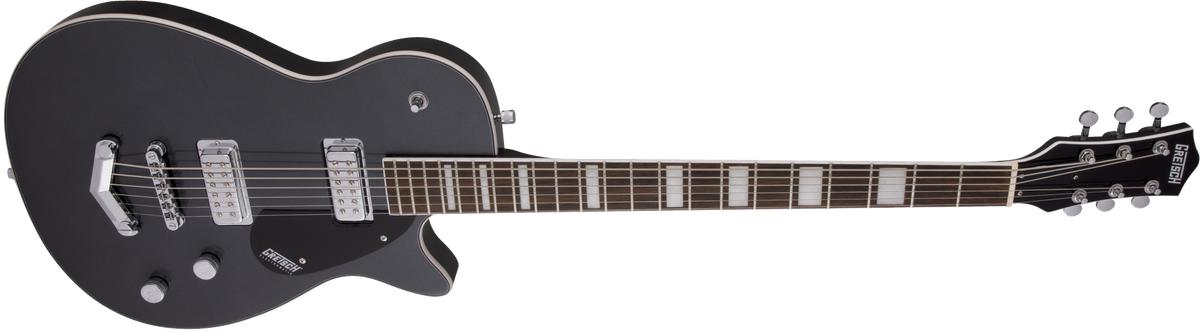

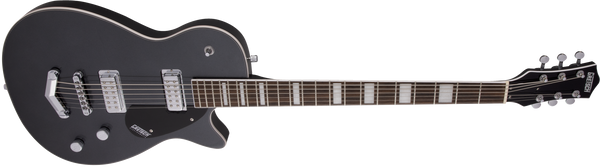

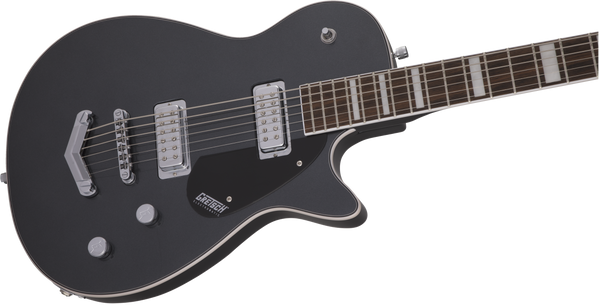

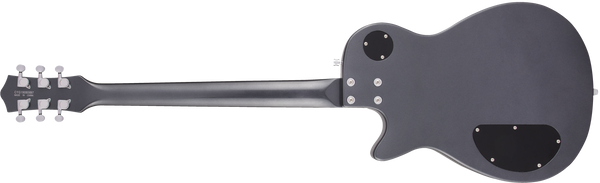

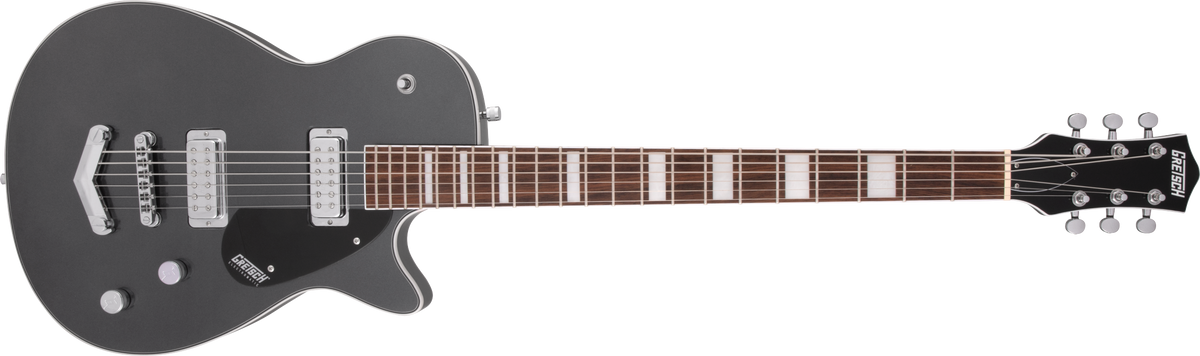

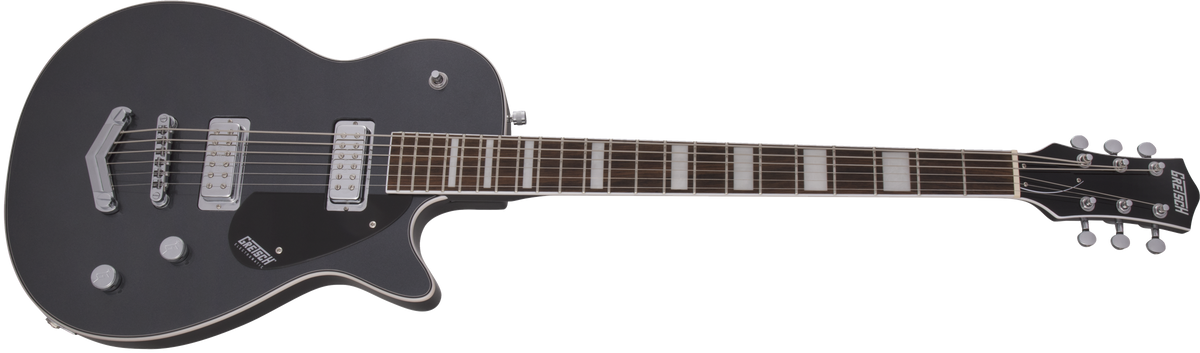

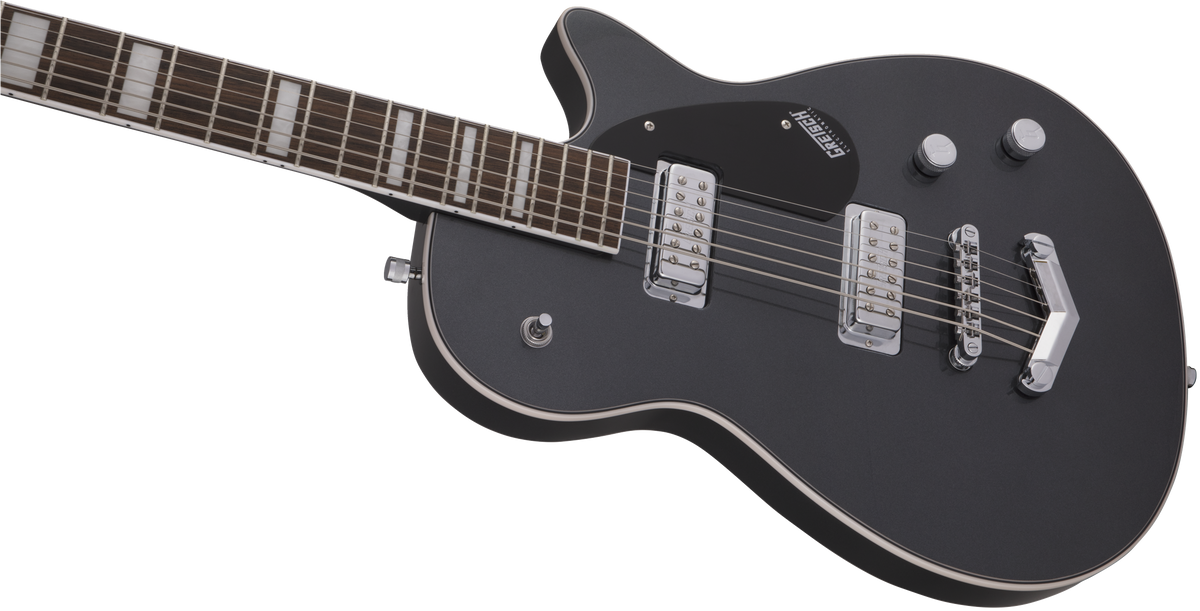

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5260 Electromatic Jet Baritone with V-Stoptail Laurel Fingerboard London Grey listed above. For larger pics, click on an image to open in a new tab.
