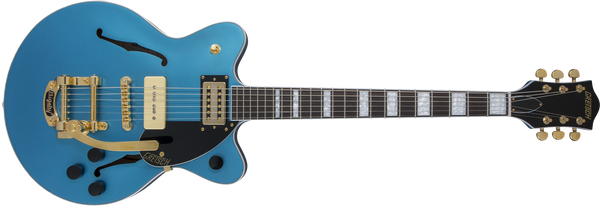

Gretsch G2655TG-P90 Limited Edition Streamliner Center Block Jr. P90 Bigsby Gold Hardware Riviera Blue Satin Specs

The G2655TG-P90 LTD Streamliner Center Block Jr. Double Cutaway Rosewood Fingerboard Riviera Blue Satin is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Limited Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2809400502.

Key Features

Laminated Maple Top
Arched Laminated Maple Body
Nato Neck
Rosewood Fingerboard
24.75" (629 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Tuning Machines
P90 Soap Bar Bridge Pickup
Broad'Tron Neck Pickup

Product Identifiers

Model Name	G2655TG-P90 Limited Edition Streamliner Center Block Jr. P90 with Bigsby and Gold Hardware
Part Number	2809400502
Product Series	Limited Edition
Country of Origin	Indonesia
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978972708

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Streamliner Center Block Jr.
Body Binding	Aged White with B/W/B Purfling
Body Finish	Satin
Bracing	Center Block
Upper Bout Width	10.625" (270 mm)
Lower Bout Width	13.46" (341.88 mm)
Waist	8.625" (219.08 mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast
Pickguard	1-Ply Black
Control Knobs	Black Vintage-Style
Bridge Cover / Tailpiece	Bigsby B50
Hardware Finish	Gold

Neck Construction

Neck Material	Nato
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Big Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.75" (629 mm)
Nut Material	Synthetic Bone
Neck Shape	Slim "U"
Neck Finish	Satin Urethane

Electronics

Bridge Pickup	P90 Soap Bar
Neck Pickup	Broad'Tron
Pickup Configuration	Broad'Tron / P90
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional: Gig Bag 0996460000 / Hardshell Case 0992655000

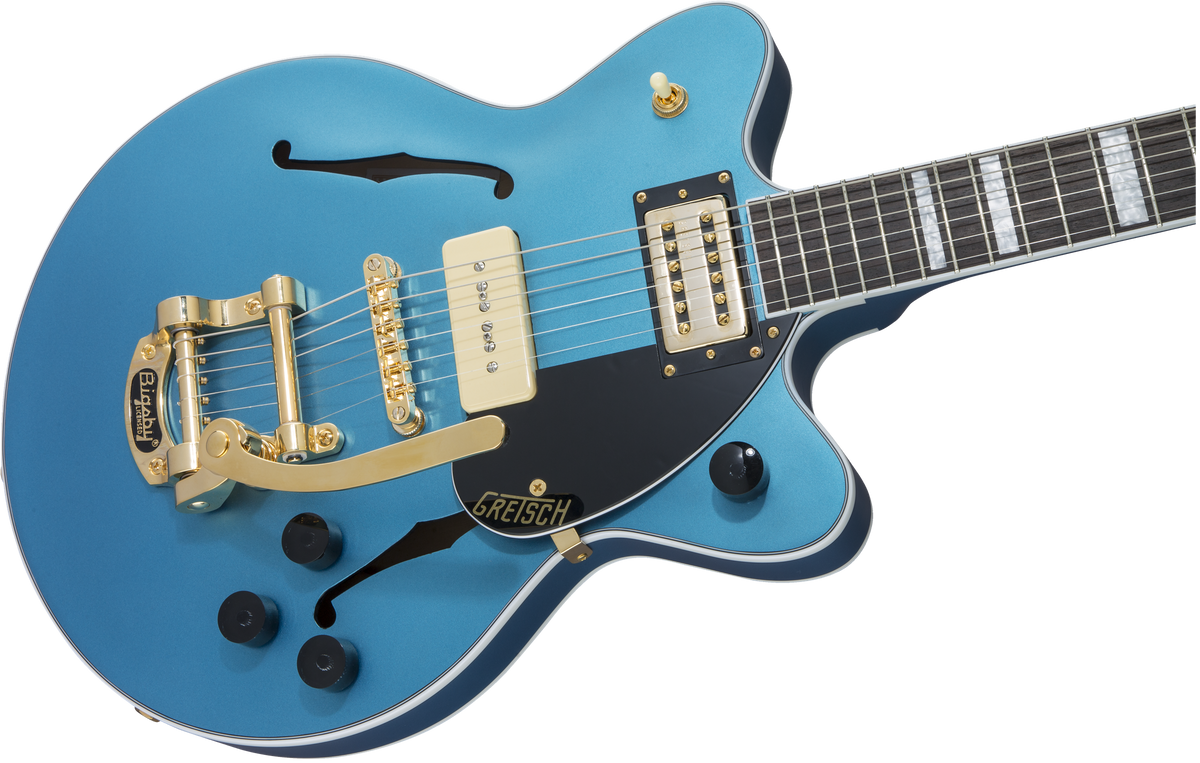

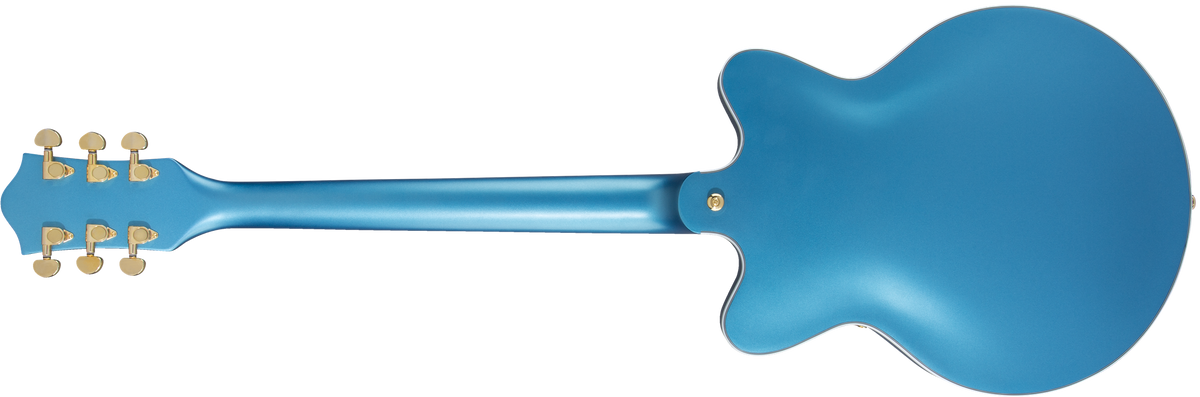

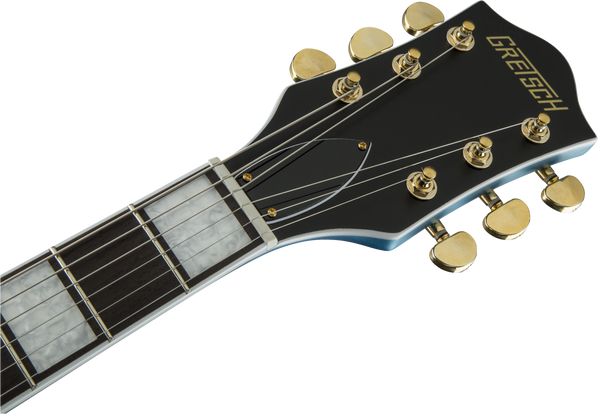

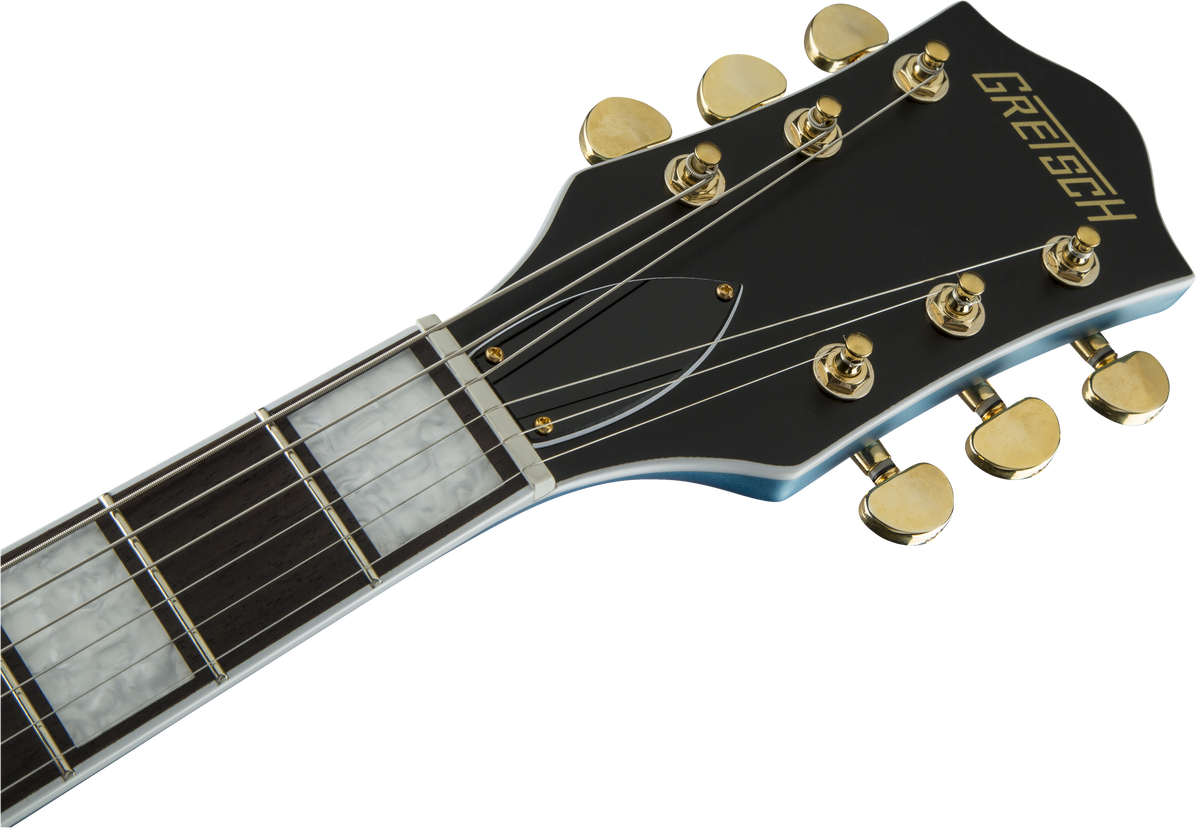

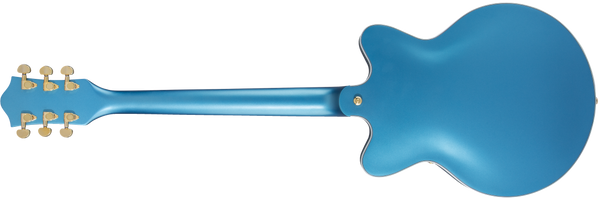

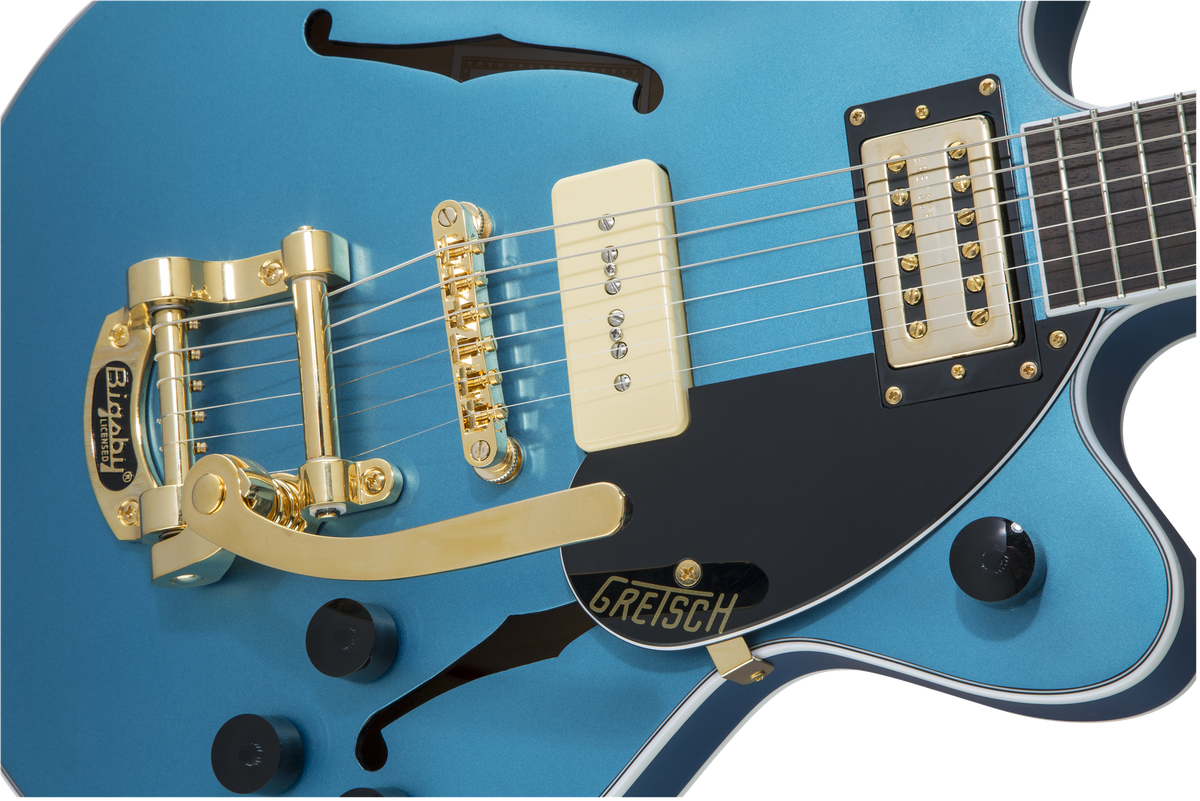

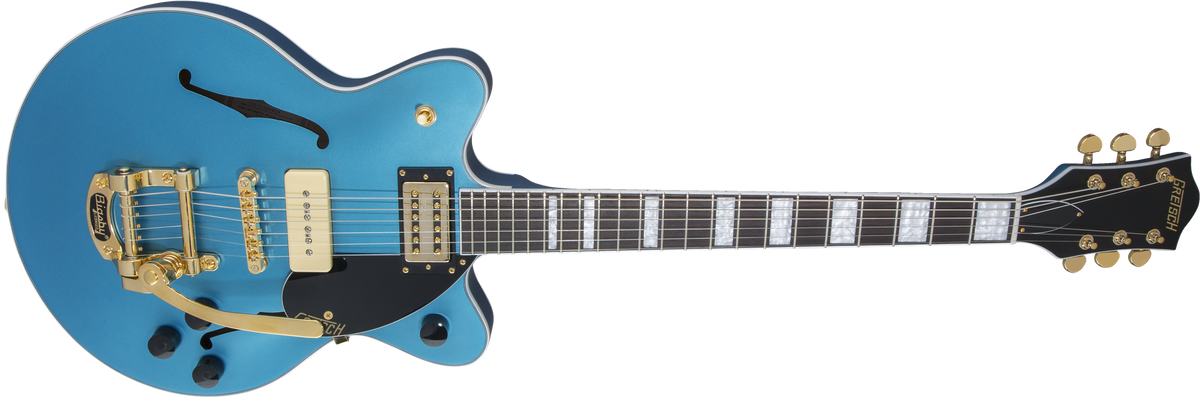

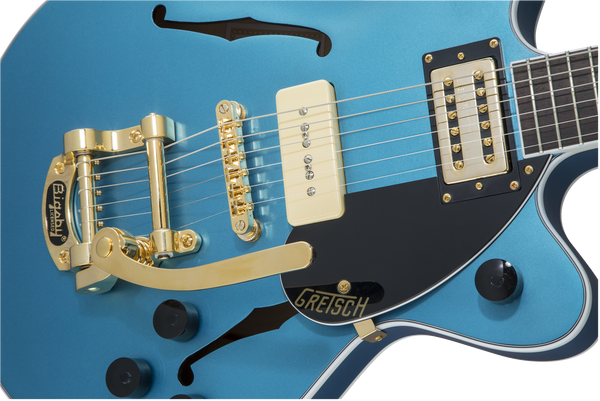

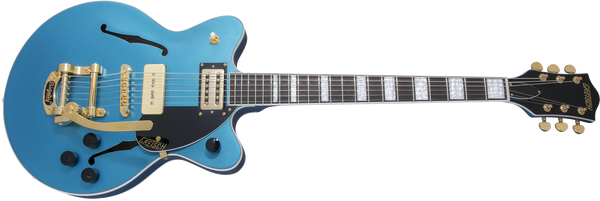

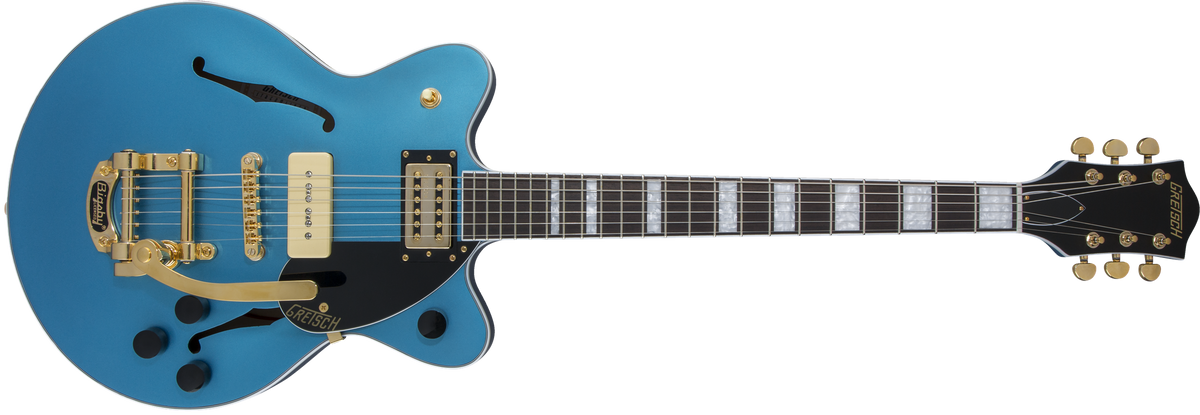

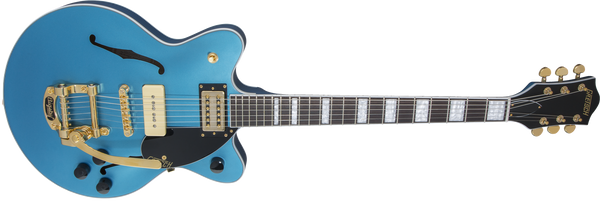

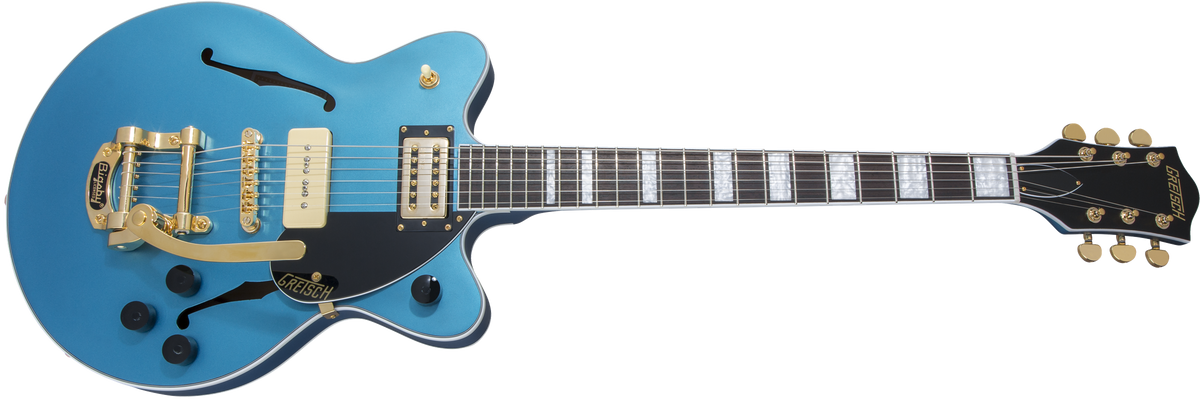

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2655TG-P90 LTD Streamliner Center Block Jr. Double Cutaway Rosewood Fingerboard Riviera Blue Satin listed above. For larger pics, click on an image to open in a new tab.
