Gretsch Electromatic Chris Rocha Broadkaster Jr. Center Block Vintage White Specs

The Electromatic Chris Rocha Broadkaster Jr. Center Block Rosewood Fingerboard Vintage White is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2509701653.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Sealed Locking Tuning Machines
High Sensitive Filter'Tron Bridge Pickup
High Sensitive Filter'Tron Neck Pickup

Product Identifiers

Model Name	Electromatic Chris Rocha Broadkaster Jr. Center Block
Part Number	2509701653
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	717669887254

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Broadkaster Jr.
Body Binding	Gold Sparkle with W/B/W Purfling
Body Finish	Gloss
Bracing	Center Block

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast Sealed Locking
Pickguard	Gold Plexi with Ghosted Gretsch Logo & Black “C/R” Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B70 with Wire Handle
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech NuBone
Neck Shape	Thin "U"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	Gold Sparkle

Electronics

Bridge Pickup	High Sensitive Filter'Tron
Neck Pickup	High Sensitive Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional: 099-6460-000 Gig Bag - G2164 - Solid Body Electric; 099-6474-000 Economy Case - G6238FT - (Flat) Solid Body A6079/B; 099-6410-000 Deluxe Case - G6238 - Solid Body Models

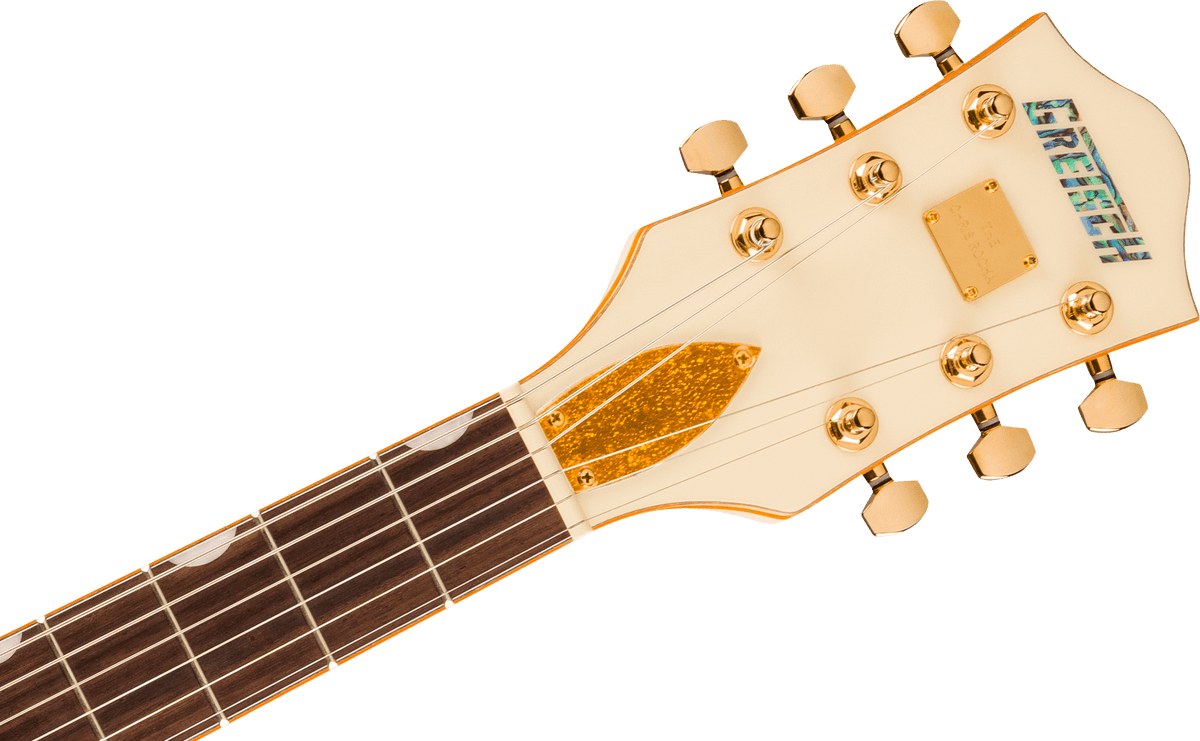

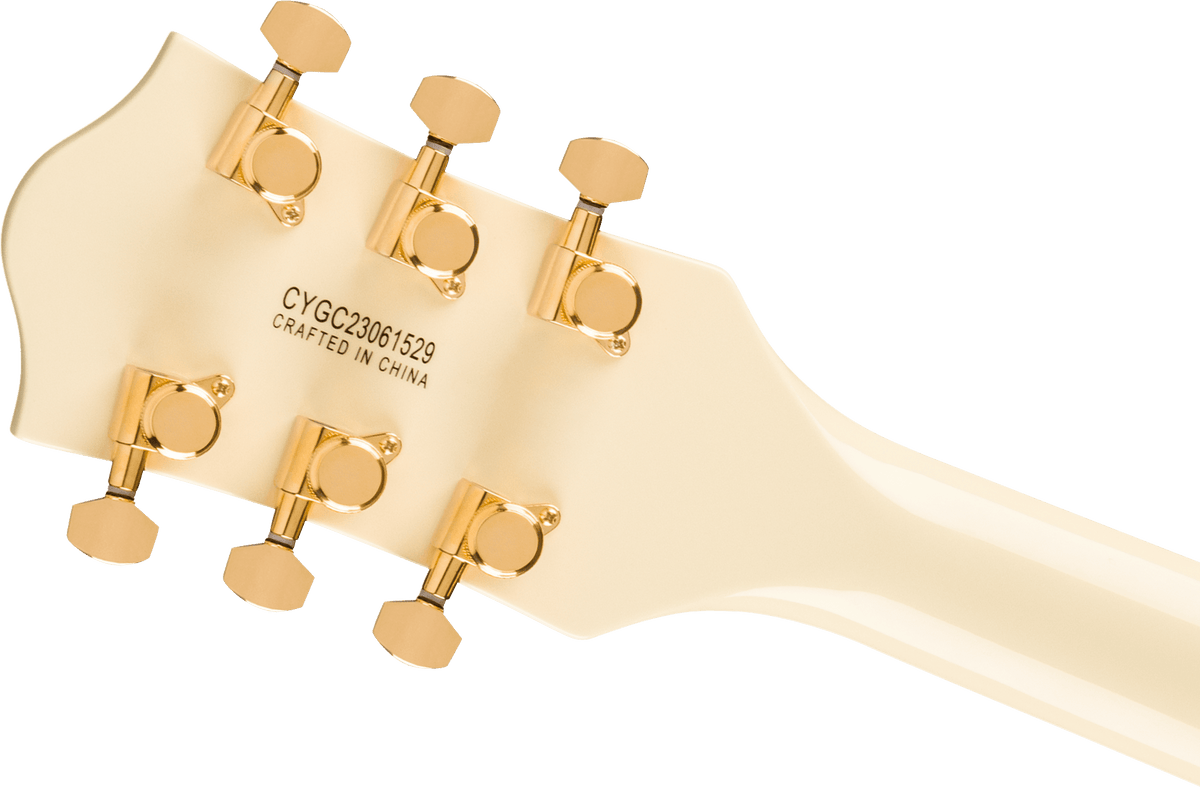

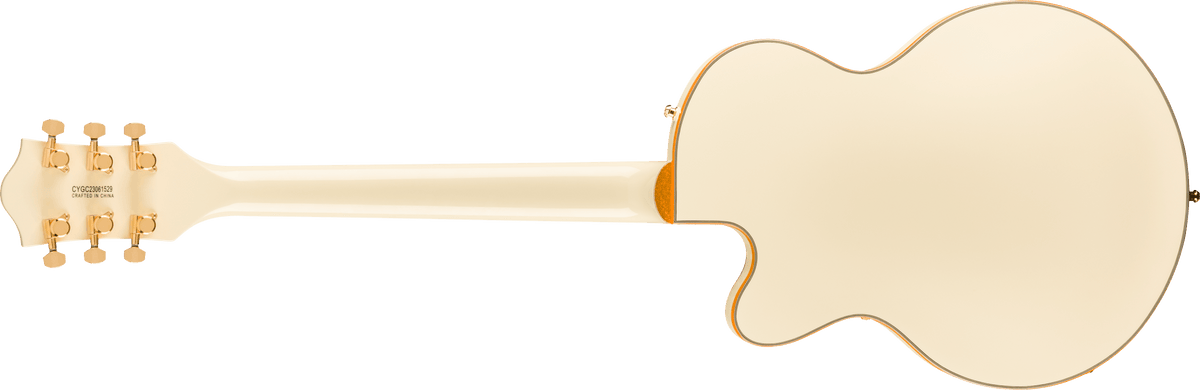

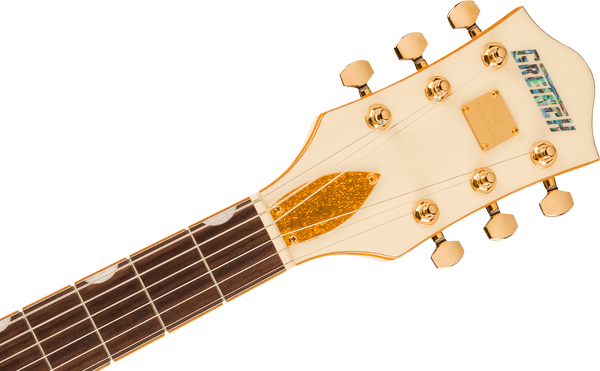

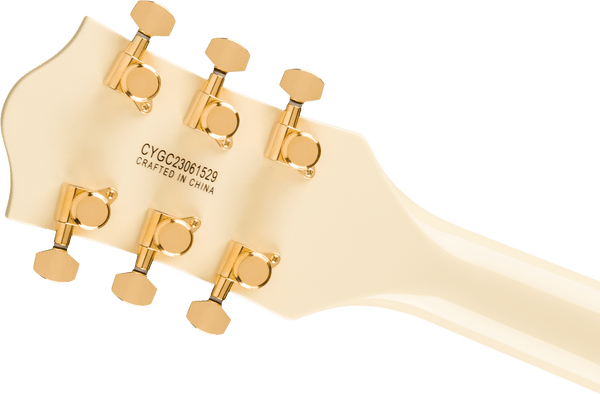

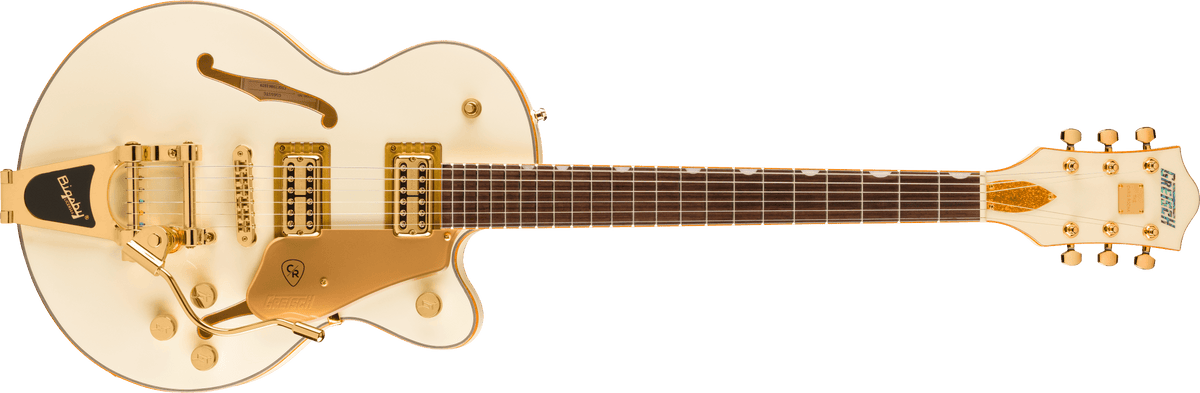

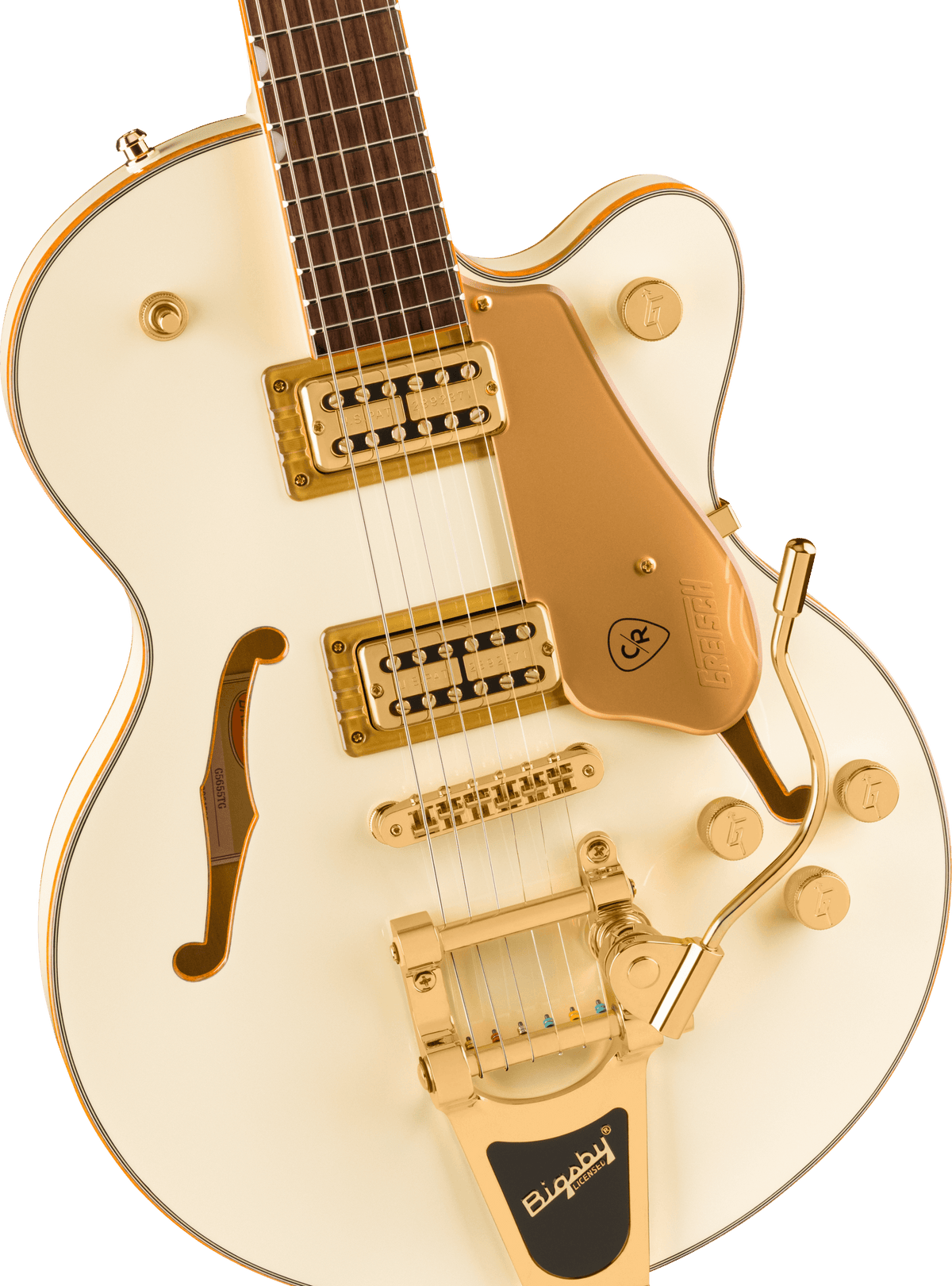

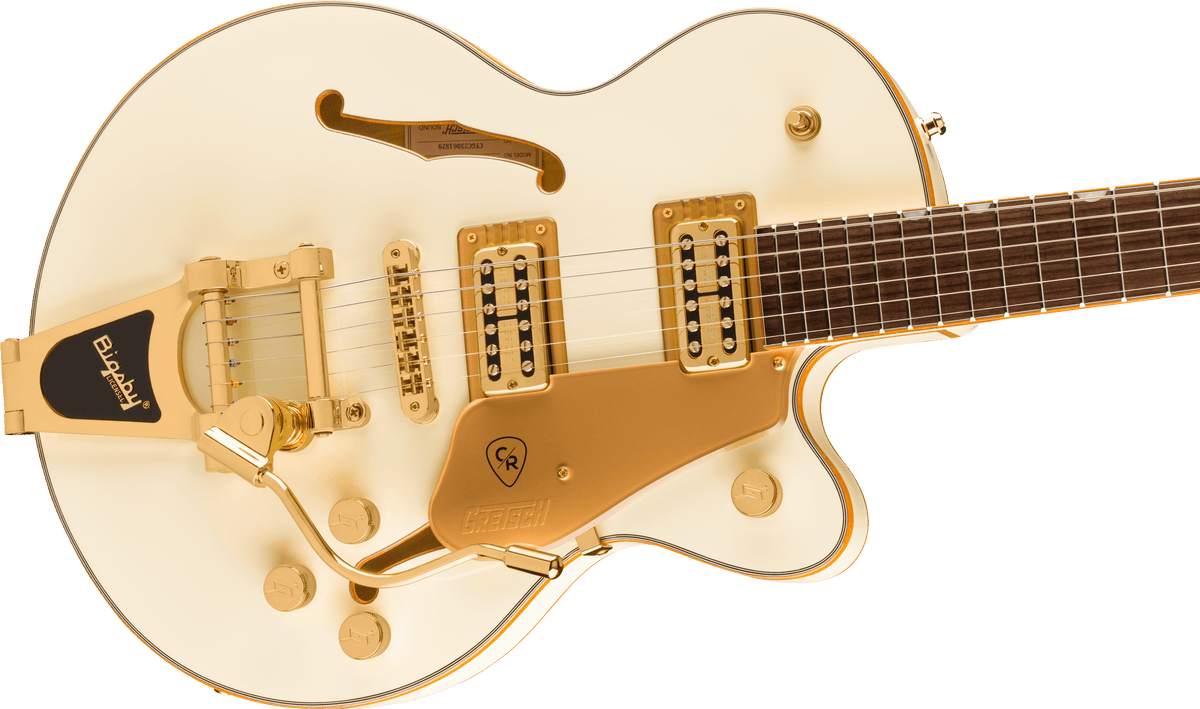

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Electromatic Chris Rocha Broadkaster Jr. Center Block Rosewood Fingerboard Vintage White listed above. For larger pics, click on an image to open in a new tab.
