The Limited Edition Abbey Road Studiomatic Hollow Body with Bigsby and Gold Hardware Ebony Fingerboard Classic Walnut Stain is a hollow body electric guitar
built by Gretsch. This guitar is manufactured in China
and is a Limited Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2506419582.
Key Features
Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Sealed Locking Tuning Machines
Custom Filter’Tron Bridge Pickup
Custom Filter’Tron Neck Pickup
Product Identifiers
Model Name
Limited Edition Abbey Road Studiomatic Hollow Body with Bigsby
Part Number
2506419582
Product Series
Limited Edition
Country of Origin
China
Brand
Gretsch
Type
Electric Guitar
Category
Hollow Body
UPC Code
885978529483
Factory Specifications
Body Construction
Body Material
Laminated Maple
Top Material
Arched Laminated Maple
Back Material
Arched Laminated Maple
Body Shape
Electromatic Hollow Body
Body Binding
White with B/W/B Purfling
Body Finish
Gloss
Bracing
Parallel Tone Bars
Hardware
Bridge
Adjusto-Matic
Tuning Machines
Die-Cast Sealed Locking
Pickguard
Black Plexi w/ Gold Gretsch Logo
Control Knobs
G-Arrow
Bridge Cover / Tailpiece
Bigsby B60 V-Cutout
Hardware Finish
Gold
Neck Construction
Neck Material
Maple
Fingerboard Material
Ebony
Radius
12" (305 mm)
Fingerboard Inlays
Pearloid Neo-Classic Thumbnail
Side Dots
Black
Number of Frets
22
Fret Size
Medium Jumbo
Nut Width
1.6875" (42.86 mm)
Scale Length
24.6" (625 mm)
Nut Material
Graph Tech TUSQ
Neck Shape
Classic "C"
Neck Construction
Set-Neck
Neck Finish
Gloss
Headstock Binding
White
Electronics
Bridge Pickup
Custom Filter’Tron
Neck Pickup
Custom Filter’Tron
Pickup Configuration
Filter'Tron / Filter'Tron
Controls
Master Volume, Tone 1. (Neck Pickup w/ Push-Pull for Rumble Filter), Tone 2. (Bridge Pickup w/ Push-Pull for Rumble Filter)
Pickup Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Auxiliary Switching
2-Position Rumble Filter
General
Orientation
Right-Hand
Strings
Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag

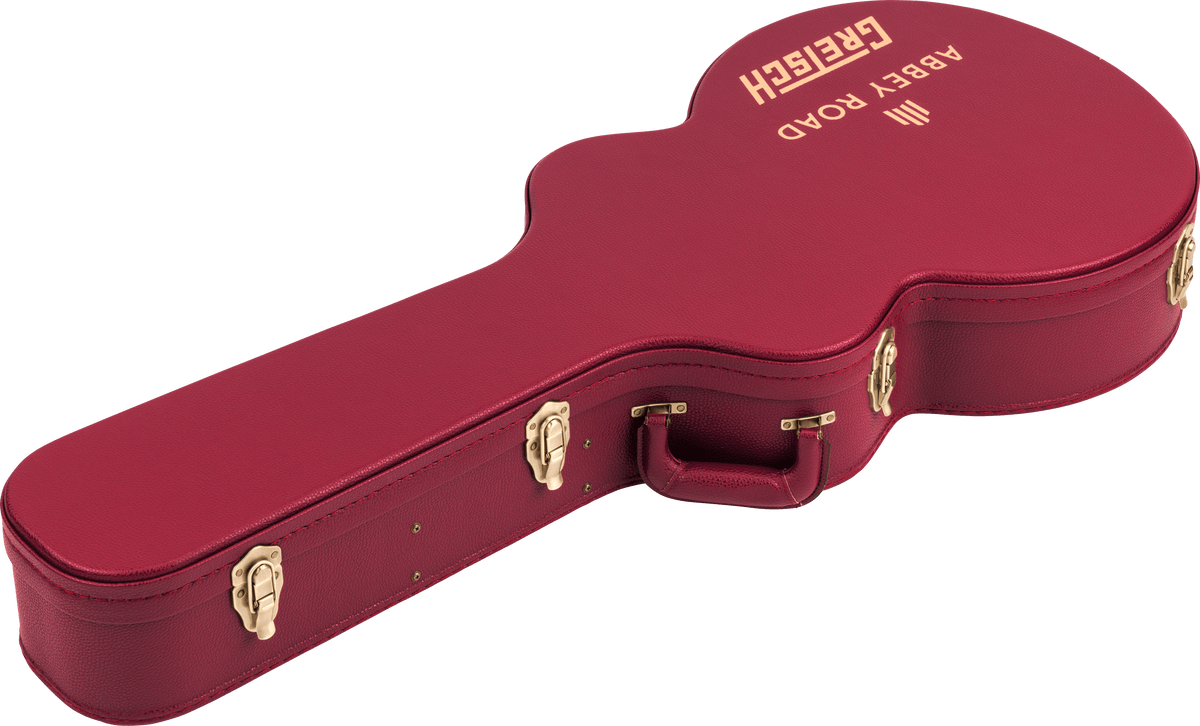

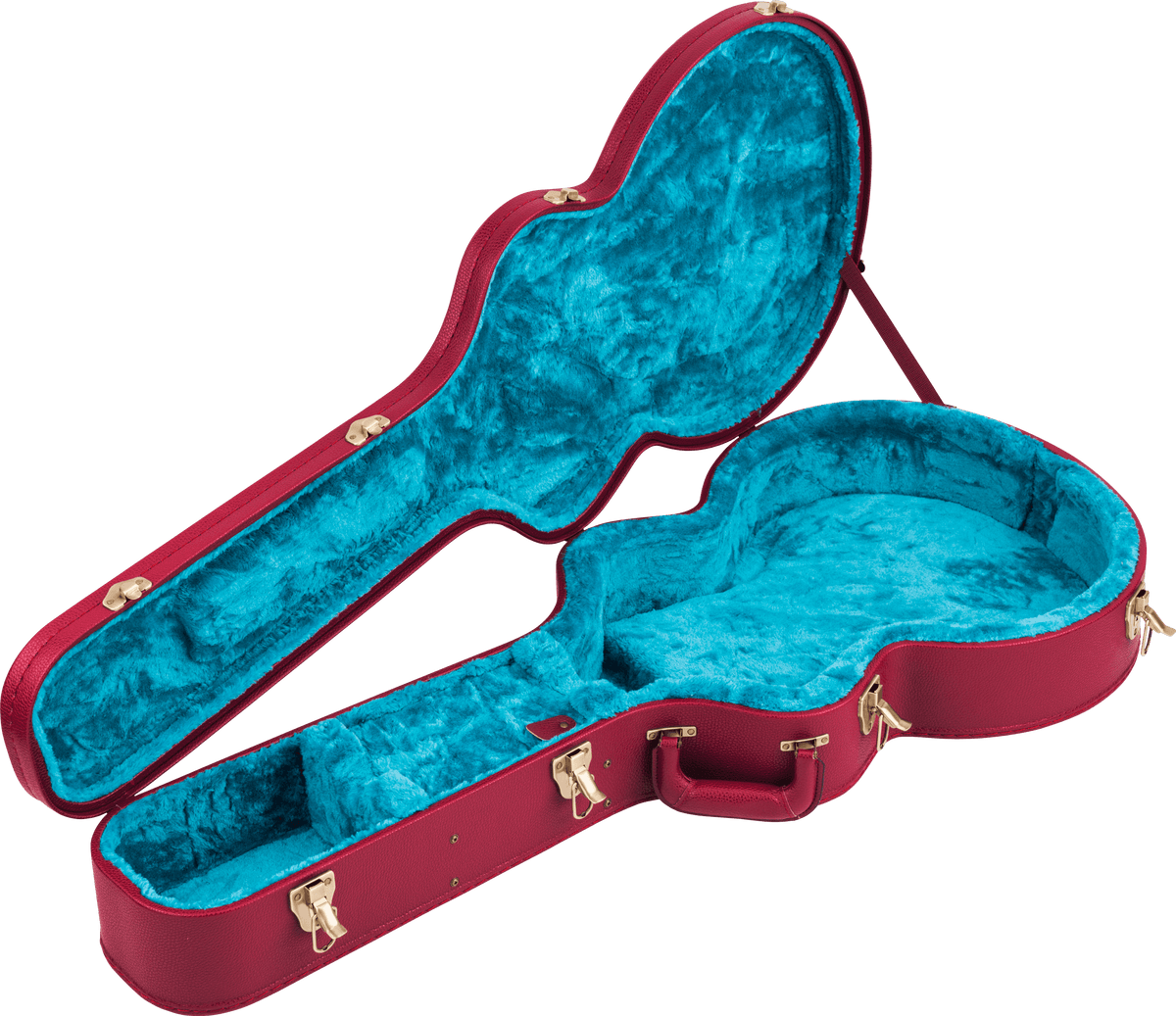

Custom Hardshell Case Included
Reference Images

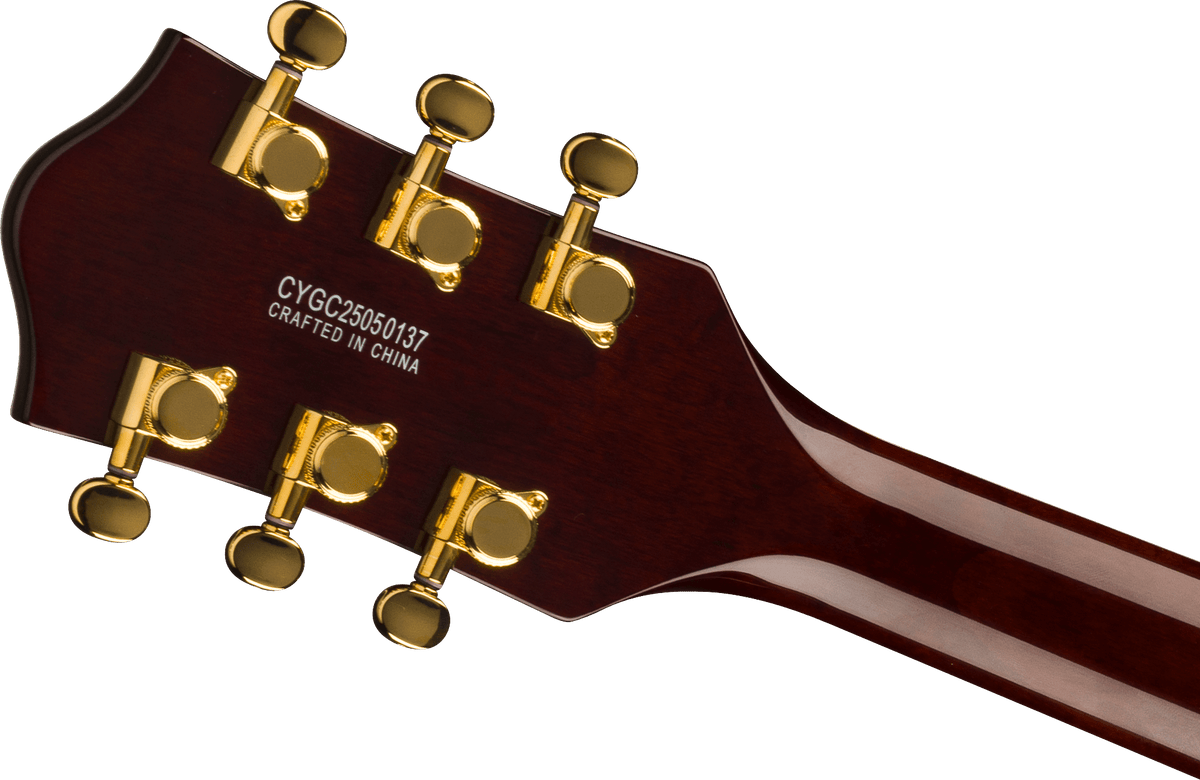

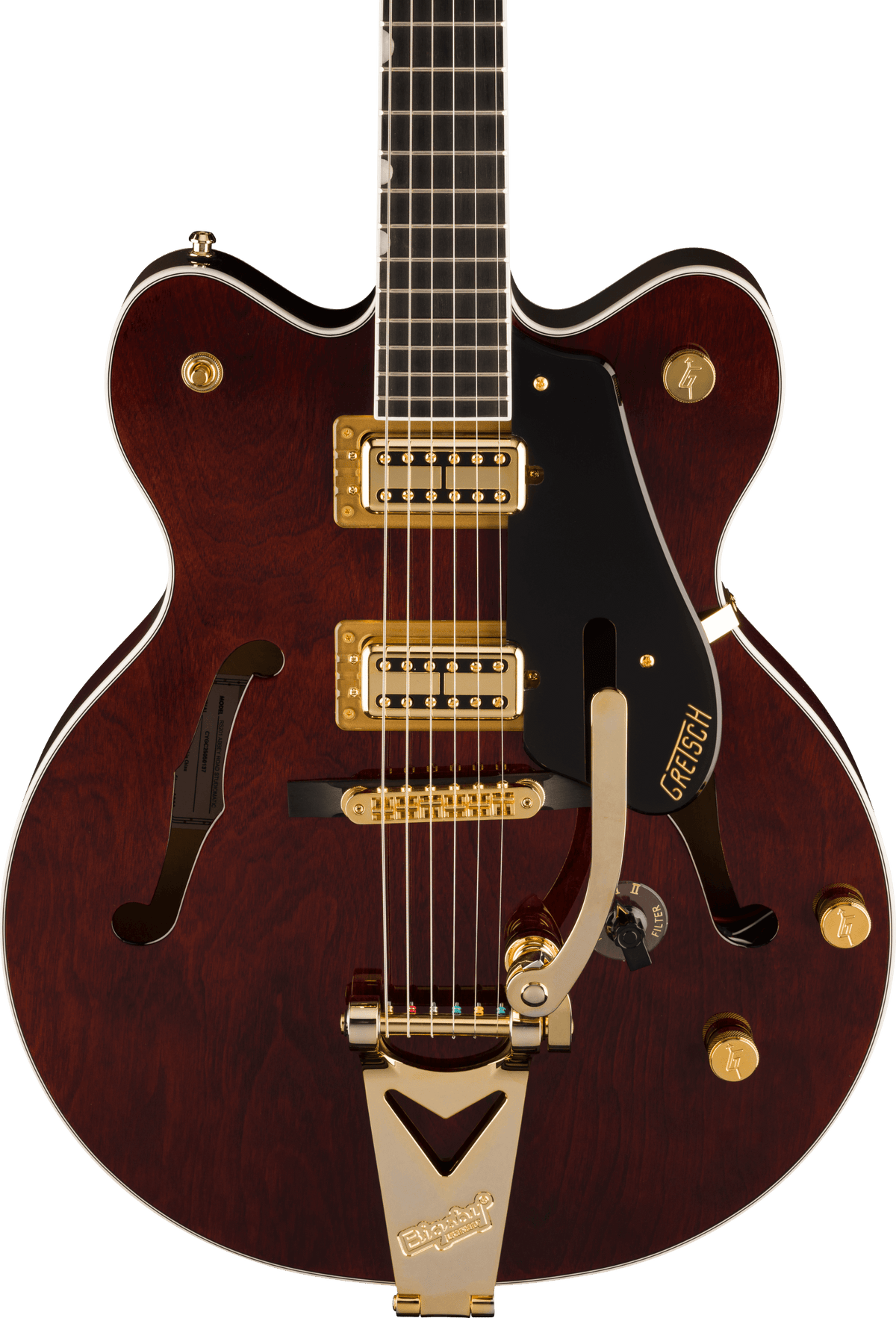

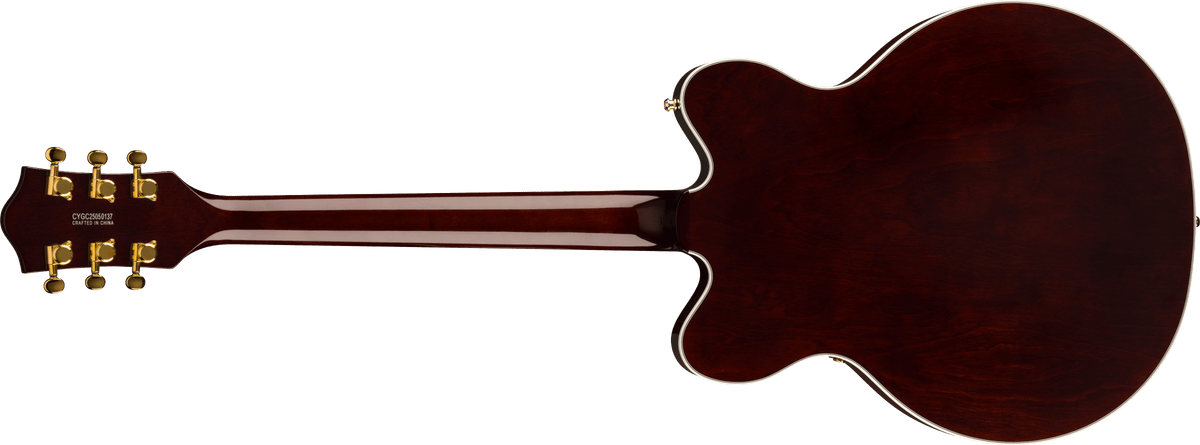

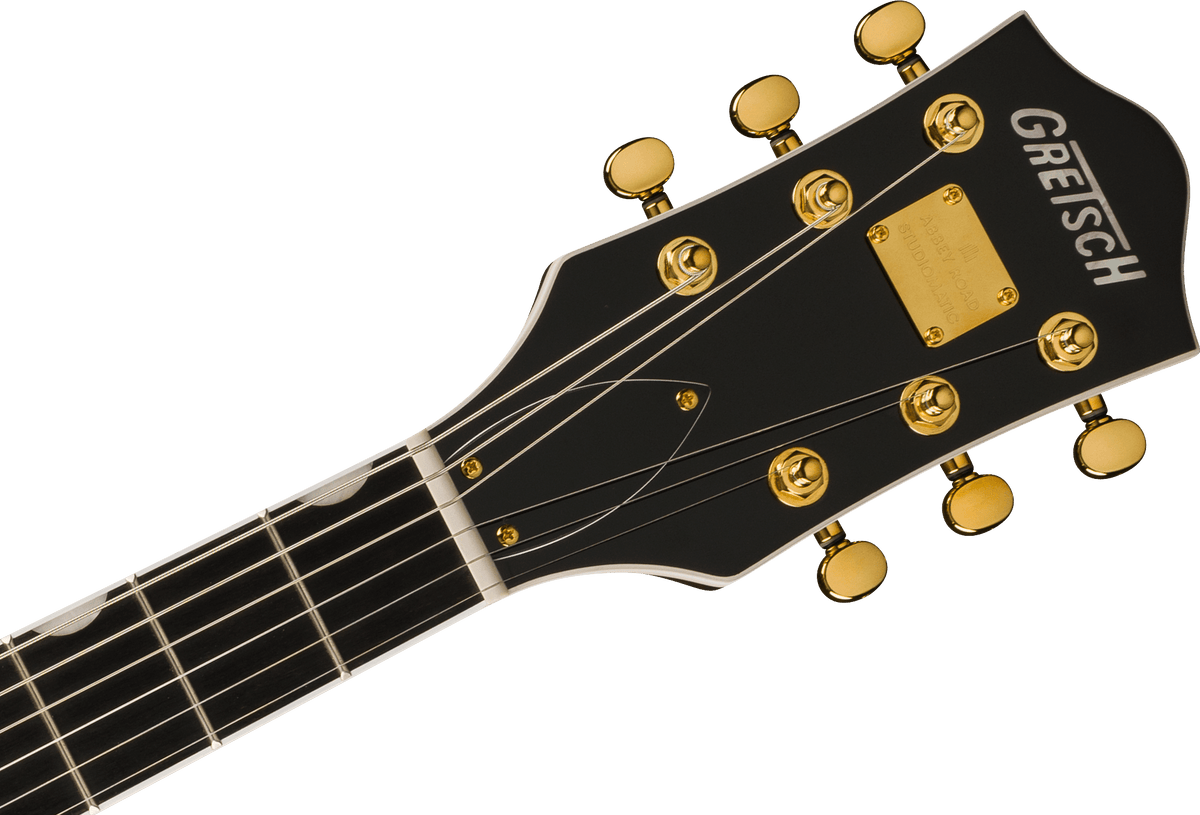

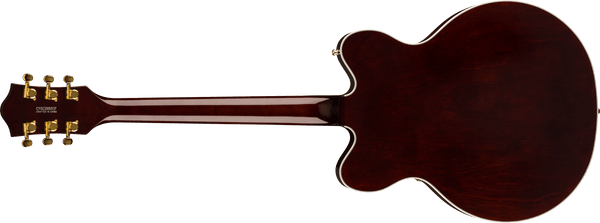

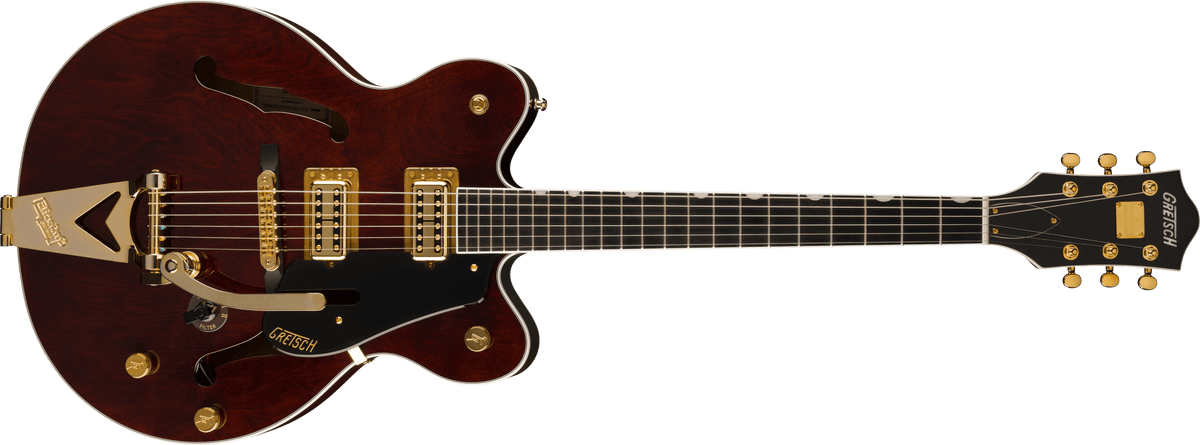

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Limited Edition Abbey Road Studiomatic Hollow Body with Bigsby and Gold Hardware Ebony Fingerboard Classic Walnut Stain listed above. For larger pics, click on an image to open in a new tab.
