The V-4B 100w Bass Head is an amplifier built by Ampeg. This bass head guitar was manufactured in China and is a Ampeg Classic Series model. Key features include 100 Watts, 3 Band EQ, 3-Position Midrange Control, 4 x 6L6GC Power Tubes, 2 x 12AX7 Preamp Tubes and Black finish. The specs listed below pertain to the product year model pictured on this page.
Factory Specs
- 100W of all-tube Ampeg bass tone
- Preamp: Tube ( 2 x 12AX7)
- Driver: Tube (1 x 12AX7
- 1 x 12AU7)
- Power amp: Tube (4 x 6L6GC)
- Classic V-4B fit and finish
- Ampeg “Black Line” cosmetics
- Vintage rocker switch controls
- Integrated chassis suspension system
- 3-band EQ (bass-midrange-treble)
- 3-position mid-range control
- Ultra Hi/Lo boost
- Speaker outputs: 1 x 8 ohm / 2 x 4 ohm / 2 x 2 ohm
- Balanced direct out w/ ground lift
- Power amp in / preamp out
- -15 dB input
- Slave output to connect additional amplifiers
- Dimensions (W x H x D inches): 24 x 11 x 11
- Handling weight: 41 lbs
Reference Images

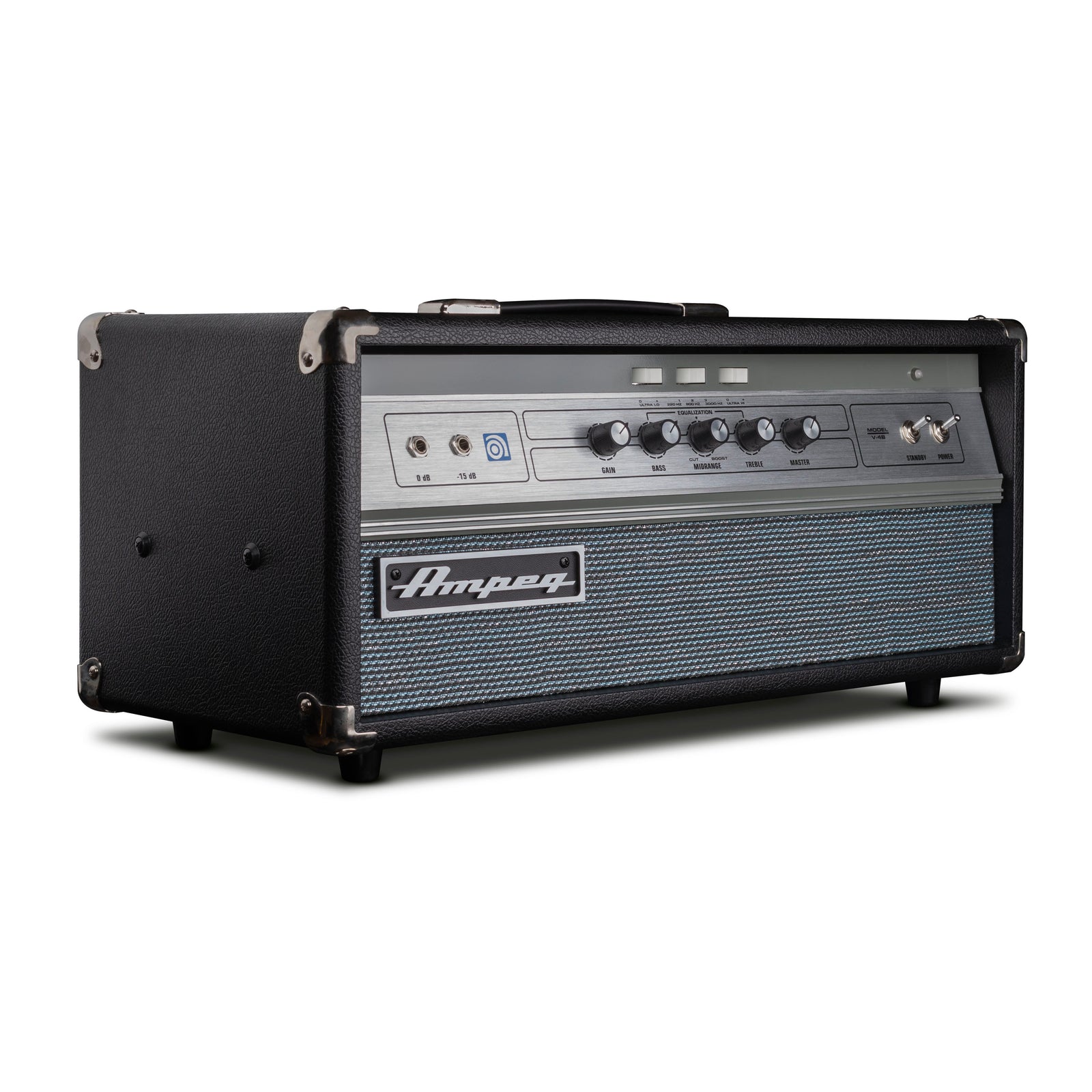

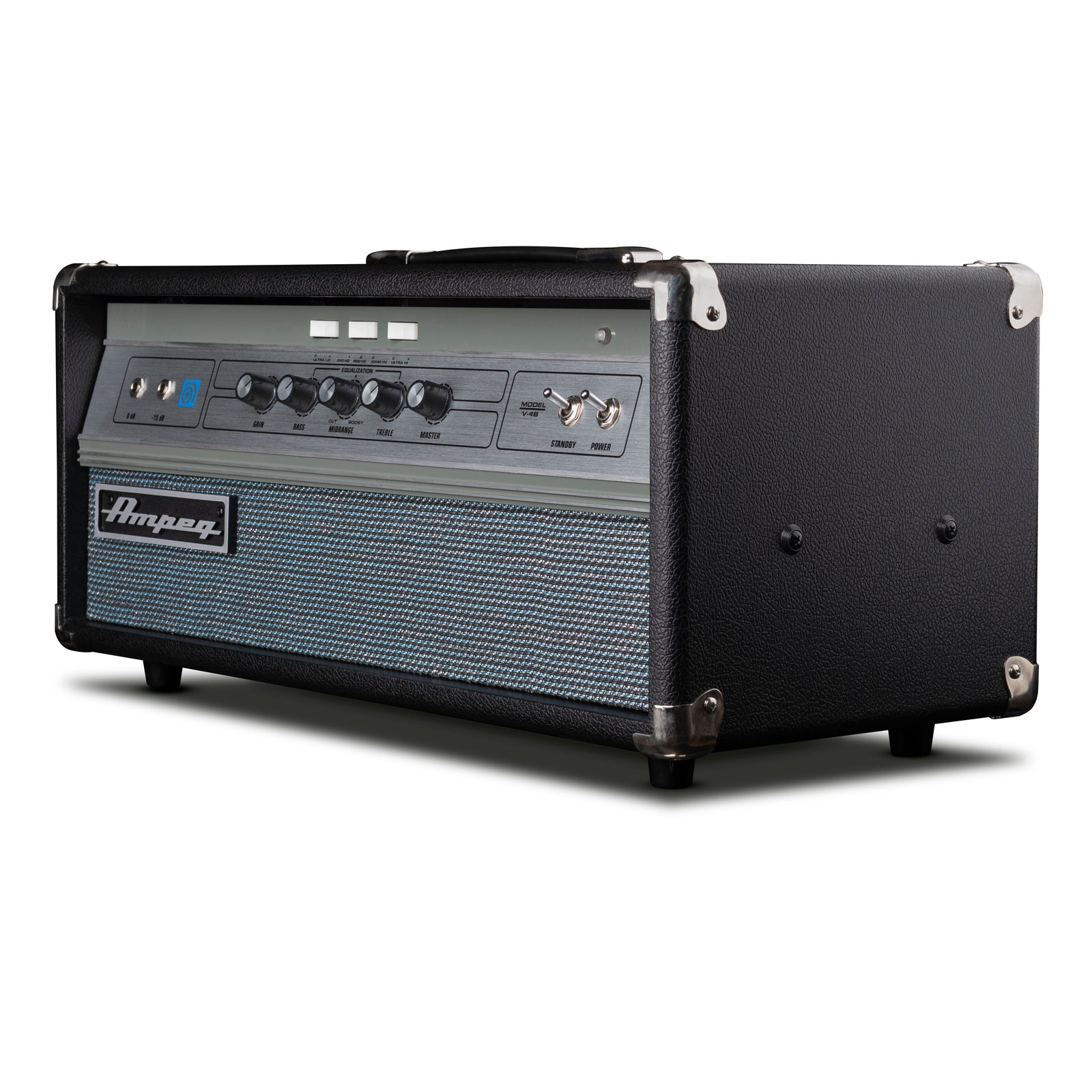

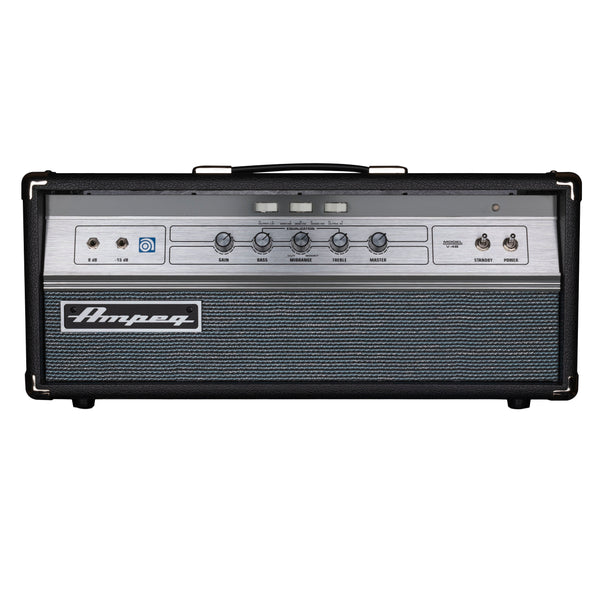

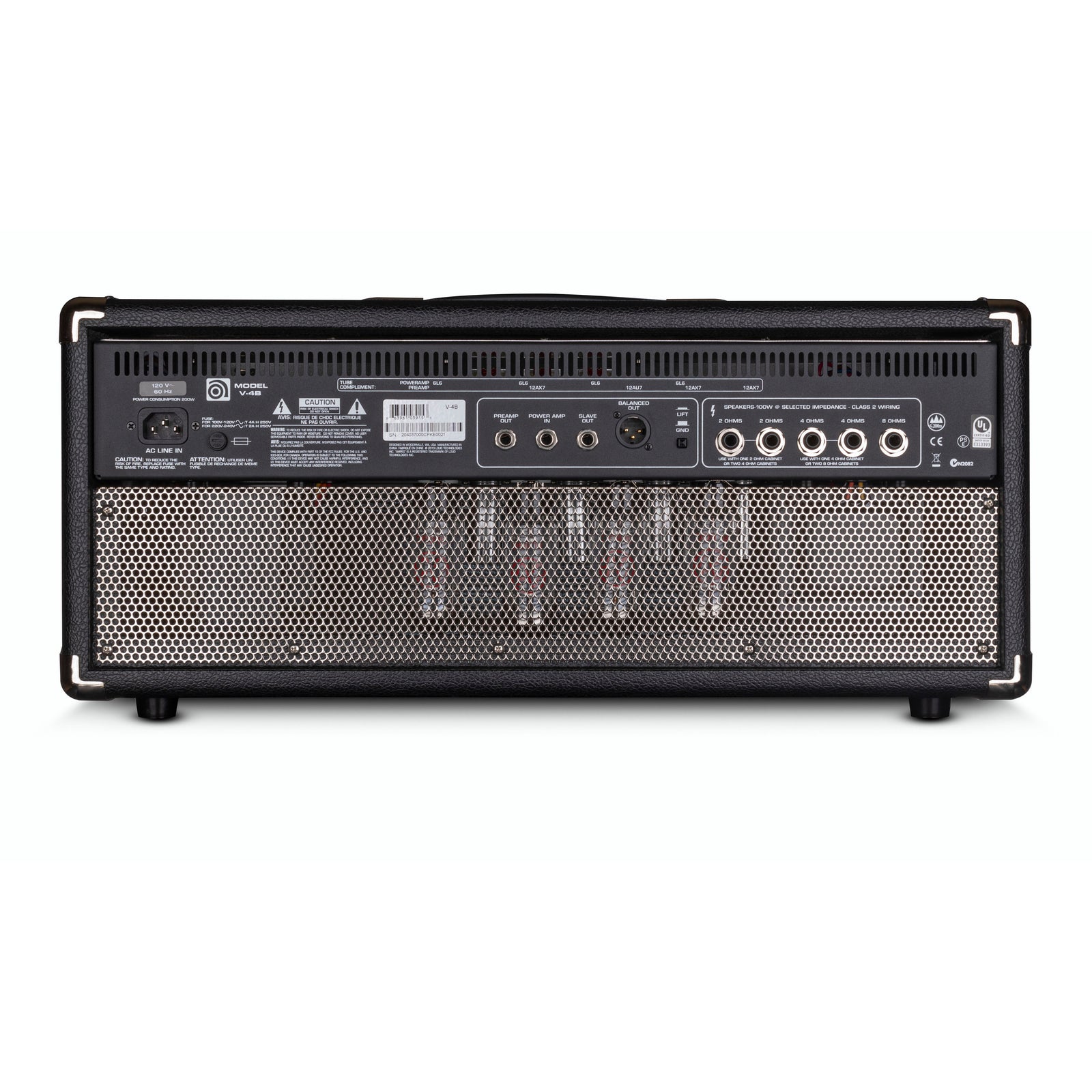

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the V-4B 100w Bass Head listed above. For larger pics, click on an image to open in a new tab.
