The AB Double Firestripe Pickguard Jumbo Acoustic is a jumbo acoustic guitar built by Iris. This non-cutaway set neck guitar is manufactured in United States and is a Iris Custom Acoustic Guitars model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf.
Key Features
- Sitka Spruce Top
- Mahogany Back
- Mahogany Sides
- Mahogany Neck
- Indian Rosewood Fingerboard
- 25" Scale Length
- 1 11/16" Nut Width
- 16" Radius
- Narrow Tall Frets
- Rosewood Bridge
- Vintage Style Brass Open-Back w/ Cream Knobs Tuning Machines
Product Identifiers
| Model Name | AB Double Firestripe Pickguard Jumbo Acoustic |
| Product Series | Iris Custom Acoustic Guitars |
| Country of Origin | United States |
| Brand | Iris |
| Type | Acoustic Guitar |
| Category | Jumbo |
| Subcategory | Non-Cutaway Set Neck |
Factory Specifications
Body Construction
| Body Material | Small Jumbo |
| Top Material | Sitka Spruce |
| Back Material | Mahogany |
| Side Material | Mahogany |
| Body Shape | Iris AB |
| Body Binding | Blk/W/Blk Top Purfling |
| Body Finish | Open Pore Satin Nitrocellulose |
| Bracing | Scalloped Adirondack Spruce |
| Upper Bout Width | 11 3/8" |
| Lower Bout Width | 16-1/8” |
| Waist | 9 3/8" |

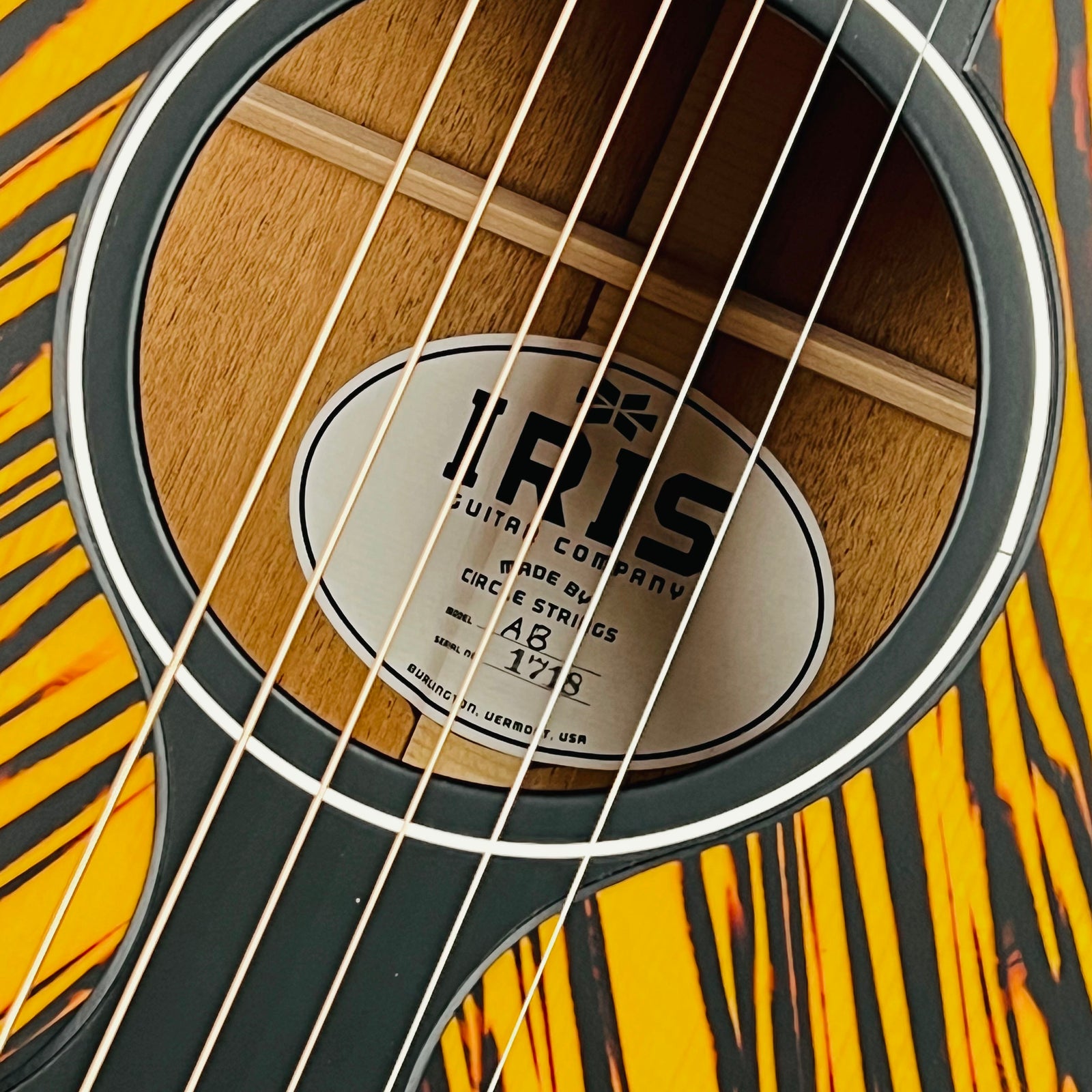

| Rosette | Blk/W/Blk |
Hardware

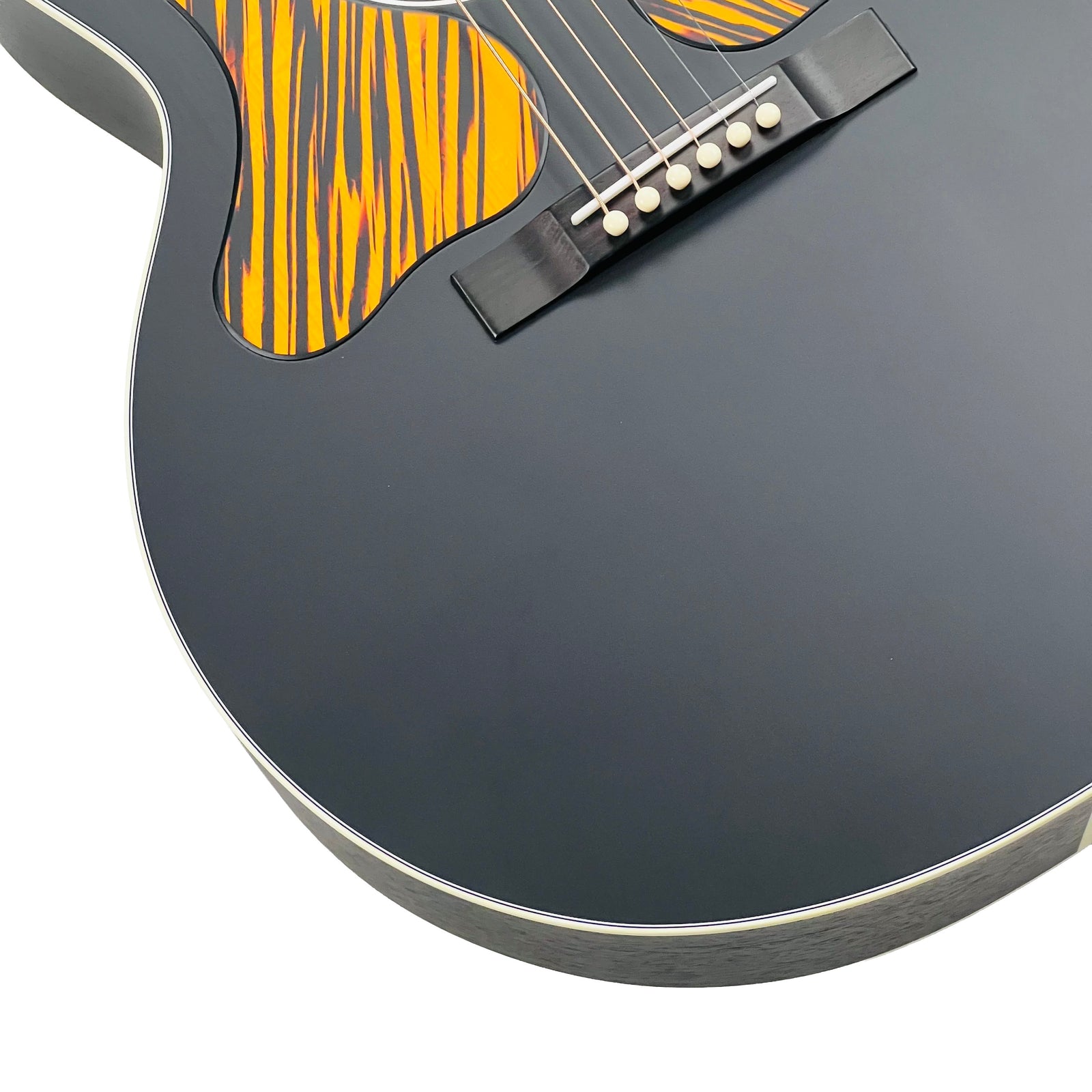

| Bridge | Rosewood |

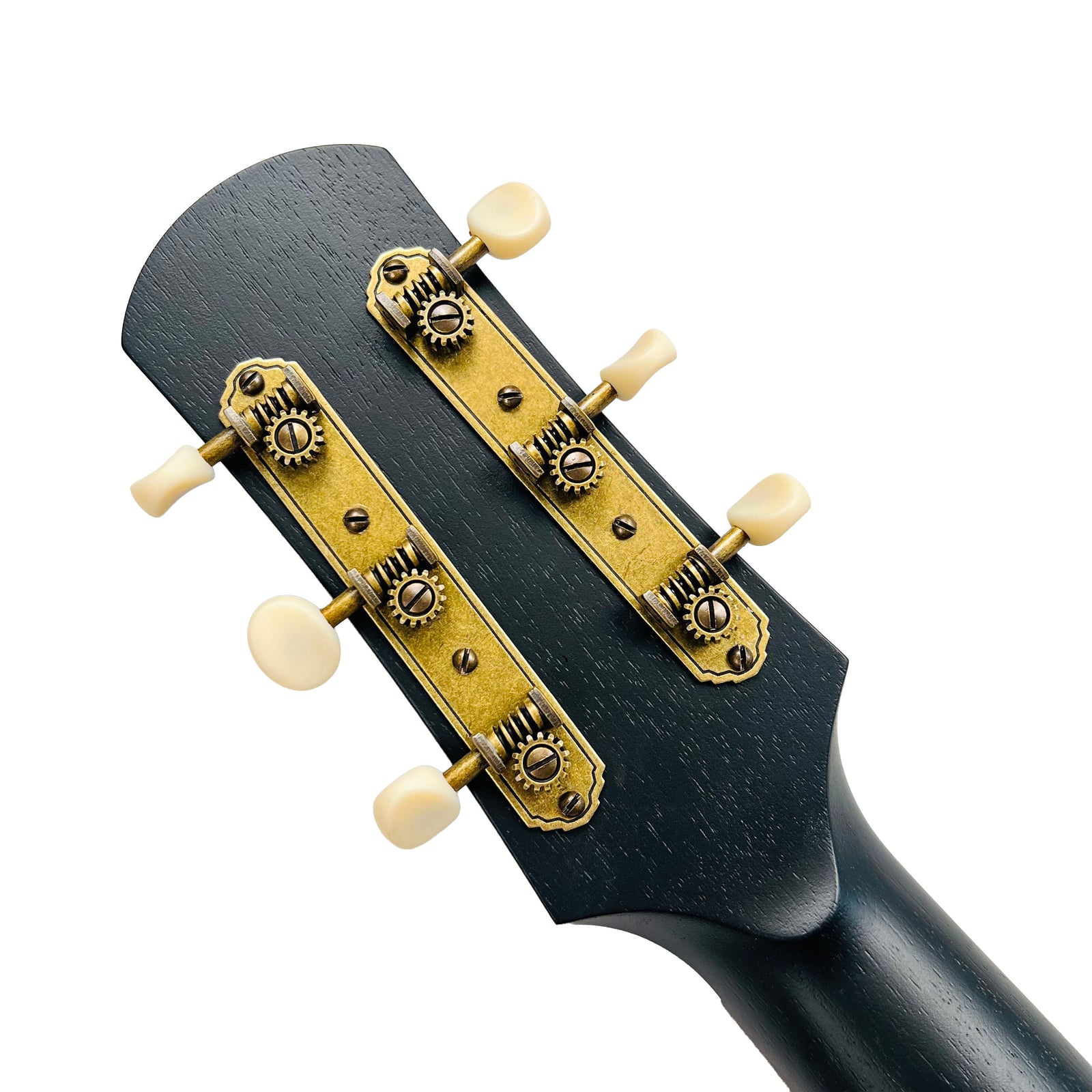

| Tuning Machines | Vintage Style Brass Open-Back w/ Cream Knobs |

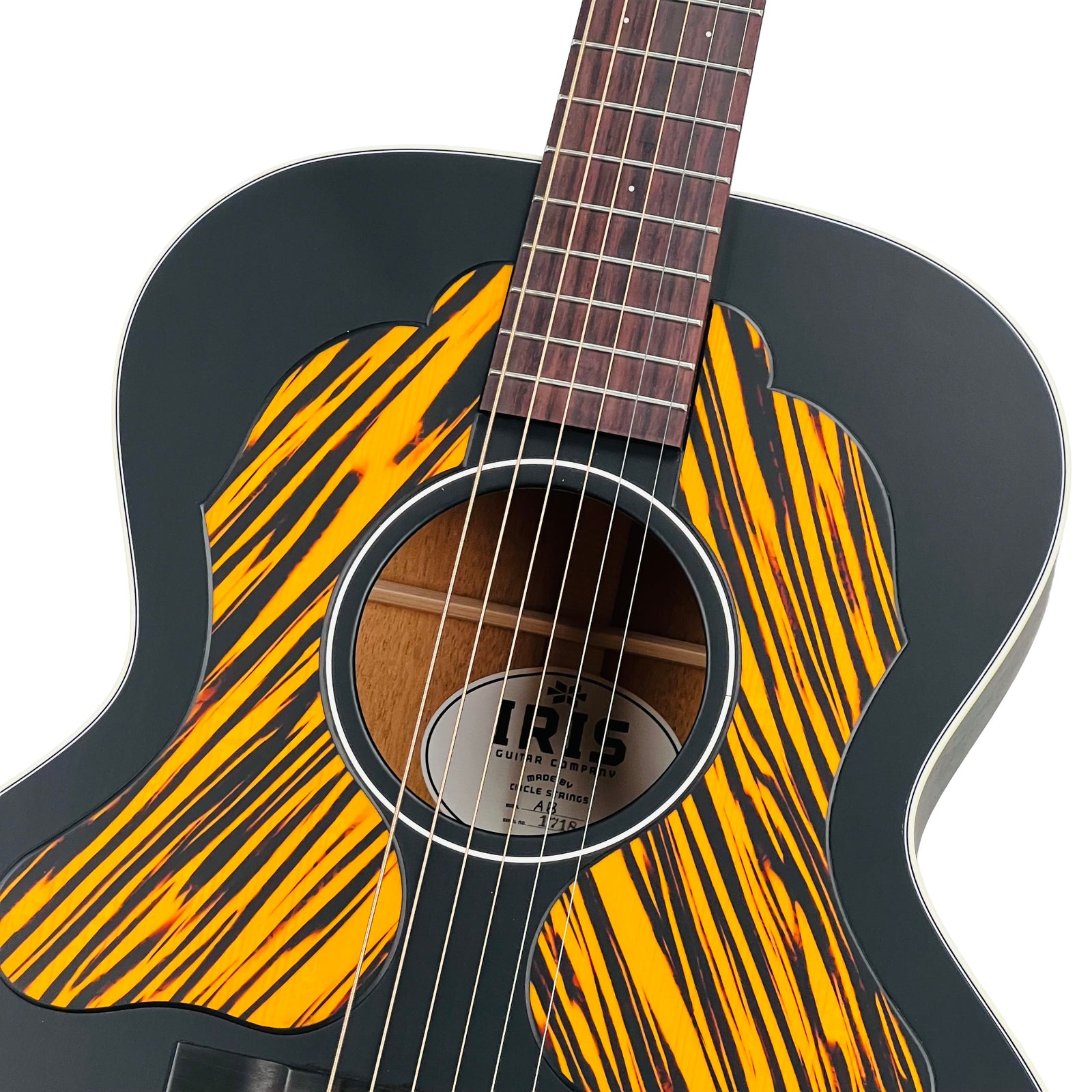

| Pickguard | Dual Firestripe |
| Hardware Finish | Vintage Style Brass |
| Saddle Material | Bone |
| String Spacing | 2 7/32" |
Neck Construction
| Neck Material | Mahogany |
| Fingerboard Material | Indian Rosewood |
| Radius | 16" |
| Fingerboard Inlays | Micro Dots |
| Side Dots | White Dot |
| Number of Frets | 19 |
| Fret Size | Narrow Tall |
| Nut Width | 1 11/16" |
| Scale Length | 25" |
| Nut Material | Bone |
| Neck Shape | Medium C |
| Neck Mounting | Bolt-on Mortise & Tenon |
| Neck Construction | One Piece |
| Neck Finish | Open Pore Satin Nitrocellulose |
Electronics
| Special Electronics | None |
General
| Orientation | Right Handed |

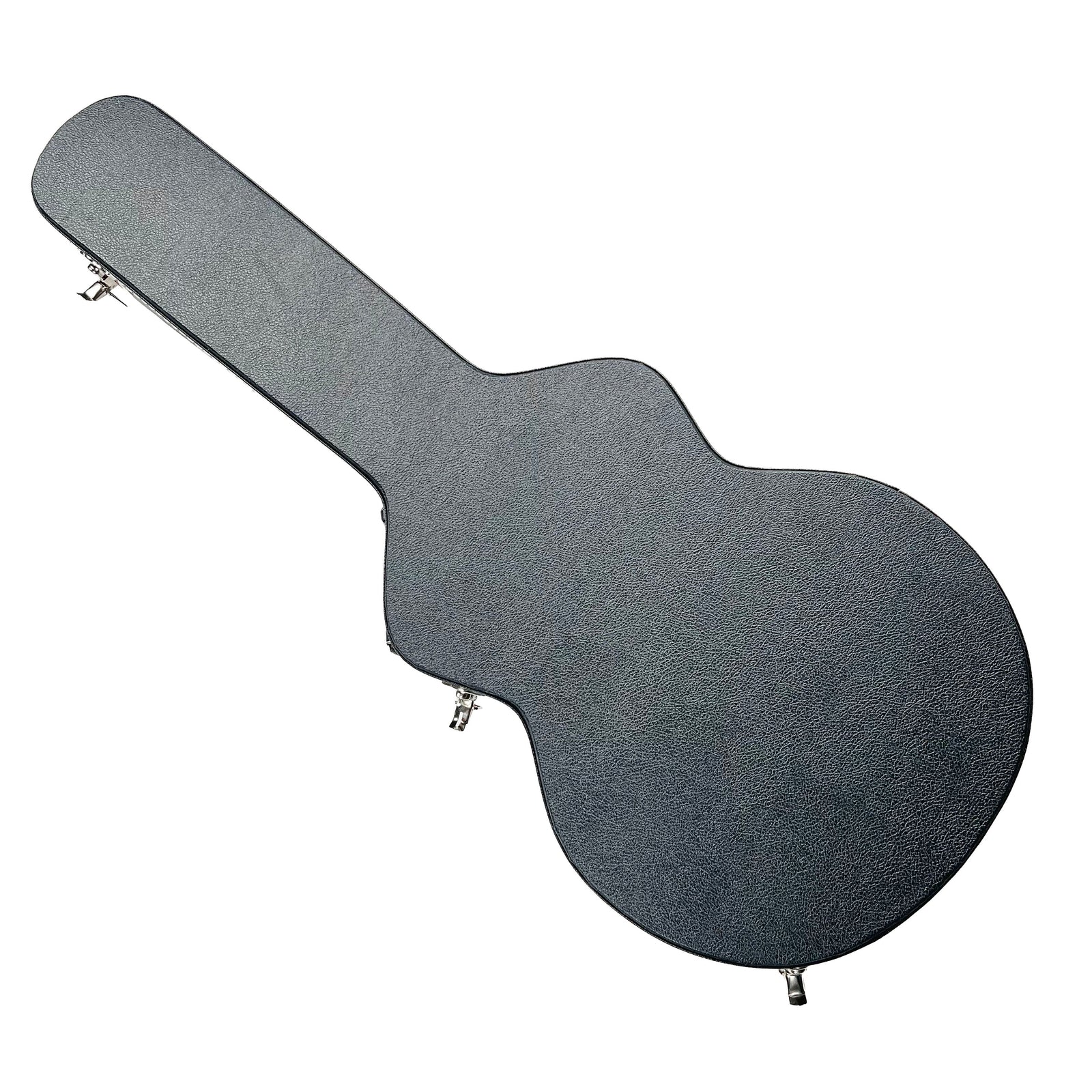

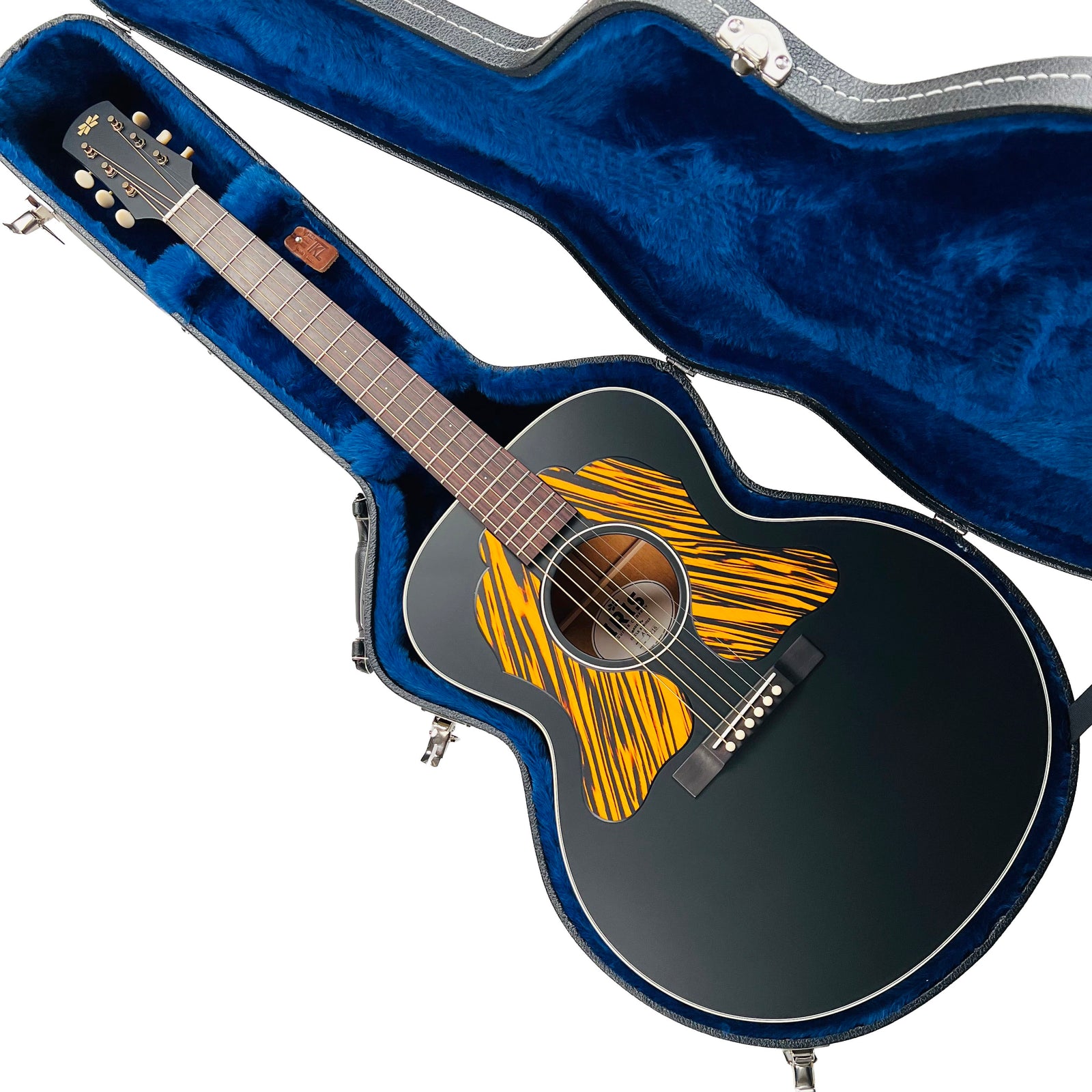

| Case / Gig Bag | TKL Hardshell |
Reference Images

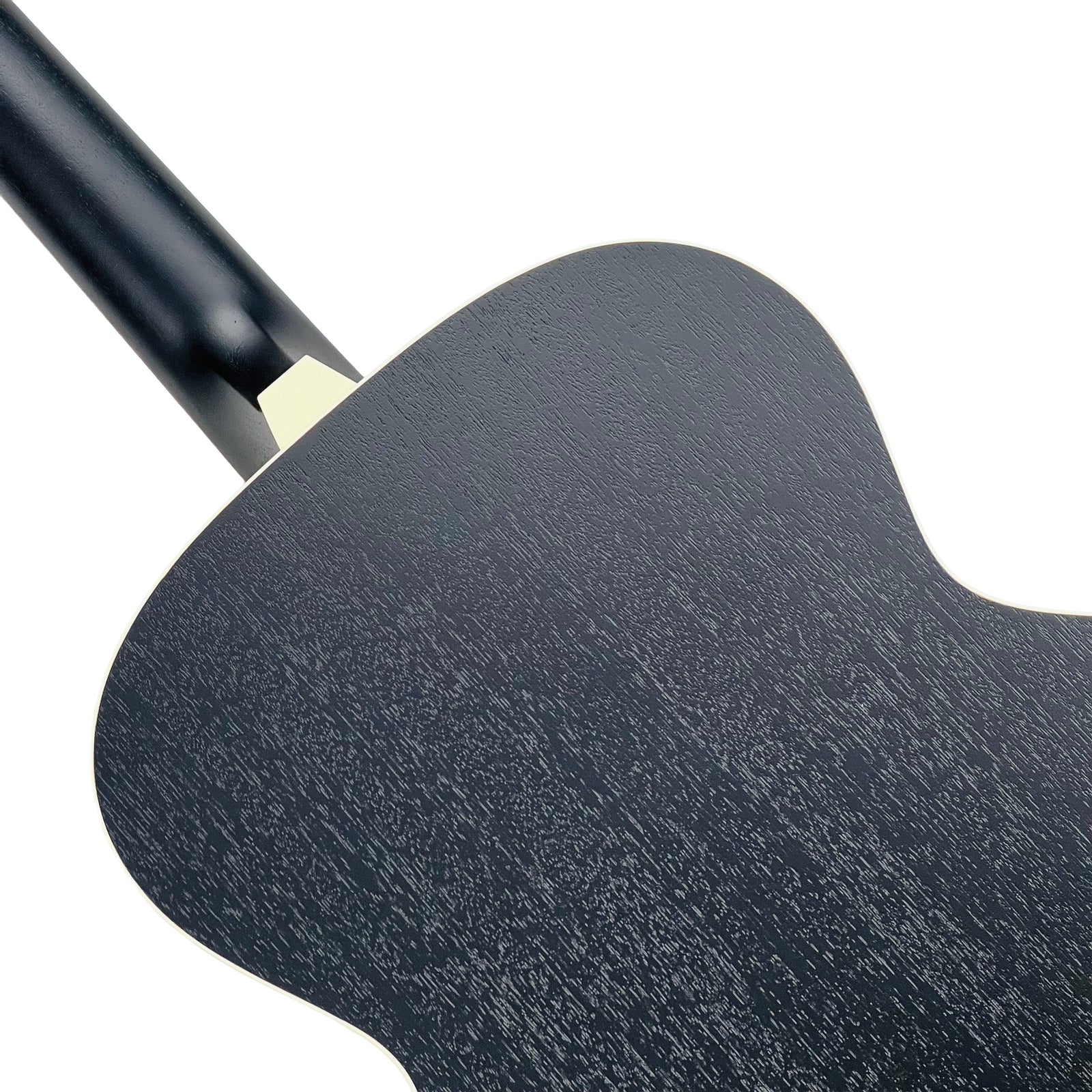

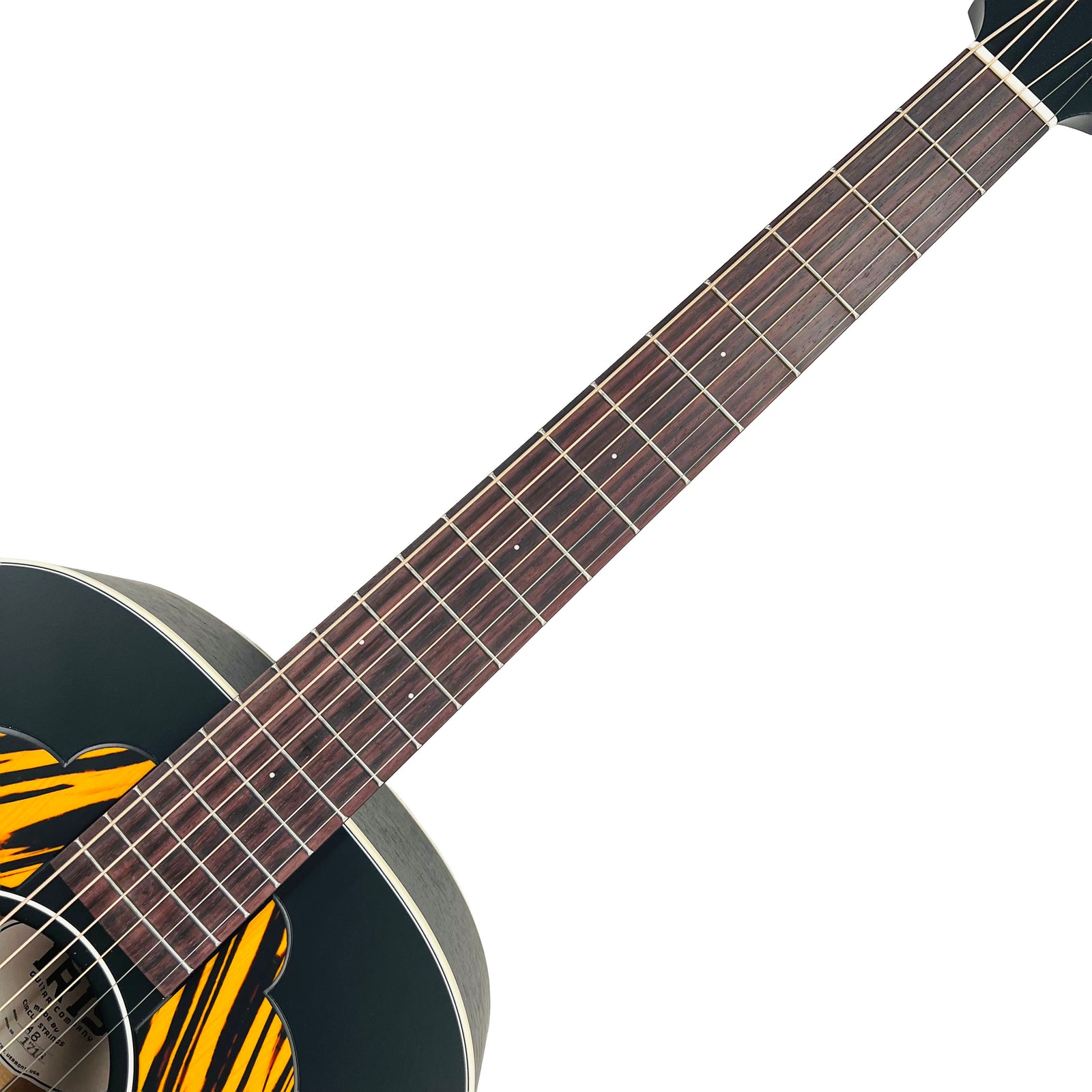

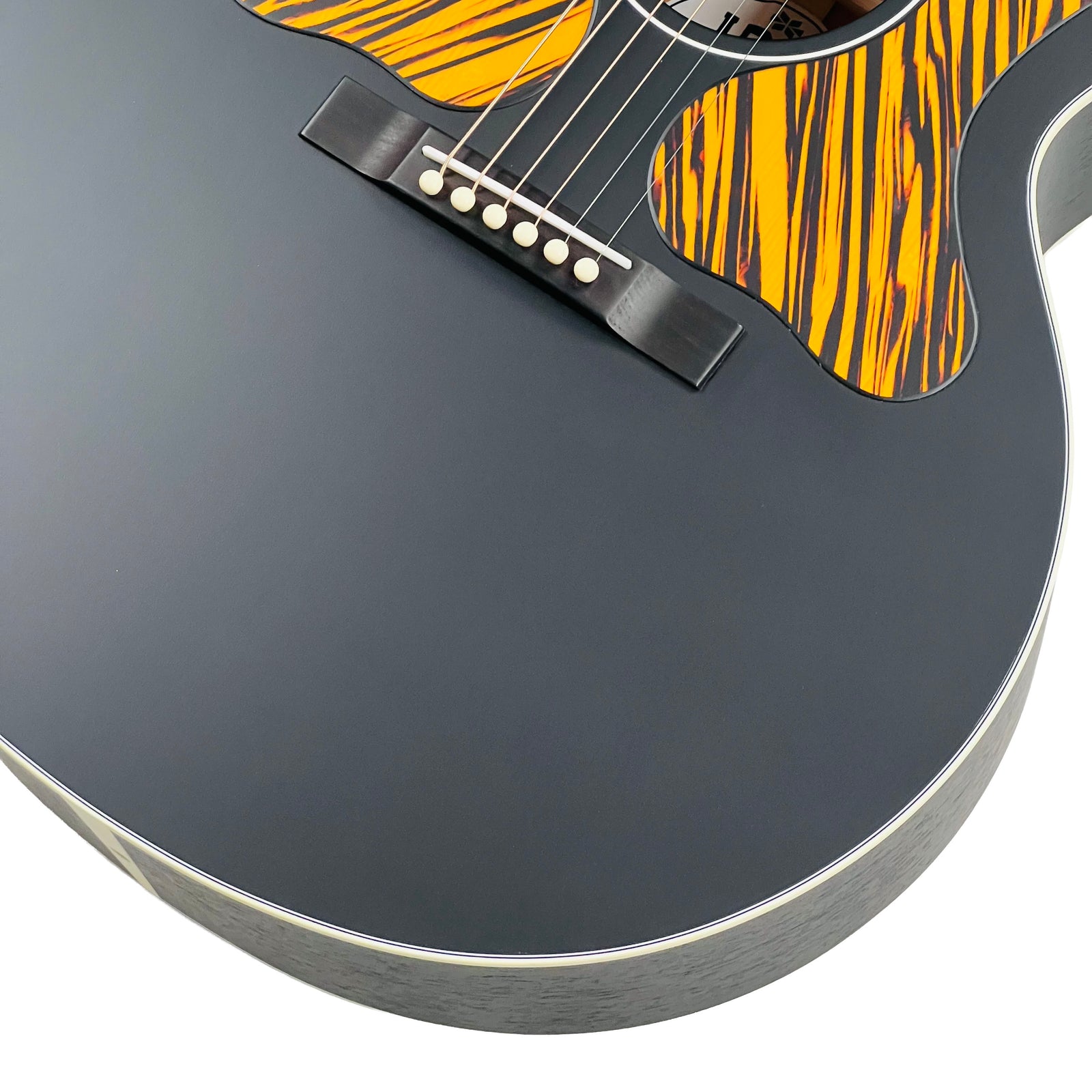

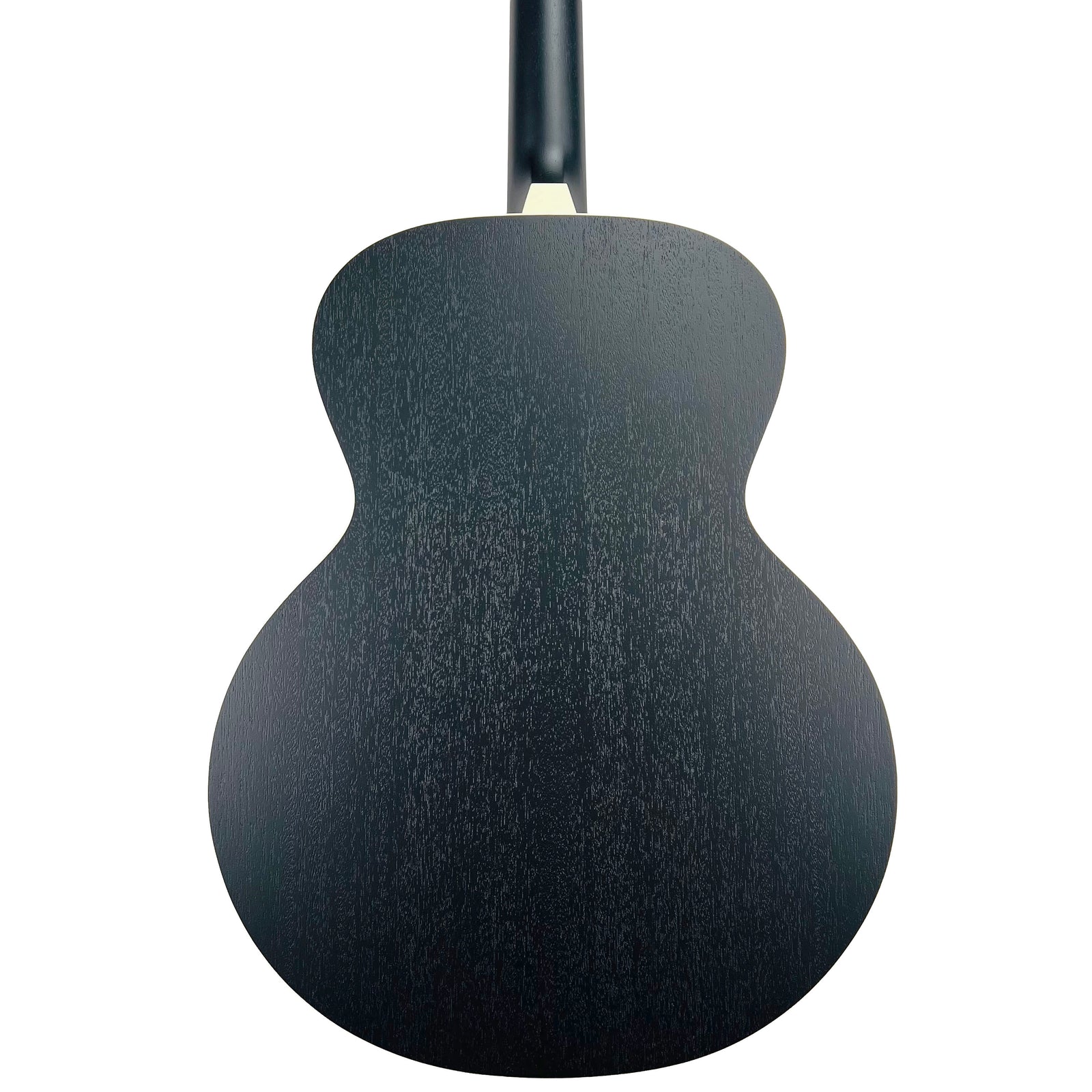

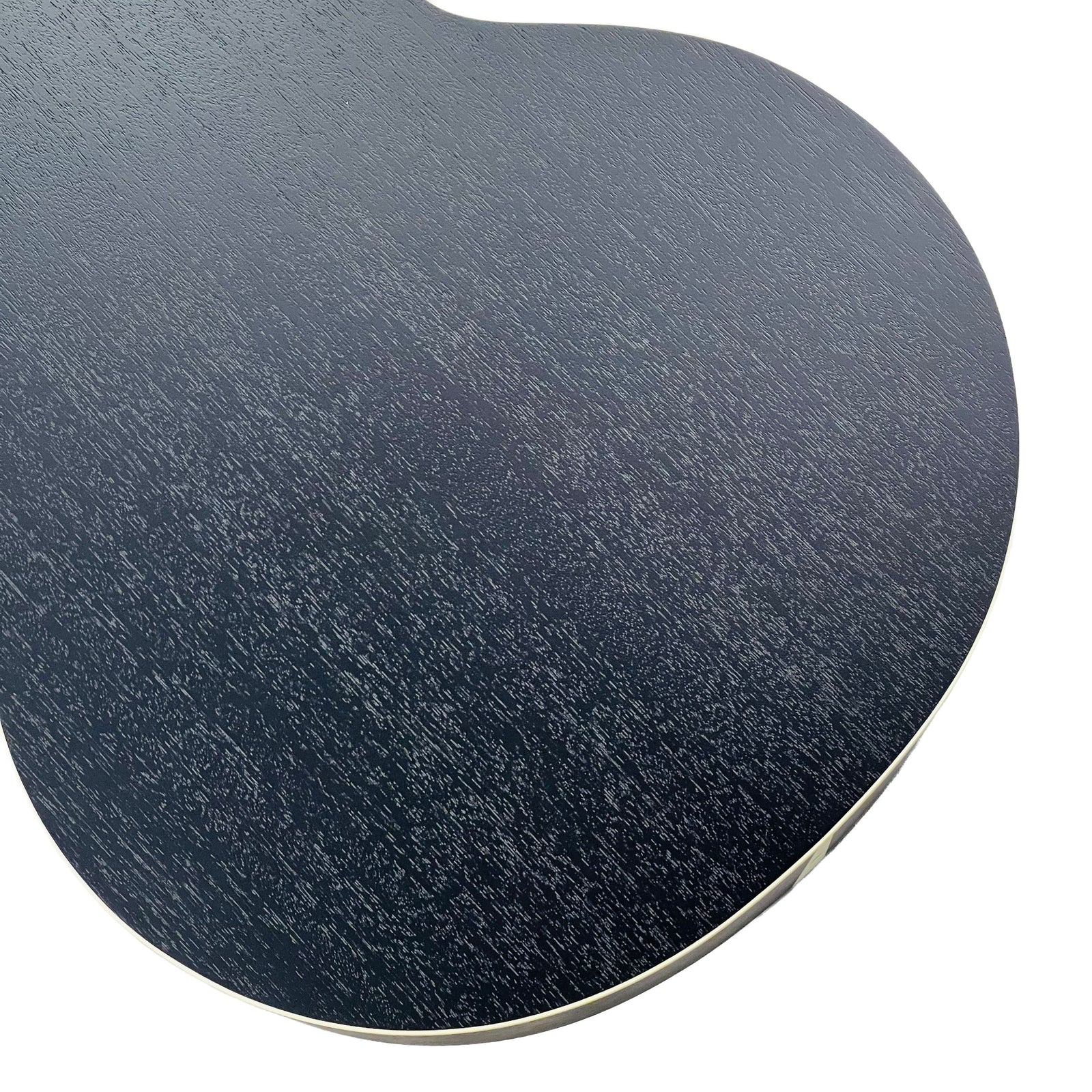

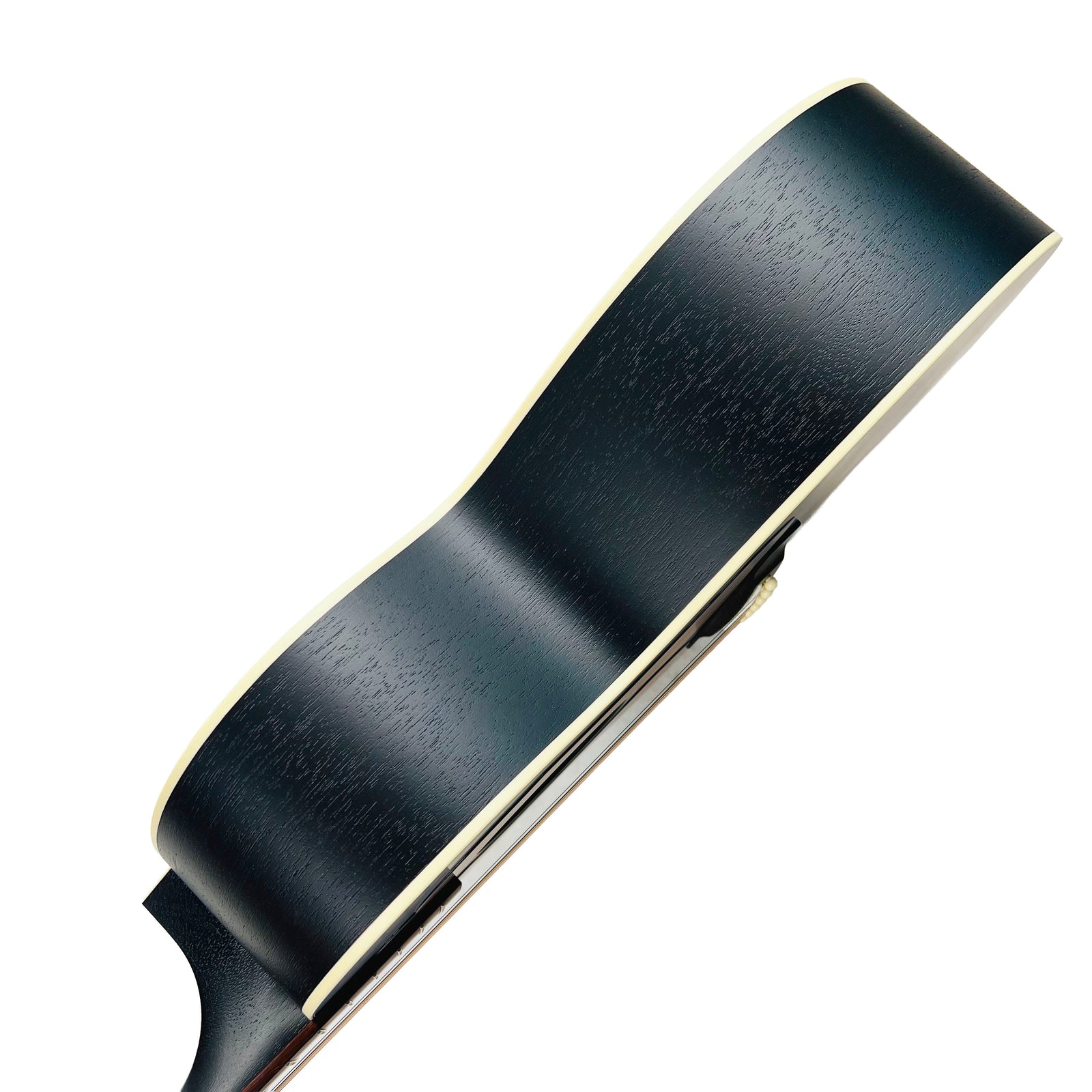

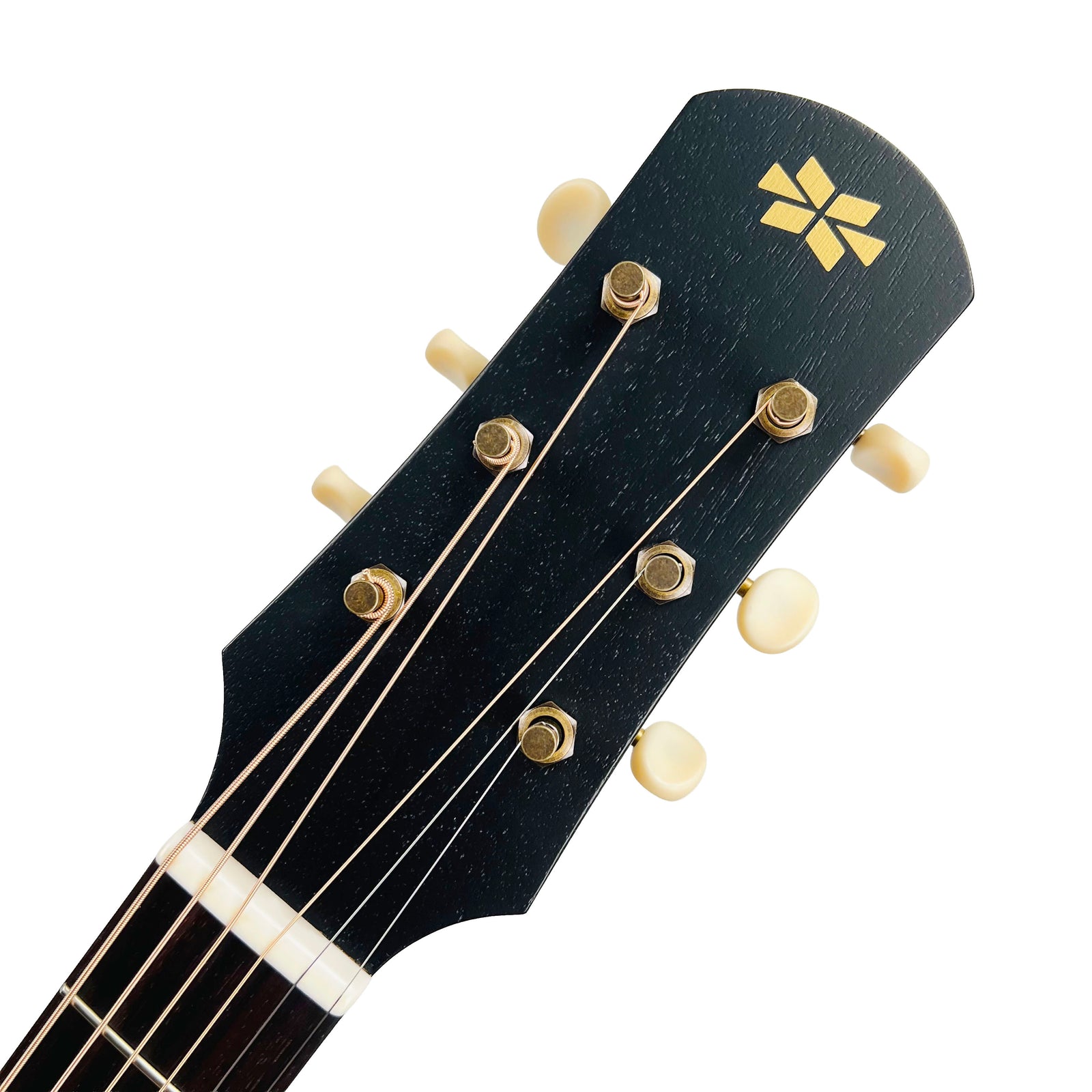

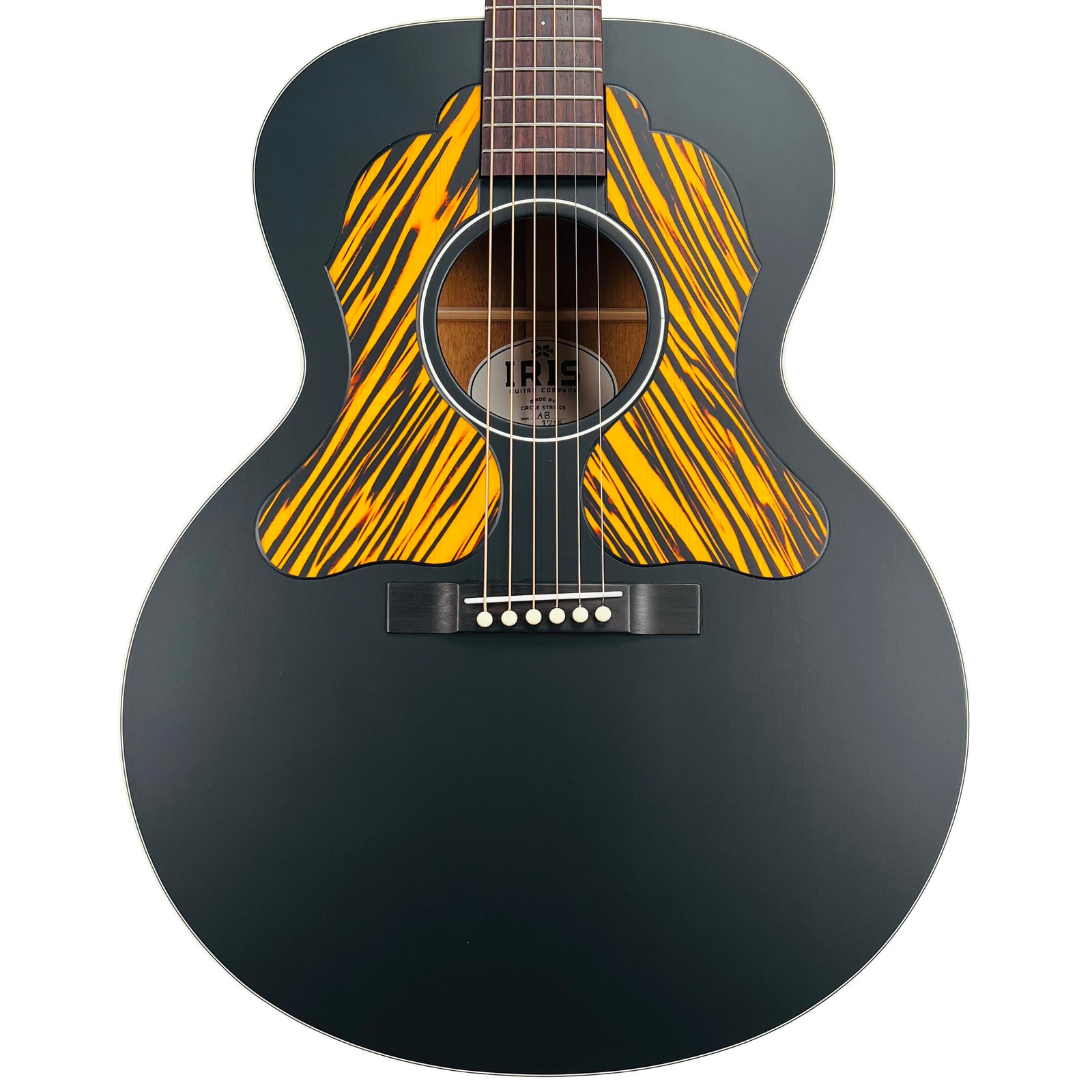

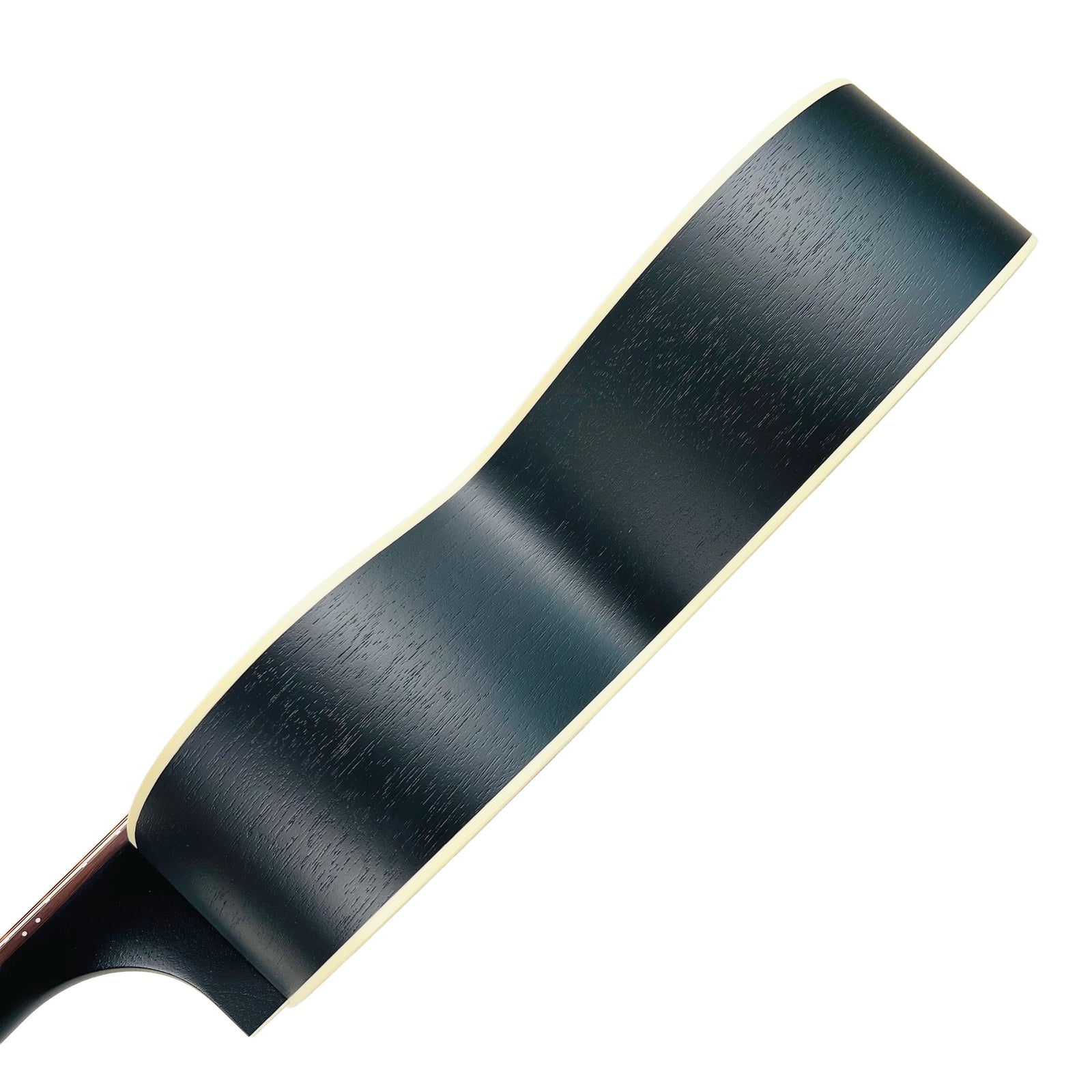

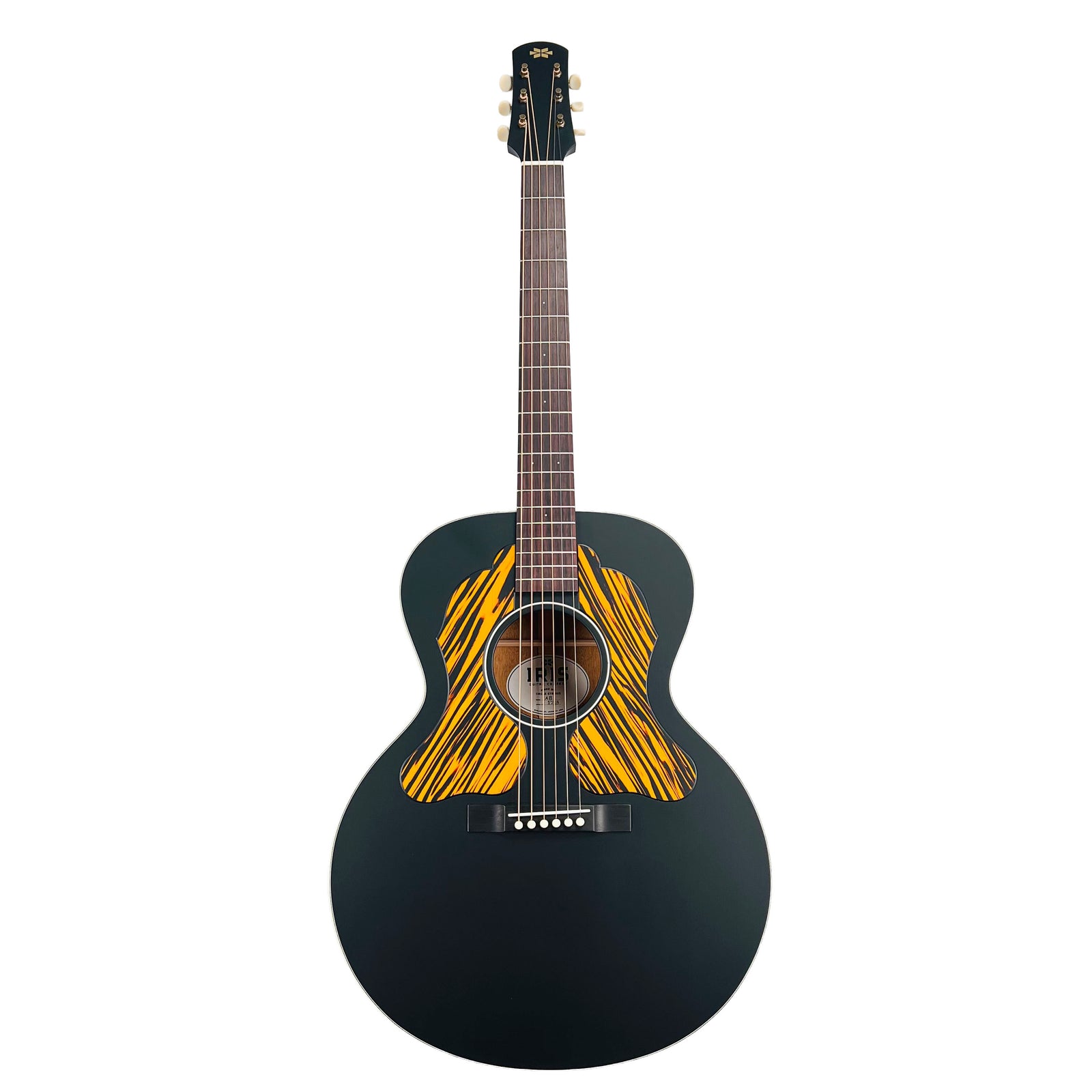

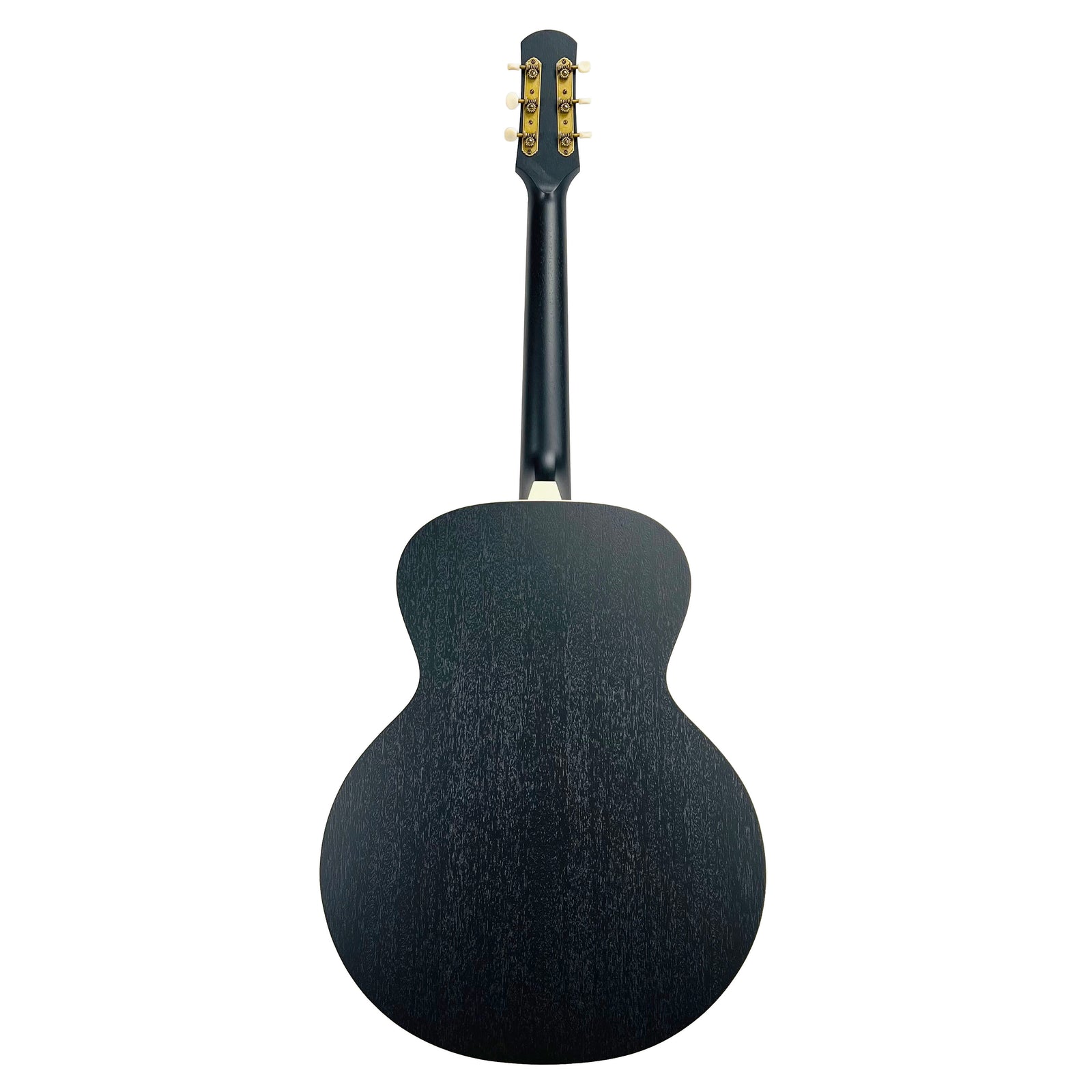

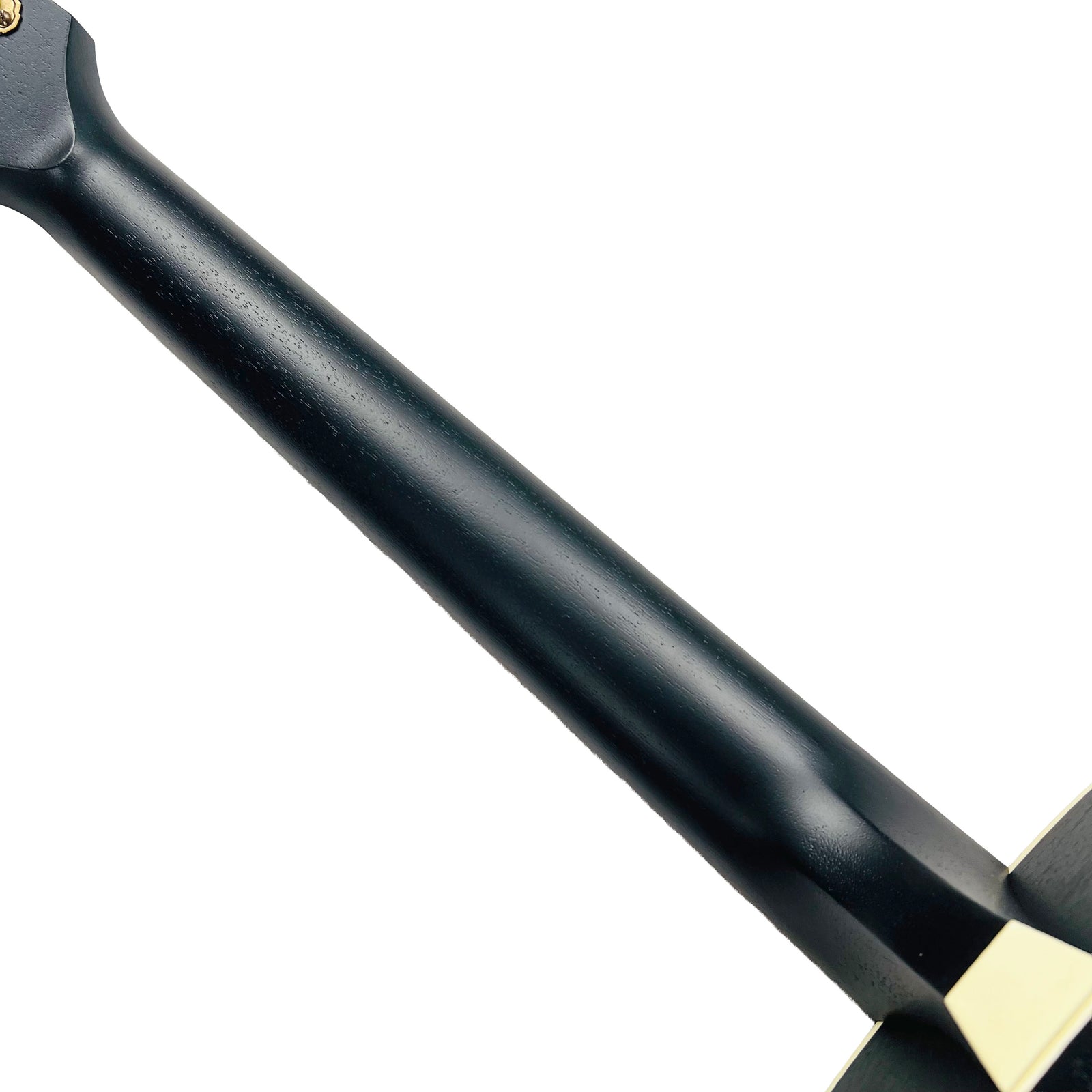

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the AB Double Firestripe Pickguard Jumbo Acoustic listed above. For larger pics, click on an image to open in a new tab.
