The 2025 StingRay Special 5 HH is a 5-string bass guitar built by Ernie Ball Music Man. This double cutaway bolt on guitar was manufactured in the United States and is an Ernie Ball Music Man StingRay Special model. Key features include an Ash Body, Roasted Maple Neck, Roasted Maple Fretboard, Tortoise Pickguard, Dual Humbuckers with Neodymium Magnets and Hot Honey finish. The specs listed below pertain to the 2025 product year model pictured on this page.
Factory Specs
- Ash Body
- Roasted Maple Neck
- Roasted Maple Fretboard
- Black Dot Inlays
- 22 Stainless Steel Frets
- 11" Radius
- 1.75" Nut Width
- 24" Scale Length
- Tortoise Pickguard
- Dual Humbucker Pickups with Neodymium Magnets
- 5-Way Selector
- 3-Band Active Preamp with 18 volts of Headroom
- One Each Volume / Treble / Middle / Bass Controls
- Vintage Style Music Man Top Loading Bridge
- Nickel Plated Steel Saddles

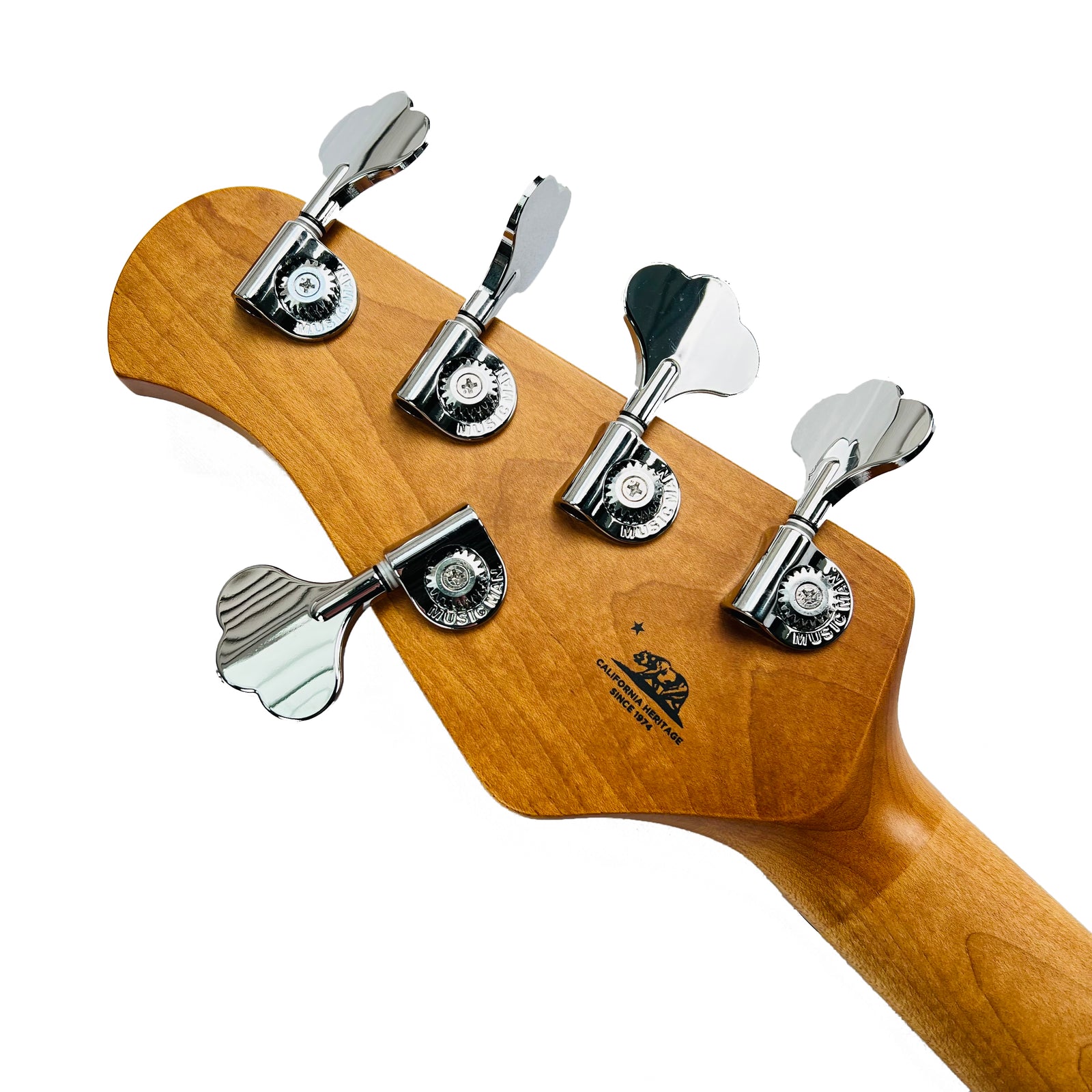

- Custom Music Man Lightweight Tuners
- Gloss Body Finish

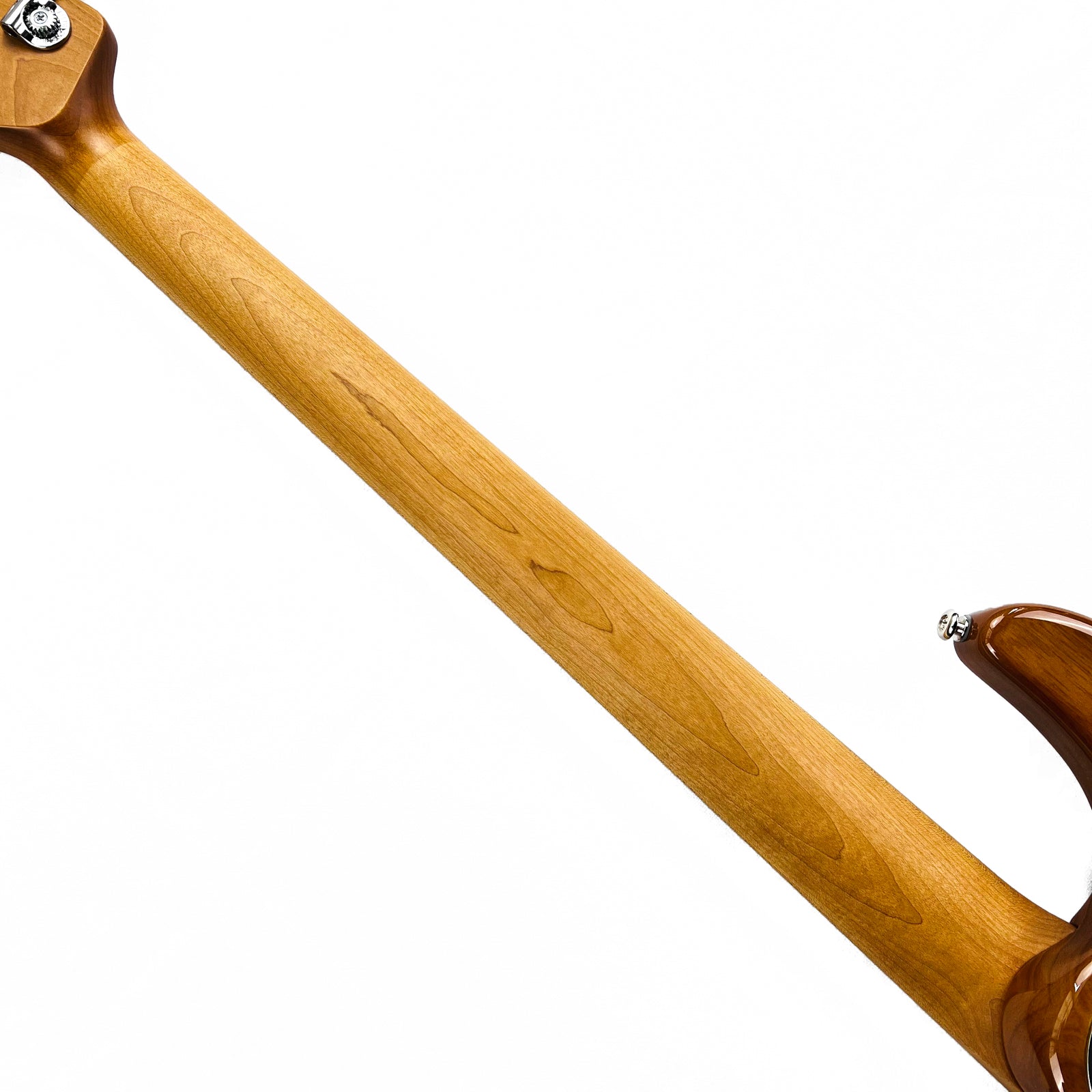

- Oil and Wax Neck Finish
Reference Images

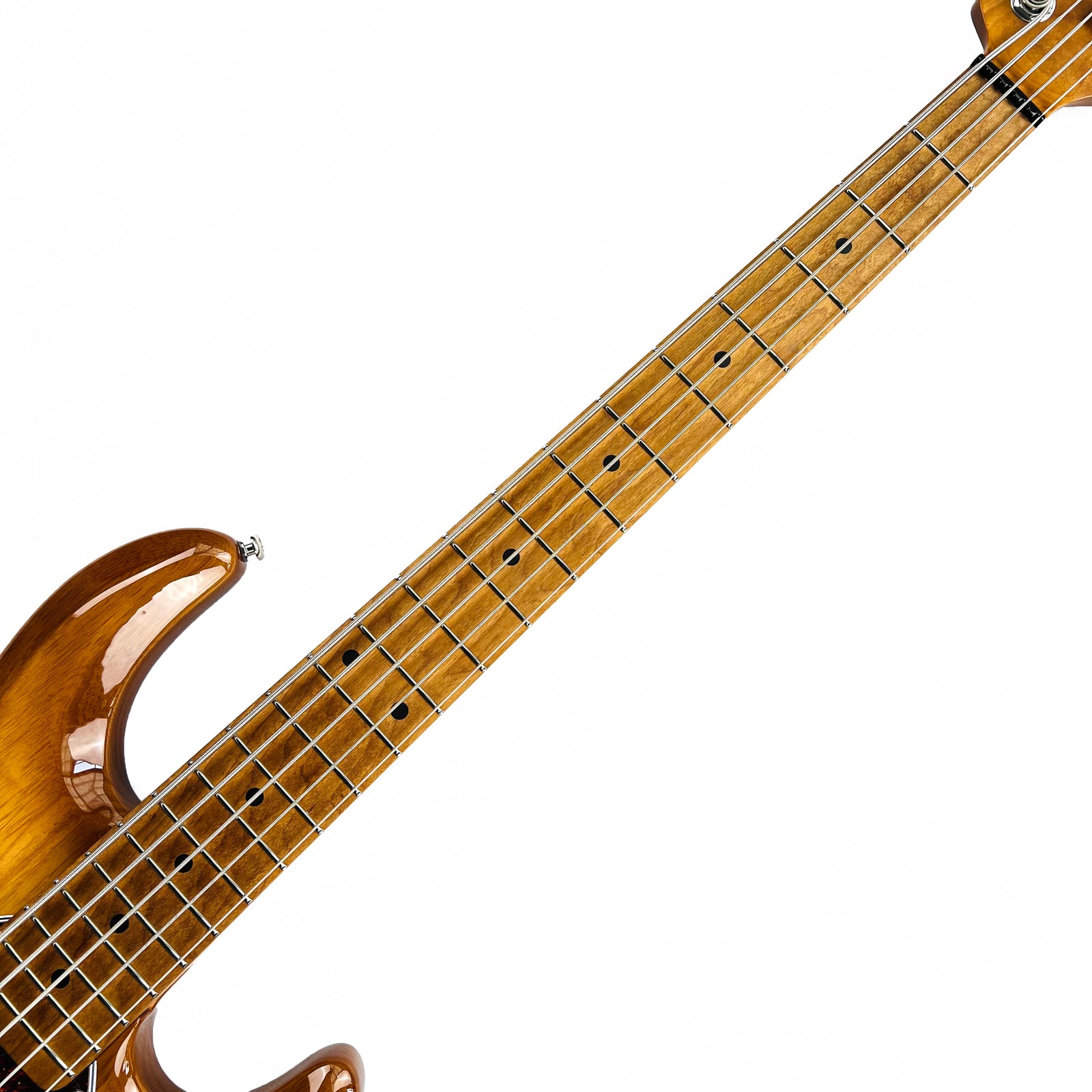

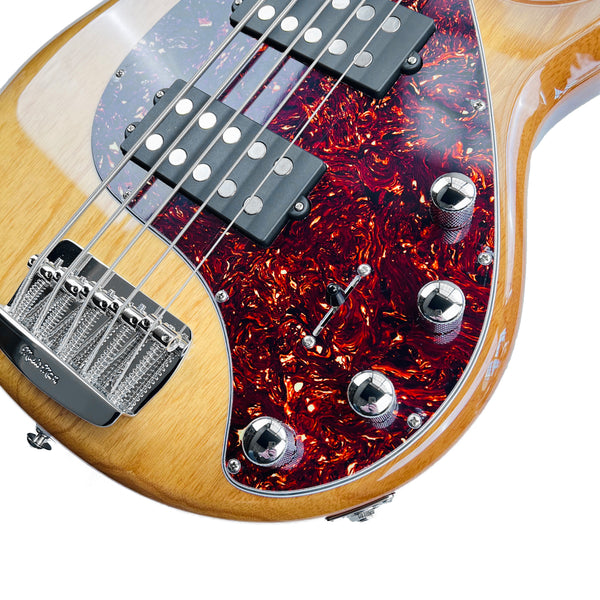

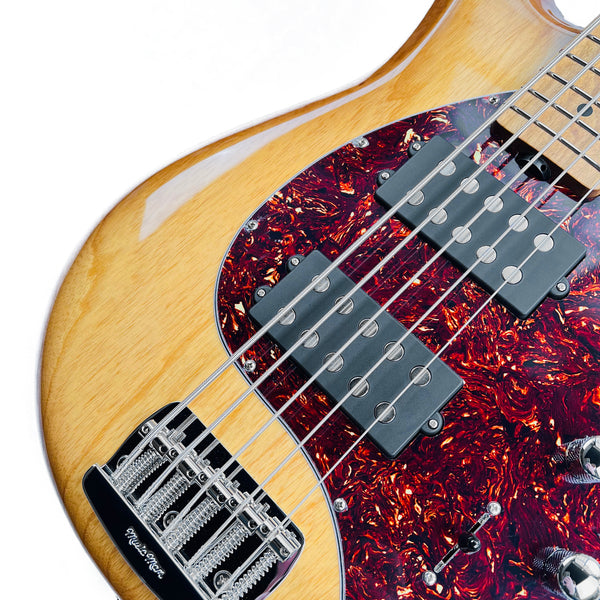

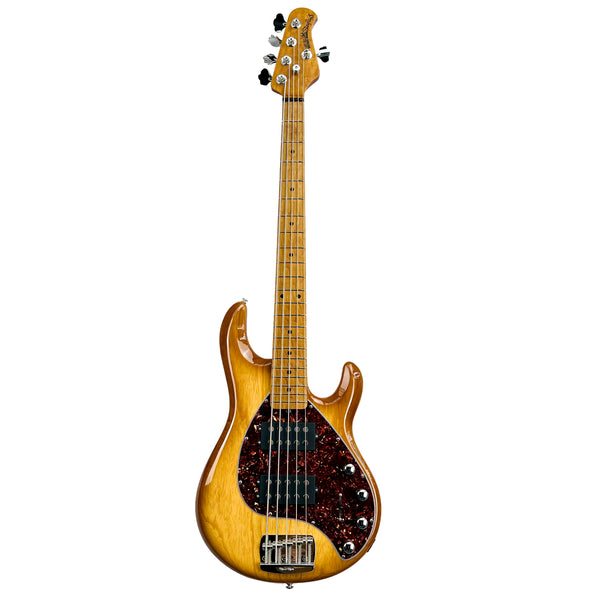

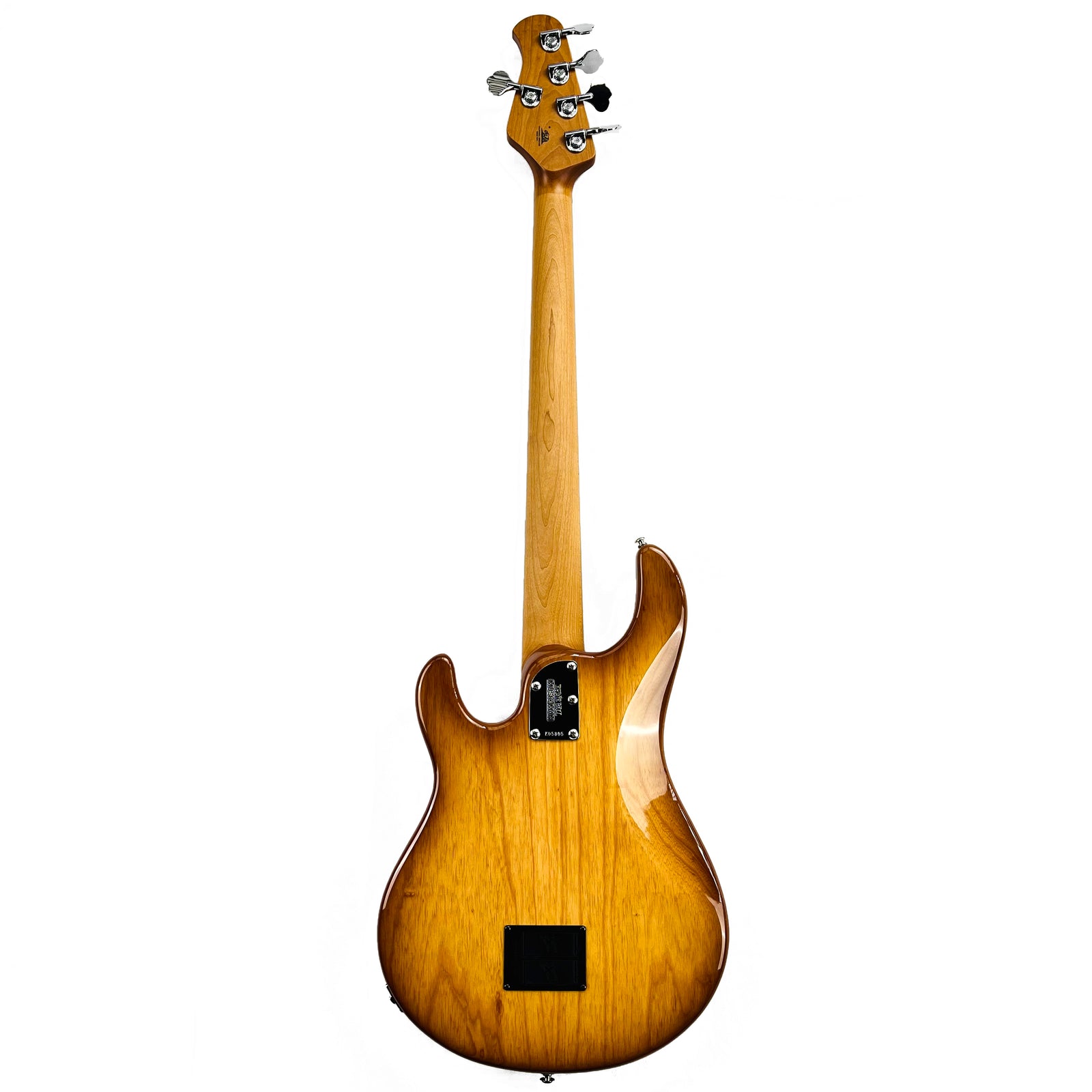

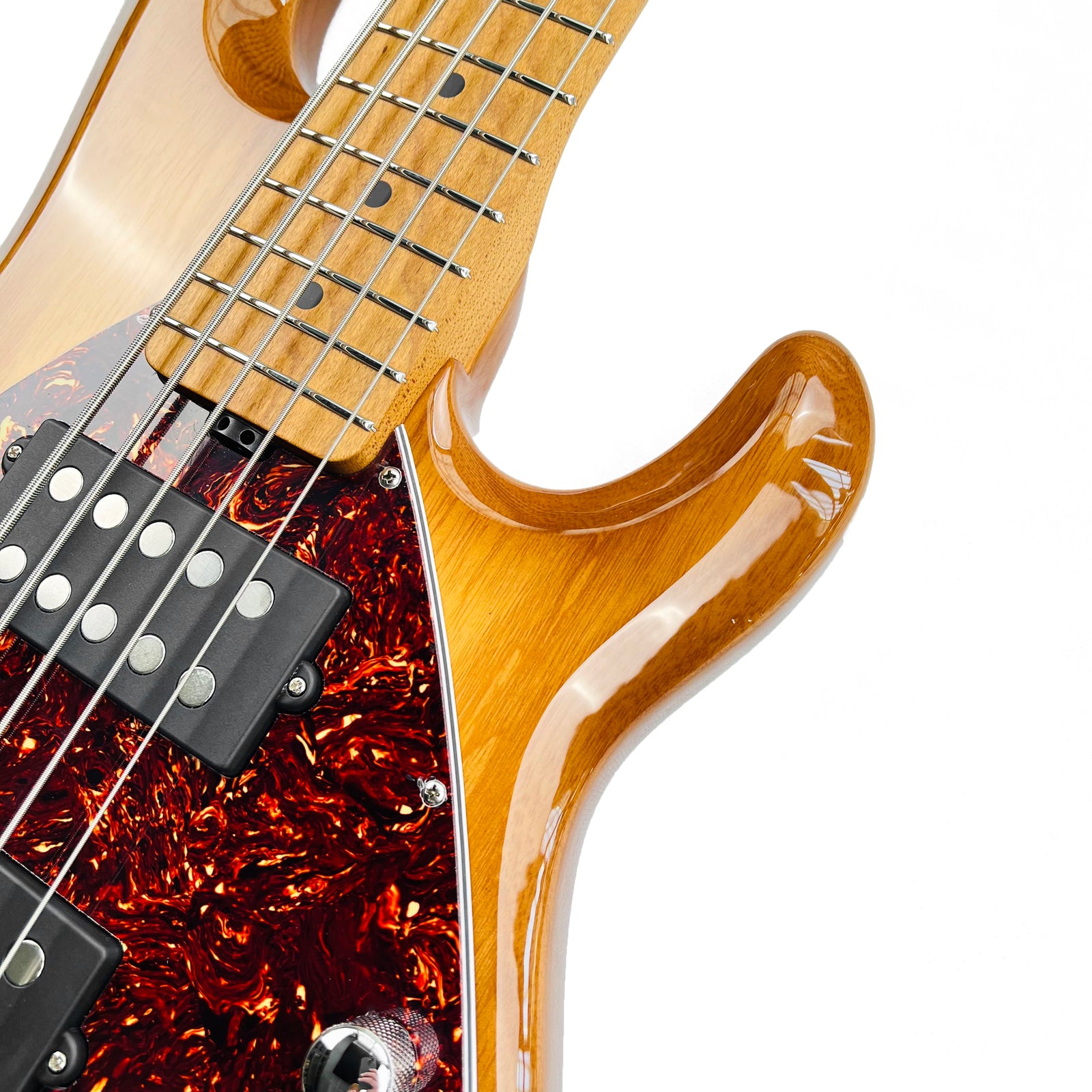

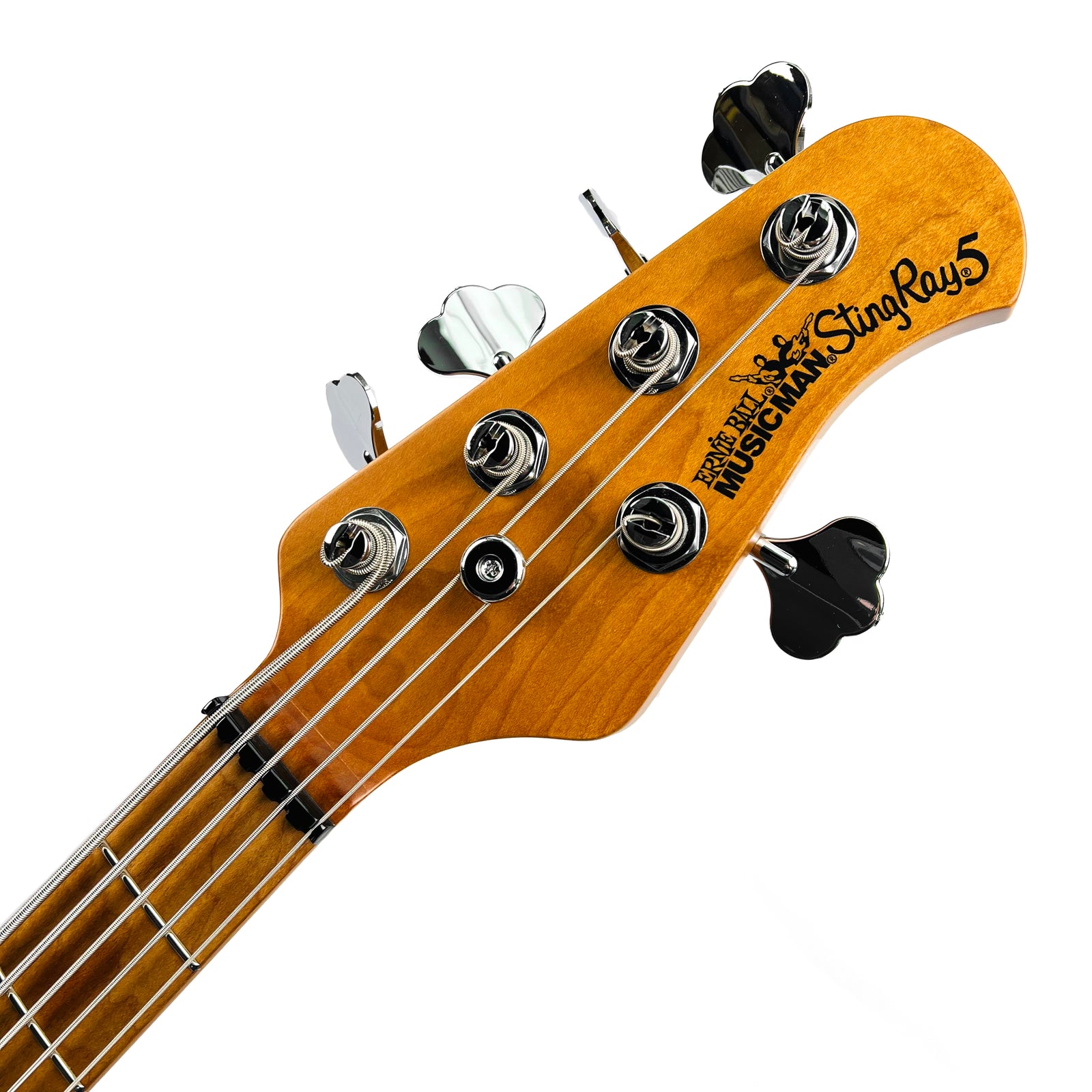

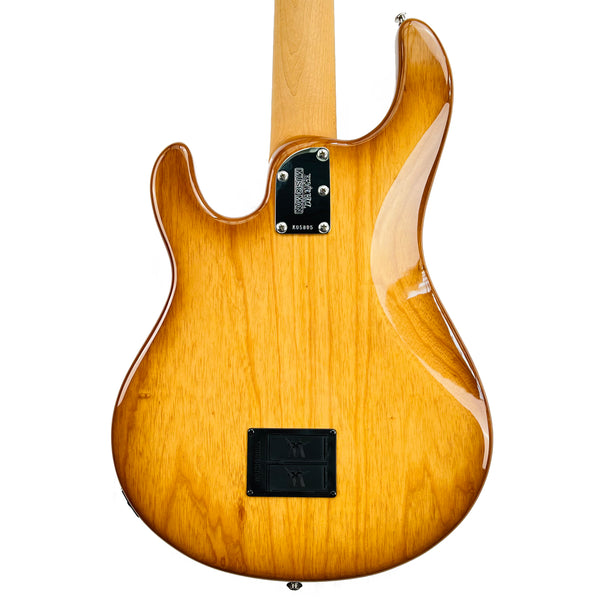

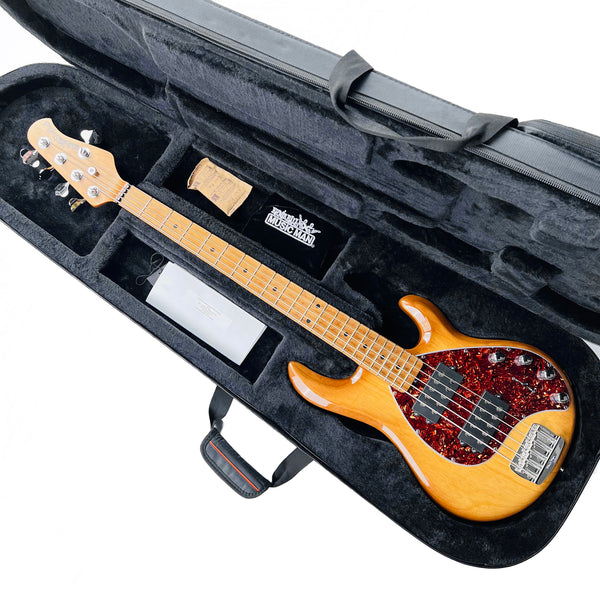

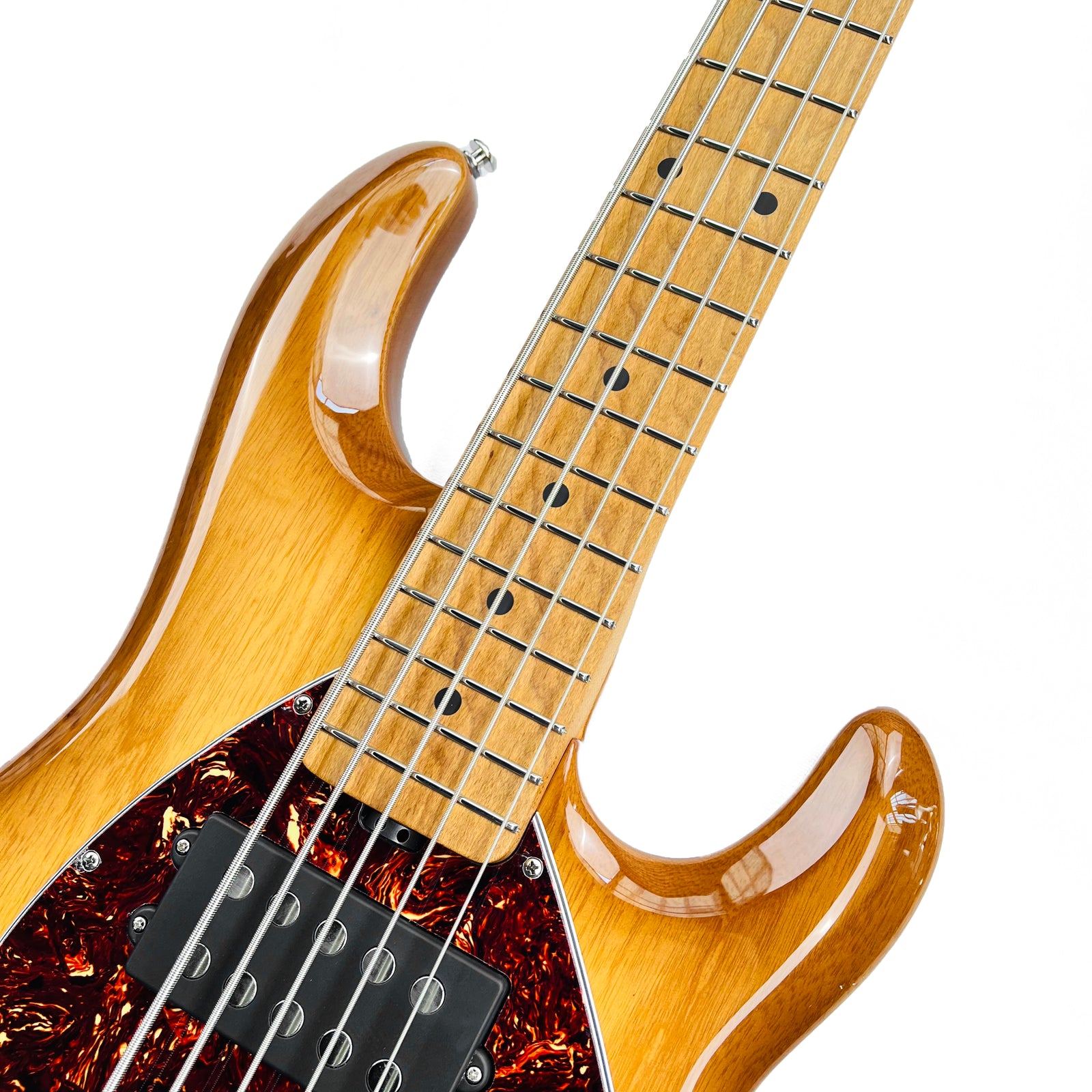

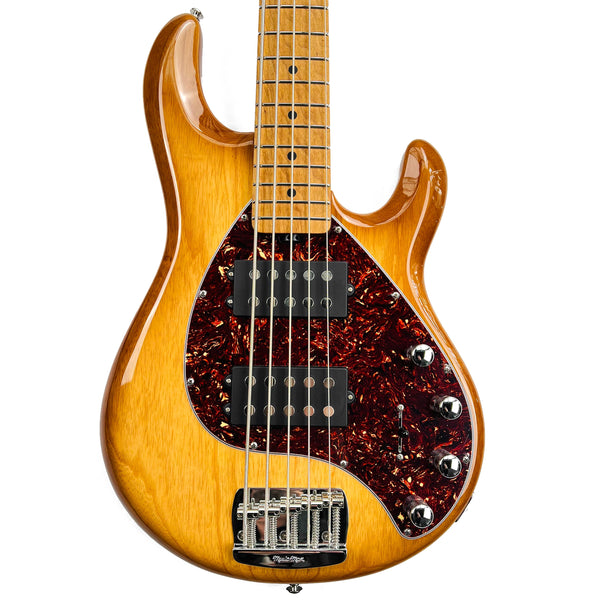

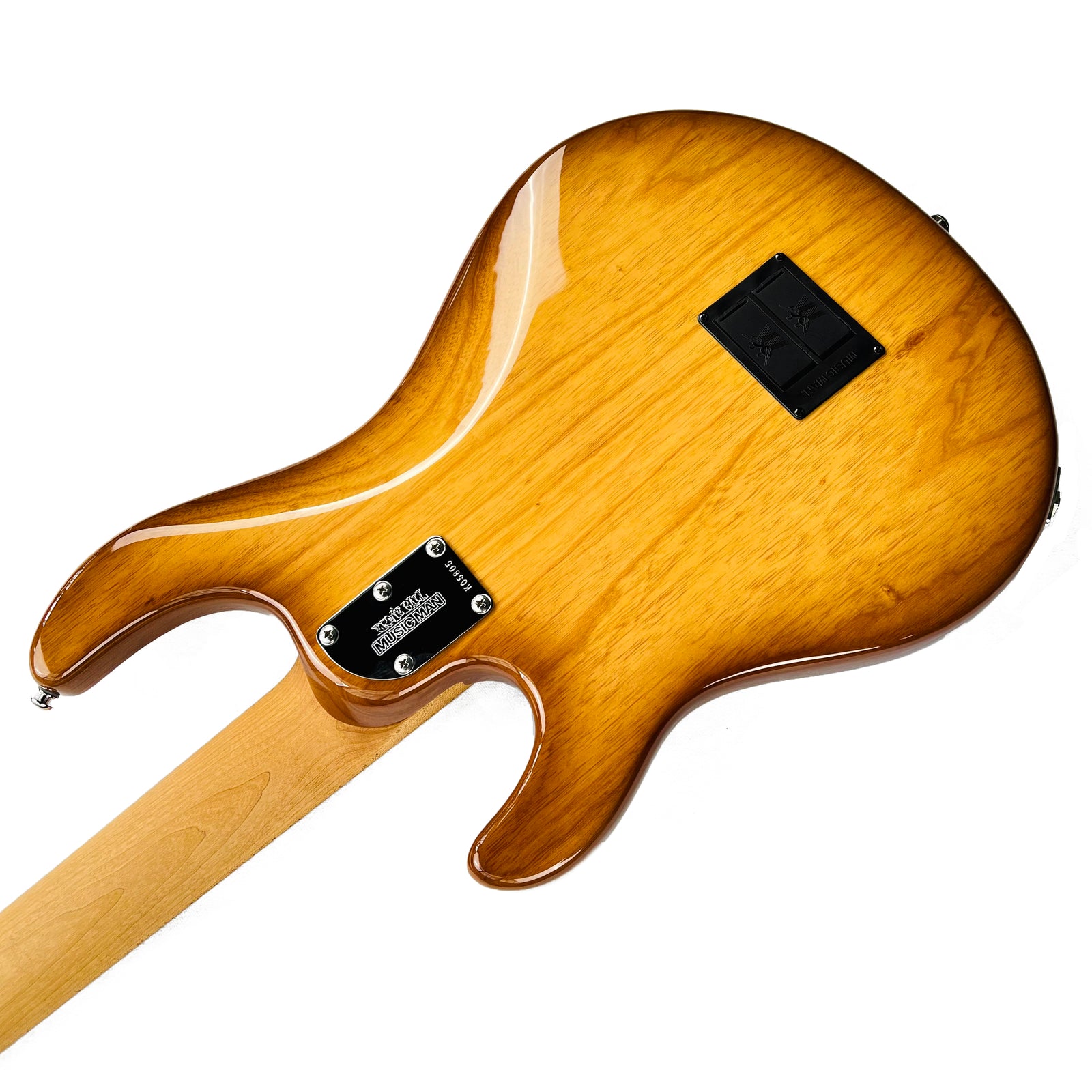

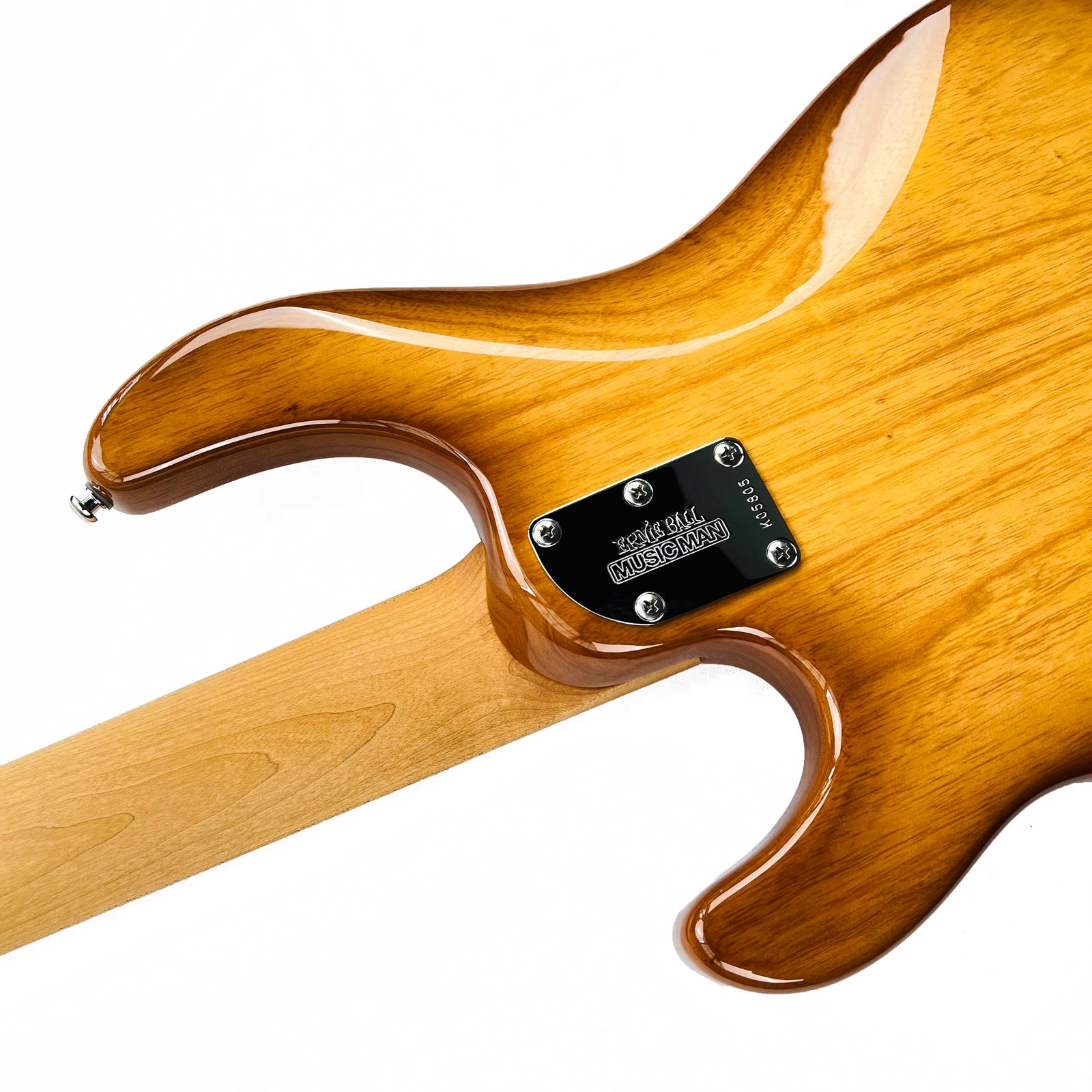

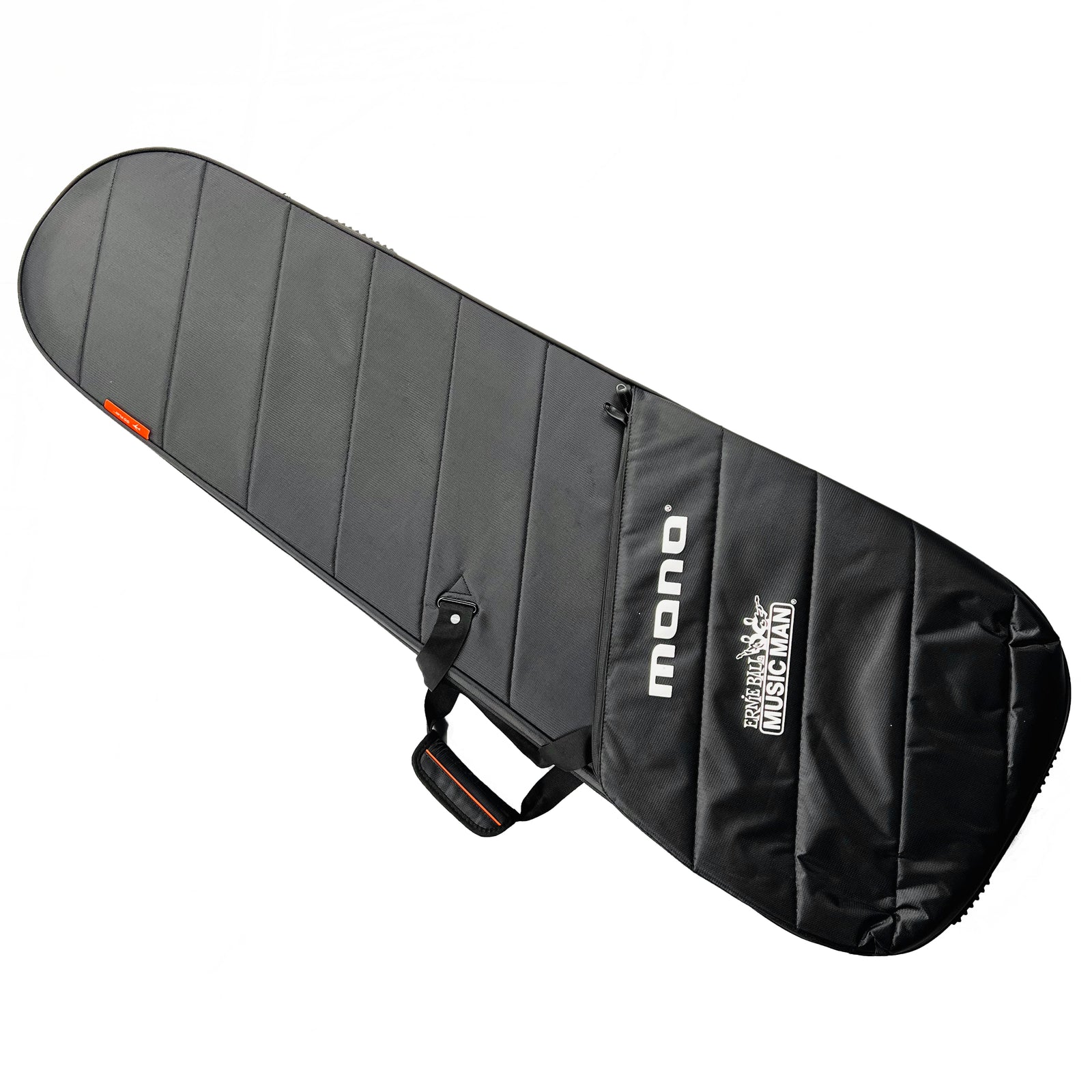

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the StingRay Special 5 HH listed above. For larger pics, click on an image to open in a new tab.
