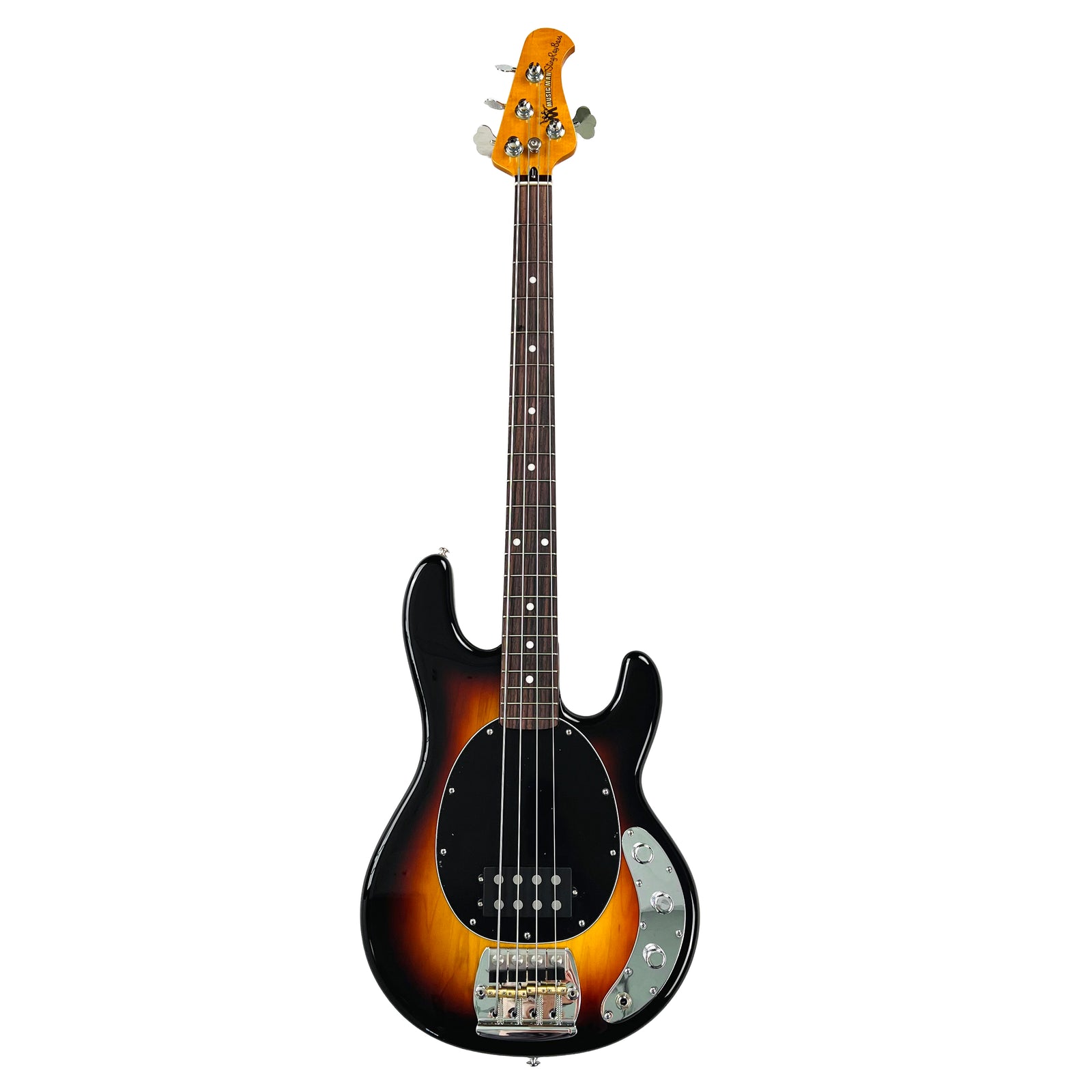

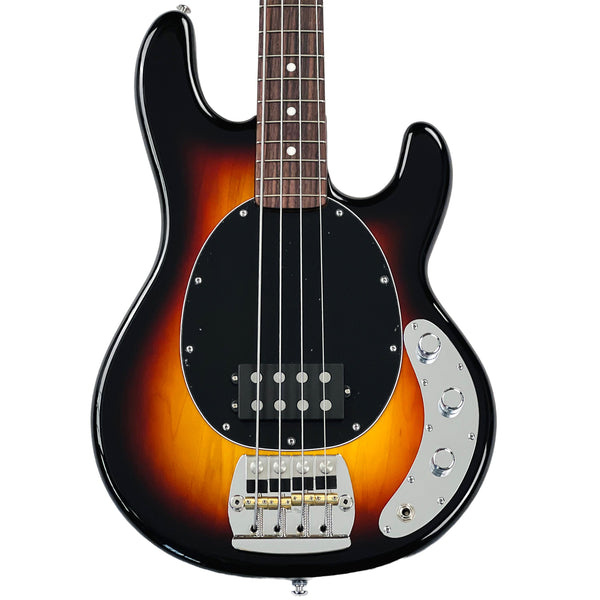

The Pino Palladino Signature StingRay Fretted is a bass guitar built by Ernie Ball Music Man. This 4-string guitar was manufactured in the United States and is an Ernie Ball Music Man Bass Guitars model. Key features include Poplar Body, Maple Neck, Rosewood Fretboard, Pre-EB Geometry Music Man Bridge, Late 70's Voiced Music Man Humbucker and 79 Burst finish. The specs listed below pertain to the 2025 product year model pictured on this page.
Factory Specs
- Poplar Body

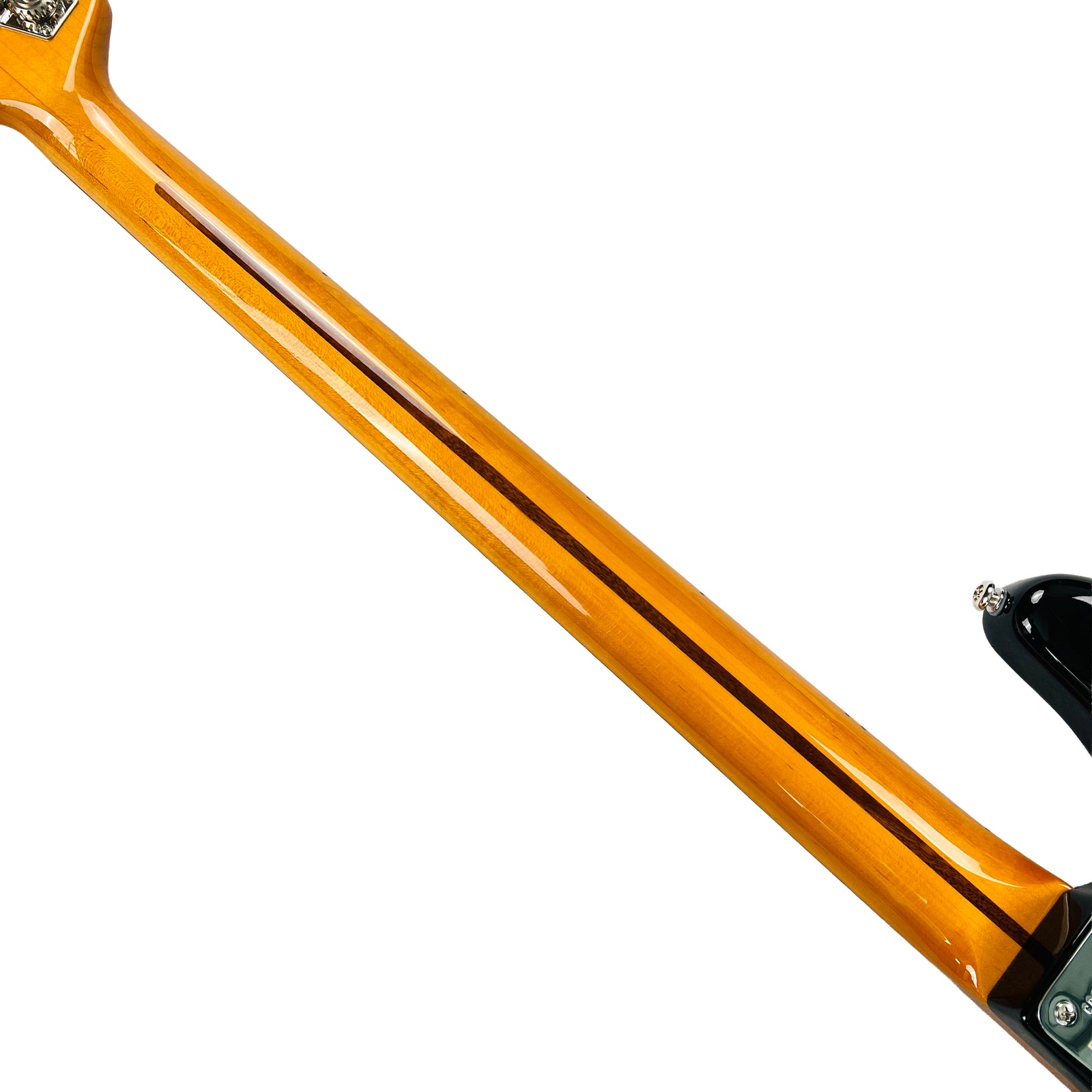

- Maple Neck

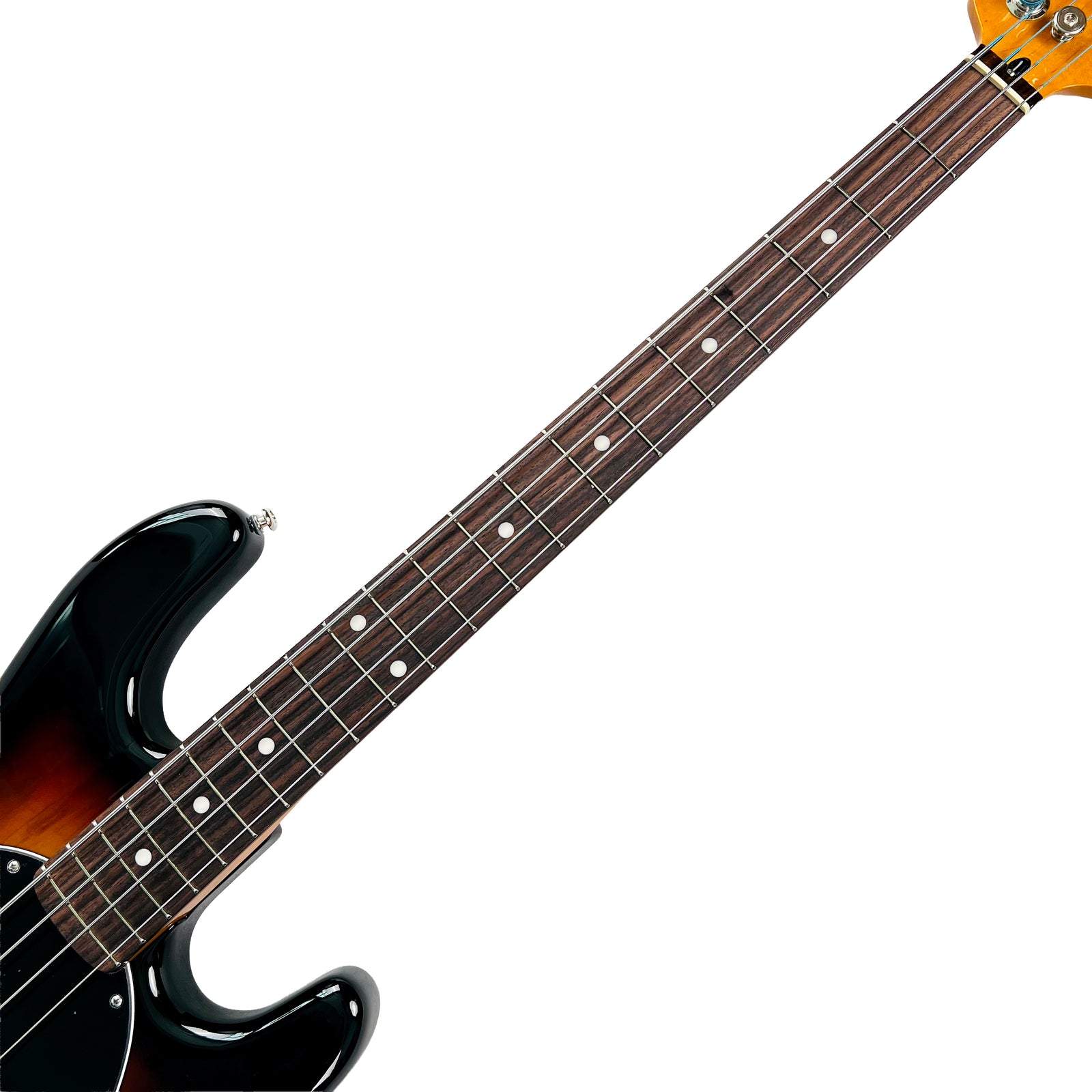

- Rosewood Fretboard
- 7.5” Radius
- 34” Scale Length
- 1.686” Nut Width
- Nickel Frets
- White Dot Markers
- Dark Orange Neck Tint

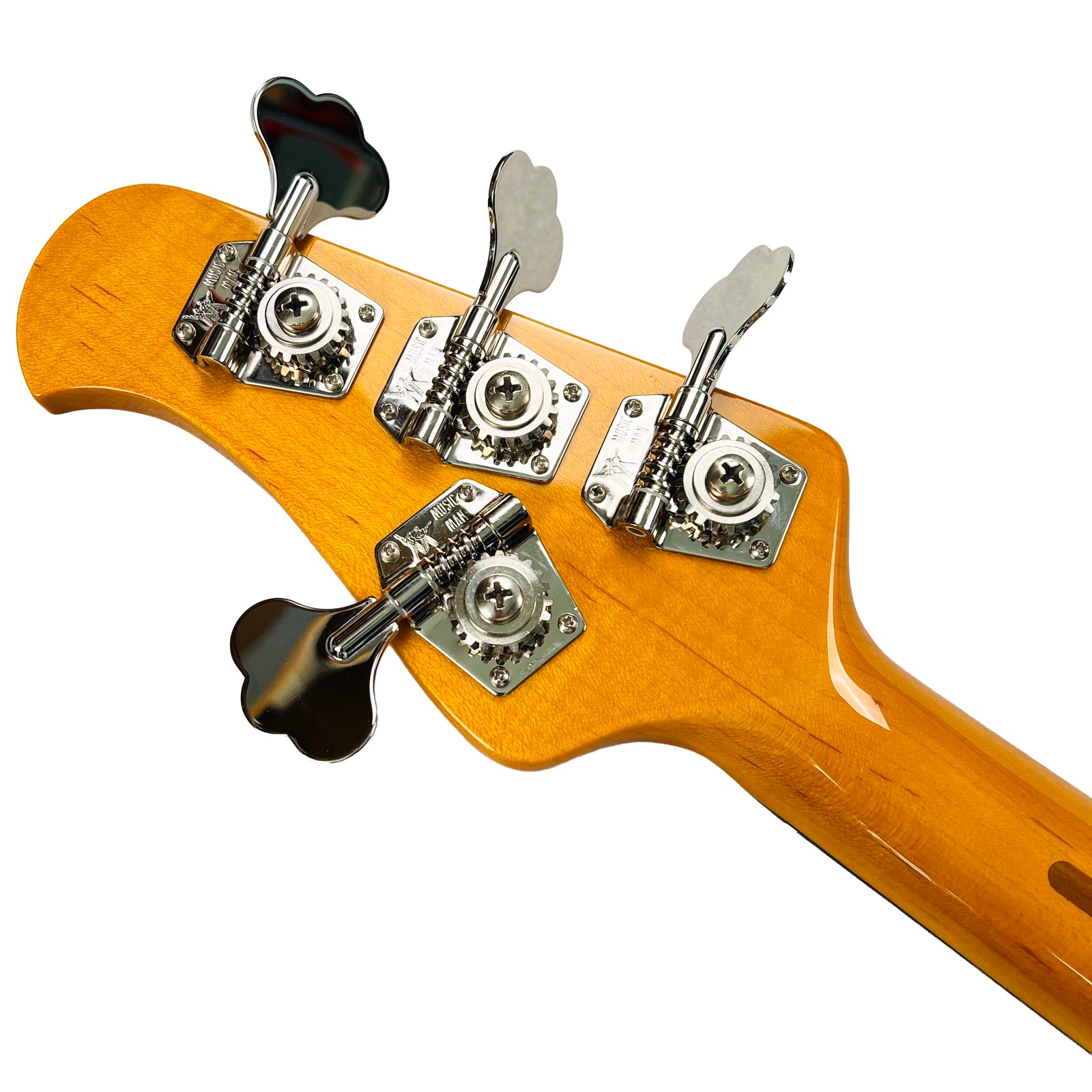

- Schaller Bass Tuners

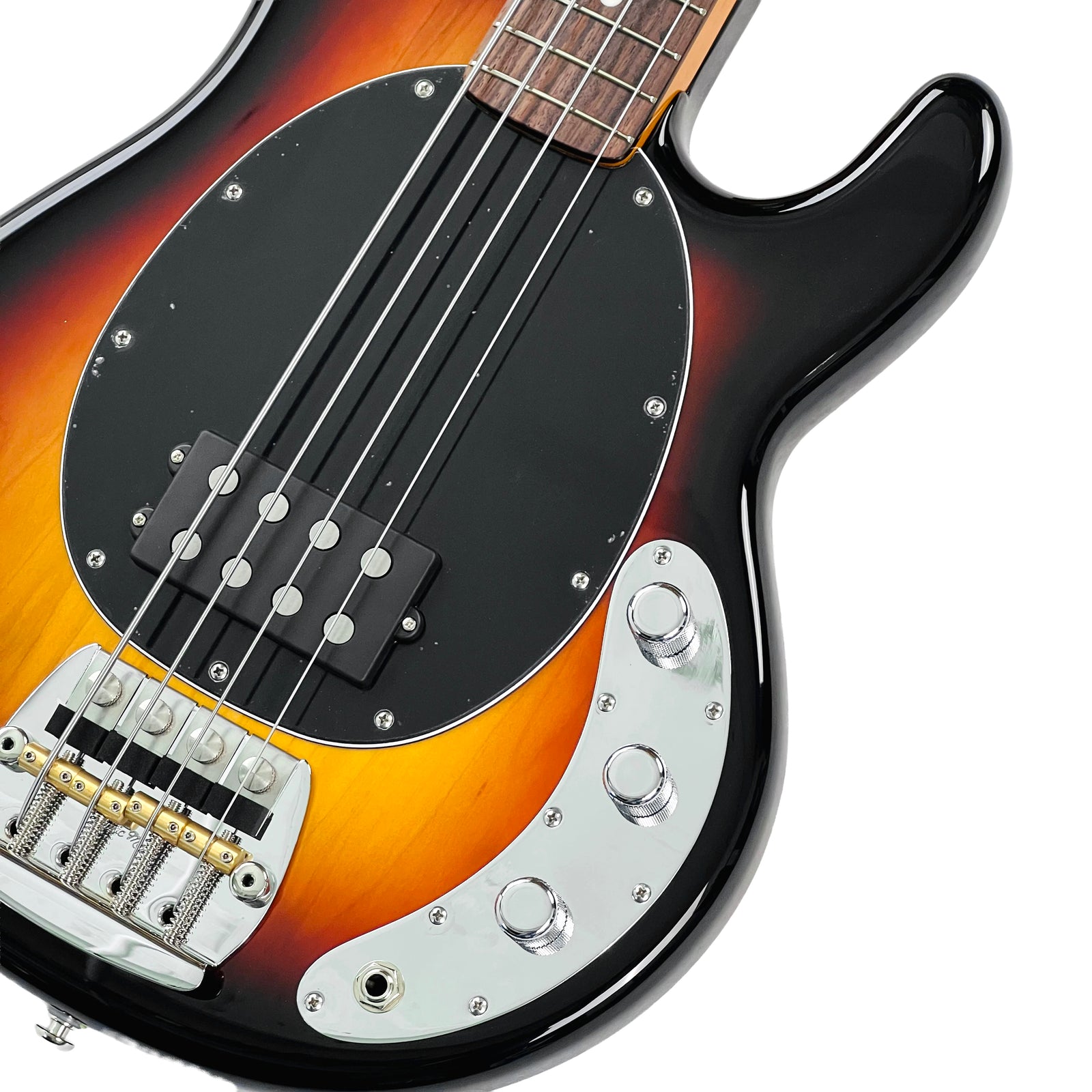

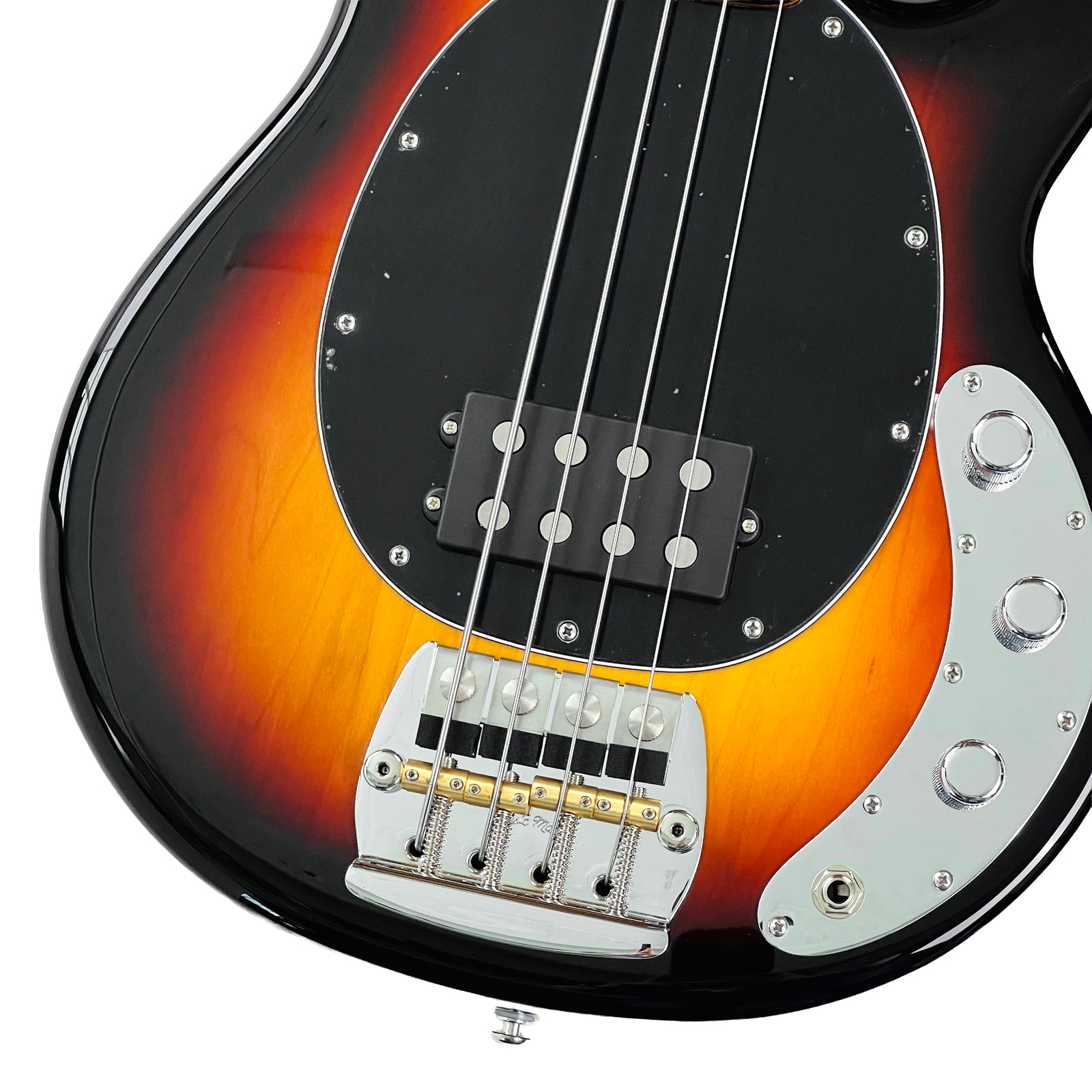

- Pre-EB Geometry Music Man Bridge
- Brass Saddles
- Stain Steel Spring Mutes

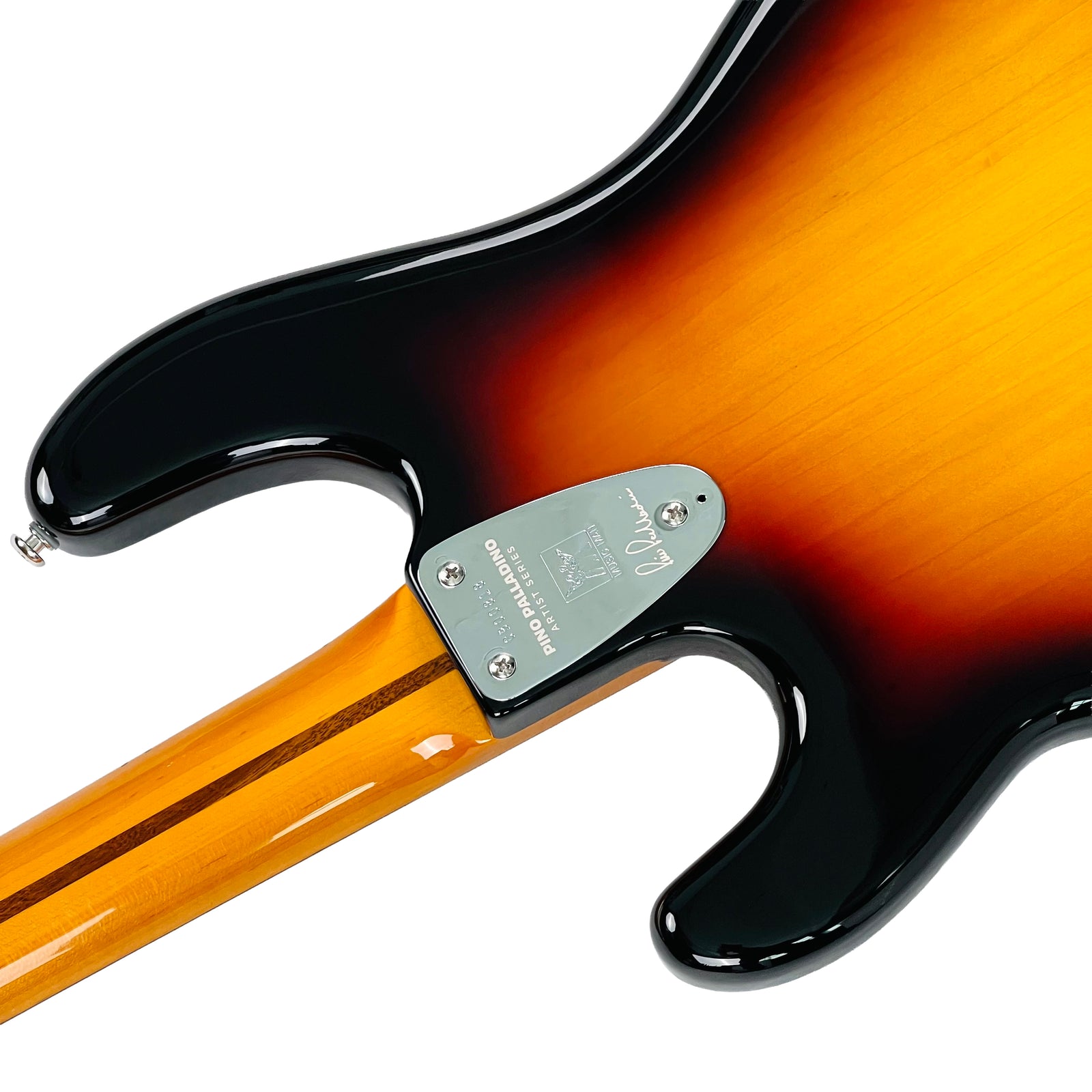

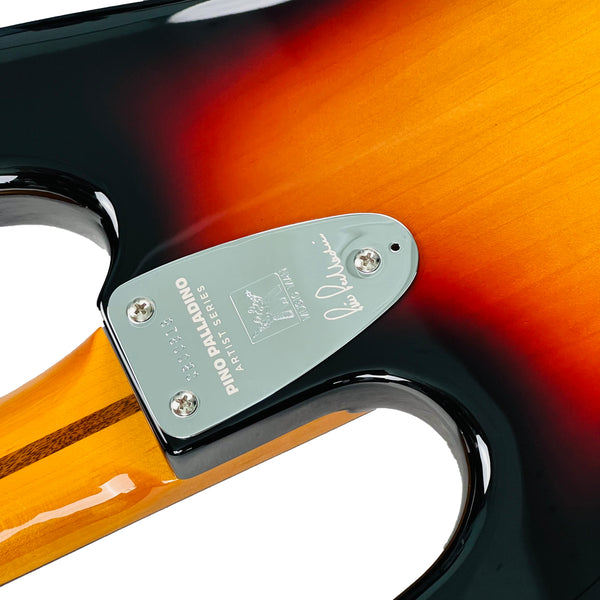

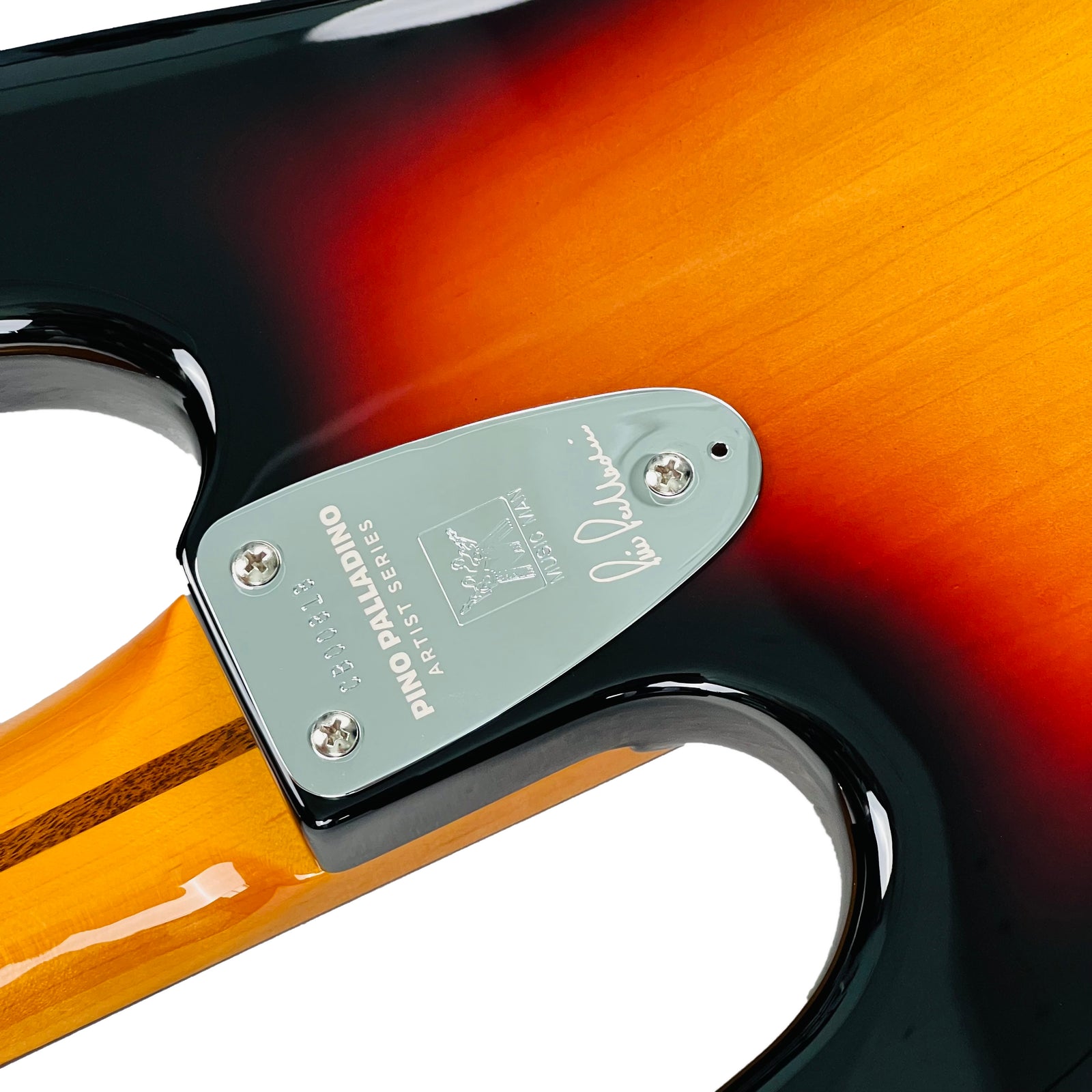

- 3-Bolt Pino Palladino Signature Neck Plate
- 2-Band Active Preamp
- 25k Volume
- 500k Treble
- 100k Bass

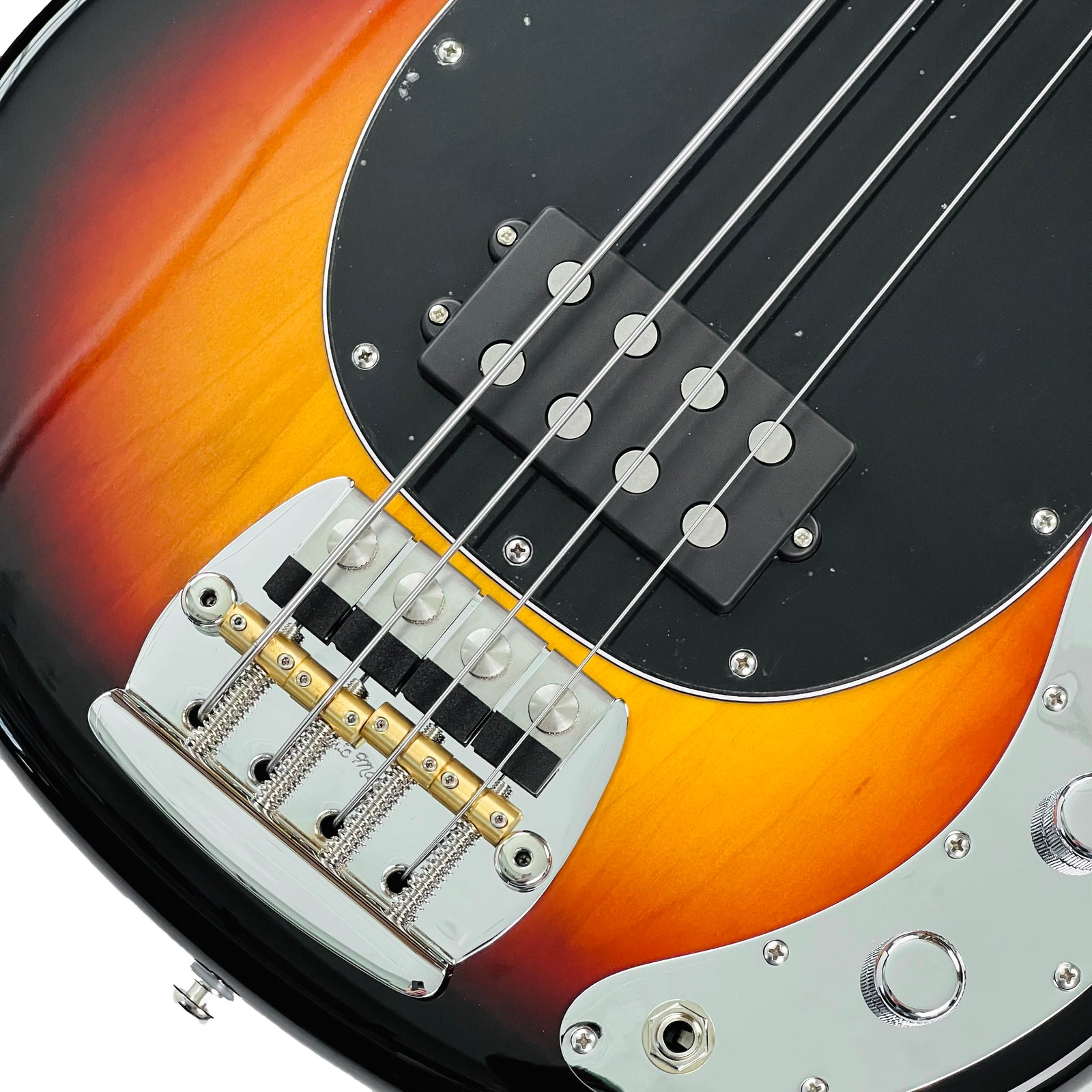

- Late 70’s Voice Music Man Humbucker with Flush Pole Pieces
- High Gloss Polyester Body Finish
- Polyester Neck Finish

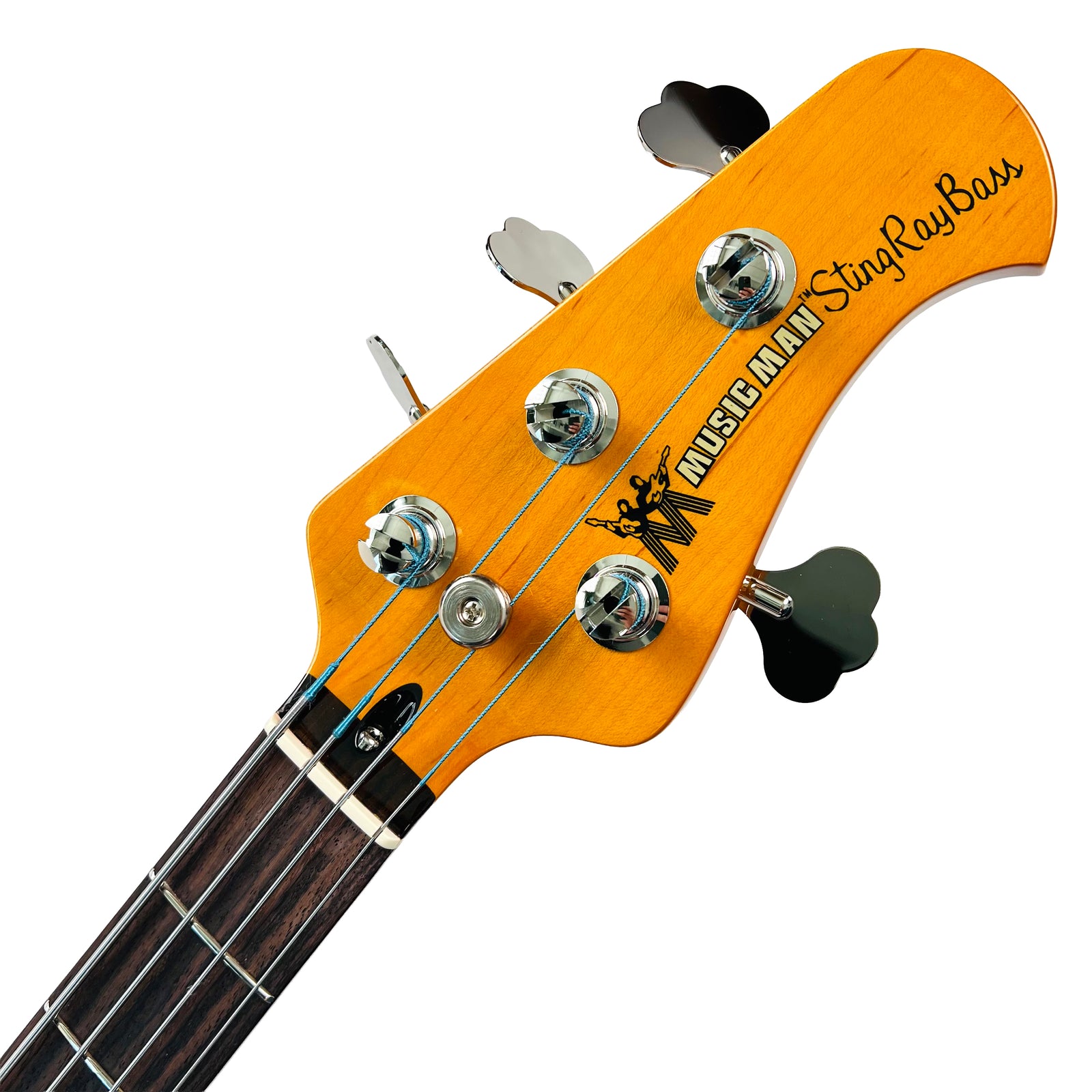

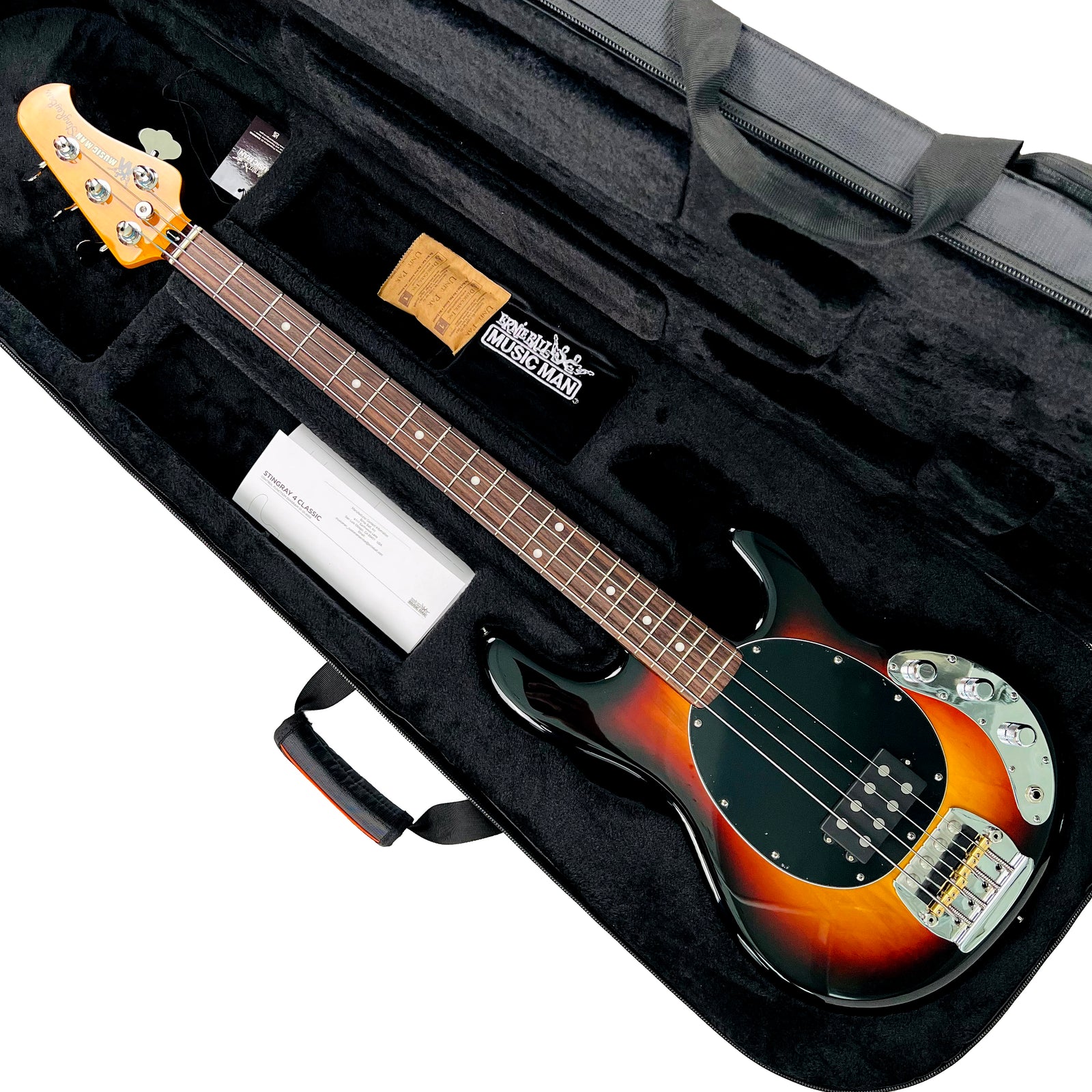

Reference Images

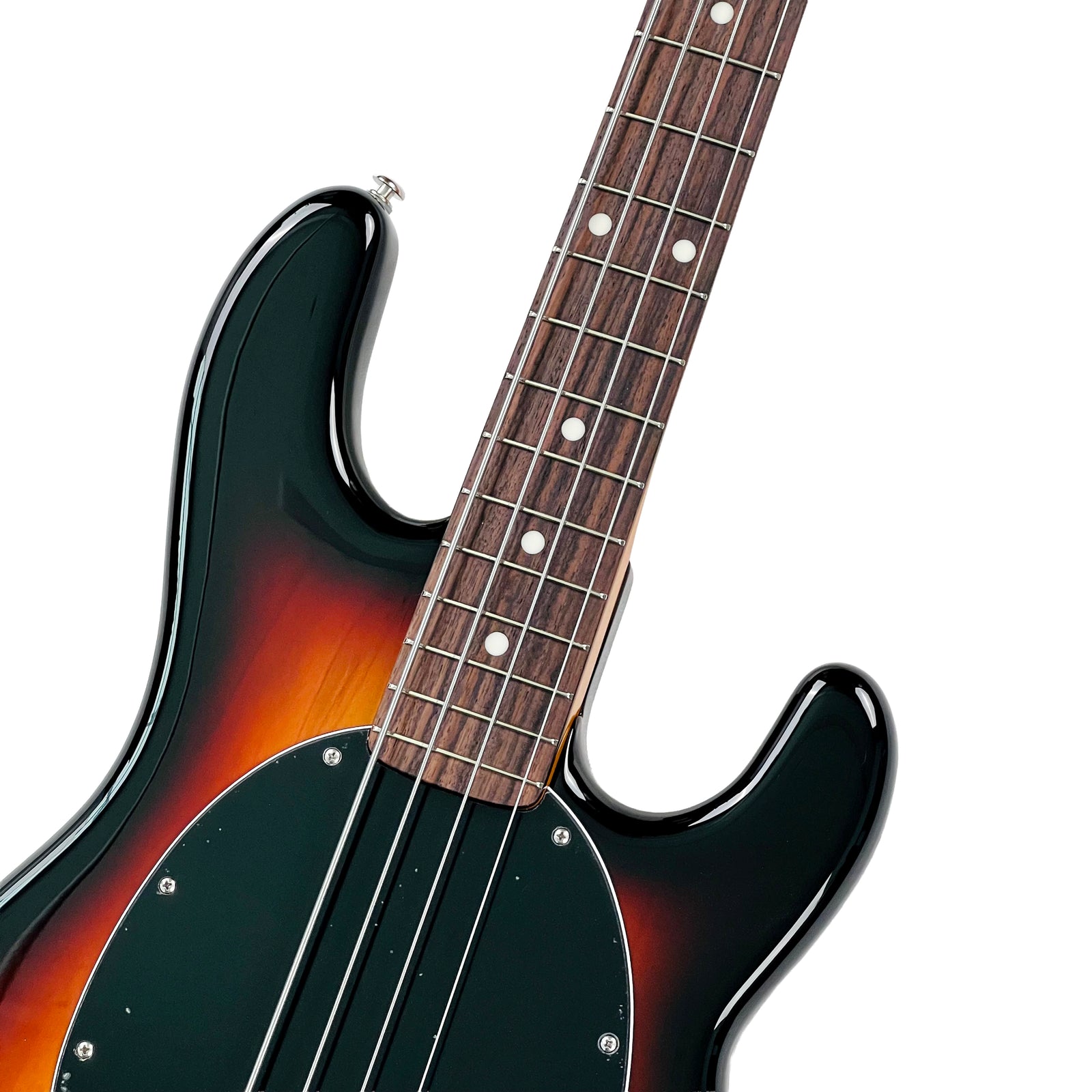

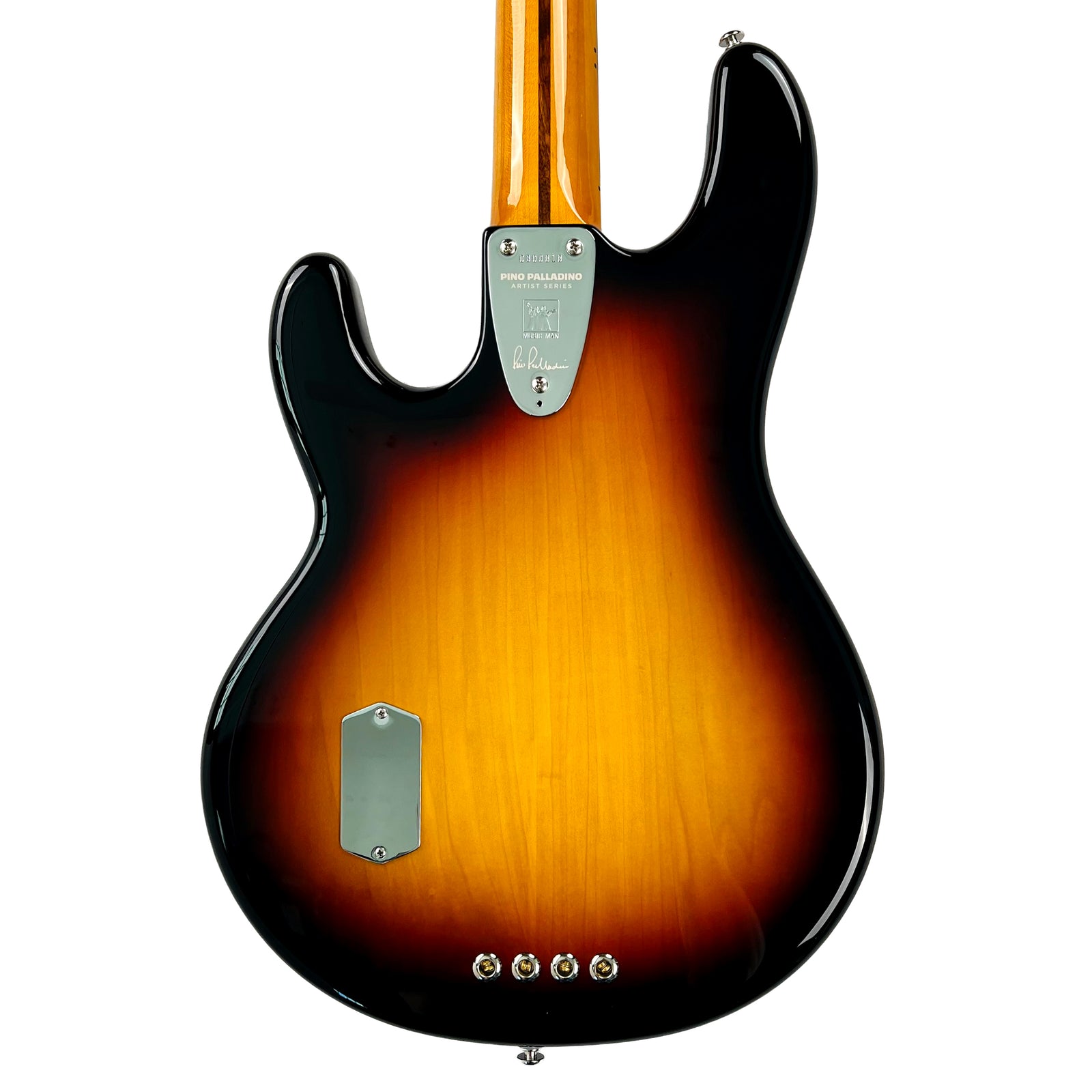

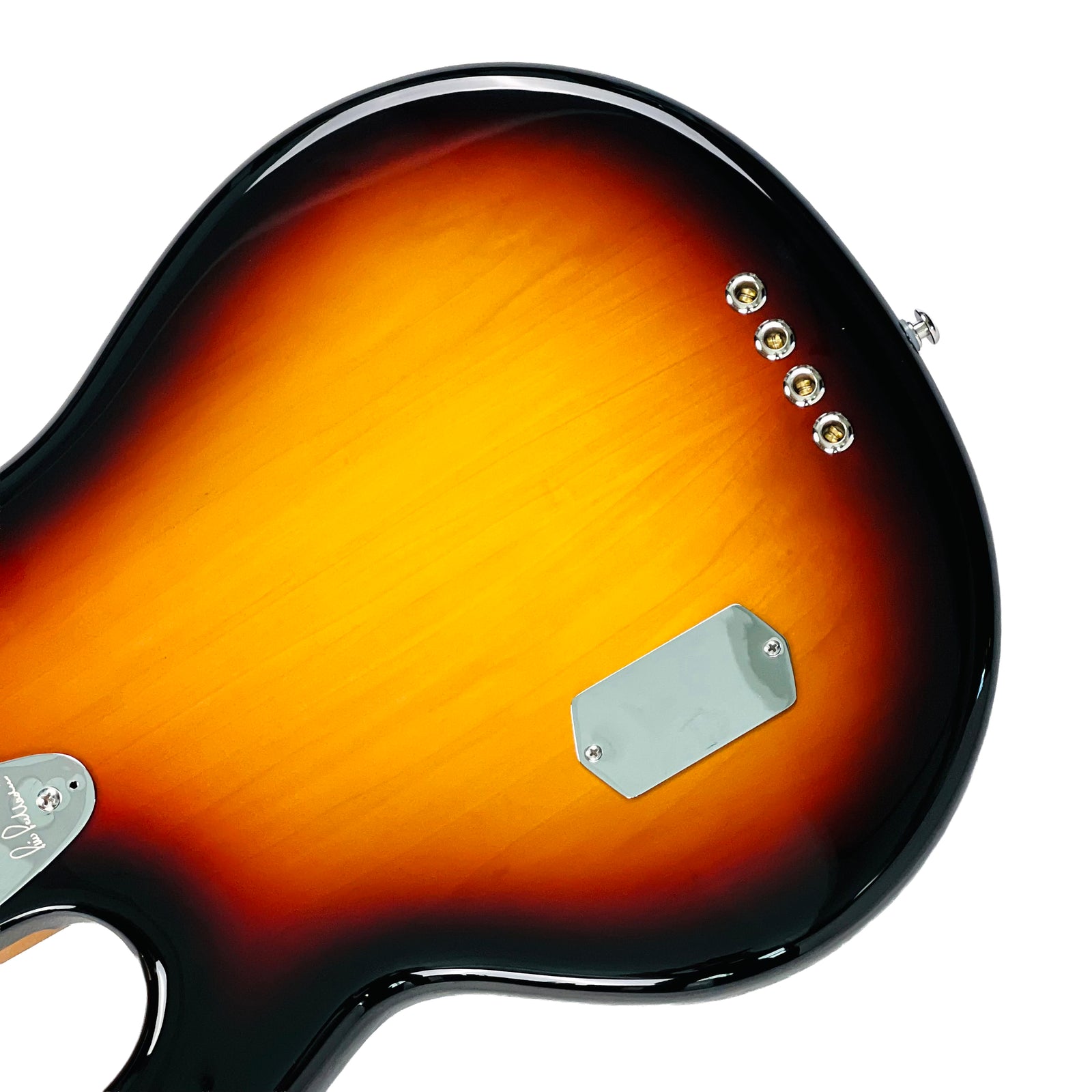

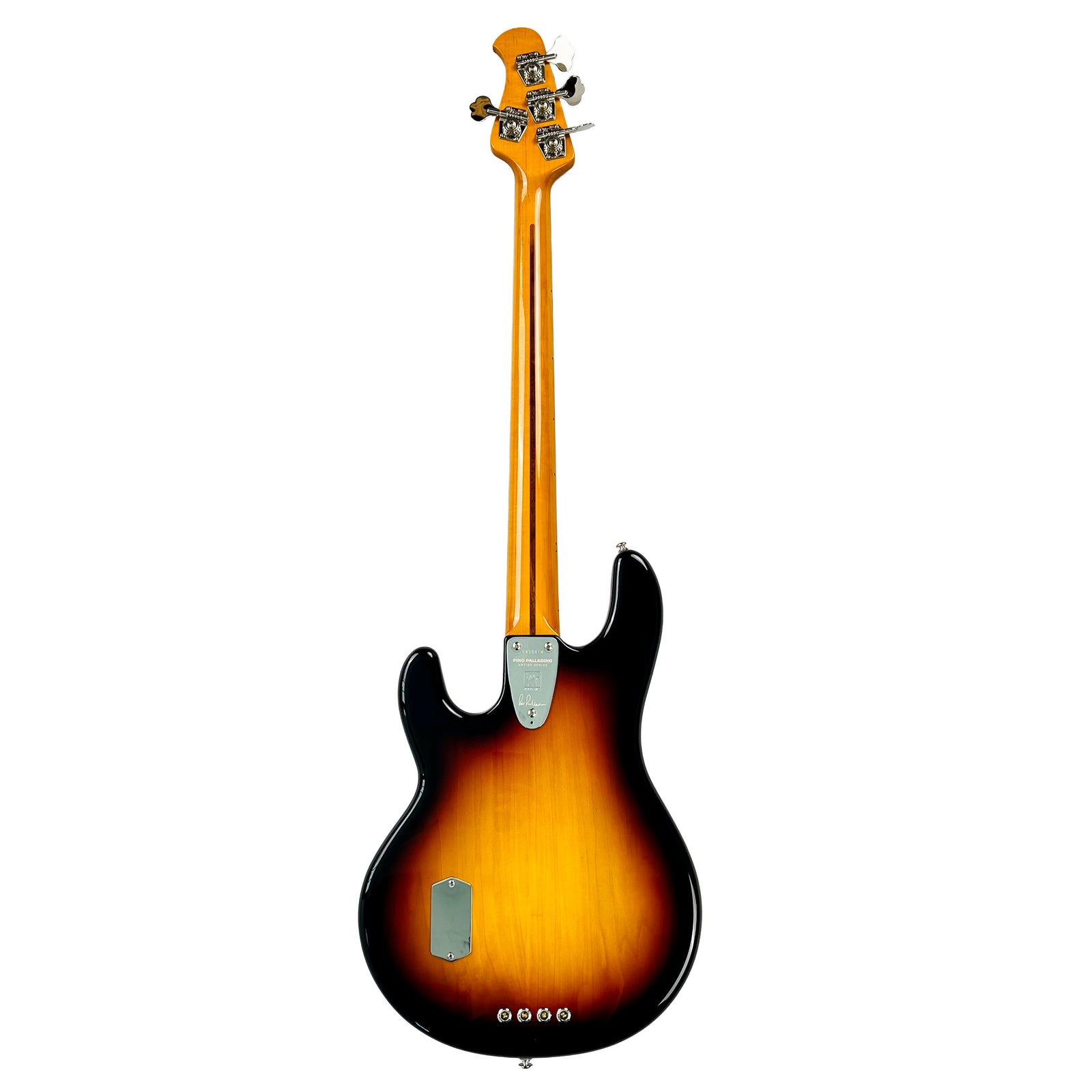

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Pino Palladino Signature StingRay Fretted listed above. For larger pics, click on an image to open in a new tab.
