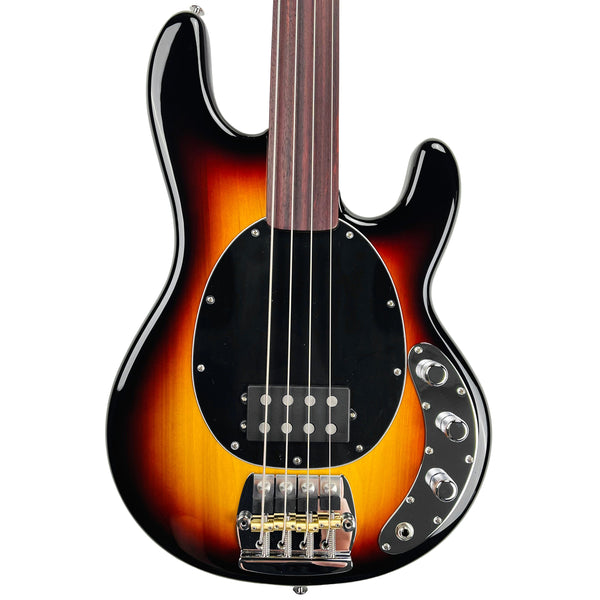

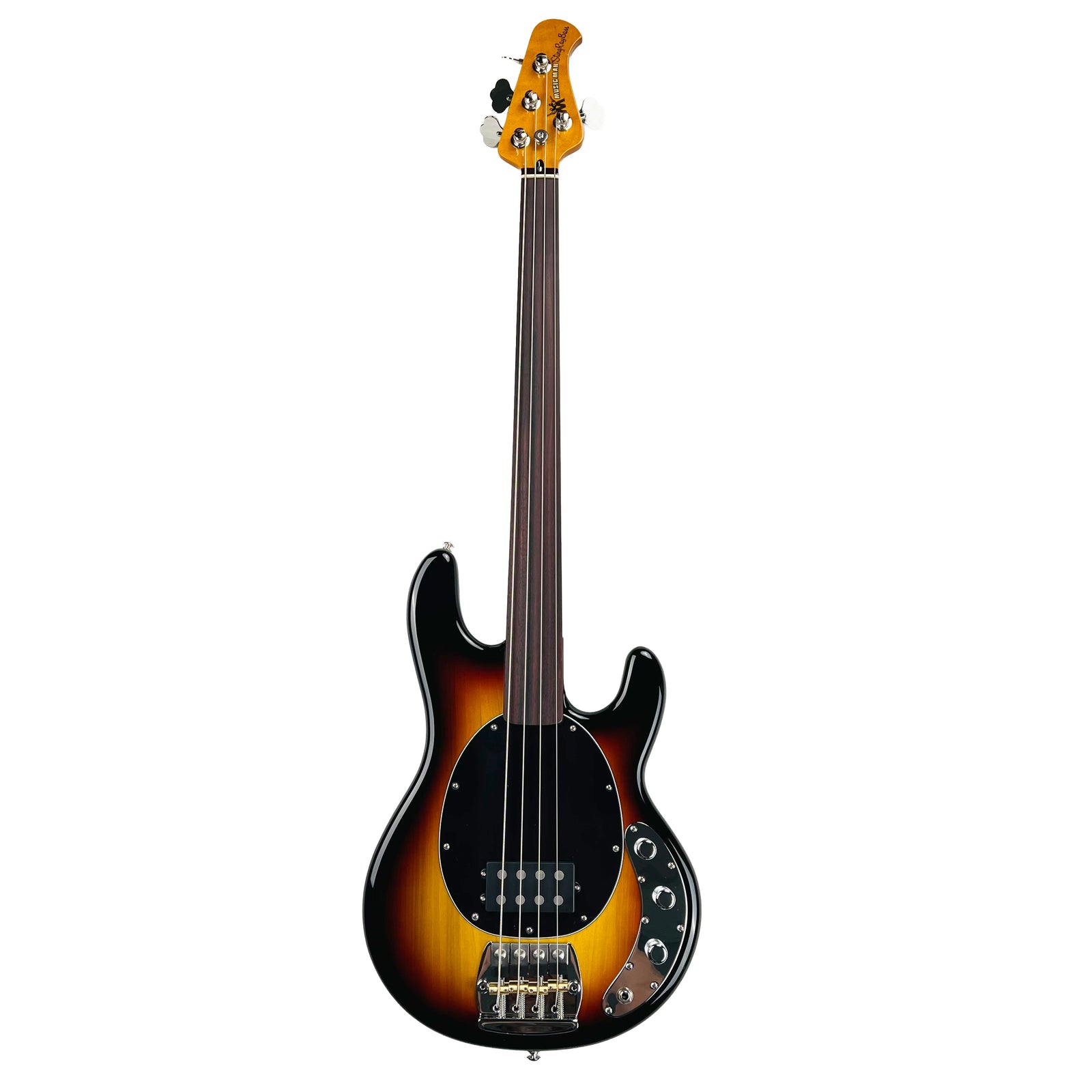

The Pino Palladino Signature StingRay Fretless is a bass guitar built by Ernie Ball Music Man. This 4-string bass guitar was manufactured in the United States and is an Ernie Ball Music Man StingRay model. Key features include Poplar Body, Maple Neck, Rosewood Fretboard, Pre-EB Geometry Music Man Bridge, Late 70’s Voiced Music Man Humbucker Pickup and 79 Burst finish. The specs listed below pertain to the 2025 product year model pictured on this page.
Factory Specs
- Poplar Body

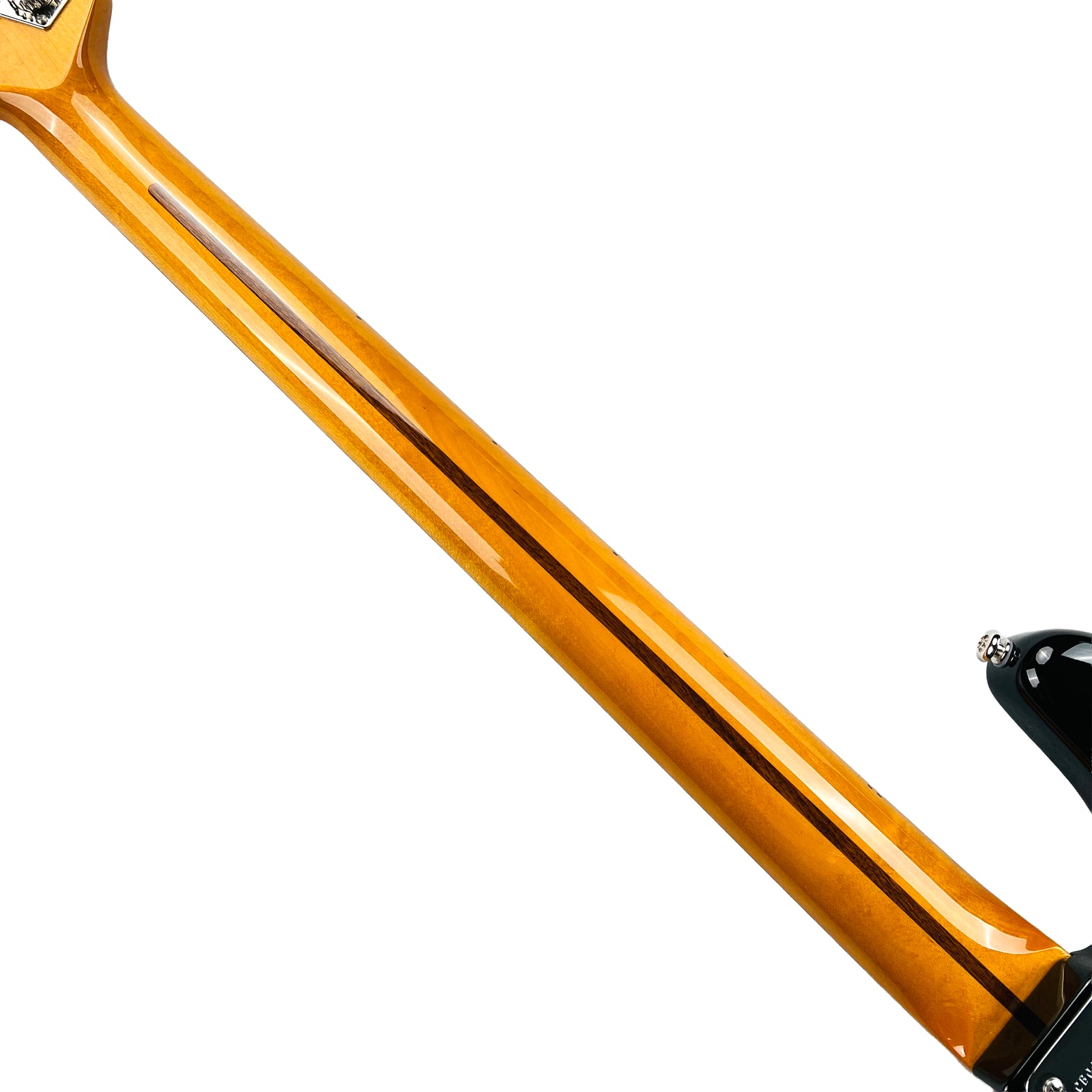

- Maple Neck

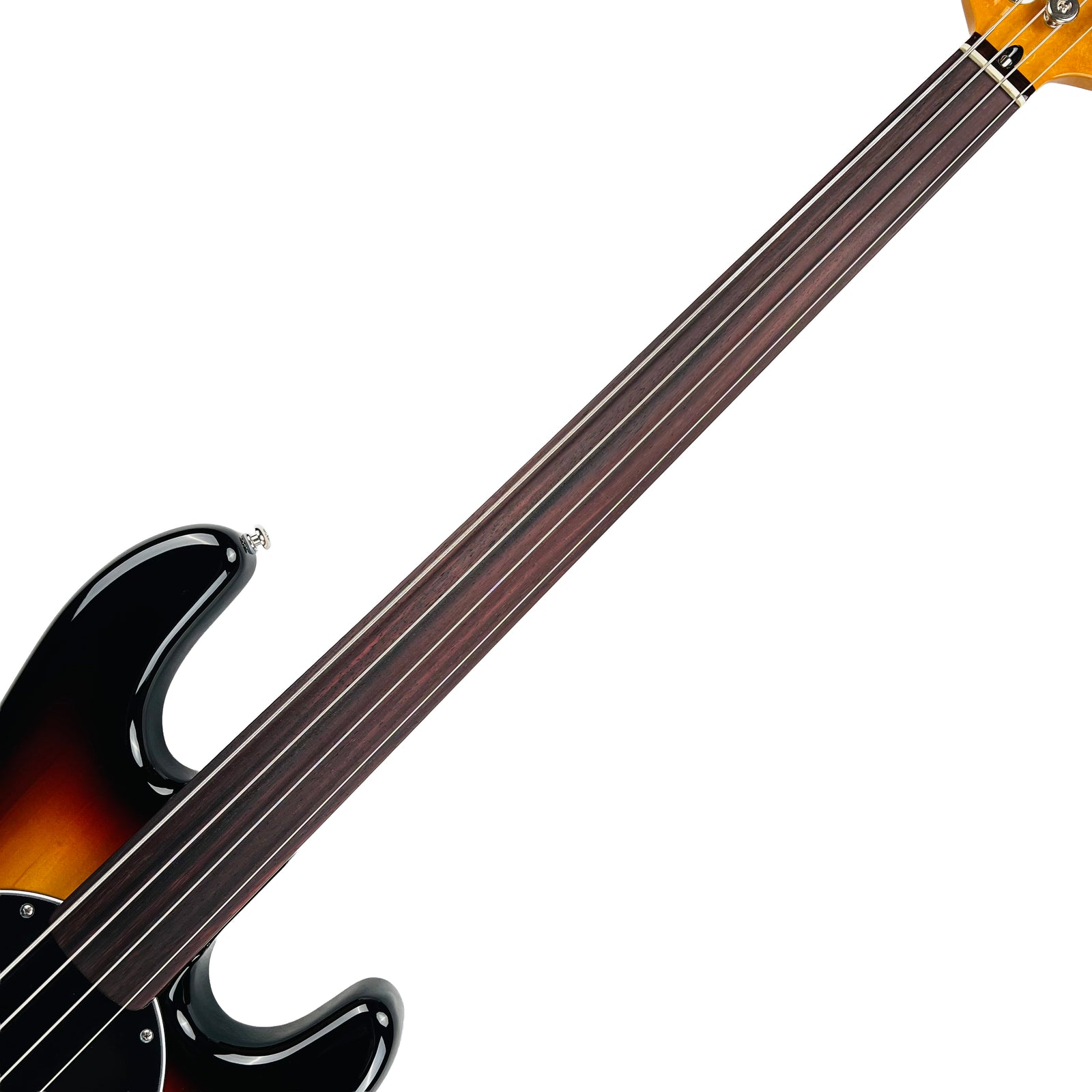

- Rosewood Fretboard
- 7.5” Radius
- 34” Scale Length
- 1.686” Nut Width
- Dark Orange Neck Tint

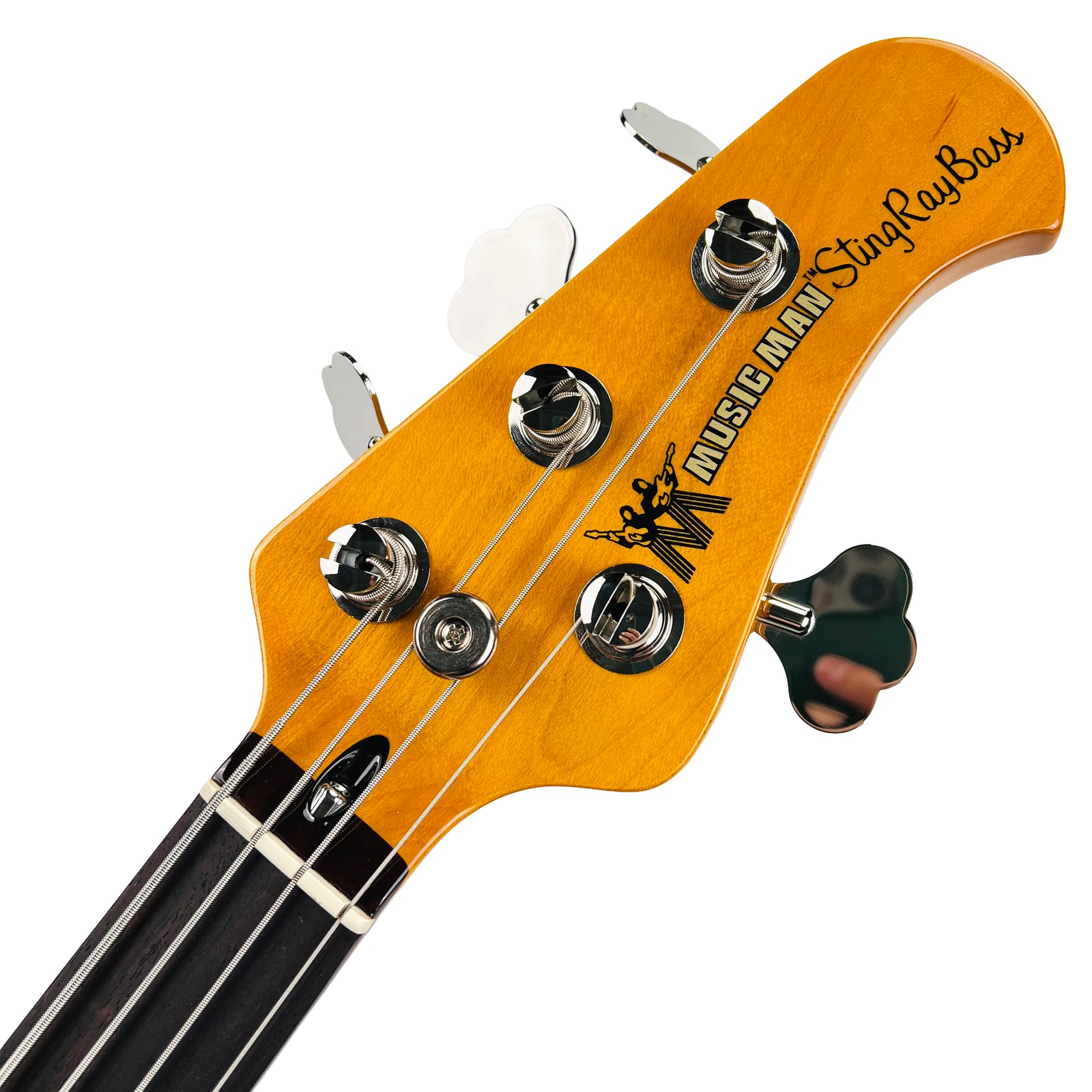

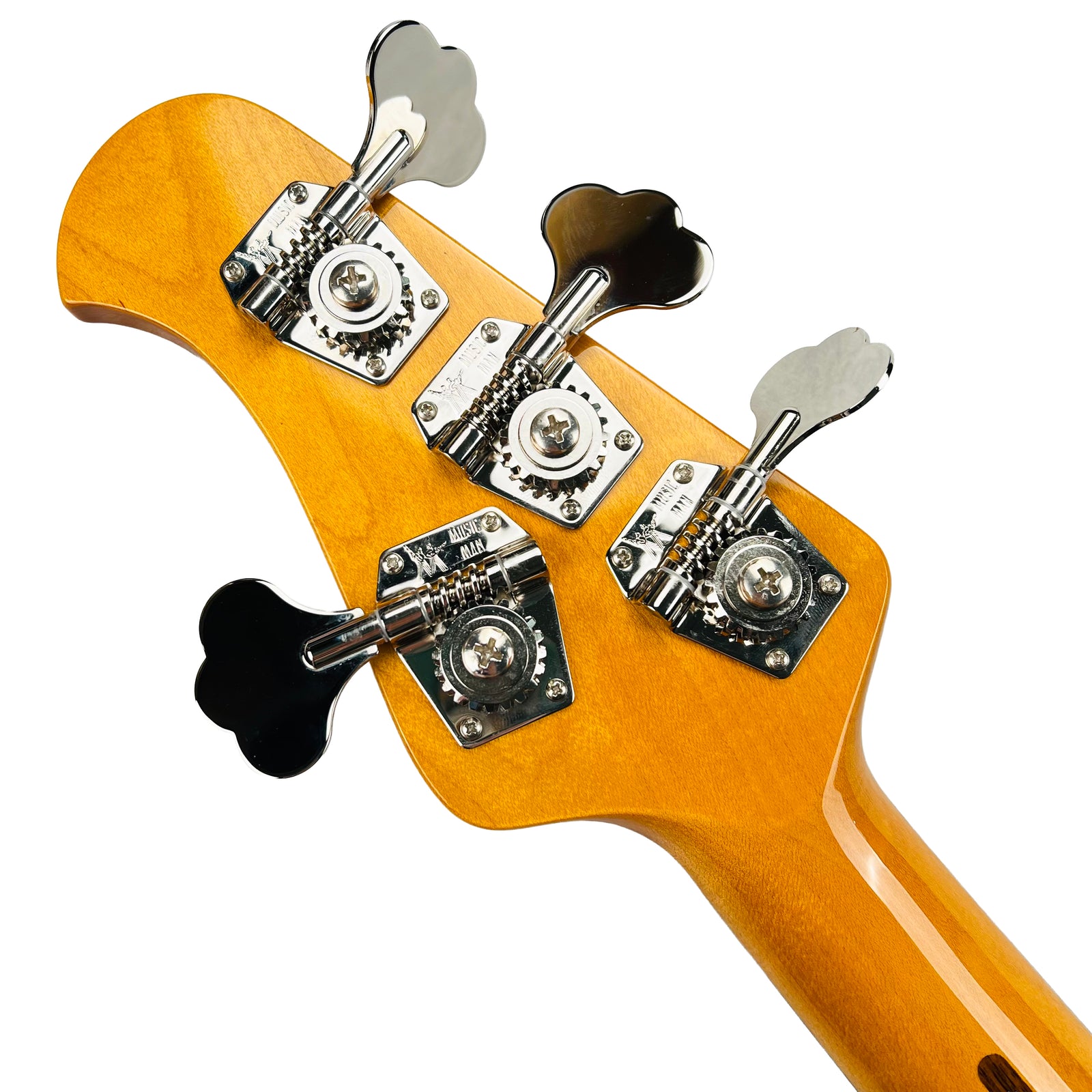

- Schaller Bass Tuners

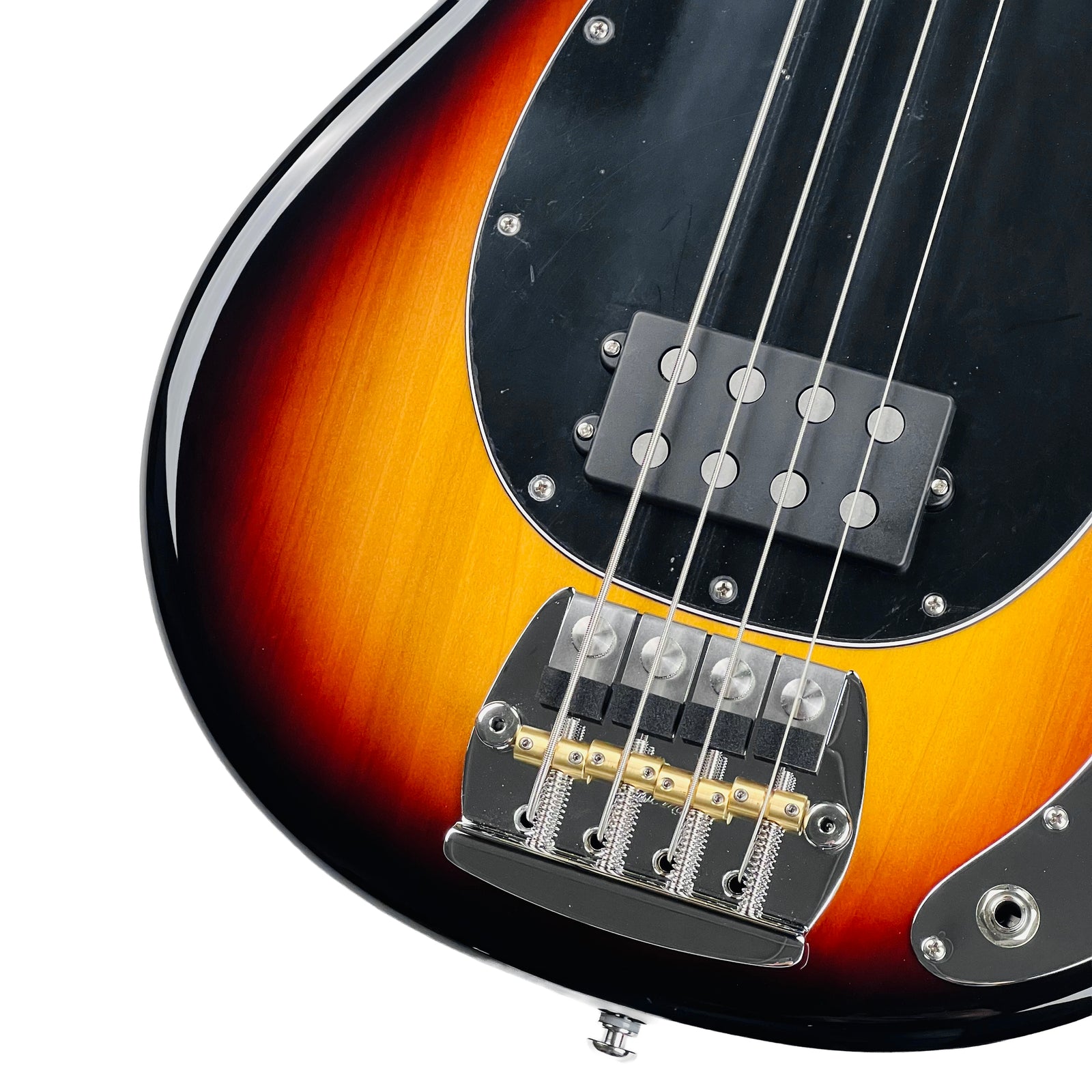

- Pre-EB Geometry Music Man Bridge
- Brass Saddles
- Stain Steel Spring Mutes

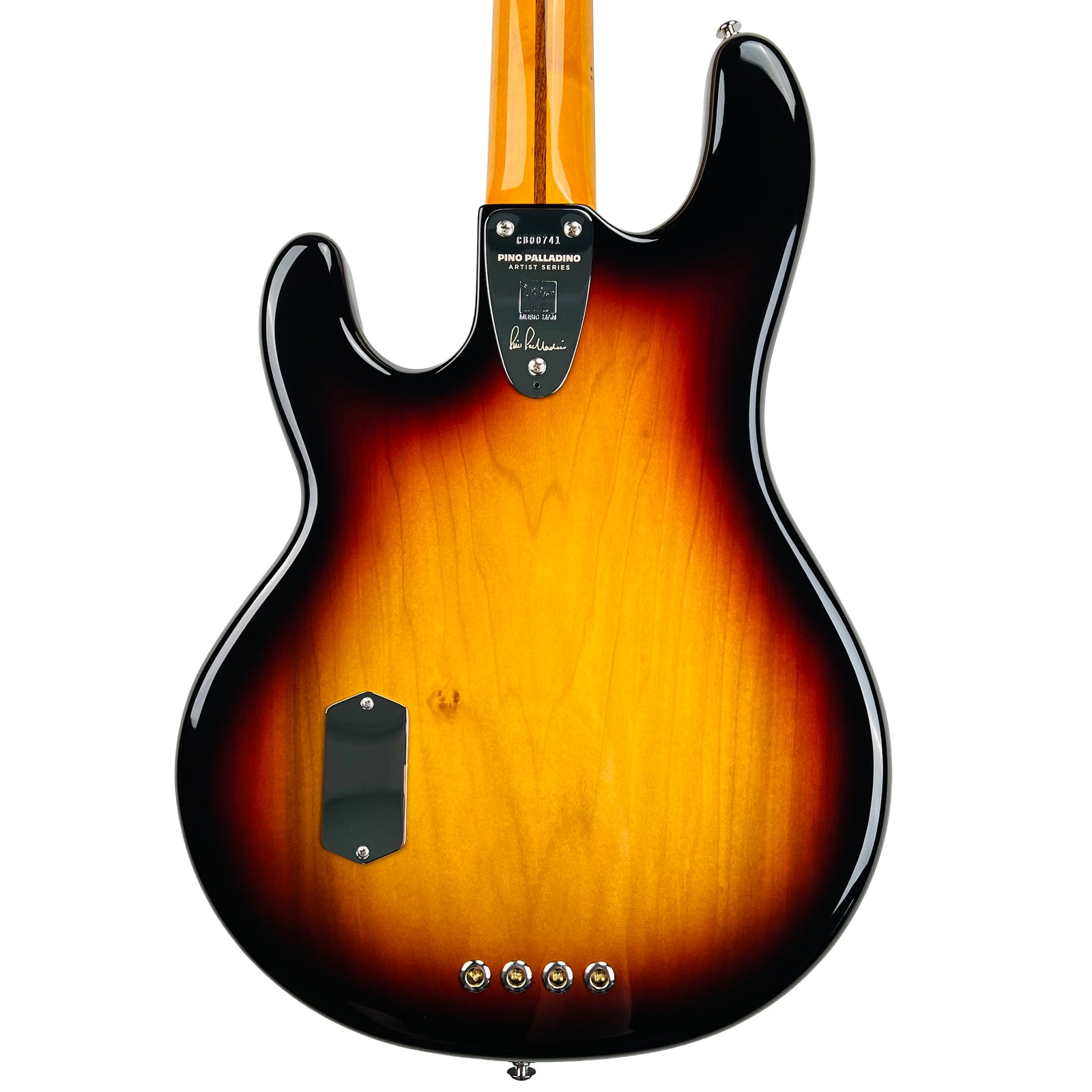

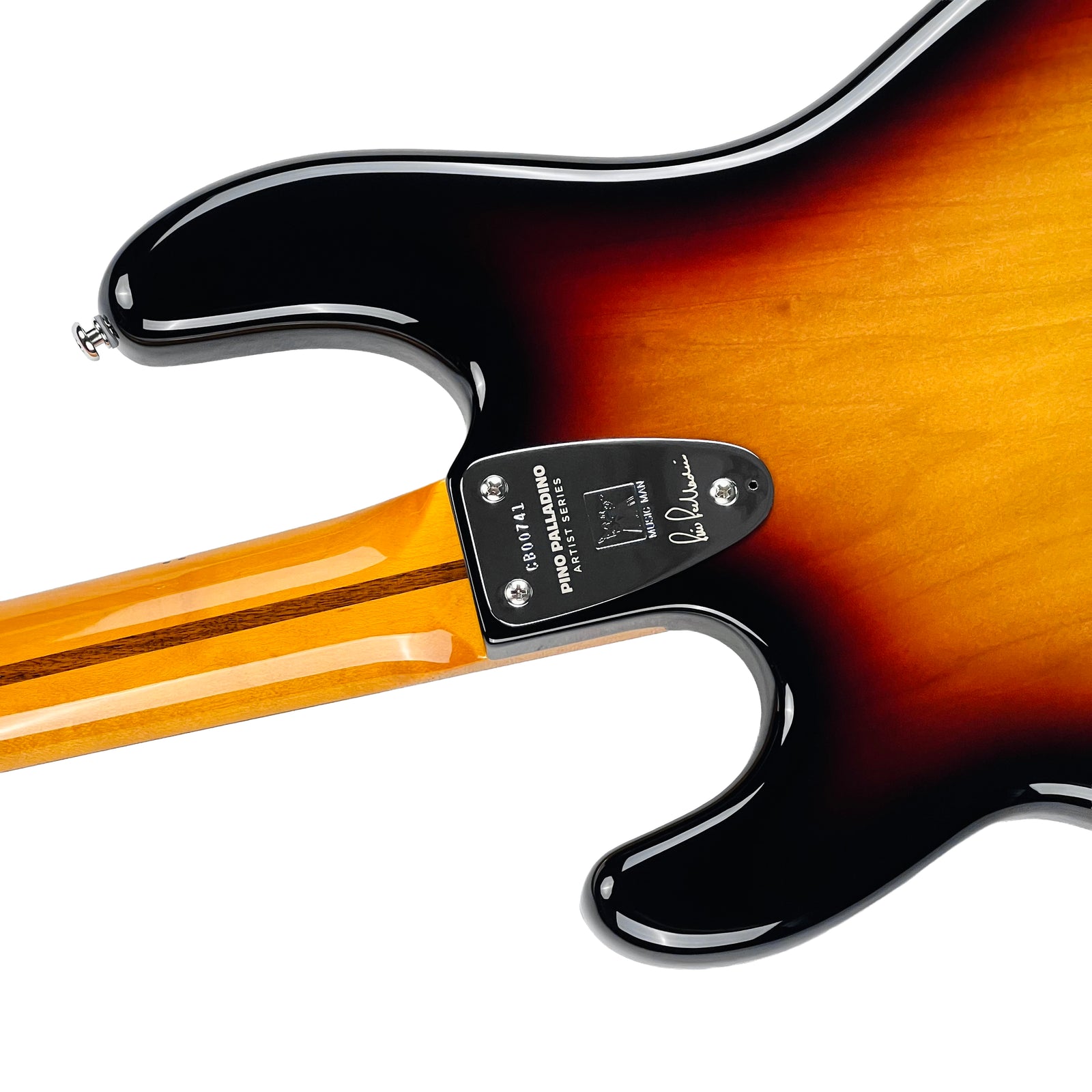

- 3-Bolt Pino Palladino Signature Neck Plate

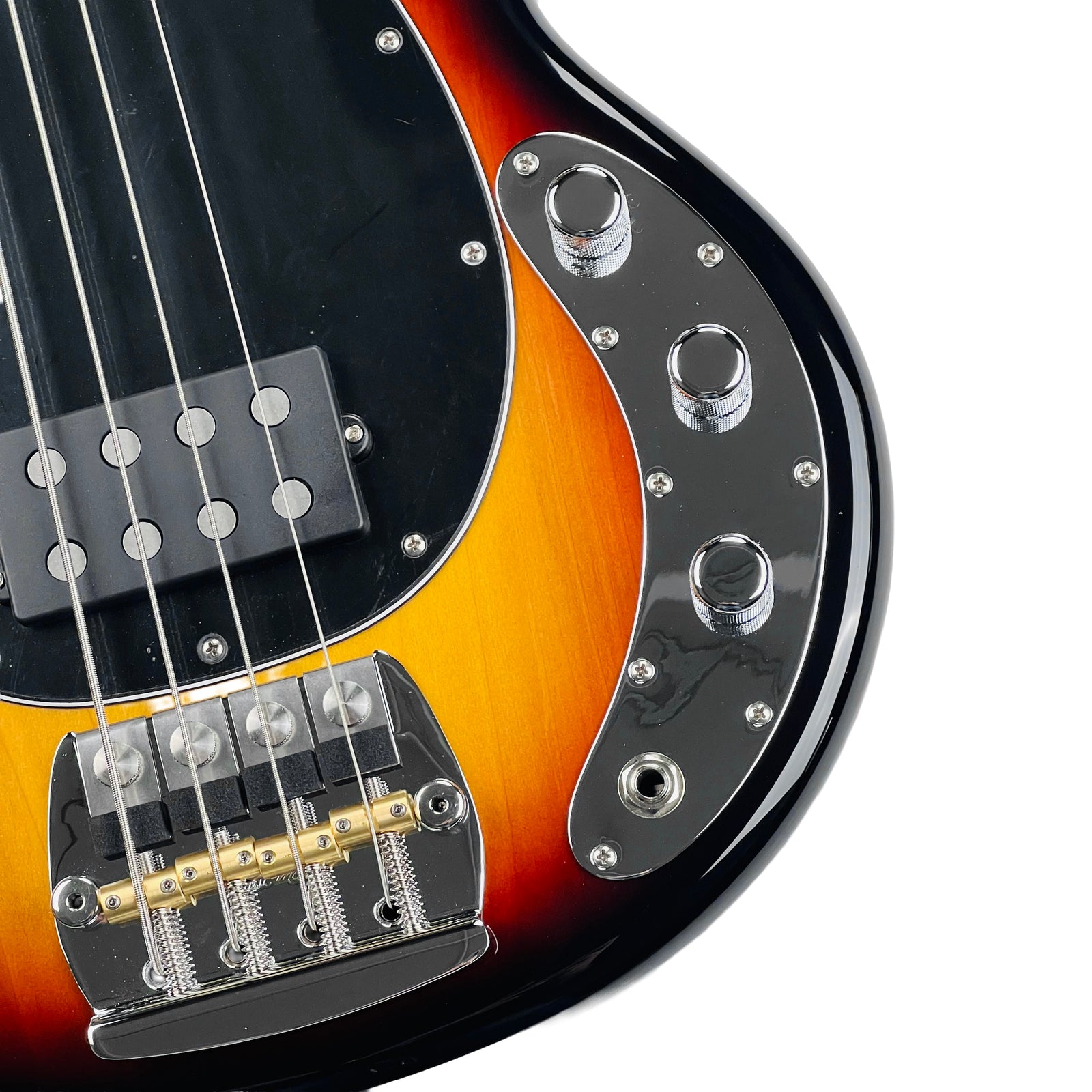

- 2-Band Active Preamp
- 25k Volume
- 500k Treble
- 100k Bass

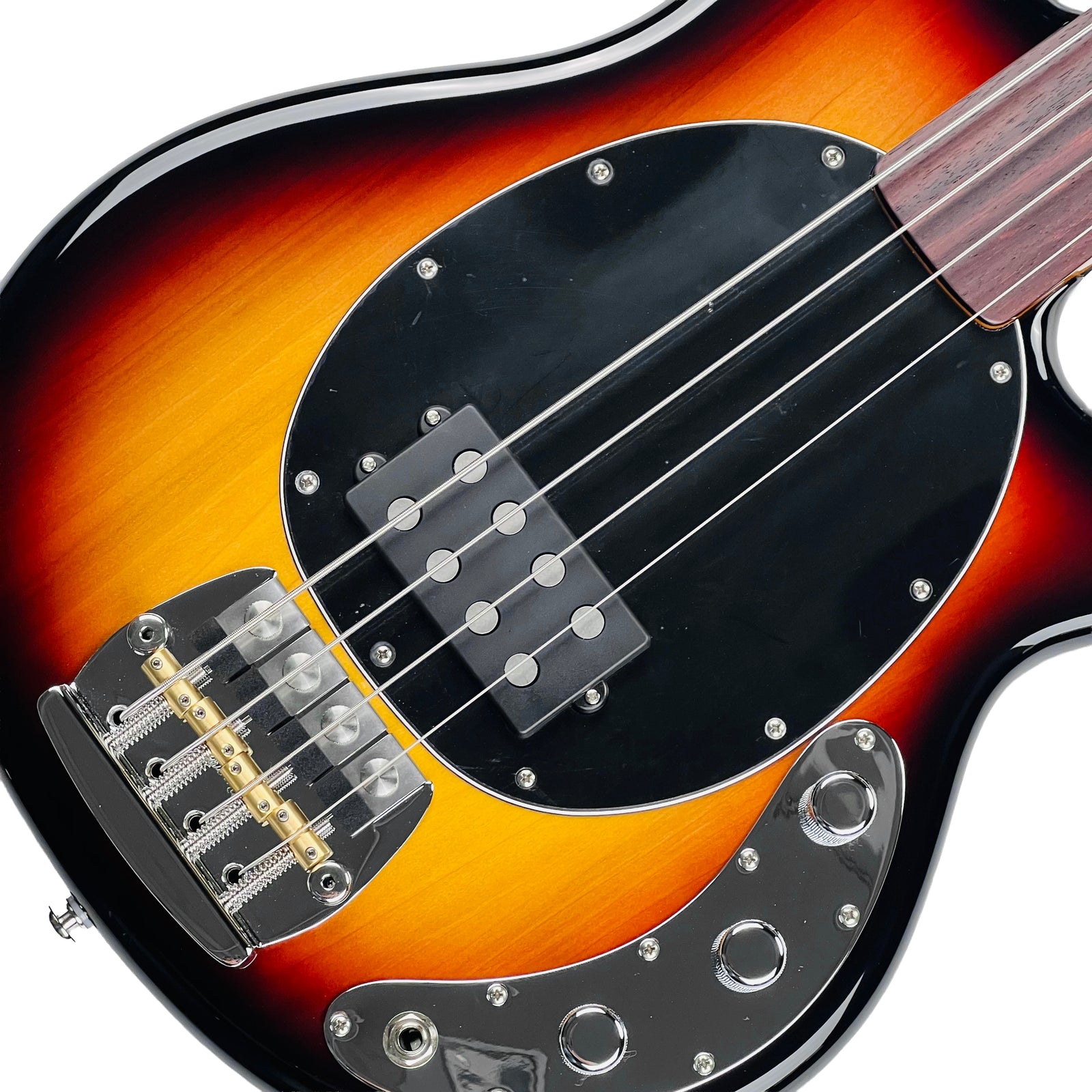

- Late 70’s Voice Music Man Humbucker with Flush Pole Pieces
- High Gloss Polyester Body Finish
- Polyester Neck Finish

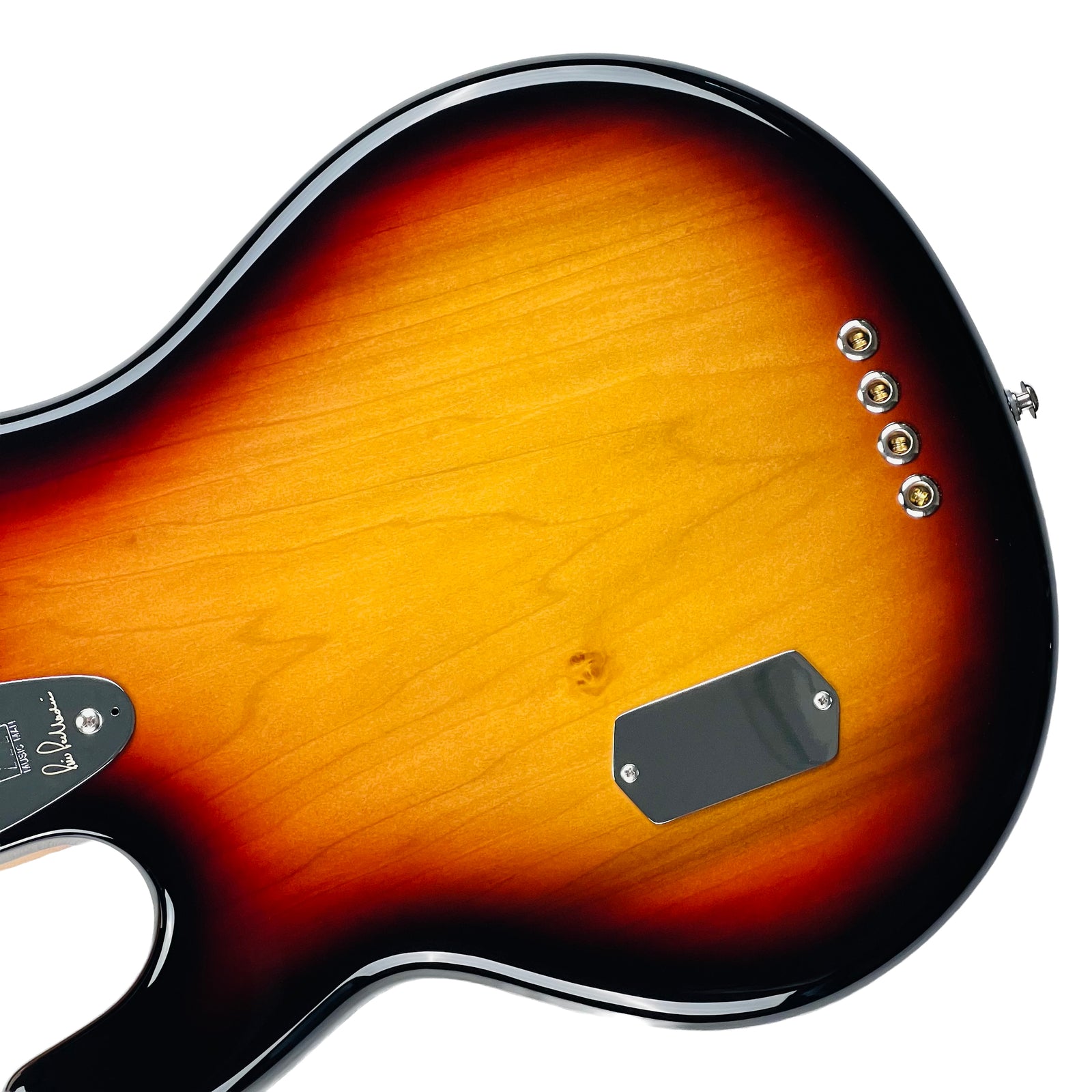

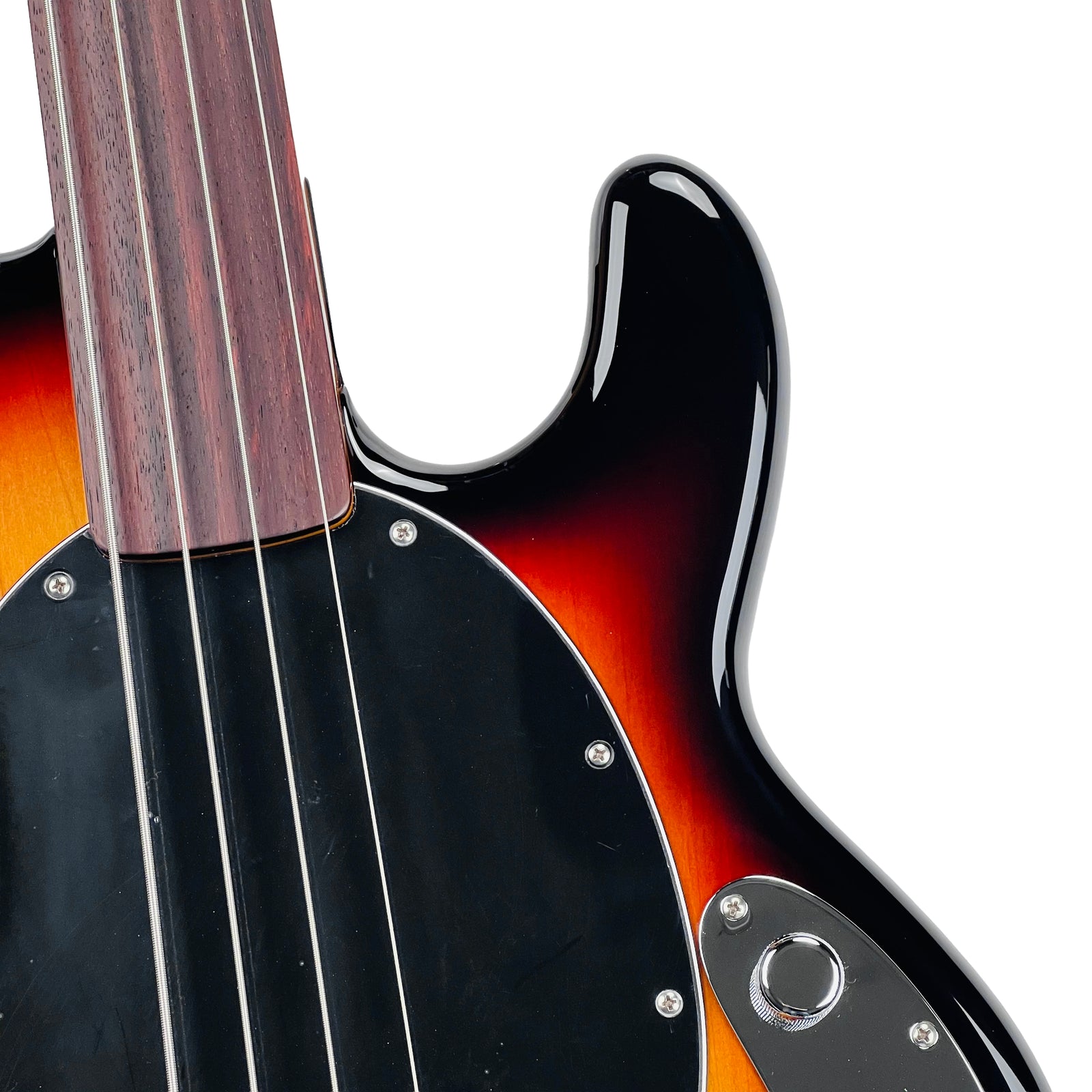

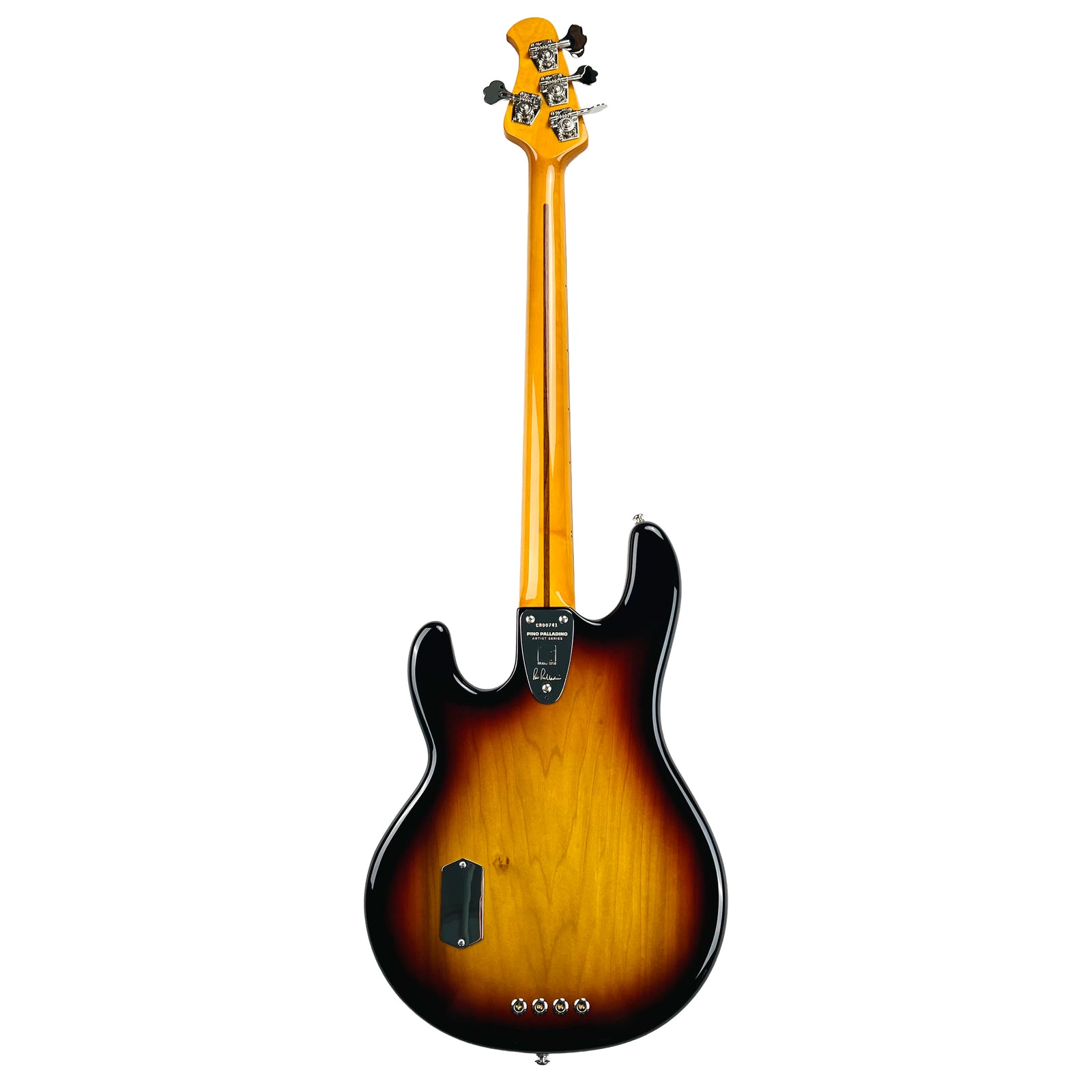

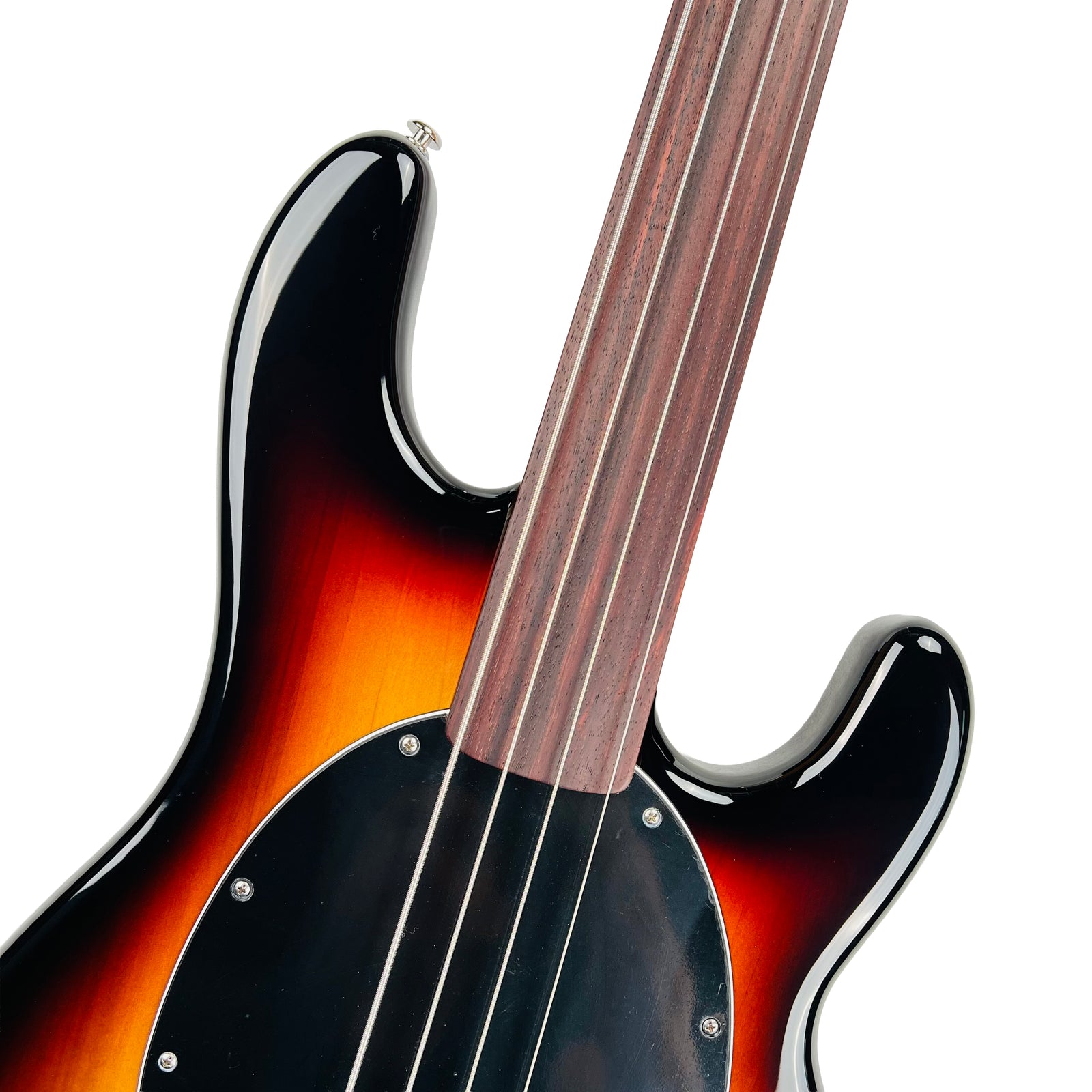

Reference Images

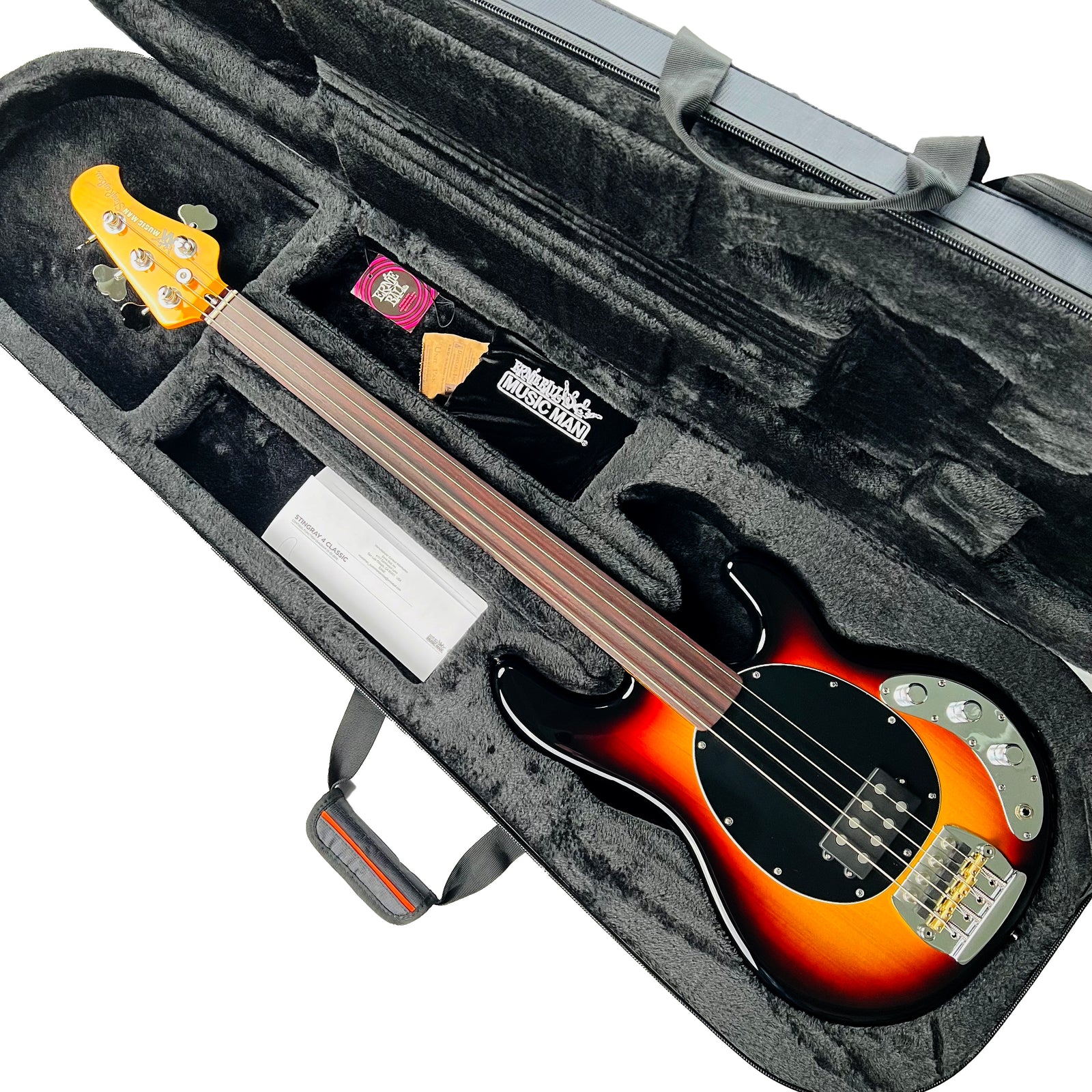

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Pino Palladino Signature StingRay Fretless listed above. For larger pics, click on an image to open in a new tab.
