The USA Time Capsule Cadillac Custom is a solid body electric guitar built by Dean. This single cutaway set neck guitar is manufactured in United States and is a Dean USA Custom Shop Time Capsule model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 1014130.
Key Features
- Mahogany Top
- Mahogany Body
- Mahogany Neck
- Ebony Fingerboard
- 24 5/8" Scale Length
- 1 11/16" Nut Width
- 12" Radius
- Nickel Jumbo Frets
- Tune-o-matic Bridge
- Grover Tuning Machines
- Dean USA DMT Baker Act Bridge Pickup
- Dean USA DMT Nostalgia Neck Pickup
Product Identifiers
| Model Name | USA Time Capsule Cadillac Custom |
| Part Number | 1014130 |
| Product Series | Dean USA Custom Shop Time Capsule |
| Country of Origin | United States |
| Brand | Dean |
| Type | Electric Guitar |
| Category | Solid Body |
| Subcategory | Single Cutaway Set Neck |
| UPC Code | 810069634180 |
Factory Specifications
Body Construction
| Body Material | Solid |
| Top Material | Mahogany |
| Back Material | Mahogany |
| Body Shape | Cadillac |
| Body Binding | Cream Single Ply |
| Body Finish | Gloss Nitrocellulose |
Hardware
| Bridge | Tune-o-matic |
| Tuning Machines | Grover |
| Control Knobs | Black Speed |
| Bridge Cover / Tailpiece | Cadi Tailpiece |
| Hardware Finish | Nickel |
Neck Construction
| Neck Material | Mahogany |
| Fingerboard Material | Ebony |
| Radius | 12" |
| Fingerboard Inlays | Aged MOP Blocks |
| Side Dots | Black Dots |
| Number of Frets | 22 |
| Fret Size | Nickel Jumbo |
| Nut Width | 1 11/16" |
| Scale Length | 24 5/8" |
| Nut Material | Graph Tech Tusq |
| Neck Shape | Soft V |
| Neck Thickness | .680" - .790" |
| Neck Mounting | Set Neck |
| Neck Construction | 3-Piece |
| Neck Finish | Gloss Nitrocellulose |
| Headstock | V2 |
| Headstock Binding | Cream Single Ply |
Electronics
| Bridge Pickup | Dean USA DMT Baker Act |
| Neck Pickup | Dean USA DMT Nostalgia |
| Pickup Configuration | HH |
| Controls | Two Volume & Two Tone |
| Pickup Switching | 3-Way Toggle |
General
| Orientation | Right Handed |
| Strings | 10-46 |
| Case / Gig Bag | Hardshell Case |
| Included Accessories | Build Sheet, Letter from Dean |
Reference Images

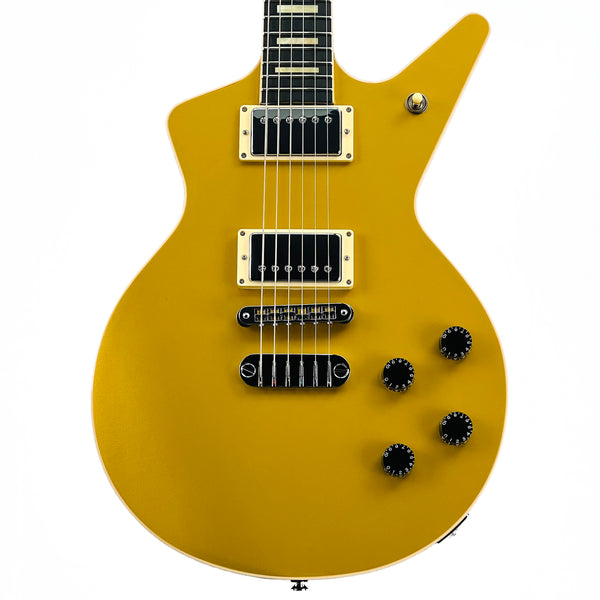

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the USA Time Capsule Cadillac Custom listed above. For larger pics, click on an image to open in a new tab.
