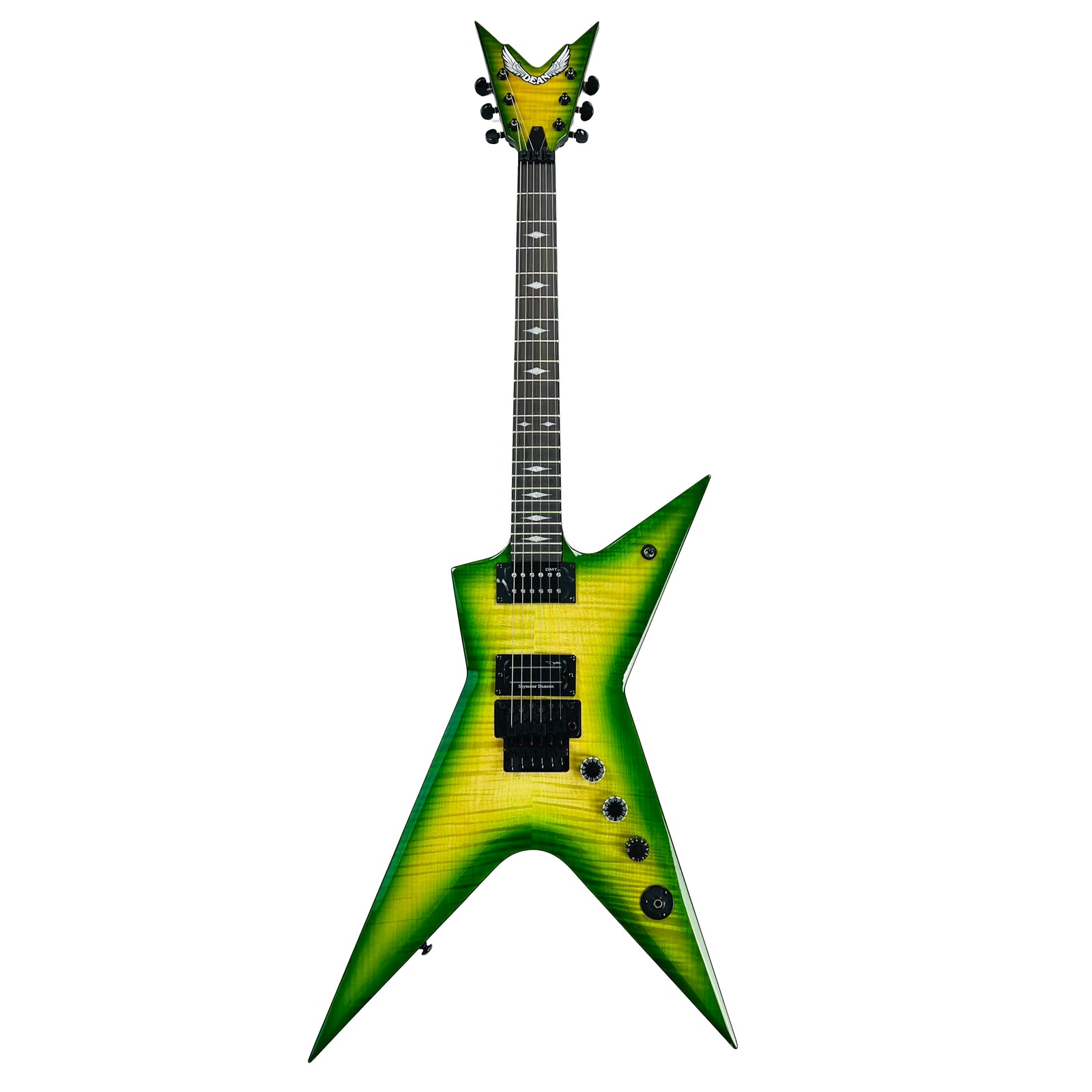

The 2025 Stealth Floyd FM is a solid body electric guitar built by Dean. This x-style set neck guitar was manufactured in Korea and is a Dean Select Series model. Key features include a Flame Maple Top, Mahogany Body, Ebony Fretboard, Floyd Rose 1000, Seymour Duncan SH13 Dimebucker & Dean DMT Humbuckers and Dime Slime finish. The specs listed below pertain to the 2025 product year model pictured on this page.
Factory Specs
- Flame Maple Top
- Mahogany Body
- Mahogany Neck

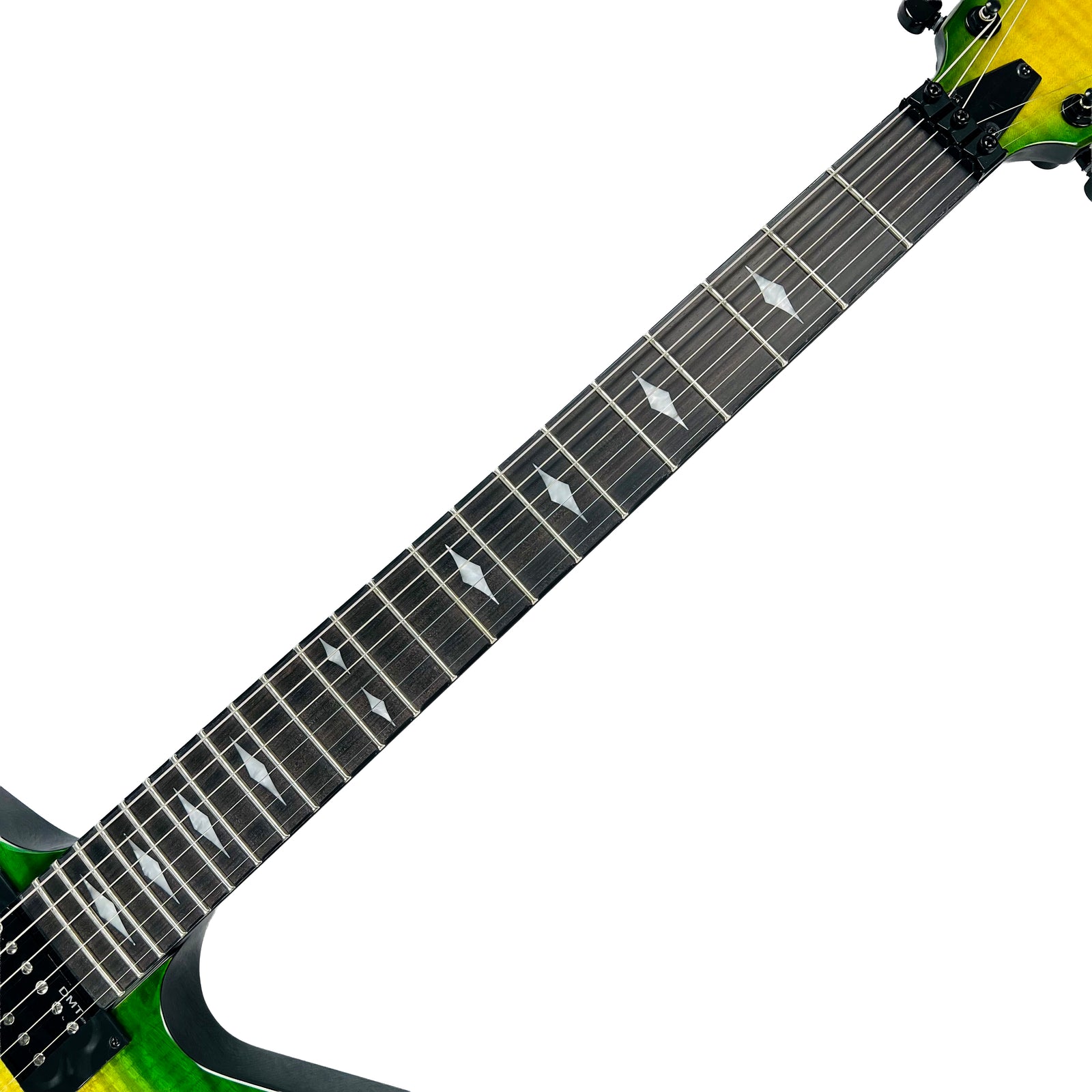

- Ebony Fretboard
- Pearl Diamond Inlays
- 22 Frets
- Jumbo Fret Wire
- 24 3/4" Scale Length
- 14" Radius
- 43mm Nut Width
- Floyd Rose Locking Nut

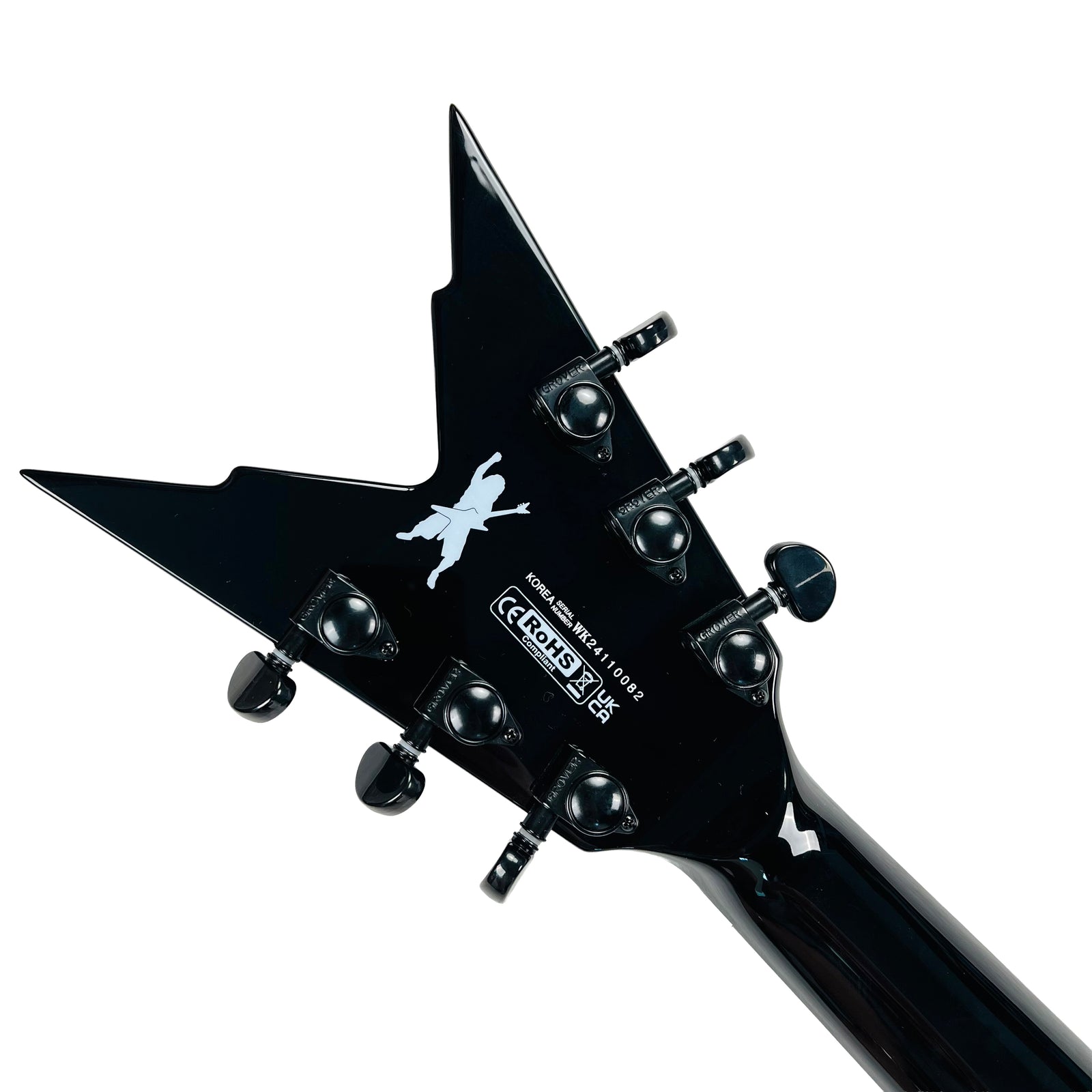

- Grover Tuners

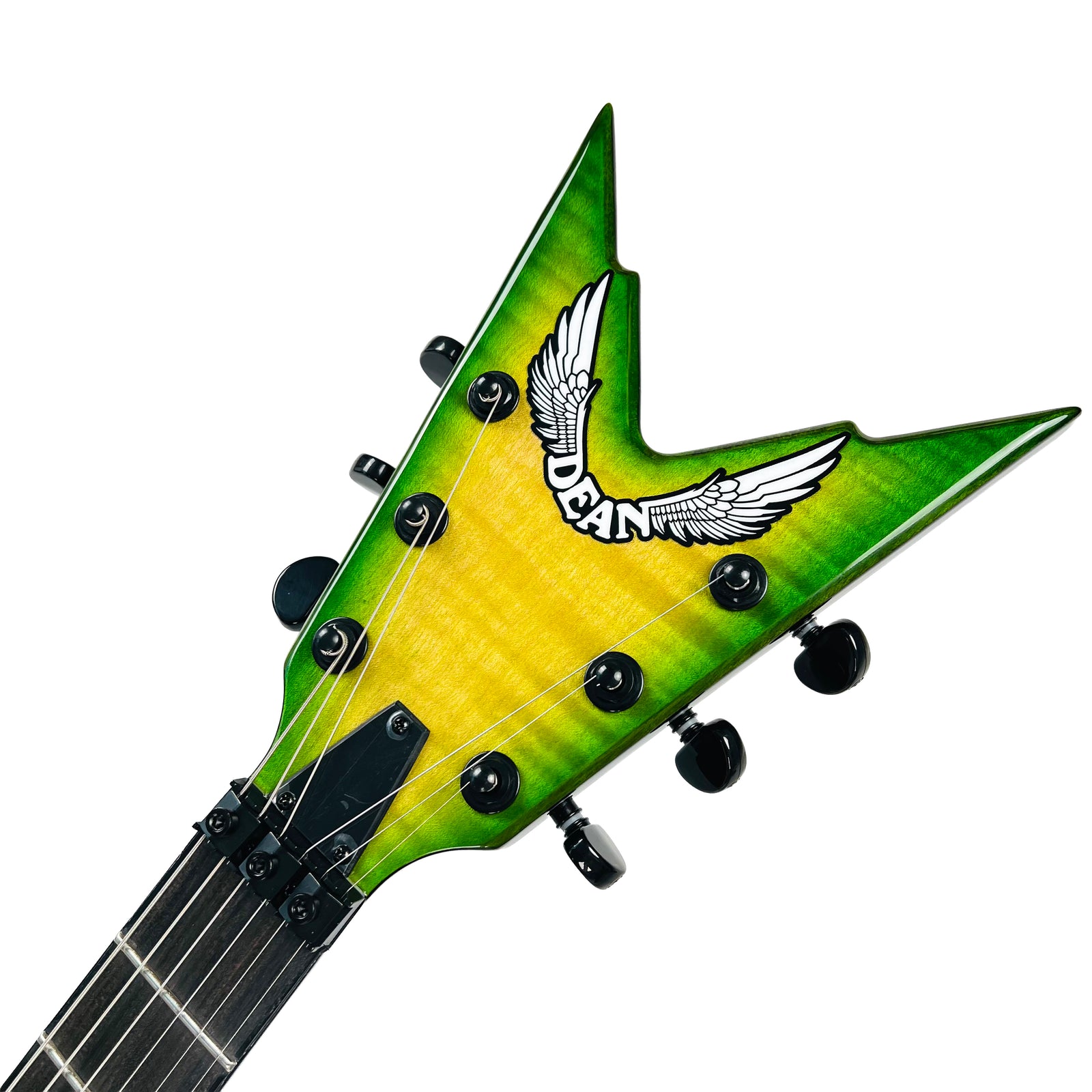

- Matching Headstock
- Floyd Rose 1000 Locking Tremolo

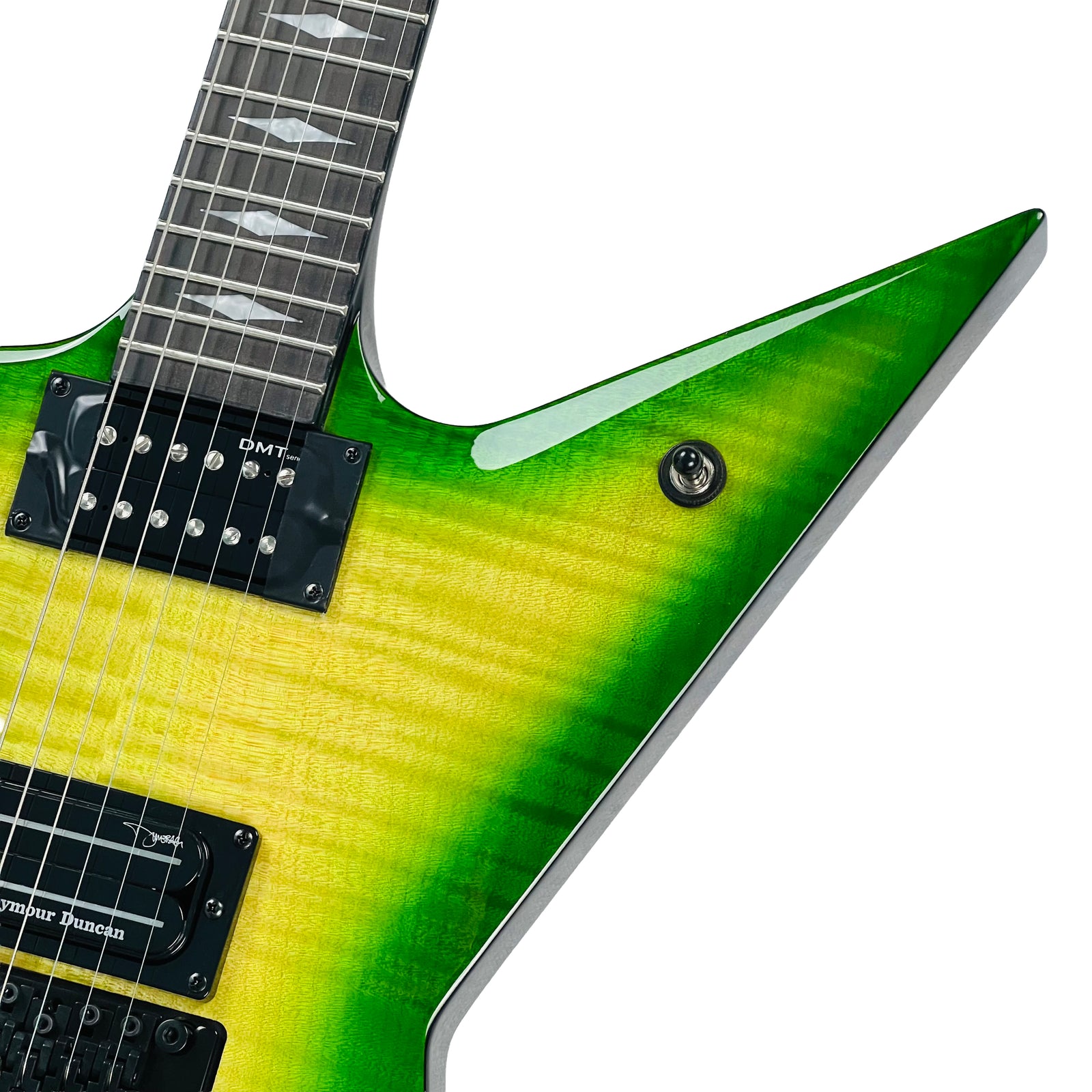

- Seymour Duncan SH13 Dimebucker Bridge Humbucker
- Dean DMT Neck Humbucker
- Black Hardware
Reference Images

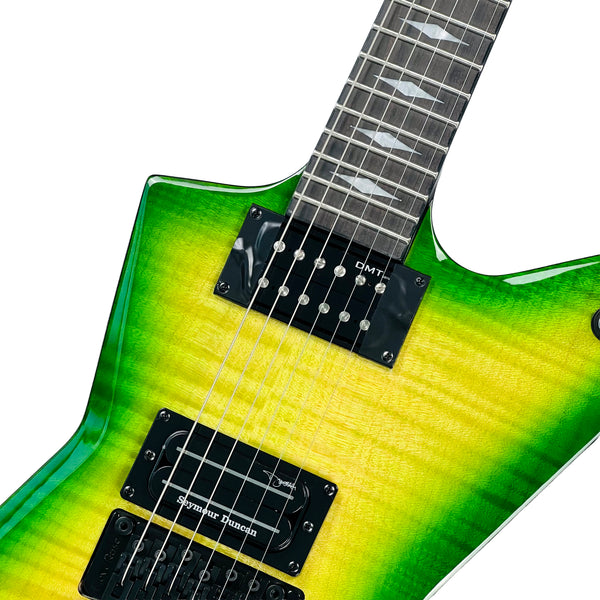

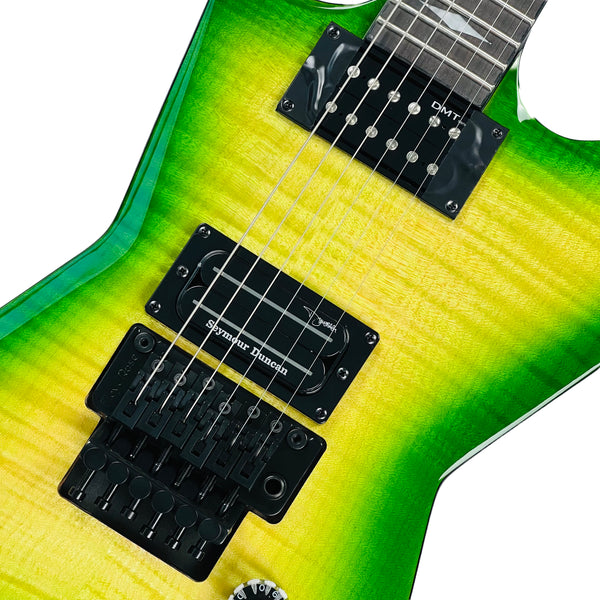

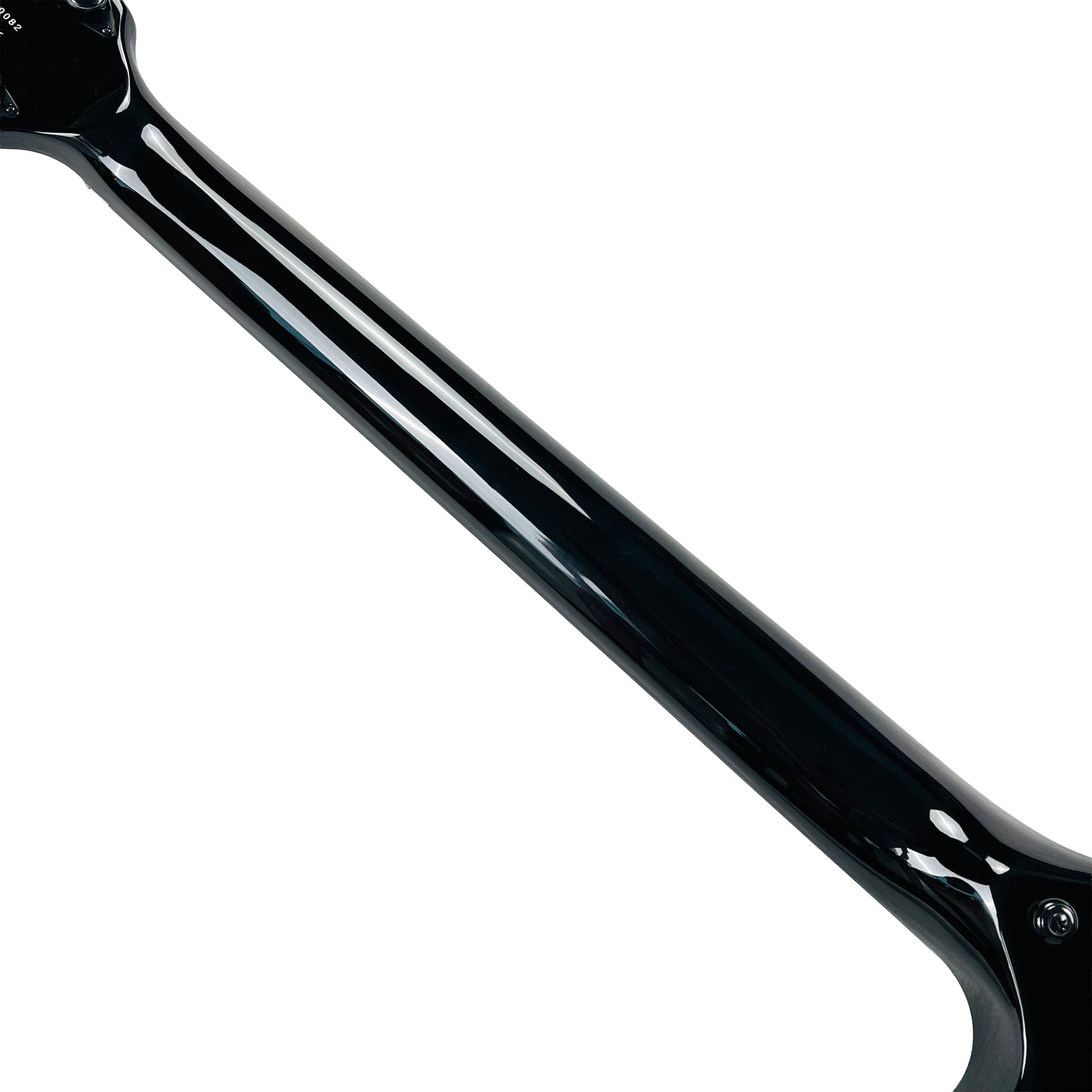

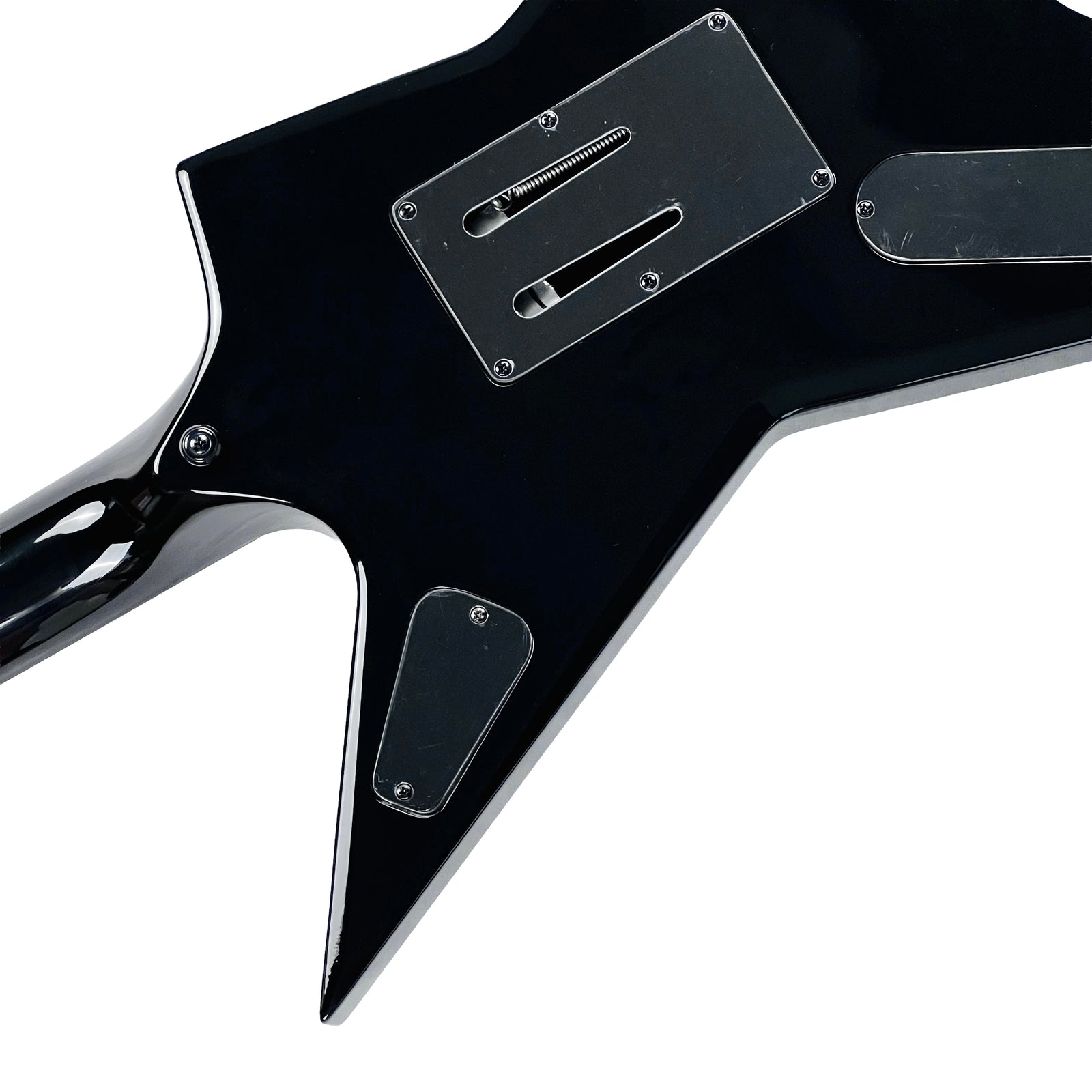

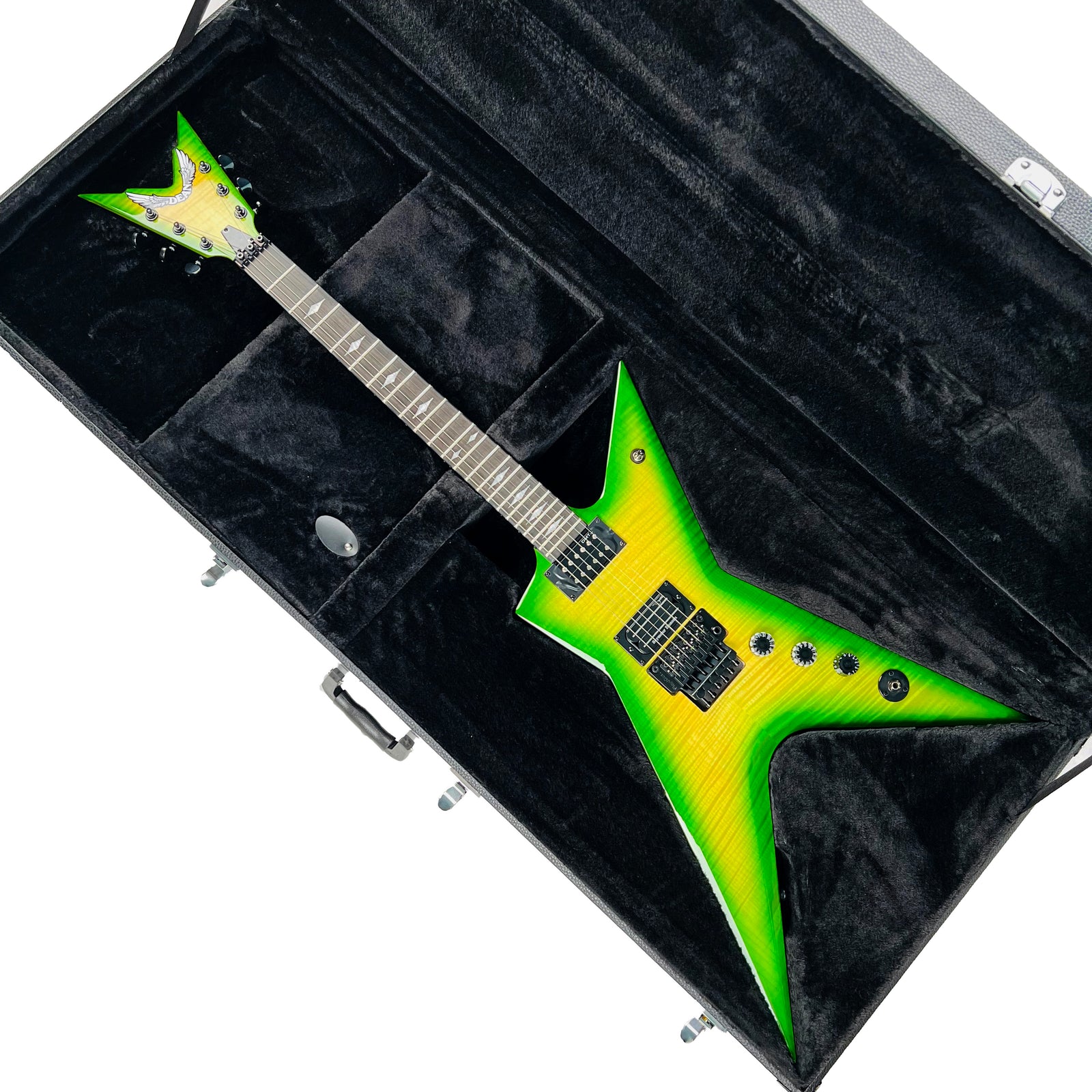

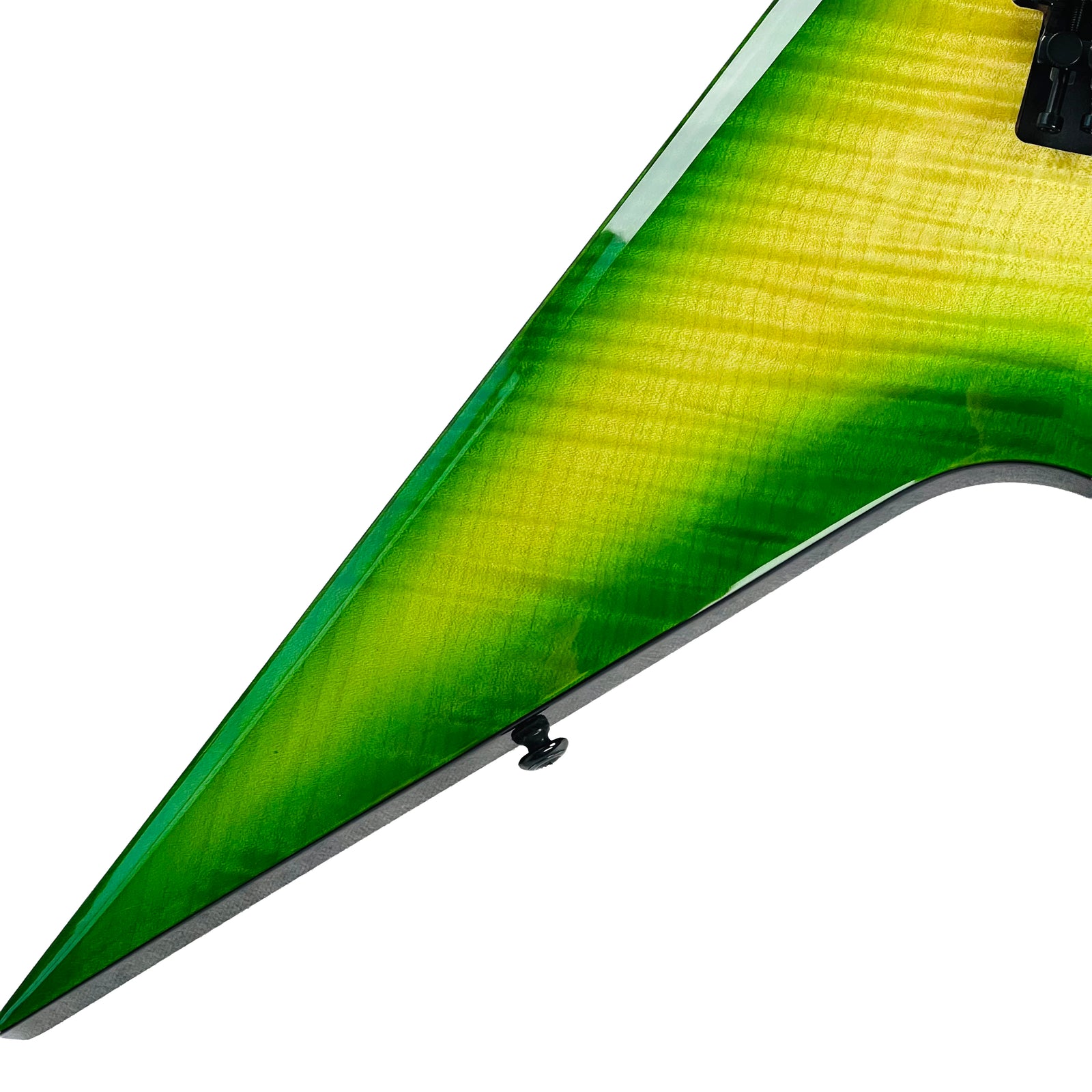

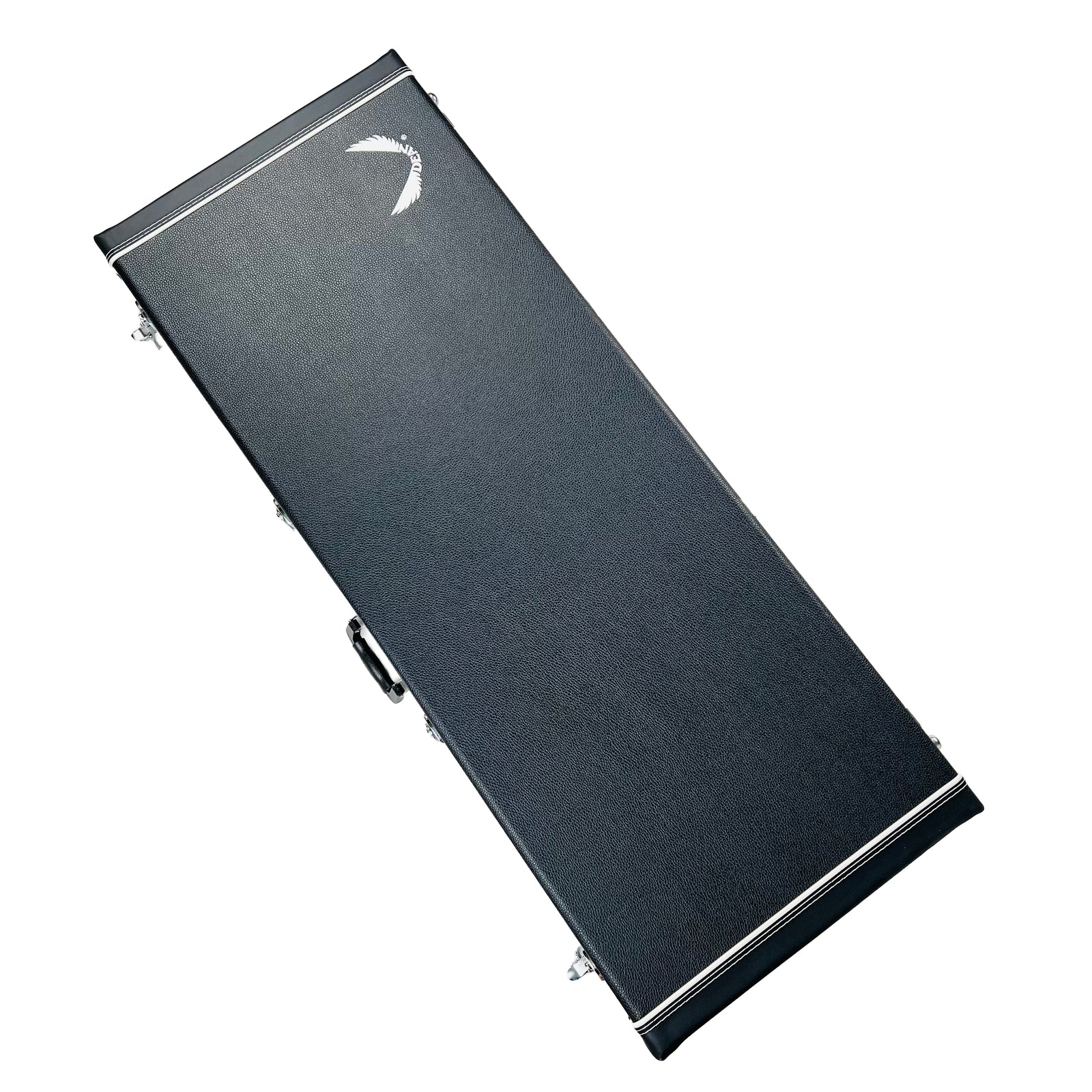

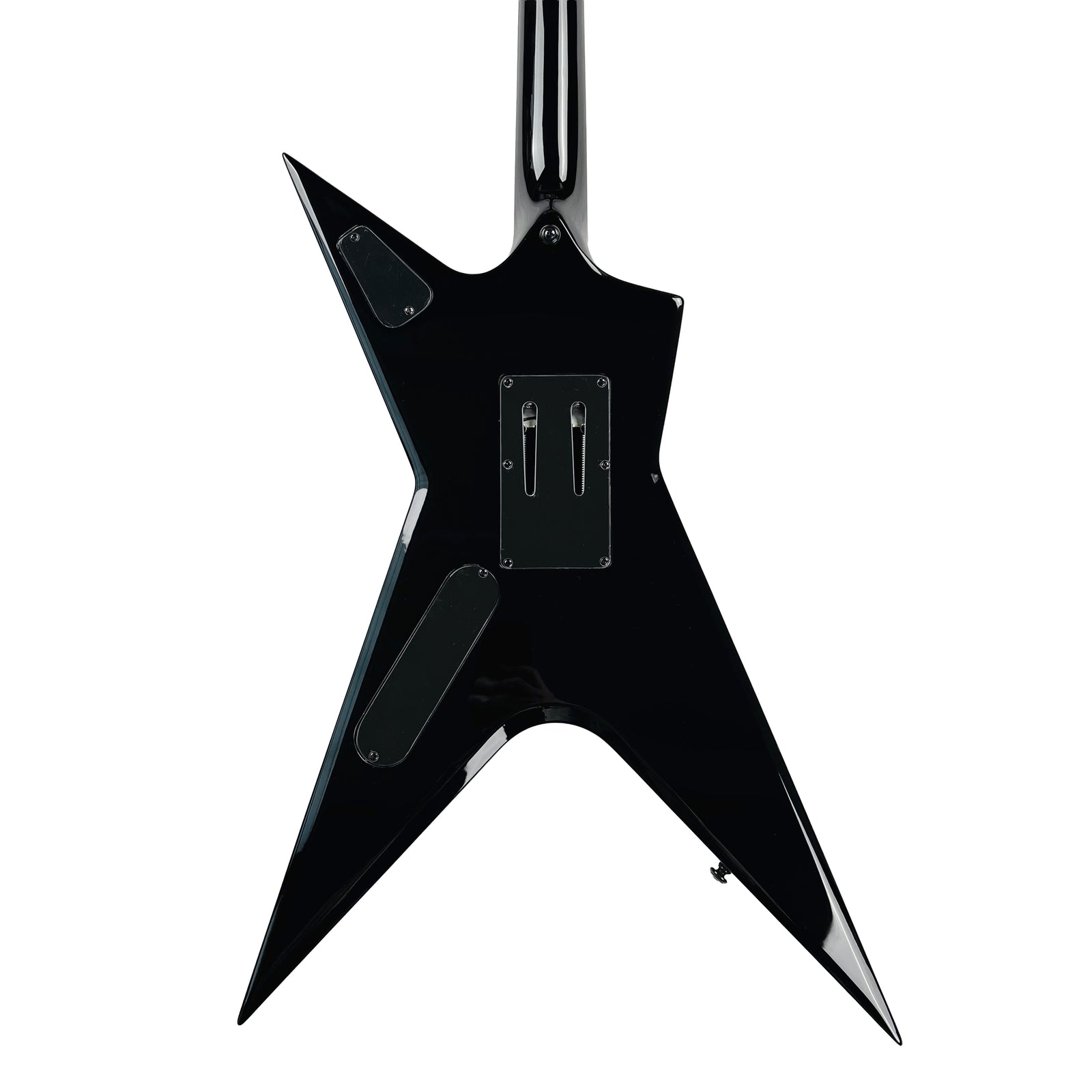

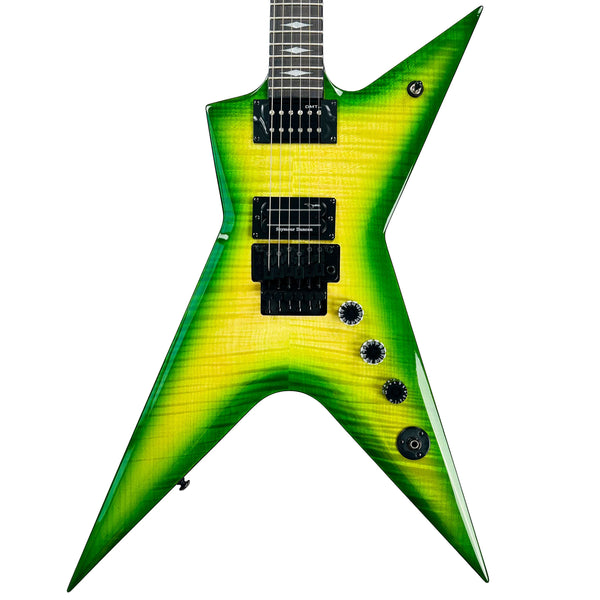

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Stealth Floyd FM listed above. For larger pics, click on an image to open in a new tab.
