The ML Select Quilt Top Floyd is an electric guitar built by Dean. This solid body guitar was manufactured in Indonesia and is a Dean Select Series Guitars model. Key features include Quilt Maple Top, Mahogany Body, Mahogany Neck, Ebony Fretboard, Seymour Duncan TB-5 & APH-1 Custom Zebra Pickups and Trans Brazilia finish. The specs listed below pertain to the 2025 product year model pictured on this page.
Factory Specs
- Quilt Maple Top
- Mahogany Body
- Mahogany Neck
- Ebony Fretboard
- Set Thru Neck Construction
- 12" Radius
- Block Inlays
- 24 3/4" Scale Length
- 22 Frets
- Jumbo Fret Wire
- 1 11/16" Nut Width
- Seymour Duncan TB-5 Custom Zebra Bridge Pickup
- Seymour Duncan APH-1 Custom Zebra Neck Pickup
- Two Volumes & One Tone Control
- 3-Way Toggle Switch
- Grover Tuners
- Speed Knobs
- Floyd Rose 1000 Bridge
- Floyd Rose R3 Nut
- Black Hardware

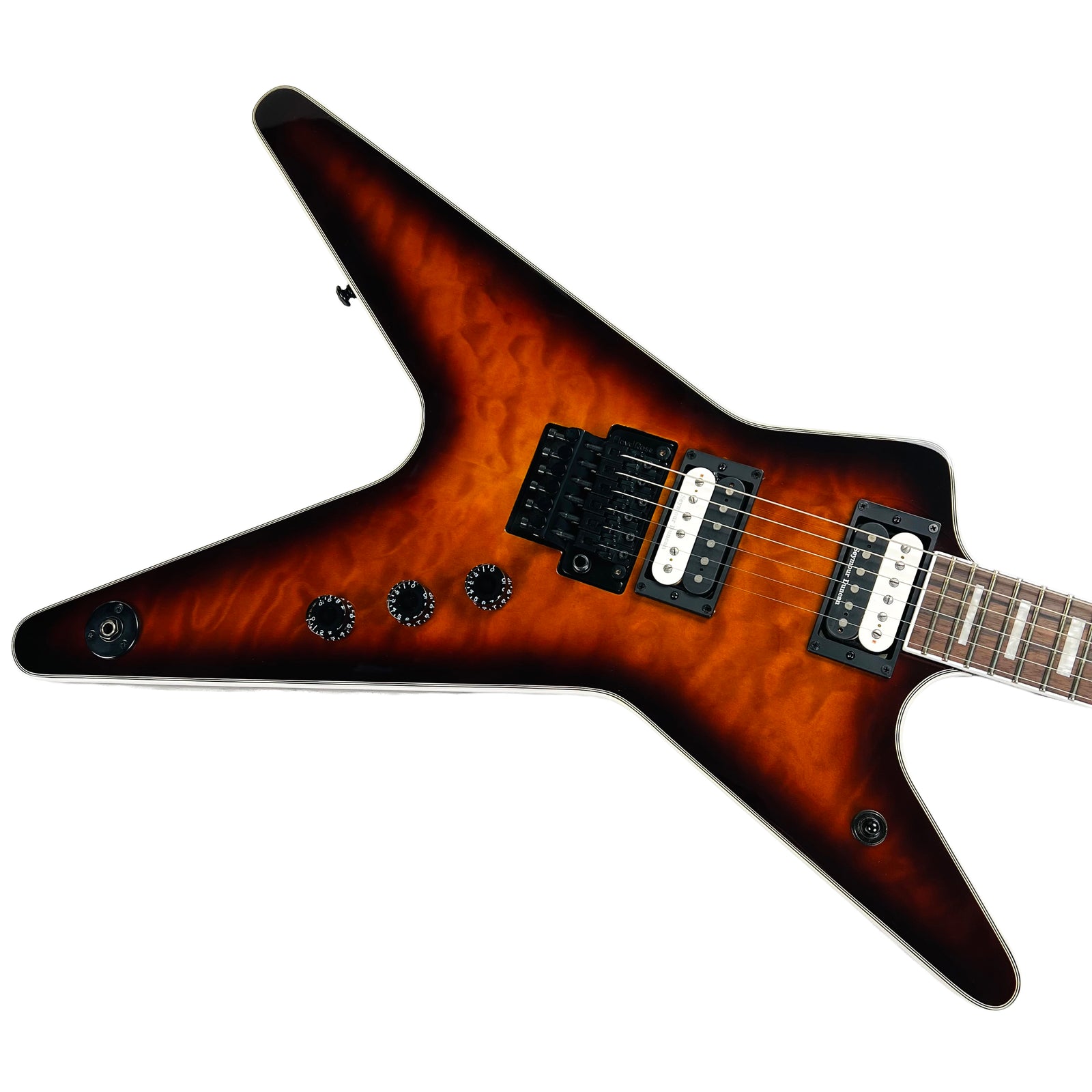

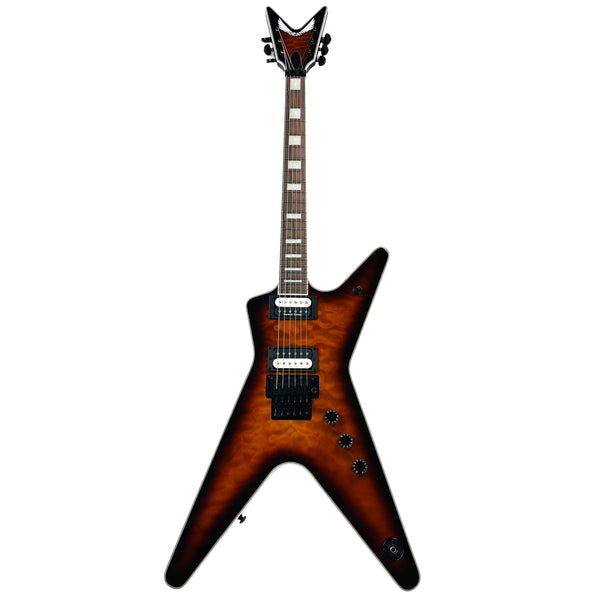

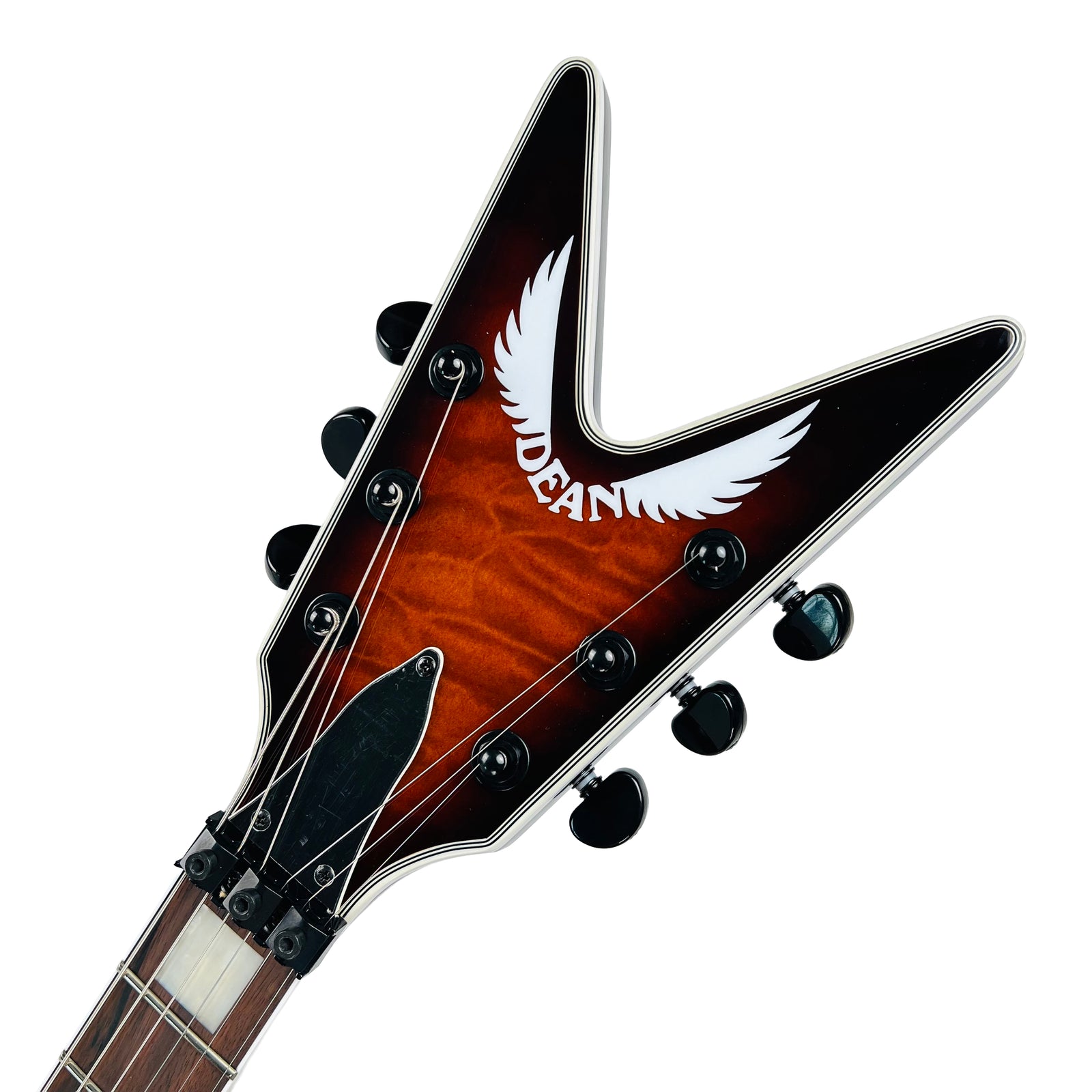

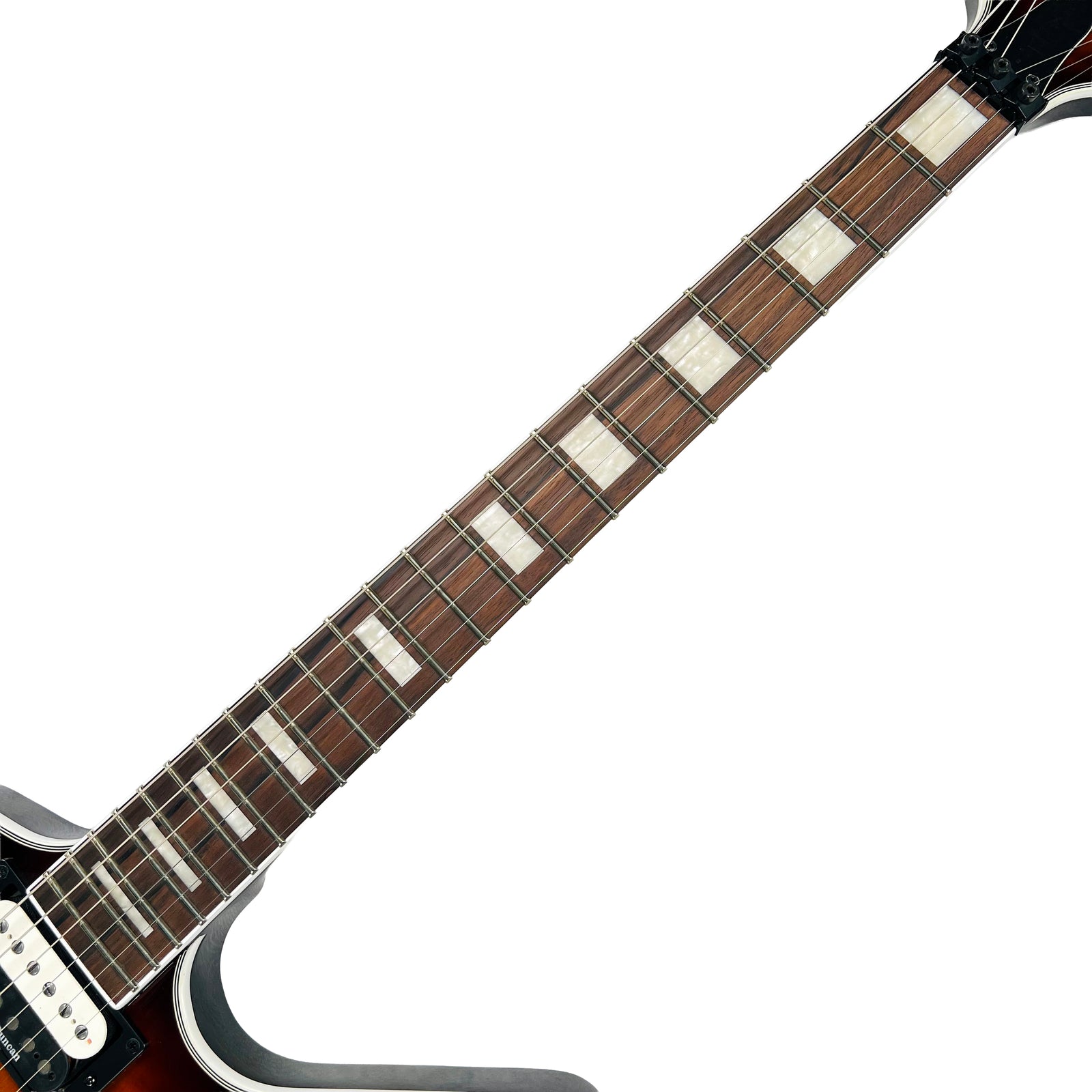

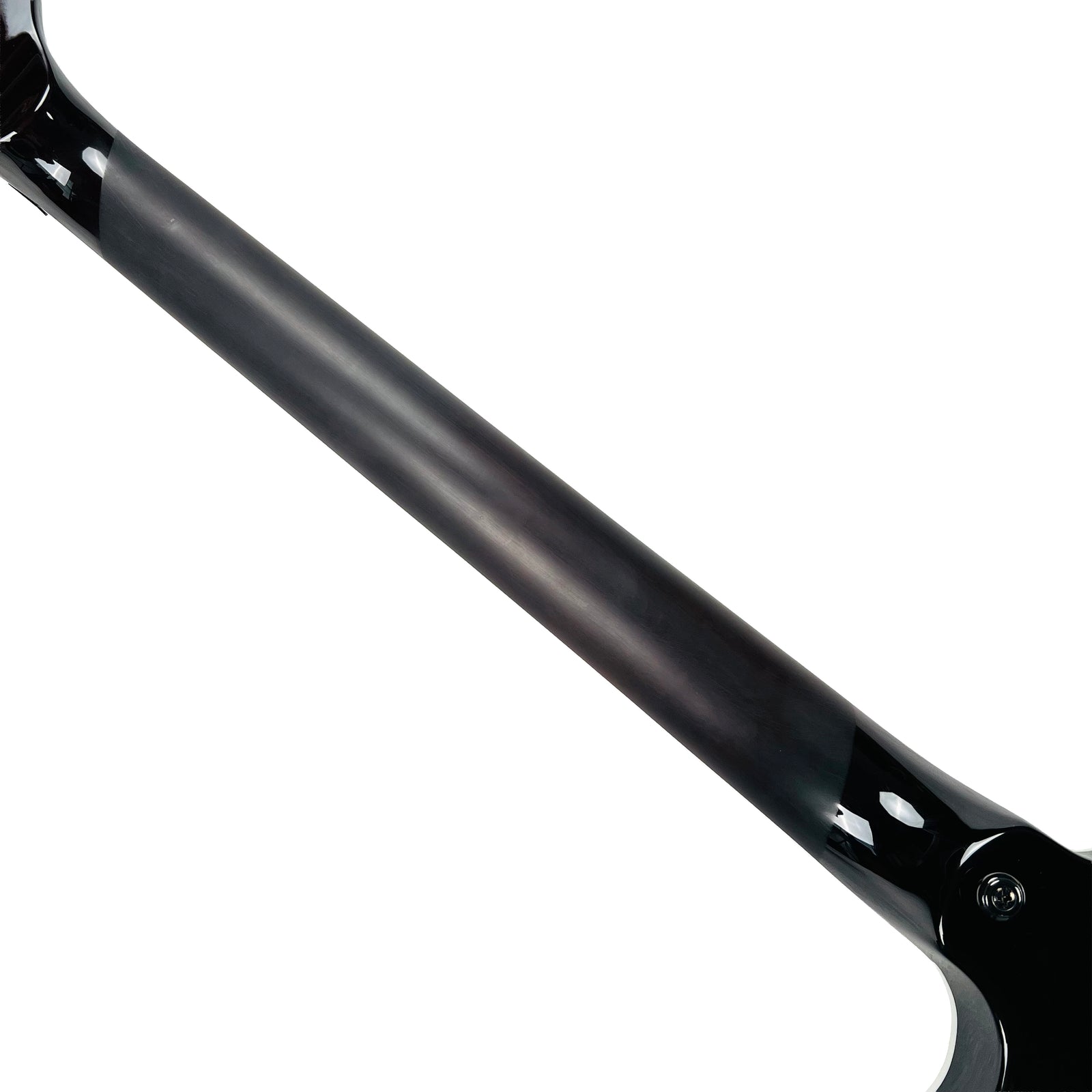

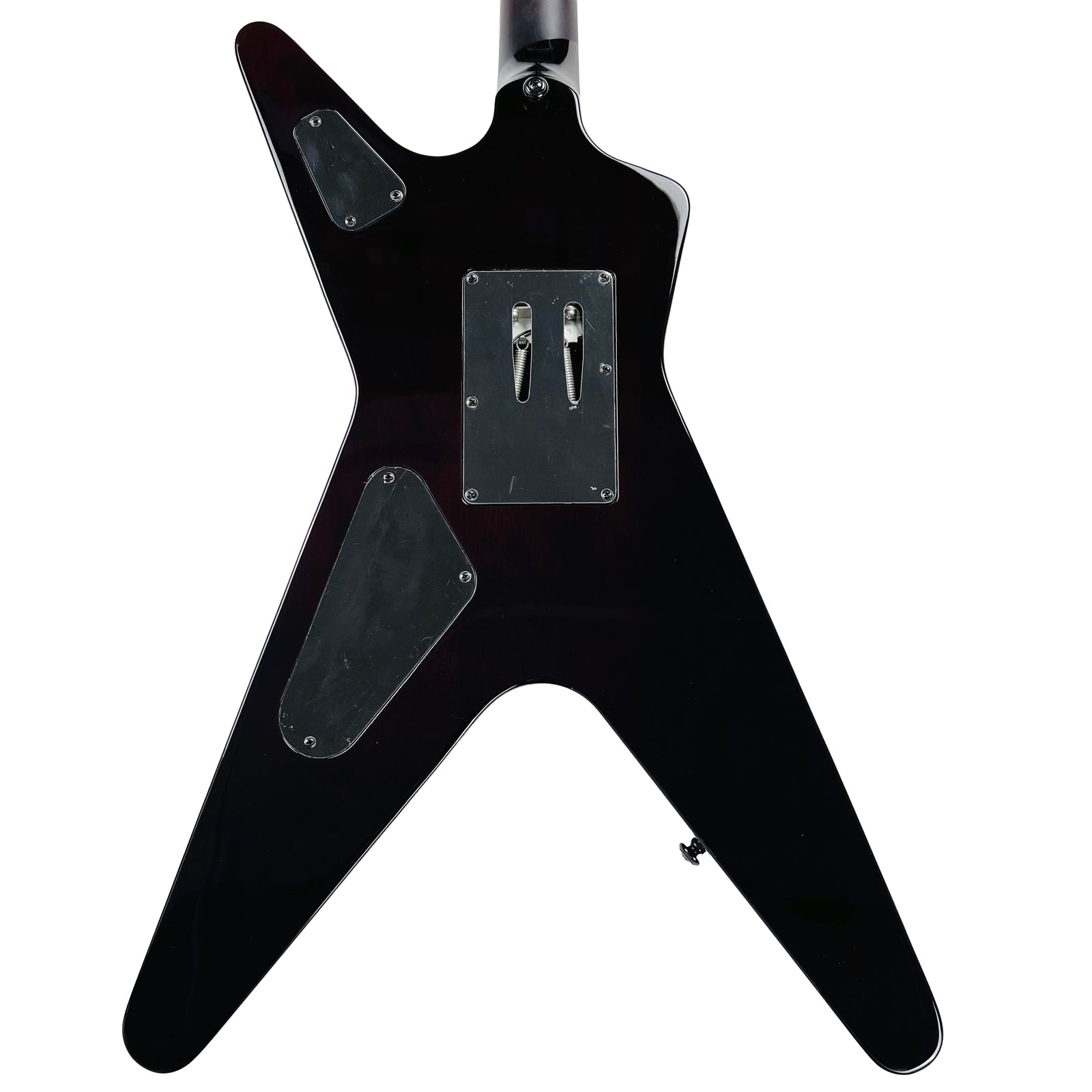

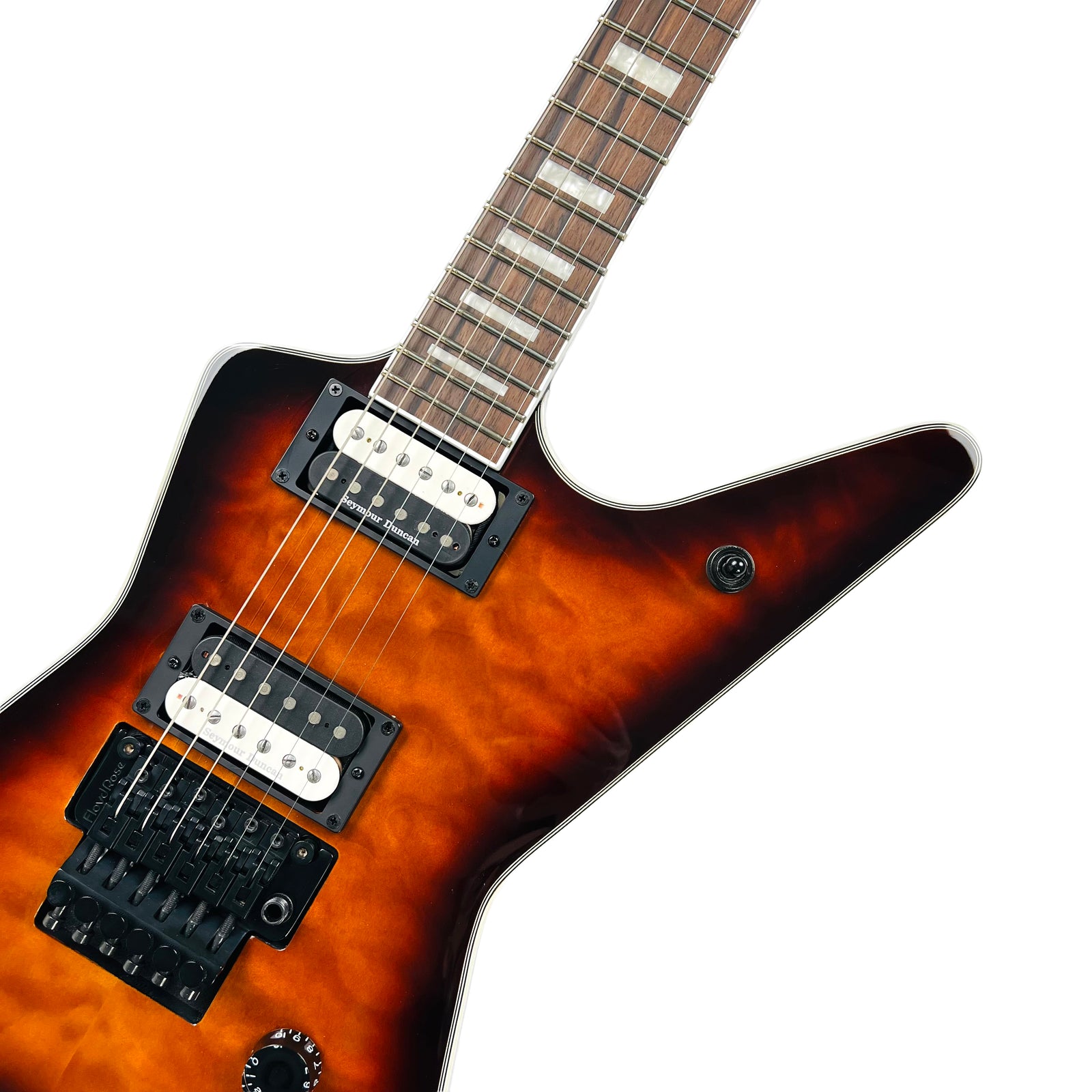

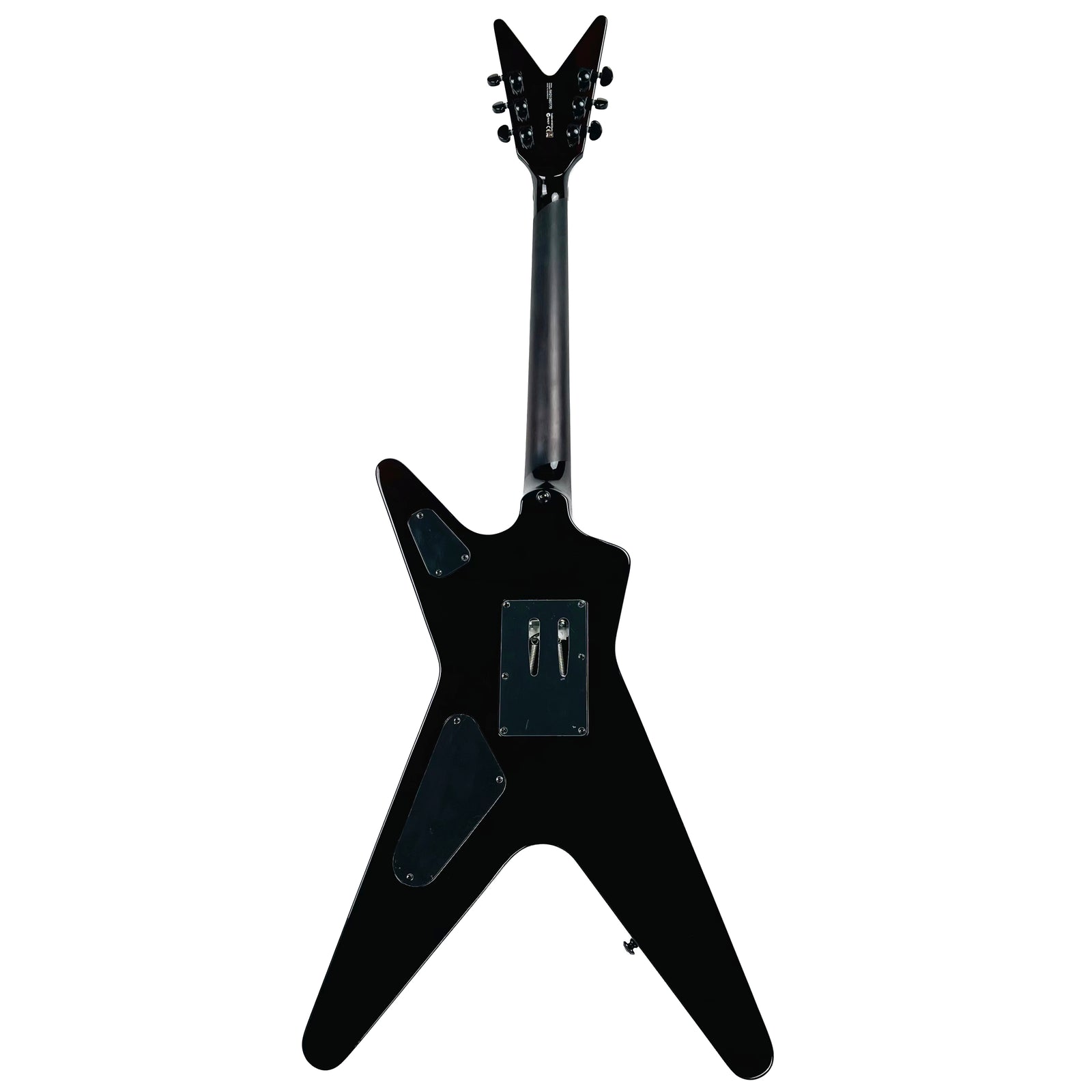

Reference Images

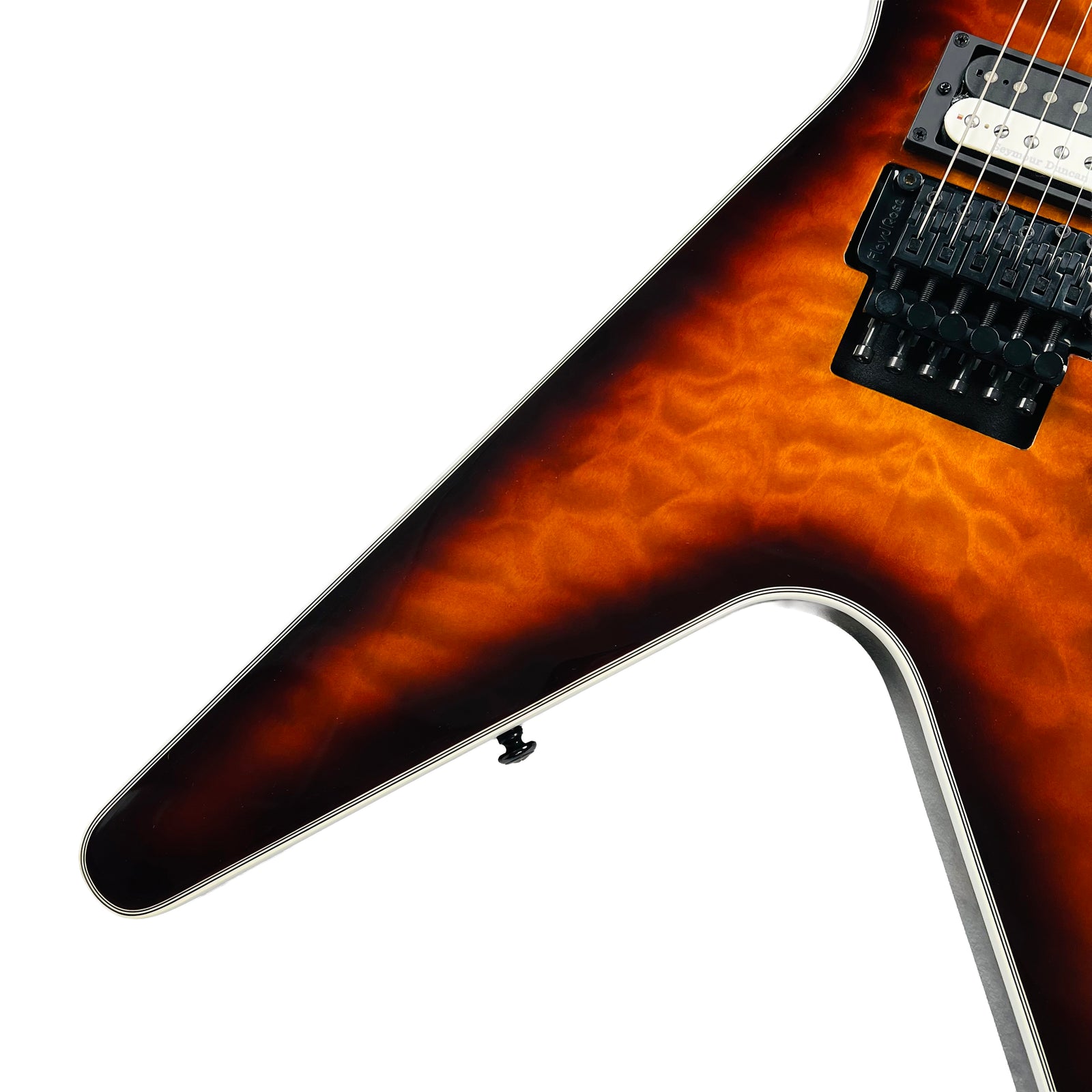

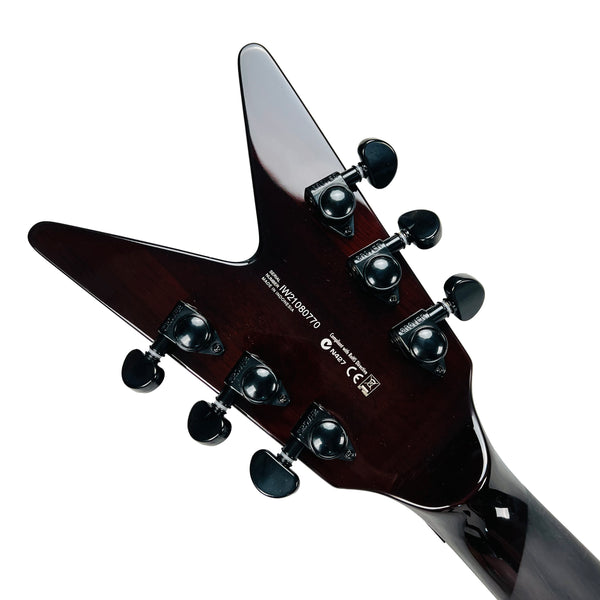

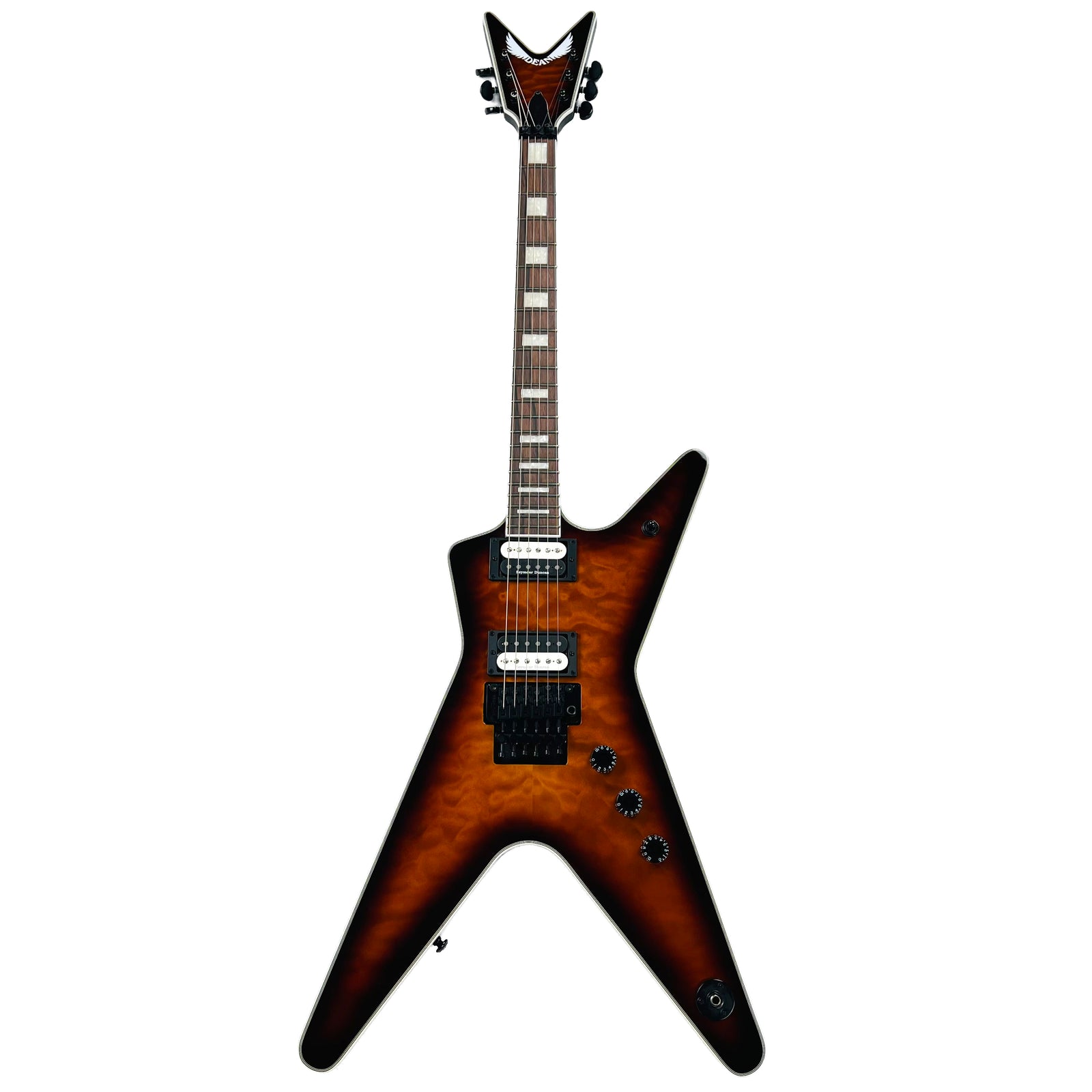

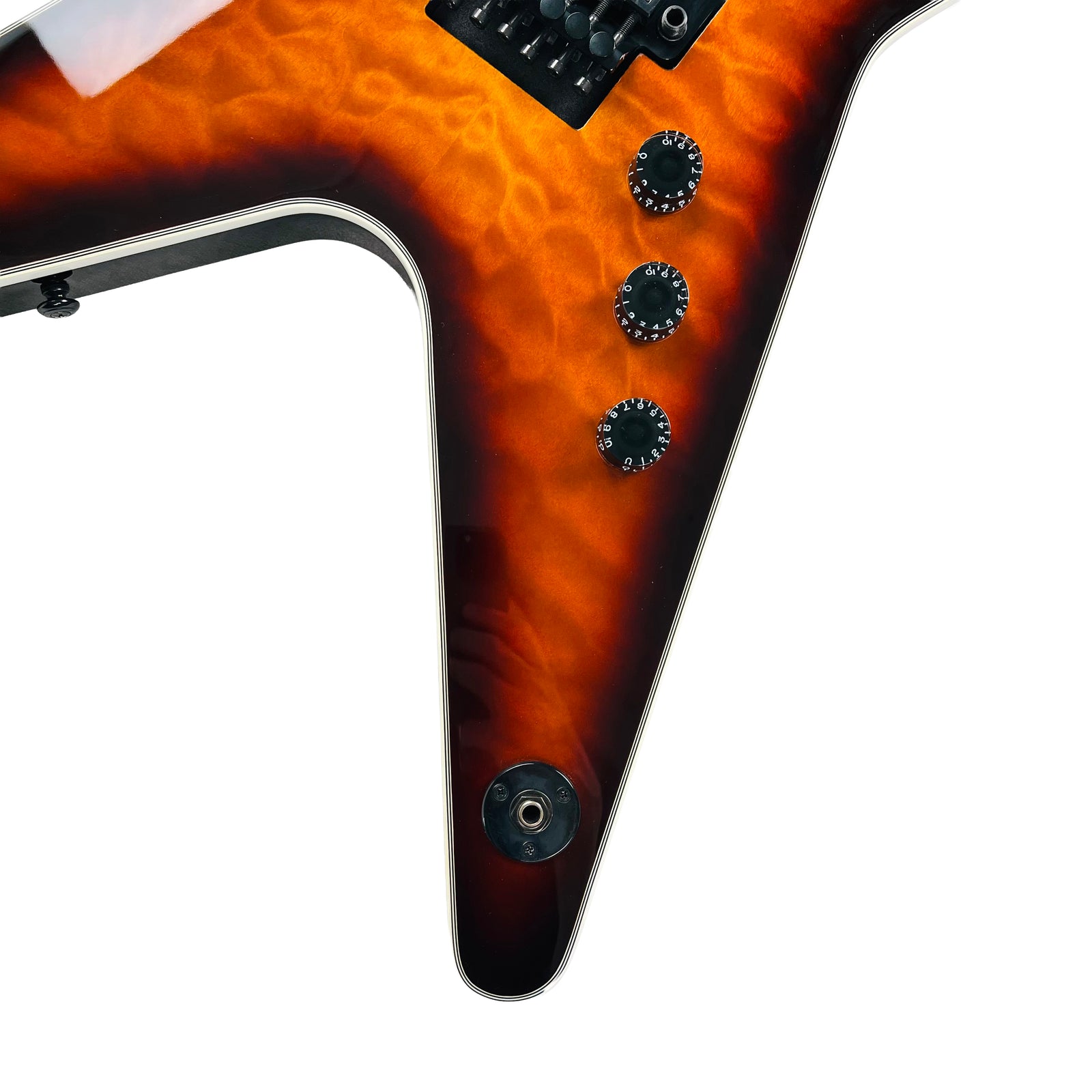

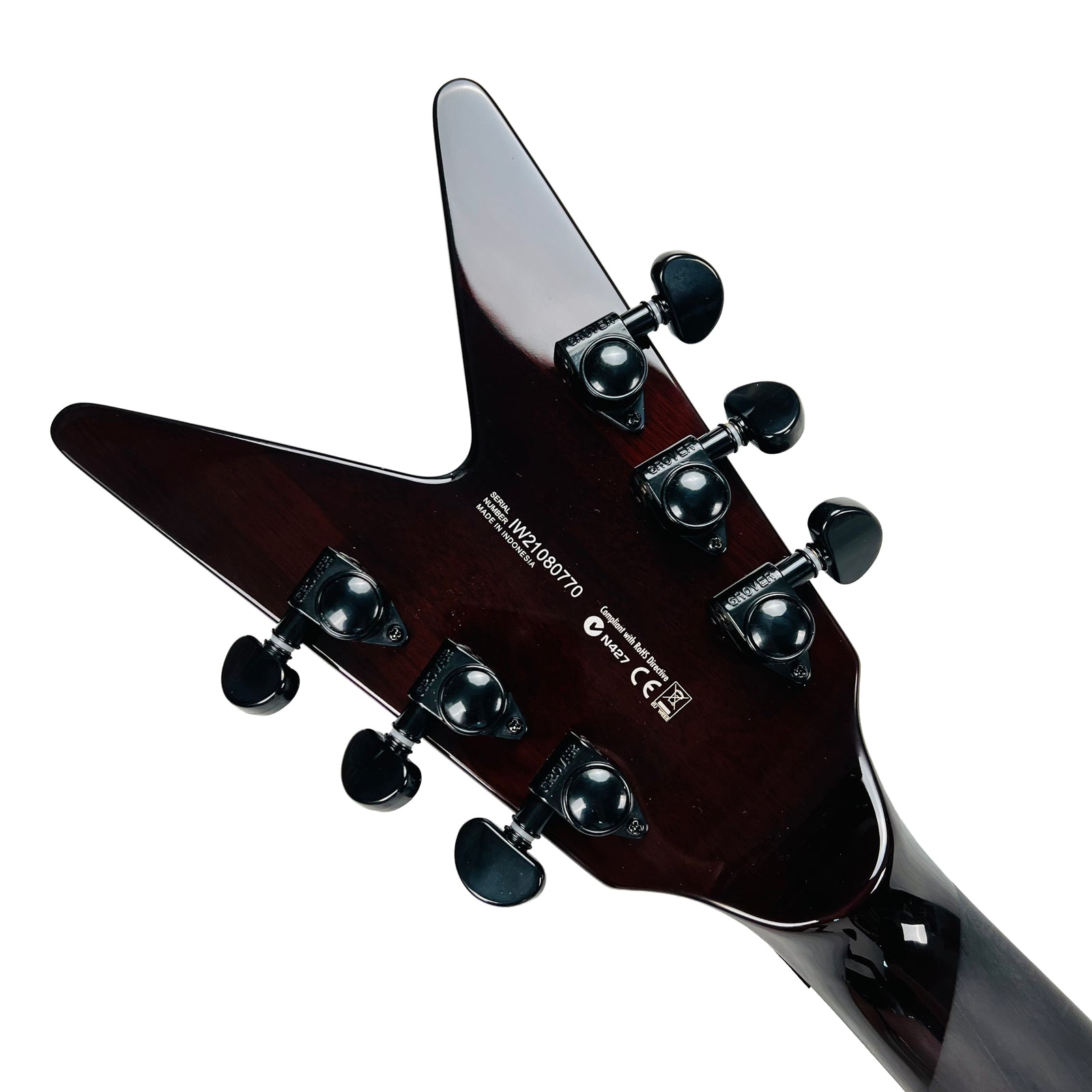

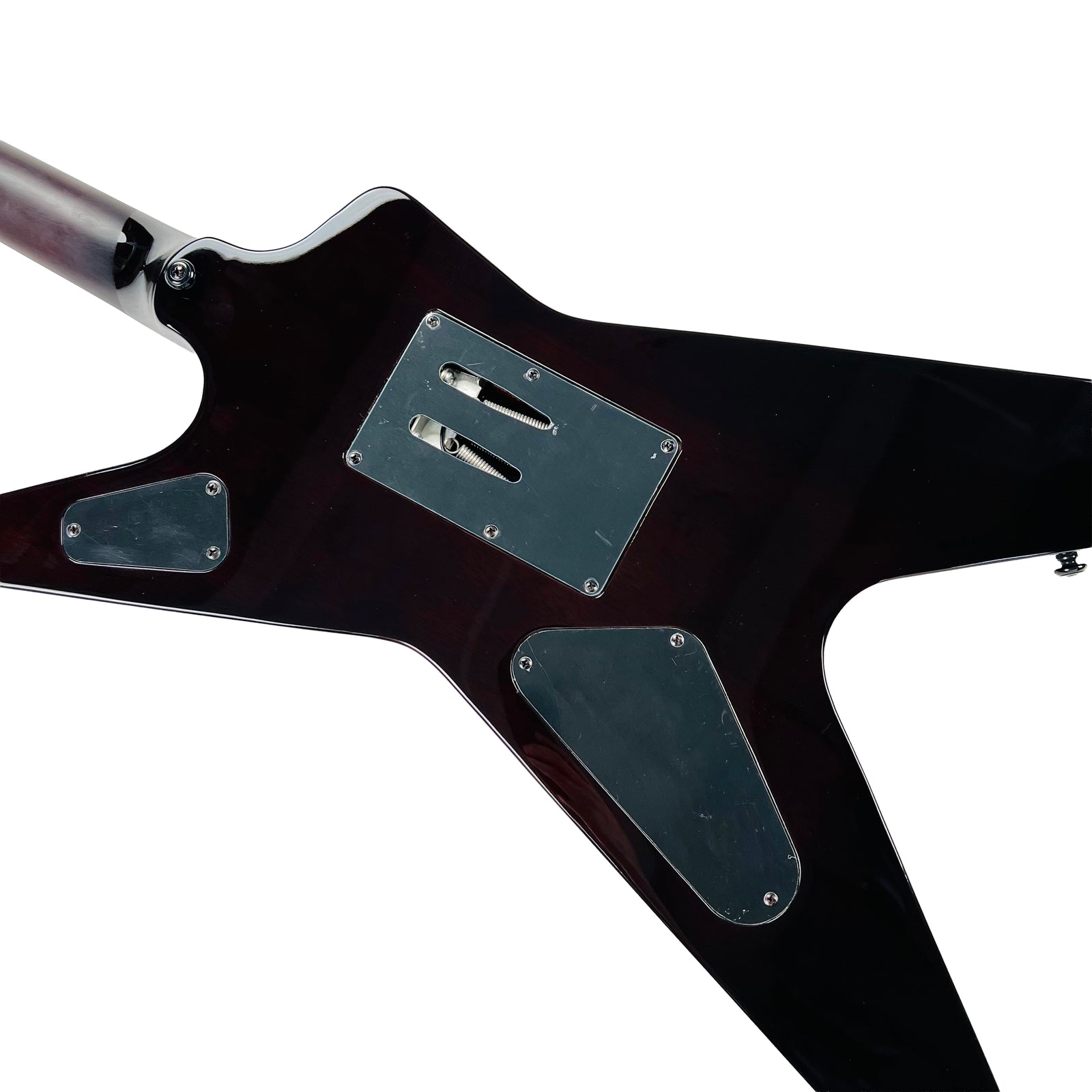

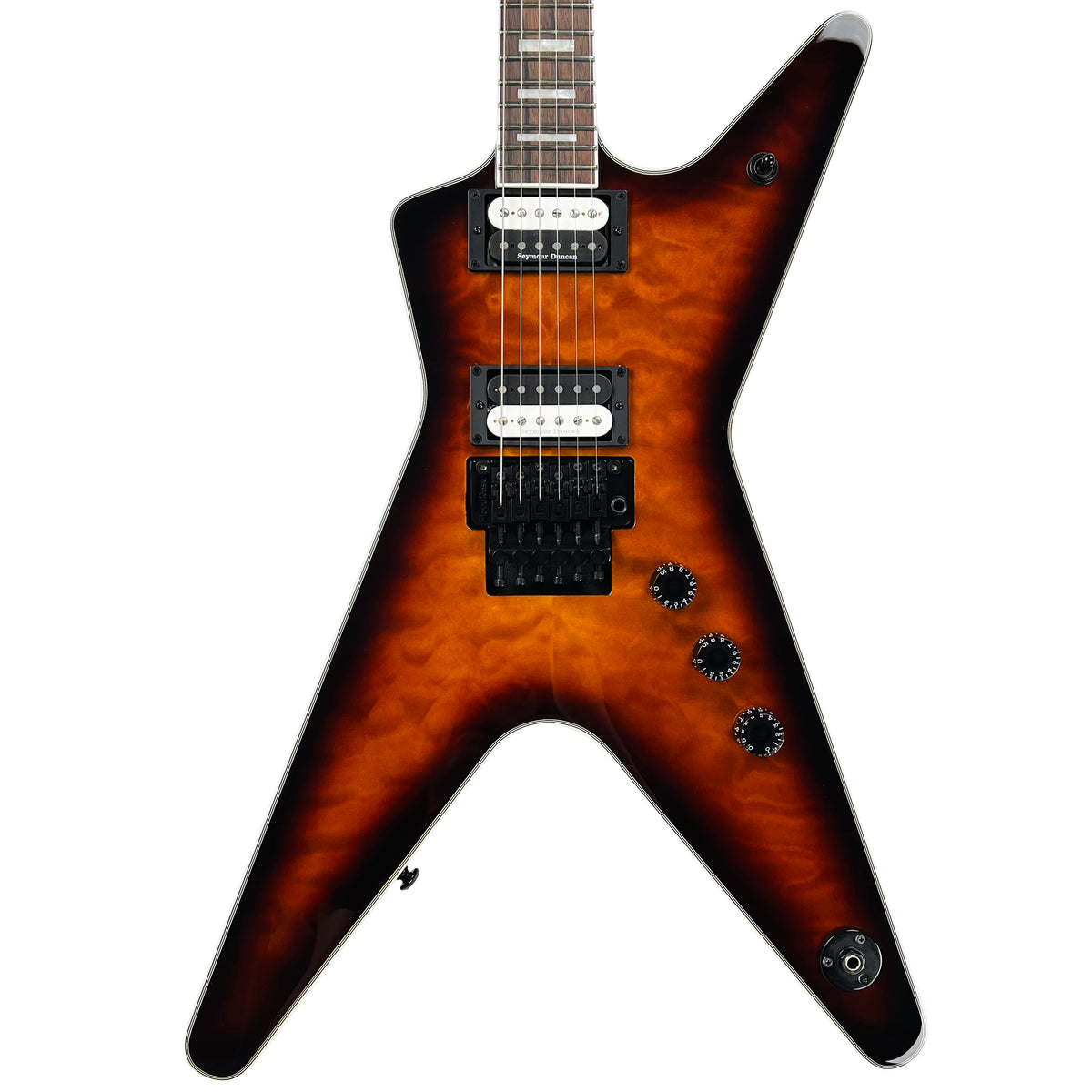

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the ML Select Quilt Top Floyd listed above. For larger pics, click on an image to open in a new tab.
