The Warren Haynes Les Paul Standard is an electric guitar built by Gibson. This solid body guitar was manufactured in the United States and is a Gibson Artist Signature Model model. Key features include Maple Top, Mahogany Body, Mahogany Neck, Rosewood Fingerboard, P-90 DC Soapbar Pickups and 60s Cherry finish. The specs listed below pertain to the 2024 product year model pictured on this page.
Factory Specs
- Maple Top
- Mahogany Body
- Mahogany Neck

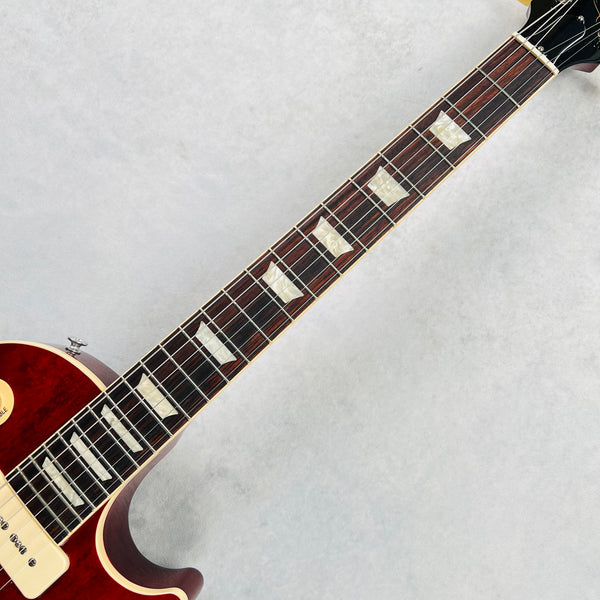

- Rosewood Fingerboard
- 22 Frets
- Trapezoid Inlays
- 1.7” Nut Width
- 24.75” Scale Length
- 12” Radius
- Medium Jumbo Frets
- Set Neck Construction
- Graph Tech Nut

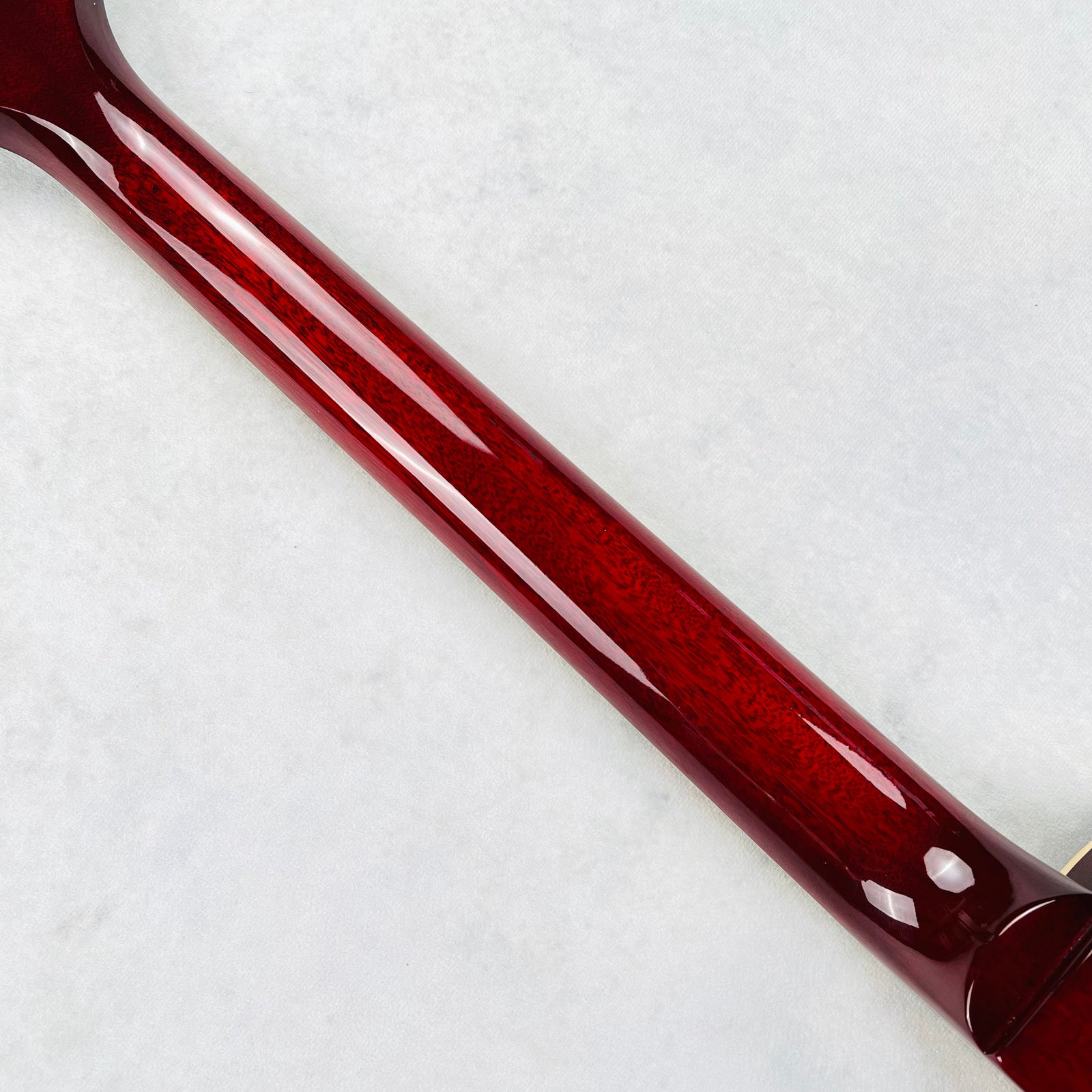

- 50s Vintage Neck Profile

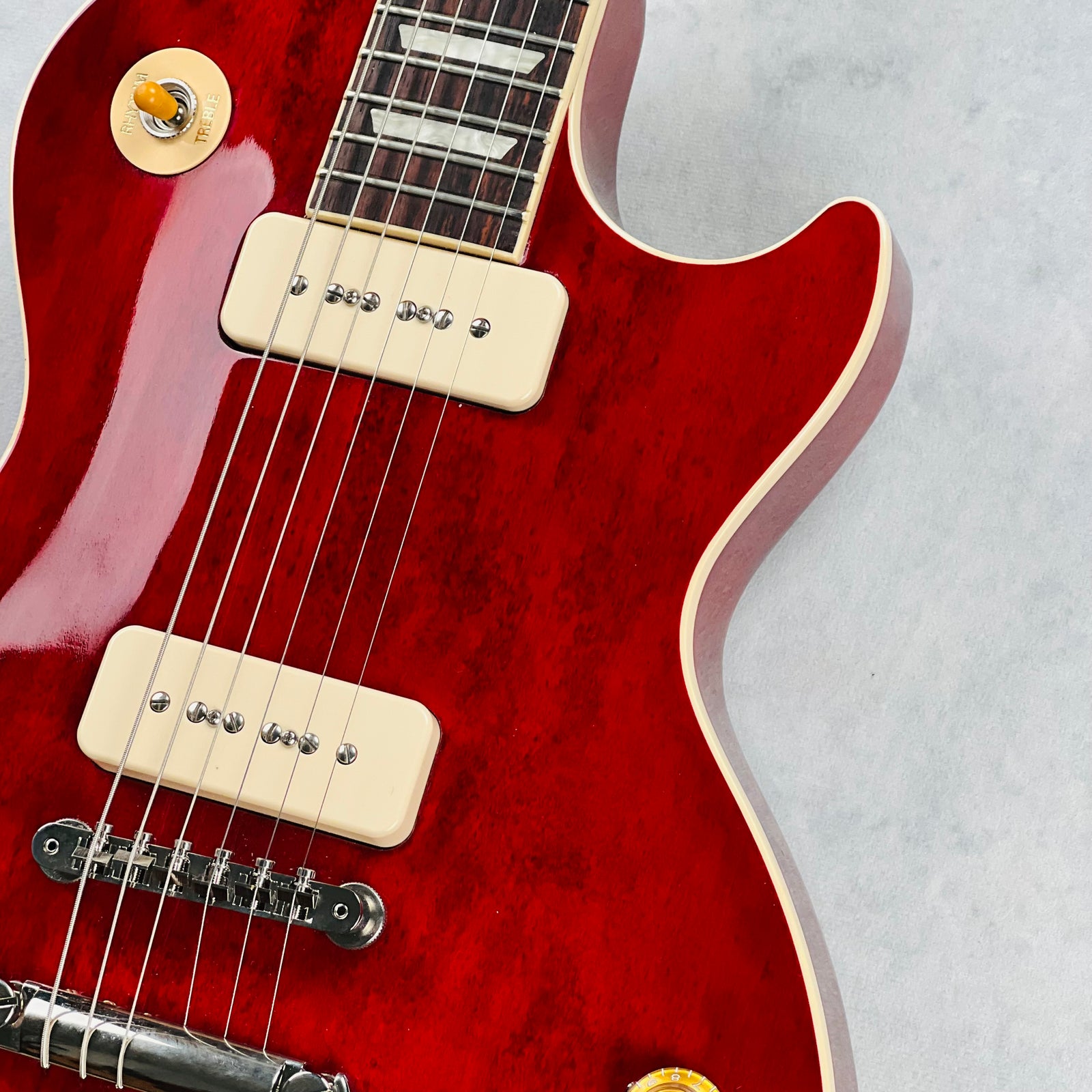

- P-90 DC Soapbar Pickups
- 2 Volume & 2 Tone Controls
- Mini Toggle for +15dB Clean Boost
- Hand Wired Electronics
- Orange Drop Tone Capacitors

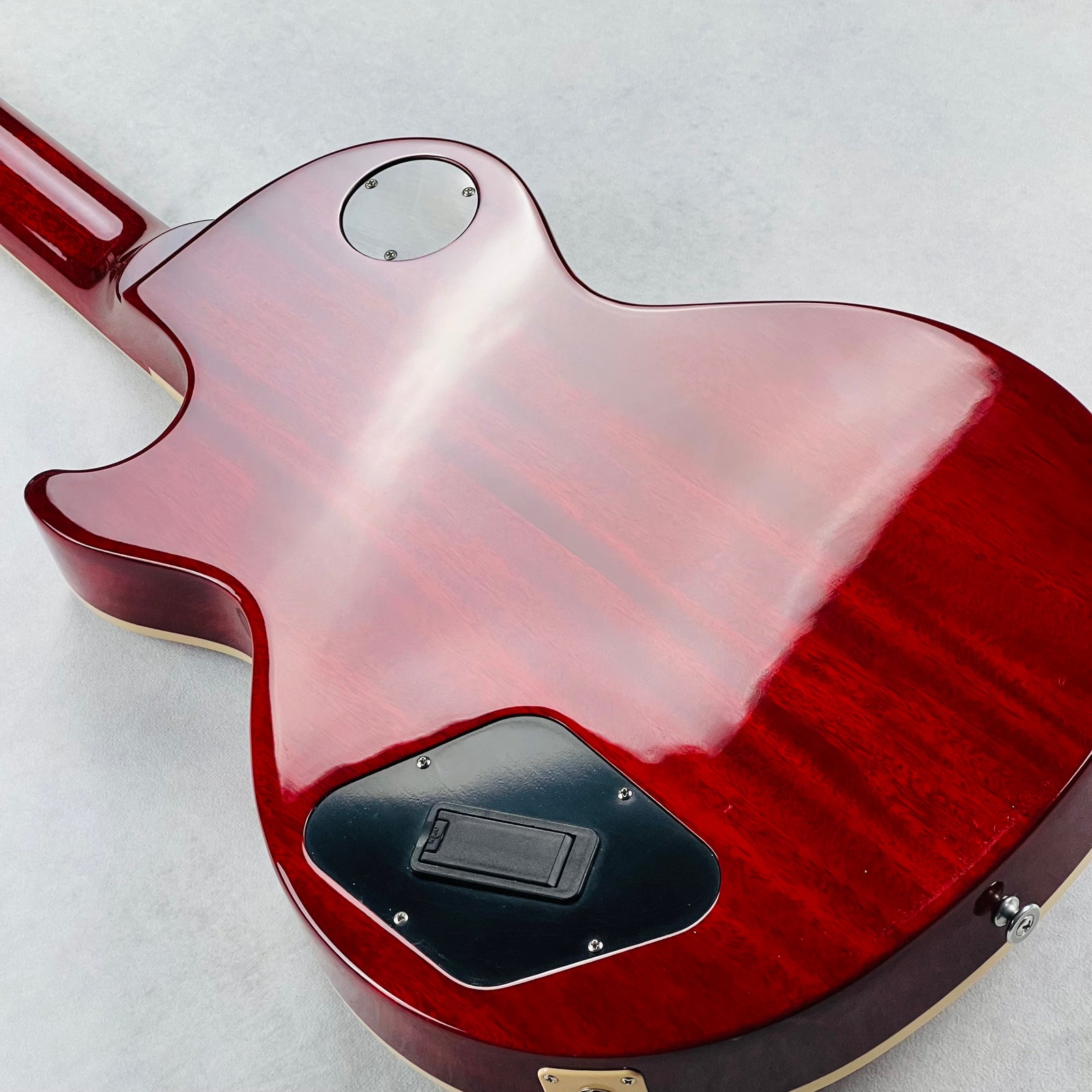

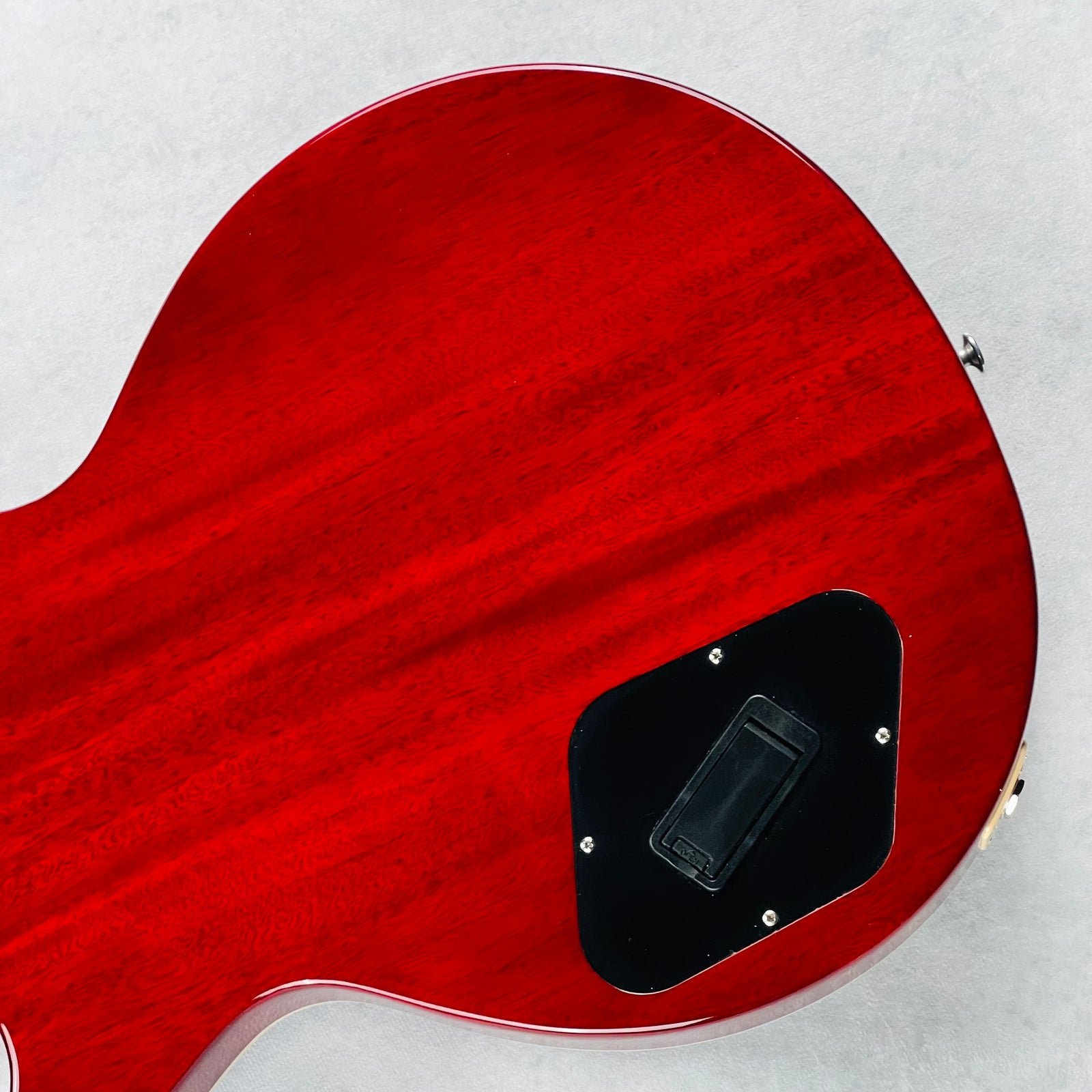

- 9v Preamp Battery Mounted on Rear Control Plate
- ABR-1 Bridge
- Aluminum Stop Tailpiece
- Nickel Hardware

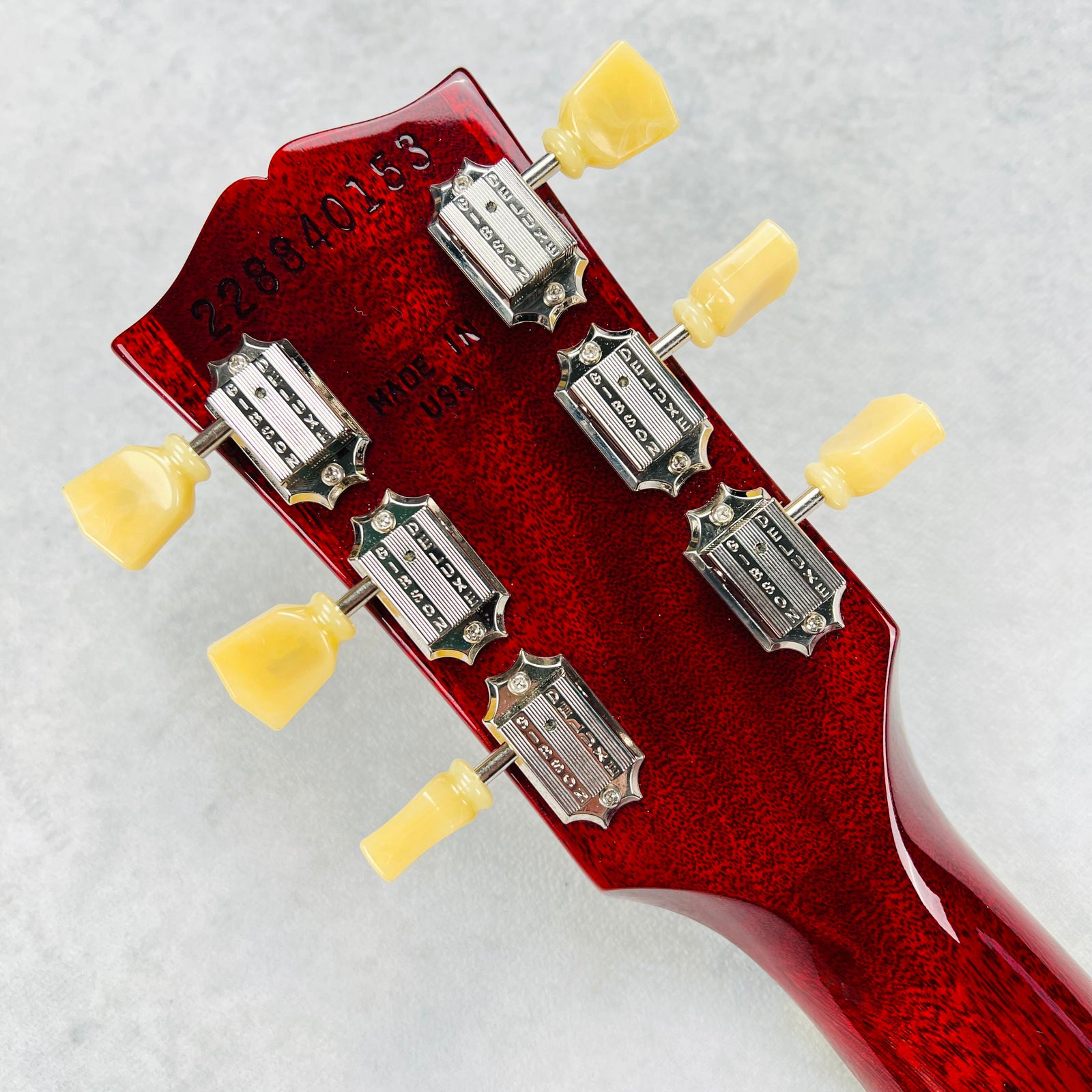

- Vintage Deluxe Tuners with Keystone Buttons
- Lacquer Finish
Reference Images

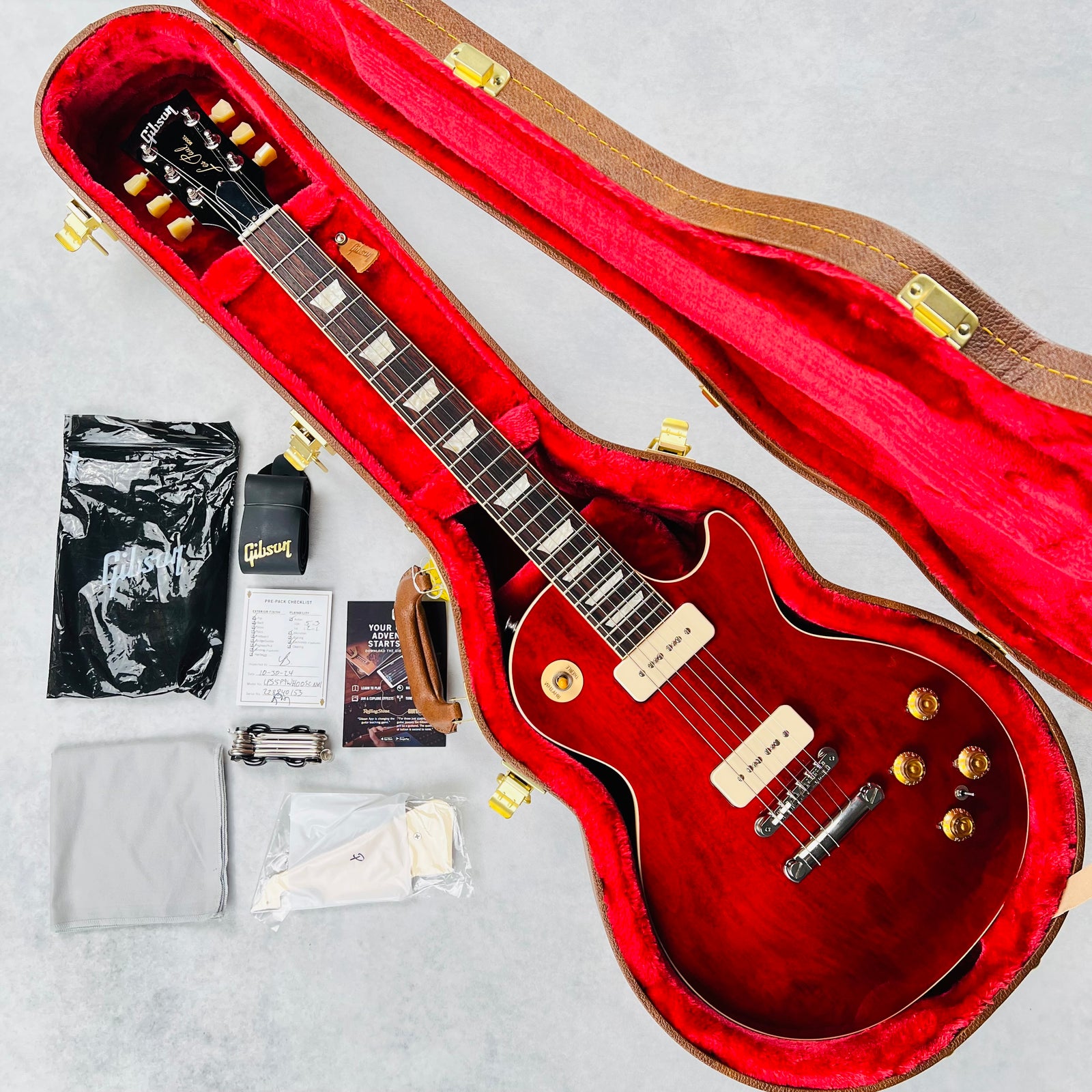

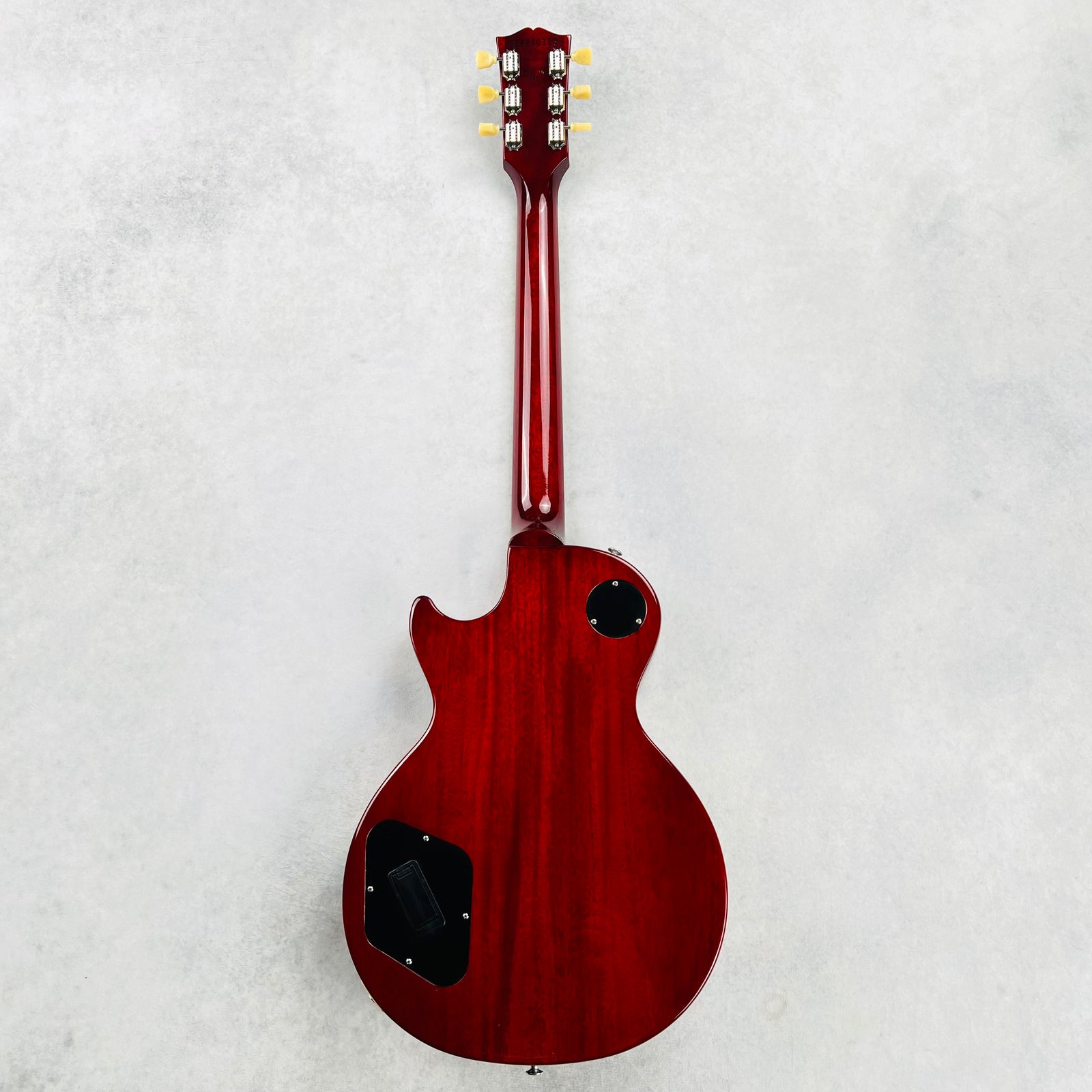

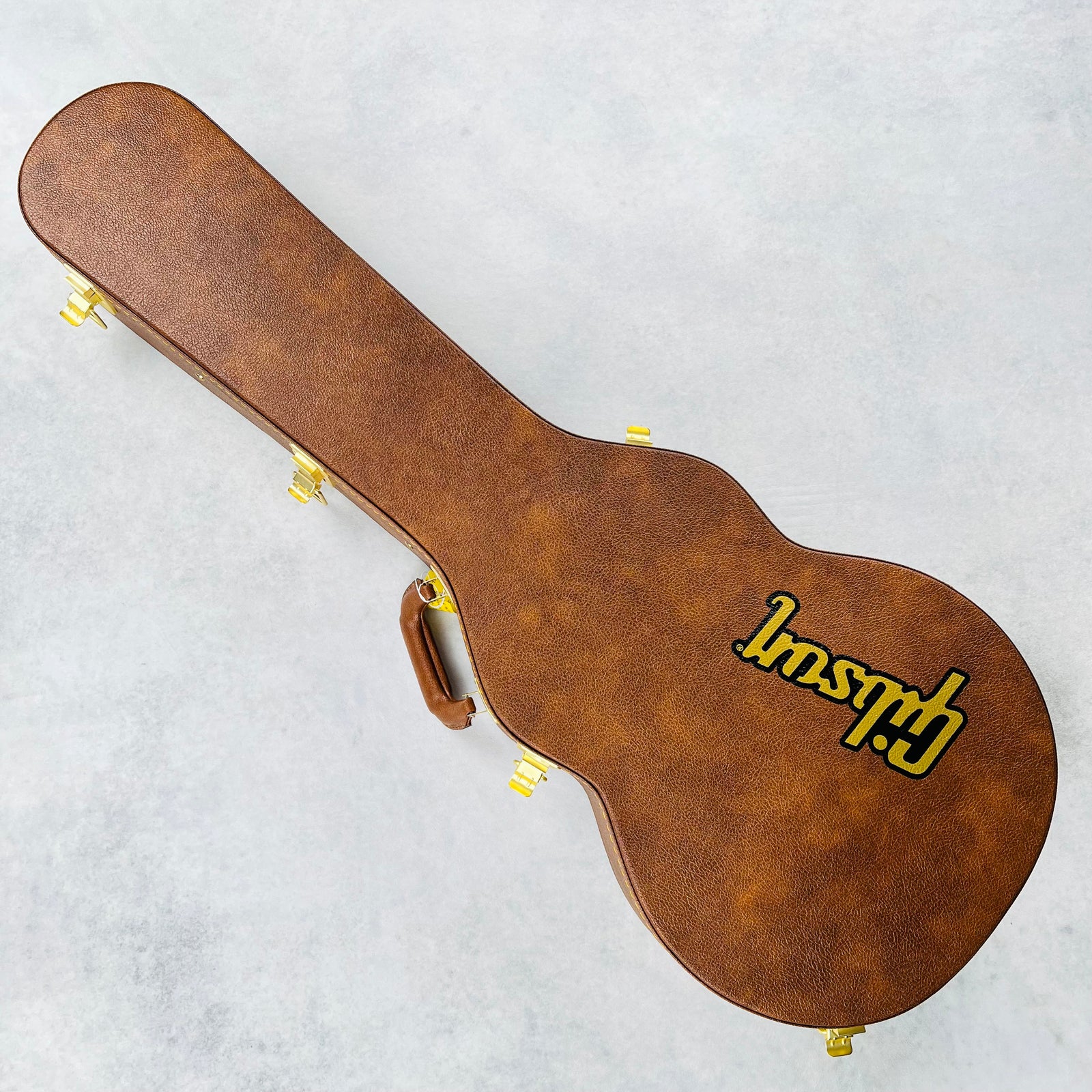

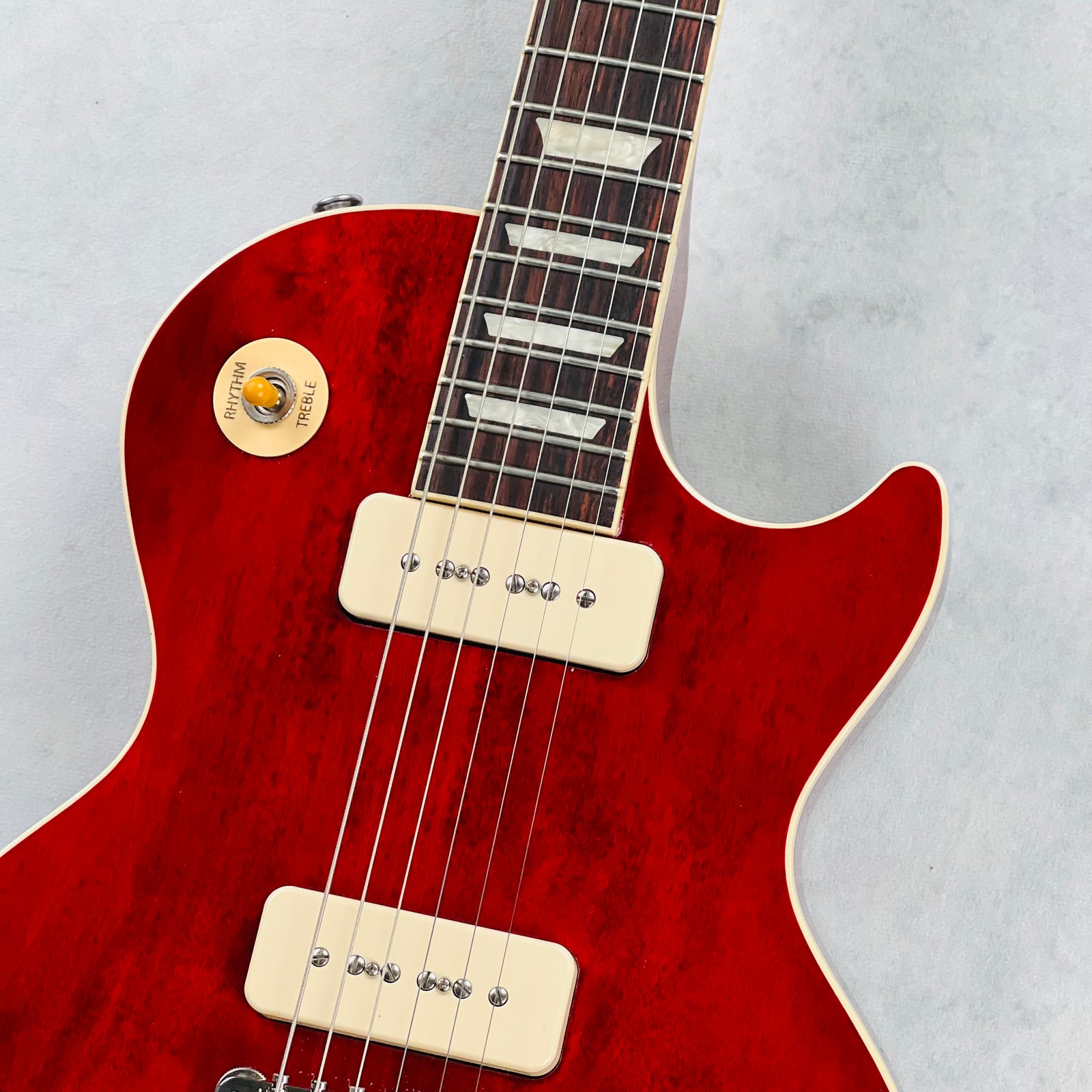

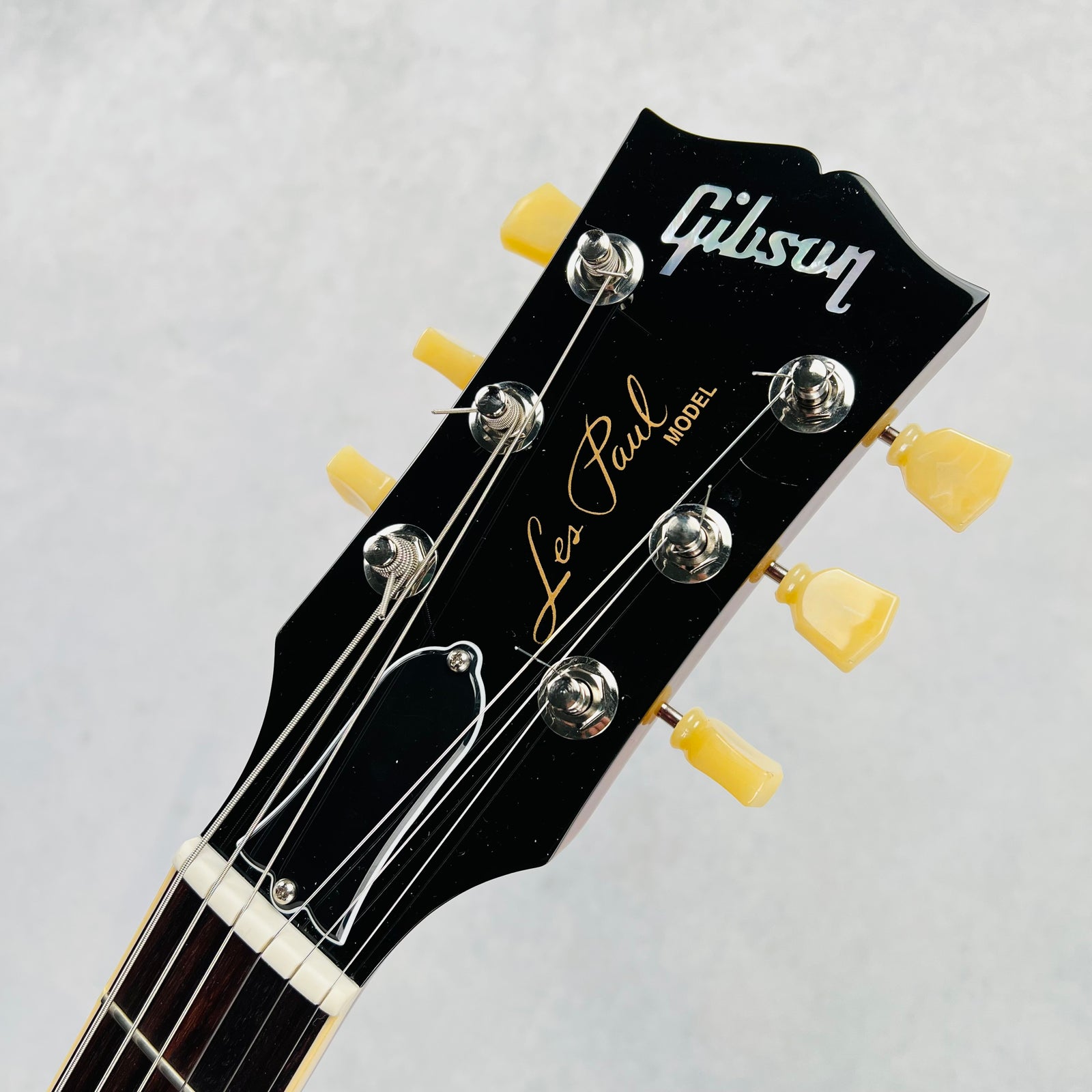

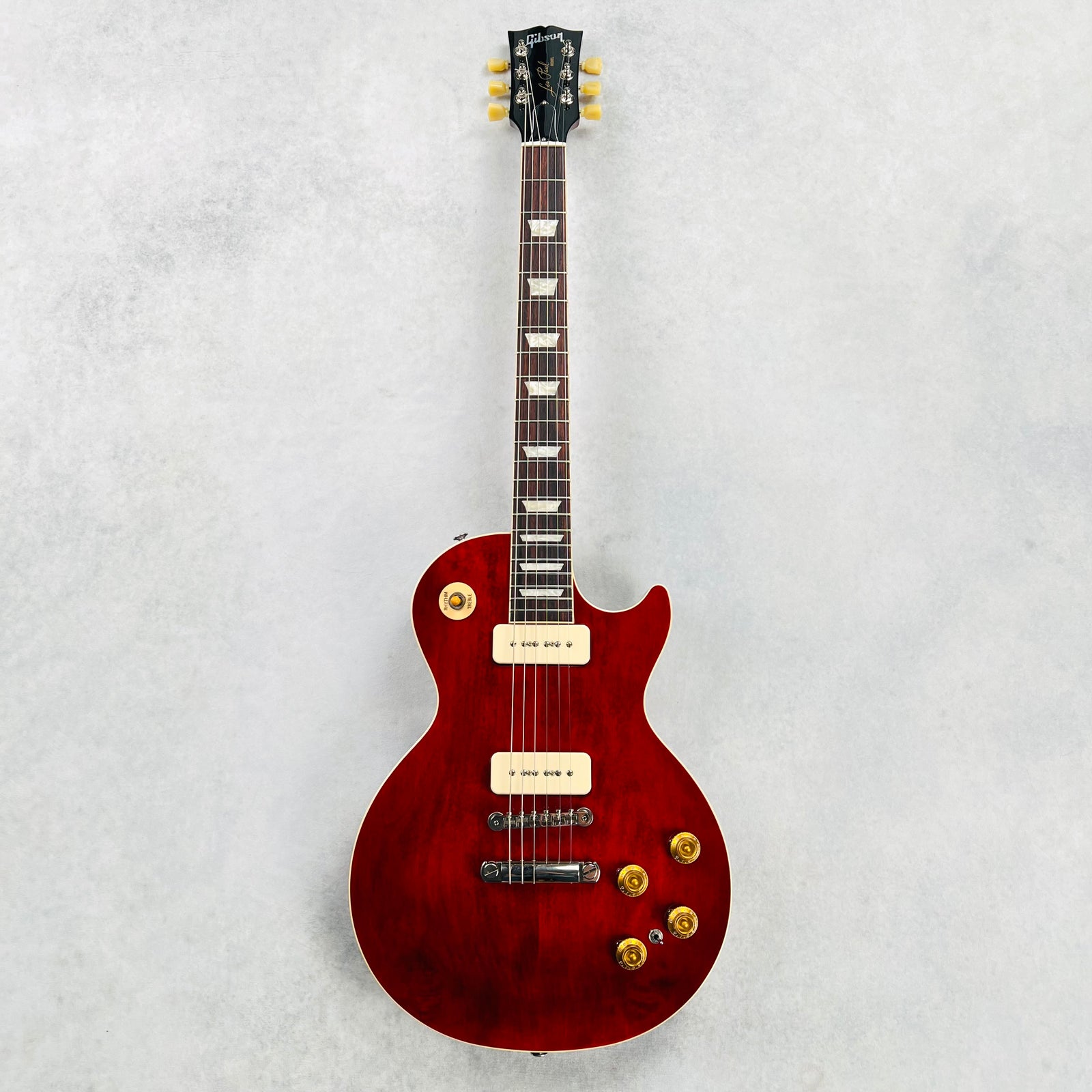

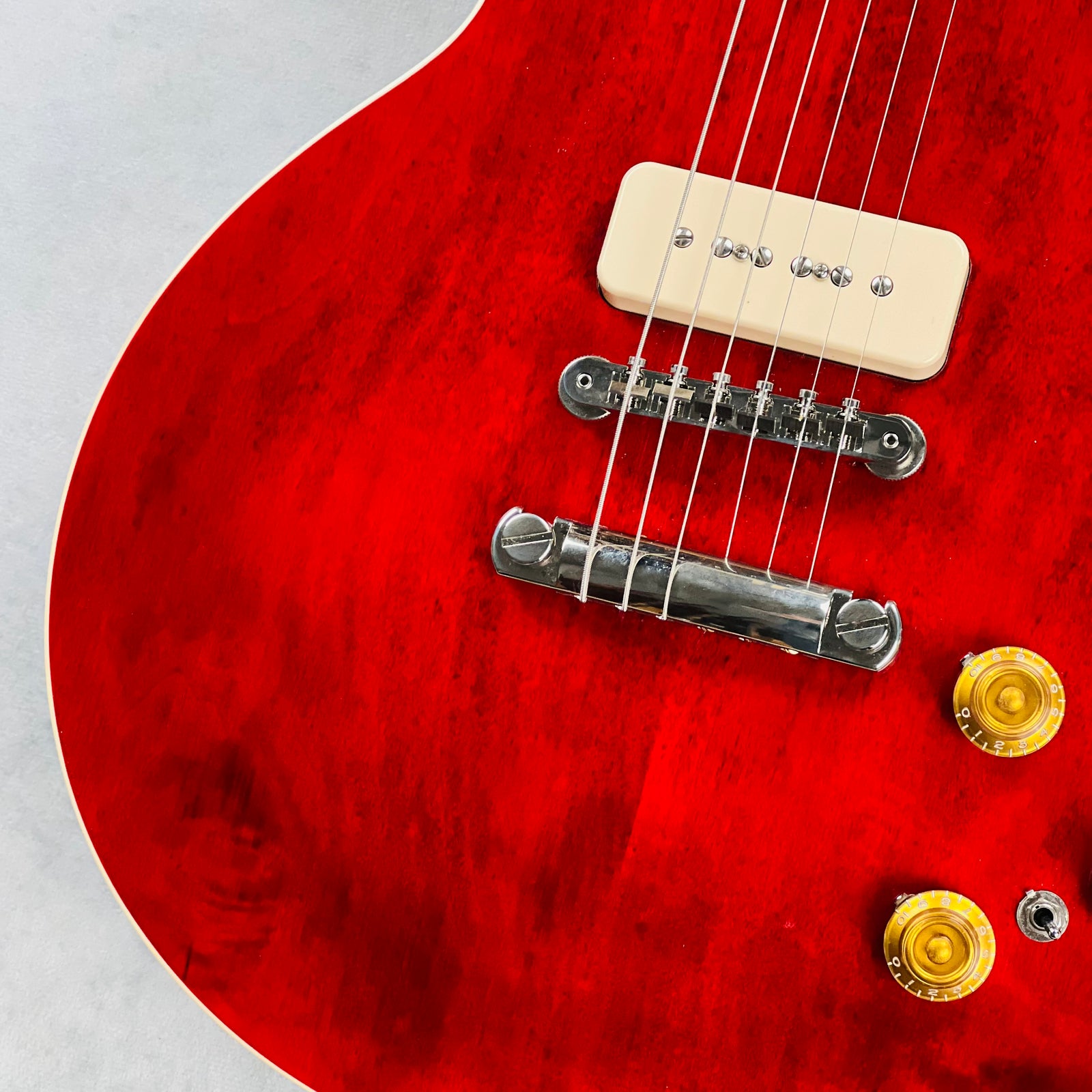

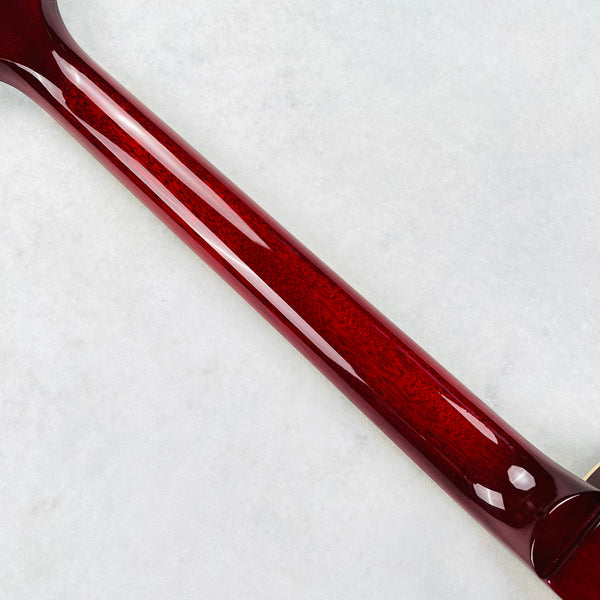

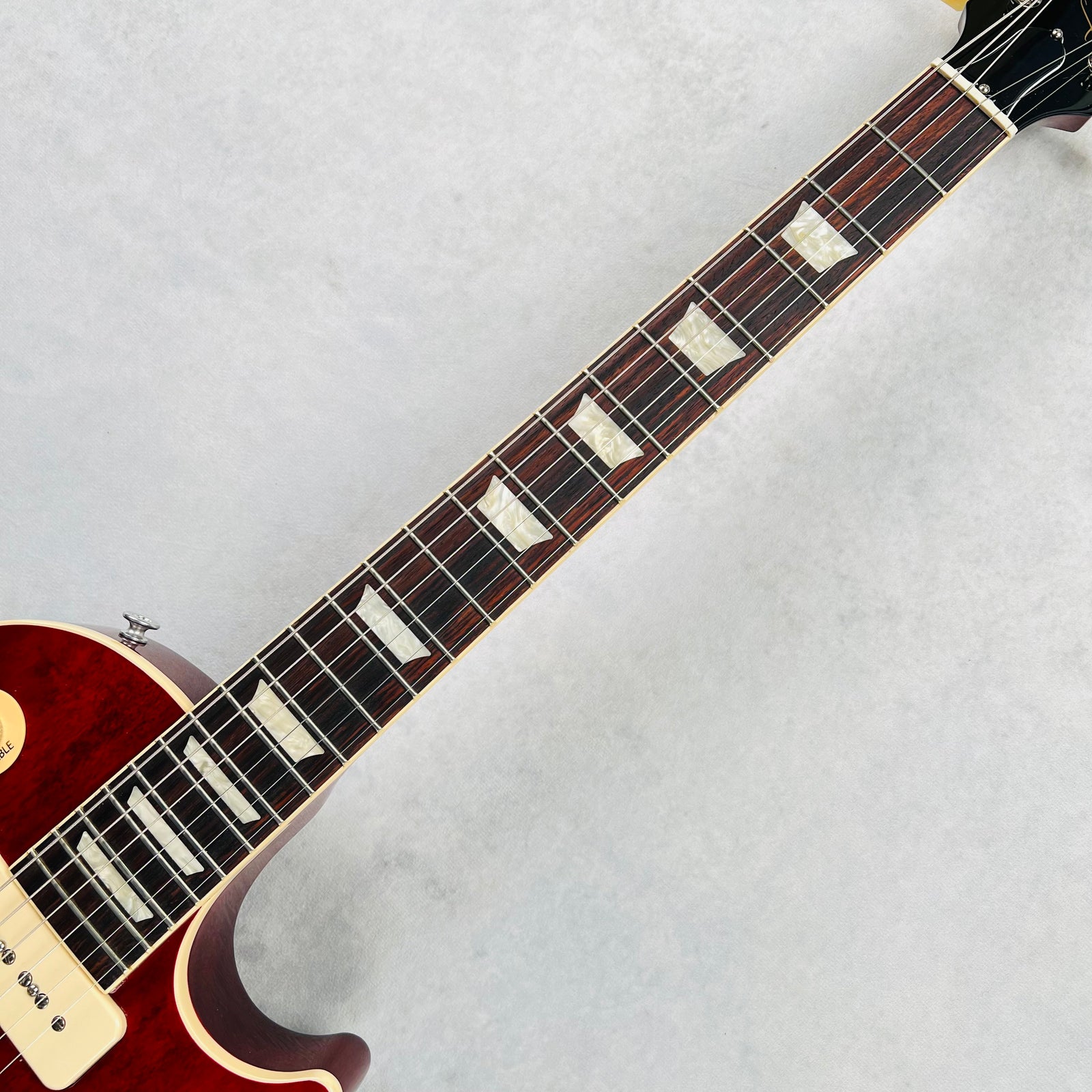

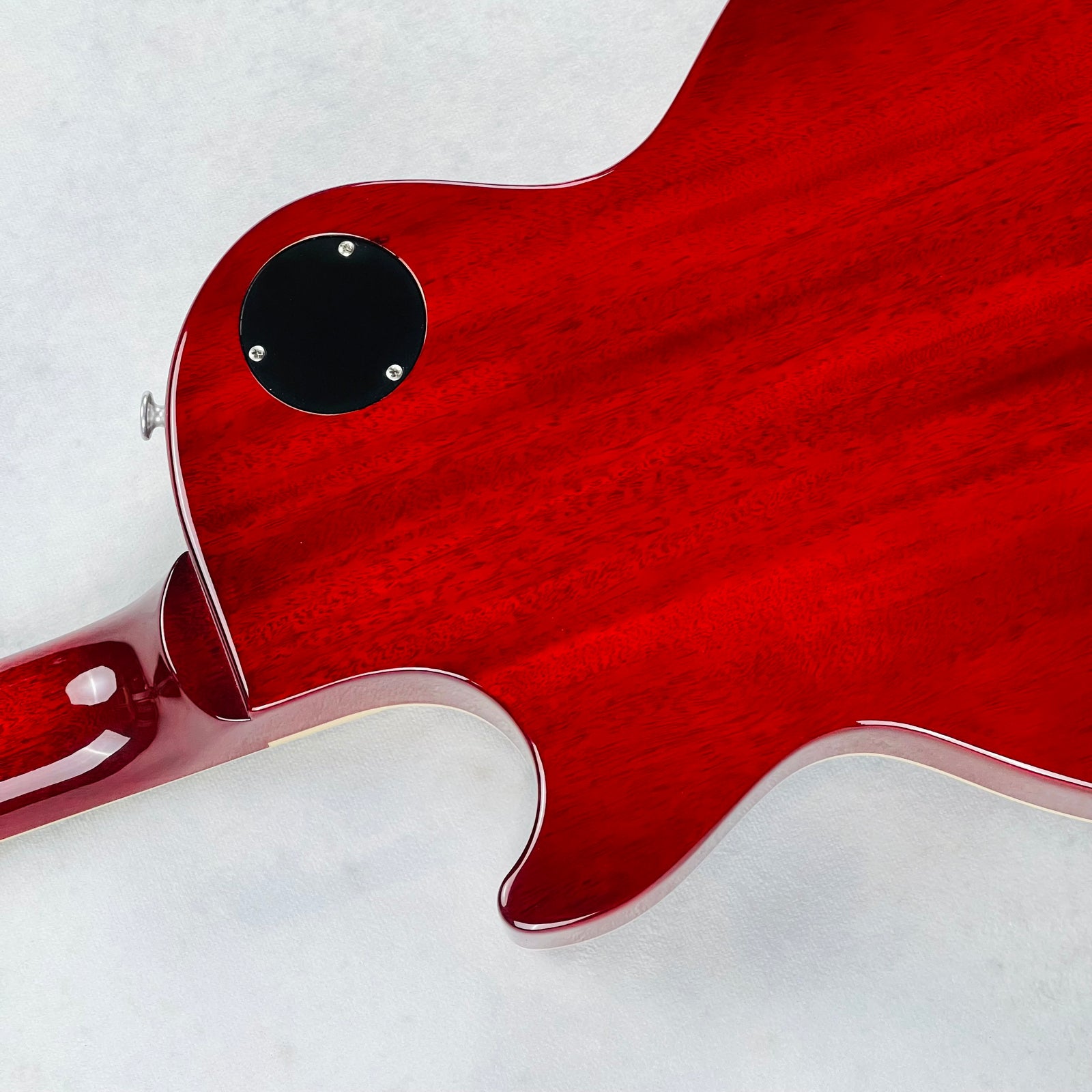

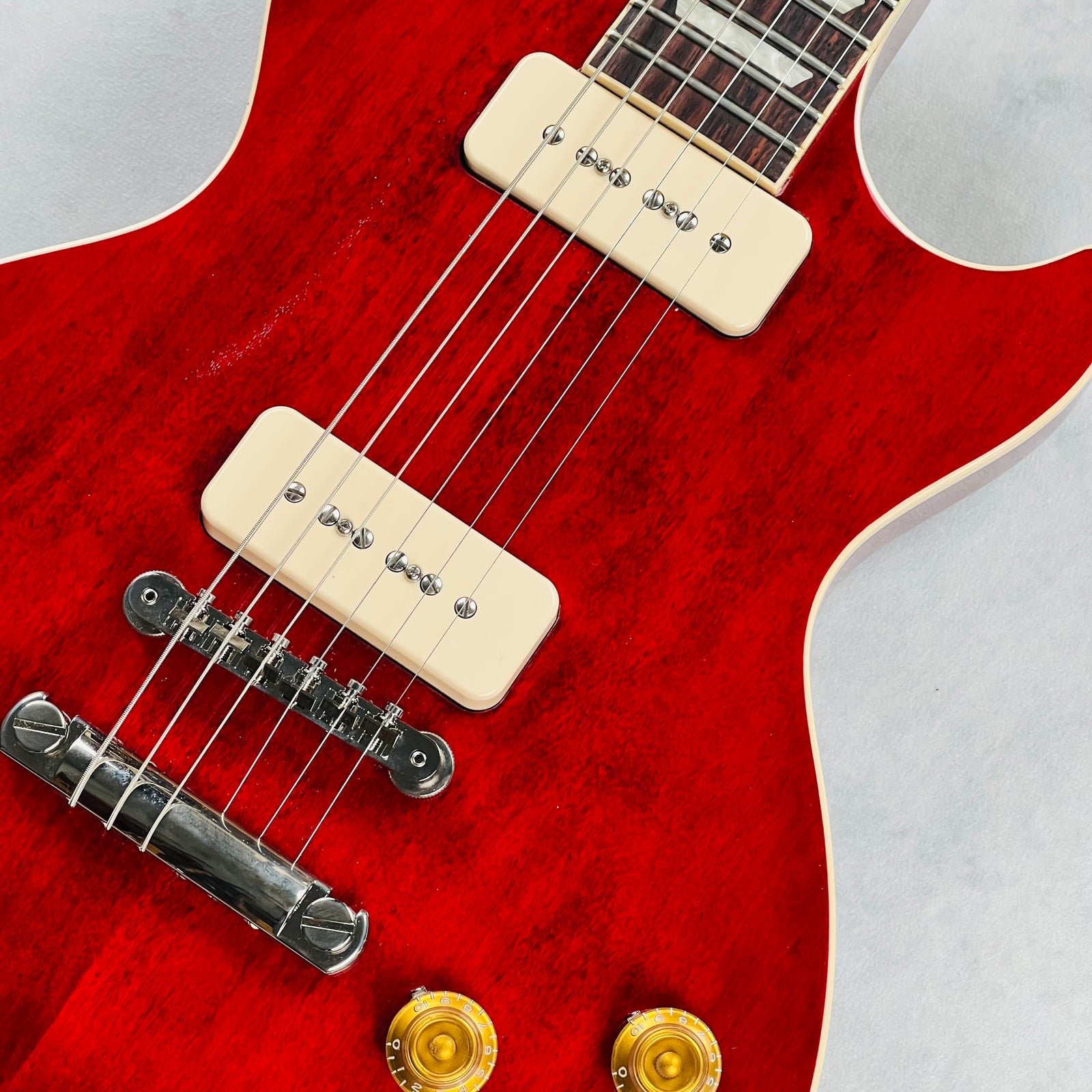

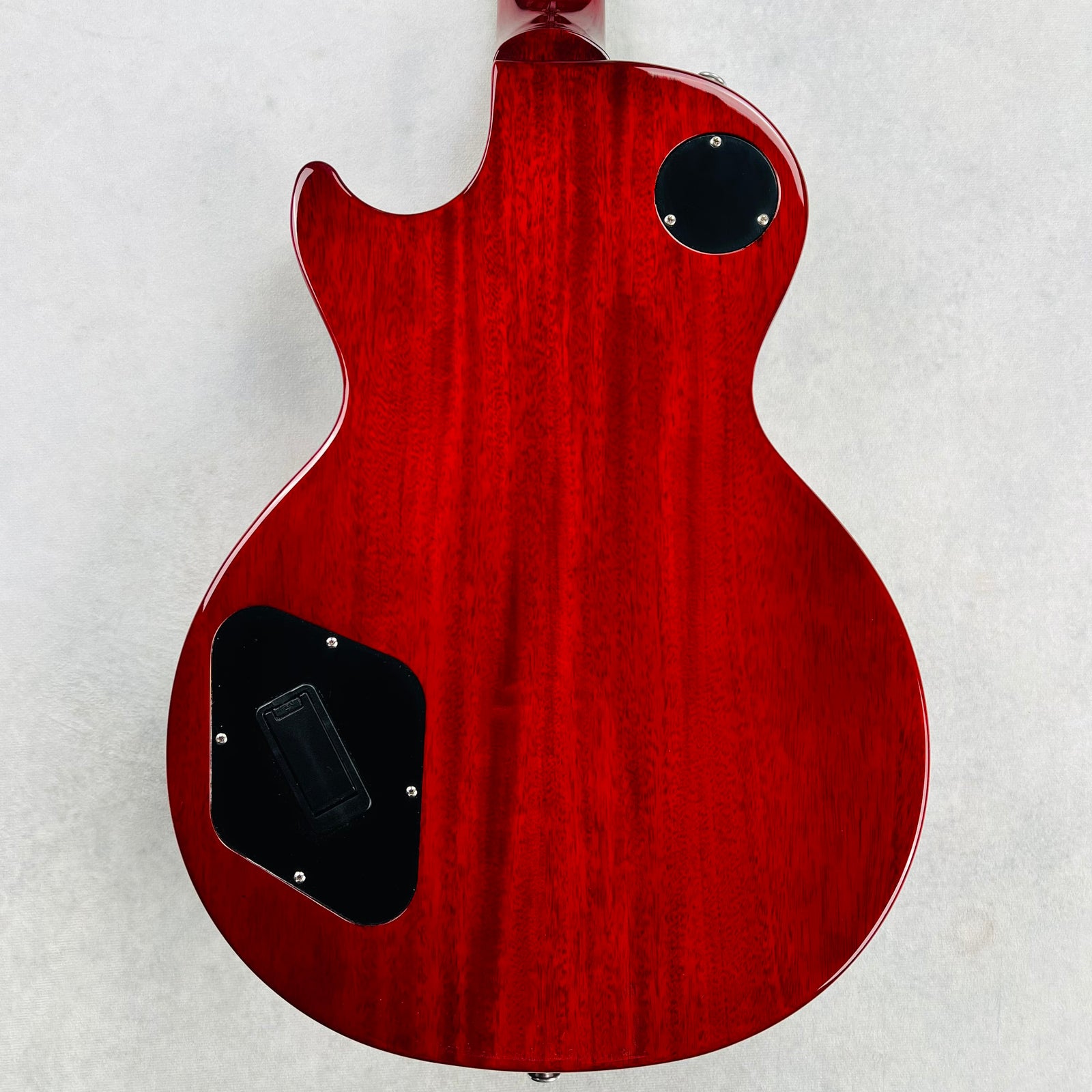

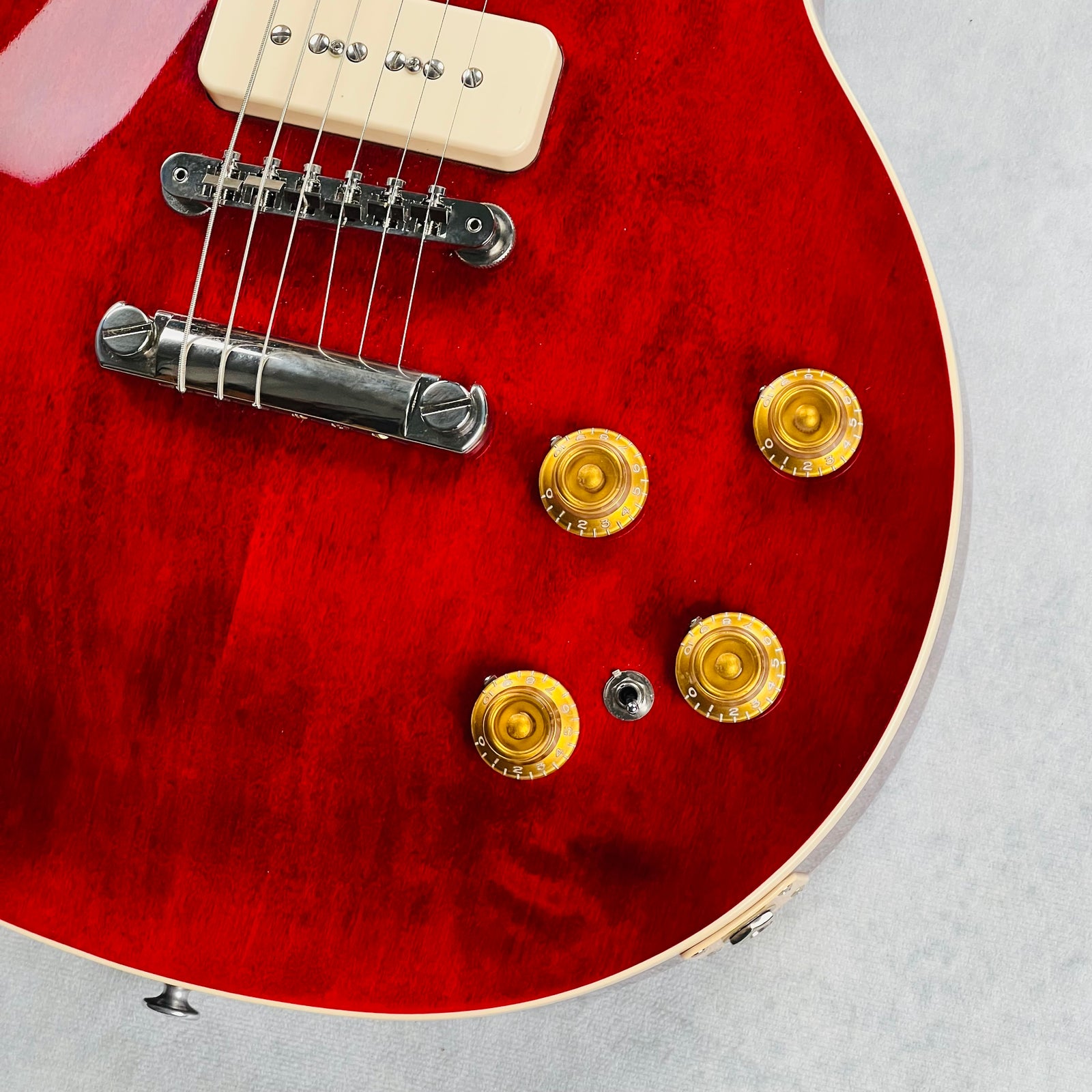

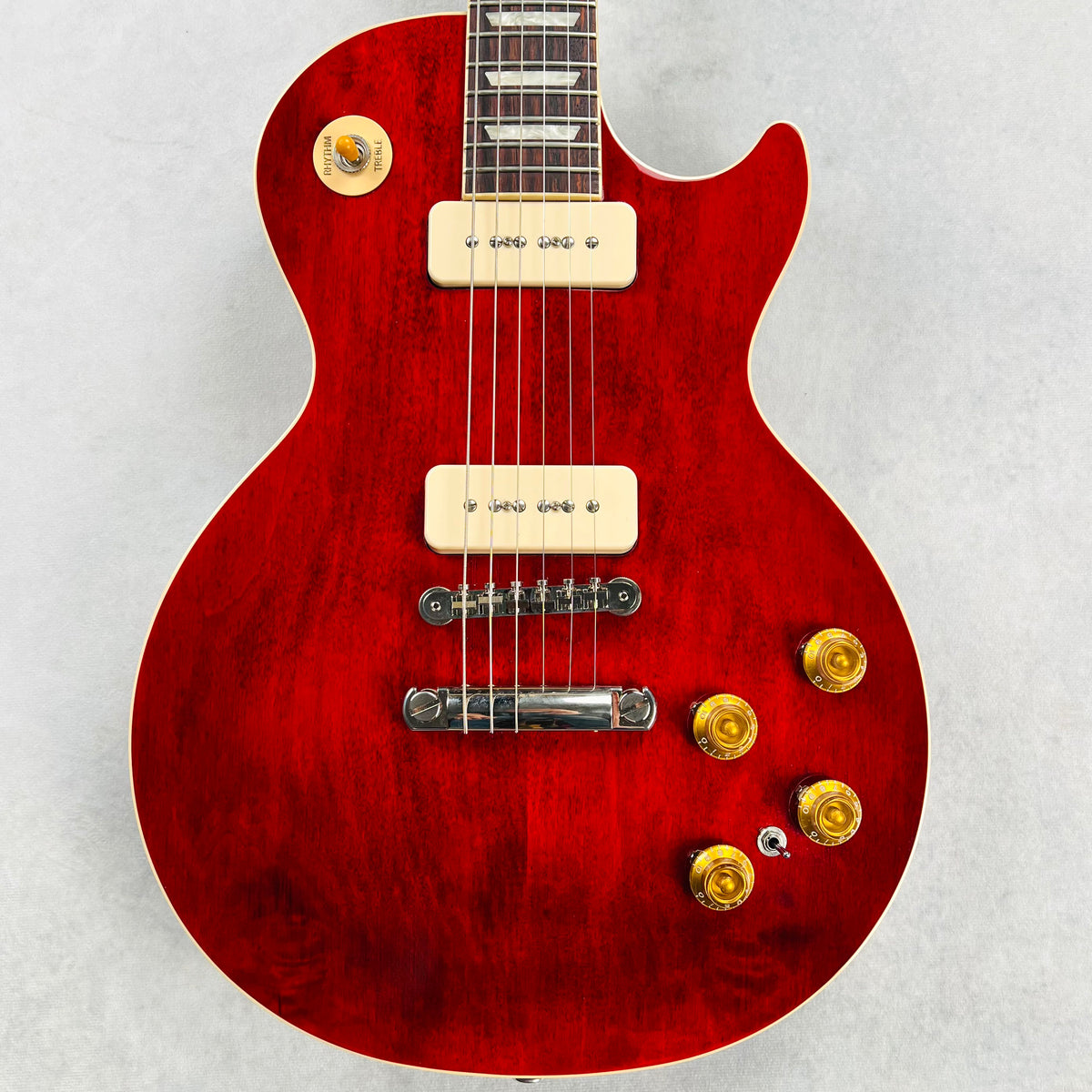

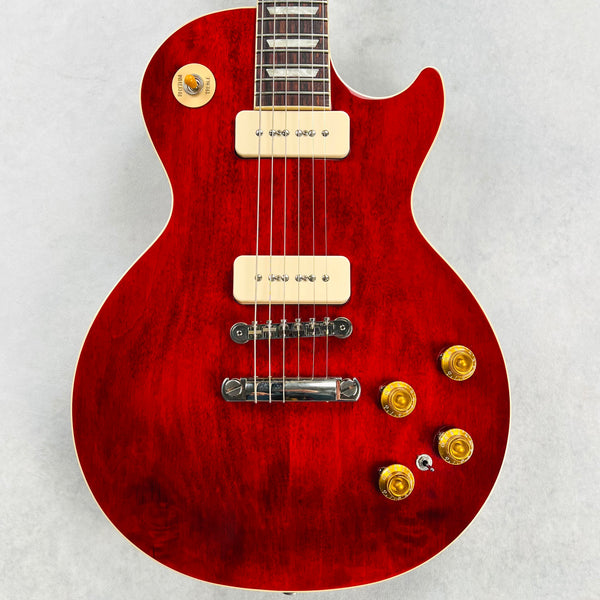

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Warren Haynes Les Paul Standard listed above. For larger pics, click on an image to open in a new tab.
