The ES-330 is a hollow body electric guitar built by Gibson. This double cutaway set neck guitar is manufactured in United States and is a Gibson Original Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number ES3000ANNH1.
Key Features
- 3-ply Maple/Poplar/Maple Top
- 3-ply Maple/Poplar/Maple Body
- 3-ply Maple/Poplar/Maple Sides
- Mahogany Neck
- Indian Rosewood Fingerboard
- 24.75" Scale Length
- 1.7" Nut Width
- 12" Radius
- Medium Jumbo Frets
- ABR-1 Tune-O-Matic Bridge
- Vintage Deluxe with White Button Tuning Machines
- Dogear P-90 Bridge Pickup
- Dogear P-90 Neck Pickup
Product Identifiers
| Model Name | ES-330 |
| Part Number | ES3000ANNH1 |
| Product Series | Gibson Original Collection |
| Country of Origin | United States |
| Brand | Gibson |
| Type | Electric Guitar |
| Category | Hollow Body |
| Subcategory | Double Cutaway Set Neck |
Factory Specifications
Body Construction
| Body Material | ES-330 |
| Top Material | 3-ply Maple/Poplar/Maple |
| Back Material | 3-ply Maple/Poplar/Maple |
| Side Material | 3-ply Maple/Poplar/Maple |
| Body Finish | Gloss Nitrocellulose Lacquer |
| Bracing | Spruce |
Hardware
| Bridge | ABR-1 Tune-O-Matic |
| Tuning Machines | Vintage Deluxe with White Button |
| Pickguard | Black 5-ply |
| Control Knobs | Black Top Hat |
| Bridge Cover / Tailpiece | Trapeze Tailpiece |
| Hardware Finish | Nickel |
Neck Construction
| Neck Material | Mahogany |
| Fingerboard Material | Indian Rosewood |
| Radius | 12" |
| Fingerboard Inlays | Acrylic Small Block |
| Number of Frets | 22 |
| Fret Size | Medium Jumbo |
| Nut Width | 1.7" |
| Scale Length | 24.75" |
| Nut Material | Graph Tech |
| Neck Shape | Rounded C |
| Neck Mounting | Set Neck |
| Neck Construction | One Piece |
| Neck Finish | Gloss Nitrocellulose Lacquer |
| Headstock | Open Book |
Electronics
| Bridge Pickup | Dogear P-90 |
| Neck Pickup | Dogear P-90 |
| Controls | 2 Volume, 2 Tone; Hand-wired with 500k Potentiometers and Orange Drop Capacitors |
| Pickup Switching | 3-Way Toggle |
General
| Orientation | Right Handed |

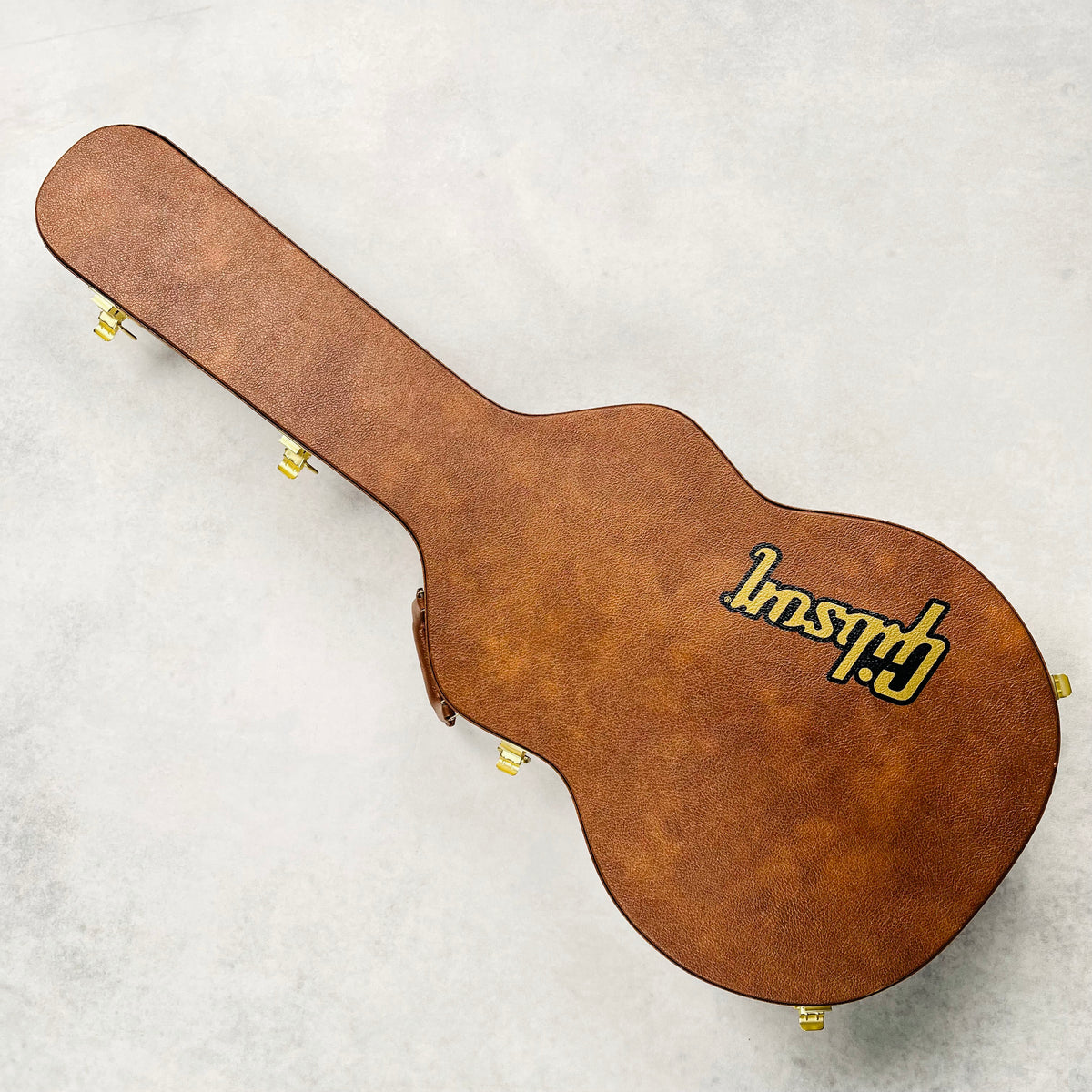

| Case / Gig Bag | Original Hardshell |

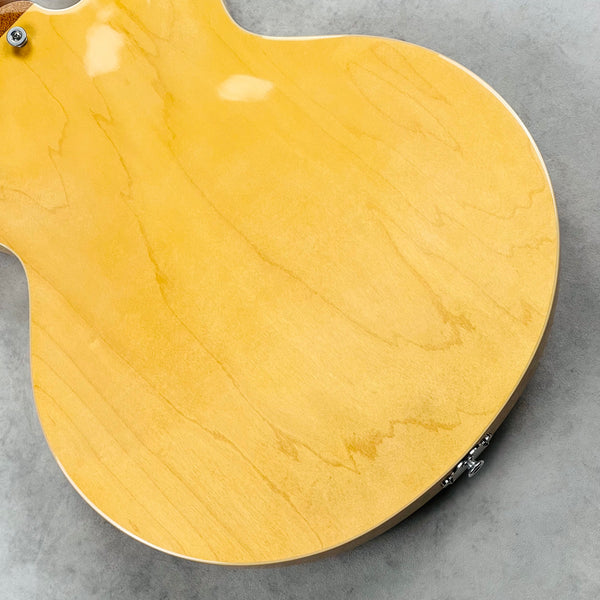

Reference Images
Visual reference gallery showing factory-correct details, finish, and hardware specifications for the ES-330 listed above. For larger pics, click on an image to open in a new tab.
