The USA V 1977 is a solid body electric guitar built by Dean. This v-style set neck guitar is manufactured in Tampa, FL in the United States and is a Dean Limited Edition model. Key features include a Flame Maple Top, Mahogany Body, Mahogany Neck, Ebony Fretboard, Dual DiMarzio Super Distortion Humbucker Pickups and Trans Cherry Sunburst finish. The specs listed below pertain to the 2024 product year model pictured on this page. The 1977 V is a reissue guitar built to commemorate the very first guitars produced by Dean Zelinsky in the late 1970s.
Factory Specs
- Mahogany Body
- Mahogany Neck
- Flame Maple Top
- Ebony Fretboard
- Abalone Dot Inlays
- Series 1 BFH Headstock
- Bound Neck
- Grover Barrel Tuners
- Bound Top
- Brass Tailpiece
- Brass Input Jack Ring
- String Through Body
- Tune-o-matic Bridge
- Jumbo Fret Wire
- 12" Radius
- 1 11/16" Nut Width
- 24 5/8" Scale Length
- V Neck Profile
- Red Side Dots
- Cream DiMarzio Super Distortion Humbucker Pickups
- Nitrocellulose Lacquer Finish
Reference Images

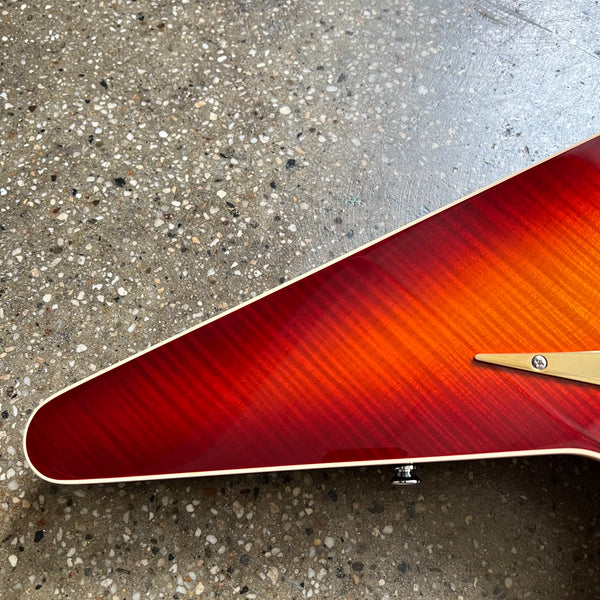

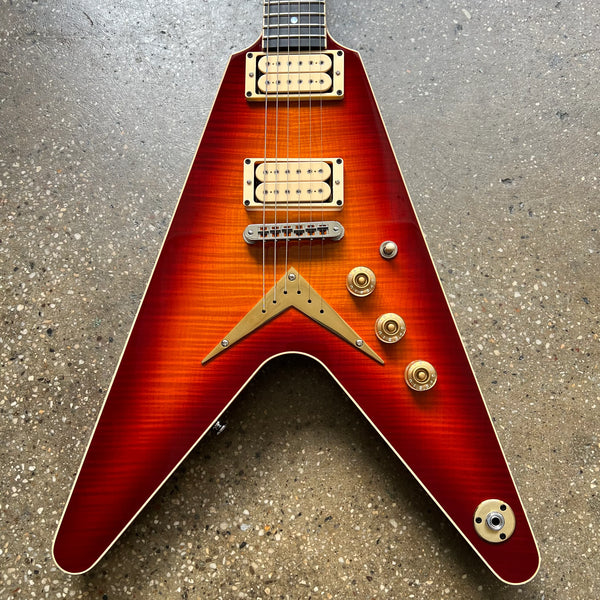

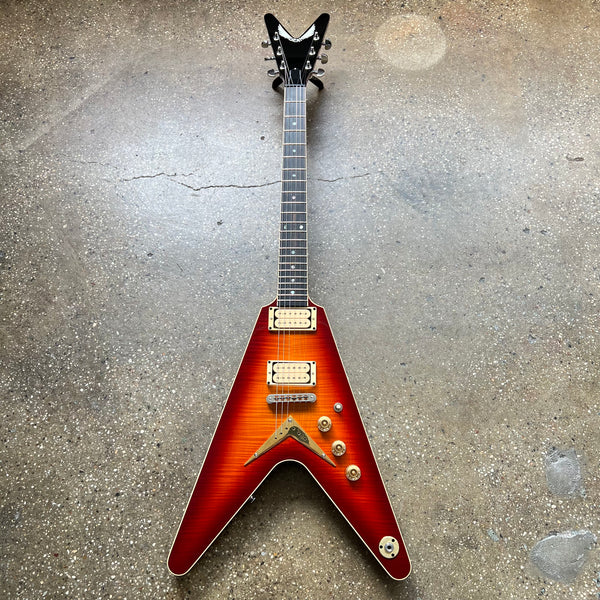

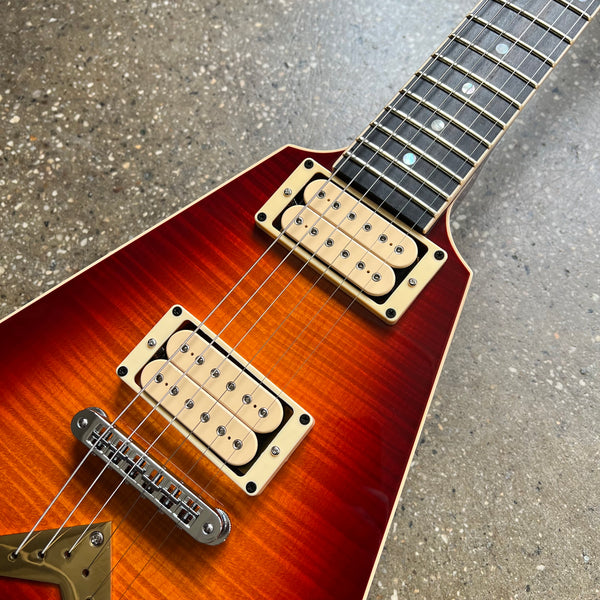

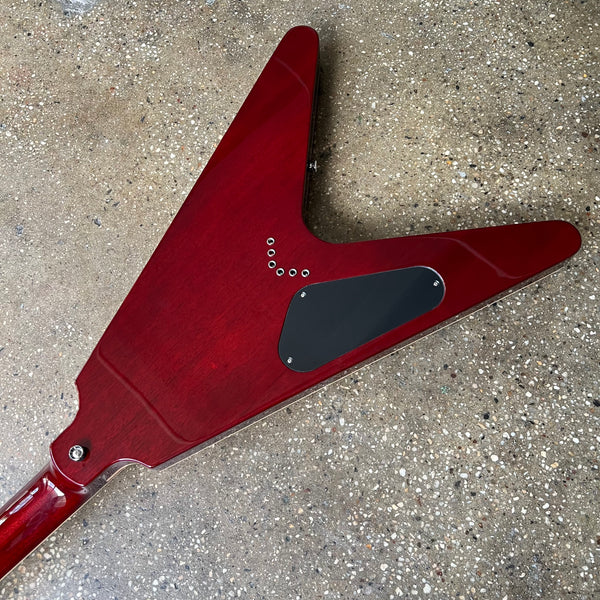

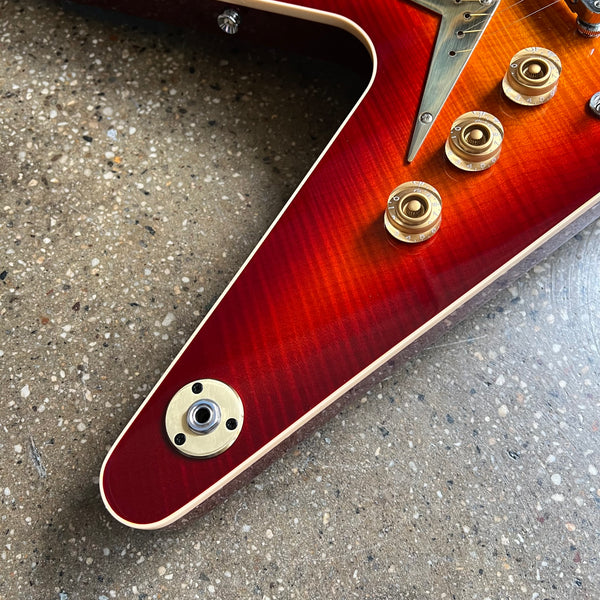

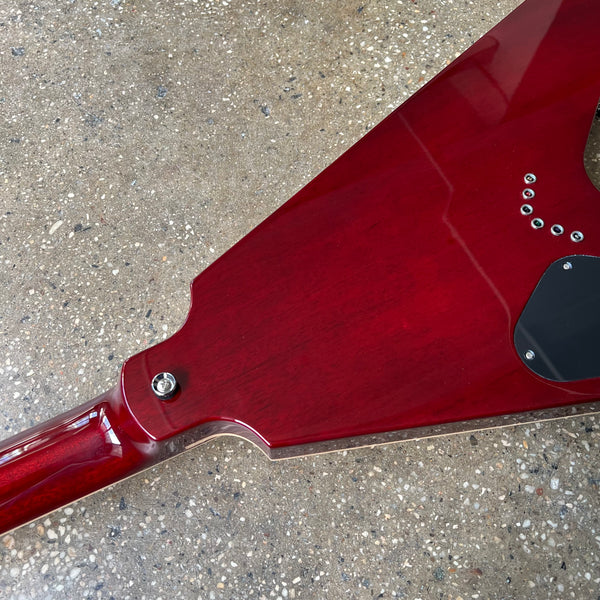

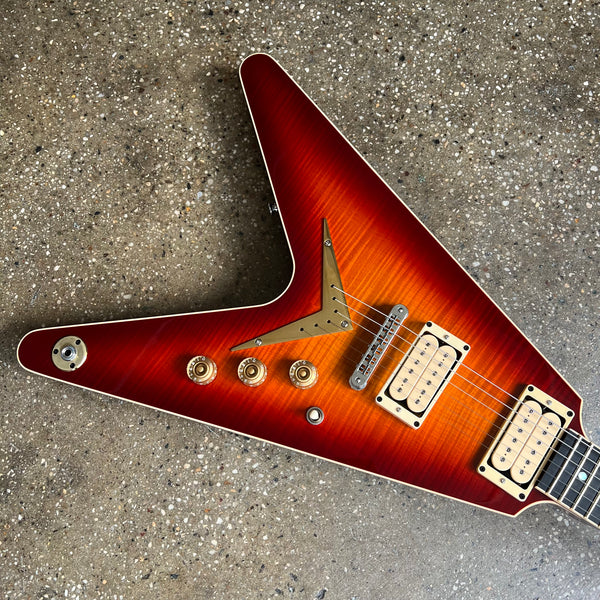

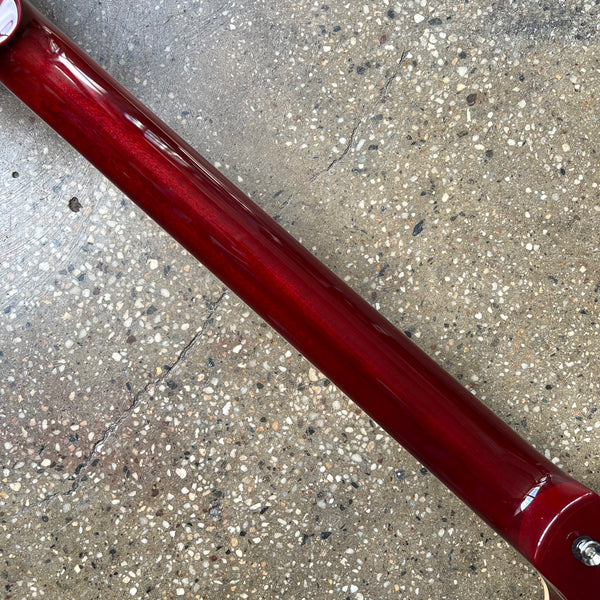

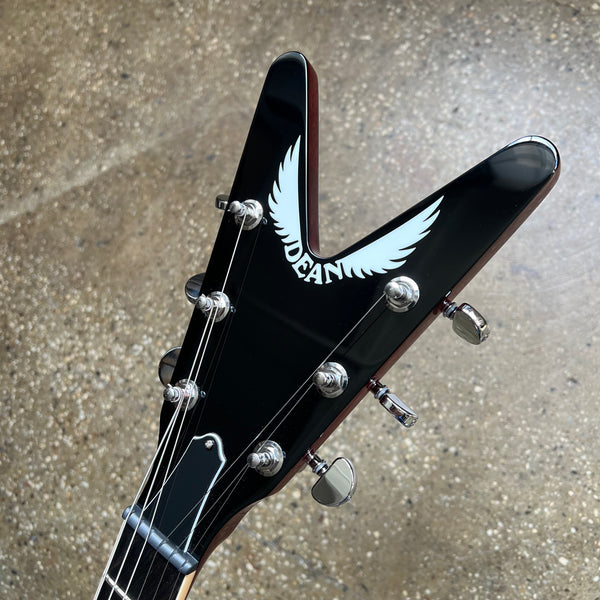

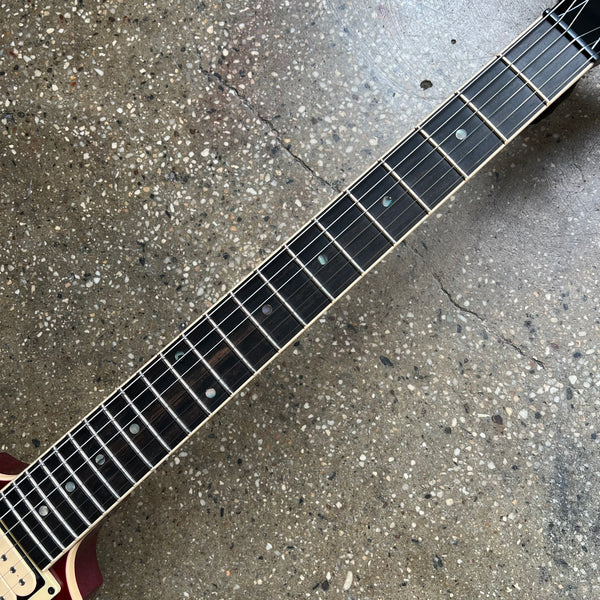

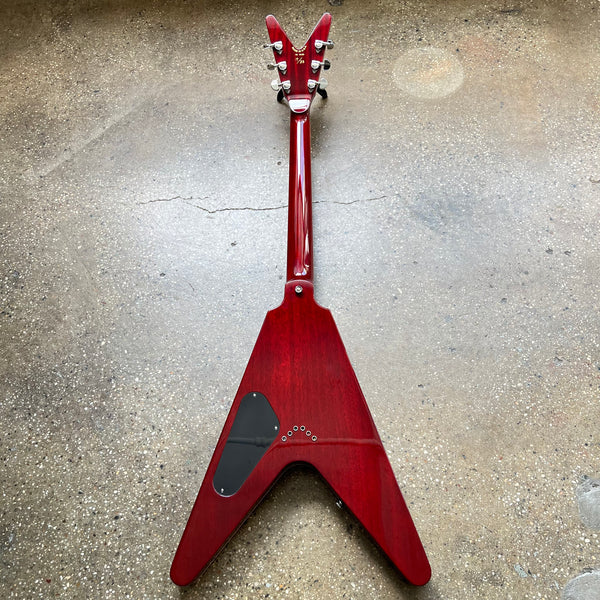

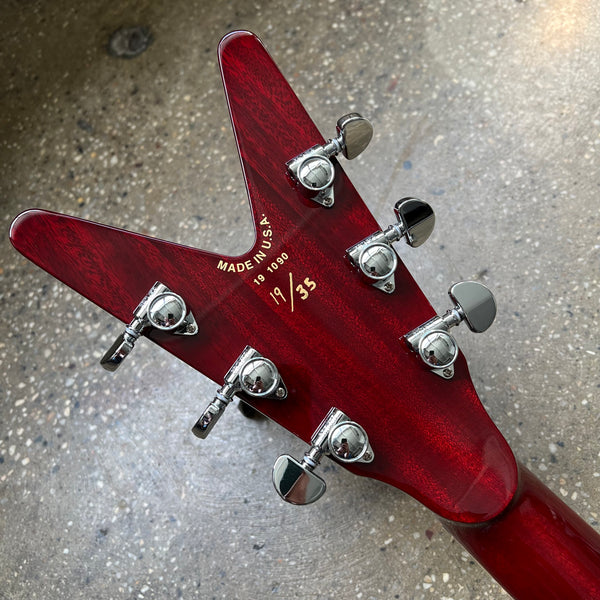

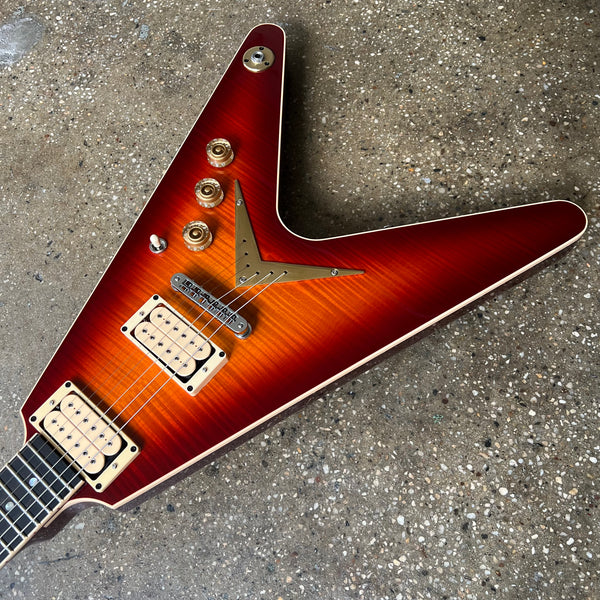

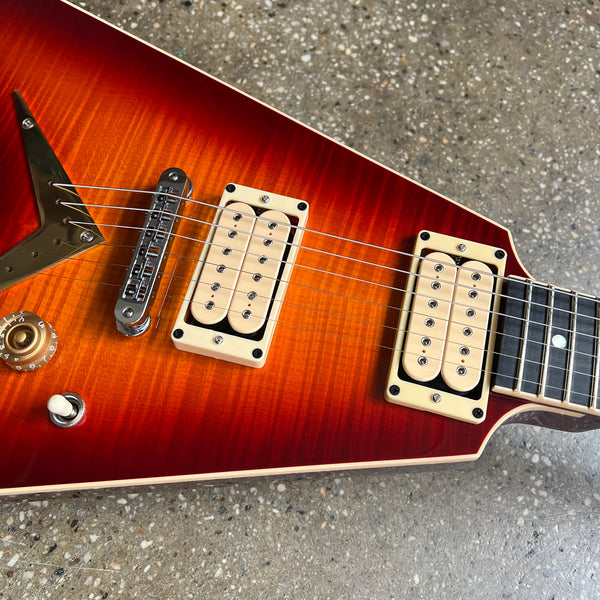

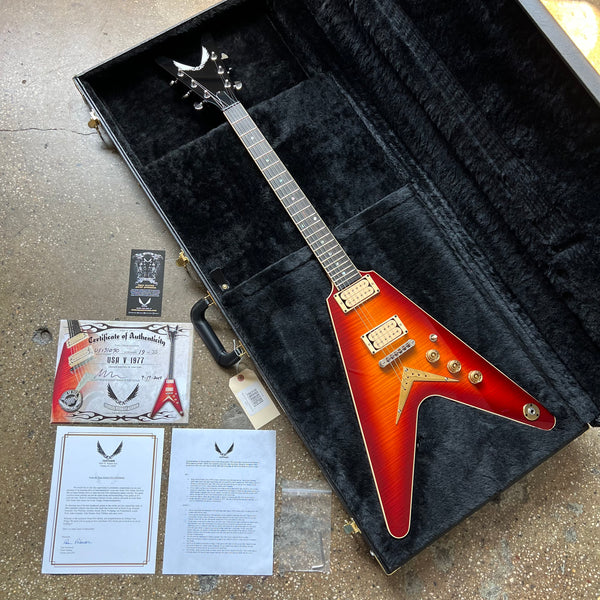

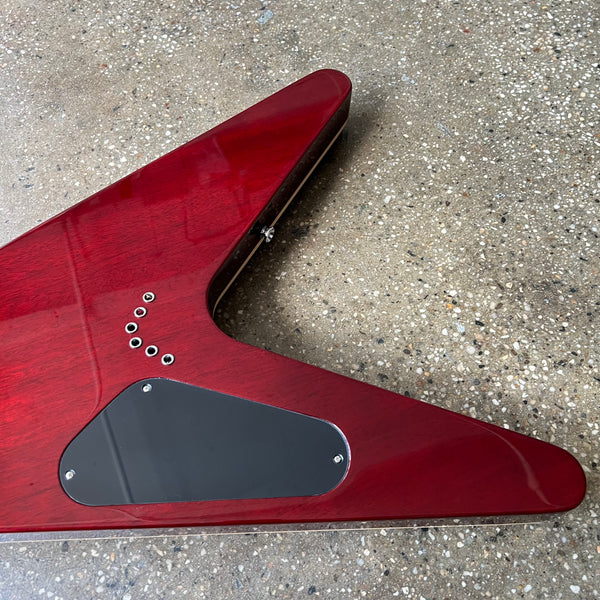

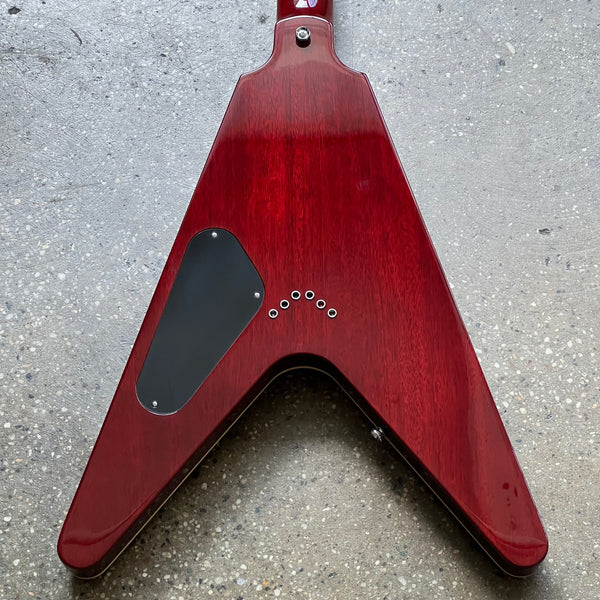

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the USA V 1977 Limited Edition listed above. For larger pics, click on an image to open in a new tab.
