The 2024 Patents Pending V Flame Top is a solid body electric guitar built by Dean. This v-style set neck guitar was manufactured in the United States and is a Dean USA Patents Pending model. Key features include a Flame Maple Top, Mahogany Body, Mahogany Neck, Ebony Fretboard, Dual DiMarzio Super Distortion Humbucker Pickups and Trans Cherry Sunburst finish. The specs listed below pertain to the 2024 product year model pictured on this page.
Factory Specs
- Mahogany Body
- Mahogany Neck
- Flame Maple Top
- Ebony Fretboard
- Abalone Dot Inlays
- Series 1 BFH Headstock
- Bone Nut
- Rolled Fingerboard Edges
- Bound Neck
- Grover Barrel Tuners
- Bound Top
- Brass Tailpiece
- Brass Input Jack Ring
- String Through Body
- Tune-o-matic Bridge
- Jumbo Fret Wire
- 12" Radius
- 1 11/16" Nut Width
- 24 5/8" Scale Length
- C Neck Profile
- Red Side Dots
- Pat Pending Headstock Stamp
- Cream DiMarzio Super Distortion Humbucker Pickups
- Nitrocellulose Lacquer Finish

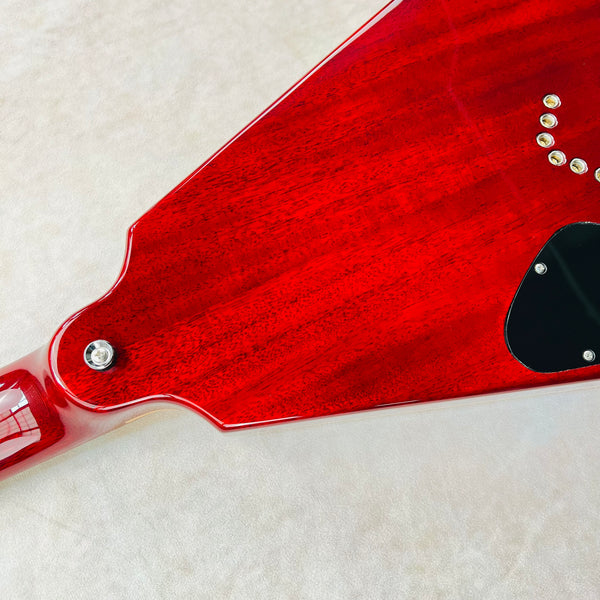

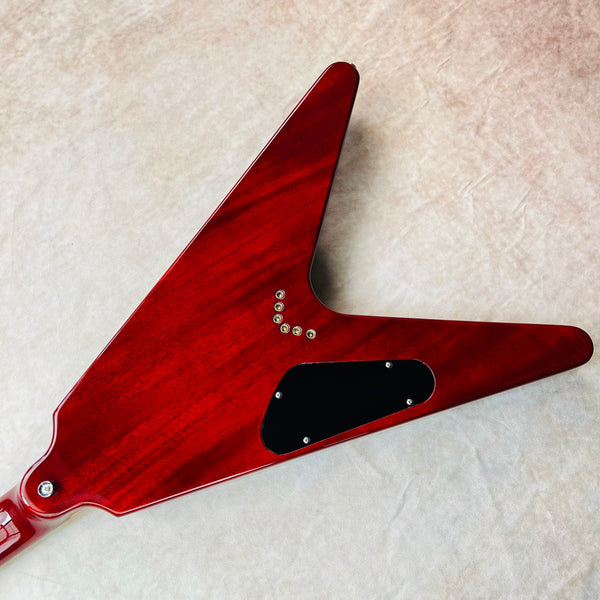

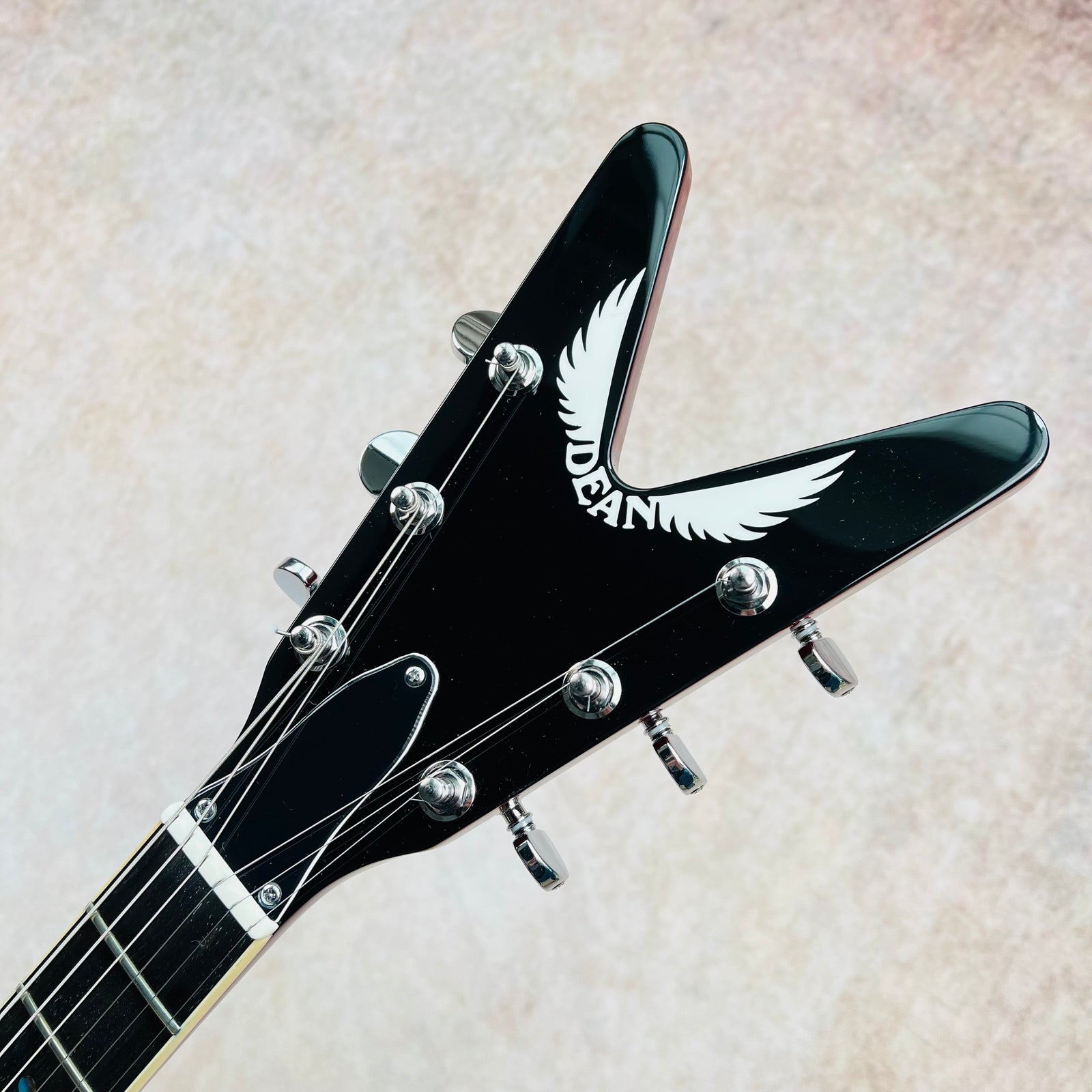

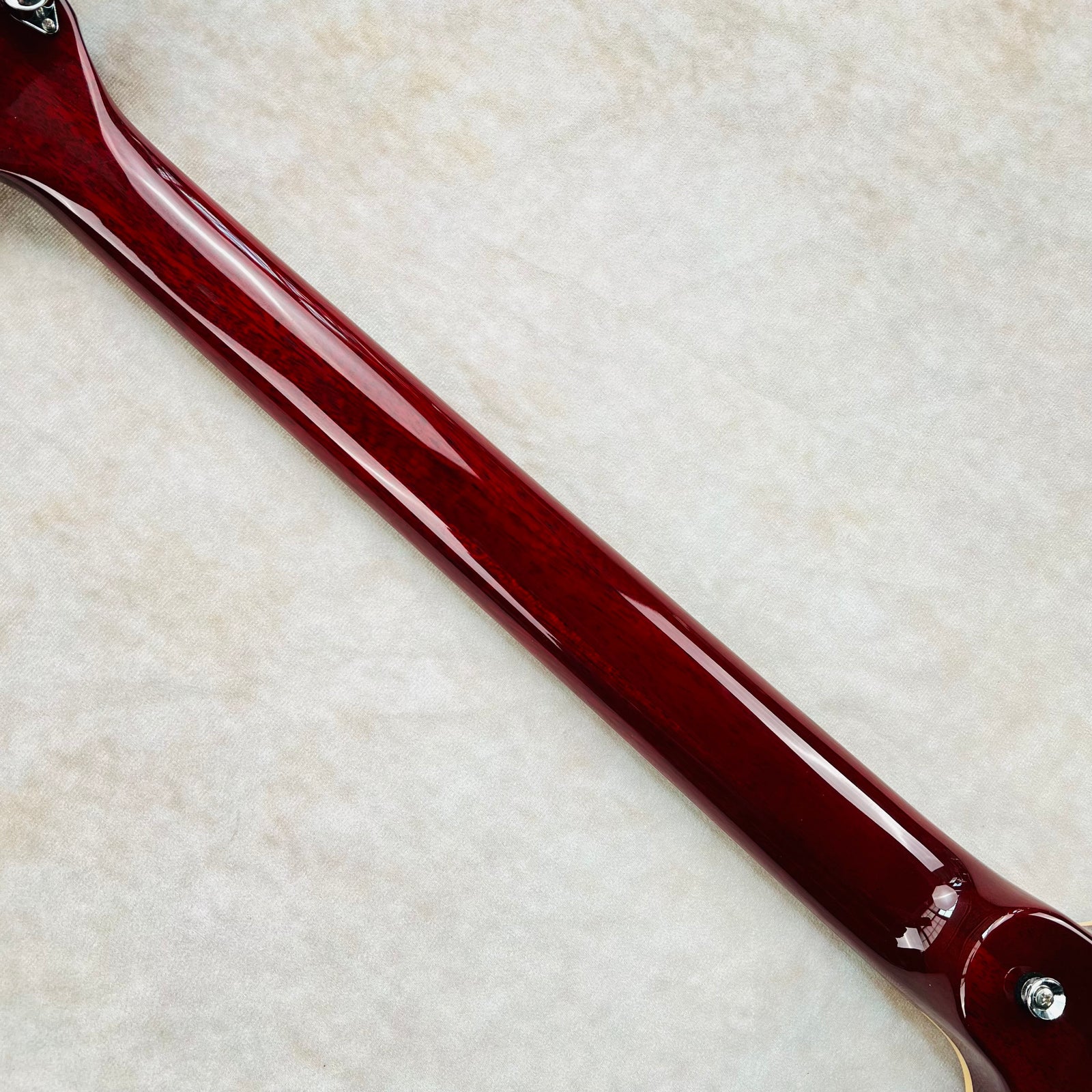

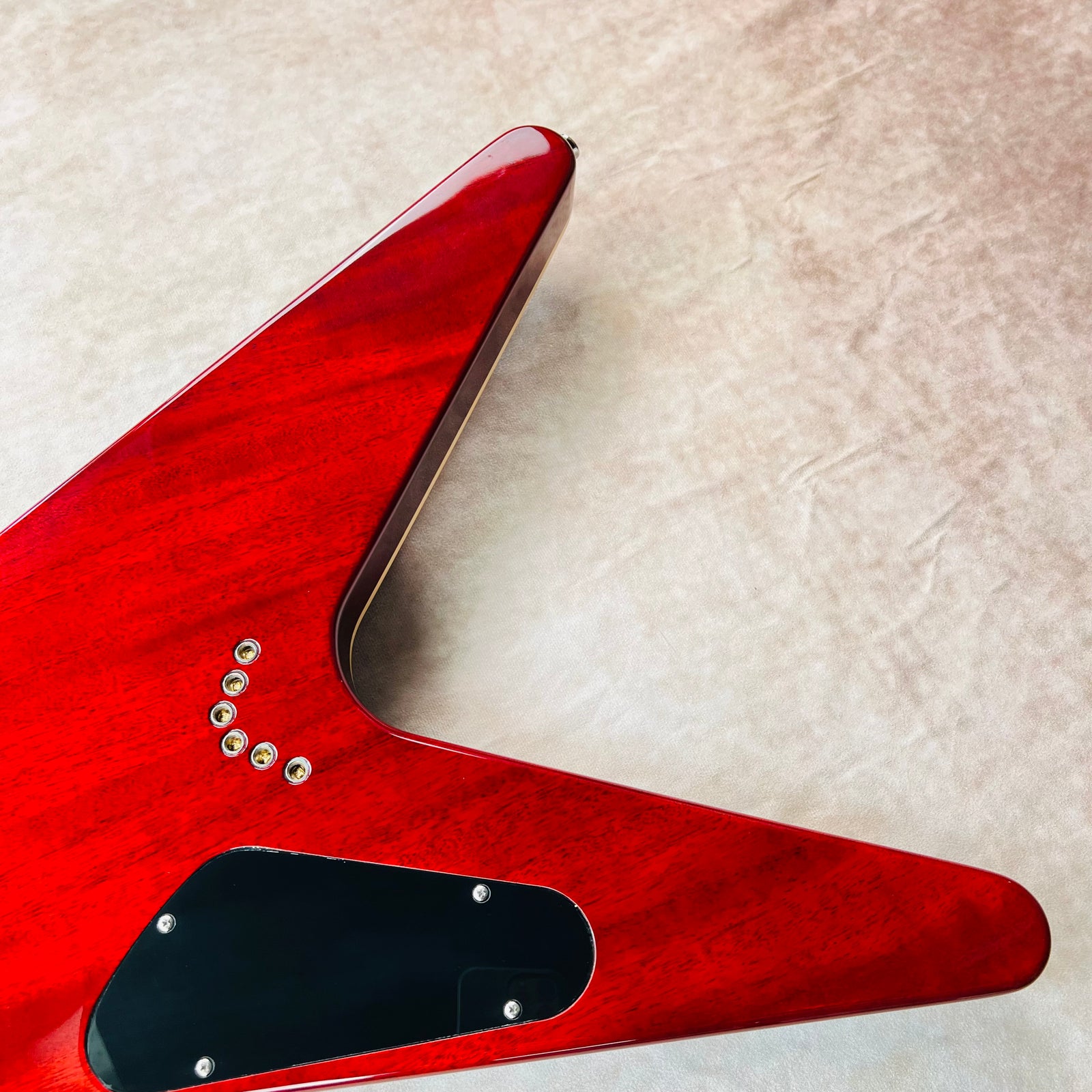

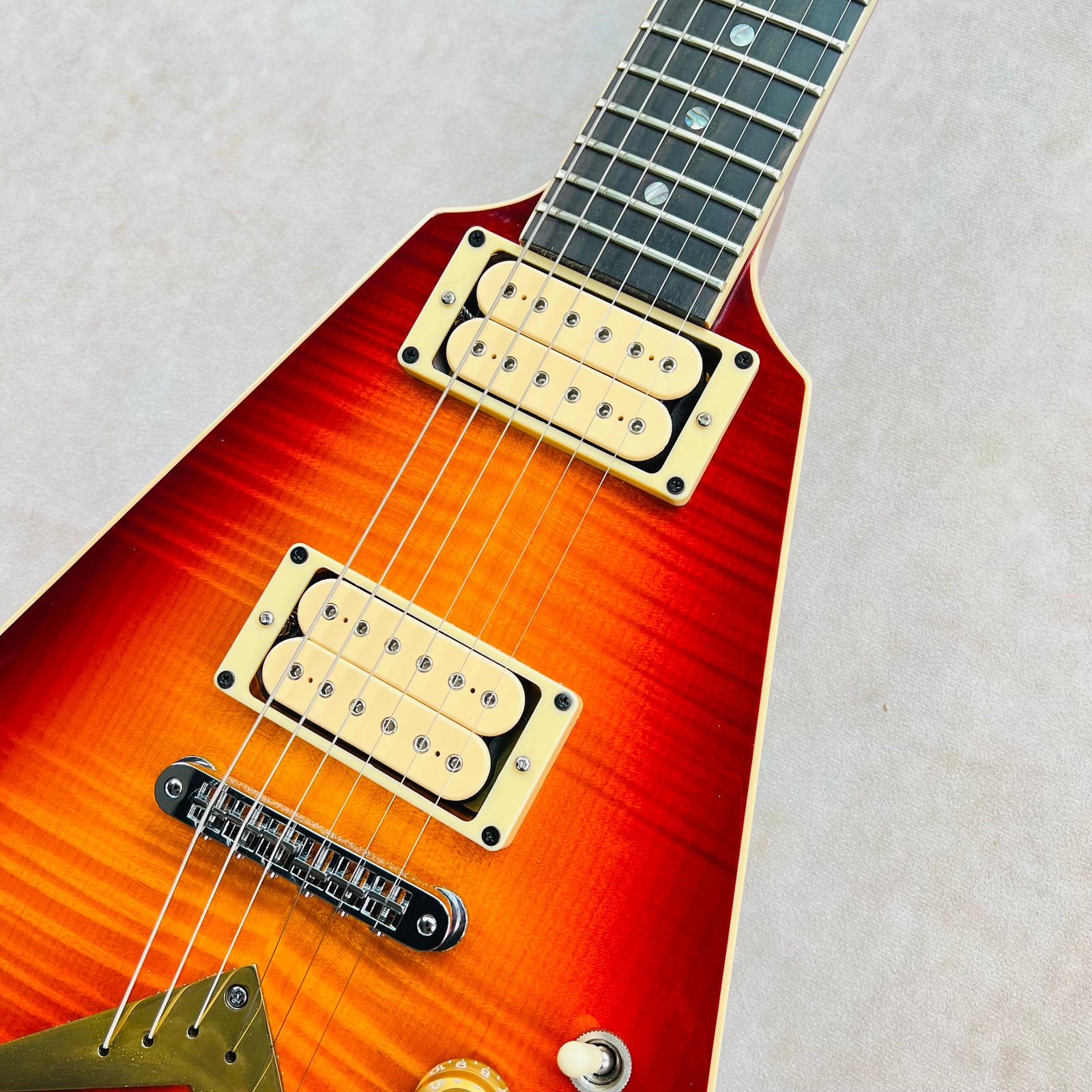

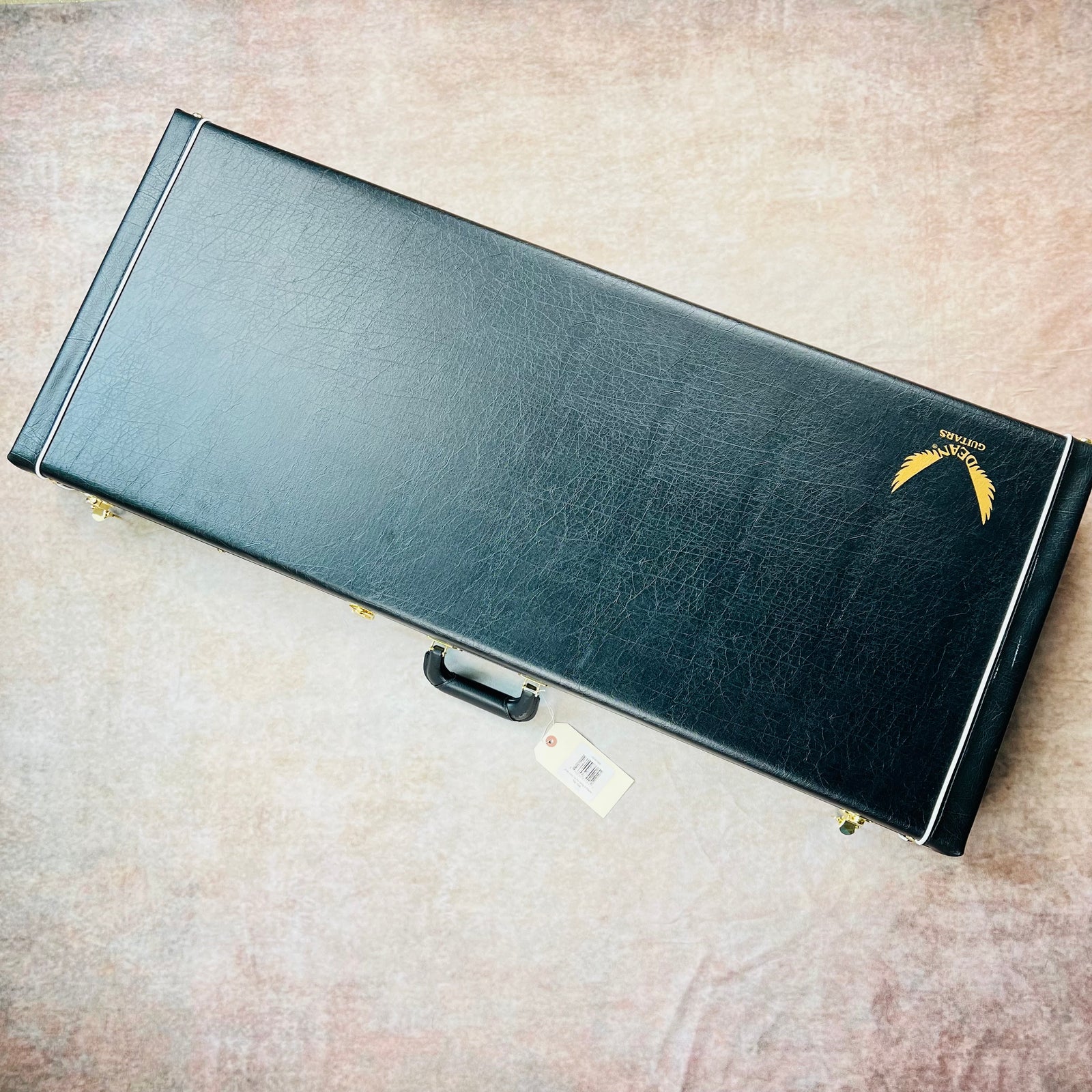

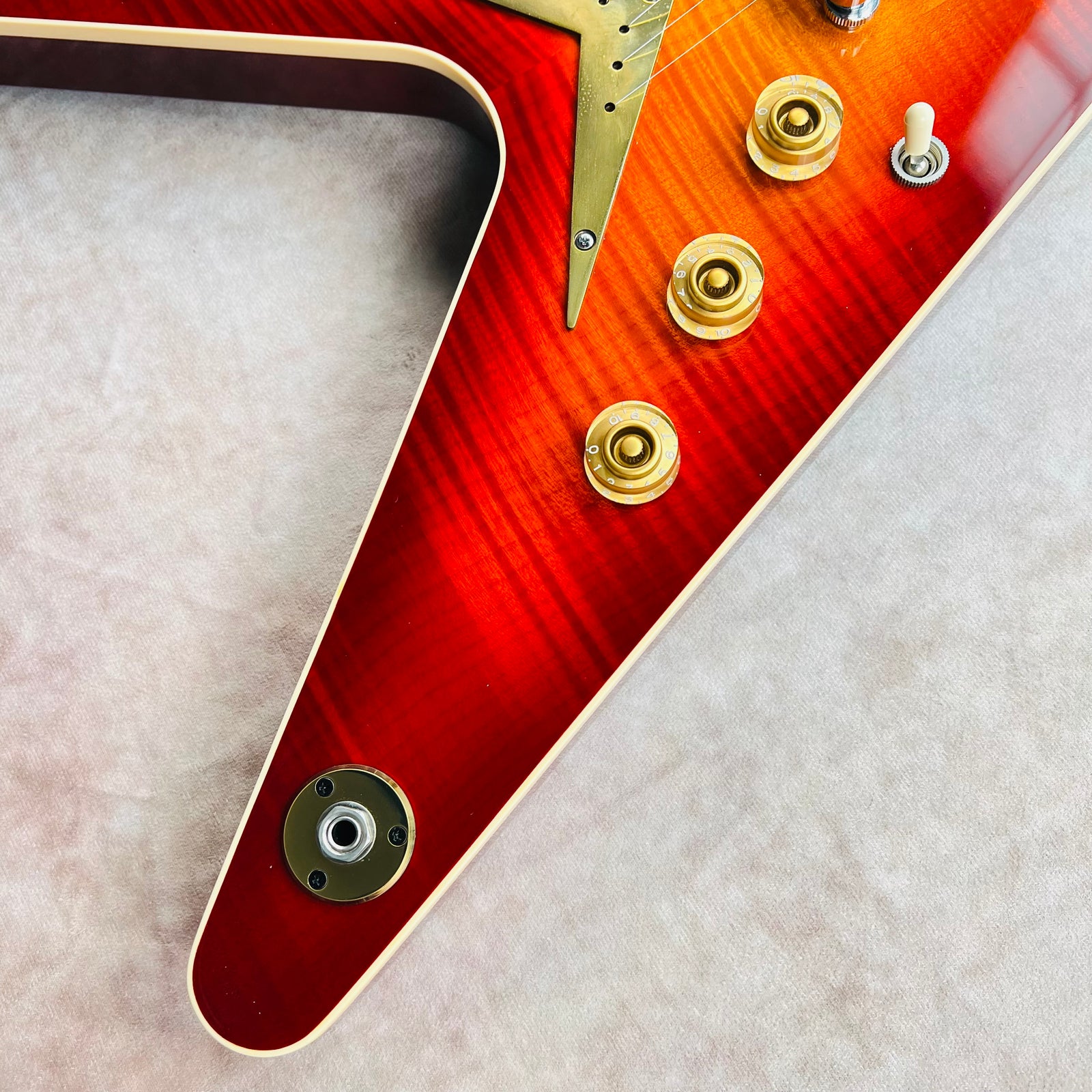

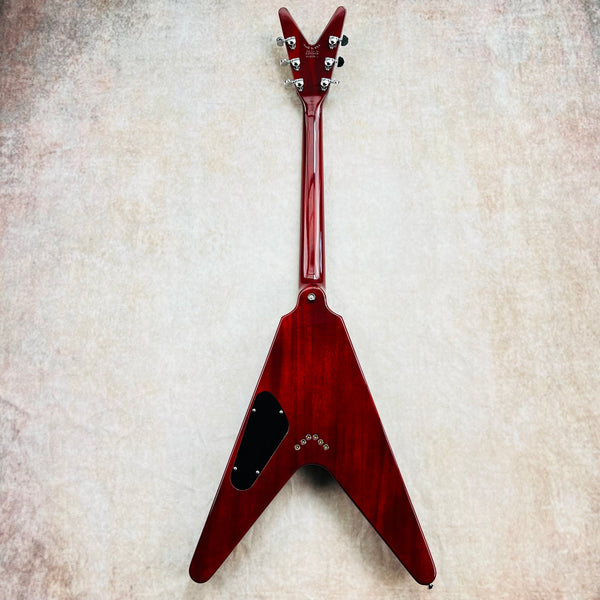

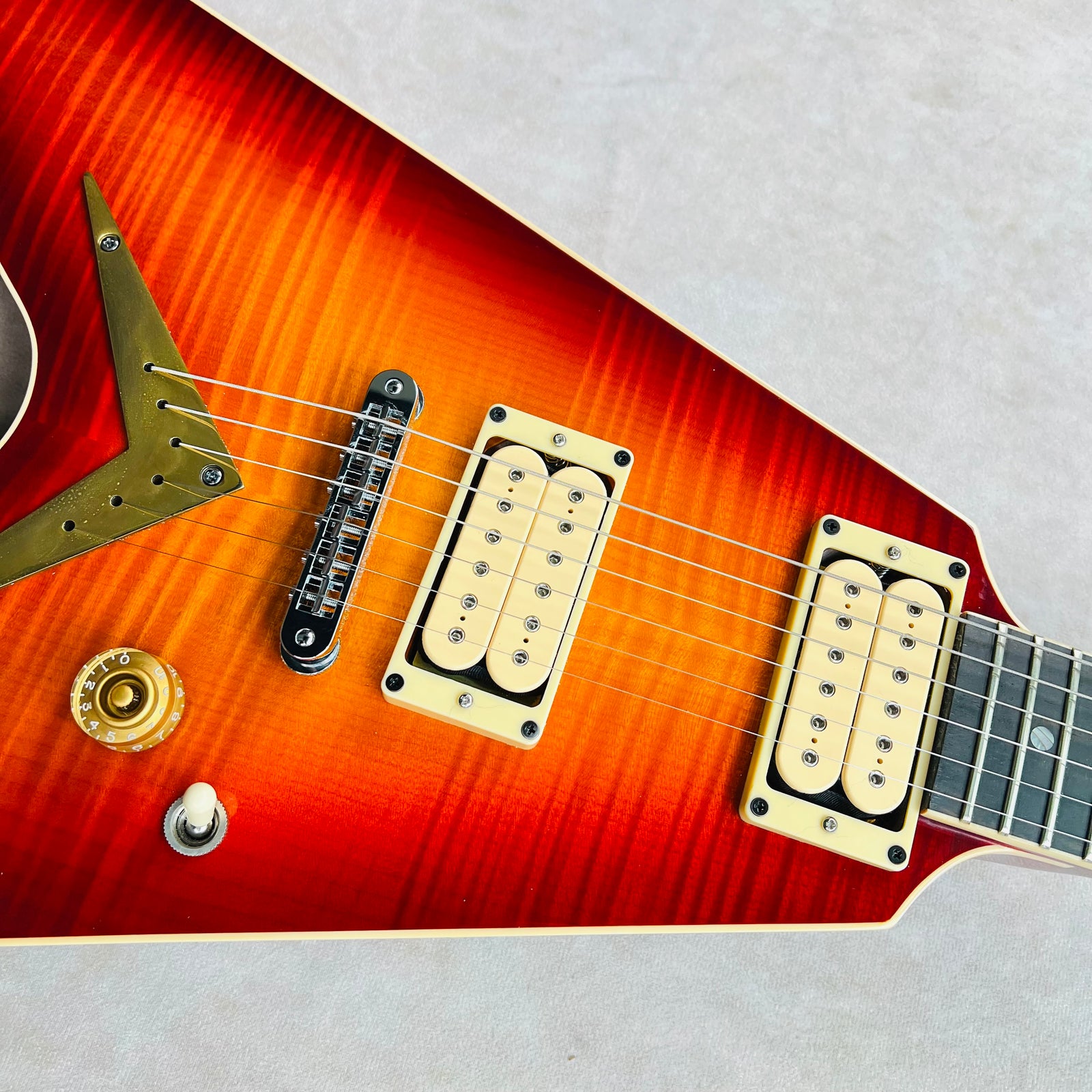

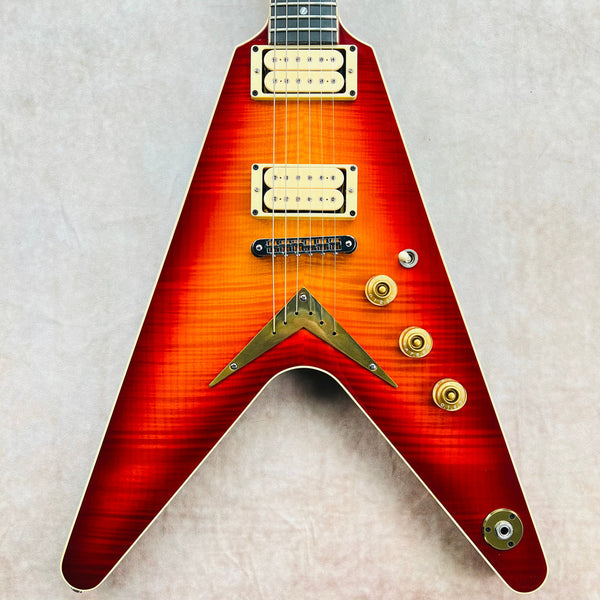

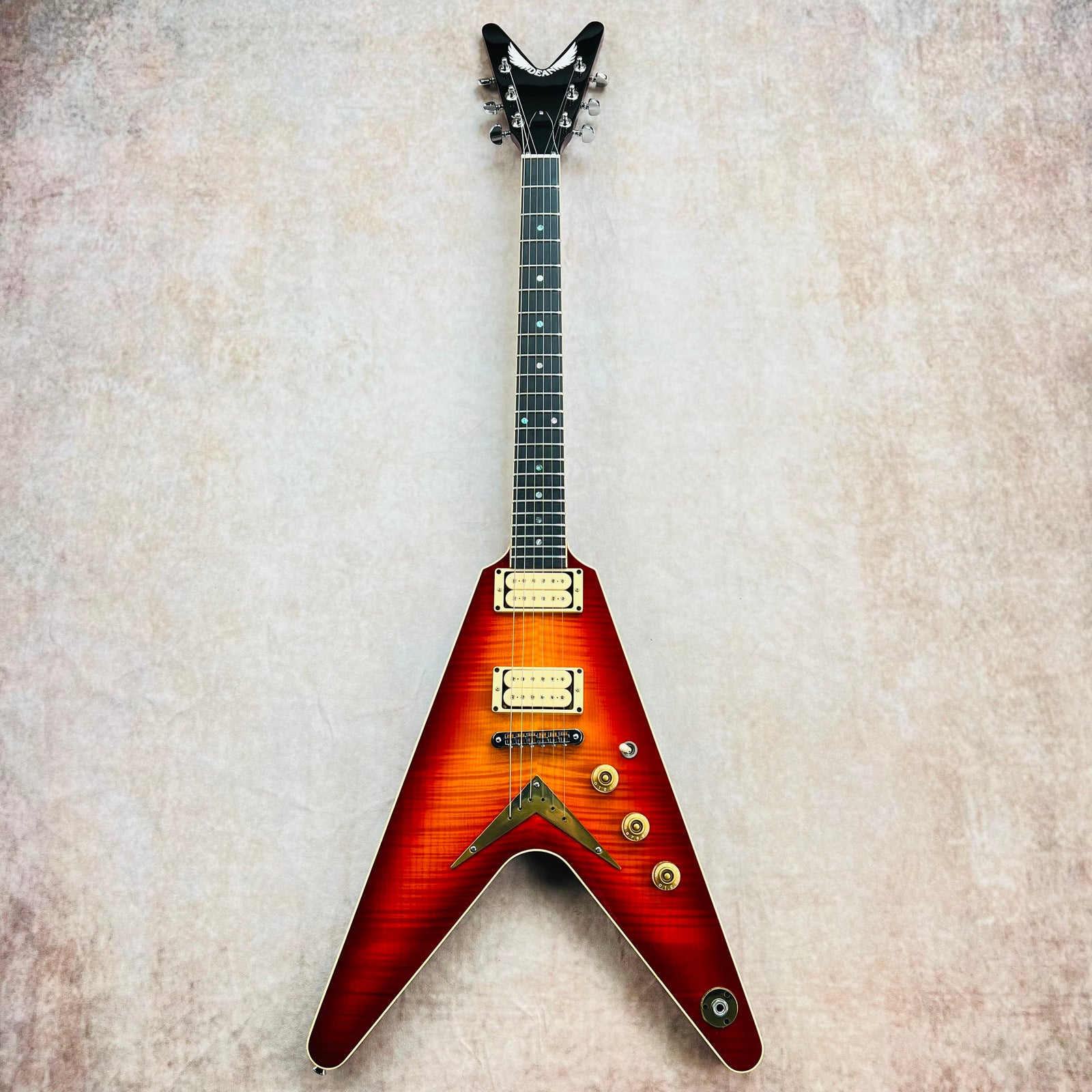

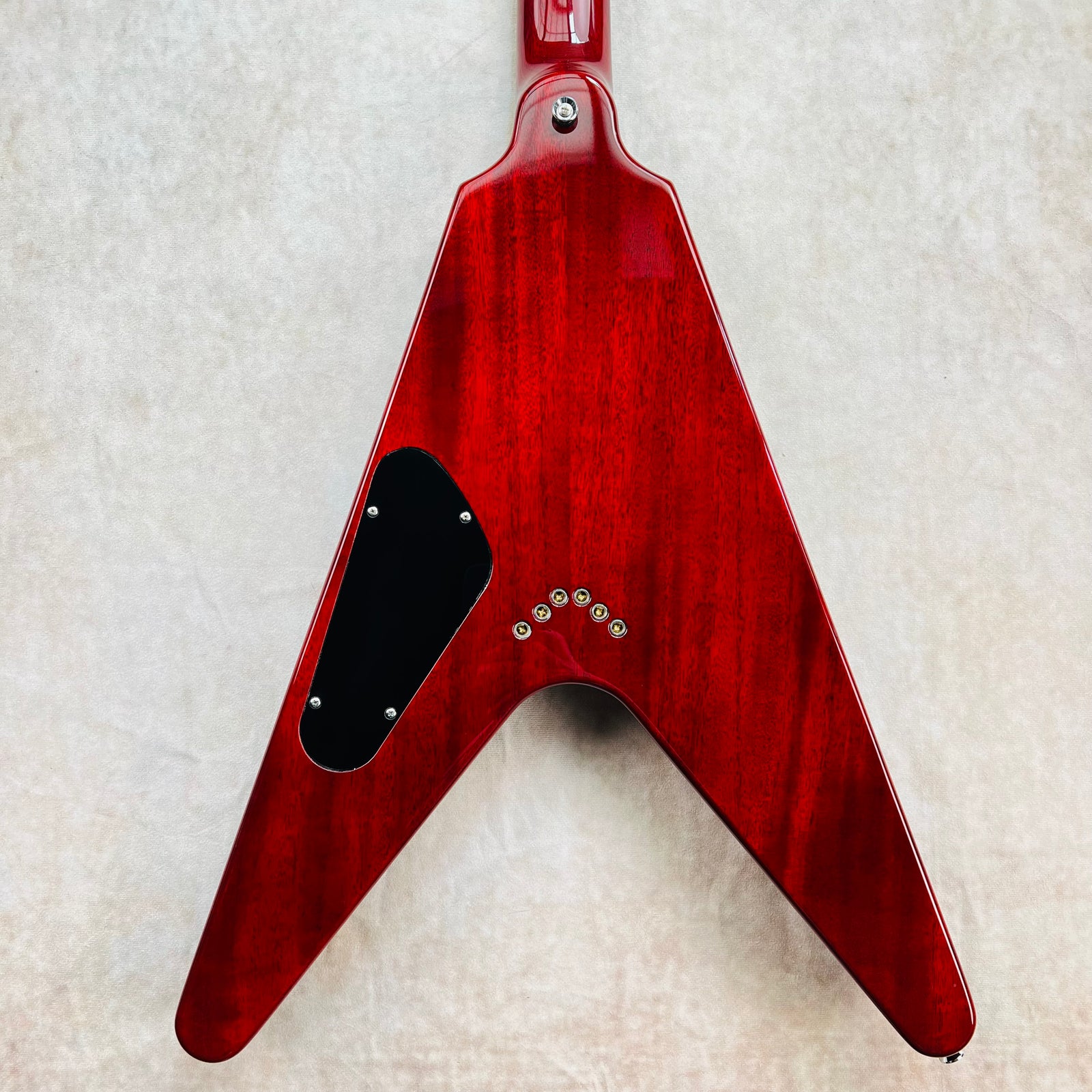

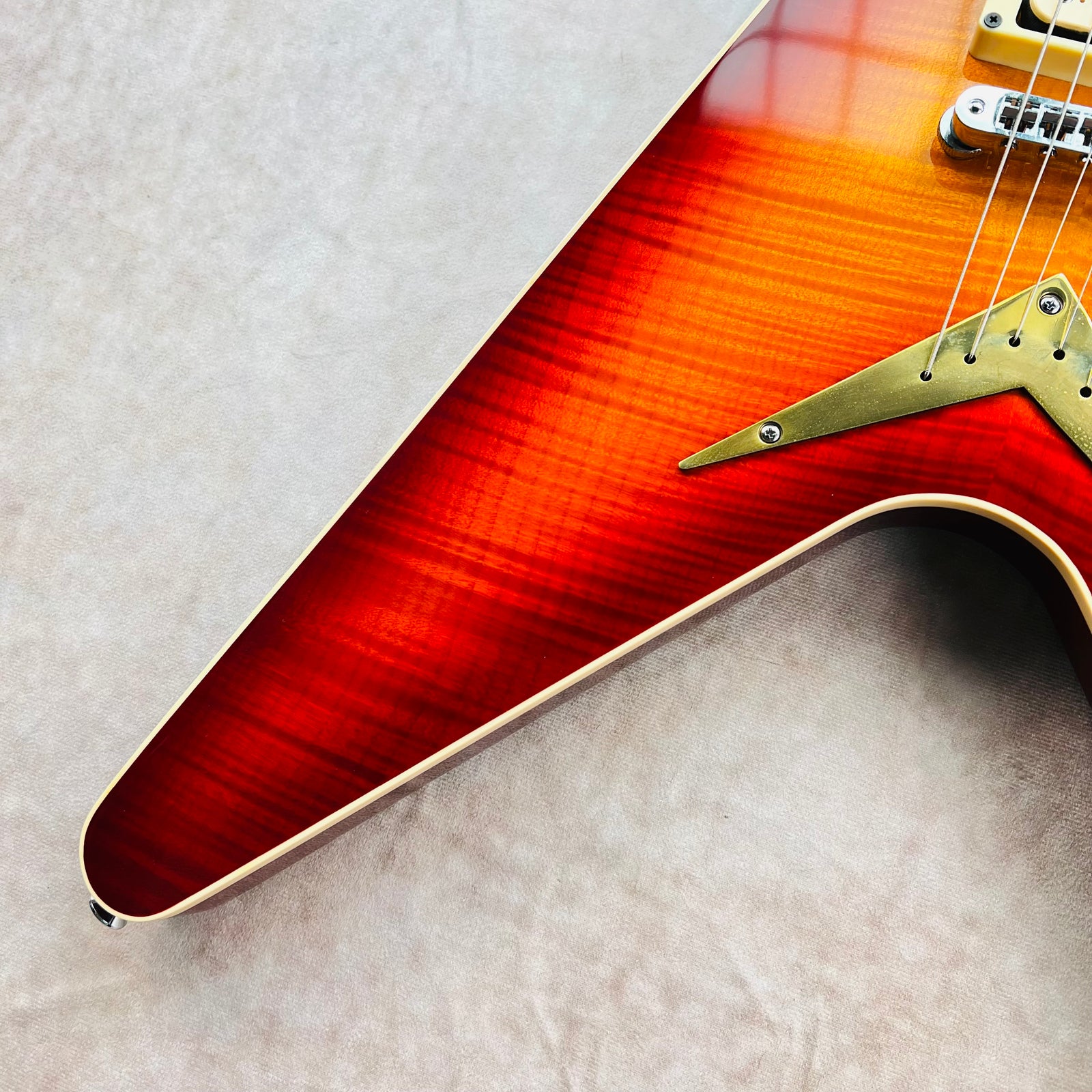

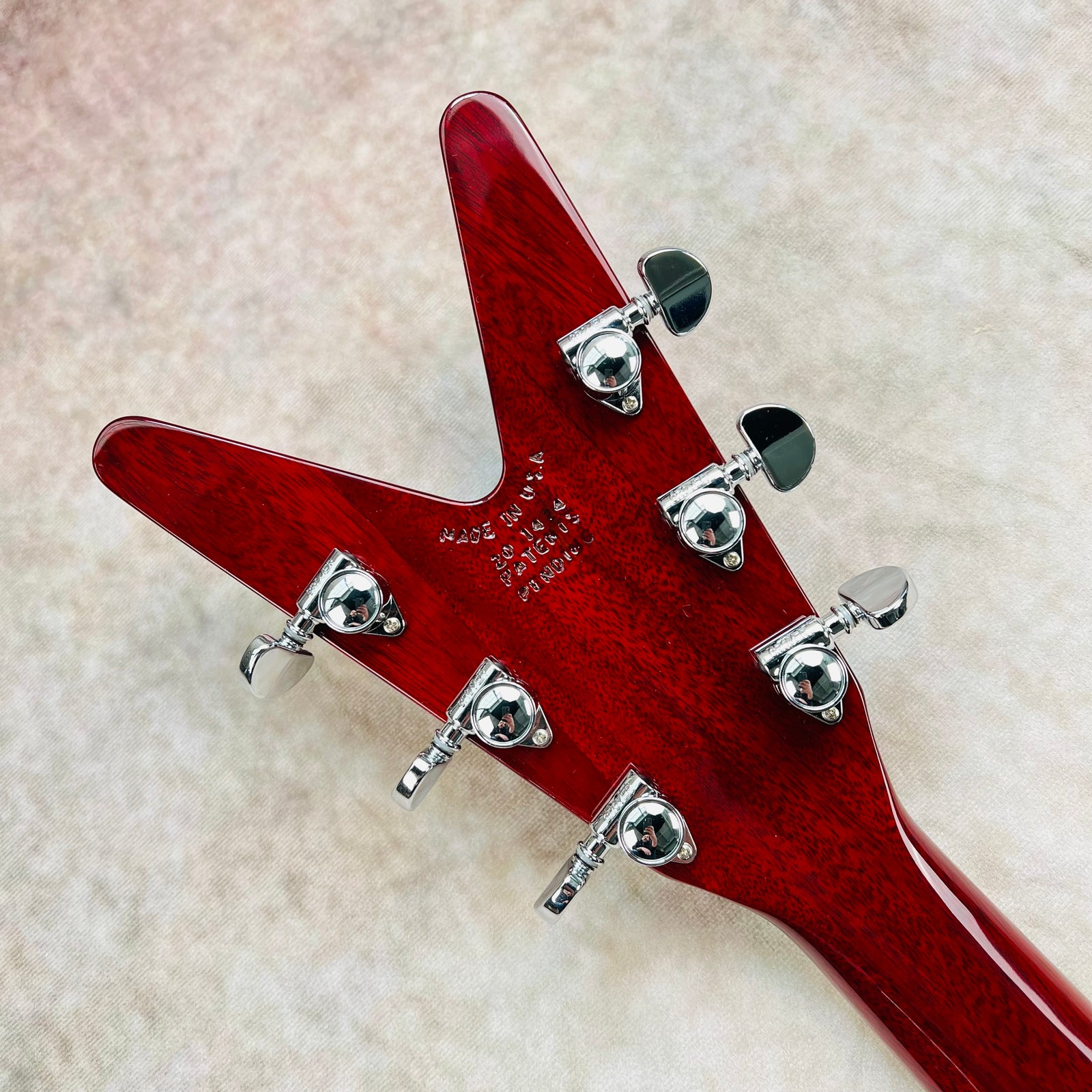

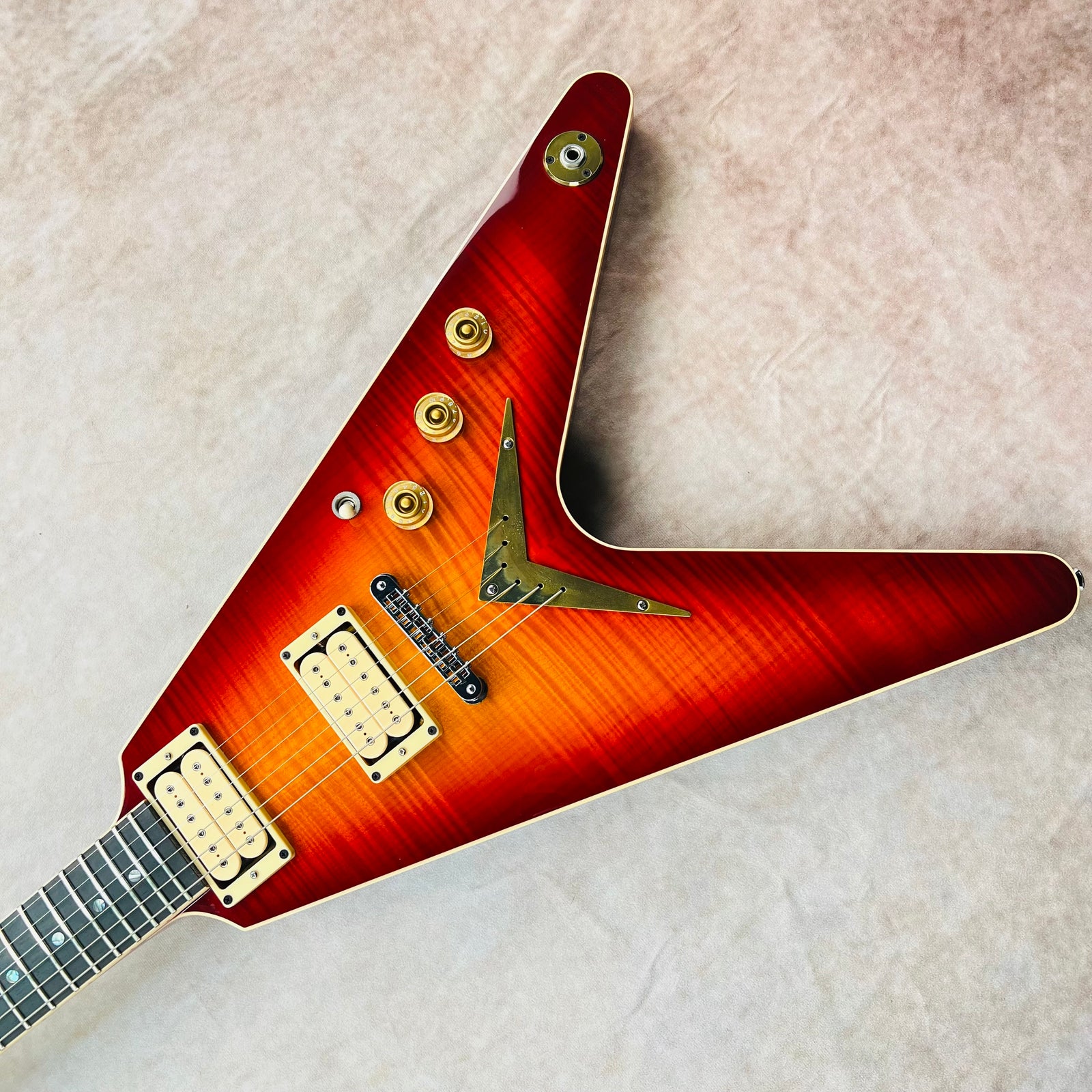

Reference Images

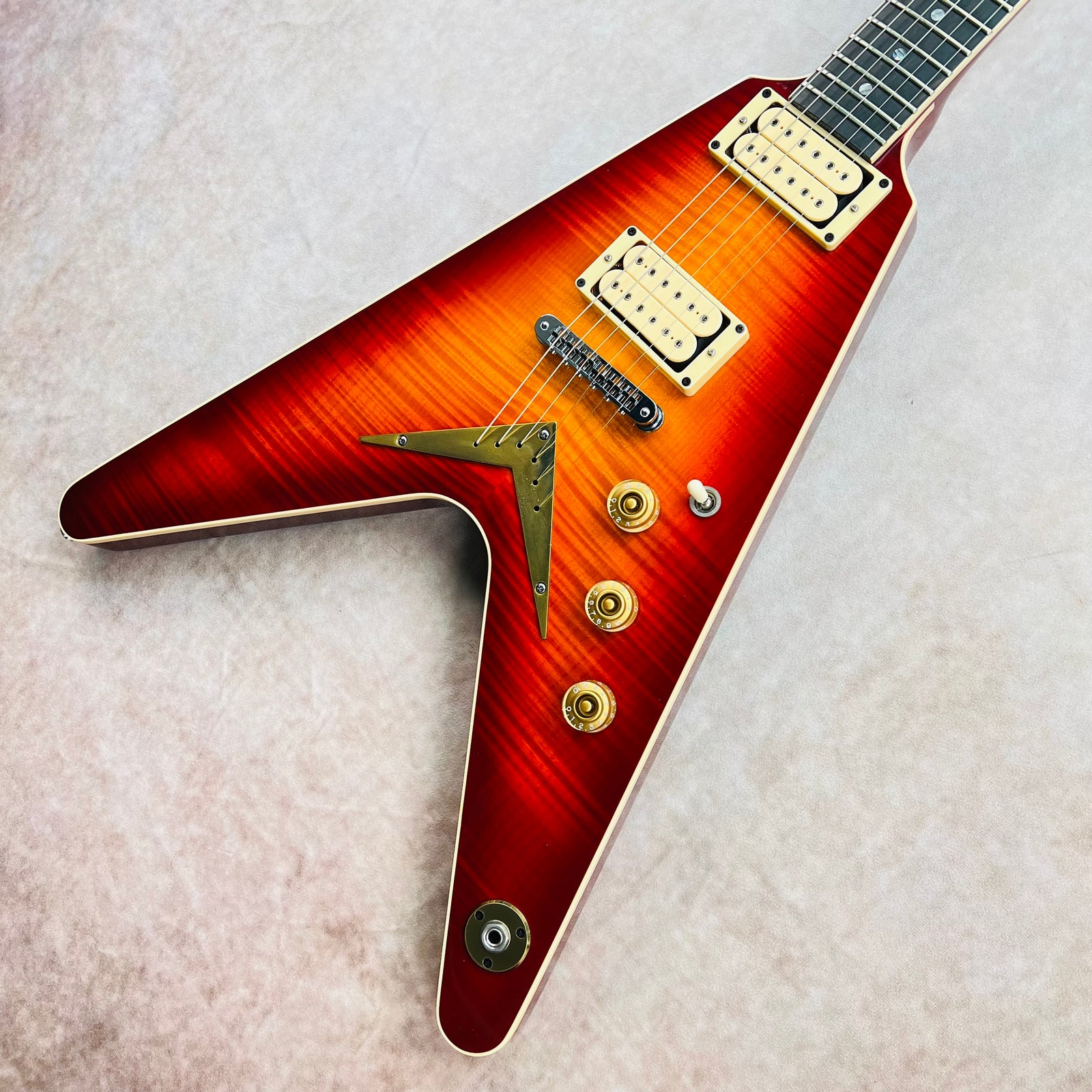

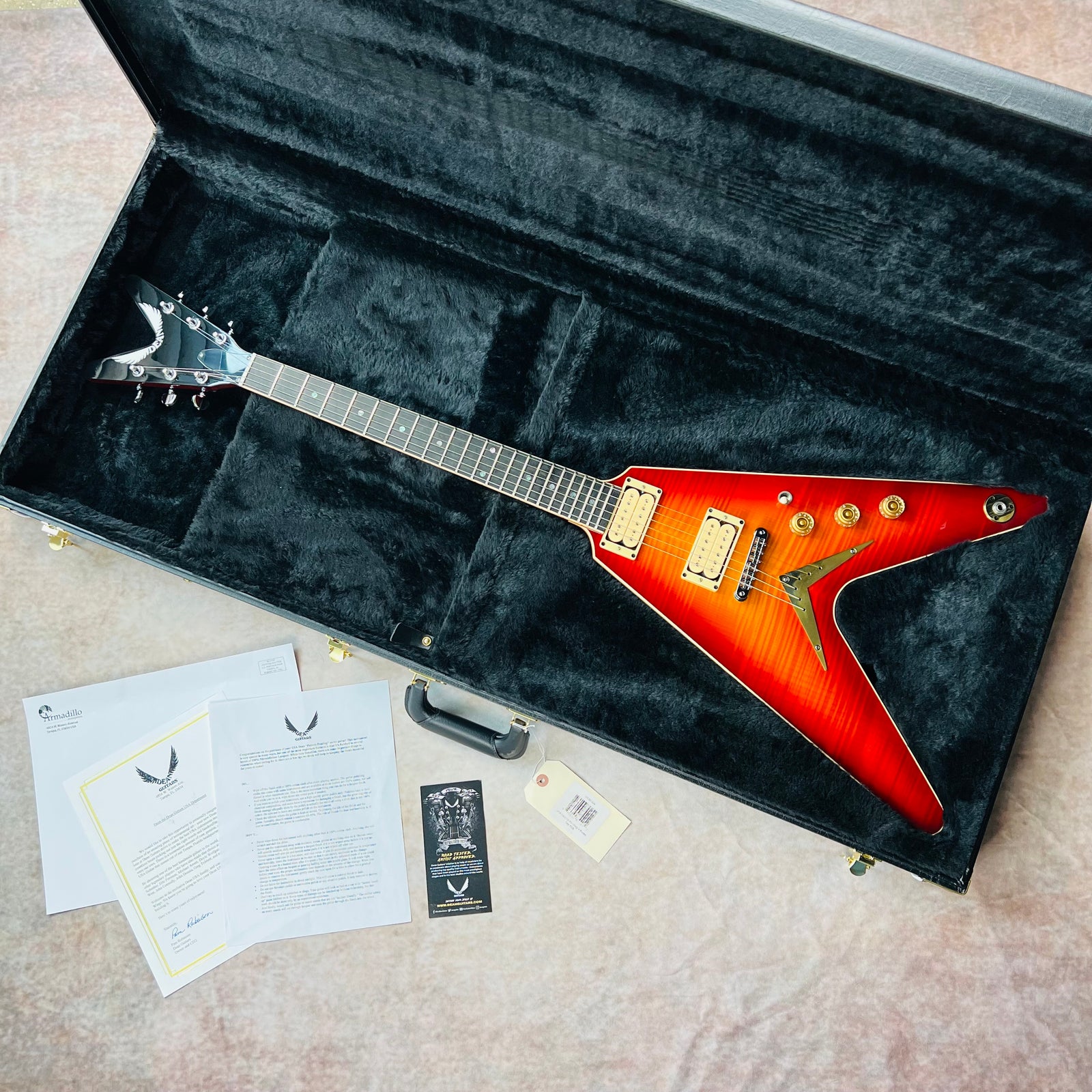

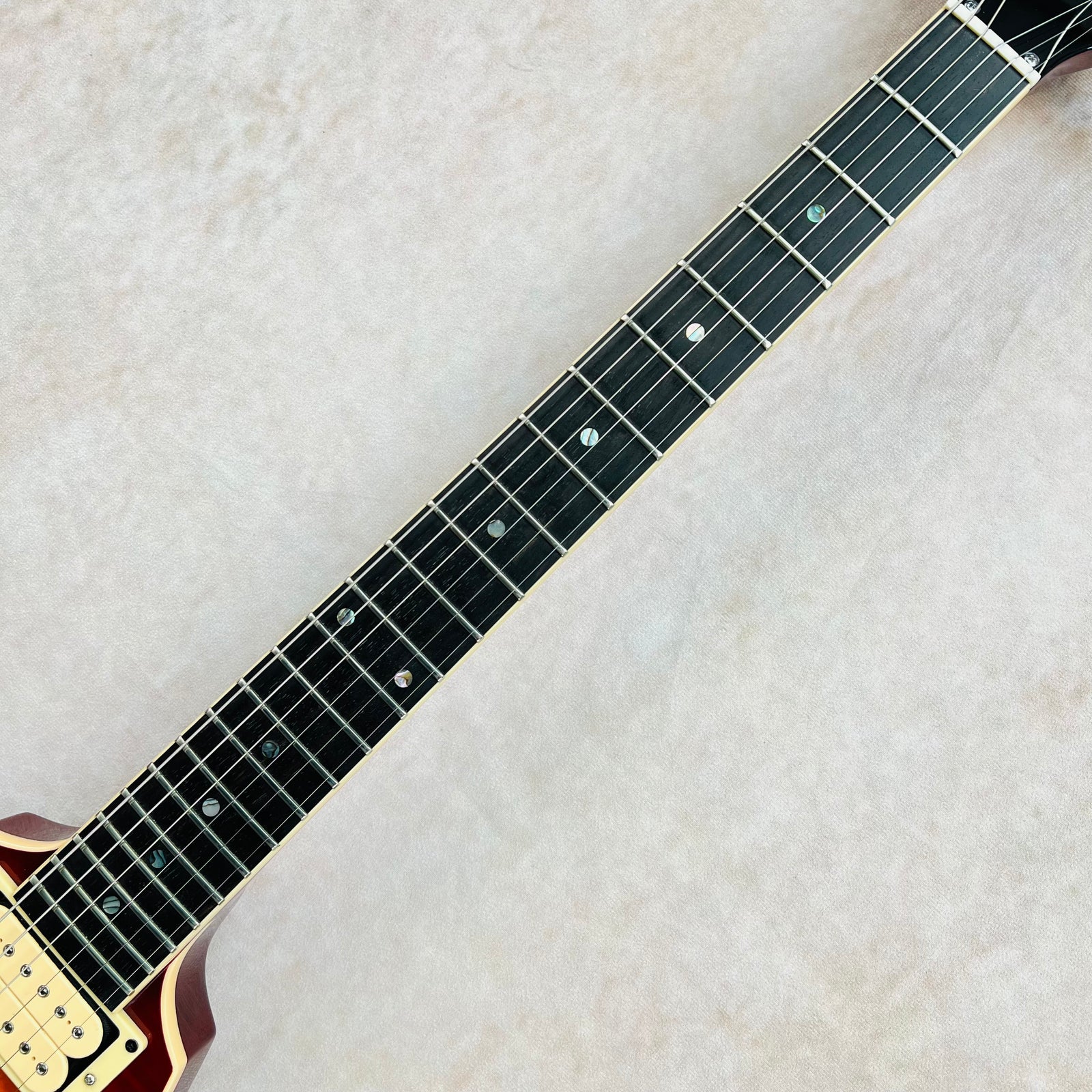

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Patents Pending V Flame Top listed above. For larger pics, click on an image to open in a new tab.
