The 2023 1963 Les Paul SG Custom with Maestro Vibrola is a solid body electric guitar built by Epiphone. This double cutaway set neck guitar was manufactured in China and is an Epiphone Inspired by Gibson Custom model. Key features include a Mahogany Body, Mahogany Neck, Ebony Fretboard, Maestro Vibrola, Three Gibson Custombucker Pickups and Classic White finish. The specs listed below pertain to the 2023 product year model pictured on this page.
Factory Specs
- Mahogany Body
- Mahogany Neck
- Ebony Fretboard
- Mother of Pearl Block Inlays
- 22 Frets
- Medium Jumbo Fret Wire
- 12" Radius
- 24.75" Scale Length
- 1.692" Nut Width
- GraphTech Nut
- Long Neck Tenon
- 5-ply Headstock Binding
- Single-ply Fretboard Binding
- Grover Rotomatic Tuners
- Tune-O-Matic Bridge
- Maestro Vibrola Tailpiece
- Gold Hardware
- 3-ply White Pickguard
- White Tenon Cover with "Les Paul Custom" in Black Text
- 2-ply Black Bell Truss Rod Cover with "Les Paul Custom" in White Text
- Black Top Hat Knobs with Gold Reflector
- Nickel Dial Pointers
- 3 Gibson Custombucker Humbucker Pickups
- 2 Volume
- 2 Tone
- CTS Potentiometers
- Mallory Capacitors
- 3-Way Toggle Switch
- VOS (Vintage Original Sheen) Polyurethane
Reference Images

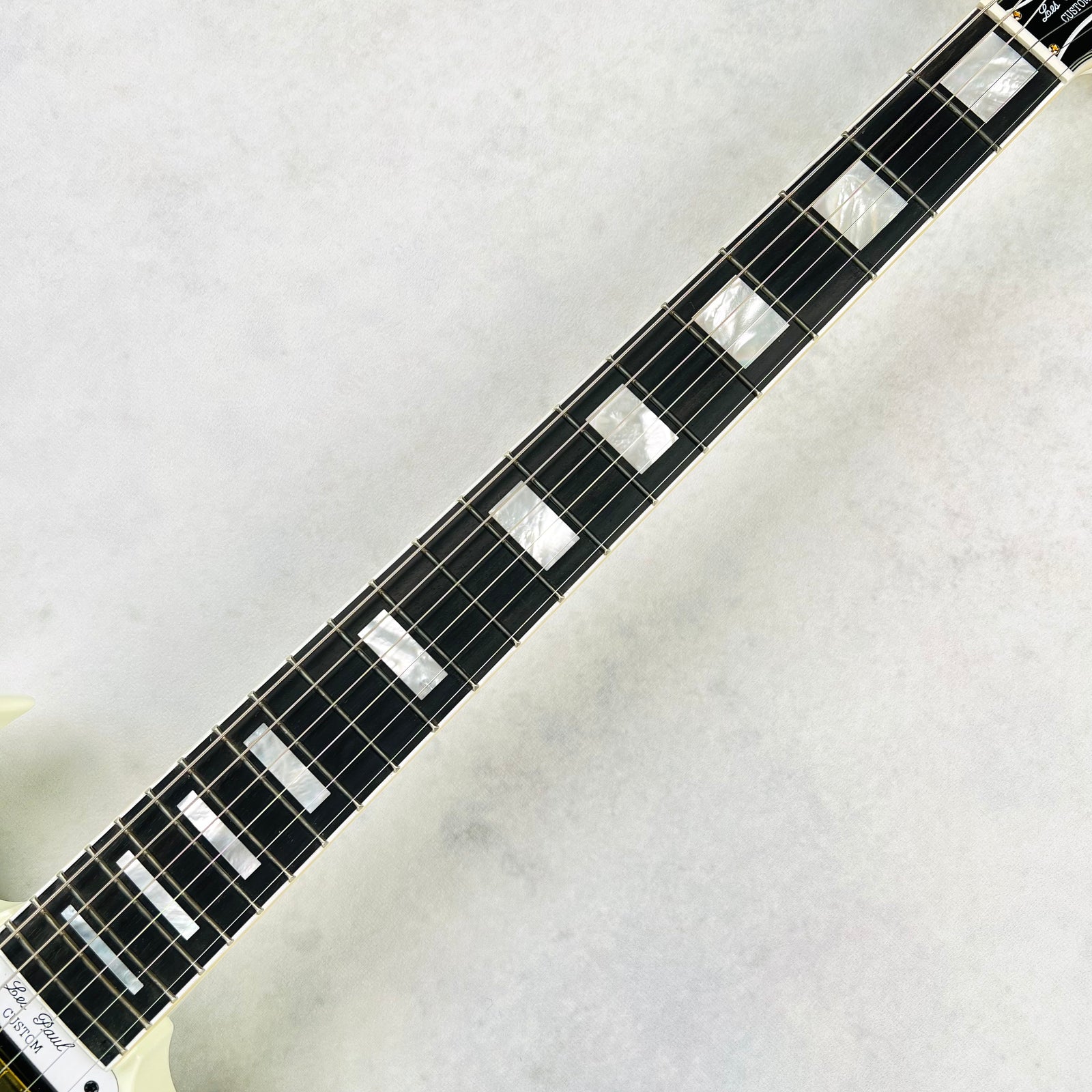

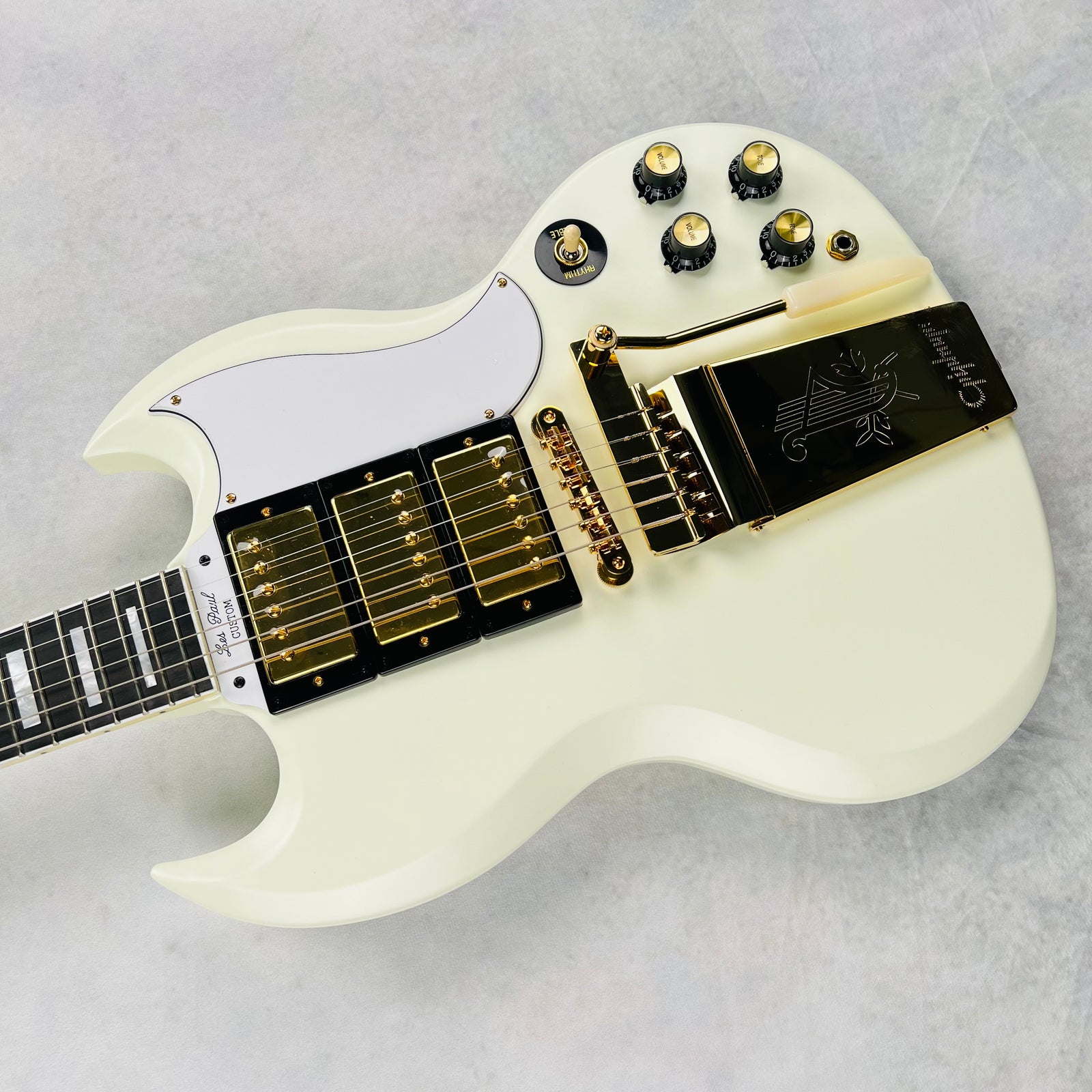

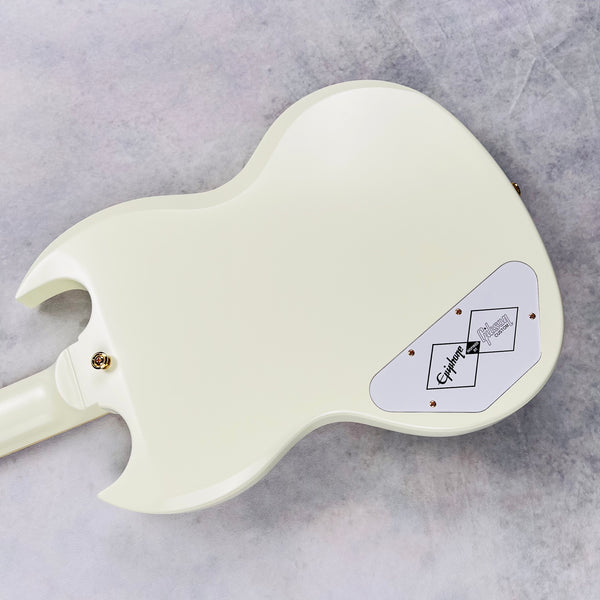

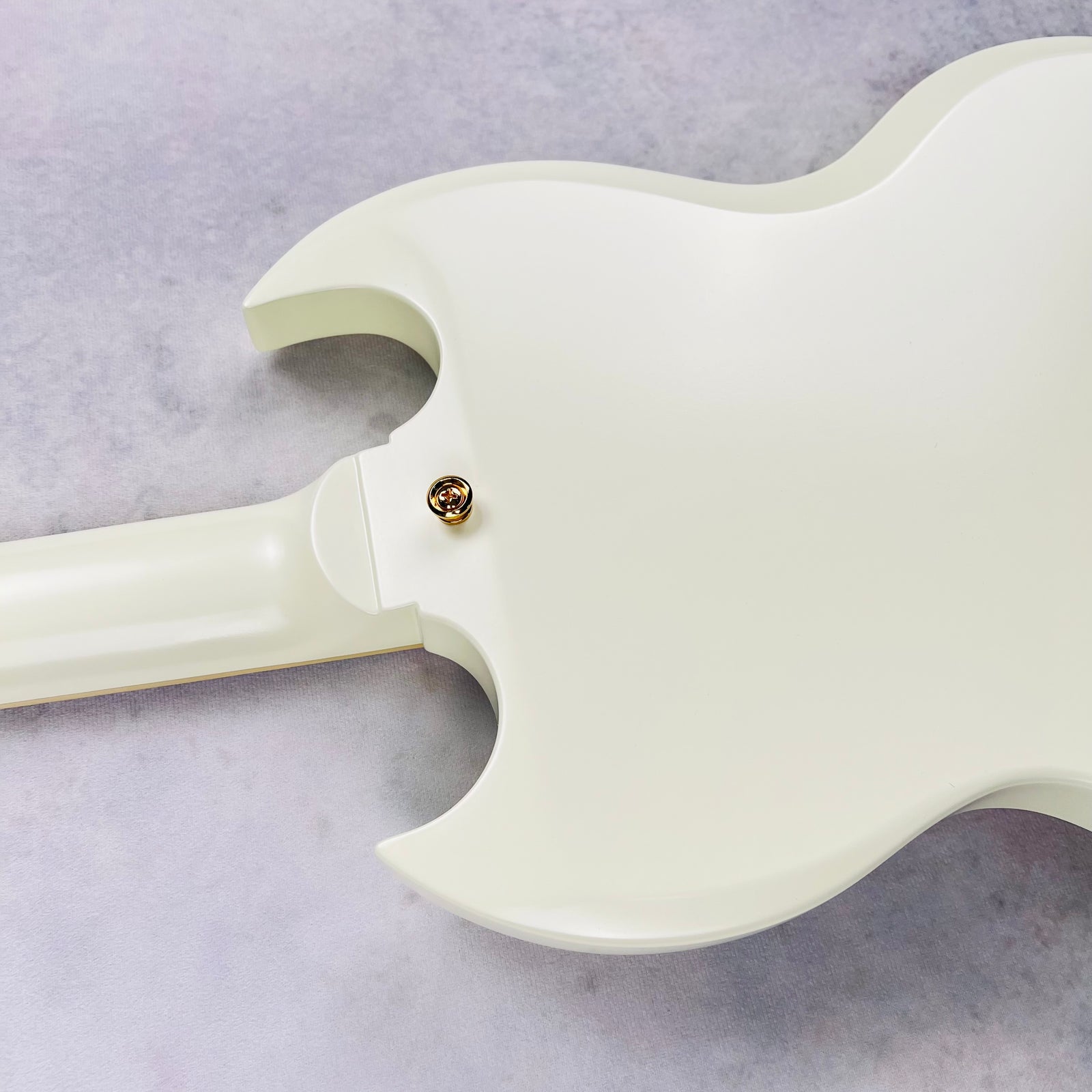

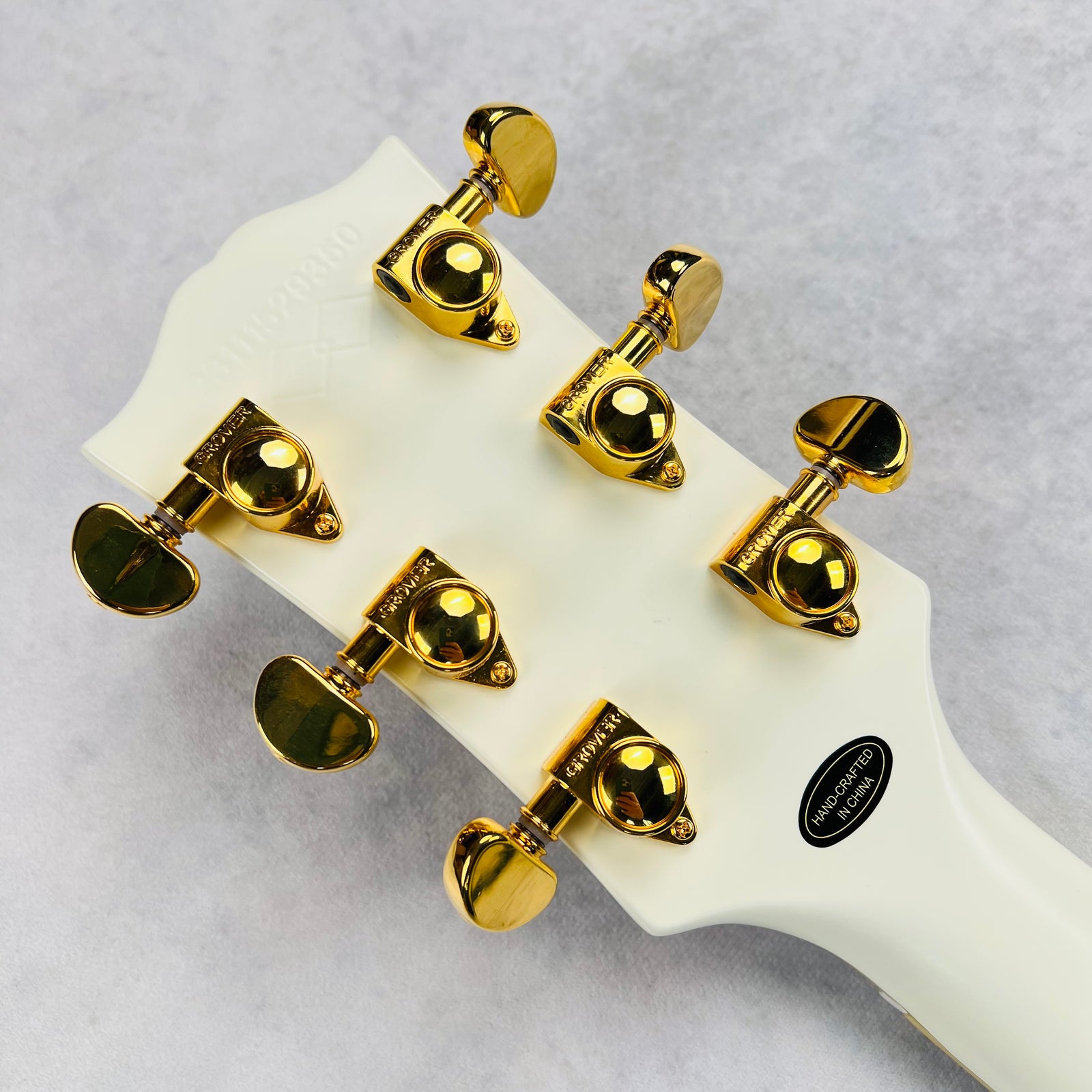

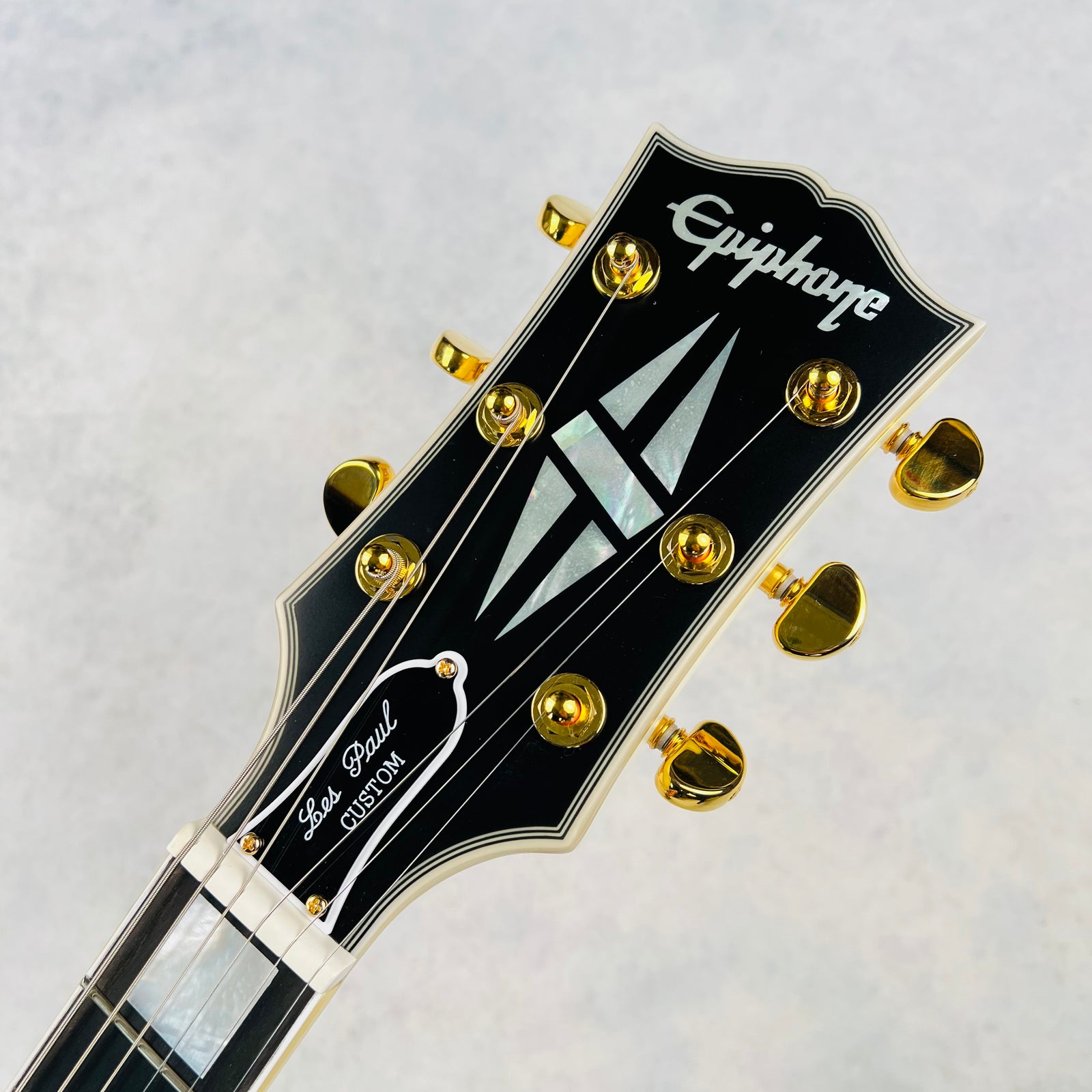

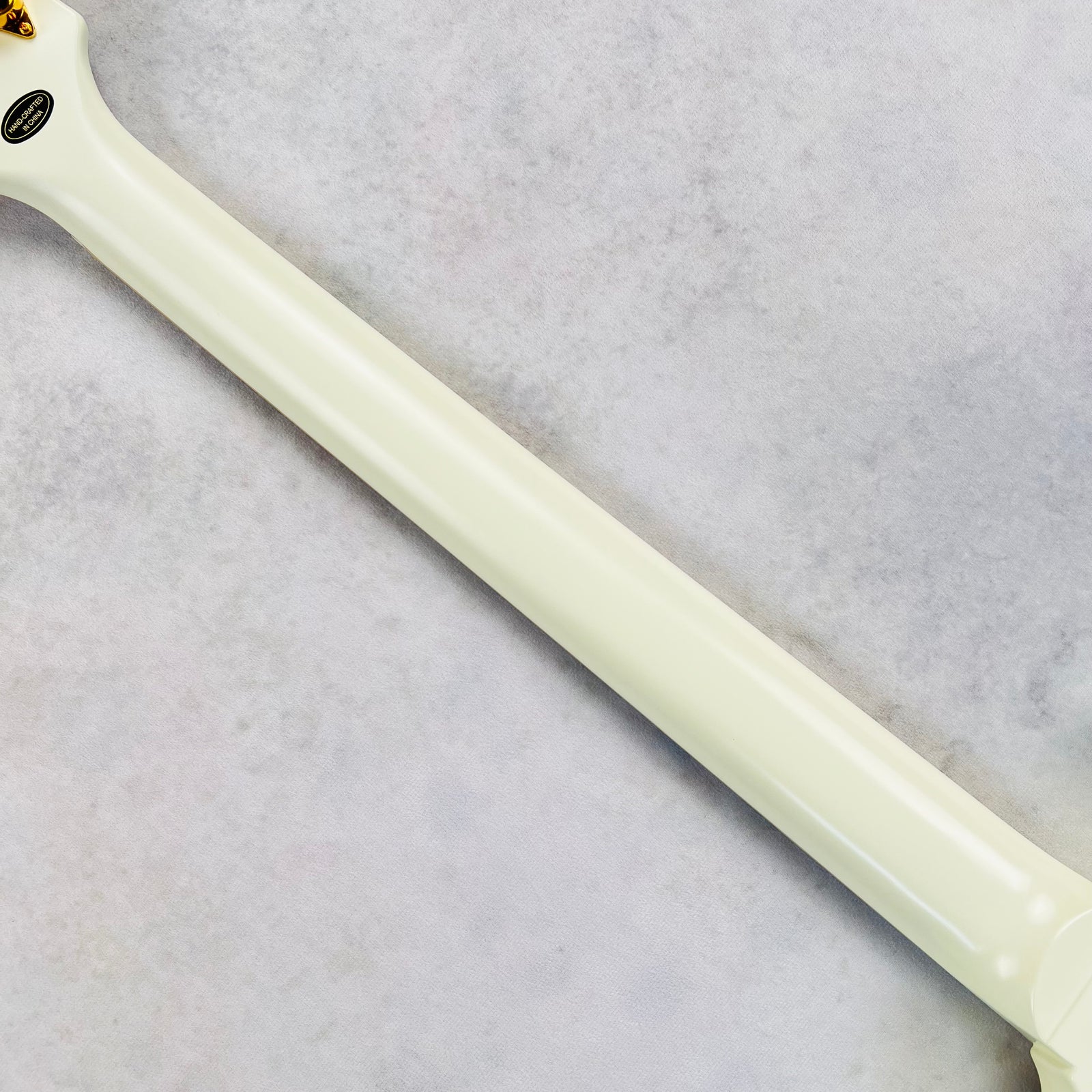

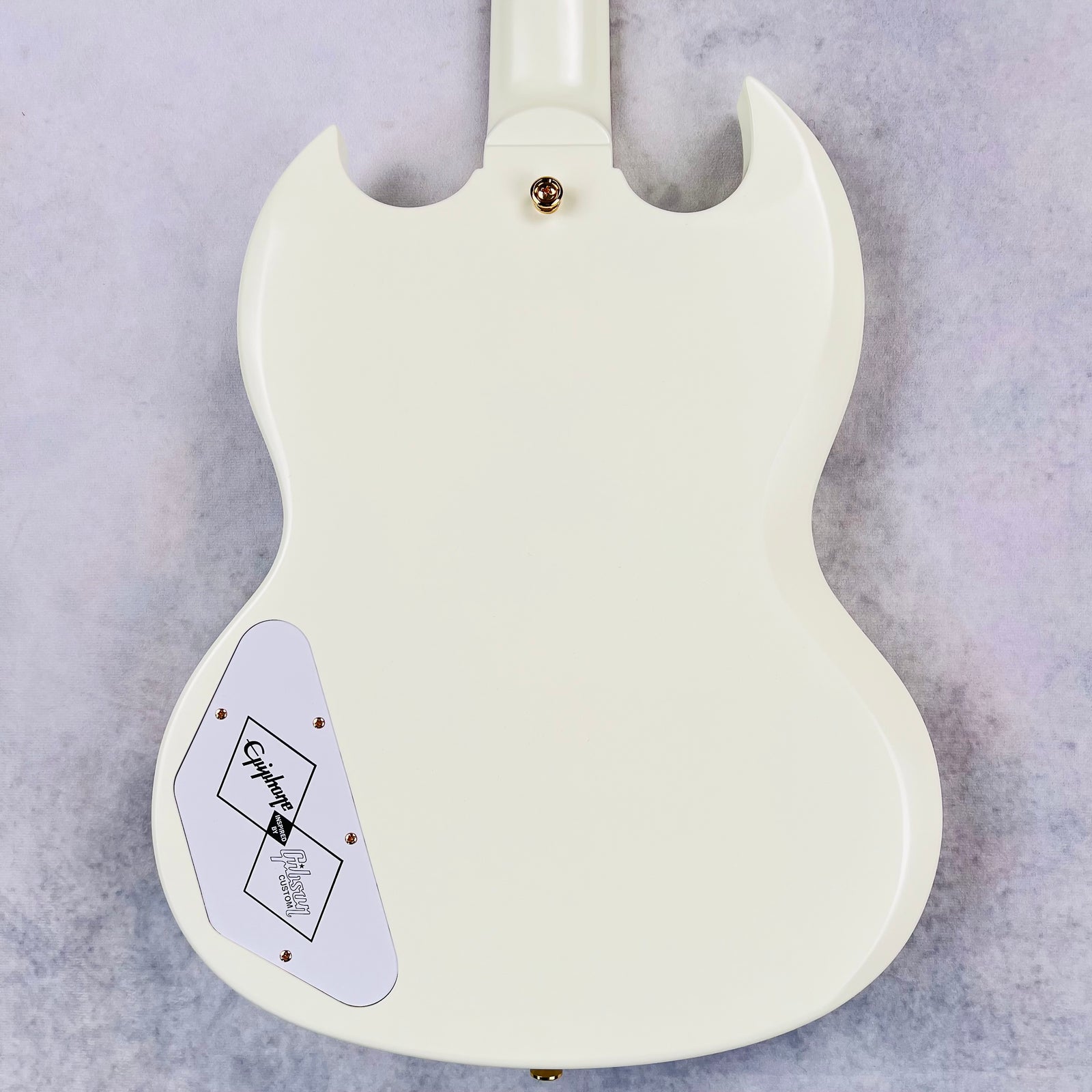

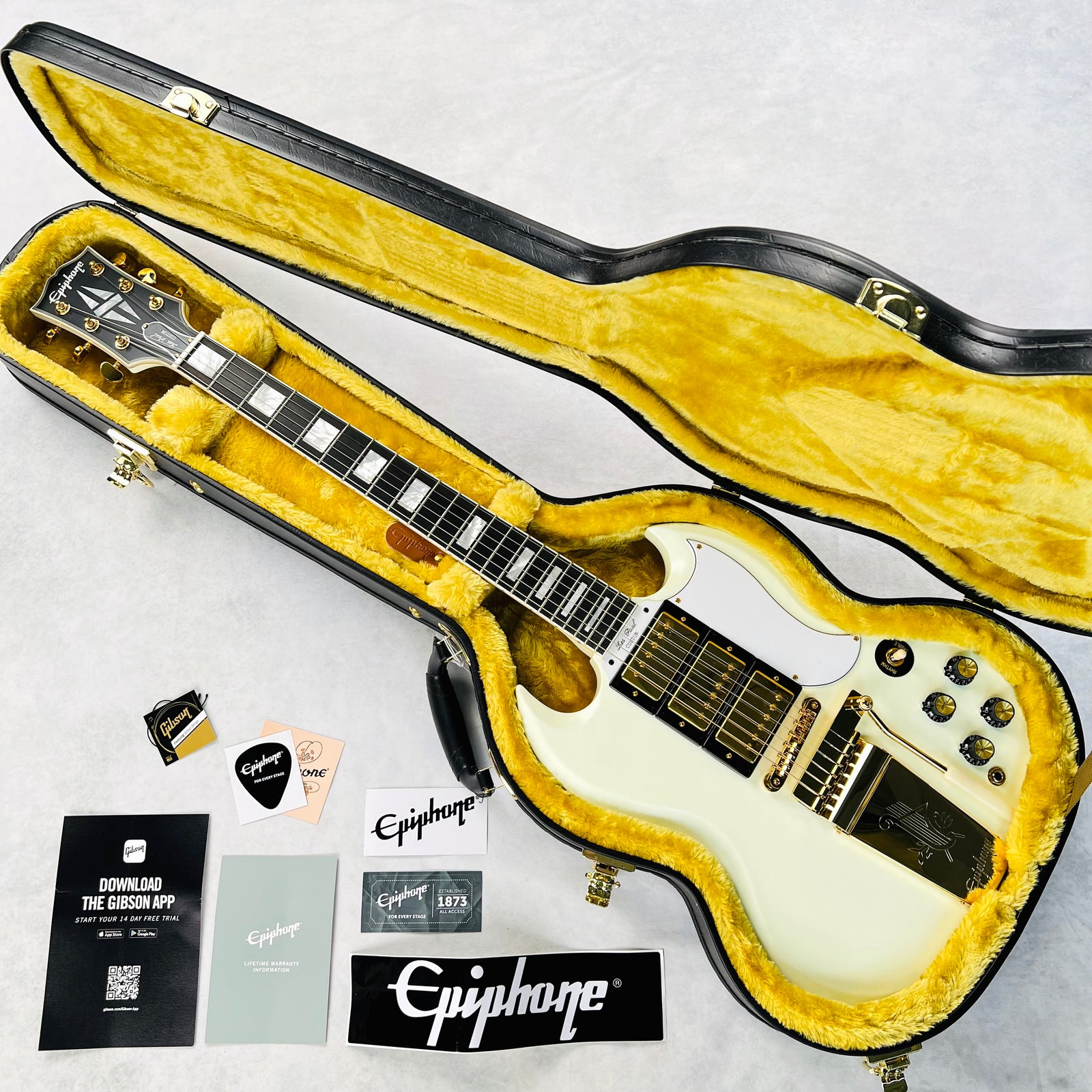

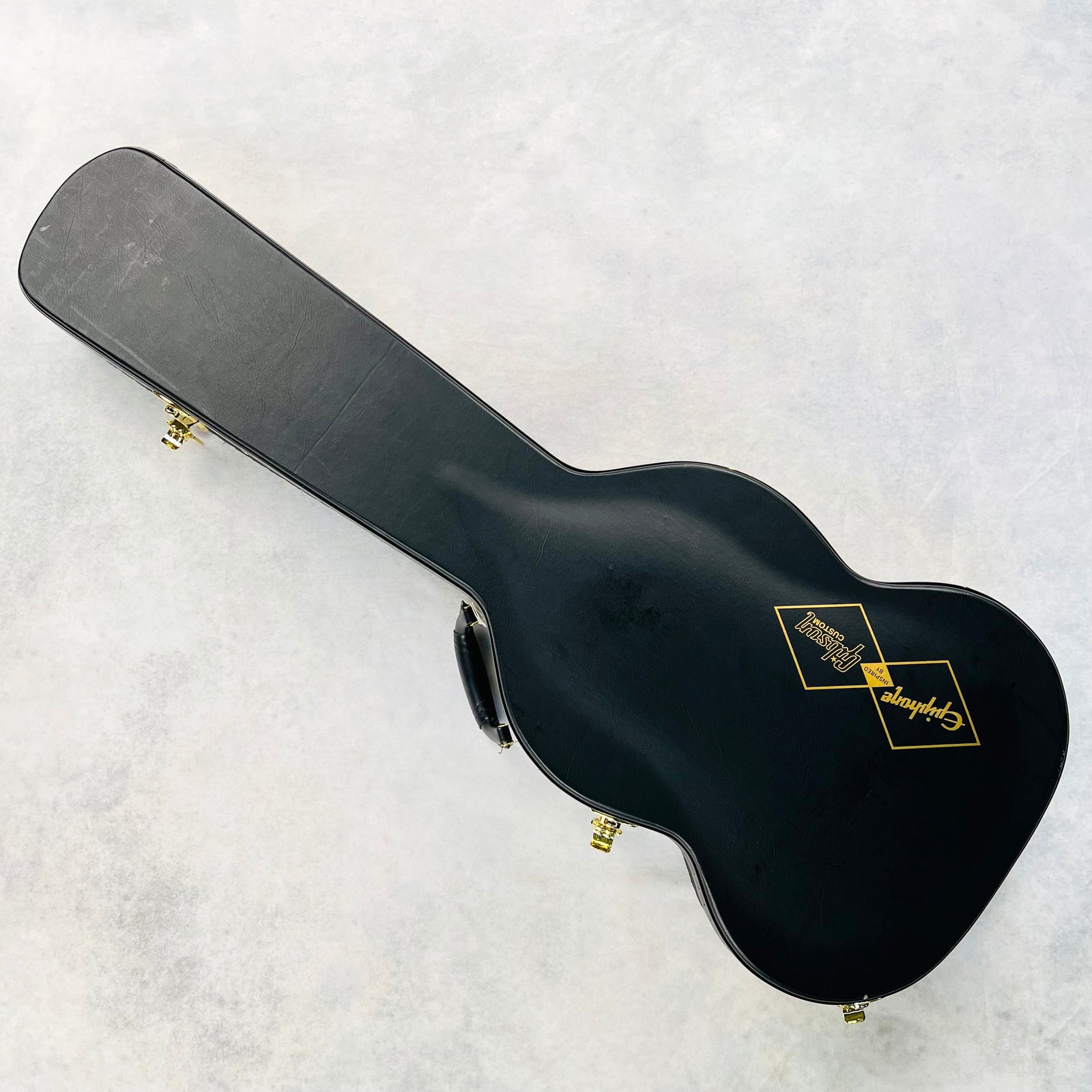

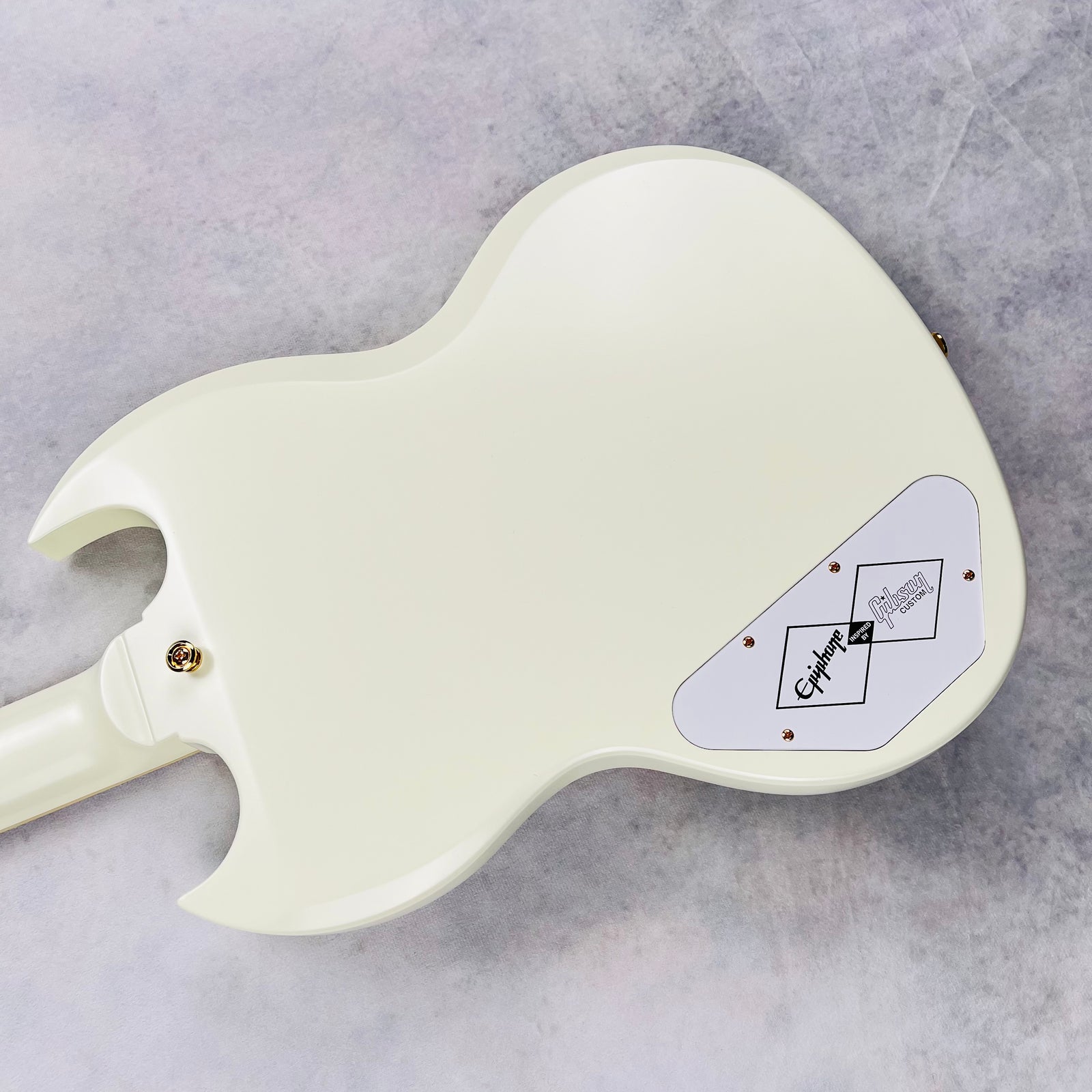

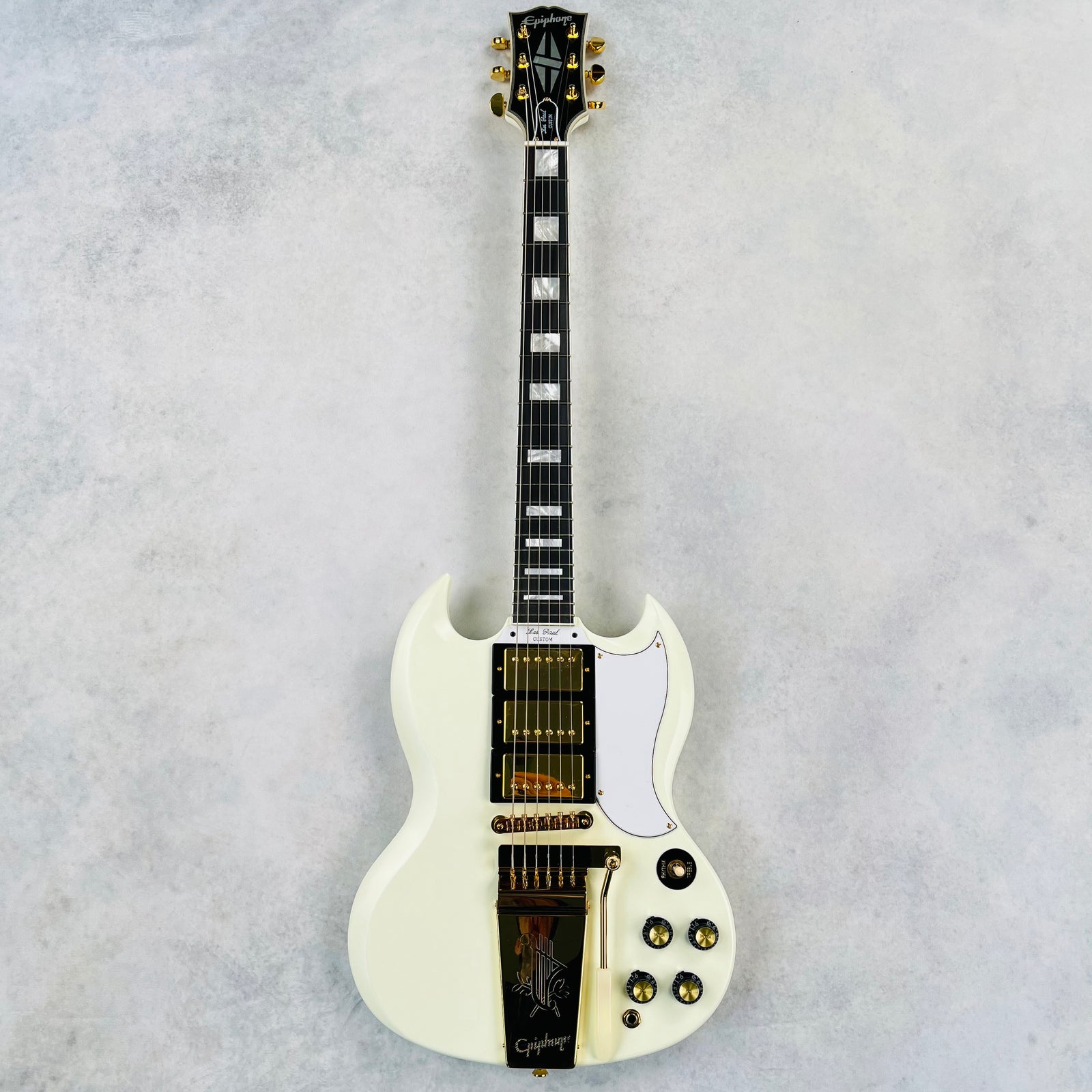

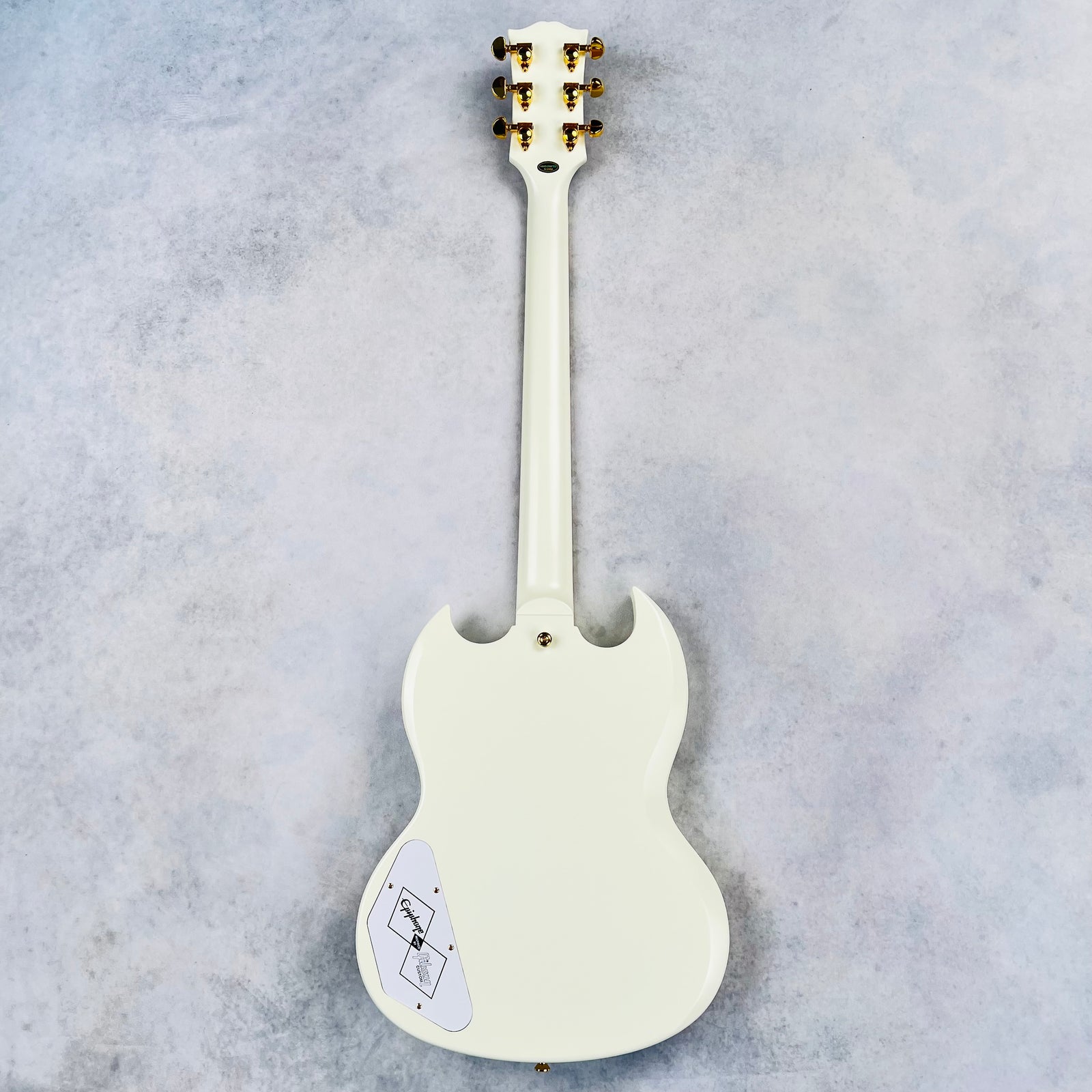

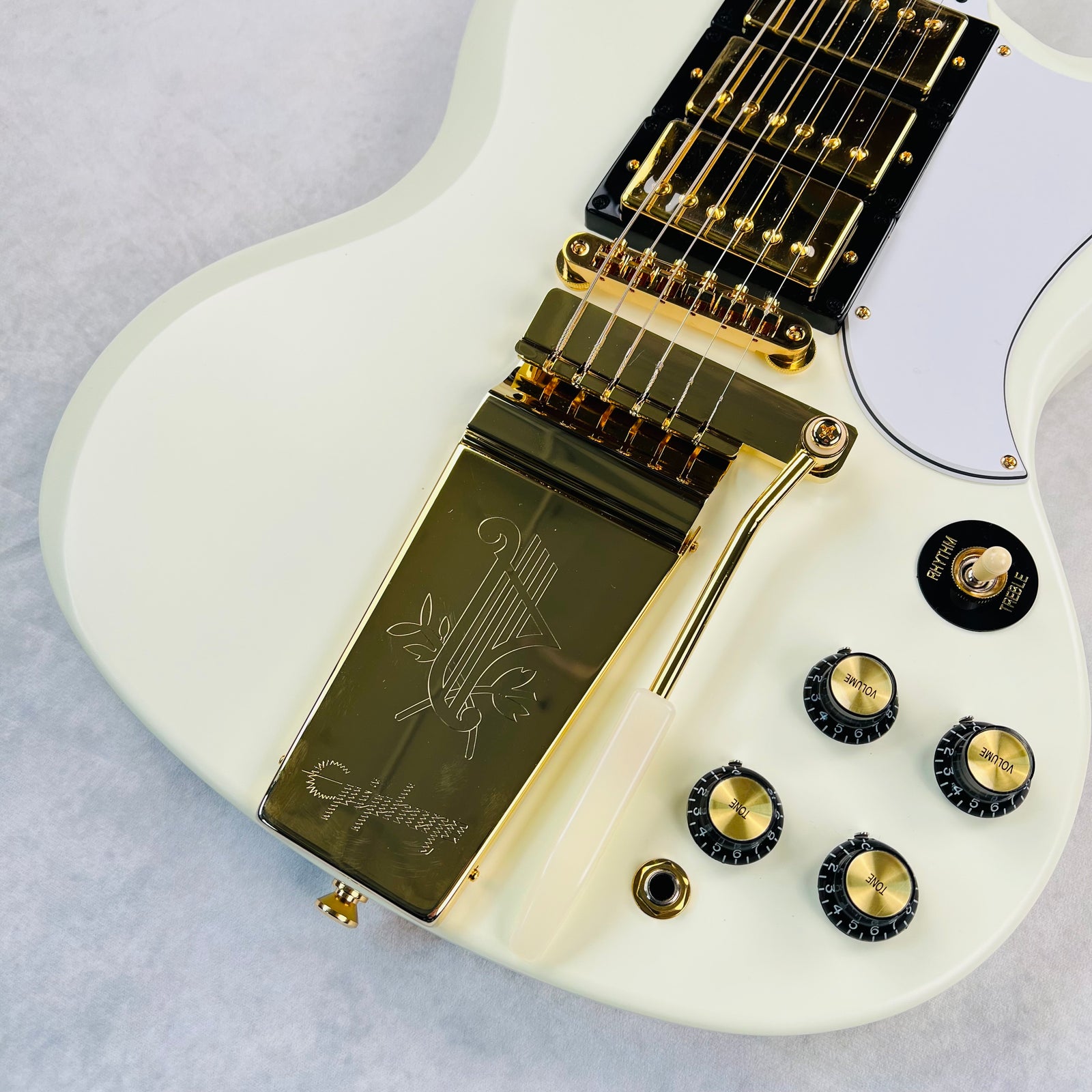

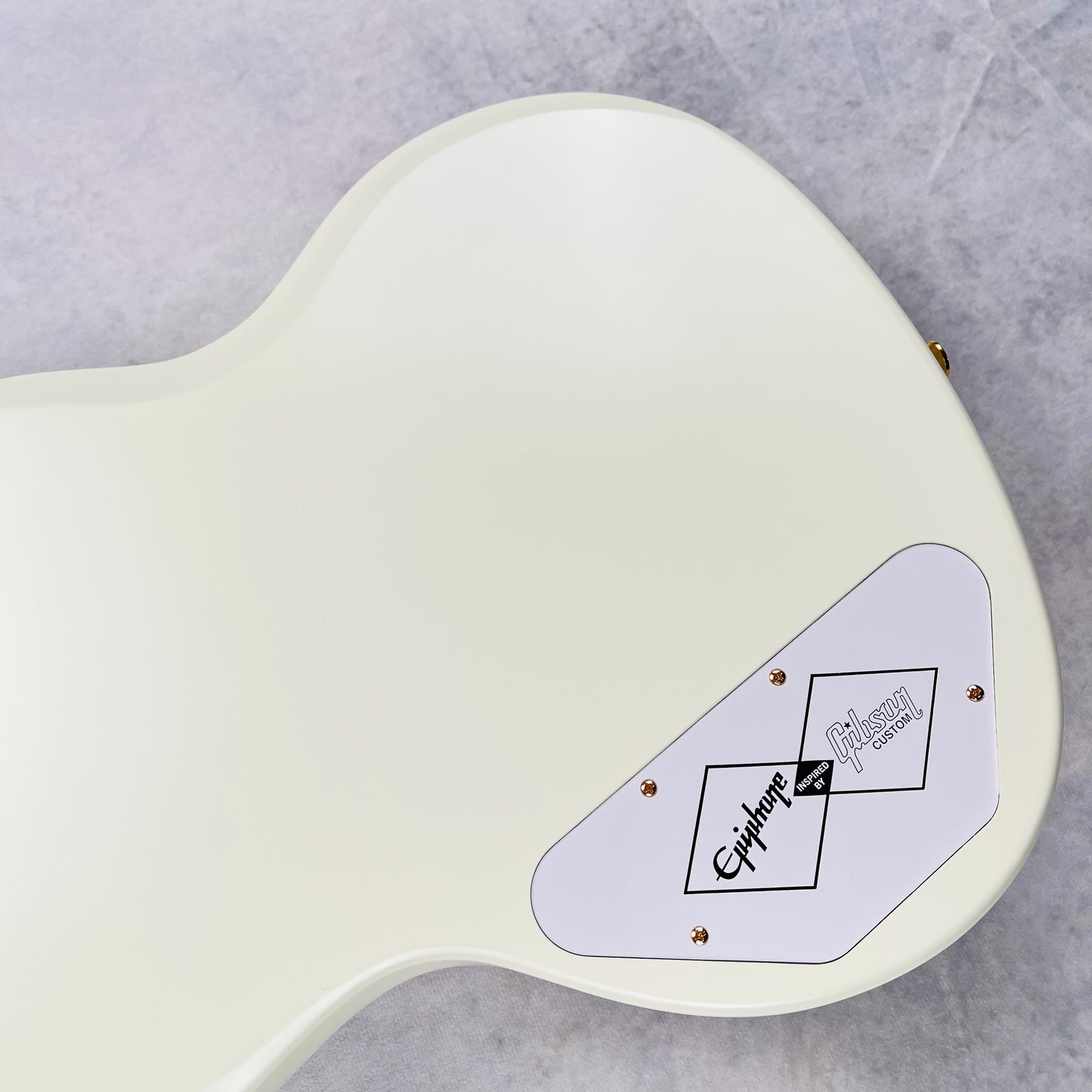

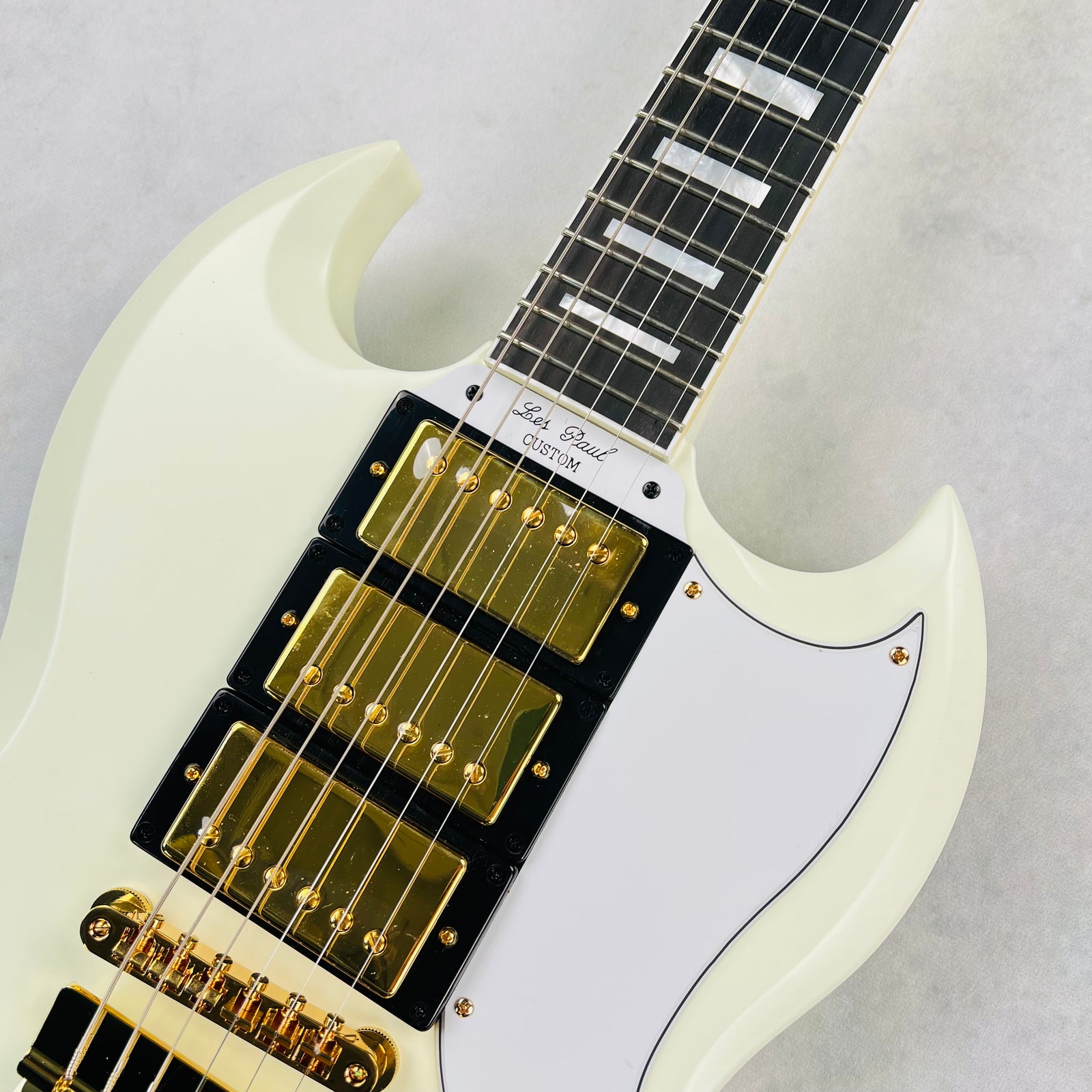

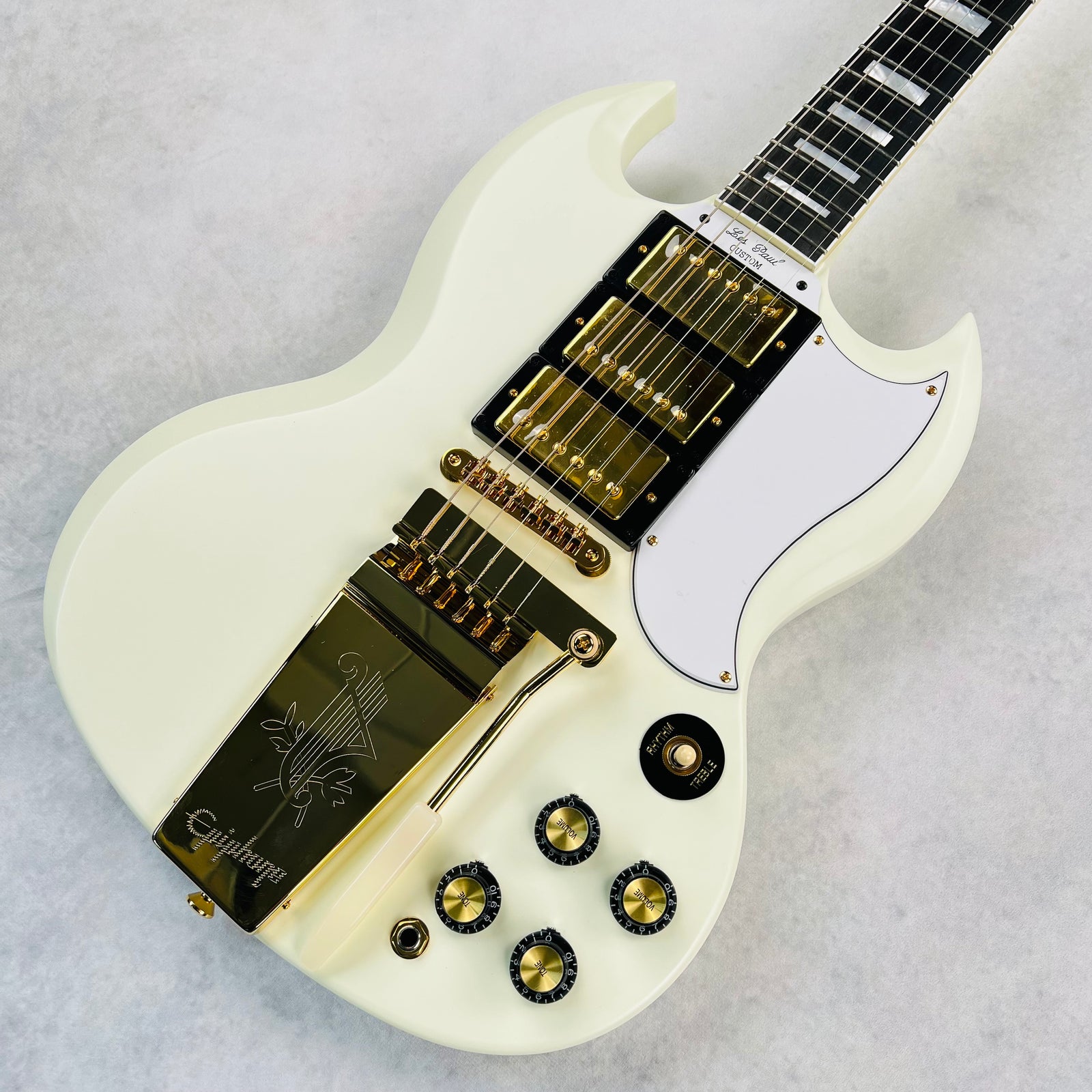

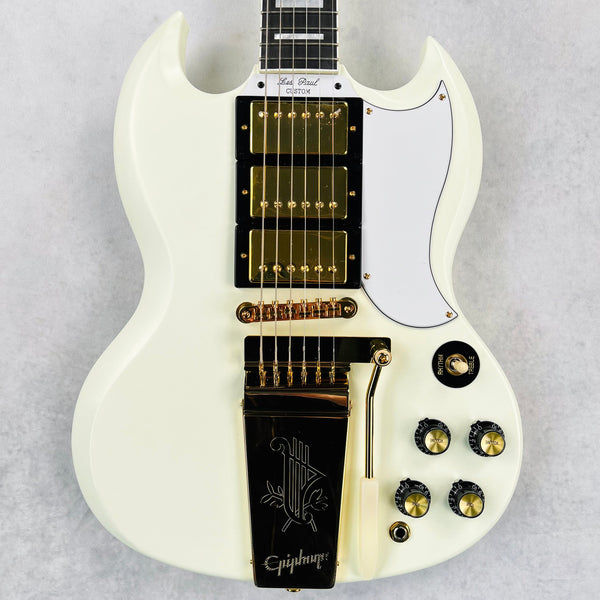

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the 1963 Les Paul SG Custom with Maestro Vibrola listed above. For larger pics, click on an image to open in a new tab.
