The 70s Les Paul Deluxe is a solid body electric guitar built by Gibson. This single cutaway set neck guitar was manufactured in Nashville, TN in the United States and is a Gibson Original Series model. Key features include a Mahogany Body, Mahogany Neck, Maple Top, Rosewood Fretboard, Dual Mini-Humbucker Pickups and Goldtop finish. The specs listed below pertain to the 2022 product year model pictured on this page.
Factory Specs
- Mahogany Body
- Mahogany Neck
- Maple Top
- Rosewood Fretboard
- Trapezoid Fingerboard Inlays
- Bell Truss Rod Cover Stamped "Deluxe"
- Vintage Kluson Style Tuners with Pearl Buttons
- Dual Mini-Humbucker Pickups
- Two Volume & Two Tone Controls
- Orange Drop Capacitors
- 3-Way Toggle Switch
- Tune-O-Matic Bridge
- Stop Tailpiece
- Single Ply Cream Pickguard
- Top Hat Knobs with Inserts
- Cream Body and Neck Binding
- 24 3/4" Scale Length
- 12" Radius
- 1.695" Nut Width
- 22 Medium Jumbo Frets
- Graph Tech Nut
- Lacquer Finish
Reference Images

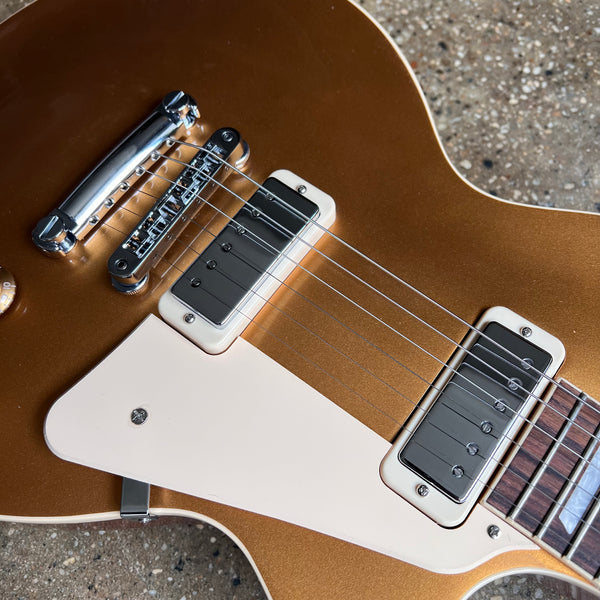

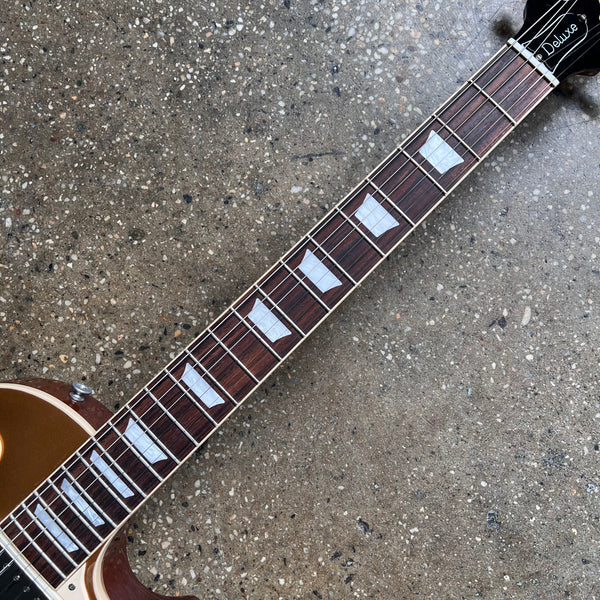

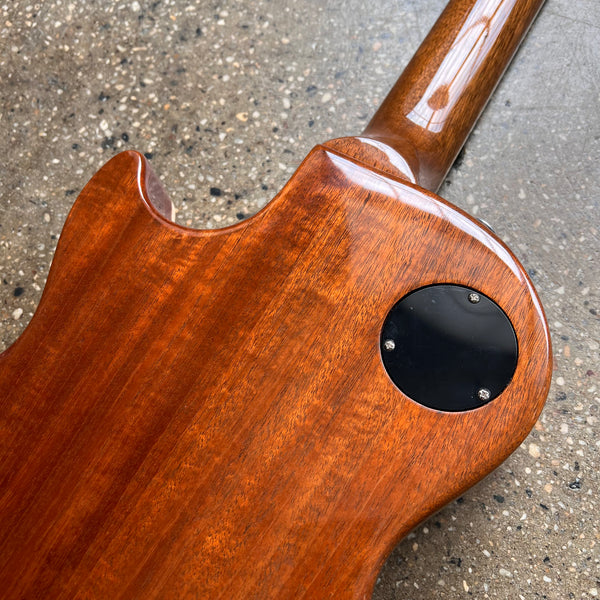

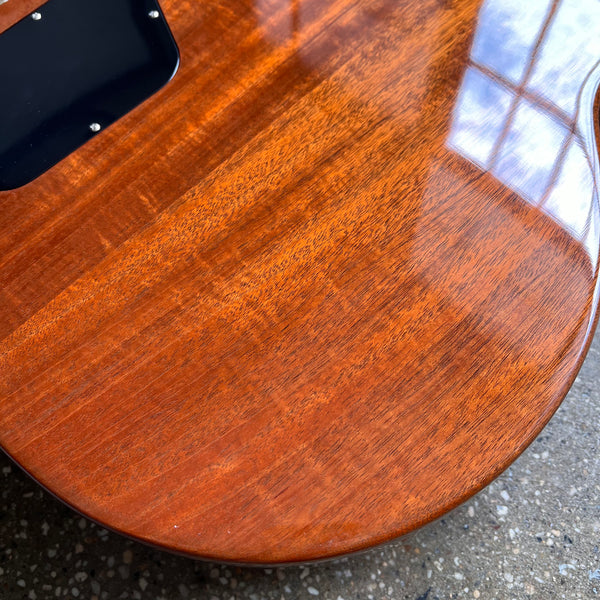

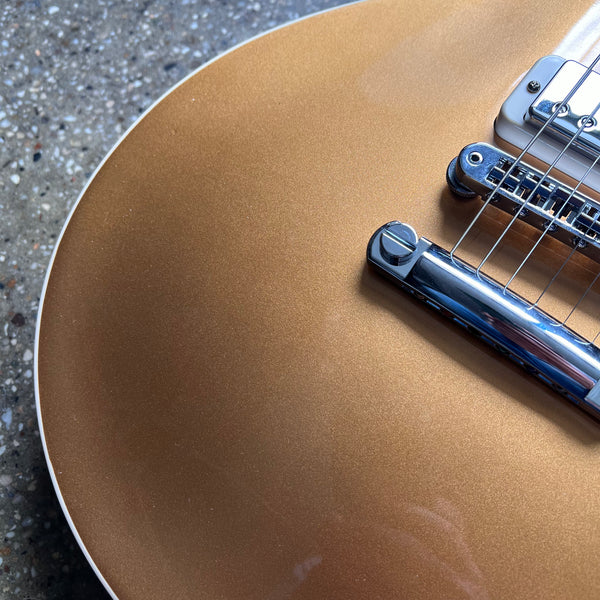

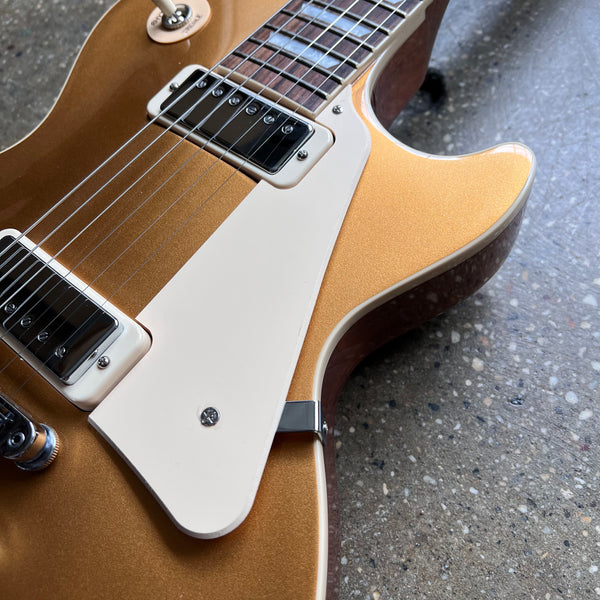

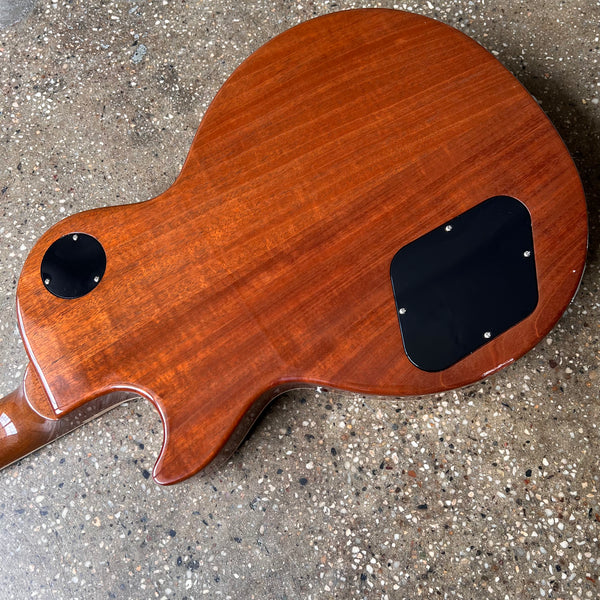

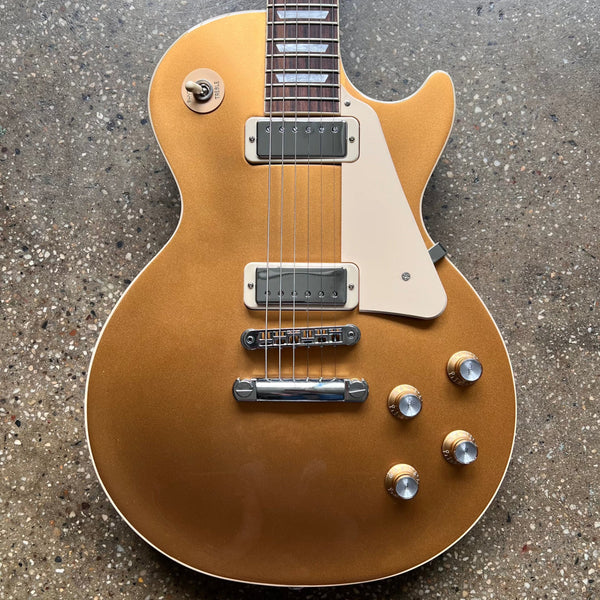

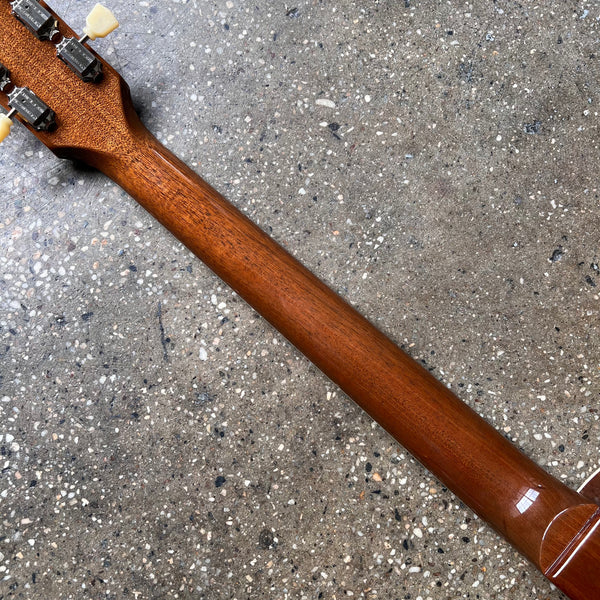

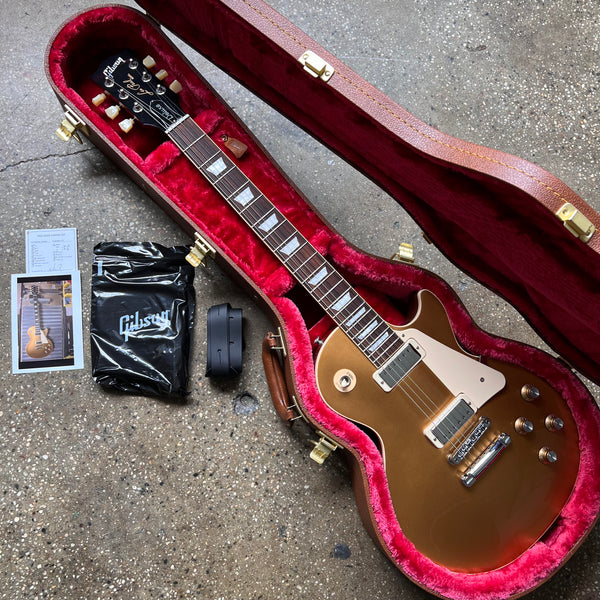

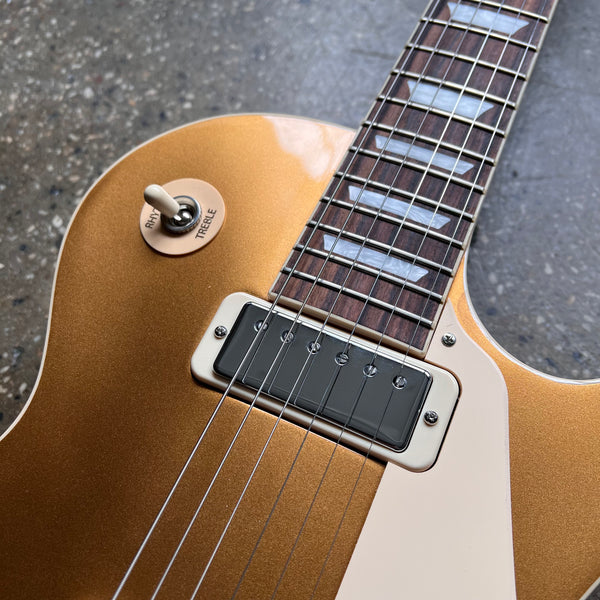

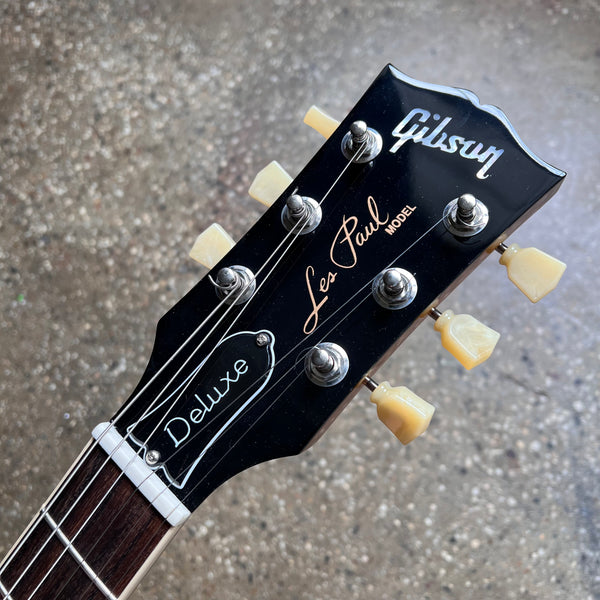

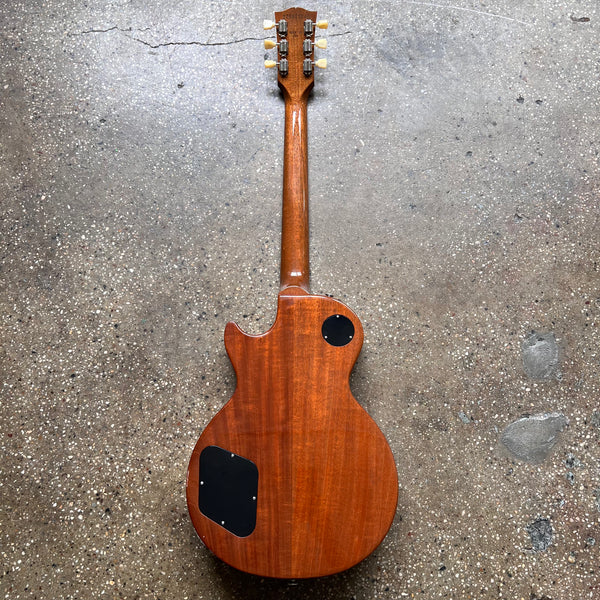

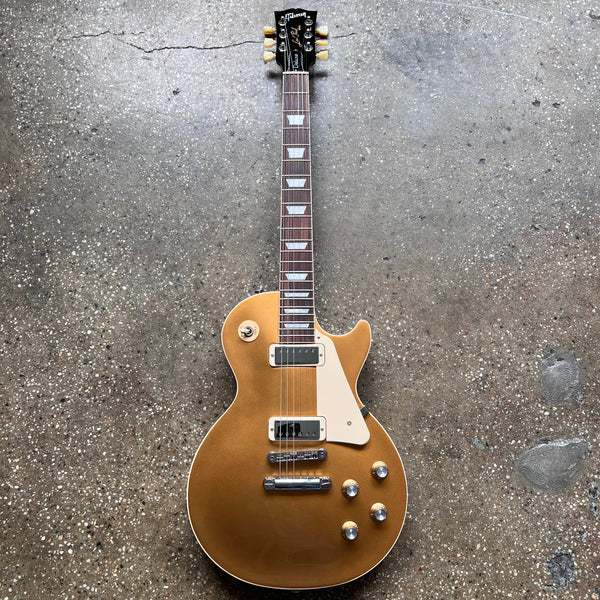

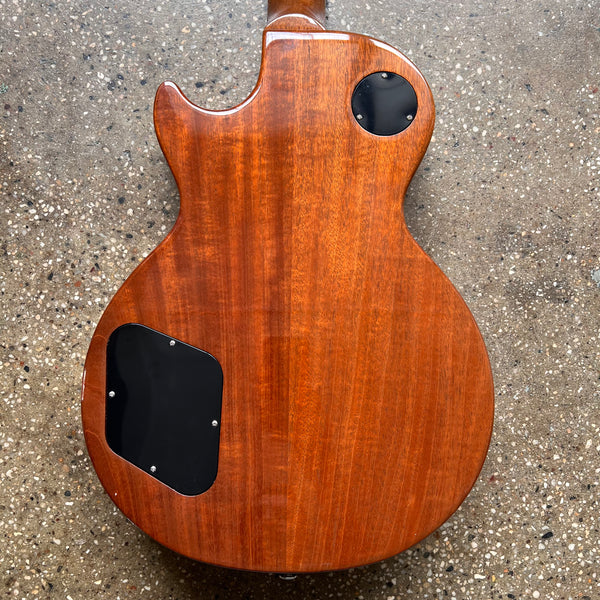

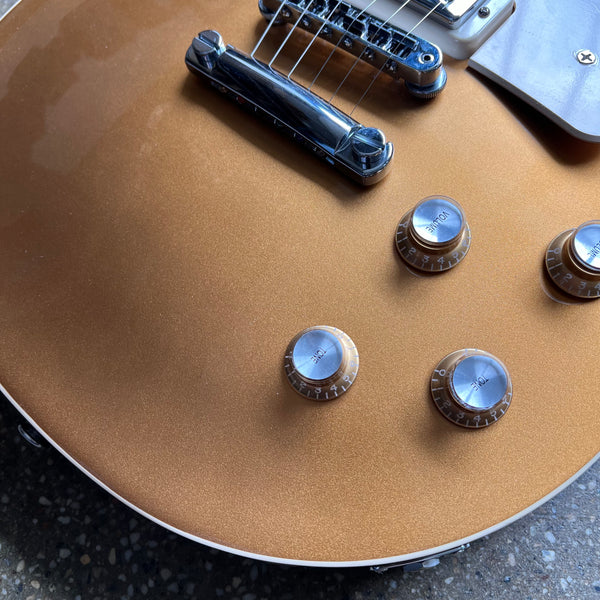

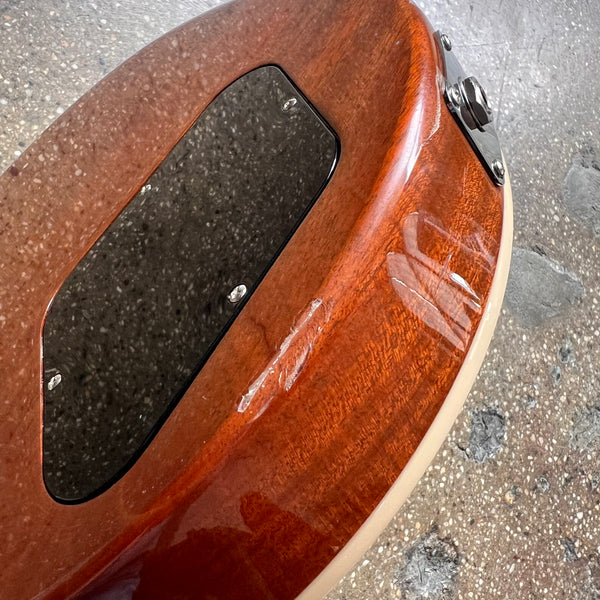

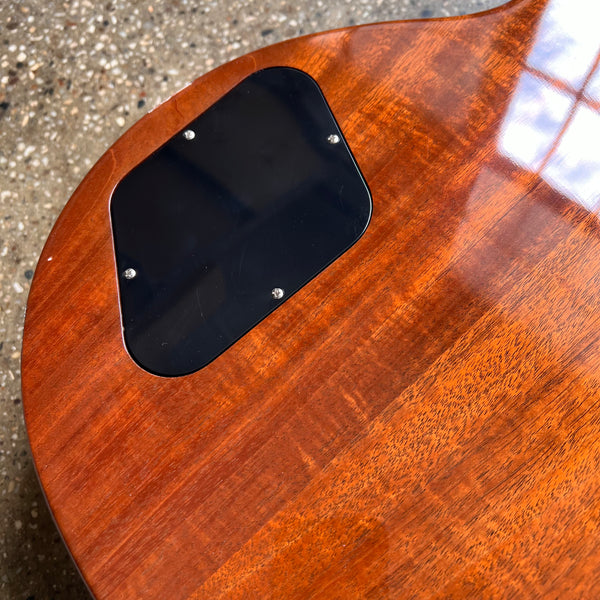

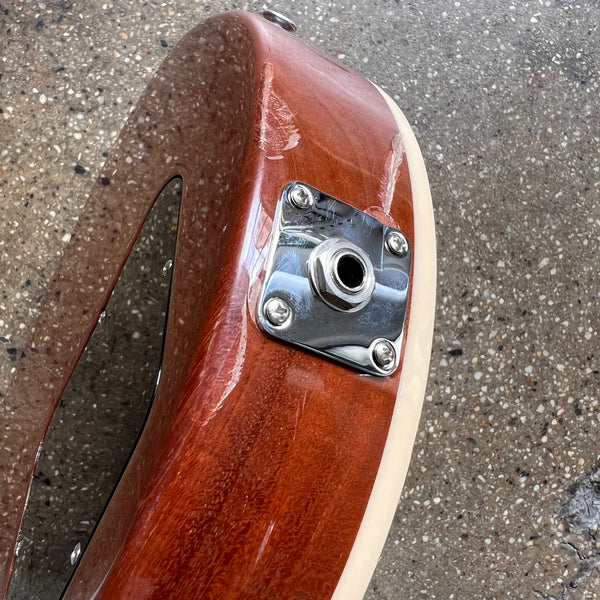

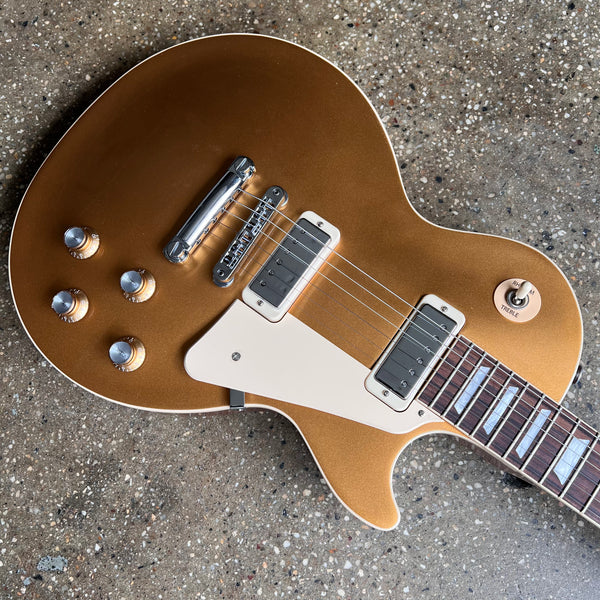

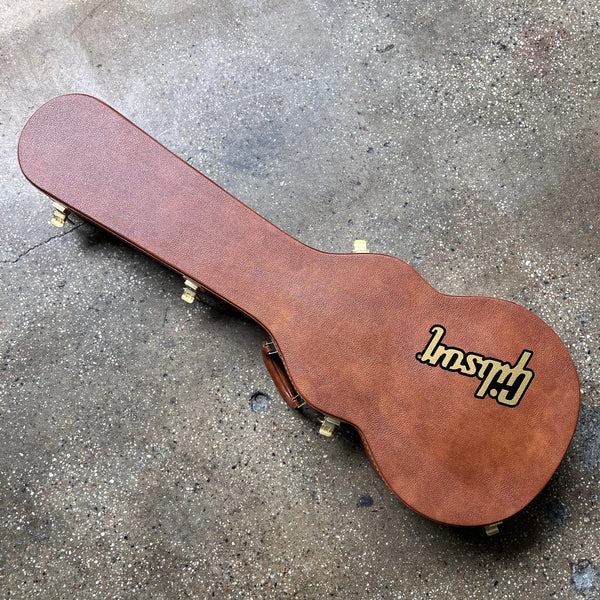

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the 70s Les Paul Deluxe listed above. For larger pics, click on an image to open in a new tab.
