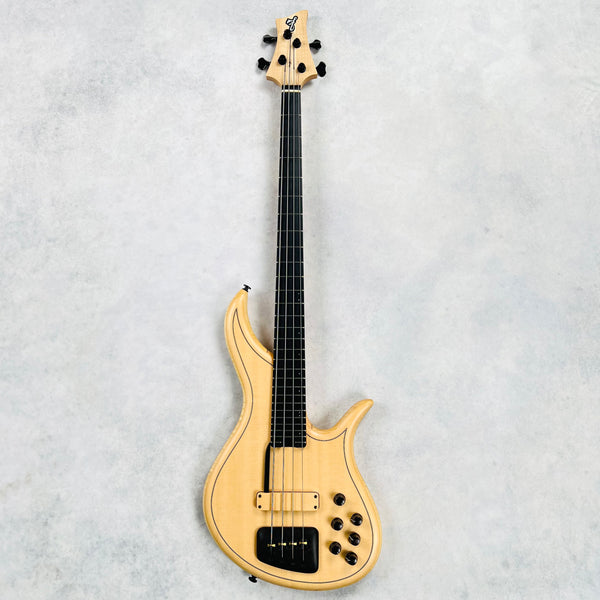

The 2022 AC-4 is a 4-string bass guitar built by F Bass. This semi-hollow bolt on guitar was manufactured in Canada and is a F Bass AC-Signature model. Key features include a Spruce Top, Figured Maple Chambered Body, 3-Piece Maple Neck, Gabon Ebony Fingerboard, F Bass Stacked Single-Coil & RMC Piezo Saddle Pickups and Natural finish. The specs listed below pertain to the 2022 product year model pictured on this page.
Factory Specs
- Spruce Top
- Chambered Figured Maple Body
- 3-Piece Quartersawn Maple Neck
- Gabon Ebony Fingerboard
- 1.5" Nut Width
- 34" Scale Length
- 2 5/8″ Width at Last Fret
- 10" to 16" Radius
- 28 Frets
- 19mm String Spacing
- F Bass Stacked Single-Coil Bridge Pickup
- RMC Piezo Saddle Pickup

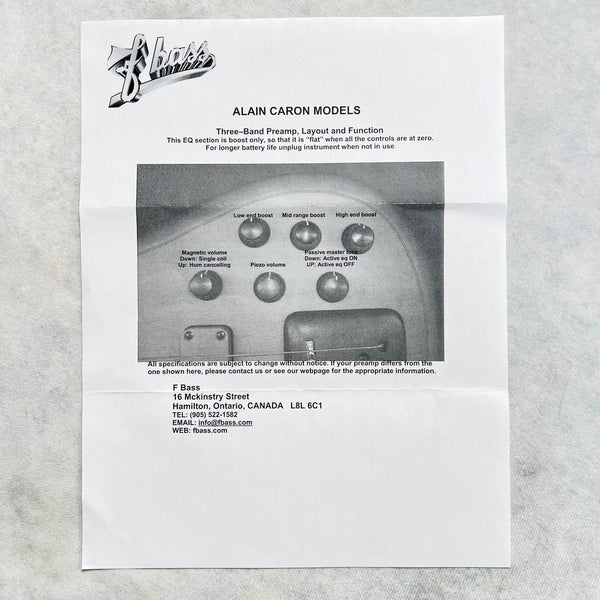

- F Bass 9V Preamp with Bass/Mid/Treble Boosts
- Bridge Volume (single-coil or noise-cancelling push/pull)
- Piezo Volume
- Tone (active or passive push/pull)
- Gotoh Tuners
- Handmade Ebony Bridge
- Handmade Ebony Knobs
- Satin Natural Finish

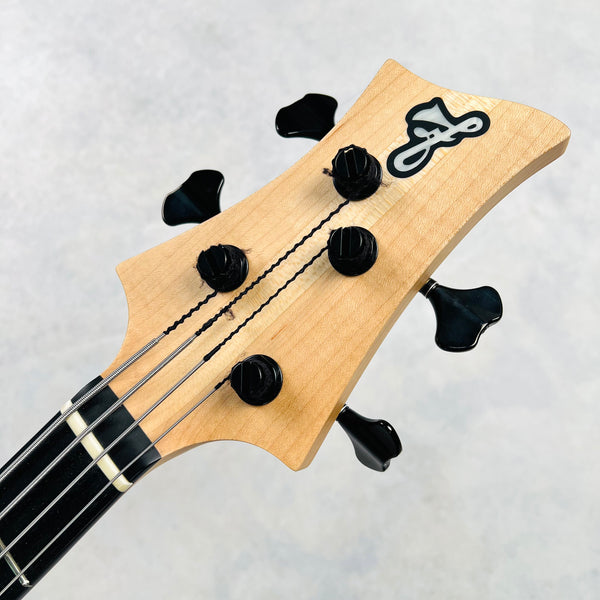

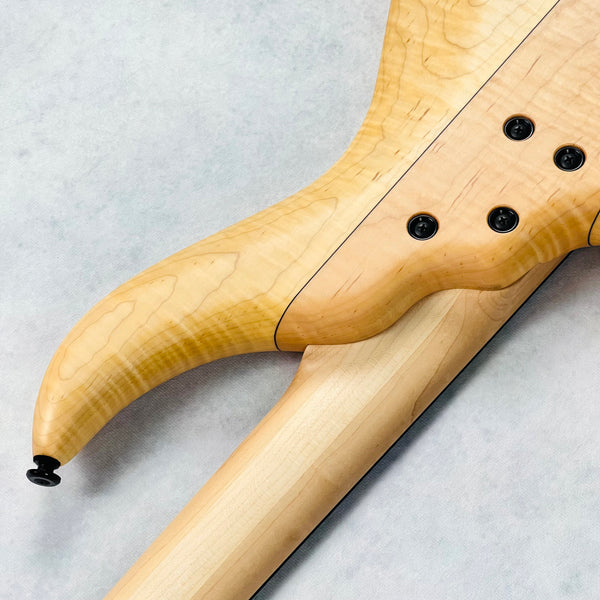

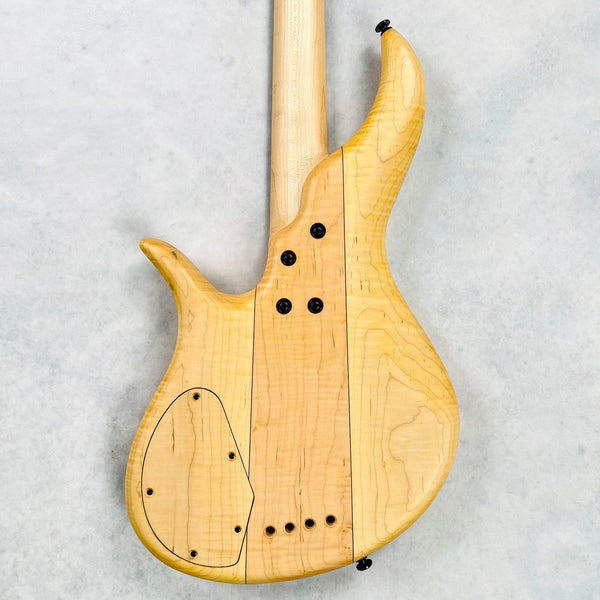

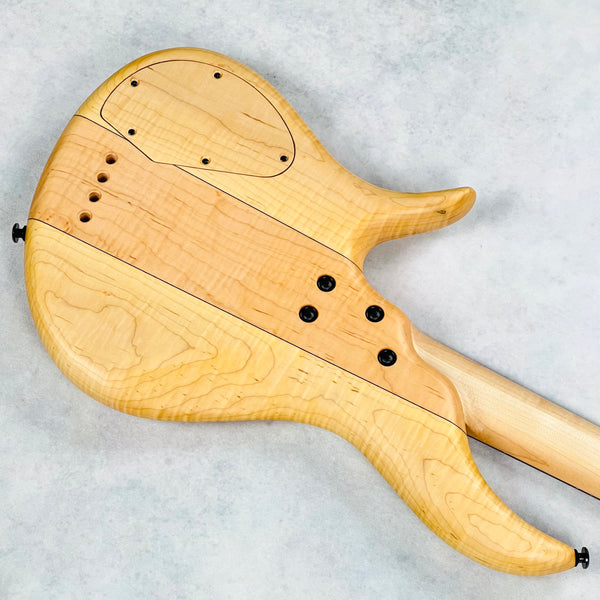

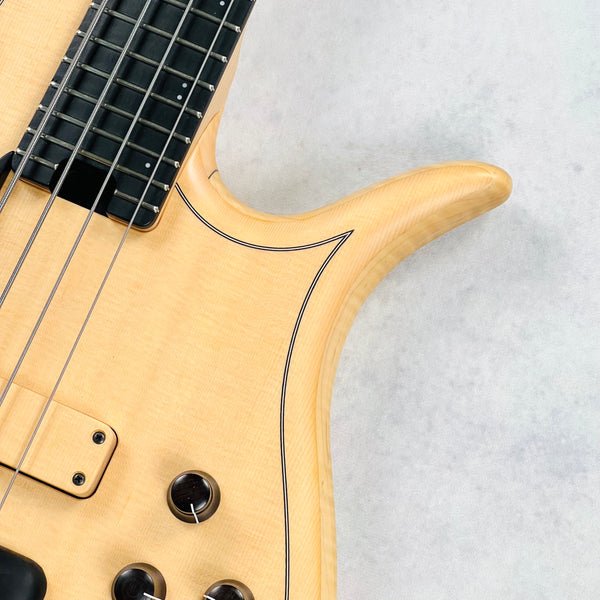

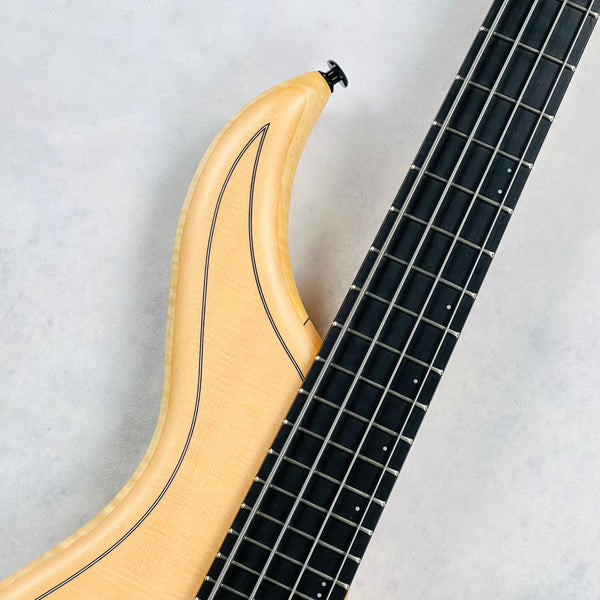

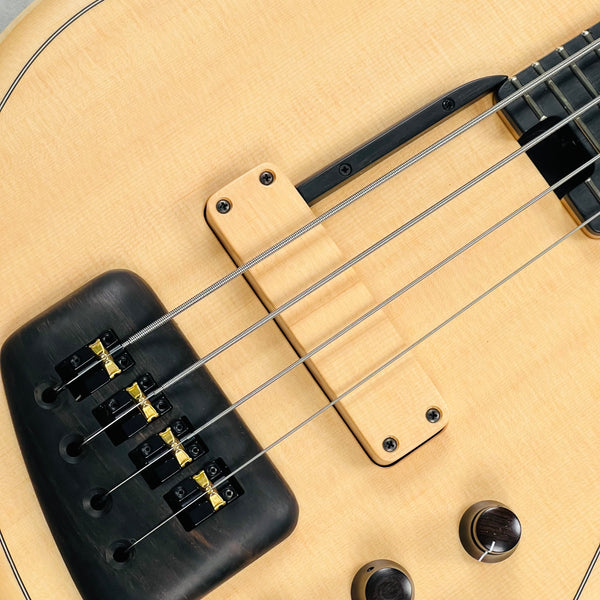

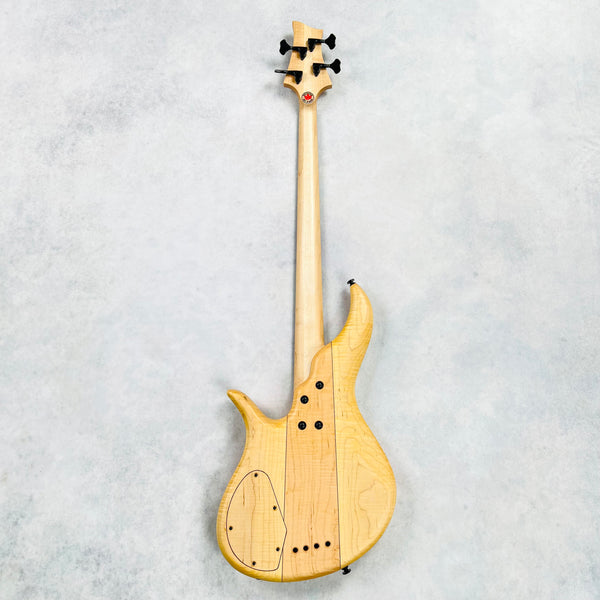

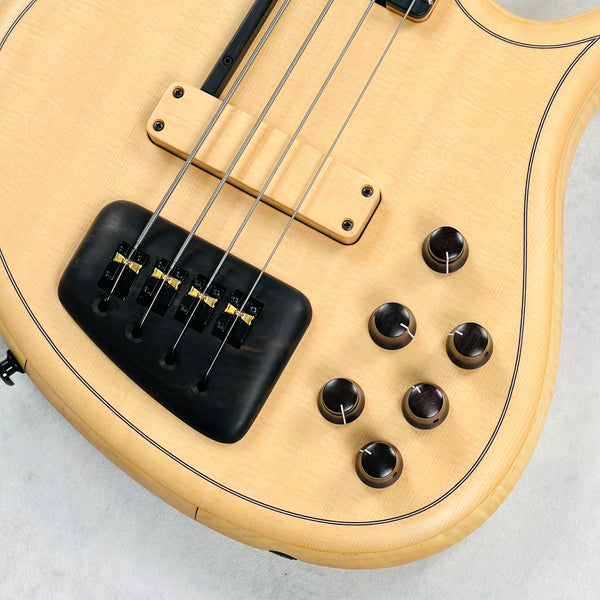

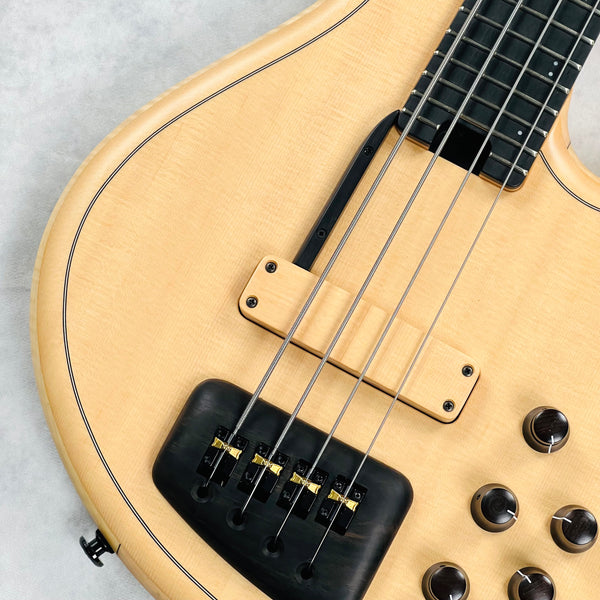

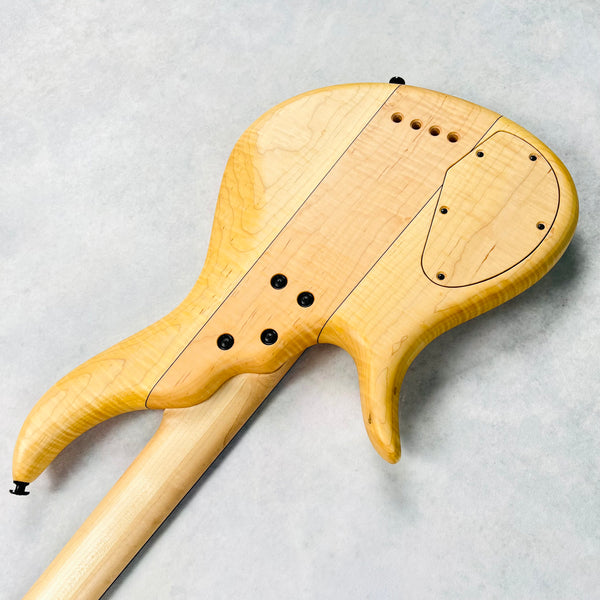

Reference Images
Visual reference gallery showing factory-correct details, finish, and hardware specifications for the AC-4 listed above. For larger pics, click on an image to open in a new tab.
