The Wolfgang USA Edward Van Halen Signature is a solid body electric guitar built by EVH. This double cutaway bolt on guitar was manufactured in the United States and is a EVH Wolfgang model. Key features include a Basswood Body, Maple Top, Quartersawn Maple Neck, Ebony Fretboard, EVH Wolfgang Humbucker Pickups and Stealth Black finish. The specs listed below pertain to the 2022 product year model pictured on this page.
Factory Specs
- Basswood Body
- Big Leaf Maple Top
- 5-Ply Body Binding
- Satin Urethan Body Finish
- Quartersawn Maple Neck
- Bolt On Construction
- Graphite Reinforced Neck
- Hand-Rubbed Satin Urethane Neck Finish
- Wolfgang Neck Profile
- 25.5" Scale Length
- 12-16" Compound Radius

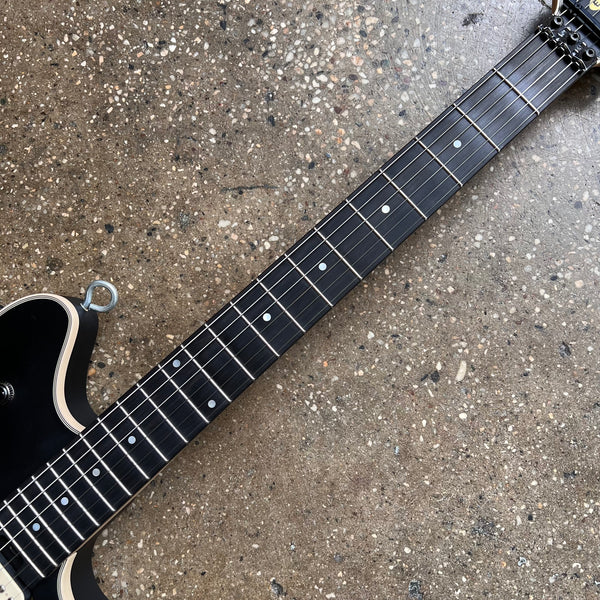

- Ebony Fretboard
- 22 Frets
- Vintage Stainless Steel Fret Wire

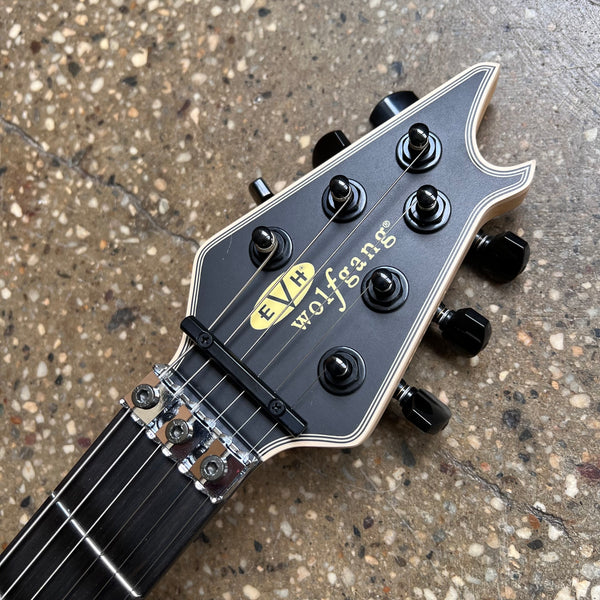

- Floyd Rose R2 Locking Nut
- 1.650" Nut Width
- Pearloid Dot Inlays
- Heel-Mount Truss Rod Adjustment Wheel

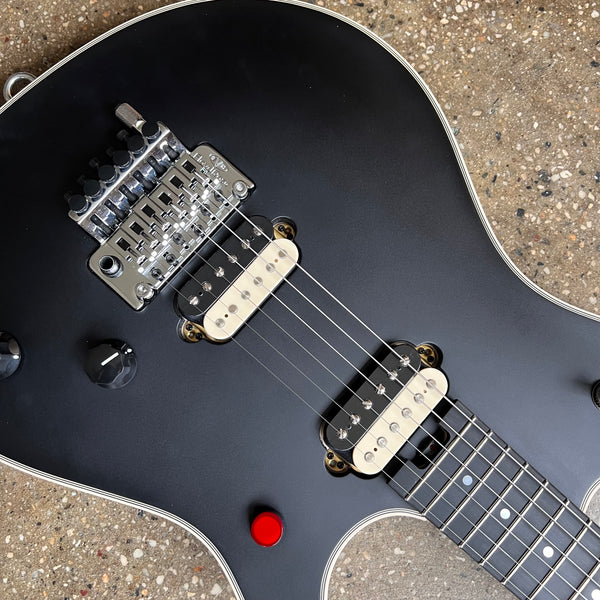

- EVH Branded Floyd Rose Locking Tremolo
- EVH D-Tuna
- Chrome Hardware
- Brass Tremolo Block

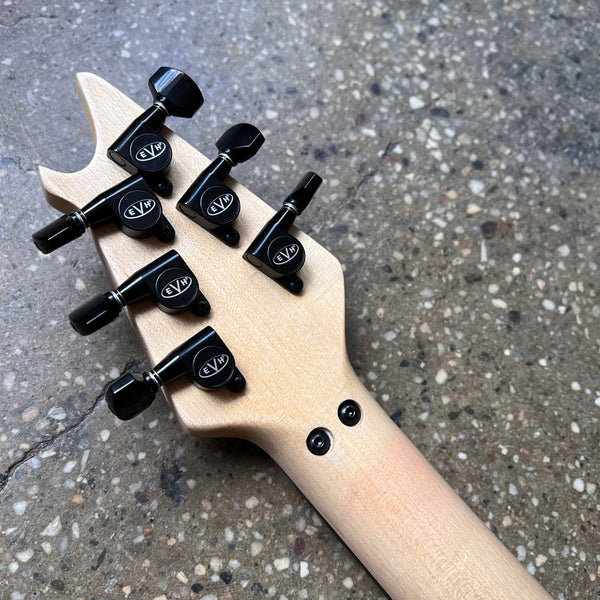

- EVH Branded Gotoh Tuning Machines
- Eye Hook Strap Buttons

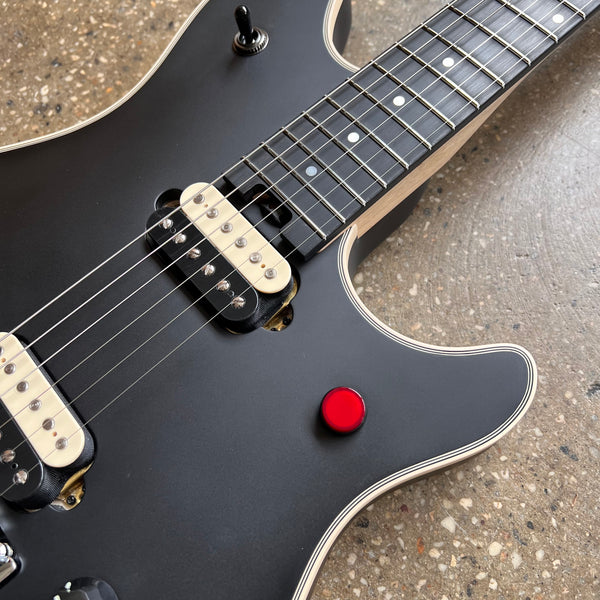

- Direct Mount EVH Wolfgang Bridge Humbucker
- Direct Mount EVH AL3 Neck Humbucker
- Zebra Pickup Coils
- Low Friction Volume Pot
- Treble Bleed Circuit
- High Friction Tone Pot
- Reverse 3 Position Switching
- Kill Switch

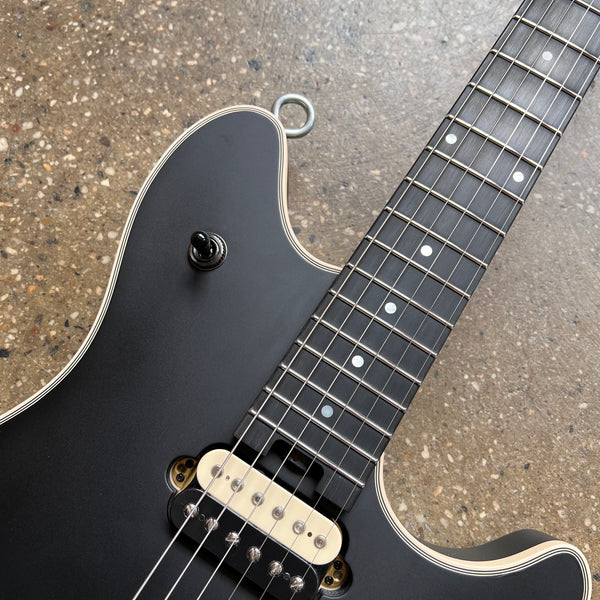

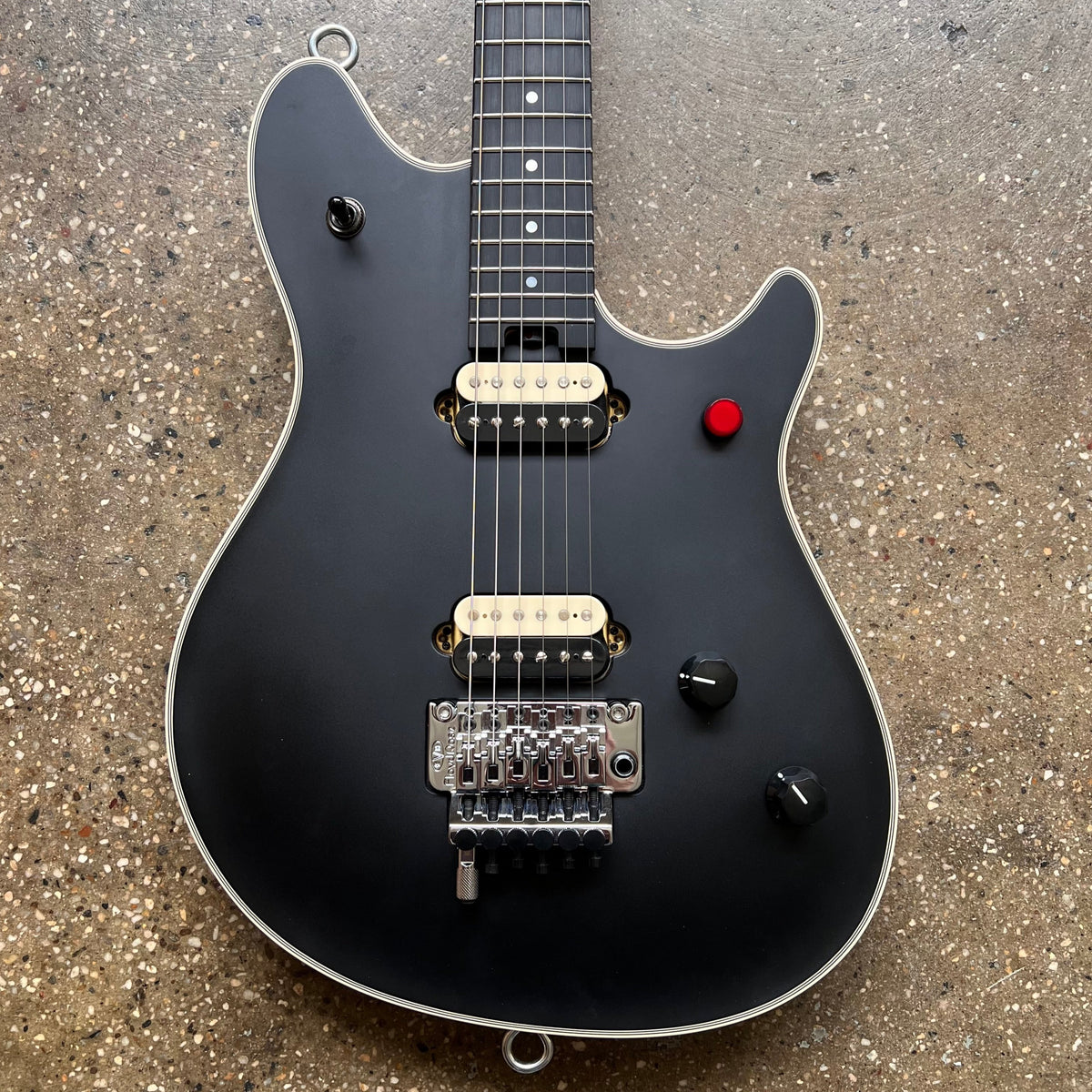

Reference Images

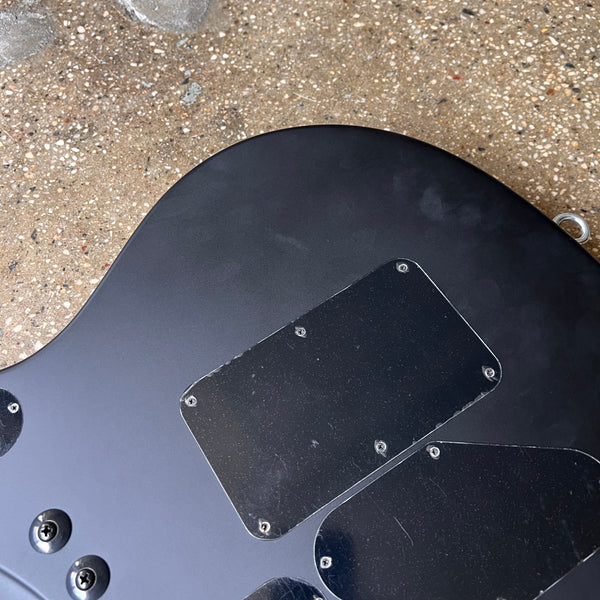

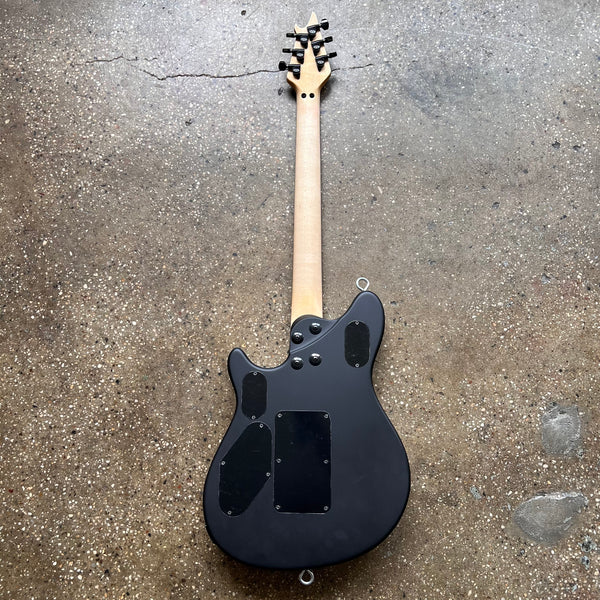

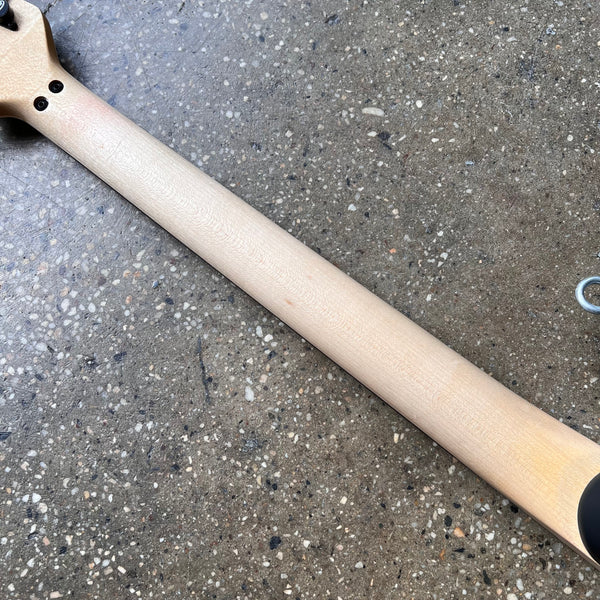

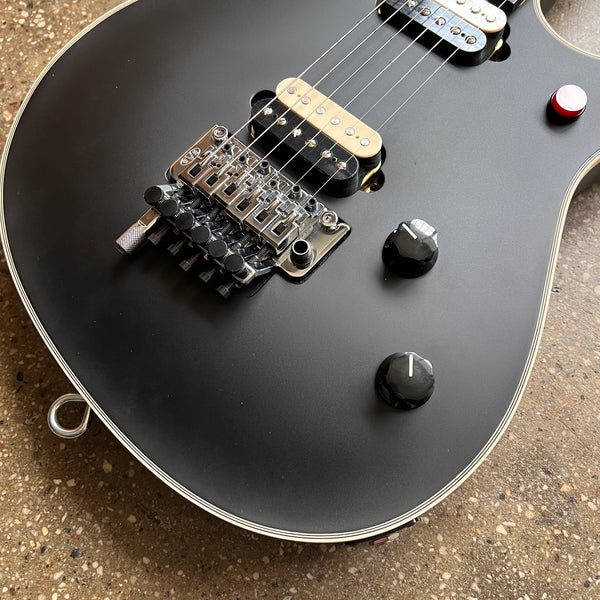

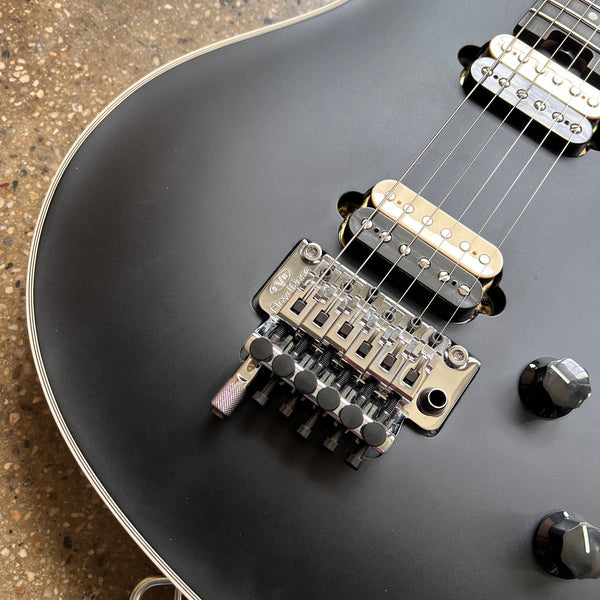

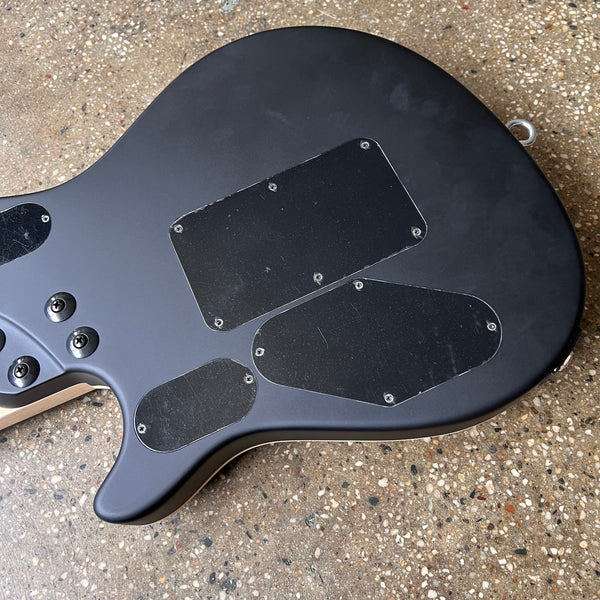

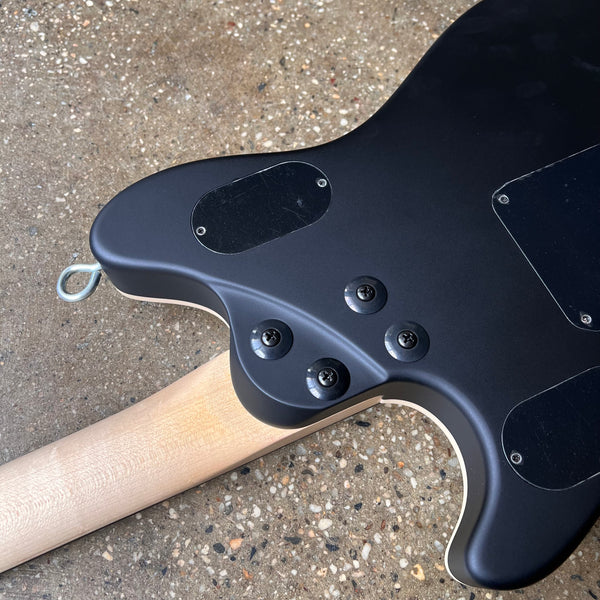

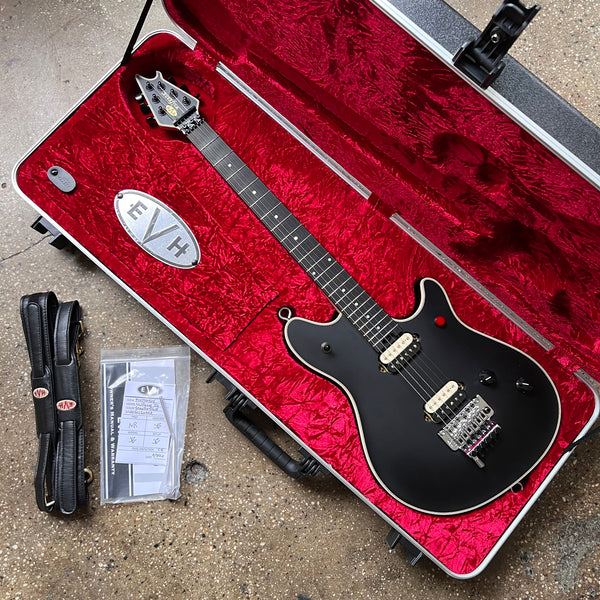

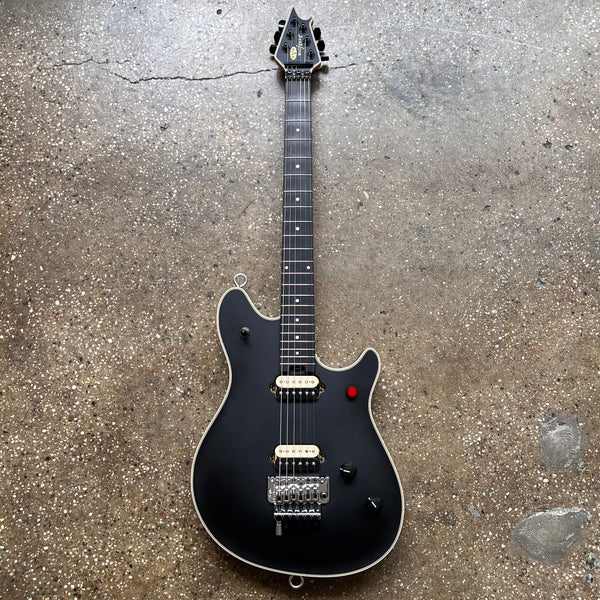

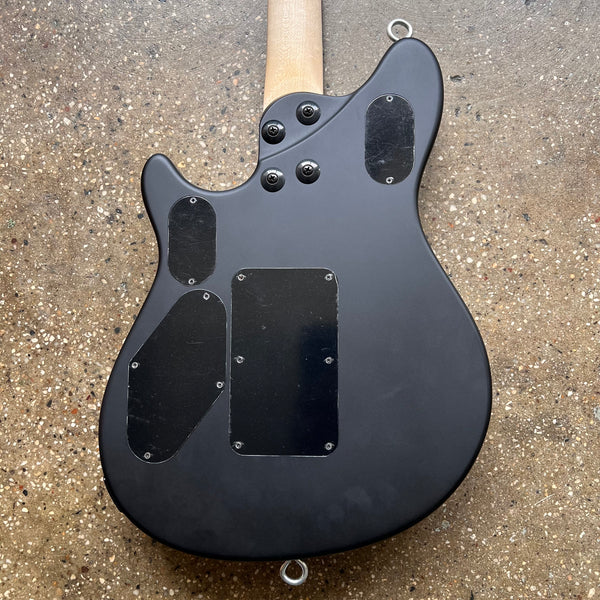

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Wolfgang USA Edward Van Halen Signature listed above. For larger pics, click on an image to open in a new tab.
