The Telecaster HS Floyd Rose NOS is a solid body electric guitar built by Fender Custom Shop. This t-style bolt on guitar was manufactured in Corona, CA in the United States and is a Fender Custom Shop Tele Pro model. Key features include an Ash Body, Quartersawn Maple Neck, 12" Radius, Floyd Rose Locking Tremolo, Seymour Duncan '59 Neck & Texas Special Tele Bridge Pickups and Butterscotch Blonde finish. The specs listed below pertain to the 2021 product year model pictured on this page.
Factory Specs
- Ash Body

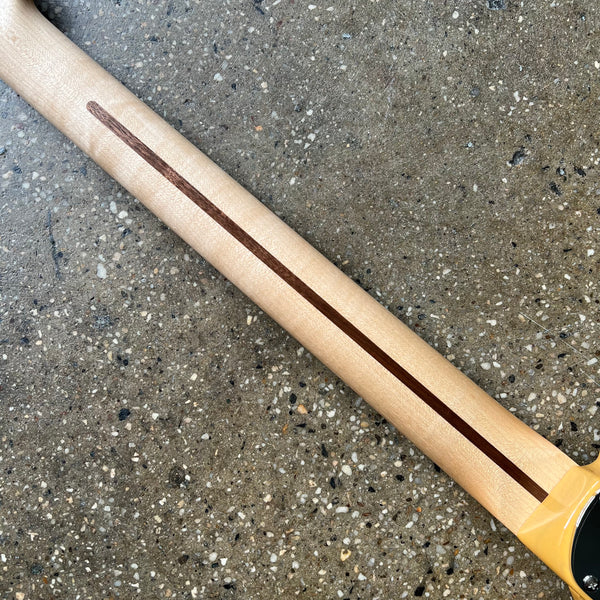

- Quartersawn Maple Neck

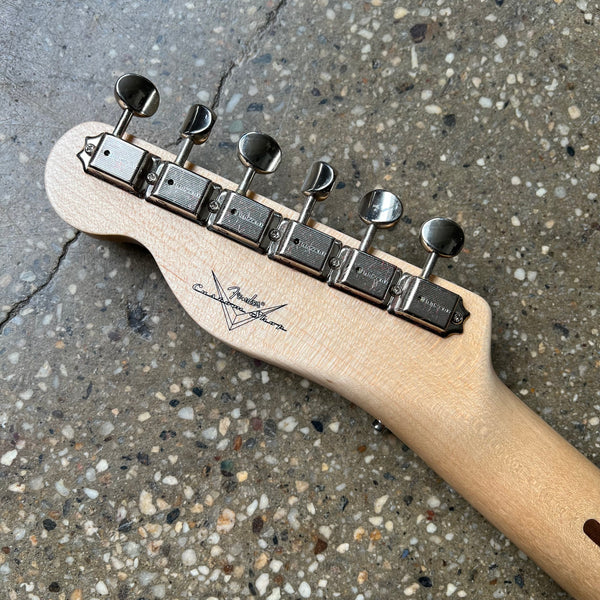

- Deluxe Tuners
- Dot Inlays
- 21 Frets
- Medium Jumbo Fret Wire
- 12" Radius
- 1.6875" Nut Width
- 25.5" Scale Length

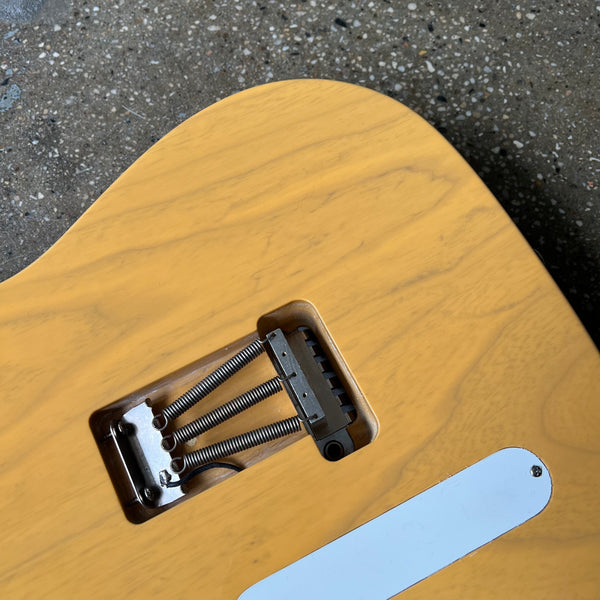

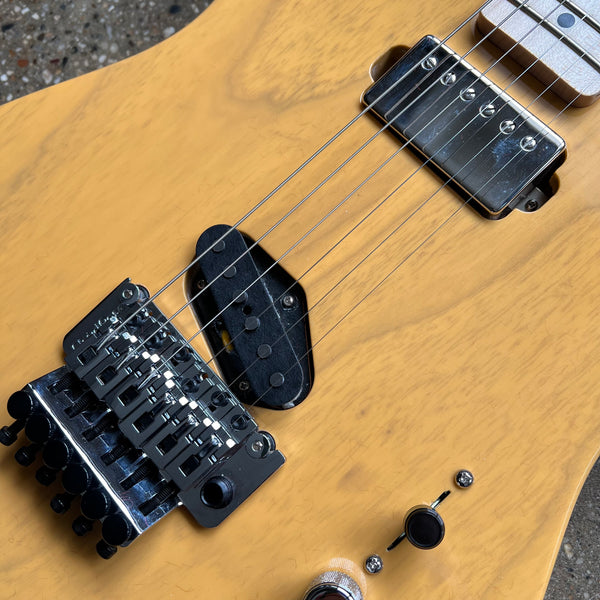

- Floyd Rose Locking Tremolo
- Floyd Rose Locking Nut
- String Retainer Bar
- Fender Custom Shop Texas Special Tele Bridge Pickup

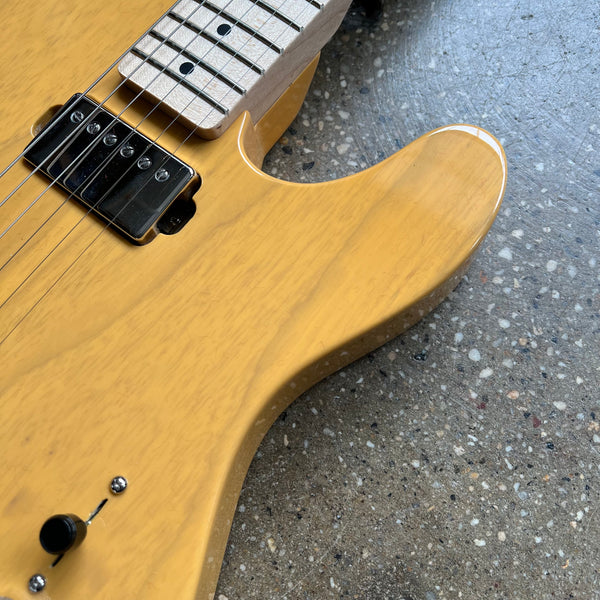

- Seymour Duncan 59 Humbucker Neck Pickup
- 3-Way Selector Switch
- One Volume & One Tone Control
- S1 Switch for Coil Tapping Humbucker
- Rear Loaded Controls
- No Pickguard
- NOS Lacquer Finish
Reference Images

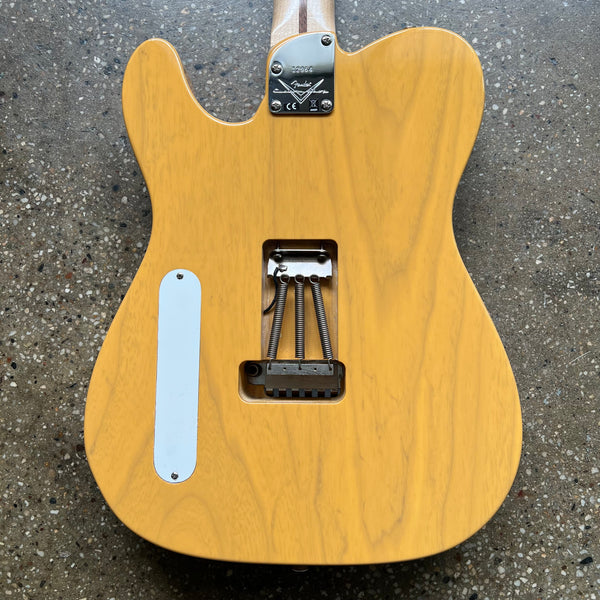

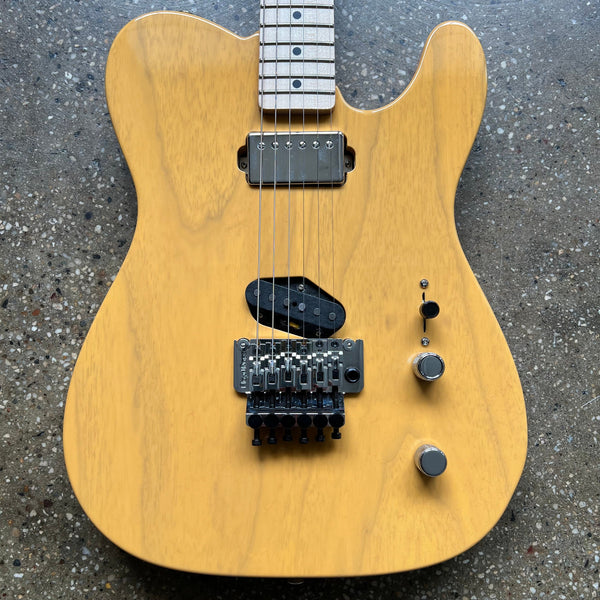

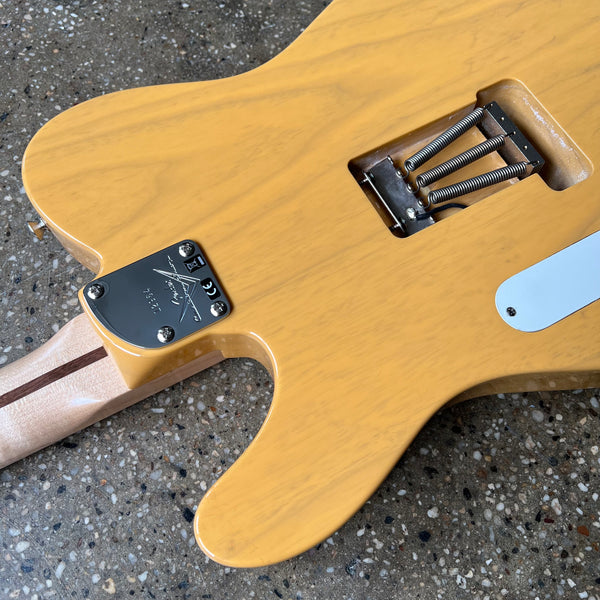

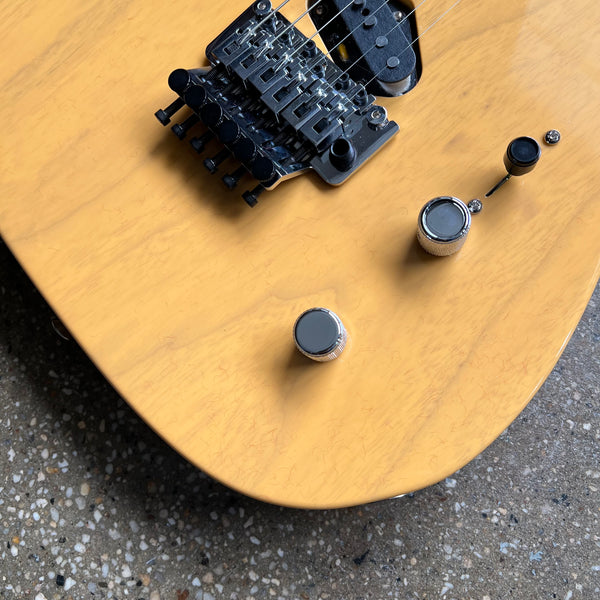

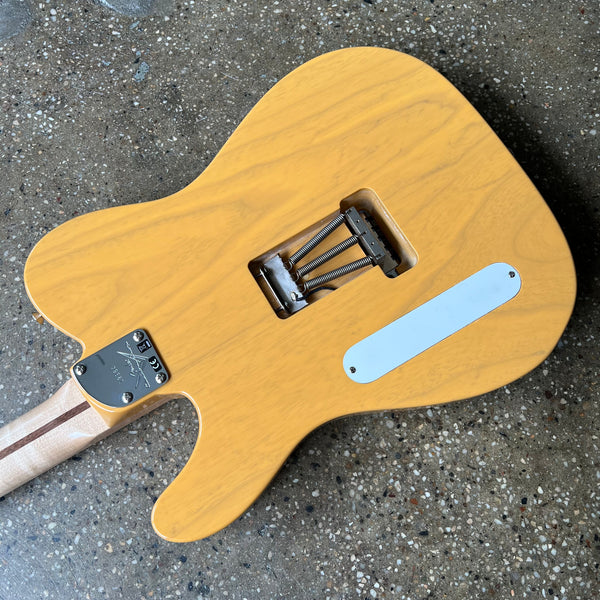

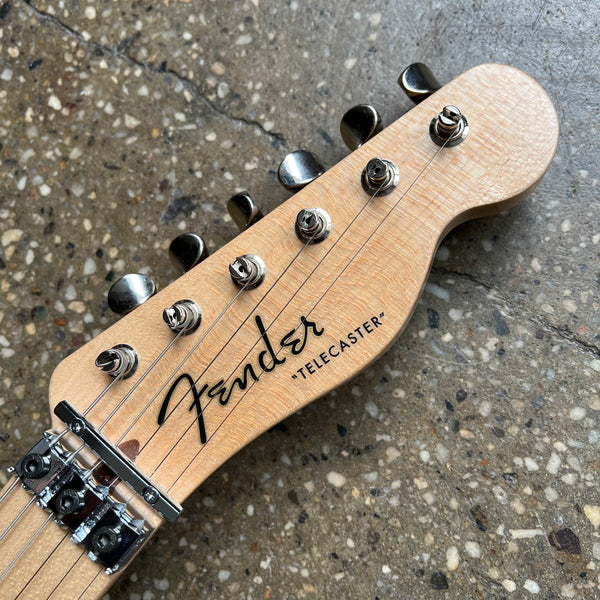

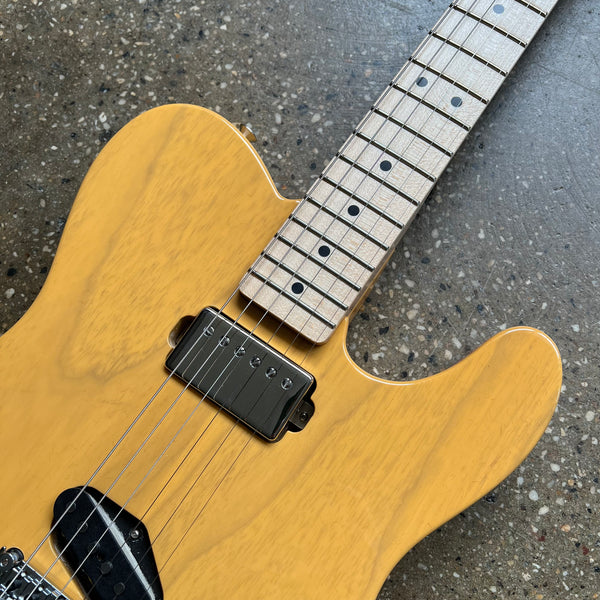

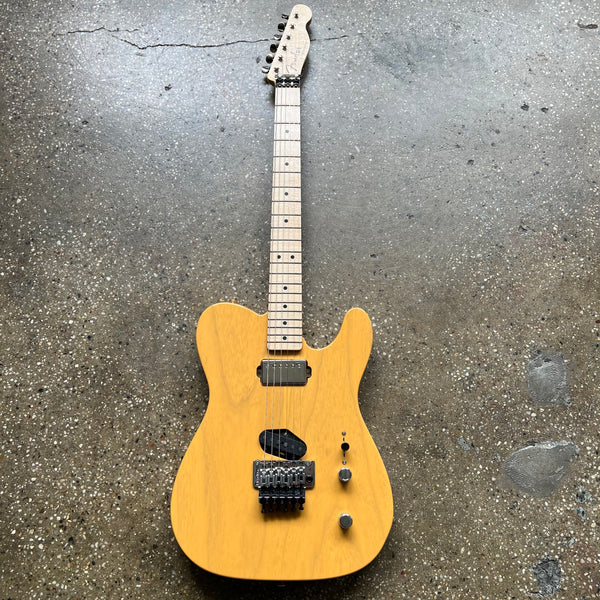

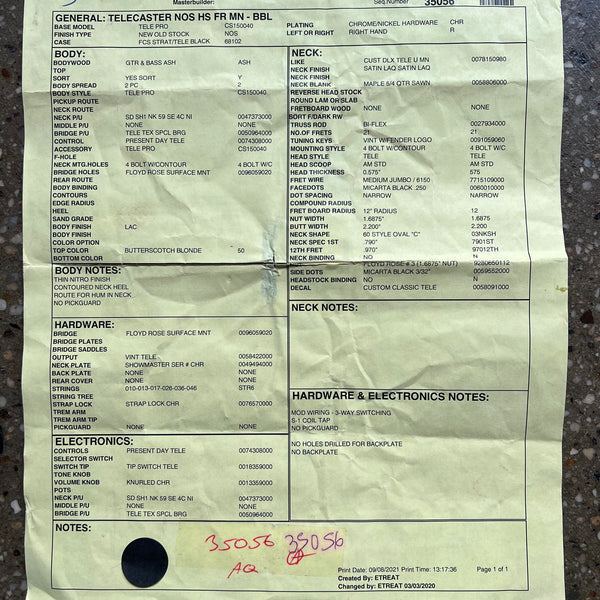

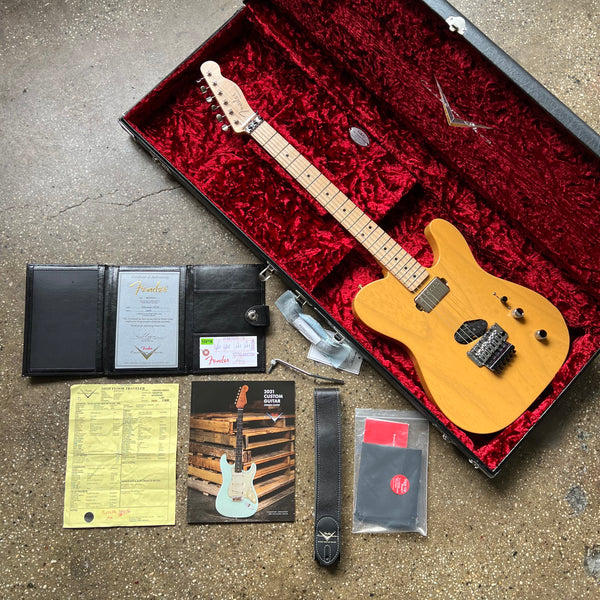

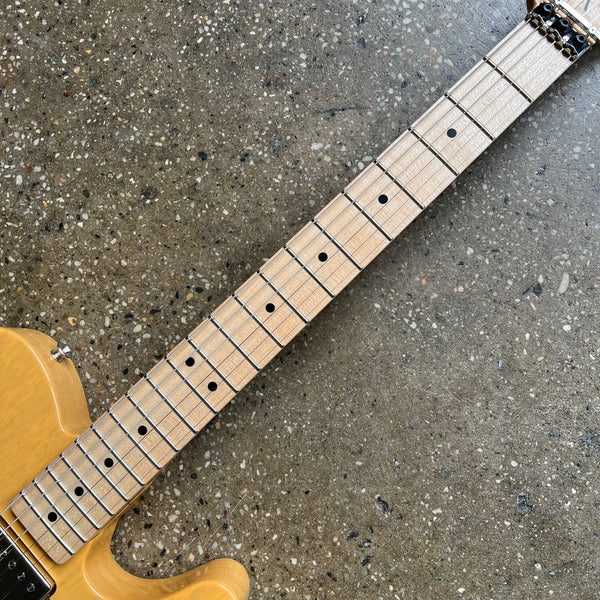

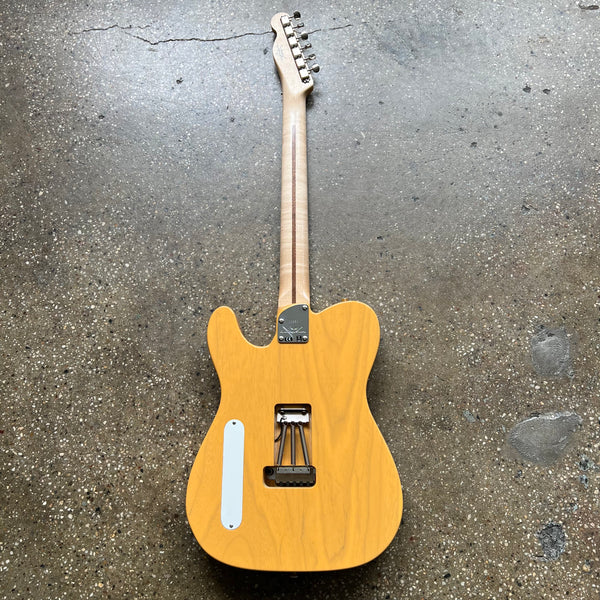

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Telecaster HS Floyd Rose NOS listed above. For larger pics, click on an image to open in a new tab.
